DTS X-BRICK User manual

X-BRICK
USER’S MANUAL rel. 1.0 GB

2
Le informazioni contenute in questo documento sono state attentamente redatte e
controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze.
Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato,
riprodotto per intero o in parte senza previo consenso scritto della D.T.S .
D.T.S. si riserva il diritto di apportare senza preavviso cambiamenti e modifiche
estetiche , funzionali o di design a ciascun proprio prodotto. D.T.S non assume alcuna
responsabilità sull’uso o sull’applicazione dei prodotti o dei circuiti descritti.
The information contained in this publication has been carefully prepared and
checked. However, no responsibility will be taken for any errors. All rights are
reserved and this document cannot be copied, photocopied or reproduced, in part or
completely, without prior written consent from D.T.S.
D.T.S. reserves the right to make any aesthetic, functional or design modifications to
any of its products without prior notice. D.T.S. assumes no responsibility for the use or
application of the products or circuits described herein.
Les informations contenues dans le présent manuel ont été rédigées et contrôlées
avec le plus grand soin. Nous déclinons toutefois toute responsabilité en cas
d'éventuelles inexactitudes. Tous droits réservés. Ce document ne peut être copié,
photocopié ou reproduit, dans sa totalité ou partiellement, sans le consentement
préalable de D.T.S.
D.T.S. se réserve le droit d'apporter toutes modifications et améliorations esthétiques,
fonctionnelles ou de design, sans préavis, à chacun de ses produits. D.T.S. décline
toute responsabilité sur l'utilisation ou sur l'application des produits ou des circuits
décrits.
Las informaciones contenidas en este documento han sido cuidadosamente
redactadas y controladas. Con todo, no se asume ninguna responsabilidad por
eventuales inexactitudes. Todos los derechos han sido reservados y este documento
no puede ser copiado, fotocopiado o reproducido, total o parcialmente, sin previa
autorización escrita de D.T.S.
D.T.S. se reserva el derecho a aportar sin previo aviso cambios y modificaciones de
carácter estético, funcional o de diseño a cada producto suyo. D.T.S. no se asume
responsabilidad de ningún tipo sobre la utilización o sobre la aplicación de los
productos o de los circuitos descritos.

3
INDEX:
1- SYMBOLS.................................................................................................................4
2- GENERAL WARNING ..............................................................................................5
3- GENERAL WARRANTY CONDITIONS....................................................................5
4- TECHNICAL FEATURES .........................................................................................5
5- ACCESSORIES ........................................................................................................7
6- IMPORTANT SAFETY INFORMATION....................................................................8
6.1 Fire prevention......................................................................................................8
6.2 Prevention of electric shock..................................................................................8
6.3 Safety...................................................................................................................8
6.4 Level of protection against the penetration of solid and liquid objects..................8
6.5 Waste Electrical and Electronic Equipment (WEEE) directive..............................9
7- INSTALLATION........................................................................................................9

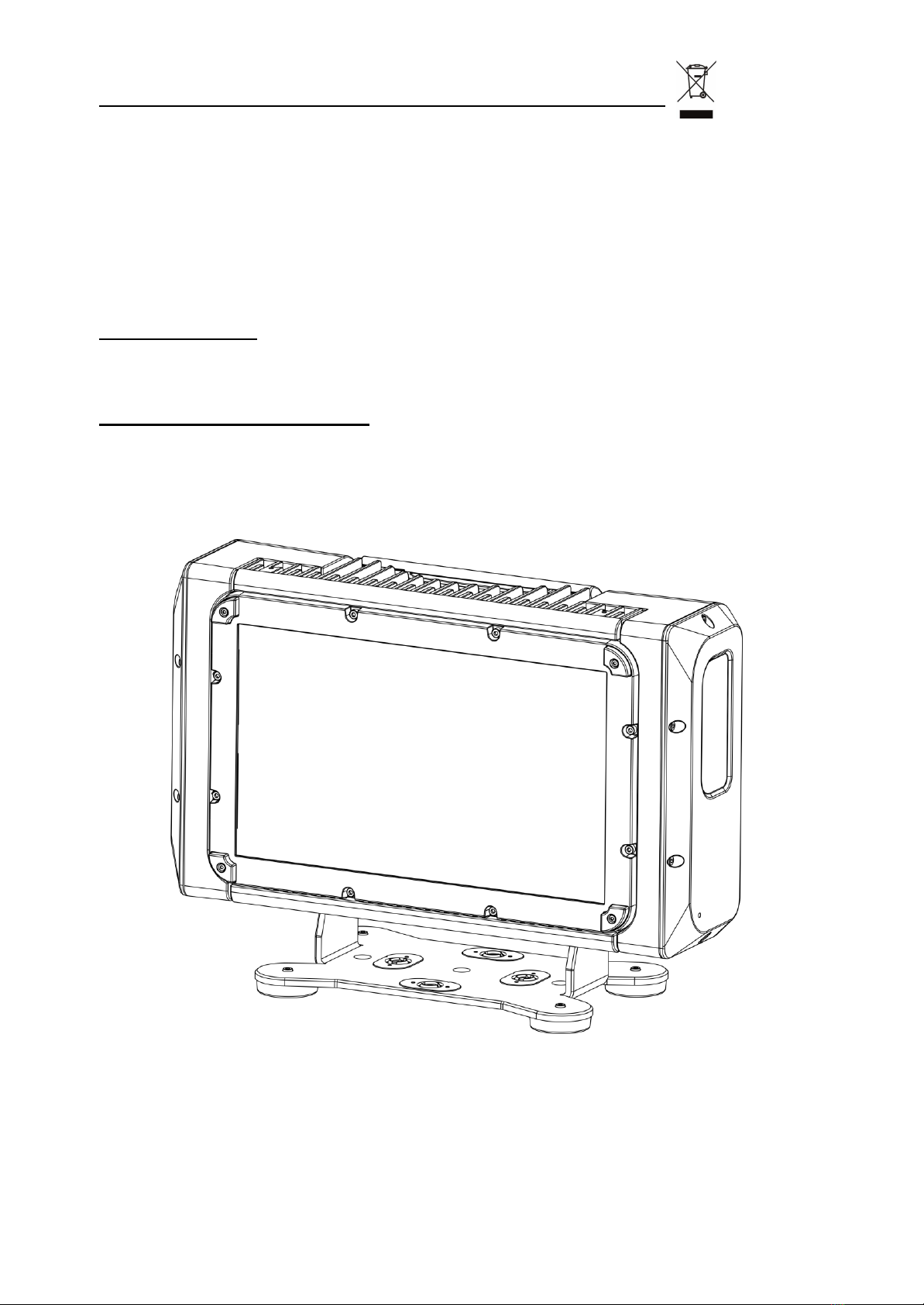

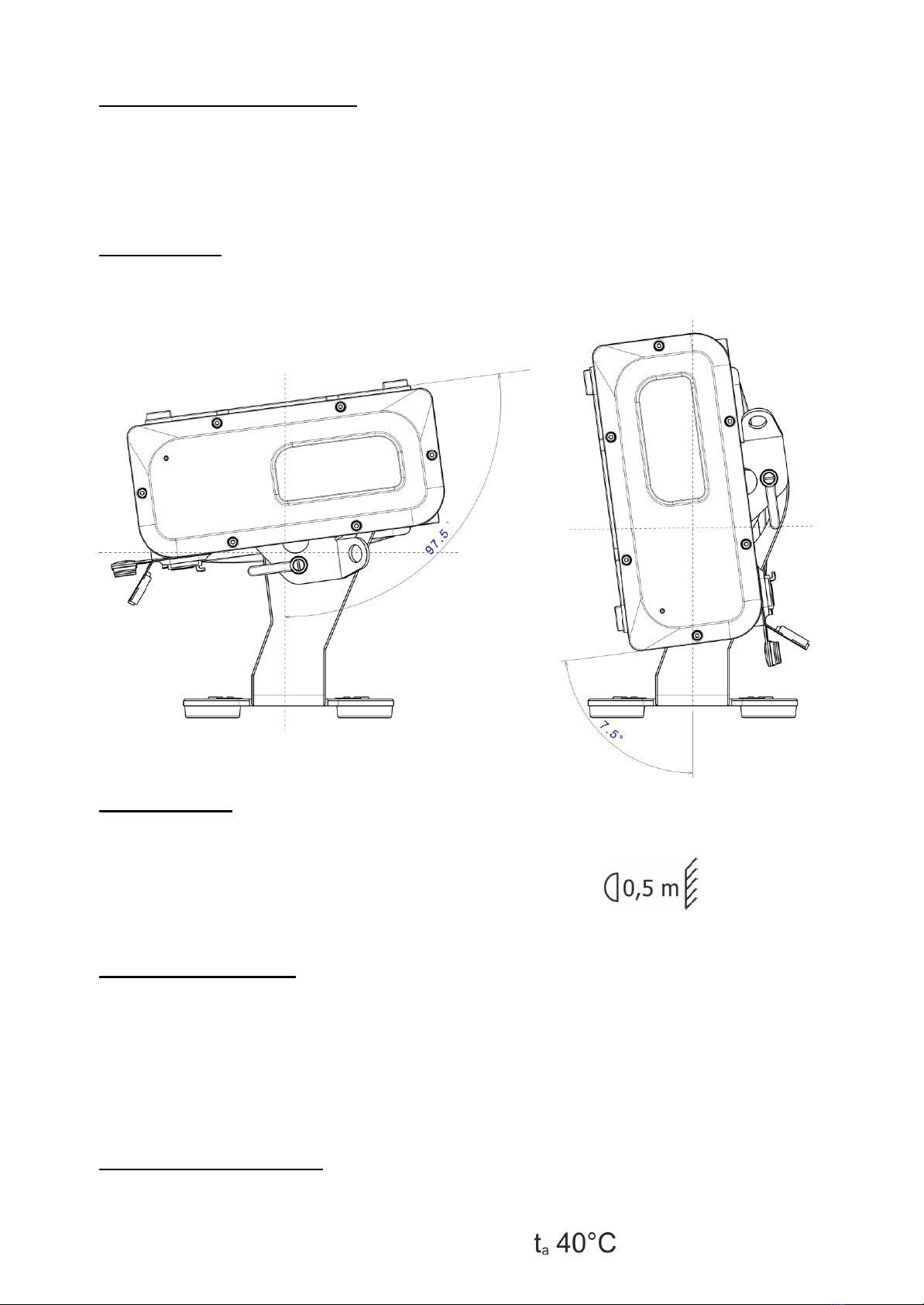

7.1 Floor mounting installation....................................................................................9

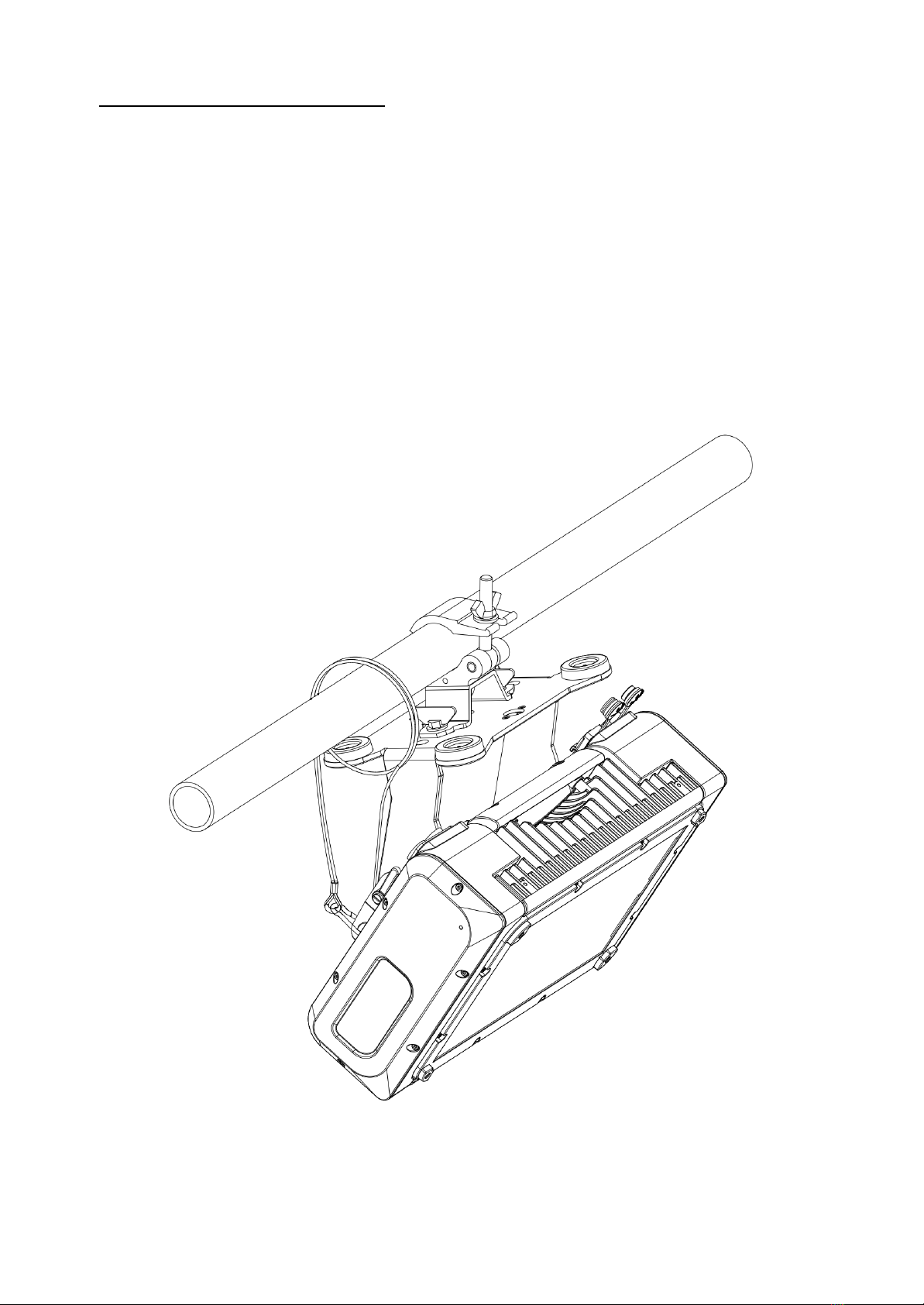

7.2 Ceiling mounting installation...............................................................................10
7.3 Display UV protection.........................................................................................11
7.4 Protection against liquids....................................................................................12
7.5 Movement...........................................................................................................12
7.6 Risk of fire ..........................................................................................................12
7.7 Forced ventilation...............................................................................................13
7.8 Ambient temperature..........................................................................................13

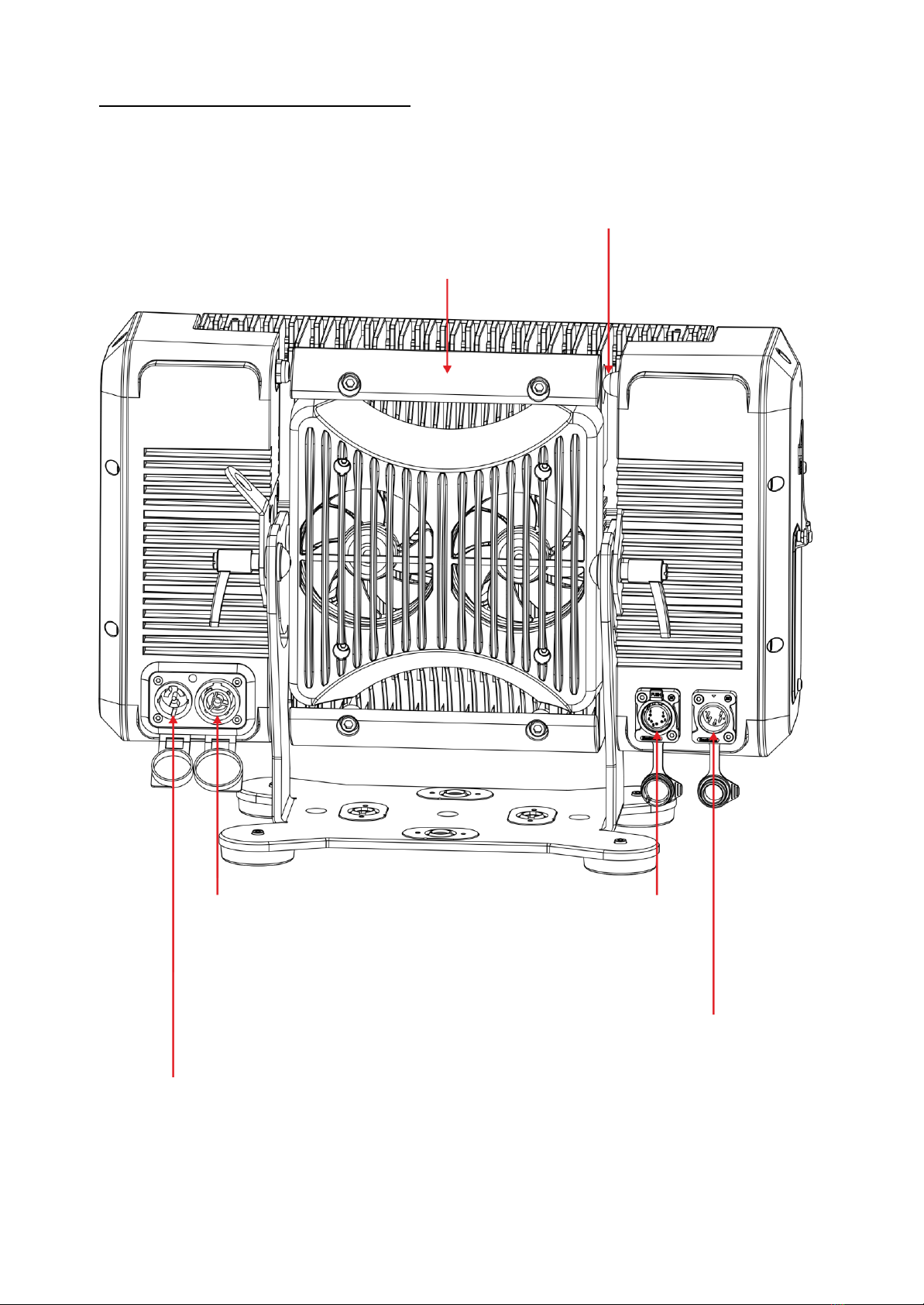

8- INPUT / OUTPUT CONNECTIONS.........................................................................13

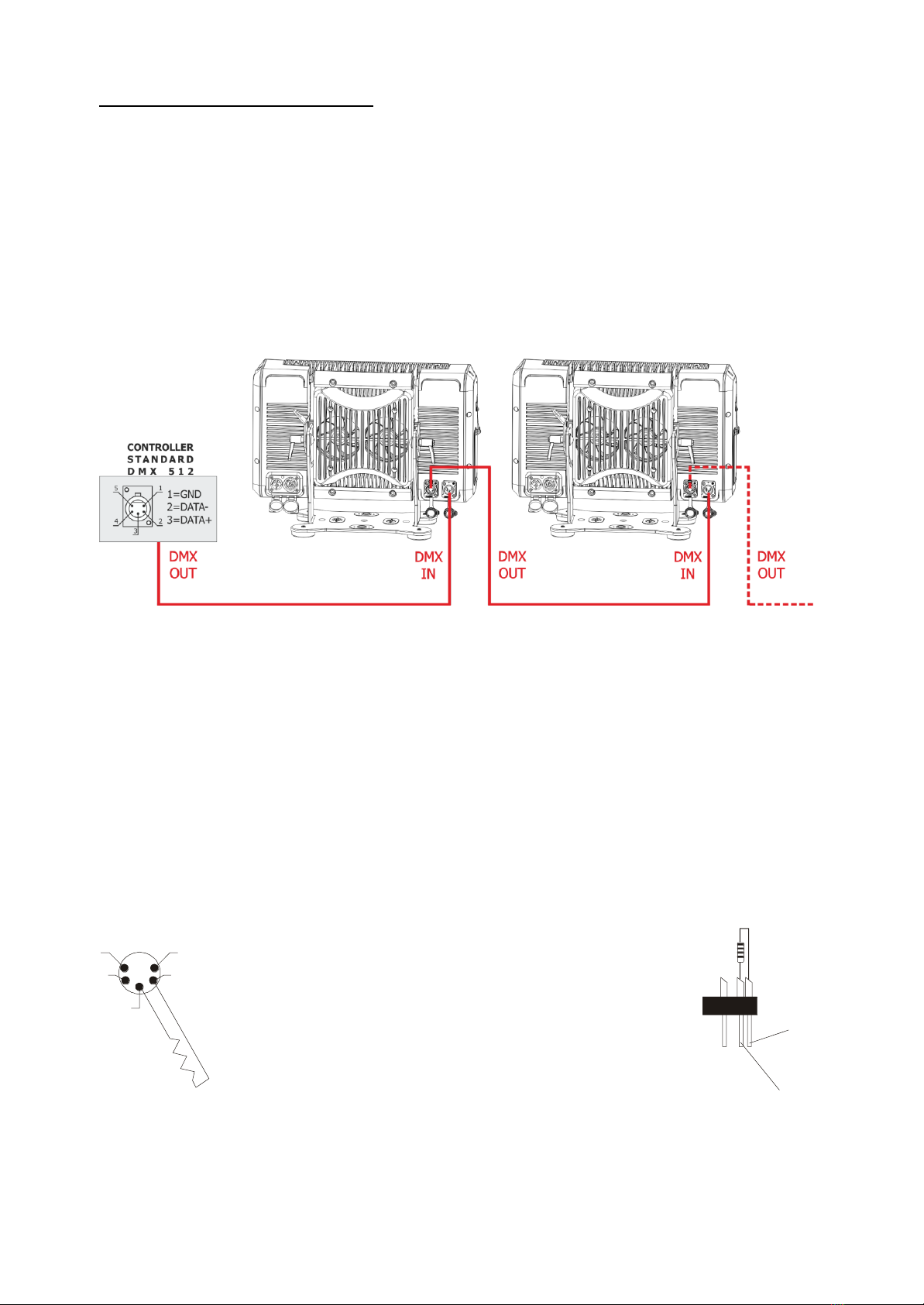

9- DMX SIGNAL CONNECTION.................................................................................14
9.1 DMX Addresses..................................................................................................15
9.2 Selecting the DMX address................................................................................15
10- RDM FUNCTIONS ................................................................................................15
11- FIRMWARE UPDATING.......................................................................................21
12- DISPLAY FUNCTIONS.........................................................................................22
13- REC MODE...........................................................................................................29
14- ERROR MESSAGES ............................................................................................30
15- PERIODIC CLEANING .........................................................................................31
16- PERIODIC CONTROLS........................................................................................31
17- HOLOGRAPHIC FILTER INSTALLATION...........................................................32
18- LENSES SET REPLACEMENT............................................................................33
19- BARNDOOR INSTALLATION..............................................................................34
20- LED PIXEL INVERT FUNCTION REFERENCES.................................................35
21- DMX PROTOCOL.................................................................................................36

4
1- SYMBOLS
Graphic symbols used on this manual:

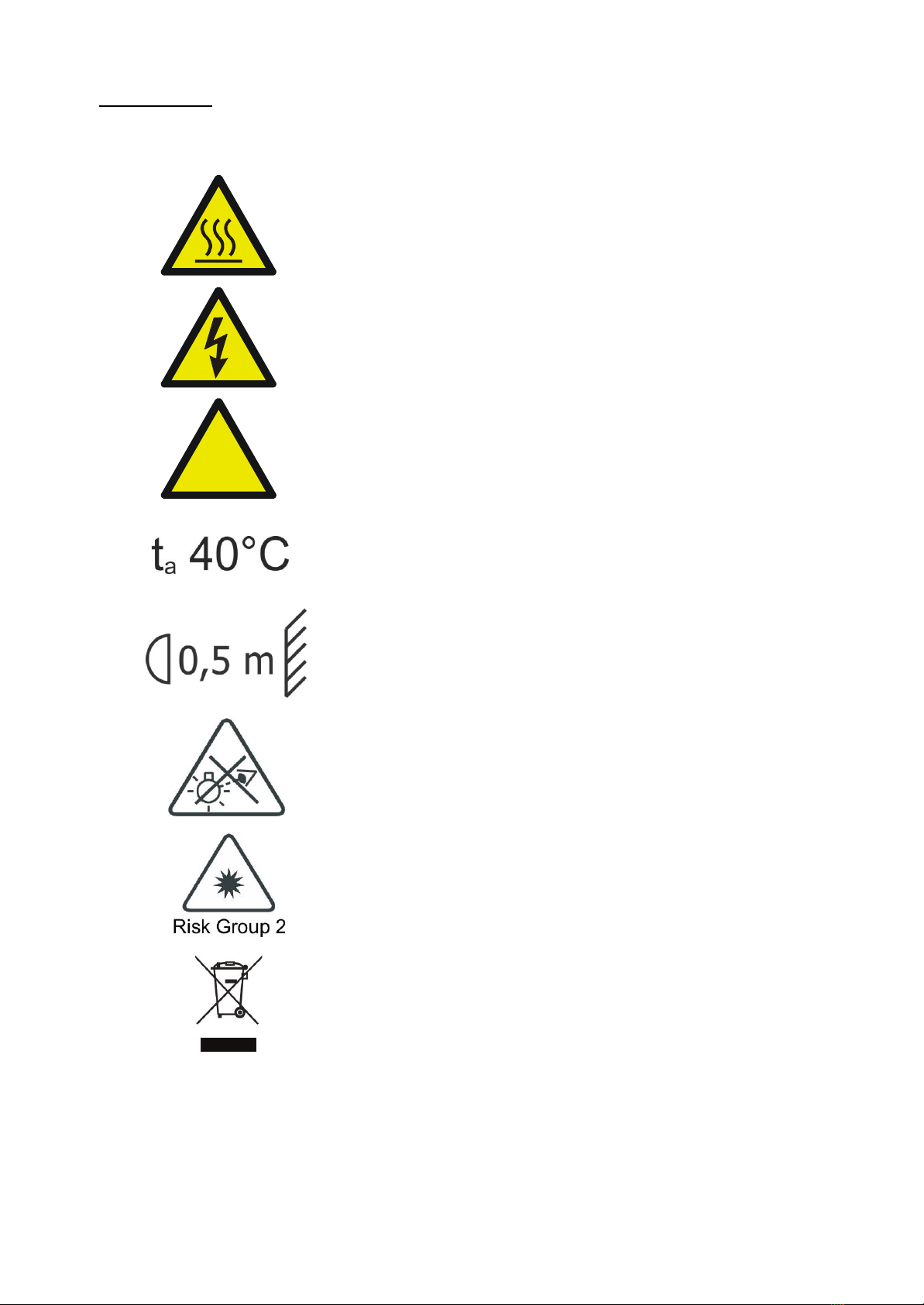

THIS SYMBOL INDICATES A HOT SURFACE
THIS SYMBOL INDICATES ELECTRIC
SHOCK RISK
THIS SYMBOL INDICATES GENERAL RISK
THIS SYMBOL INDICATES THE MAXIMUM
OPERATING AMBIENT TEMPERATURE
THIS SYMBOL INDICATES THE MINIMUM
DISTANCE FROM THE ILLUMINATED OBJECTS
THIS SYMBOL MEANS “DO NOT STARE
AT THE OPERATING LIGHT SOURCE”
THIS SYMBOL INDICATES
PHOTOBIOLOGICAL SAFETY
THIS SYMBOL INDICATES THE EUROPEAN
COMMUNITY DIRECTIVE 2012/19/EC ON
WASTE ELECTRICAL AND ELECTRONIC
EQUIPMENT (WEEE)
!

5
2- GENERAL WARNING
Read the instruction contained in this user manual carefully, as they give important
information regarding safety during installation, use and maintenance.
The unit is not for household use and must be installed by a qualified electrician or
experienced person.
Always disconnect the device from the mains before maintenance.
The device must always be equipped with an efficient ground connection.
3- GENERAL WARRANTY CONDITIONS
The unit is guaranteed for 36 months from the date of purchase against manufacturing
material defects.
The warranty covers defects in materials and workmanship. The warranty is not
appliable where a defect is caused by misuse or unauthorised repair of the product.
Any functional or/and physical modification of the product is not allowed.

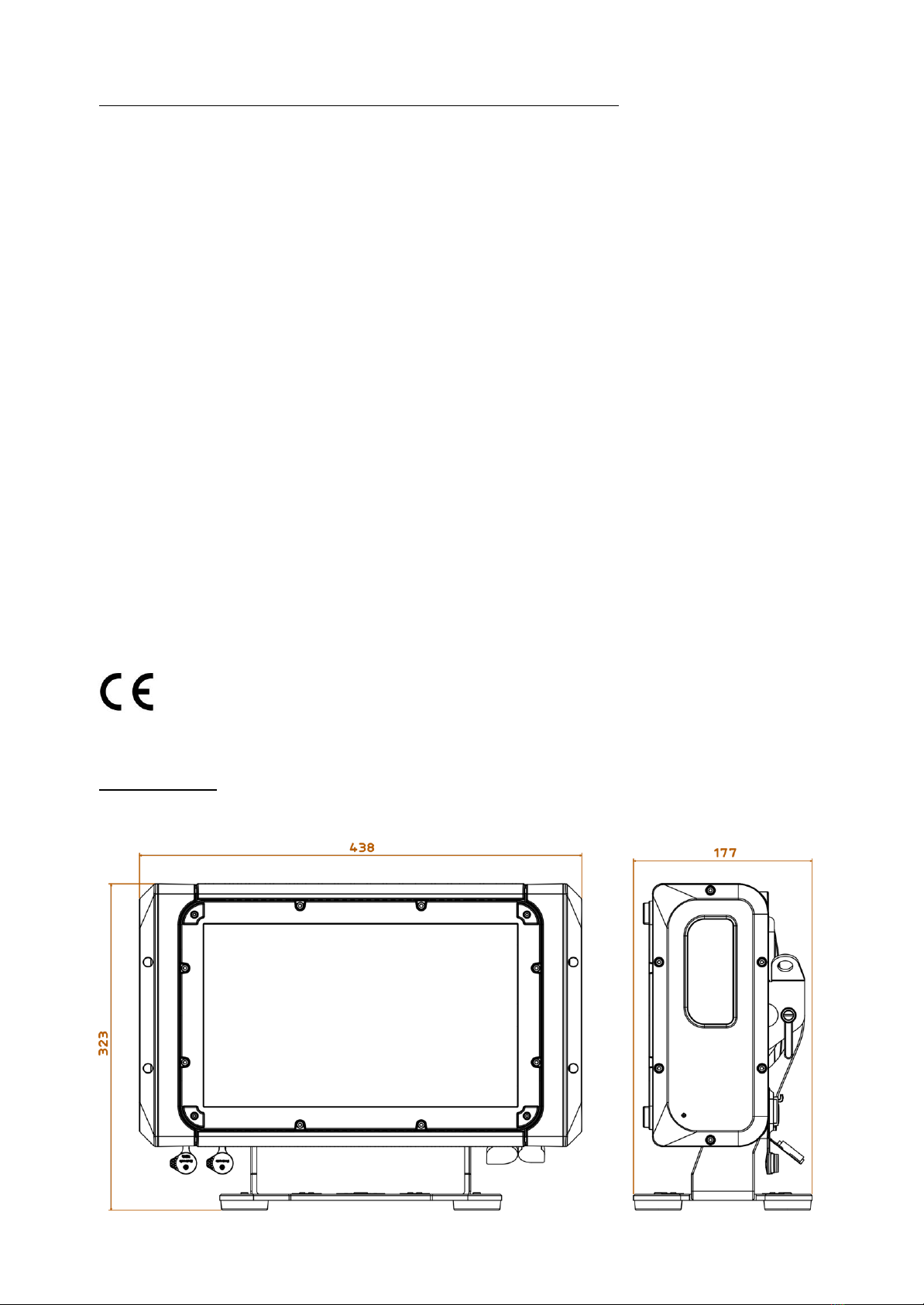

4- TECHNICAL FEATURES
DTS product codes:
03.LDB130S11FC X-BRICK FC Ultra-Narrow lenses Black finishing
Output
32 OSTAR STAGE “N” Full Color (RGBW) LEDs
15.300 lumens output
LED lifespan: 50.000 hours (70% lumen output)
Optical group
8° projection angle
Range of quick-mounting holographic filters included: 20° / 40° / 60°x10° (no mounting
tools required)
Uniform projection on surfaces
Color generation
16 million colors
Wide palette of pure uniform Whites with variable linear color temperature (2700K –
8000K)
16 gel filter emulations
Control
Wireless DMX transmitter/receiver (built-in)
DMX 512 / RDM protocols
LCD display + 4 capacitive touch keys
Internal operating system updatable via DTS Dongle Firmware Uploader
9 DMX modes:
DMX Full Operation modes
- Chase (default)
- Extended
- Sectors RGBW X4
- Sectors RGBW Fine X4
- Sectors RGBW + Shut + Dim X4
