1- SYMBOLS
Graphic symbols used on this manual:
THIS SYMBOL INDICATES A HOT SURFACE
THIS SYMBOL INDICATES ELECTRIC
SHOCK RISK
THIS SYMBOL INDICATES GENERAL RISK
THIS SYMBOL INDICATES THE MAXIMUM
OPERATING AMBIENT TEMPERATURE
THIS SYMBOL MEANS “SUITABLE FOR
MOUNTING ON NORMALLY FLAMMABLE
SURFACES”
THIS SYMBOL INDICATES THE MINIMUM
DISTANCE FROM THE ILLUMINATED OBJECTS
THIS SYMBOL MEANS “DO NOT STARE
AT THE OPERATING LIGHT SOURCE”
THIS SYMBOL INDICATES
PHOTOBIOLOGICAL SAFETY
THIS SYMBOL INDICATES THE EUROPEAN
COMMUNITY DIRECTIVE 2012/19/EC ON
WASTE ELECTRICAL AND ELECTRONIC
EQUIPMENT (WEEE)
!

5
2- GENERAL WARNING
Read the instruction contained in this user manual carefully, as they give important
information regarding safety during installation, use and maintenance.
The unit is not for household use and must be installed by a qualified electrician or
experienced person.
Always disconnect the device from the mains before maintenance.
The device must always be equipped with an efficient ground connection.
3- GENERAL WARRANTY CONDITIONS
The unit is guaranteed for 36 months from the date of purchase against manufacturing
material defects.
4- TECHNICAL FEATURES
OVERVIEW
The new MINI BRICK is a powerful, self-contained, IP65 LED Wash light in an ultra-
compact case.
MINI BRICK is suitable for various purposes, offering a range of projection angles
quickly interchangeable (no tools required).
MINI BRICK comes with an IP65 power cable plus 2 DMX cables with M / F XLR
connectors (all IP65), that make it perfect for temporary lighting applications, but also
for safe long-lasting installations.
Built with top quality components, MINI BRICK gives you the best value for money by
efficient design and full production automation.
DTS product codes:
03.LDB120S11FC08 MINI BRICK FC ULTRA-NARROW lenses Black finishing
Available on demand:
03.LDB120S11FC10 MINI BRICK FC NARROW lenses Black finishing
03.LDB120S11FC25 MINI BRICK FC MEDIUM Flood lenses Black finishing
03.LDB120S11FC40 MINI BRICK FC WIDE Flood lenses Black finishing
LED Technology
12 x OSTAR STAGE “N” FULL RGBW LEDs
Optical group
8° projection angle
Range of quick-mounting holographic filters included: 20° / 40° / 60°x10° (no mounting
tools required)
Uniform projection on surfaces
Color generation
16 million colors
Wide palette of pure uniform Whites with variable linear color temperature (2700K –
8000K)

6
4- TECHNICAL FEATURES
Control
DMX 512 / RDM
10 DMX channels (Default)
4-digit 7-segment LED display + 4 soft keys
Protection
IP 65
Power supply
Built-in full-range PSU 100-240Vac 50-60 Hz
Consumption: 200VA Max
Connections
Power supply: 3 x 1 sq mm cable (1,5 m length)
DMX In/Out: 0,7 m cable with XLR 5 pins IP65 connector
Operating ambient temperature
-10° / 40°
Weight
10 Kg
Certifications
2014/35/UE ; 2014/30/UE
IEC 62471 ; IEC 695-2-1
EN 60598-1 ; EN 62471 ; EN 61347-2-13
EN 60598-2-17 ; EN 55015 EMC ; EN 61347-1

7

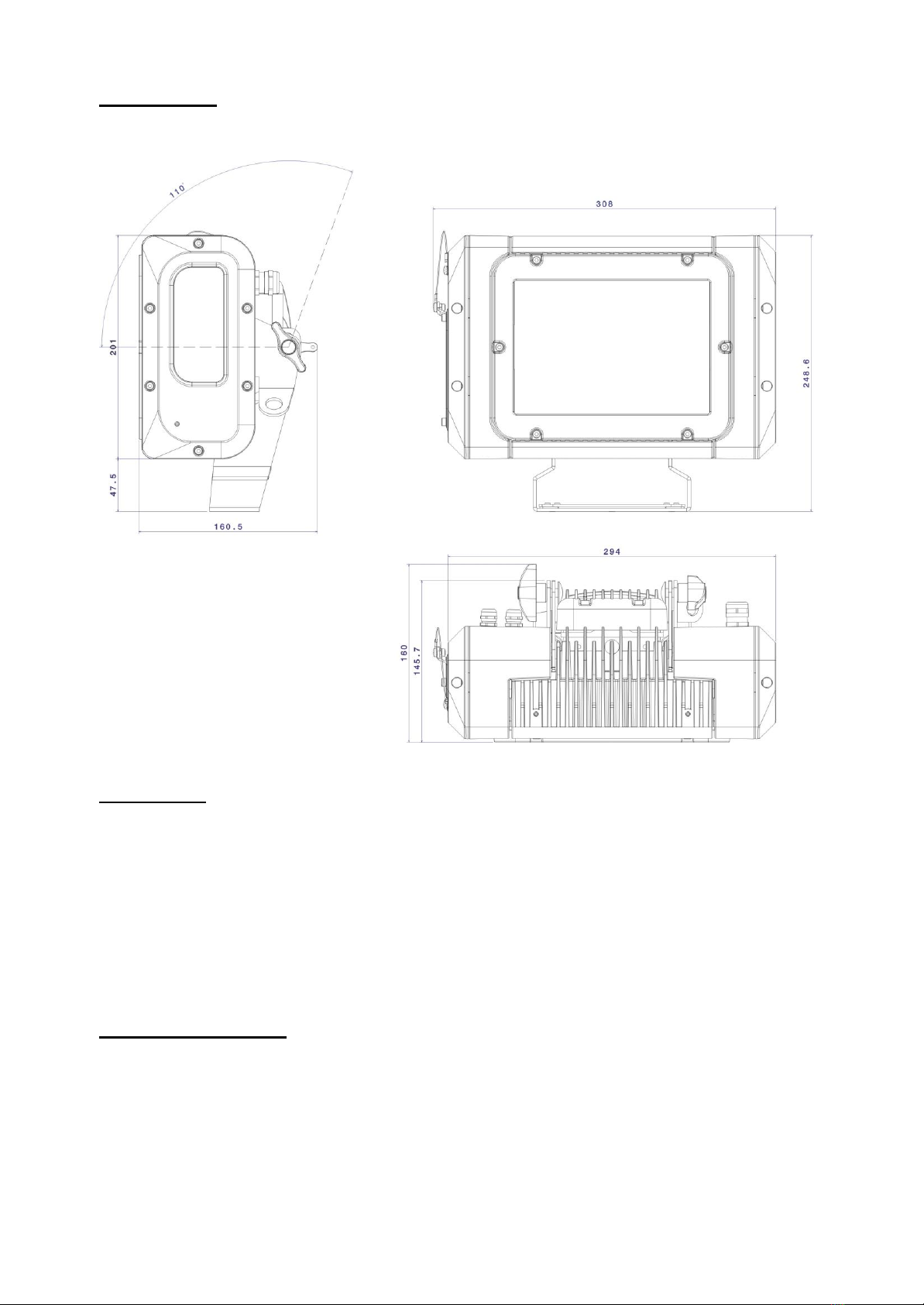

DIMENSIONS
5- ACCESSORIES
As standard
1 x Holographic filter 20° (code 0506A043.D11)
1 x Holographic filter 40° (code 0506A045.D11)
1 x Holographic filter 60°x10° (code 0506A092.D11)
1 x Display UV protection (code 03.LA.218)
1 x PowerCON TRUE1 female cable connector (code 0520P066)
1 x PowerCON TRUE1 male cable connector (code 0520P067)
1 x User’s Manual
Optional (on request)
- Bracket for ground installation (code 03.LA.213)
- Barndoor black finishing (code 03.LA.211)
- Permanent installation kit IP68: Power IN IP68 cable connector + 2 x DMX IN/OUT
IP68 cable connectors (code 03.LA.214)
- Aliscaf clamp for tube diameter 50 mm (Max load 100 Kg) (code 0521A008)
(indicated for any kind of loads vertical / horizontal)
- Professional Quick trigger clamp (Max load 100 Kg) (code 0521A037) (not indicated
for horizontal load)
- “C” Clamp G60 (Max load 50 Kg) (code 0521A004) (not indicated for horizontal load)
- Safety cable 3 mm x 60 cm (Max load 60 Kg) (code 0521A010)

8
6- IMPORTANT SAFETY INFORMATION
6.1 Fire prevention:
-It is permissible to place the unit on normally flammable surfaces.
Suitable for mounting on normally flammable materials surfaces greater than 200°C
with some combustion time lag.
-Minimum distance from the closest illuminable surface: 0,5 m.
-Replace any blown or damaged fuses only with those of identical value (T 2.5A
250V).
Refer to the wiring diagram if there is any doubt.
-Connect the unit to mains power via a thermal magnetic circuit breaker.
6.2 Prevention of electric shock:
-High voltage is present inside the unit. Unplug the unit prior to performing any
function which involves touching the inside of the projector.
-The level of technology inherent in the MINI BRICK requires the assistance of
specialised personnel for all servicing.
Please refer to an authorised DTS service centre.
-A good earth connection is essential for proper functioning of the unit.
-Never connect the unit without proper earth connection.
-The fixture should be located in places with a good air ventilation.
6.3 Safety:
-Risk Group 2 product according to EN 62471.
CAUTION. Do not look directly into the light output. May be harmful to the eyes and
skin.
-Do not stare at the operating light source.
-The light source contained in this luminaire shall only be replaced by the
manufacturer or his service agent or a similar qualified person.
-The unit is not for household use and must be installed by a qualified electrician or
experienced person.
-The projector should always be installed with bolts, clamps and other tools that are
capable of supporting the weight of the unit.
-Always use a second safety cable to sustain the weight of the unit in case of the
failure of the main fixing point.
-The external surface of the unit, at various points, may exceed 60°C. Never handle
the unit until at least 5 minutes have elapsed since the projector was turned off.
-Never install the fixture in an enclosed area lacking sufficient air flow.
The ambient temperature should not exceed 40°C.
6.4 Level of protection against the penetration of solid and liquid objects:
-The projector is classified as an outdoor appliance and its protection level against the
penetration of solid and liquid objects is IP65.
Suitable for wet locations.
!
!

9
6.5 Waste Electrical and Electronic equipment (WEEE) directive:
-The machine, accessories and packaging should be sorted for environmetal-friendly
Recycling.
For EC countries: according to the European Directive 2012/19/EC for Waste
Electrical and Electronic Equipment and its implementation into national right,
luminaires that are no longer usable must be collected separately and disposed of in
an environmentally correct manner.
7- INSTALLATION
The unit is suitable for wet locations.
7.1 Floor mounting installation
MINI BRICK may be either floor or ceiling mounted.
For floor mounting installation, as standard, MINI BRICK can be used as a self
standing projector.
Moreover, as additional accessory, a bracket with 4 rubber mounting feet (code
03.LA.213) is available on demand.

10
7.2 Ceiling mounting installation
For ceiling mounting installation, it is recommended the use of appropriate clamps to
fix the unit to the mounting surface.
The supporting structure from which the unit is hung should be capable of bearing the
weight of the unit, as should any clamps used to hung it.
For outdoor application where MINI BRICK needs to be installed vertically keep the
unit display towards the floor.
ATTENTION:
A safety cable (code 0521A010) must be securely fixed to the unit’s mounting bracket
and to the support structure of the projector as shown in the picture.
Fixing clamps and safety cable are available on demand.

11
7.3 Display UV Protection
For outdoor installation, MINI BRICK is provided with a Display UV protection (code
03.LA.218).
To install the Display UV protection:
Put in place the UV protection plate and the gasket on the display panel and fix both
with the 2 marked screws provided in the kit.
Fix the safety cable on the side cap with the marked screw and the washer provided in
the kit as shown in the picture.
7.4 Permanent installation kit
A permanent installation kit for IP68 cable connections (code 03.LA.214) is available
on demand.
Included in the kit:
1 x Power IN IP68 cable connector (code 0520P080)
2 x DMX IN IP68 cable connector (code 0520P082)
2 x DMX OUT IP68 cable connector (code 0520P081)

12
7.5 Protection against liquids
If IP65 protection is impaired for any reason, do not expose this product to external
atmospheric agents, because it could be damaged.
7.6 Movement
The projector has a maximum movement of 110° for Tilt.
7.7- Risk of fire
Each fixture produces heat and must be installed in a well-ventilated place.
It is permissible to place the unit on normally flammable materials surfaces.
Suitable for mounting on normally flammable materials surfaces greater than 200°C
with some combustion time lag.
Minimum distance from the object being illuminated is 0,5 m.

13
7.8- Forced ventilation
You will note, on inspection, that the unit features various air inlets and cooling fans.
These should, under no circumstances, be blocked or obstructed whilst the projector is
in operation. Doing so could cause the fixture to seriously overheat thereby
compromising its proper operation.
7.9- Ambient temperature
The projector should never be installed in places that lack a constant air flow.
The ambient temperature should not exceed 40°C.
8- INPUT / OUTPUT CONNECTIONS

14
8.1- Internal Fuse
Attention: the fuse replacement must be made by DTS personnel or
experienced person.
Wrong operations can damage the IP65 protection.
To access the internal fuse loose the 6 marked screws which fix the lateral cover on
display panel opposite side and remove the cover.
Use only replacement fuses rated T 2,5A 250V.
Paying attention to the gasket put in place the side cap and fix it with the 6 screws
previously removed.

15

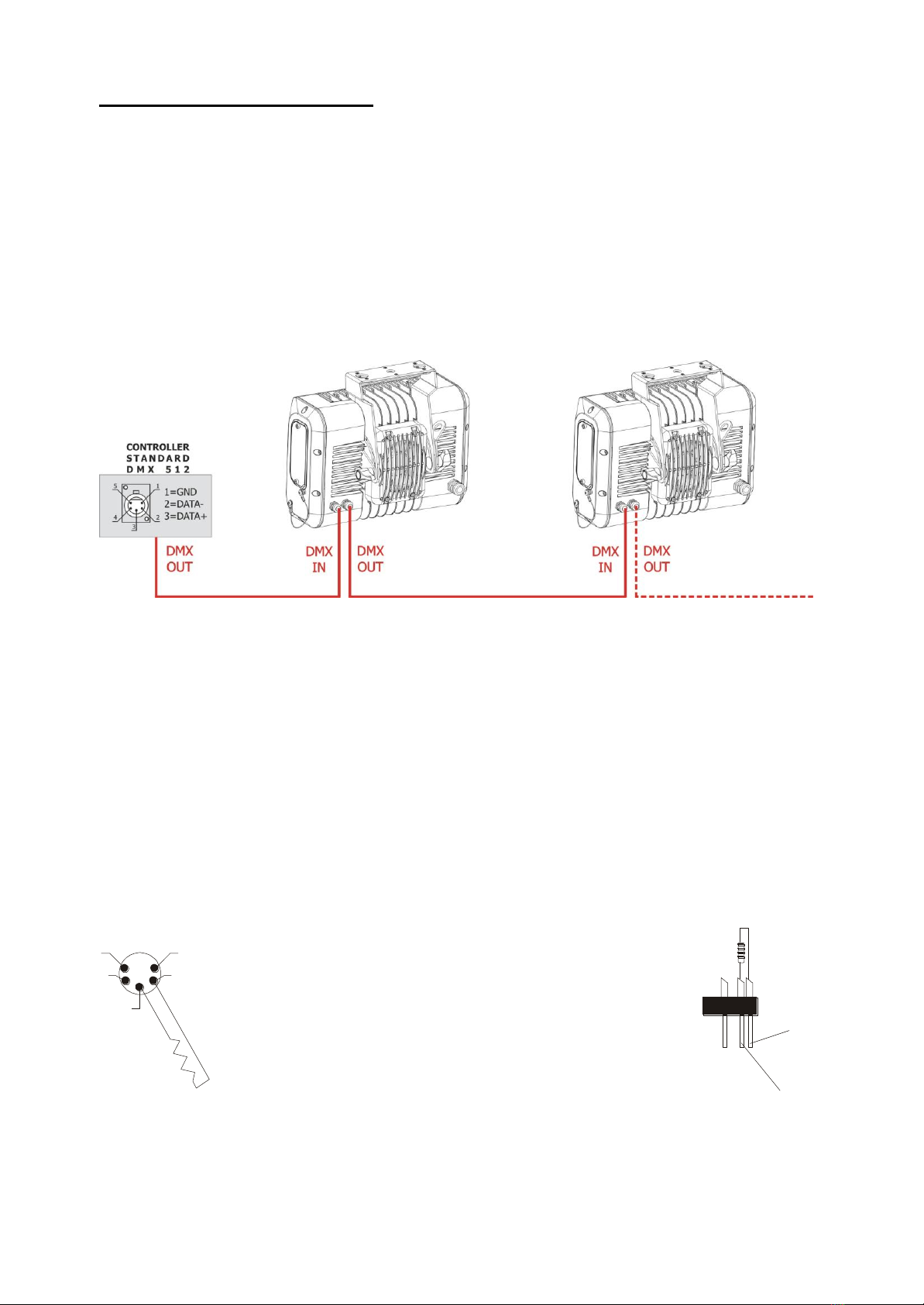

9- DMX SIGNAL CONNECTION:
The unit operates using a digital DMX 512 signal.
Connection between the controller and the unit or between units must be carried out
using a two pair screened ø 0.5 mm.
Ensure that the conductors do not touch each other.
Do not connect the cable ground to the DMX connector chassis.
The plug housing must be isolated. Connect the mixer signal to the DMX IN projector
plug and connect it to the next projector by connecting the DMX OUT plug on the first
unit to the DMX IN plug of the second one.
In this way, all the projectors are cascade connected.
If the display showing the DMX address flashes, then one of the following errors has
occurred:
- DMX signal not present
- DMX reception problem
For Installations where long distance DMX cable connections are needed, we
suggest to use a DMX terminator.
The DMX terminator is a male XLR 3-5 pins connector with a 120 ohm resistor
Between pin 2 and 3.
The DMX terminator must be plugged into the last unit (DMX out panel connector) of
the DMX line.
PLACE A 120 OHM RESISTOR BETWEEN PIN 2
AND 3 OF A MALE XRL CONNECTOR AND PLUG IT
INTO THE DMX OUT PANEL CONNECTOR OF THE
LAST UNIT CONNECTED TO THE DMX LINE
1
2
3
5
4
OUT
120 ohm
PIN 3
PIN 2

16
9.1 DMX addresses
MINI BRICK can be controlled with 10 DMX channels (Default).
In order to use the unit in 10 DMX channels mode (Default), set the following
addresses on the mixer:
Projector 1 A001
Projector 2 A011 If you want to select the next projector, just add “10”
Projector 3 A021
….. A….
projector 6 A051
9.2 Selecting the DMX address
1) Press the UP-DOWN key until you reach the required DMX address. The numbers
on the display will start to flash (but the new DMX address hasn't yet been set).
2) Press ENTER to confirm your selection. The numbers on the display will stop
flashing and the projector is now controlled by the new DMX address.
TIPS: if you keep pushed the UP or DOWN keys, the channels are calculated more
quickly and you get a faster selection.
2) Press ENTER to confirm your selection. The numbers on the display will stop
flashing and the projector is now controlled by the new DMX address.
10- RDM FUNCTIONS
By using a RDM controller it is possible to set DMX address, DMX mode and other
parameters.
BRICK accepts the following RDM commands:
DEVICE_INFO
To read the following parameters:
RDM protocol version
Fixture model ID
Fixture type
Software version ID
DMX channels
DMX mode
DMX address
Total sub-fixtures
Total sensors
IDENTIFY_DEVICE
All LED channels ON at max power to identify the
fixture
DMX_START_ADDRESS
To read / set the DMX address
SOFTWARE_VERSION_LABEL
Software version ID
SUPPORTED_PARAMETERS
List of all supported parameters
PARAMETER_DESCRIPTION
Description / details of Manufacturer Specific
parameter as “NO DMX ACTION”
DMX_PERSONALITY
To set the DMX mode
DMX_PERSONALITY_DESCRIPTION
Description / details of the DMX mode
DEVICE_MODEL_DESCRIPTION
Description / details of the Fixture model
MANUFACTURER_LABEL
Producer ID
SENSOR_DEFINITION, SENSOR VALUE
Description / values of sensors

17
10- RDM FUNCTIONS
RDM MANUFACTURER-SPECIFIC PIDs
NO DMX ACTION
To set the desired fixture’s behavior in case DMX
signal is missing or not available.
1 = Black-out
2 = CHPR (demo program steps 01..16 same as
menu “NDMX > CHPR”)
3 = All channels @ 100%
4 = CUSTOM (RGBW values set into the menus
“RED NO DMX”
“GREEN NO DMX”
“BLUE NO DMX”
“WHITE NO DMX”
5 = Keep last valid DMX signal
11- FIRMWARE UPDATING
To update the software version of the MINI BRICK you need:
- DTS RED BOX interface (DTS Code 03.LA.008).
- USB-DMX Driver for the DTS RED BOX interface.
- “DTS Firmware Upgrade Utility v.2.02” program installed on PC.
- Latest firmware release available for MINI BRICK unit.
Updating the software version.
Please follow the procedure below to perform the update:
1. Install the DTS RED BOX USB-DMX driver on the PC you will use to update the unit
software.
2. Connect the DTS RED BOX interface to a spare USB port on the PC (be sure that
internal switch on DTS RED BOX is set to COM).
3. Connect the unit DMX input to the DTS RED BOX DMX output with a standard DMX
cable and turn ON the unit.
4. Send the new software version into the unit by using “DTS Firmware upgrade
Utility v.2.02”program. At the end of the procedure, the unit will reset.

18

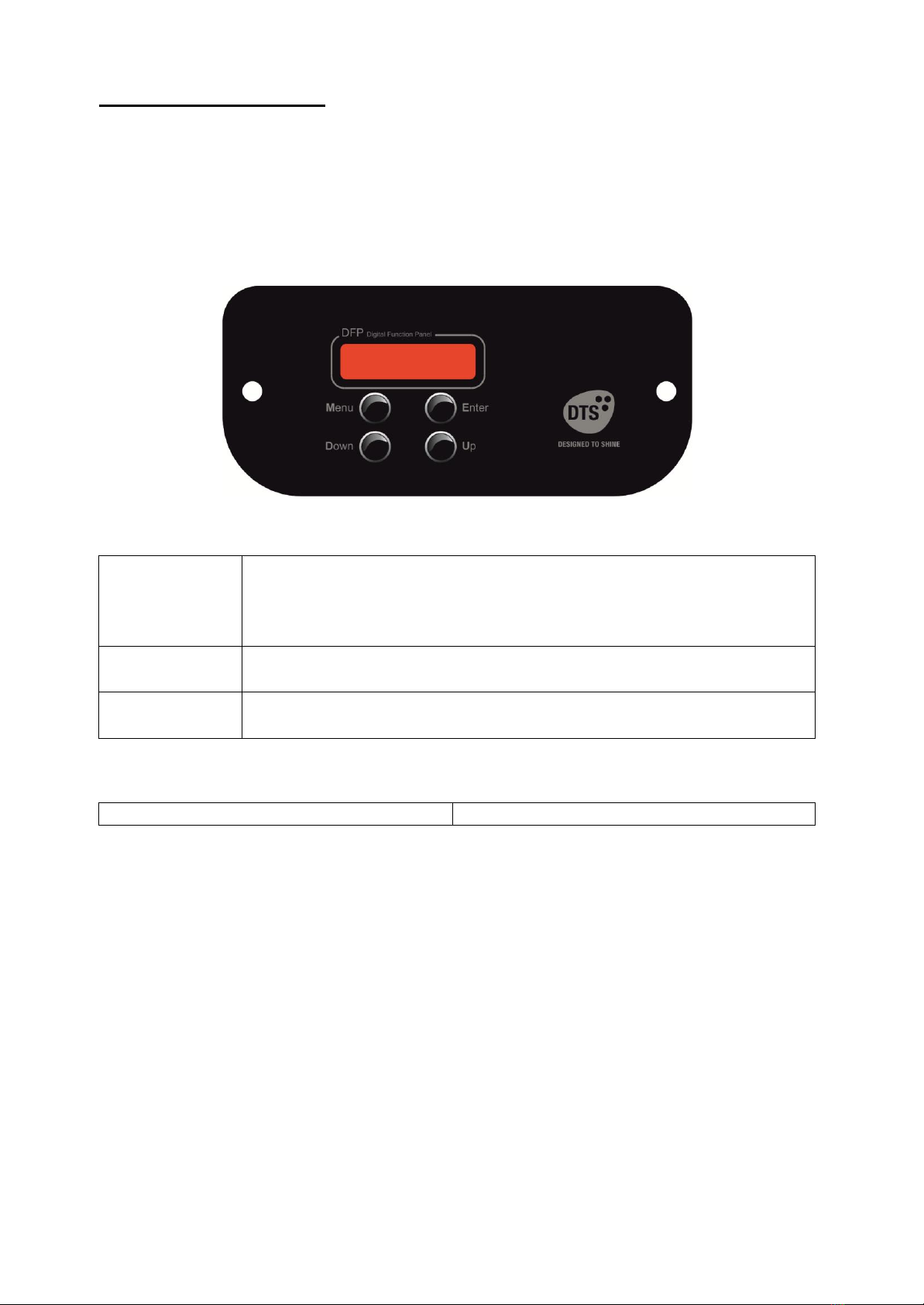

12- DISPLAY FUNCTIONS
The MINI BRICK display panel shows all the available control menus.
Using these options, it is possible to change the fixture’s setting.
Changing the DTS settings can vary the functions of the unit so that it does not
respond to the DMX 512 used to control it. Carefully follow the instructions below
before carrying out any variations or selections.
MENU
To access the control menus in the display panel.
To return to the previous level in the menu structure without
making a change.
To exit the menus.
ENTER
To select any required menu.
To confirm any changes.
UP / DOWN
To navigate the menus structure.
To change any value.
Firmware release
1.00

19
MAIN MENU
LEVEL 1
LEVEL 2
LEVEL 3
FUNCTION




Display normal orientation for
floor mounting position
(Default)


Display inverted orientation for
suspended mounting position



Display always ON (Default)


Display goes OFF after 10
seconds




Allows to select 10 DMX
channels mode (Default)



Allows to select 6 DMX channels
mode



Allows to select RGBW mode (4
DMX channels)



Allows to select FINE mode (10
DMX channels)




Allows to select the value of the
delay (in milliseconds) for Dimmer
channel reaction to DMX or
Program variation.
Off = Instant response to DMX
variation.
4 = 100 ms Smooth response to
DMX variation (Default)
20 = 500 ms Smooth response to
DMX variation.



Allows to select Quadratic
current for linear light output
(Default)


Allows to select Linear current
output



Allows to adjust the PWM
frequency value (Hz) in order to
reduce flickering in the process of
your camera recordings.
Default = 610 Hz



Allows to increase the LED’s
current from 1050mA to 1500mA
per channel
Default = ON









Automatic mode without DMX
controller.
Chase with 16 steps previously
created in REC mode.
Speed time and wait time values
(in seconds) selectable by user
(Default = 10).
In Auto mode the unit do generate
DMX for slave units.







16 customizable Colour Macros.
RGBW values selectable by user
(Default = 255).









Rainbow colours effect.
Speed time value (in seconds)
selectable by user (Default = 10).





16 Colour Macros as on DMX
channel 9 (MACRO COLOR).
Default = 01





12 White color temperature from
2700K to 8000K as on DMX
channel 8 (CCT).
Default = 2700K



Dimmer level selectable by user
as on DMX channel 6 (DIMMER)
Default = 255



Shutter level selectable by user
as on DMX channel 5
(SHUTTER)
Default = 15



Esc from automatic mode.

20
MAIN MENU
LEVEL 1
LEVEL 2
LEVEL 3
FUNCTION




In DMX Recorder mode it is
possible to create and store the
scenes of the CHPR menu by
using an external DMX controller.
The unit must be set to 10 DMX
channels mode.
Refer to “REC MODE” at page 20.








Slave mode.
The unit is forced to DMX address
1 and 10 DMX channels mode
receiving signal from the unit set
in Auto mode.


Esc from slave mode




Allows to select the internal fans
speed.
Standard mode: High fans speed.
Silent mode: Low fans speed for a
very low noise operation.
Default = STD







No DMX action.
Keep last valid DMX signal
(Default)



Black-out



Chase with 16 steps previously
created in REC mode as per
AUTO > CHPR menu.
Speed time and wait time values
(in seconds) selectable by user
(Default = 10).
In Auto mode the unit do generate
DMX for slave units.






All channels @ 100%



Custom.
RGBW values selectable by user
(Default = 255).










To restore default settings




LED temperature monitoring



Micro controller temperature
monitoring



Outputs 1 and 2 of LED Driver
board temperature monitoring



Output 3 and 4 of LED Driver
board temperature monitoring




Shows the total unit life time and
the RGBW LEDs life time
















Software version
