DTS Synergy 7 Profile User manual

USER’S MANUAL rel. 1.1EN

2
Release
1.1
Language
EN
Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd
All other trademarks, both marked and not marked, are the property of their respective owners.
Le informazioni contenute in questo documento sono state attentamente redatte e
controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i
diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per
intero o in parte senza previo consenso scritto della D.T.S .
D.T.S. si riserva il diritto di apportare senza preavviso cambiamenti e modifiche estetiche ,
funzionali o di design a ciascun proprio prodotto. D.T.S. non assume alcuna responsabilità
sull’uso o sull’applicazione dei prodotti o dei circuiti descritti.
The information contained in this publication has been carefully prepared and checked.
However, no responsibility will be taken for any errors. All rights are reserved and this
document cannot be copied, photocopied or reproduced, in part or completely, without prior
written consent from D.T.S.
D.T.S. reserves the right to make any aesthetic, functional or design modifications to any of
its products without prior notice. D.T.S. takes no responsibility for the use or application of
the products or circuits described herein.
Les informations contenues dans le présent manuel ont été rédigées et contrôlées avec le
plus grand soin. Nous déclinons toutefois toute responsabilité en cas d'éventuelles
inexactitudes. Tous droits réservés. Ce document ne peut être copié, photocopié ou
reproduit, dans sa totalité ou partiellement, sans le consentement préalable de D.T.S.
D.T.S. se réserve le droit d'apporter toutes modifications et améliorations esthétiques,
fonctionnelles ou de design, sans préavis, à chacun de ses produits. D.T.S. décline toute
responsabilité sur l'utilisation ou sur l'application des produits ou des circuits décrits.
Las informaciones contenidas en este documento han sido cuidadosamente redactadas y
controladas. Con todo, no se asume ninguna responsabilidad por eventuales inexactitudes.
Todos los derechos han sido reservados y este documento no puede ser copiado, fotocopiado
o reproducido, total o parcialmente, sin previa autorización escrita de D.T.S.
D.T.S. se reserva el derecho a aportar sin previo aviso cambios y modificaciones de carácter
estético, funcional o de diseño a cada producto suyo. D.T.S. no se asume responsabilidad de
ningún tipo sobre la utilización o sobre la aplicación de los productos o de los circuitos
descritos.
*0517I360*
0517I360

3
INDEX:
1 - Symbols......................................................................................................................................4
2 - General Warning.........................................................................................................................5
3 - Important Safety Information......................................................................................................5
3.1 Fire prevention..................................................................................................................................5
3.2 Prevention of electric shock..............................................................................................................5
3.3 Safety ................................................................................................................................................6
3.4 Level of protection against the penetration of solid and liquid objects...........................................7
3.5 Waste Electrical and Electronic Equipment (WEEE) directive ..........................................................7
3.6 Long-life auto-charging buffer battery .............................................................................................7
4 - General Warranty Conditions......................................................................................................7
5 - Technical Features ......................................................................................................................8
6 - Pan / Tilt Lock ...........................................................................................................................11
7 - Included Items ..........................................................................................................................11
8 - Accessories On Request.............................................................................................................11
9 - Installation ...............................................................................................................................12
9.1 Safety cable.....................................................................................................................................13
10 - Mains Connection ...................................................................................................................14
10.1 Protection......................................................................................................................................14
11 - DMX Signal Connection ...........................................................................................................15
11.1 DMX addresses..............................................................................................................................16
11.2 Selecting the DMX address ...........................................................................................................16
12 - Art-Net / sACN Signal Connection............................................................................................16
12.1 Direct Ethernet operation.............................................................................................................16
12.2 Ethernet to RDM/DMX operation.................................................................................................17
13 - RDM Functions........................................................................................................................18
14 - Firmware Updating .................................................................................................................21
15 - Rotating Framing System.........................................................................................................22
16 - Display Functions ....................................................................................................................23
17 –Error Messages.......................................................................................................................30
18 - Motors and LED Driver PCBs References ..................................................................................33
19 - Opening The Projector Housing ...............................................................................................34
20 - Rotating Gobo Dimensions......................................................................................................35
21 - Periodic Cleaning ....................................................................................................................36
21.1 Lenses and filters ..........................................................................................................................36
21.2 Fans and air passages....................................................................................................................36
22 - Periodic Controls.....................................................................................................................36
23 - DMX Protocol..........................................................................................................................37
DMX Personality 1: 52 Channels Mode (Default) .................................................................................37
DMX Personality 2: 61 Channels Mode ................................................................................................52
24 - Rotating Gobo Wheel 1 ...........................................................................................................67
25 - Rotating Gobo Wheel 2 ...........................................................................................................68
26 - Filters Wheel...........................................................................................................................69
27 - Colour Wheel..........................................................................................................................70

4
1- Symbols
Symbol used: Meaning:
General risk.
Electric shock risk.
Hot surface.
Suitable for indoor use only.
Maximum operating ambient temperature.
Minimum distance from illuminated objects.
Do not stare at the operating light source.
Photobiological safety risk group.
Never expose the front lens to sunlight or any strong artificial
light source from any angle to avoid damage of head internal
parts.
European Community Directive 2012/19/EU on Waste Electrical
and Electronic Equipment (WEEE).
Dispose the battery at the end of its life according to the
regulation in force.

5
2- General Warning
Read the instruction contained in this user manual carefully, as they give important
information regarding safety during installation, use and maintenance.
The unit is not for household use and must be installed by a qualified personnel.
The device must always be equipped with an efficient ground connection.
3- Important Safety Information
3.1 Fire prevention:
•Minimum distance from the illuminated objects: 0,5m.
•Never expose the front lens of the unit to sunlight from any angle.
Front lens become powerful magnifying glass if exposed toward the sun
or any strong artificial light source; this can cause damage of head internal
parts, even for few seconds and even when the unit is Off.
As last command before switching Off, point the front lens down toward
the ground.
•The unit features various air inlets and cooling fans located on both the
base and head which should, under no circumstances, be blocked or
obstructed whilst the projector is in operation to avoid overheating.
•Each fixture produces heat and must be installed in a well-ventilated place.
•Replace any blown or damaged fuses only with those of identical value
(T15A 250V). Refer to the wiring diagrams if there is any doubt.
•Connect the projector to mains power via a thermal magnetic circuit
breaker.
3.2 Prevention of electric shock:
•High voltage is present inside the unit.
Unplug the unit prior to performing any function which involves touching
the inside of the moving head.
•Class I appliance: connection must be made to a mains system fitted with
an efficient earthing.
•The level of technology inherent in the SYNERGY 7 PROFILE requires the
assistance of specialised personnel for all servicing.
Please refer to an authorised DTS service centre.

6
3- Important Safety Information
3.3 Safety:
•Risk Group 2 product according to IEC 62471.
Do not look directly into the light output and do not view the light beam
with optical instruments or any device that may concentrate the beam.
May be harmful to the eyes and skin.
•Do not stare at the operating light source.
The luminaire should be positioned so that prolonged staring into the
luminaire at a distance of 40,39 m is not expected.
•The light source contained in this luminaire shall only be replaced by the
manufacturer or his service agent or a similar qualified person.
•The unit is not for household use and must be installed by a qualified
personnel.
•The projector should always be installed with bolts, clamps and other tools
that are capable of supporting the weight of the unit.
•Always use a safety cable to sustain the weight of the unit in case of the
failure of the main fixing point.
•Pan: 540° rotation; Tilt: 260° rotation.
Do not place any object in the path of the projector’s movement.
•The external surface of the unit, at various points, may exceed 50°C.
Never handle the unit until at least 5 minutes have elapsed since the unit
was turned off.
•The ambient temperature should not exceed 45°C.
•This fixture is intended for use where humidity does not exceed 90% (non-
condensing).
•After storage, before switching On the fixture, must be restored the
ambient temperature.
•Never install the fixture in places that lack a constant air flow.

7
3- Important Safety Information
3.4 Level of protection against the penetration of solid and liquid objects:
•The projector is classified as an ordinary appliance and its protection level
against the penetration of solid and liquid objects is IP20.
•The projector contains electric and electronic components which should
under no circumstances come into contact with oil, water or any other
liquid. The proper unit functioning would be compromised should this
occur.
•Suitable for indoor use only.
3.5 Waste Electrical and Electronic Equipment (WEEE) directive:
•The projector, accessories and packaging should be sorted for
environmental-friendly recycling.
For EC countries: according to the European Directive 2012/19/EU for
Waste Electrical and Electronic Equipment and its implementation into
national right, luminaires that are no longer usable must be collected
separately and disposed of in an environmentally correct manner.
3.5 Long-life auto-charging buffer battery:
•The projector contains a rechargeable lead-acid or lithium iron
tetraphosphate battery. To preserve the environment, please dispose the
battery at the end of its life according to the regulation in force.
4- General Warranty Conditions
The unit is guaranteed for 36 months from the date of purchase against manufacturing
material defects.
The warranty covers defects in materials and workmanship. The warranty is not appliable
where a defect is caused by misuse or unauthorised repair of the product.
Any functional or/and physical modification of the product is not allowed.

8
5- Technical Features
Output
• 1050 W pure white LED source (7000 K 55.000 Lumens output)
• Double CRI (DMX-selectable): CRI >75 or CRI >90 (R9 >80)
• Average LED life: 50,000 hours (70% lumen output)
Optical group
• 101.000 Lux (7°@ 5 m)
• 7° - 52° linear zoom with autofocus
• Linear Frost filter
• Electronic dimmer / shutter / strobe (0.3 to 33.3 flash/sec)
Color generation
• Linear CMY
• Linear CTO (3000 K – 7000 K)
• Gel filter emulation
• 4-color wheel (white correction + UV)
• 5-color wheel (two-color generation)
Iris
• Linear 16-blade Iris (15% ÷ 100%)
Dynamic effects
• Dynamove FX Engine (DTS Patent)
• Virtual Animation Wheel
• 2 customizable rotating 6-gobo wheel
• Circular 24-facet rotating prism
• Linear 6-facet rotating prism
Rotating framing system
• 4-blade rotating framing system
•Real ‘curtain’ effect for each blade
• 60° rotation for each blade (+/- 30°)
• 90° full system rotation (+/- 45°)
User interface
• LCD graphic display + 4 soft keys; Auto-flip; Key-lock function
• Li-Fe backup battery for controlling the display settings even when the unit is not powered

9
5- Technical Features
Control
• Art-Net 4, sACN, RDM/DMX 512 protocols
•52 DMX channels (Default)
•61 DMX channels
- 16 bit index for insertion and rotation of each blade
- 16 bit index for blade system rotation
• Standard, Silent and Ultra-silent operation modes
• Noise level at Ultra-silent mode: 36dBA @ 1 m (normal operation, full power)
• Internal operating system updatable via DTS dongle firmware uploader
Pan & Tilt
•Pan: 540°
• Tilt: 260°
• Tri-phase motor technology
• 16-bit resolution
• Pan / Tilt lock
Power supply
• Wide range 100-240Vac 50-60 Hz
• Power consumption: 1400W max
• Power Factor: PF >0.90
Connections
• DMX: XLR 3-pole and 5-pole In / Out panel connectors
• Power supply: powerCON TRUE1 panel connector
• Art-Net / sACN: etherCON RJ45 panel connector
Internal protection devices
• Overvoltage and overtemperature circuits protection
• Auto-parking: internal collision protection system
Operating temperature
-10°C / 45°C
Storage temperature
-20°C / 60°C
Physical
• IP20
• Weight: 46,5 Kg
•Finishing: Black

10
5- Technical Features
Dimensions

11
6- Pan / Tilt Lock

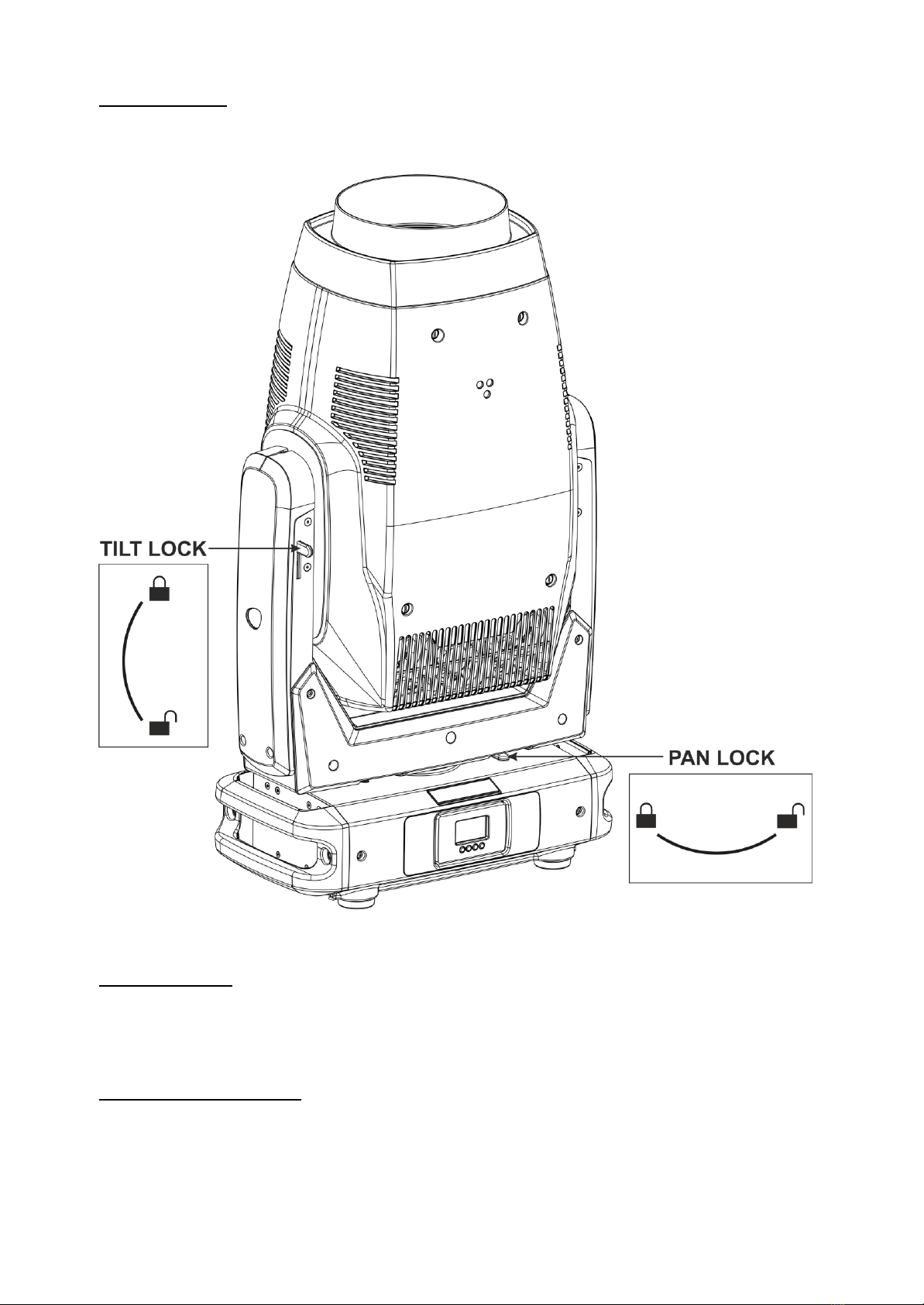

When moving or servicing the unit you can apply the Pan and Tilt lock.
To lock or release the Pan and Tilt refer to the picture below.
7- Included Items
1 x Cable with PowerCON TRUE1 female connector (code 02K0012267.0015)
2 x Omega clamp with “Fast Lock” connection 1/4 turn (code 02K00549)
8- Accessories On Request
•Aliscaf clamp for tube Ø 48-51 mm - max load 200 Kg (code 0521A033)
indicated for any kind of loads vertical / horizontal.
•Professional G-QUICK clamp - max load 100 Kg (code 0521A037)
not indicated for horizontal load.
•Safety cable 5 x 600 mm (Max load 60 Kg) (code 0521A038)
•DTS Dongle firmware uploader (code 03.LA.206)

12
9- Installation
The unit is suitable for dry locations only.
SYNERGY 7 PROFILE may be either floor or ceiling mounted.
For floor mounting installations, SYNERGY 7 PROFILE is supplied with four rubber mounting
feet on the base.
For ceiling mounted installations, we recommend the use of appropriate clamps to fix the
unit to the mounting surface.
The supporting structure from which the unit is hung should be capable of bearing the weight
of the unit, as should any clamps used to hang it.
The structure should also be sufficiently rigid so as not to move or shake whilst the SYNERGY
7 PROFILE is moving.
Four 1/4 turn Fast Locks connections placed in the base of the unit allow to hang the
SYNERGY 7 PROFILE by using two Omega brackets (provided in the box) in conjunction with
Aliscaf clamp (available on demand).

13
9.1- Safety cable
A safety cable must be securely fixed to the SYNERGY 7 PROFILE and to the
suspension truss in order to avoid the fixture accidentally falling should the
main fixing point fail.
The safety cable used must be approved by a notified body according to IEC
60598-2-17 and must be capable of bearing at least 10 times the weight of the
unit. For more information please refer to an authorised DTS service centre.
A suitable safety cable (code 0521A038) is available on demand.

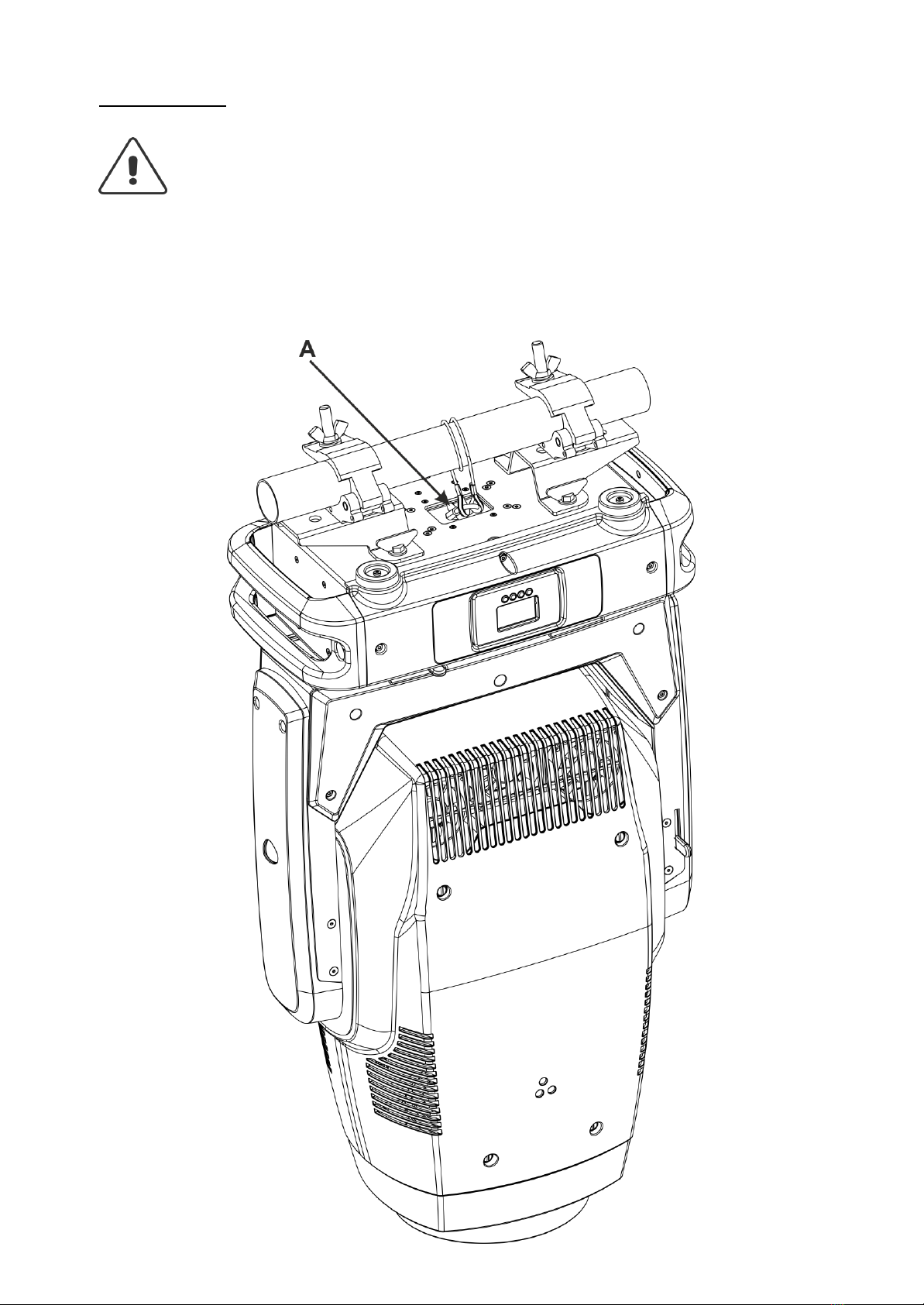

You may attach the safety cable to the attachment point (A) located on the
base of the fixture, as shown in the picture below.

14

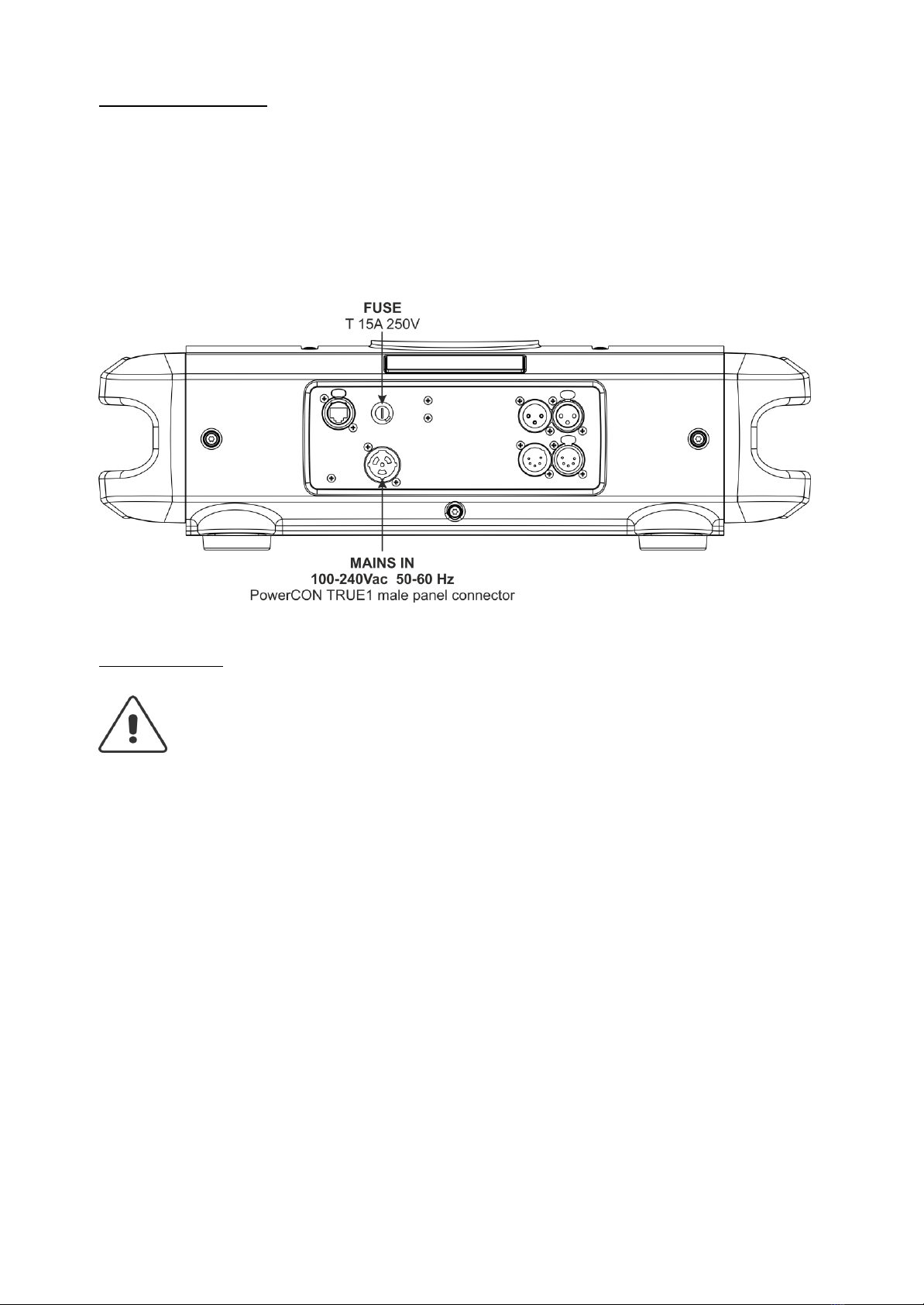

10- Mains Connection
SYNERGY 7 PROFILE operates at 100-240Vac 50-60 Hz.
Prior to connecting the unit to your mains supply, ensure that the model in your possession
correctly matches the mains supply available.
For connection purposes, ensure that your plug is capable of supporting 6,5 amps
at 230Vac or 14 amps at 100Vac each unit connected.
Strict adherence to regulatory norms is strongly recommended.
10.1- Protection
The use of a thermal magnetic circuit breaker is recommended for each unit.
Class I appliance: connection must be made to a mains system fitted with an
efficient earthing.

15
11- DMX Signal Connection
The unit operates using the digital DMX 512 signal.
Connection between the mixer and the projector or between projectors must be carried out
using a two pair screened ø 0.5 mm cable and a XLR 5 or 3 pins connector. Ensure that the
conductors do not touch each other.
Do not connect the cable ground to the XLR chassy.
The plug housing must be isolated. Connect the mixer signal to the DMX IN projector plug and
connect it to the next projector by connecting the DMX OUT plug on the first projector to the
DMX IN plug of the second one.
This way, all the projectors are cascade connected.
If the display showing the DMX address flashes, then one of the following errors has occurred:
- DMX signal not present
- DMX address not valid
- DMX reception problem
It is suggested the use of the DMX terminator.
The DMX terminator is a male XLR 3-5 pins connector with a 120 Ωresistor between pin 2
and pin 3.
The DMX terminator must be plugged into the last unit (DMX out panel connector) of the
DMX line.
Place a 120 Ωresistor between pin 2 and 3 of a
male XRL connector and plug it into the DMX
Out panel connector of the last unit connected
to the DMX line.
1
2
3
5
4
OUT
120 ohm
PIN 3
PIN 2

16
11.1-DMX Addresses
SYNERGY 7 PROFILE can be controlled with 52 DMX channels (Default) or 61 DMX channels.
In order to use the unit in 52 DMX channels mode (Default), set the following addresses on
the mixer:
Projector 1 A001
Projector 2 A053 If you want to select the next projector, just add “52”
Projector 3 A105
….. A….
projector 6 A261
11.2-Selecting the DMX address
1) Press the UP-DOWN key until you reach the required DMX channel. The numbers on the
display will start to flash (but the new DMX address hasn't yet been set).
2) Press ENTER to confirm your selection. The numbers on the display will stop flashing and
the projector is now setted to the new DMX address.
TRICKS: If you keep pushed the UP or DOWN keys, the channels are calculated more quickly
and you get a faster selection.
12- Art-Net / sACN Signal Connection
The unit operates using the Art-Net / sACN signal.
Connection between the mixer and the projector must be carried out using a category 5
network cable and a standard RJ45 connector.

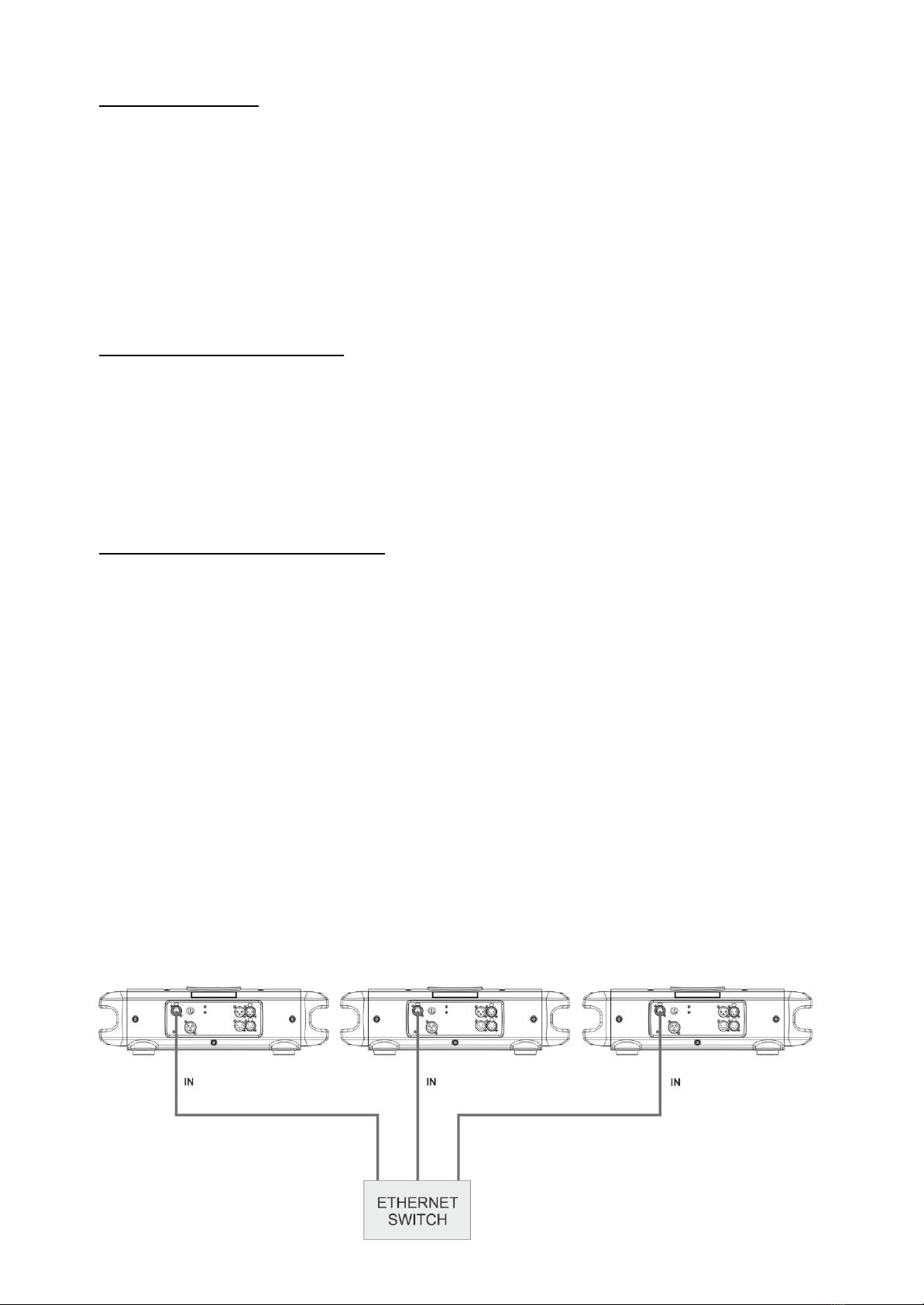

12.1-Direct Ethernet operation
For direct Ethernet operation connect the mixer Art-Net / sACN signal via Ethernet switch to
each unit etherCON RJ45 input connector.
For each unit scroll till NETWORK menu (refer to DISPLAY FUNCTIONS for details):
•Select under INPUT menu “Art-Net” or “sACN” as input control signal.
•Select under IP ADDRESS MODE menu “Default” or “Static” mode.
•Select ETH TO DMX menu to OFF.
•Set the IP address and Net Mask.
IP address must be different for each unit on a network.
•Set the Art-Net or sACN Universe.
DMX address: 1 DMX address: 53 DMX address: 105
IP address: 002.214.192.007 IP address: 002.214.192.008 IP address: 002.214.192.009
Universe: 1 Universe: 1 Universe: 1

17
12- Art-Net / sACN Signal Connection
12.2-Ethernet to RDM/DMX operation
For Ethernet to RDM/DMX operation connect the mixer Art-Net / sACN signal via Ethernet
switch to the etherCON RJ45 input connector of the first unit only.
In this configuration the first unit works as an Ethernet to DMX converter and sends
RDM/DMX signal to its DMX output connector.
All the other units must be connected as a DMX chain with standard DMX settings.
Only for the first unit scroll till NETWORK menu (refer to DISPLAY FUNCTIONS for details):
•Select under INPUT menu “Art-Net” or “sACN” as input control signal.
•Select under IP ADDRESS MODE menu “Default” or “Static” mode.
•Select ETH TO DMX menu to ON.
•Set the IP address and Net Mask.
IP address must be different for each unit on a network.
•Set the Art-Net or sACN Universe.
DMX address: 1 DMX address: 53 DMX address: 105
IP address: 002.214.192.007
Universe: 1
DMX address: 1 DMX address: 53 DMX address: 105
IP address: 002.214.192.008
Universe: 2
It is suggested the use of the DMX terminator.
Refer to page 14 for DMX terminator details.

18
13- RDM Functions
By using a RDM controller it is possible to read / set DMX address, DMX mode and other
parameters. SYNERGY 7 PROFILE accepts the following RDM commands:
RDM Device Model ID: 0x0019
RDM PID DESCRIPTION
RDM PID VALUE
GET
SET
Category –Network Management
DISC_UNIQUE_BRANCH
0x0001
DISC_MUTE
0x0002
DISC_UN_MUTE
0x0003
Category –Status Collection
STATUS_MESSAGES
0x0030
X
STATUS_ID_DESCRIPTION
0x0031
X
Category - RDM Information
SUPPORTED_PARAMETERS
0x0050
X
PARAMETERS_DESCRIPTION
0x0051
X
Category –Product Information
DEVICE_INFO
0x0060
X
DEVICE_MODEL_DESCRIPTION
0x0080
X
MANUFACTURER_LABEL
0x0081
X
DEVICE_LABEL
0x0082
X
X
SOFTWARE_VERSION_LABEL
0x00C0
X
Category - DMX512 Setup
DMX_PERSONALITY
0x00E0
X
X
DMX_PERSONALITY_DESCRIPTION
0x00E1
X
DMX_START_ADDRESS
0x00F0
X
X
Category –Sensors
SENSOR_DEFINITION
0x0200
X
SENSOR_VALUE
0x0201
X
X
Category –Power/Lamp Settings
DEVICE_HOURS
0x0400
X
LAMP_HOURS
0x0401
X
Category –Display Settings
DISPLAY_INVERT
0x0500
X
X
Category –Configuration
PAN_INVERT
0x0600
X
X
TILT_INVERT
0x0601
X
X
Category –Control
IDENTIFY_DEVICE
0x1000
X
X
Category –Dimmer Settings
CURVE
0x0343
X
X
CURVE_DESCRIPTION
0x0344
X
OUTPUT_RESPONSE_TIME
0x0345
X
X
OUTPUT_RESPONSE_TIME_DESCRIPTION
0x0346
X
MODULATION_FREQUENCY
0x0347
X
X
MODULATION_FREQUENCY_DESCRIPTION
0x0348
X
Category –Custom PID
ETHERNET_TO_DMX
0x8000
X
X
INPUT_PRIORITY
0x8001
X
X
DISPLAY_STANDBY
0x8002
X
X

19
13- RDM Functions
RDM ADDITIONAL MESSAGEs:
CURVE
CURVE DESCRIPTION

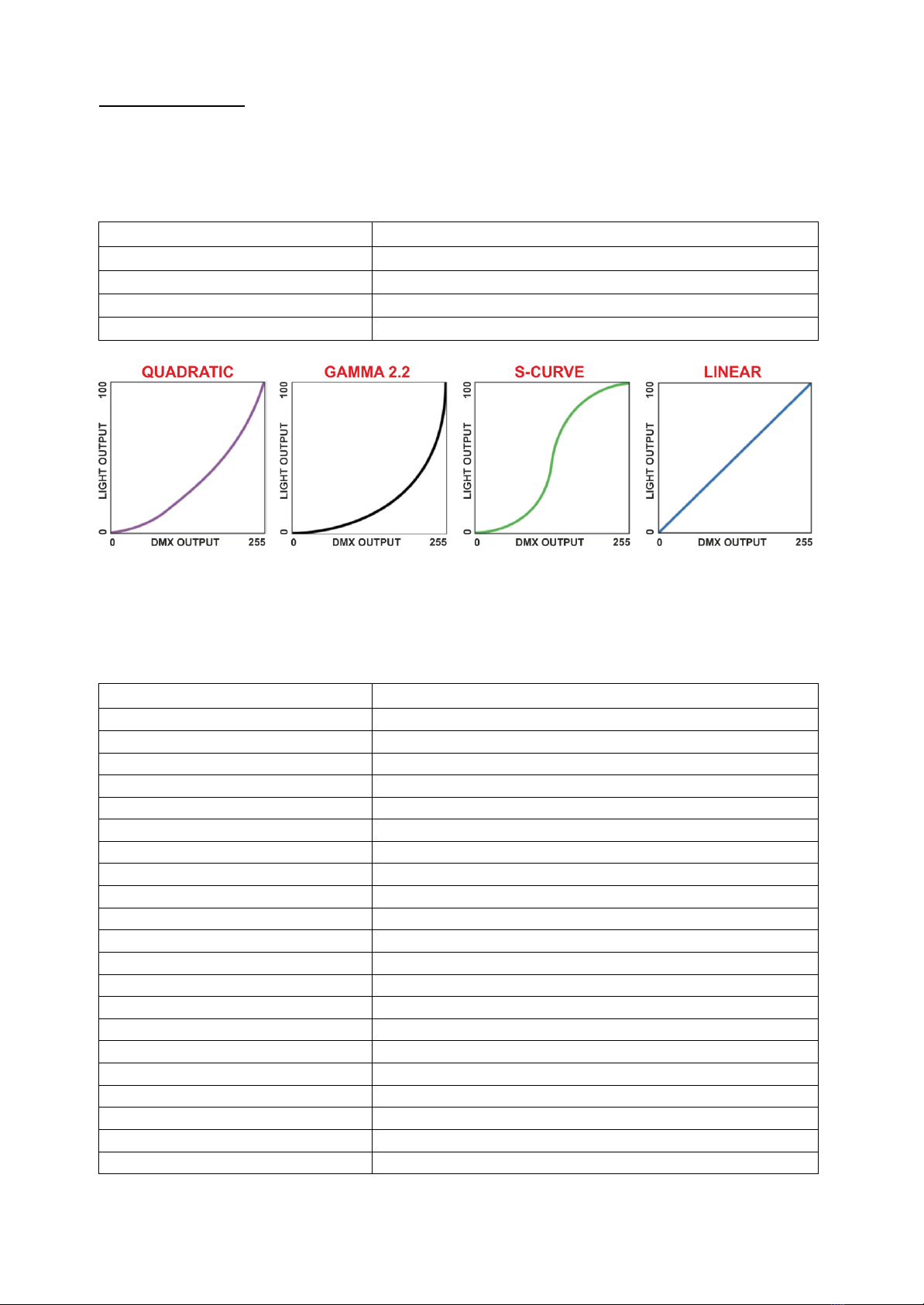

1
LINEAR
2
QUADRATIC (default)
3
GAMMA 2.2
4
S-CURVE
OUTPUT RESPONSE TIME
OUTPUT_RESPONSE_TIME_DESCRIPTION
1
SMOOTH OFF
2
SMOOTH 1 ( 25 ms)
3
SMOOTH 2 ( 50 ms)
4
SMOOTH 3 ( 75 ms)
5
SMOOTH 4 (100 ms) (default)
6
SMOOTH 5 (125 ms)
7
SMOOTH 6 (150 ms)
8
SMOOTH 7 (175 ms)
9
SMOOTH 8 (200 ms)
10
SMOOTH 9 (225 ms)
11
SMOOTH 10 (250 ms)
12
SMOOTH 11 (275 ms)
13
SMOOTH 12 (300 ms)
14
SMOOTH 13 (325 ms)
15
SMOOTH 14 (350 ms)
16
SMOOTH 15 (375 ms)
17
SMOOTH 16 (400 ms)
18
SMOOTH 17 (425 ms)
19
SMOOTH 18 (450 ms)
20
SMOOTH 19 (475 ms)
21
SMOOTH 20 (500 ms)

20
13- RDM Functions
RDM ADDITIONAL MESSAGEs:
MODULATION FREQUENCY
MODULATION FREQUENCY DESCRIPTION
1
610 Hz
2
800 Hz
3
1.000 Hz (default)
4
1.500 Hz
5
2.000 Hz
6
2.500 Hz
7
3.000 Hz
8
3.500 Hz
9
4.000 Hz
10
4.500 Hz
11
5.000 Hz
RDM MANUFACTURER’S SPECIFIC PIDs:
RDM CUSTOM PID
DESCRIPTION
0x8000_ETHERNET_TO_DMX
Set parameter NETWORK –ETH TO DMX
0 = OFF (default)
1 = ON
0x8001_INPUT_PRIORITY
Set parameter NETWORK –PRIORITY
0 = DMX PORT (default)
1 = ETHERNET PORT
0x8002_DISPLAY_STANDBY
Set parameter DISPLAY –STANDBY
0 = DISABLED (default)
1 = ENABLED
2 = FORCED ENABLED
RDM STATUS MESSAGE IDs:
Status Message ID
Data Value 1
Data Value 2
Status ID Description
0x8000
ERROR PAN MOTOR/ENCODER
0x8001
ERROR PAN LOCKED
0x8002
ERROR PAN ZERO SENSOR
0x8003
ERROR TILT MOTOR/ENCODER
0x8004
ERROR TILT LOCKED
0x8005
ERROR TILT ZERO SENSOR
0x8006
ERROR DMX ADDRESS
0x8007
ERROR PARAMETERS MEMORY
0x8008
ERROR SUPPLY VOLTS TOO LOW
0x8009
ERROR SUPPLY VOLTS TOO HIGH
0x800A
ERROR BUS ARTNET CARD
0x800B
ERROR BUS LED DRIVER CARD
0x800C
card number
ERROR BUS MOTORS CARD %d
