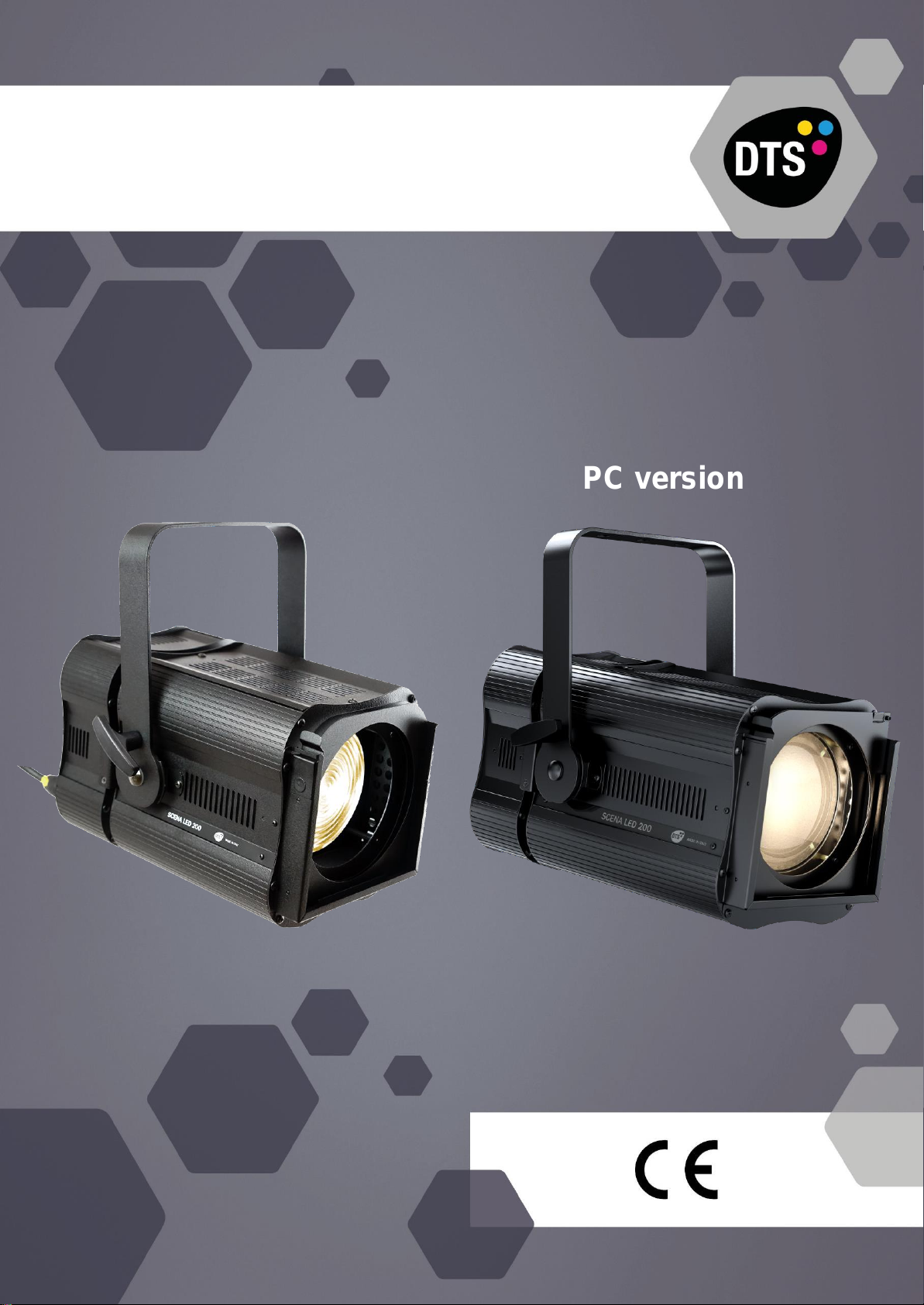

DTS SCENA LED 200 Series User manual

SCENA LED 200
USER’S MANUAL rel. 1.3 GB
FR version
PC version

2
Le informazioni contenute in questo documento sono state attentamente redatte e
controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze.
Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato,
riprodotto per intero o in parte senza previo consenso scritto della D.T.S .
D.T.S. si riserva il diritto di apportare senza preavviso cambiamenti e modifiche
estetiche , funzionali o di design a ciascun proprio prodotto. D.T.S non assume alcuna
responsabilità sull’uso o sull’applicazione dei prodotti o dei circuiti descritti.
The information contained in this publication has been carefully prepared and
checked. However, no responsibility will be taken for any errors. All rights are
reserved and this document cannot be copied, photocopied or reproduced, in part or
completely, without prior written consent from D.T.S.
D.T.S. reserves the right to make any aesthetic, functional or design modifications to
any of its products without prior notice. D.T.S. assumes no responsibility for the use or
application of the products or circuits described herein.
Les informations contenues dans le présent manuel ont été rédigées et contrôlées
avec le plus grand soin. Nous déclinons toutefois toute responsabilité en cas
d'éventuelles inexactitudes. Tous droits réservés. Ce document ne peut être copié,
photocopié ou reproduit, dans sa totalité ou partiellement, sans le consentement
préalable de D.T.S.
D.T.S. se réserve le droit d'apporter toutes modifications et améliorations esthétiques,
fonctionnelles ou de design, sans préavis, à chacun de ses produits. D.T.S. décline
toute responsabilité sur l'utilisation ou sur l'application des produits ou des circuits
décrits.
Las informaciones contenidas en este documento han sido cuidadosamente
redactadas y controladas. Con todo, no se asume ninguna responsabilidad por
eventuales inexactitudes. Todos los derechos han sido reservados y este documento
no puede ser copiado, fotocopiado o reproducido, total o parcialmente, sin previa
autorización escrita de D.T.S.
D.T.S. se reserva el derecho a aportar sin previo aviso cambios y modificaciones de
carácter estético, funcional o de diseño a cada producto suyo. D.T.S. no se asume
responsabilidad de ningún tipo sobre la utilización o sobre la aplicación de los
productos o de los circuitos descritos.

3
INDEX:
1- SYMBOLS.................................................................................................................4
2- GENERAL WARNING ..............................................................................................4
3- GENERAL WARRANTY CONDITIONS....................................................................4
4- TECHNICAL FEATURES .........................................................................................5
5- ACCESSORIES ........................................................................................................8
6- IMPORTANT SAFETY INFORMATION....................................................................9
6.1 Fire prevention......................................................................................................9
6.2 Prevention of electric shock..................................................................................9
6.3 Safety...................................................................................................................9
6.4 Waste Electrical and Electronic Equipment directive............................................9
7- INSTALLATION........................................................................................................9
8- INPUT / OUTPUT CONNECTIONS.........................................................................10
9- DMX SIGNAL CONNECTION.................................................................................11
9.1 DMX Addresses..................................................................................................12
9.2 Selecting the DMX address................................................................................12
10- RDM FUNCTIONS ................................................................................................13
11- FIRMWARE UPDATING.......................................................................................14
12- DISPLAY FUNCTIONS.........................................................................................14
13- MANUAL MODE ...................................................................................................16
14- ERROR MESSAGES ............................................................................................16
15- DMX PROTOCOL.................................................................................................17

4
!

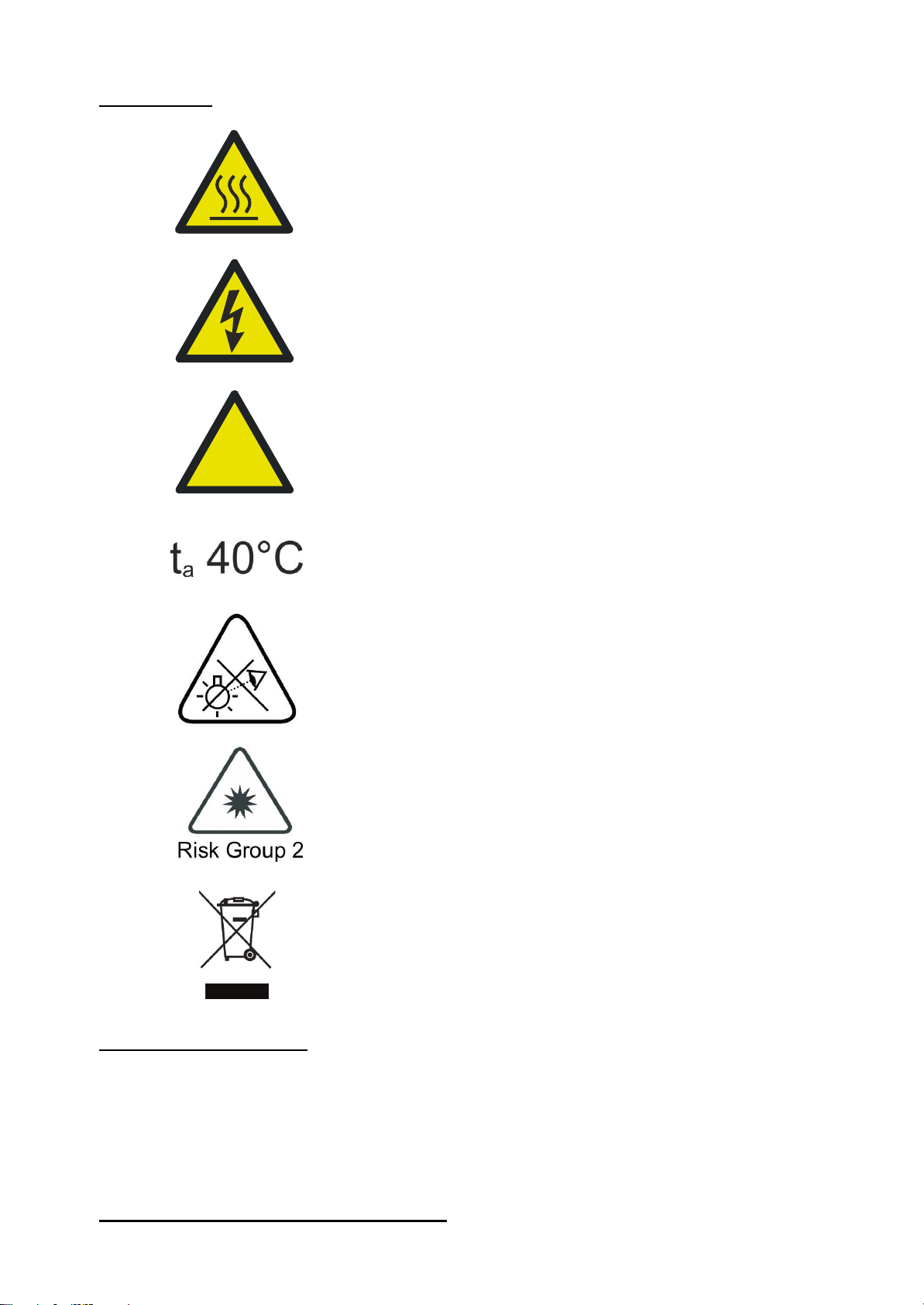

1- SYMBOLS
Graphic symbols used on this manual:
THIS SYMBOL INDICATES A HOT SURFACE
THIS SYMBOL INDICATES ELECTRIC SHOCK
RISK
THIS SYMBOL INDICATES GENERAL RISK
THIS SYMBOL INDICATES THE MAXIMUM
OPERATING AMBIENT TEMPERATURE
THIS SYMBOL MEANS “DO NOT STARE
AT THE OPERATING LIGHT SOURCE”
THIS SYMBOL INDICATES
PHOTOBIOLOGICAL SAFETY
THIS SYMBOL INDICATES THE EUROPEAN
COMMUNITY DIRECTIVE 2012/19/EC ON
WASTE ELECTRICAL AND ELECTRONIC
EQUIPMENT (WEEE)
2- GENERAL WARNING
Read the instruction contained in this user manual carefully, as they give important
information regarding safety during installation, use and maintenance.
The unit is not for residential use and must be installed by a qualified electrician or
experienced person.
Always disconnect the device from the mains before maintenance.
The device must always be equipped with an efficient ground connection.
3- GENERAL WARRANTY CONDITIONS
The unit is guaranteed for 36 months from the date of purchase against manufacturing
material defects.

5
4- TECHNICAL FEATURES
SCENA LED 200 FR
DTS Product codes:
03.TS046.46.F SCENA LED 200 FR 3200K *5 pins XLR connectors *Black finishing
03.TS065.46.F SCENA LED 200 FR 3200K *3 pins XLR connectors *Black finishing
03.TS048.46.F SCENA LED 200 FR 4000K *5 pins XLR connectors *Black finishing
03.TS067.46.F SCENA LED 200 FR 4000K *3 pins XLR connectors *Black finishing
03.TS064.46.F SCENA LED 200 FR 5600K *5 pins XLR connectors *Black finishing
03.TS068.46.F SCENA LED 200 FR 5600K *3 pins XLR connectors *Black finishing
Output
Single high-power White 3200K LED
CRI>95
Also available with 4000K and 5600K LED
LED lifespan: 50.000 hours (70% lumen output)
Optical group
Ø 150 mm Fresnel lens
6,5° - 70° linear zoom
Control
DMX 512 / RDM or Manual Control
4 DMX channels (Default), 1 DMX channel or “FINE”Mode
4-digit 7-segment LED display + 4 soft keys
Internal operating system updatable via DTS Dongle Firmware Uploader
Power supply
Full-range 100-240Vac 50-60 Hz
Power consumption: 200W Max
Power Factor: PF>0.94
Connections
Power supply: PowerCON TRUE1 In&Out panel connectors
DMX: XLR 5 pins or 3 pins In&Out panel connectors
Internal safety devices
Overvoltage and overtemperature circuits protection
Operating temperature
-10° / 40°C
Weight
8,5 Kg
Certifications

6
DIMENSIONS
SCENA LED 200 FR

7
4- TECHNICAL FEATURES
SCENA LED 200 PC
DTS Product codes:
03.TS046.46.A SCENA LED 200 PC 3200K *5 pins XLR connectors *Black finishing
03.TS065.46.A SCENA LED 200 PC 3200K *3 pins XLR connectors *Black finishing
03.TS048.46.A SCENA LED 200 PC 4000K *5 pins XLR connectors *Black finishing
03.TS067.46.A SCENA LED 200 PC 4000K *3 pins XLR connectors *Black finishing
03.TS064.46.A SCENA LED 200 PC 5600K *5 pins XLR connectors *Black finishing
03.TS068.46.A SCENA LED 200 PC 5600K *3 pins XLR connectors *Black finishing
Output
Single high-power White 3200K LED
CRI>95
Also available with 4000K and 5600K LED
LED lifespan: 50.000 hours (70% lumen output)
Optical group
Ø 150 mm PC lens
6,4° - 64° linear zoom
Control
DMX 512 / RDM or Manual Control
4 DMX channels (Default), 1 DMX channel or “FINE”Mode
4-digit 7-segment LED display + 4 soft keys
Internal operating system updatable via DTS Dongle Firmware Uploader
Power supply
Full-range 100-240Vac 50-60 Hz
Power consumption: 200W Max
Power Factor: PF>0.94
Connections
Power supply: PowerCON TRUE1 In&Out panel connectors
DMX: XLR 5 pins or 3 pins In&Out panel connectors
Internal safety devices
Overvoltage and overtemperature circuits protection
Operating temperature
-10° / 40°C
Weight
9,5 Kg
Certifications

8
DIMENSIONS
SCENA LED 200 PC
5- ACCESSORIES
As standard
1 x PowerCON TRUE1 female cable connector (code 0520P066)
1 x XLR 5 pins female cable connector (code 0508B147)
1 x XLR 5 pins male cable connector (code 0508B148)
1 x Filterframe black finishing - already installed on the projector (code
02M093278.46)
1 x User’s Manual
Optional (on request)
- Barndoor black finishing (code 03.TBD02)
- “C” Clamp G60 (Max. Load 50 Kg) (code 0521A004)
- Safety cable 3 mm x 60 cm, max capacity load 60 Kg (code 0521A010)
- DTS Dongle Firmware Uploader (code 03.LA.206)

9
6- IMPORTANT SAFETY INFORMATION
6.1 Fire prevention:
Replace any blown or damaged fuses only with those of identical value: T 3.15A 250V.
6.2 Prevention from electric shock:
High voltage is present inside the unit. Unplug the unit prior to performing any
operation which involves touching the inside of the unit.
This equipment must be grounded, do not connect to non-grounded supplies.
The use of a thermal magnetic circuit breaker is recommended for each SCENA LED
200 unit. Use only AC supplies 100-240V 50-60 Hz.
SCENA LED 200 should never be located in position exposed to rain or in areas of
extreme humidity.
A good air ventilation is essential for proper equipment work.
6.3 Safety:
Risk Group 2 product according to EN 62471.
CAUTION. Do not look directly into the light output. May be harmful to the eyes and
skin.
Do not stare at the operating light source.
The light source contained in this luminaire shall only be replaced by the manufacturer
or his service agent or a similar qualified person.
The unit is not for household use and must be installed by a qualified electrician or
experienced person.
The external surface of the unit may exeed 60°C; never handle the unit until at least 5
minutes have elapsed since the unit was turned off.
Never install the unit in an enclosed area lacking sufficient air flow.
The ambient temperature should not exeed 40°C.
6.4 Waste Electrical and Electronic equipment (WEEE) directive:
The unit, accessories and packaging should be sorted for environmetal-friendly
recycling.
For EC countries: according to the European Directive 2012/19/EC for Waste
Electrical and Electronic Equipment and its implementation into national right,
luminaires that are no longer usable must be collected separately and disposed of in
an environmentally correct manner.
!

10
7- INSTALLATION
The unit is suitable for dry locations only.
SCENA LED 200 can be installed on a truss or on the ceiling.
It is recommend the use of appropriate clamps to fix the unit to the mounting surface.
ATTENTION:

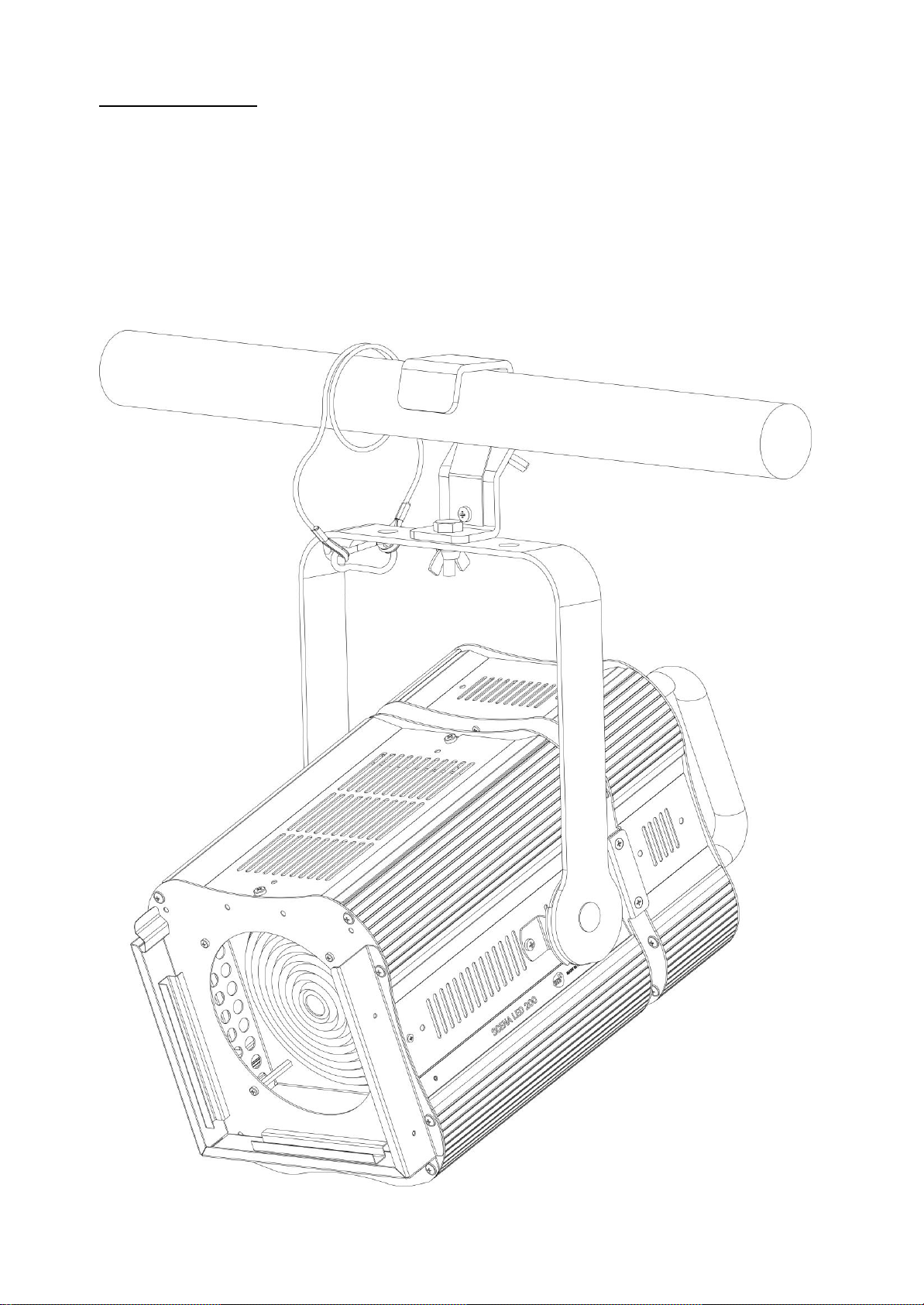

A safety cable (code 0521A010) must be securely fixed to the unit’s mounting bracket
and to the support structure of the projector as shown in the picture below.
Fixing clamps and safety cable are available on request.

11
8- INPUT / OUTPUT CONNECTIONS

12

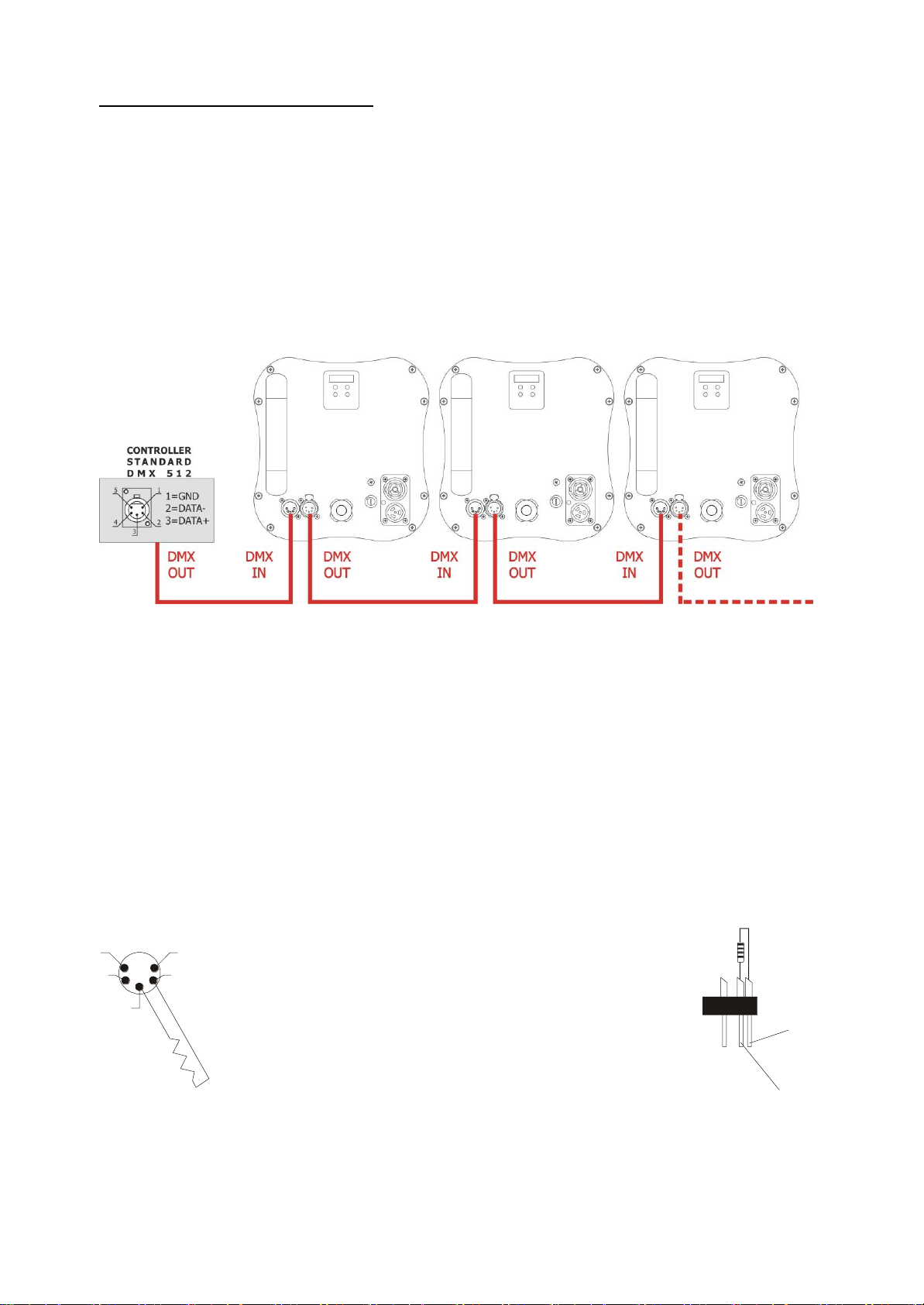

9- DMX SIGNAL CONNECTION:
The unit operates using a digital DMX 512 signal.
Connection between the controller and the unit or between units must be carried out
using a two pair screened ø 0.5 mm.
Ensure that the conductors do not touch each other.
Do not connect the cable ground to the DMX connector chassis.
The plug housing must be isolated. Connect the mixer signal to the DMX IN projector
plug and connect it to the next projector by connecting the DMX OUT plug on the first
unit to the DMX IN plug of the second one.
In this way, all the projectors are cascade connected.
If the display showing the DMX address flashes, then one of the following errors has
occurred:
- DMX signal not present
- DMX reception problem
For Installations where long distance DMX cable connections are needed, we
suggest to use a DMX terminator.
The DMX terminator is a male XLR 3-5 pins connector with a 120 ohm resistor
Between pin 2 and 3.
The DMX terminator must be plugged into the last unit (DMX out panel connector) of
the DMX line.
PLACE A 120 OHM RESISTOR BETWEEN PIN 2
AND 3 OF A MALE XRL CONNECTOR AND PLUG IT
INTO THE DMX OUT PANEL CONNECTOR OF THE
LAST UNIT CONNECTED TO THE DMX LINE
1
2
3
5
4
OUT
120 ohm
PIN 3
PIN 2

13
9.1 DMX addresses
SCENA LED 200 can be controlled with 4 DMX channels (Default), 1 DMX channel or
in “FINE”mode (2 DMX channels).
In order to use the unit in 4 DMX channels mode (Default), set the following addresses
on the mixer:
Projector 1 A001
Projector 2 A005 If you want to select the next projector, just add “4”
Projector 3 A009
….. A….
projector 6 A021
9.2 Selecting the DMX address
1) Press the UP-DOWN key until you reach the required DMX address. The numbers
on the display will start to flash (but the new DMX address hasn't yet been set).
2) Press ENTER to confirm your selection. The numbers on the display will stop
flashing and the projector is now controlled by the new DMX address.
TIPS: if you keep pushed the UP or DOWN keys, the channels are calculated more
quickly and you get a faster selection.

14
10- RDM FUNCTIONS
By using a RDM controller it is possible to set DMX address, DMX mode and other
parameters.
SCENA LED 200 accepts the following RDM commands:
DEVICE_INFO
To read the following parameters:
•RDM protocol version
•Fixture model ID
•Fixture type
•Software version ID
•DMX channels
•DMX mode
•DMX address
•Total sub-fixtures
•Total sensors
IDENTIFY_DEVICE
LED ON at max power to identify the fixture
DMX_START_ADDRESS
To read / set the DMX address
SOFTWARE_VERSION_LABEL
Software version ID
SUPPORTED_PARAMETERS
List of all supported parameters
PARAMETER_DESCRIPTION
Description / details of Manufacturer Specific
parameter as “NO DMX ACTION”
DMX_PERSONALITY
To set the DMX mode
DMX_PERSONALITY_DESCRIPTION
Description / details of the DMX mode
DEVICE_MODEL_DESCRIPTION
Description / details of the Fixture model
MANUFACTURER_LABEL
Producer ID
SENSOR_DEFINITION, SENSOR VALUE
Description / values of sensors
SENSORS
1: Led Temperature
LED temperature
2: Micro Temperature
Micro controller temperature
3: Driver 1 Temperature
Output 1 of LED Driver board temperature
4: Driver 2 Temperature
Output 4 of LED Driver board temperature
RDM MANUFACTURER-SPECIFIC PIDs
NO DMX ACTION
To set the desired fixture’s behavior in case DMX
signal is missing or not available.
1 = Black-out
2 = LED ON @ 60%
3 = LED ON @ 100%
4 = CUSTOM (Dimmer level selectable)
NO DMX LEVEL
0 ÷ 255 (Default = 0)
5 = Keep last valid DMX signal (Default)

15
11- FIRMWARE UPDATING
To update the firmware release of the SCENA LED 200 you need:
- DTS Dongle Firmware Uploader (code 03.LA.206).
- “DTS Firmware Upgrade Utility v.2.02” program installed on PC.
- Latest firmware release available for SCENA LED 200 unit.
Updating the firmware release.
Please follow the procedure below to perform the update:
1. Connect the DTS Dongle Firmware Uploader to a spare USB port on the PC.
2. Connect the unit DMX input to the DTS Dongle Firmware Uploader DMX output with
a standard DMX cable and turn ON the unit.
3. Send the new firmware release into the unit by using “DTS Firmware Upgrade
Utility v.2.02” program. At the end of the procedure, the unit will reset.
For more information please refer to an authorised DTS service centre.

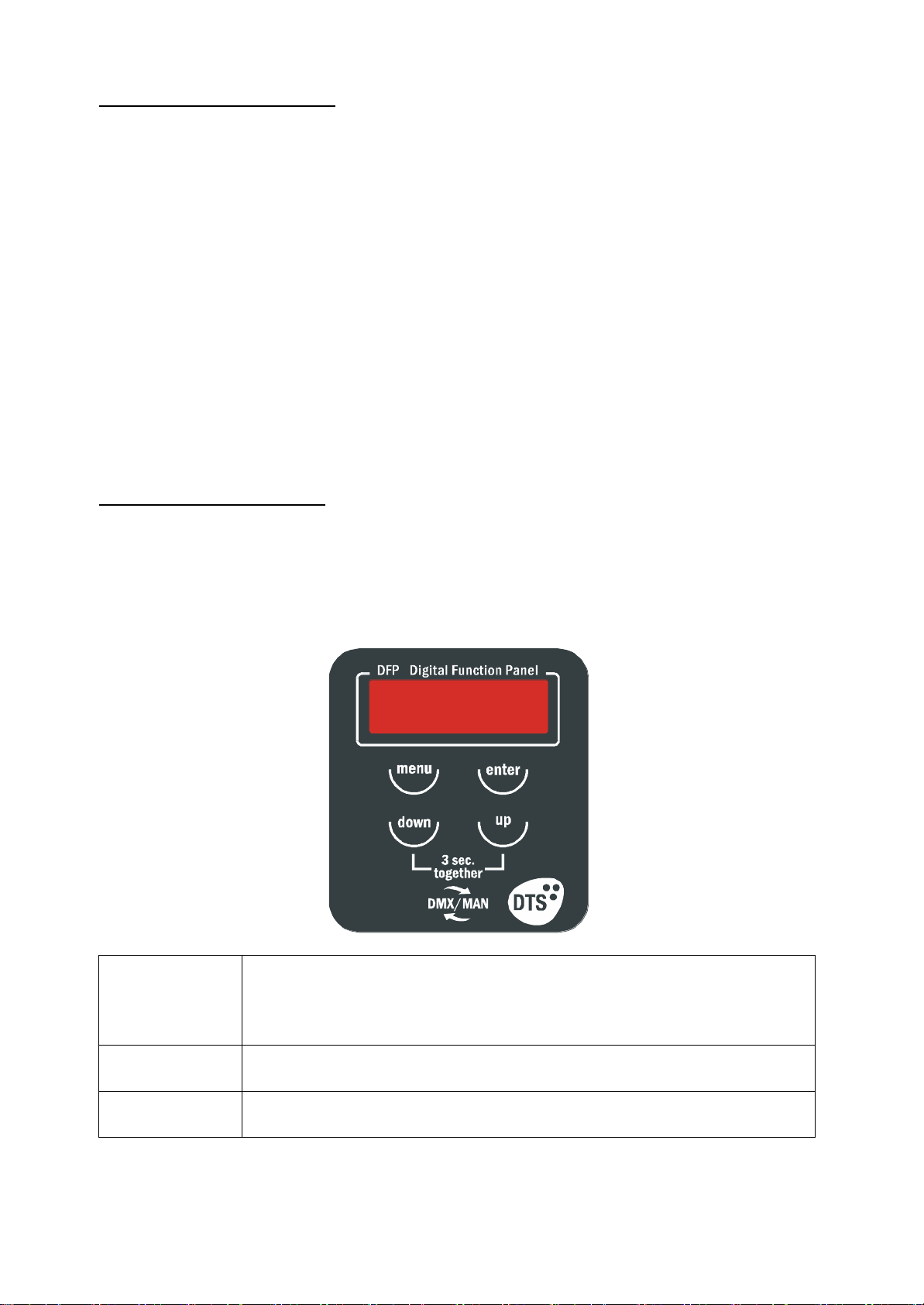

12- DISPLAY FUNCTIONS
The SCENA LED 200 display panel shows all the available control menus.
Using these options, it is possible to change the fixture’s setting.
Changing the DTS settings can vary the functions of the unit so that it does not
respond to the DMX 512 used to control it. Carefully follow the instructions below
before carrying out any variations or selections.
MENU
•To access the control menus in the display panel.
•To return to the previous level in the menu structure without
making a change.
•To exit the menus.
ENTER
•To select any required menu.
•To confirm any changes.
UP / DOWN
•To navigate the menus structure.
•To change any value.

16
FIRMWARE RELEASE
1.03
RDM Device Model ID
0x0D42
DMX Personality IDs
0x01 “7 CHANNELS”
0x02 “2 CHANNELS”
0x03 “FINE”
MAIN MENU
LEVEL 1
LEVEL 2
LEVEL 3
FUNCTION




Display normal orientation for
floor mounting position (Default)


Display inverted orientation for
suspended mounting position



Display always ON (Default)


Display goes OFF after 10 seconds




Allows to select 4 DMX channels
mode (Default)



Allows to select 1 DMX channel
mode



Allows to select FINE mode (2 DMX
channels)




Allows to select the value of the
delay (in milliseconds) for Dimmer
channel reaction to DMX or
Program variation.
Off = Instant response to DMX
variation.
4 = 100 ms Smooth response to
DMX variation (Default)
20 = 500 ms Smooth response to
DMX variation.



Allows to select Quadratic
current for linear light output
(Default)


Allows to select Linear current
output



Allows to adjust the PWM
frequency value (Hz) in order to
reduce flickering in the process of
your camera recordings.
Default = 610 Hz



Allows to increase the LED’s
current from 1470mA to 2100mA
Default = ON






Automatic mode without DMX
controller.
In Auto mode the unit do generate
DMX for slave units.


Dimmer level selectable by user as
on DMX channel 2 (DIMMER)
Default = 255


Shutter level selectable by user as
on DMX channel 1 (SHUTTER)
Default = 0


Esc from automatic mode menu




Slave mode.
The unit is forced to DMX address 1
and 7 DMX channels mode
receiving signal from the unit set in
Auto mode.


Esc from slave mode




Allows to select the internal fans
speed.
Standard mode: High fans speed.
Silent mode: Low fans speed for a
very low noise operation.
Default = SIL







No DMX action.
Keep last valid DMX signal
(Default)



LED ON @ 60%



LED ON @ 100%



Dimmer level selectable for White
Default = 255



Black-out

17
MAIN MENU
LEVEL 1
LEVEL 2
LEVEL 3
FUNCTION




To restore default settings




LED temperature monitoring



Micro controller temperature
monitoring



Output 1 of LED Driver board
temperature monitoring



Output 4 of LED Driver board
temperature monitoring




Shows the total unit life time and
LED life time





Software version
13- MANUAL MODE
Manual mode can be activated by pressing at the same time ‘UP’and ‘DOWN’keys
on unit display for 3 seconds (A001).
In Manual mode it is possible to select the DIMMER level (range 0-255) as on DMX
channel 2 and SHUTTER level (range 0-255) as on DMX channel 1.
When Manual mode is active, unit switch OFF/ON cycle will maintain Manual Mode
selection.
In Manual mode the DMX signal is ignored.
14- ERROR MESSAGES
ERROR SHOWED ON DISPLAY
APPEARS WHEN

LED thermal sensor damaged (open or in
short circuit).
Unit immediately goes in black-out.

LED temperature detected over 100°C.
Unit immediately goes in black-out.

Micro controller thermal sensor damaged
(open or in short circuit).
Unit immediately goes in black-out.

Micro controller temperature detected over
100°C.
Unit immediately goes in black-out.

Thermal sensor on output 1 of LED Driver
board damaged (open or in short circuit).
Unit immediately goes in black-out.

Temperature detected over 100°C on
output 1 of LED Driver board.
Unit immediately goes in black-out.

Thermal sensor on output 4 of LED Driver
board damaged (open or in short circuit).
Unit immediately goes in black-out.

Temperature detected over 100°C on
output 4 of LED Driver board.
Unit immediately goes in black-out.

18
15- DMX PROTOCOL
4 CHANNELS MODE (Default)
1 SHUTTER
2 DIMMER
3 DIMMER FINE
4 FUNCTIONS
Ch
Name
DMX levels
1
SHUTTER
0..9
Black-out
10..19
Open
20..29
Black-out
30..119
Strobe (from 3,27 s to 30 ms)
120..149
Pulse up (from 42,6 s to 120 ms)
150..179
Pulse down (from 42,6 s to 120 ms)
180..229
Random strobe
230..235
Single flash 30 ms
236..255
Open
2
DIMMER
0..255
Proportional dimmer from min to max
3
DIMMER FINE
0..255
Proportional dimmer from min to max
4
FUNCTIONS
(staying on desired
option for 5 seconds)
0..14
No function
15..24
SMOOTH OFF
25..26
SMOOTH 1 (25 ms)
27..28
SMOOTH 2 (50 ms)
29..30
SMOOTH 3 (75 ms)
31..32
SMOOTH 4 (100 ms) (DEFAULT)
33..34
SMOOTH 5 (125 ms)
35..36
SMOOTH 6 (150 ms)
37..38
SMOOTH 7 (175 ms)
39..40
SMOOTH 8 (200 ms)
41..42
SMOOTH 9 (225 ms)
43..44
SMOOTH 10 (250 ms)
45..46
SMOOTH 11 (275 ms)
47..48
SMOOTH 12 (300 ms)
49..50
SMOOTH 13 (325 ms)
51..52
SMOOTH 14 (350 ms)
53..54
SMOOTH 15 (375 ms)
55..56
SMOOTH 16 (400 ms)
57..58
SMOOTH 17 (425 ms)
59..60
SMOOTH 18 (450 ms)
61..62
SMOOTH 19 (475 ms)
63..64
SMOOTH 20 (500 ms)
65..74
GAMMA CORRECTION () QUADRATIC (DEFAULT)
75..84
GAMMA CORRECTION () LINEAR

19
Ch
Name
DMX levels
4
FUNCTIONS
(staying on desired
option for 5 seconds)
85..104
OUTPUT FREQUENCY 610 Hz (DEFAULT)
105
OUTPUT FREQUENCY 800 Hz
106
OUTPUT FREQUENCY 1000 Hz
107
OUTPUT FREQUENCY 1500 Hz
108
OUTPUT FREQUENCY 2000 Hz
109
OUTPUT FREQUENCY 2500 Hz
110
OUTPUT FREQUENCY 3000 Hz
111
OUTPUT FREQUENCY 3500 Hz
112
OUTPUT FREQUENCY 4000 Hz
113
OUTPUT FREQUENCY 4500 Hz
114
OUTPUT FREQUENCY 5000 Hz
115..134
RESERVED
135..144
BOOST ON (DEFAULT)
145..154
BOOST OFF
155..164
DISPLAY STAND-BY OFF (DEFAULT)
165..174
DISPLAY STAND-BY ON
175..176
NO DMX ACTION –KEEP LAST DMX (DEFAULT)
177..178
NO DMX ACTION –Black-out
179..180
NO DMX ACTION –LED ON @ 100%
181..182
NO DMX ACTION –LED ON @ 60%
183..184
NO DMX ACTION –CUSTOM
185..194
RESERVED
195..204
RESERVED
205..214
RESERVED
215..224
RESERVED
225..234
RESERVED
235..244
FAN STANDARD MODE
245..255
FAN SILENT MODE (DEFAULT)
1 CHANNEL MODE
1 DIMMER
Ch
Name
DMX levels
1
DIMMER
0..255
Proportional dimmer from min to max
“FINE”MODE (2 CHANNELS)
1 DIMMER
2 DIMMER FINE
Ch
Name
DMX levels
1
DIMMER
0..255
Proportional dimmer from min to max
2
DIMMER FINE
0..255
Proportional dimmer from min to max

20
ISO 9001:2015
DTS quality system is
certified to the ISO
9001:2015 standard
D.T.S. Illuminazione s.r.l.
Via Fagnano Selve 12- ●47843 Misano Adriatico (RN) Italy
Tel.: [phone] ●Fax [phone] [e-mail]
www.dts-lighting.it
*0517I286*
0517I286
