DTS XR250 WASH User manual

XR250
Wash
Show division
Show division
XR250
Wash

Le informazioni contenute in questo documento sono state attentamente redatte e controllate.
Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e
questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo
consenso scritto della DTS .
DTS si riserva il diritto di apportare senza preavviso cambiamenti e modifiche estetiche , funzionali o
di design a ciascun proprio prodotto. DTS non assume alcuna responsabilità sull’uso o
sull’applicazione dei prodotti o dei circuiti descritti.
The information contained in this publication has been carefully prepared and checked. However, no
responsibility will be taken for any errors. All rights are reserved and this document cannot be
copied, photocopied or reproduced, in part or completely, without prior written consent from DTS.
DTS reserves the right to make any aesthetic, functional or design modifications to any of its
products without prior notice. DTS assumes no responsibility for the use or application of the
products or circuits described herein.
Les informations contenues dans le présent manuel ont été rédigées et contrôlées avec le plus grand
soin. Nous déclinons toutefois toute responsabilité en cas d'éventuelles inexactitudes. Tous droits
réservés. Ce document ne peut être copié, photocopié ou reproduit, dans sa totalité ou
partiellement, sans le consentement préalable de DTS.
DTS se réserve le droit d'apporter toutes modifications et améliorations esthétiques, fonctionnelles
ou de design, sans préavis, à chacun de ses produits. DTS décline toute responsabilité sur l'utilisation
ou sur l'application des produits ou des circuits décrits.
Las informaciones contenidas en este documento han sido cuidadosamenteredactadas y
controladas. Con todo, no se asume ninguna responsabilidad por eventuales
inexactitudes. Todos los derechos han sido reservados y este documento no puede ser
copiado, fotocopiado o reproducido, total o parcialmente, sin previa
autorizaciónescrita de DTS.
DTS se reserva el derecho a aportar sin previo aviso cambios y modificaciones de
carácter estético, funcional o de diseño a cada producto suyo. DTS no se asume
responsabilidad de ningún tipo sobre la utilización o sobre la aplicación de los productos
o de los circuitos descritos.
XR250
WASH

INDEX:
XR250
WASH
1- TECHNICAL FEATURES Pg. 1
2- IMPORTANT SAFETY INFORMATION Pg. 2
3- MOUNTING THE LAMP Pg. 3
4- VOLTAGE AND FREQUENCY Pg. 4
5- INSTALLATION Pg. 4
6- MAINS CONNECTION Pg. 5
7- DMX SIGNAL CONNECTION Pg. 6
8- DMX ADDRESSES Pg. 7
9- DISPLAY PANEL Pg. 8
10- DISPLAY FUNCTIONS Pg. 8
11- ERROR MESSAGES Pg. 11

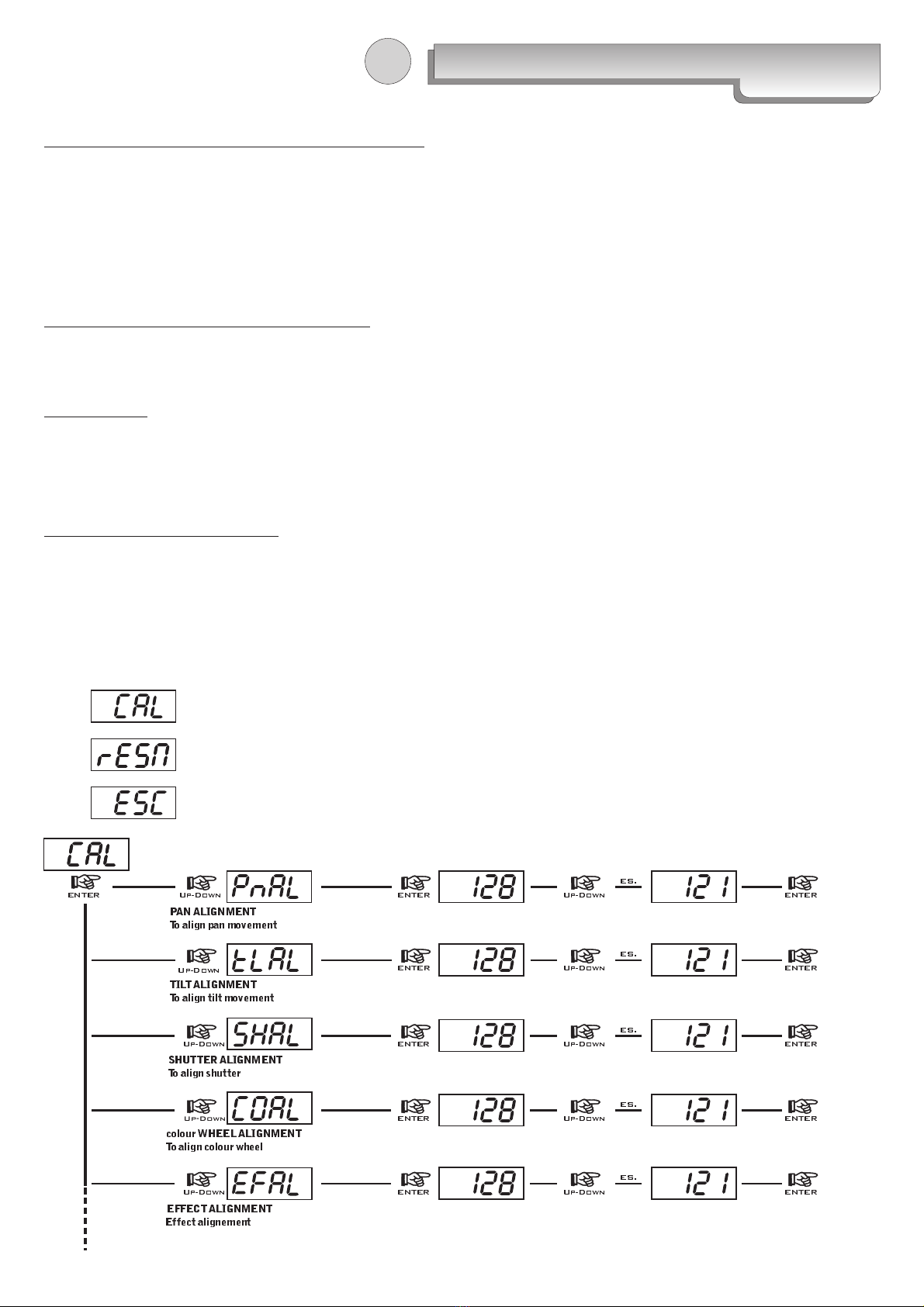

12- HIDDEN MENU Pg. 12

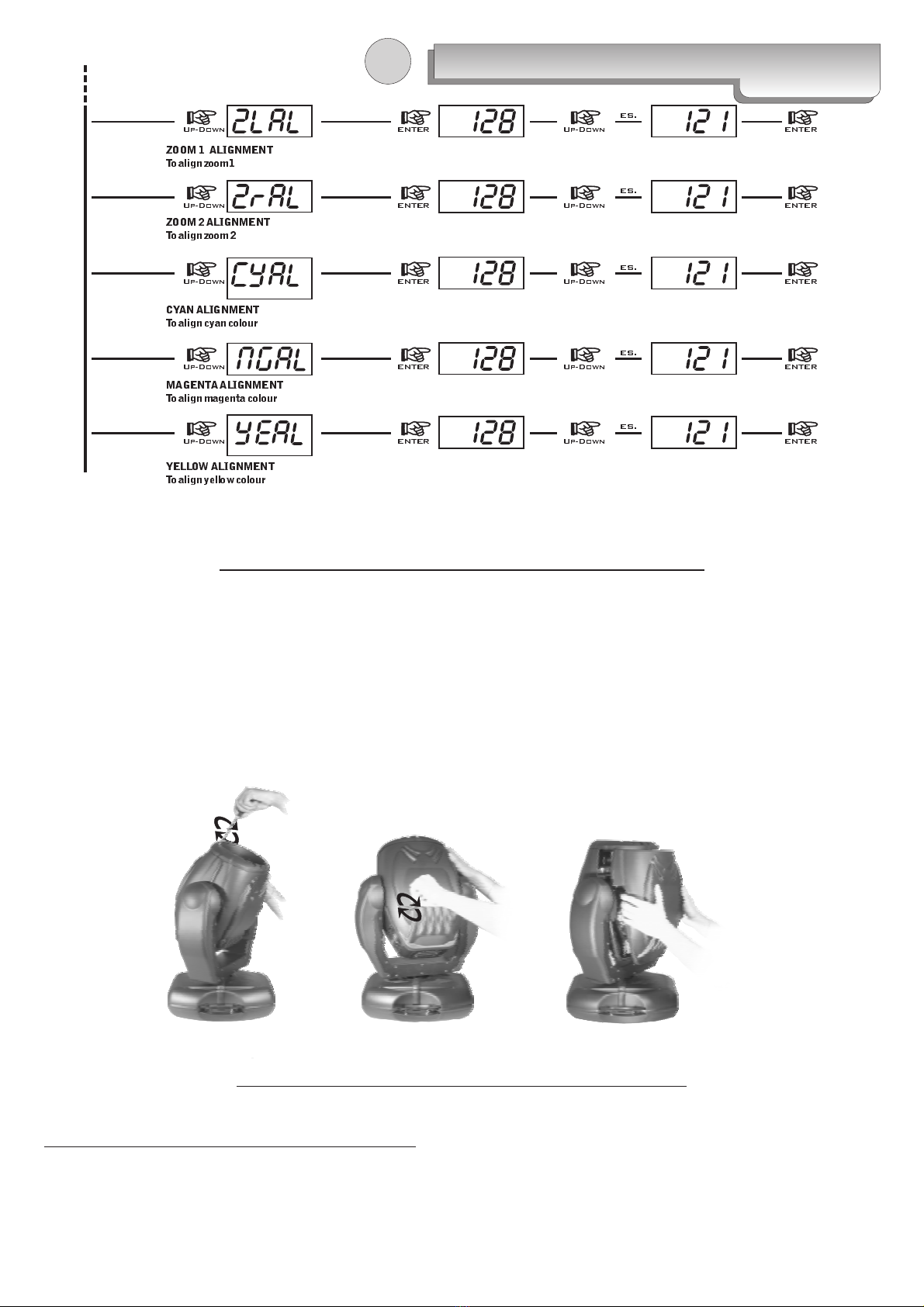

13- OPENING UP THE PROJECTOR HOUSING Pg. 13
14- PERIODIC CLEANING & CONTROLS Pg. 13

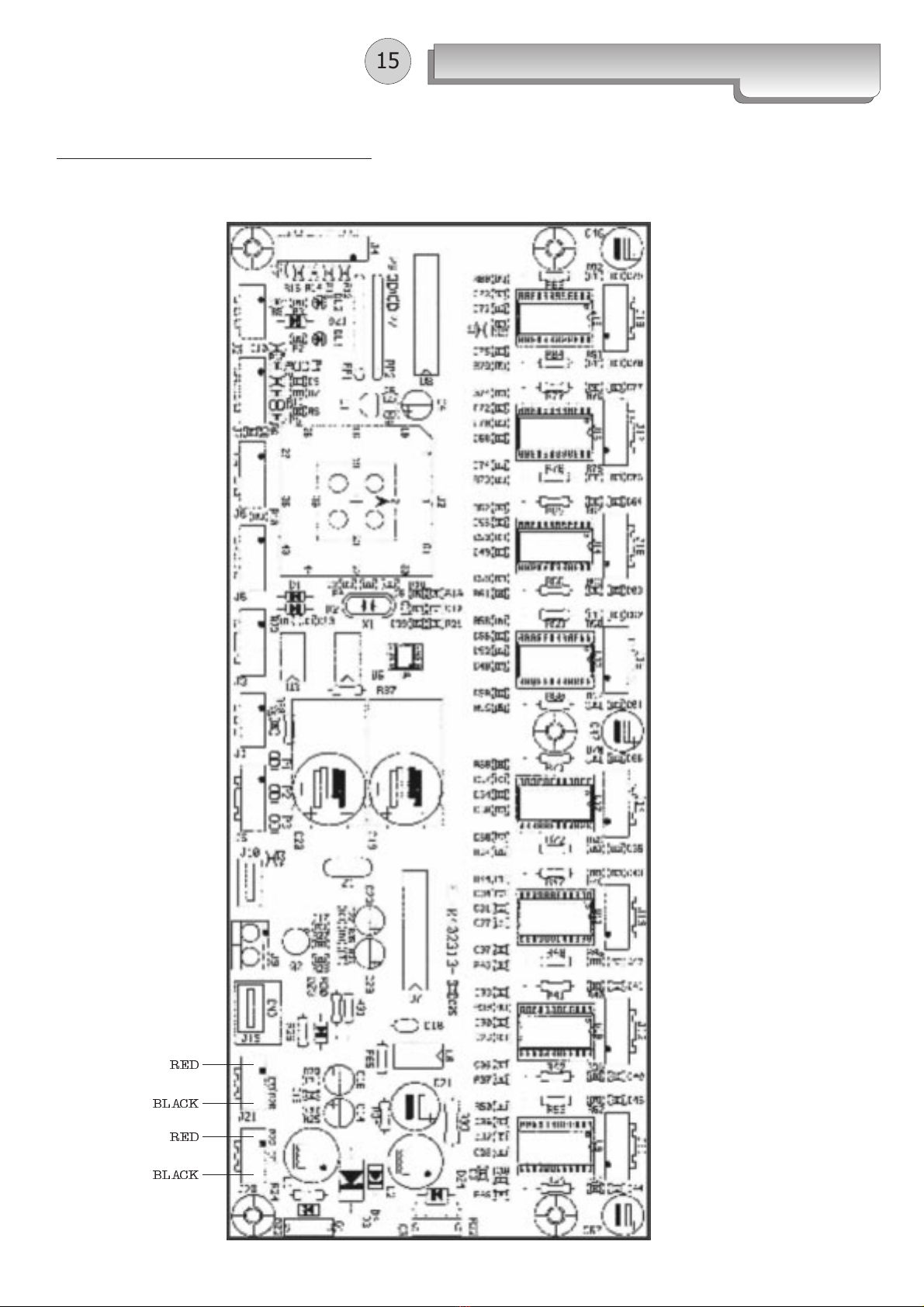

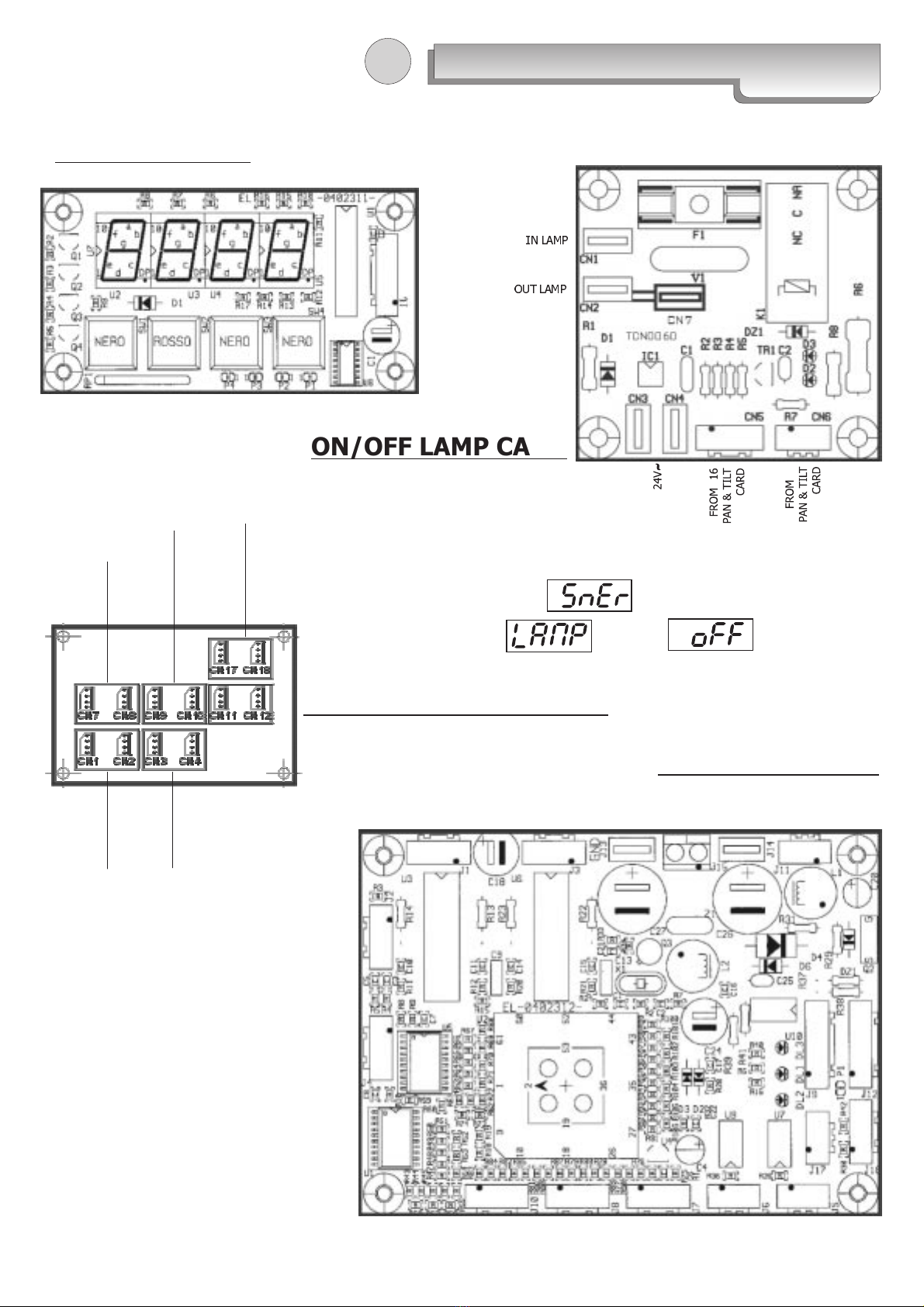

15 WIRING CONNECTION Pg. 15

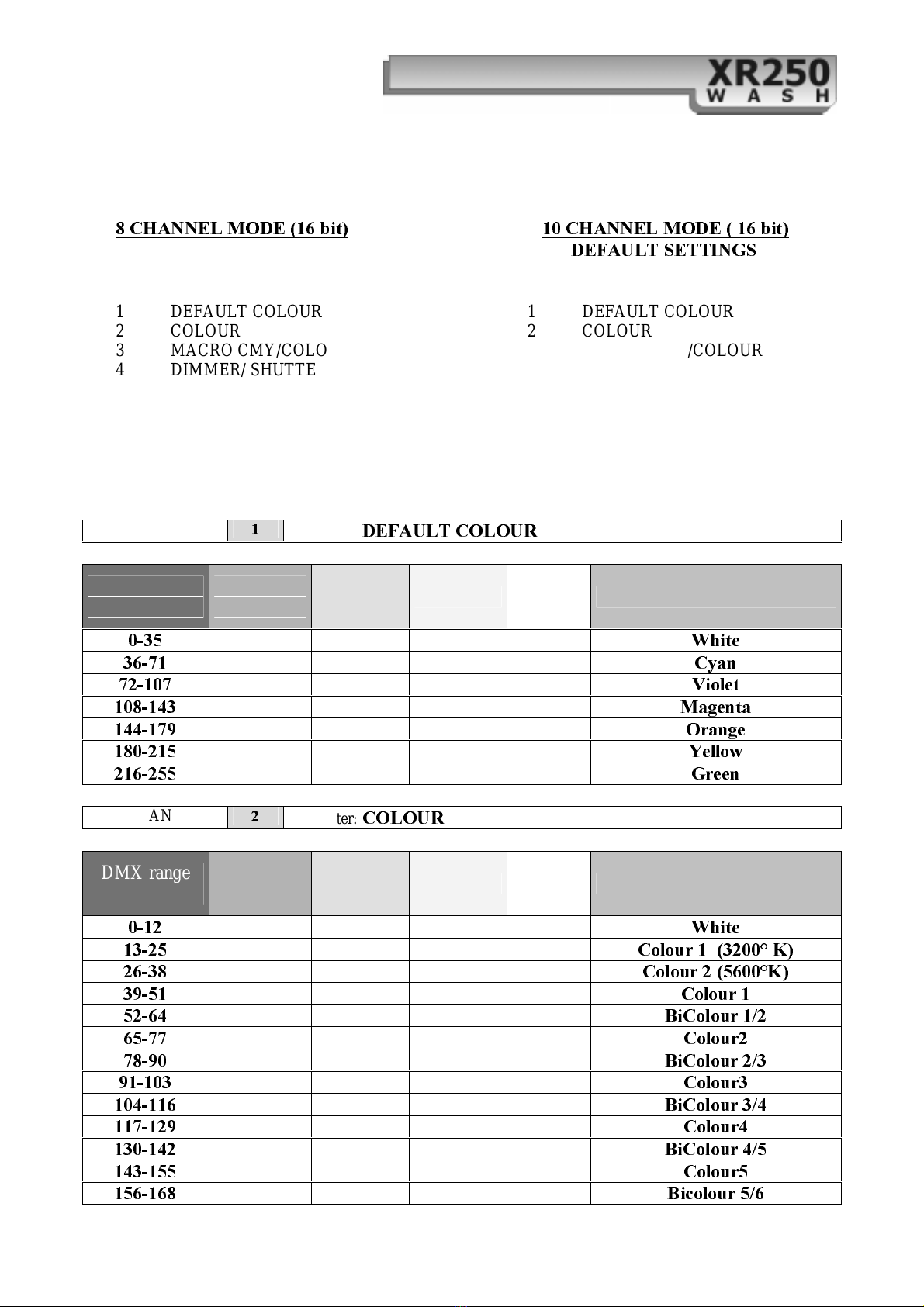

16- DMX SIGNAL FUNCTION Pg. 17
2.1 Fire prevention
2.2 Prevention of electric shock
2.3 Protection against ultraviolet radiation
2.4 Safety
2.5 Level of protection against the penetration of solid and liquid matter
3.1 Lamp alignment
5.1 Safety chain
5.2 Protection against liquids
5.3 Movement
5.4 Risk of fire
5.5 Forced ventilation
5.6 Ambient temperature
6.1 Protection
8.1 Changing the DMX addresses
10.1 Automatic operation
10.2 Pan & Tilt speed (SPEE) (default: 2)
10.3 Fan speed (FANS) (default: 6)
14.1 Lenses and raylight reflectors
14.4 Fans and air passages
14.3 Lamp
14.4 Mechanical parts
14.5 Electrical components
14.6 Fuse replacement
14.7 Warning!

1- TECHNICAL FEATURES
- New motorized moving head
- ABS cover
- 150mm fresnel lens
- MSD 250/2 lamp
- Control: max 16 channels DMX
- Fast, silent and precise movement
- Position controlled pan (540°) and tilt (270°) by encoder
- Motorized zoom (13°-23°)
- Colour mixing by CMY
- Colour wheel with 6 dichroic high chromatic yield filters +2 filters for
temperature colour conversion 3200°K and 5600°K + Rainbow effect
- Effects wheel with modulation of beam shape 0 180° and Frost effect.
- Mechanical dimmer
- Strobe effect 10 Flash/sec.
- Display for settings and addresses
- Possibility of regulating internal fans and motors to adjust to the
temperature in which the unit is functioning
- Possibility to function autonomously
- Weight: 20Kg
1XR250
WASH
590
360
410
230

2- IMPORTANT SAFETY INFORMATION
2.1 Fire prevention:
2.2 Prevention of electric shock:
2.3 Protection against ultraviolet radiation:
2.4 Safety:
2.5 Level of protection against the penetration of solid and liquid matter
1. XR250WASH uses a Philips MSD250/2 lamp . The use of any alternative lamp is not
recommended and will null and void the fixture's warranty.
2. Never locate the fixture on any flammable surface.
3. Minimum distance from flammable materials: 0.5 m.
4. Minimum distance from the closest illuminable surface: 2 m.
5. Replace any blown or damaged fuses only with those of identical value. Refer to the
wiring diagram if there is any doubt.
6. Connect the projector to mains power via a thermal magnetic circuit breaker.
- High voltage is present inside the unit. Isolate the projector from the mains supply
prior to performing any function which involves touching the inside of the unit, including
lamp replacement.
- The level of technology inherent in the XR250WASH requires the assistance of
specialised personnel for all servicing. Refer all work to your authorised DTS service
centre.
- A good earth connection is essential for proper functioning of the projector.
Never connect the unit without proper earth connection.
- The fixture should never be located in a position exposed to rain or in areas of extreme
humidity. A steady supply of circulating air is essential.
1. Never turn the lamp on if any of the lenses, filters or the carbon fibre housing is
damaged. Their respective shielding functions will only operate efficiently if they are in
perfect working order.
2. Never look directly into the lamp when it is on.
- The projector should always be installed with bolts, clamps and other fixtures that are
capable of supporting the weight of the unit.
- Always use a second safety chain of a suitable rating to sustain the weight of the unit
in case of the failure of the main fixing point.
- The external surface of the unit, at various points, may exceed 150°C. Never handle the
unit until at least 10 minutes have elapsed since the lamp was turned off.
- Always replace the lamp if any physical damage is evident.
- Never install the fixture in an enclosed area lacking sufficient air flow. The ambient
temperature should not exceed 35°C.
- A hot lamp may explode, so always wait for at least 10 minutes to elapse after the unit
has been turned off prior to attempting to replace the lamp.
Always wear suitable hand protection when handling the lamp.
- The projector is classified as an ordinary appliance and its level of protection against
the penetration of solid and liquid matter is IP 20. XR250WASH uses MSD250/2 Philips
lamps with GY 9.5 base.
The temperature inside the projector can reach 150° C after just 5 minutes, but it can
2XR250
WASH

get as high as 350° C. Always check that the lamp is cold before attempting to remove it.
In any case, only open the appliance 10 minutes after it has been turned off.
Philips MSD250/2
Power 250W
Luminous flux 18.000 lm
Colour temperature 8500°K
Lampbase GY9.5
Rated life 2.000 hours

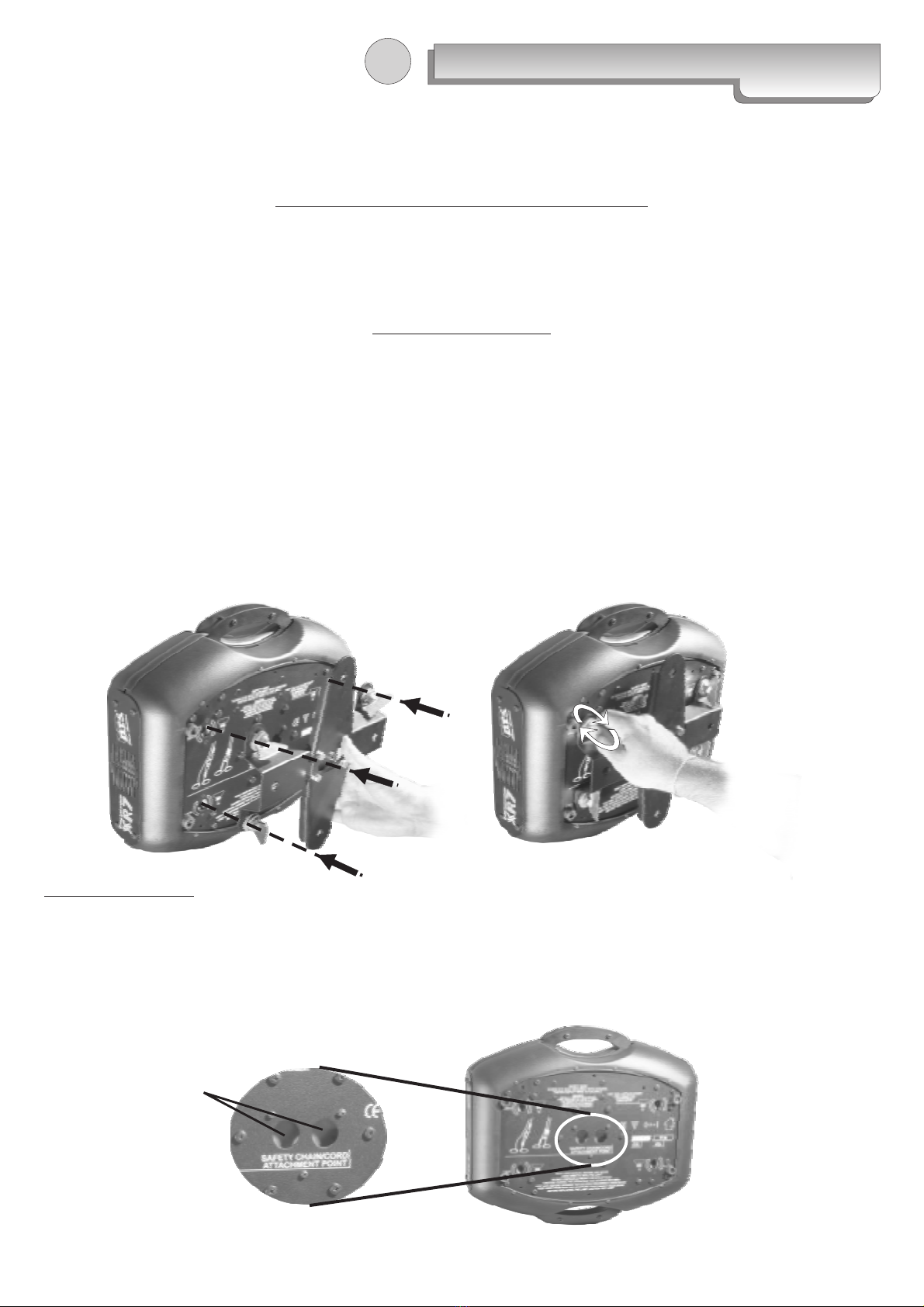

1) Using a PHILIPS screwdriver, remove the 3 screws (X,Y, Z) (photo 1, black screws)
which hold the lampholder in place and are located at the rear of the projector head.
2) Remove the lampholder unit. Locate the lampholder (photo 2).
3) Insert the lamp (photo 3)
The lamp used is manufactured from quartz glass and should be handled with care.
Always adhere to the instructions supplied in the lamp's packaging. Never touch the
glass directly but use the tissue provided in the lamp's packaging. The GY 9.5 lampbase
is not symmetrical.
DO NOT USE UNDUE FORCE ON THE GLASS. In case of difficulty, re-read the instructions
and repeat the procedure.
4) Replace the lamp assembly (photo 4) and replace and tighten the screws (X,Y,Z),
which were previously removed (photo 1).
Attention: we recommend that the lamp be realigned in the optical train of the unit to
avoid overheating of the dichroic filters and other components inside the unit. (Photo 5).
Alignment is carried out using the 3 adjusters A, B and C (white screws).
During this operation you must bring the hot-spot to the centre of the beam and flatten
3- MOUNTING THE LAMP
Warning: turn power off before opening the appliance.
3.1 Lamp alignment
Foto 5
3
Foto 2Foto 1 Foto 3
XR250
WASH

it as much as possible.
The projector can operate at 230V voltage, at 50 or 60 Hz. D.T.S. presets a voltage of
230V at a frequency of 50Hz (barring specific requests).
XR7 may be either floor or ceiling mounted.
For floor mounting installations, the XR7 is supplied with four rubber mounting feet (B)
on the base.
For ceiling mounted installations, we suggest the use of appropriate clamps or fixings to
attach the fixture to the mounting surface.
The supporting structure from which the unit is hung should be capable of bearing the
weight of the unit, as should any clamps used to hang it. The structure should also be
sufficiently rigid so as not to move or shake whilst the XR7 moves during its operation.
Four quarter turn fast locks placed on the base of the units allow for the fixing of
brackets that can then be fixed on to the rails with the use of C clamps or Aliscaf type
clamps.
We recommend the use of a safety cable or chain connected to the Xr7 Wash and to the
suspension truss in order to avoid the fixture accidentally falling should the main fixing
point fail. Make sure that the iron cable or chain can bear the weight of the entire unit.
You may attach the safety chain to the two holes (A) located on the base of the fixture,
as shown in the diagram below.
4- VOLTAGE AND FREQUENCY
5- Installation
5.1 Safety chain
4XR250
WASH
A

5.2 Protection against liquids
5.3 Movement
5.4 Risk of fire
5.5 Forced ventilation
5.6 Ambient temperature
6.1 Protection
The projector contains electric and electronic components which should under no
circumstances come into contact with oil, water or any other liquid. The proper working
of the unit would be compromised should this occur.

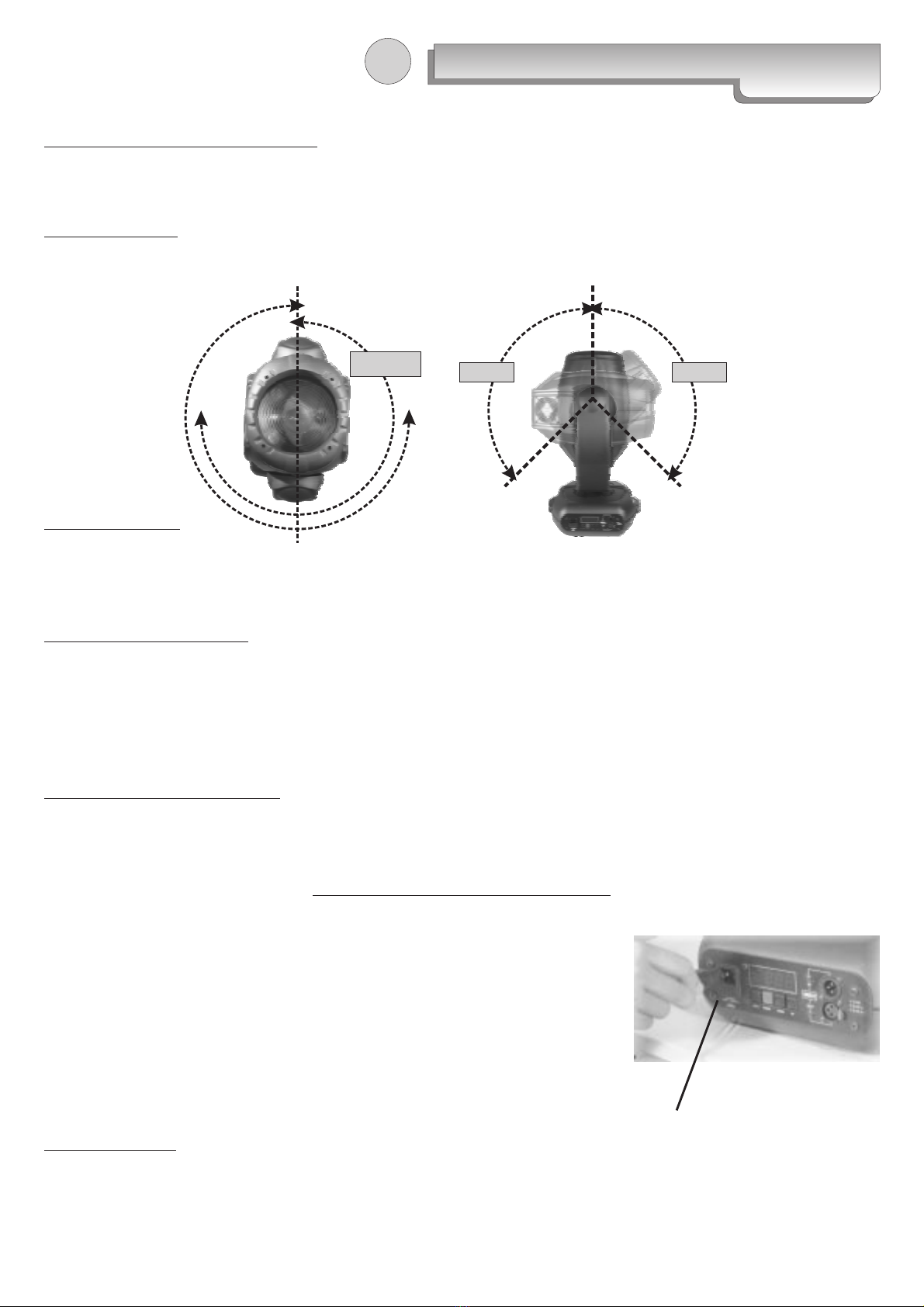

The projector has a maximum movement of 540° in the base and 270° in the yoke. DO
NOT place any obstructions in the path of the projector's movement.
Each fixture produces heat and must be installed in a well-ventilated position. The
minimum recommended distance from flammable material is 0.5m. Minimum distance
from the object being illuminated is 2 m.
You will note, on inspection, that the fixture features various air inlets and cooling fans
located on both the base and head of the fixture. These should, under no circumstances,
be blocked or obstructed whilst the projector is in operation.
Doing so could cause the fixture to seriously overheat thereby compromising its proper
operation.
The projector should never be installed in places that lack a constant flow of air. The
ambient temperature should NOT exceed 35°C.
XR250WASH operates at voltage 230V at 50 or 60Hz.
Prior to connecting the unit to your mains supply,
ensure that the model in your possession correctly matches
the mains supply available. For connection purposes,
ensure that your plug is of a suitable rating of 8 amps at 230V.
Strict adherence to regulatory norms is strongly recommended.
The use of a thermal magnetic circuit breaker is recommended for each XR250WASH.
A good earth connection is essential for the correct operation of the projector.
6- MAINS CONNECTION
230V a 50 o 60Hz
5XR250
WASH
540° 135°135°

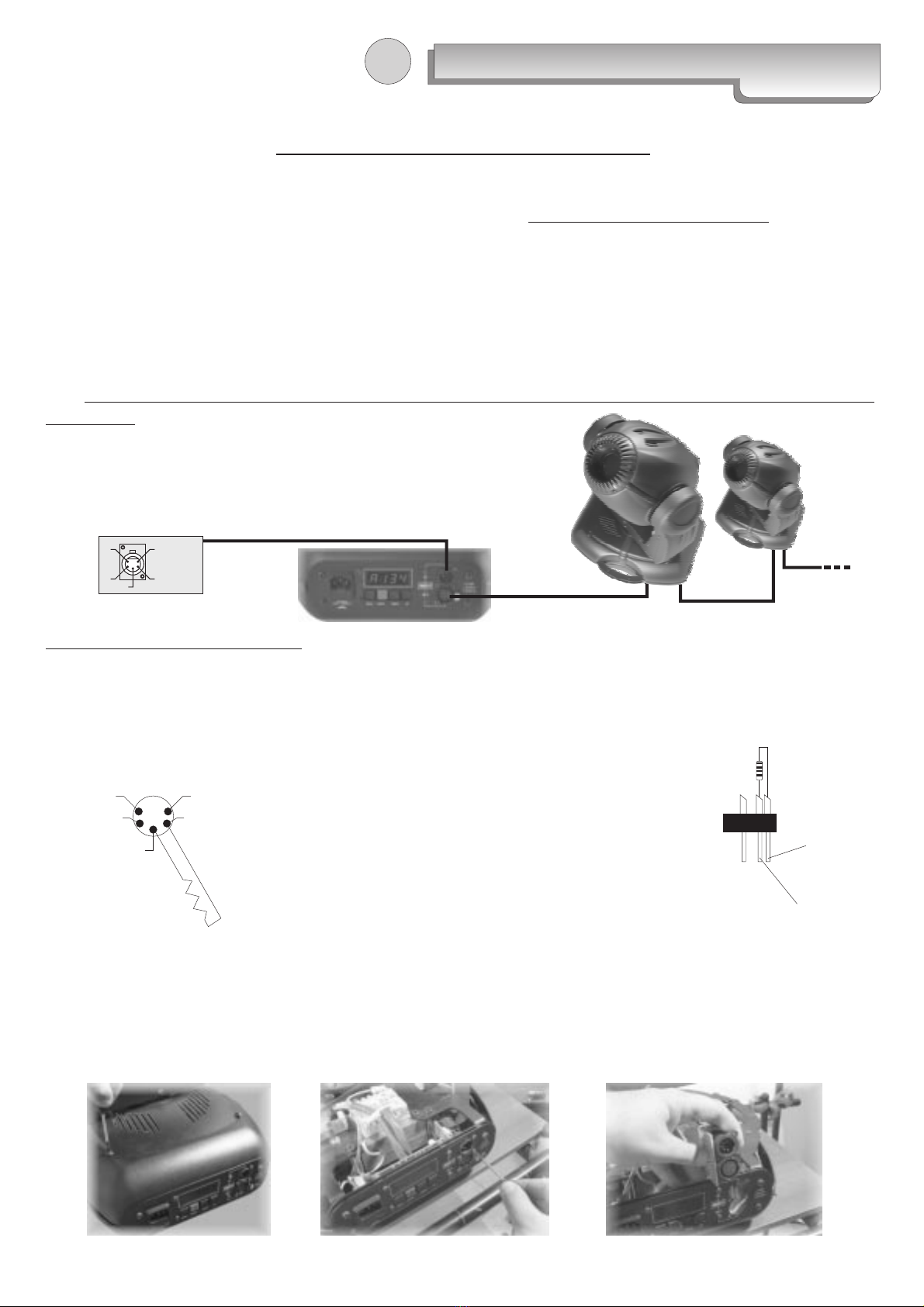

7- DMX SIGNAL CONNECTION
The unit operates using a digital DMX 512 (1990) signal. Connection between the
control box and the projector or between projectors must be carried out using a two pair
screened ø0.5 mm cable and a CANNON .
Ensure that all conductors are isolated from one another and from the metal plug
housing.

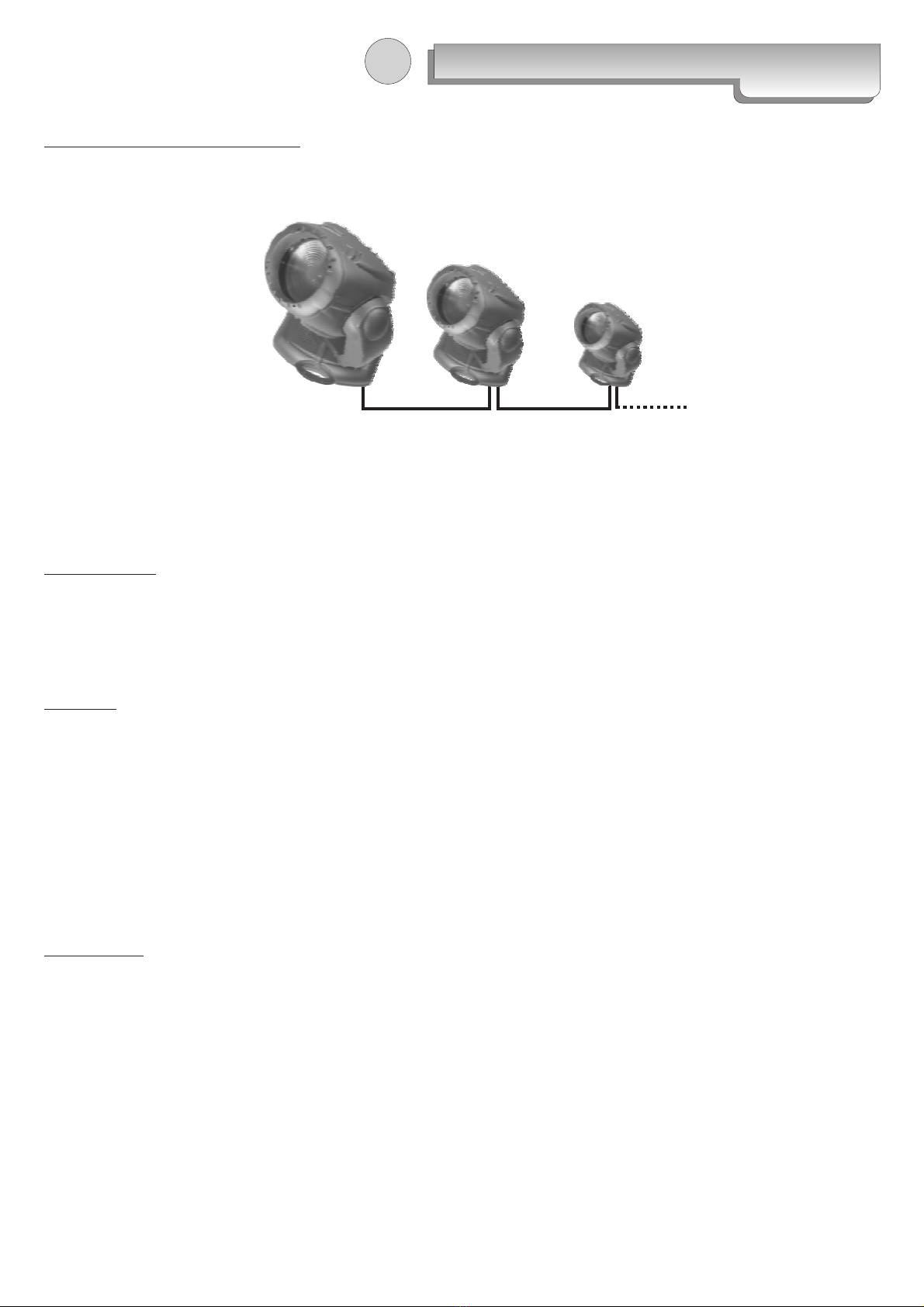

The plug housing must be isolated. Connect the control box signal to the DMX IN
projector plug and connect it to the next projector by connecting the DMX OUT plug on
the first projector to the DMX IN plug on the second.In this way, all the projectors are
cascade connected.
NB.
- DMX signal not present
- DMX address not valid
- DMX reception problem
Install when the signal wire has to be put in long distances or where there are electrical
disturbments for example in a disco, concert, theater etc we advice to use a dmx terminal.
the dmx terminal or even more a canon xrl-5 connected with a resistance to 120 ohm
between 2 and 3 the resistance is put in the plug of the dmx of the last device that has been
linked as shown following.
The standard configuration of the XR250WASH is with XLR 5 pole connection.
To convert to an XLR 3 pole configuration proceed as follows:
1) Unscrew the external cover (photo 1).
2) Unscrew the screws that fix the connectors to the panel (photo 2).
3) Rotate the electronic card by 180° (photo 3).
4) Position the 3 pole connectors in the special holes and close.
XLR 5 or 3 pole connector
If the display showing the DMX address flashes, then one of the following errors has
occurred:
TERMINAL DMX SIGNALS:
Foto 2Foto 1 Foto 3
6XR250
WASH
5
3
42
11=GND
2=DATA-
3=DATA+
CONTROLLER
STANDARD
DMX 512
1
2
3
5
4
OUT
120 ohm
PIN 3
PIN 2
ATTACHMENT OF THE TERMINA DMX INSTALL A
RESISTANCE OF 120(OHM)BETWEEN 2 AND 3 IN
THE PLUG XRL AND INSERT IN THE DIGITAL PLUG
OUT OF THE LAST DEVICE OF THE ROW

8- DMX Addresses
XR250WASH can be used in three different modes: 8, 10 or 14 DMX channels.
If you want to use a DMX controller with 8 channels, select the 8 CH mode from the
MODE menu and set the following addresses:
Projector 1 A001
Projector 2 A009 If you want to select the next projector, just add “8”
Projector 3 A017
….. A….
projector 6 A041
If you want to use a DMX controller with 10 channels, select the 10 CH mode from the
MODE menu and set the following addresses:
Projector 1 A001
Projector 2 A011 If you want to select the next projector, just add “10”
Projector 3 A021
….. A….
Projector 6 A051
If you want to use a DMX controller with 14 channels, select the 14 CH mode from the
MODE menu and set the following addresses:
Projector 1 A001
Projector 2 A015 If you want to select the next projector, just add “14”
Projector 3 A029
….. A….
Projector 6 A071
The address that has to be set on each projector generally depends on the number of
channels that the DMX mixer allots it.
If you have a 12 channel controller, set your XR250WASH to 10 CH MODE. The first
projector will have an A001 address and if you want to select the next projector, then
you have to add 12. The subsequent address will then be A0013
1) Press the UP-DOWN key until you reach the required DMX number. The numbers on
the display will start to flash (but the new DMX address hasn't yet been set).
2) Press ENTER to confirm your selection. The numbers on the display will stop flashing
and the projector is now controlled by the new 512 DMX number.
WARNING: if you press the UP-DOWN keys together the channels are calculated more
quickly and you get a faster selection.
8.1 Changing the DMX address
7XR250
WASH

9- DISPLAY PANEL
The XR250WASH display panel shows all the functions available. Using these functions,
it is possible to change some of the parameters and to add some functions. Changing the
DTS default setting can vary the functions of the appliance so that it does not respond to
the DMX 512 used to control it. Carefully follow the instructions below before carrying
out any variations or selections.
NOTE: the symbol shows which key has to be pushed to obtain the function
desired.
10 DISPLAY FUNCTION
MENU
ENTER DOWN
UP
DMX IN
DMX OUT
DISPLAY
COURRENT
230V 50-60 Hz
~
8XR250
WASH
Up-DownMENU ENTERUp-Down
Up-Down
Up-DownMENU ENTERUp-Down
Up-Down
Up-DownMENU ENTER
Up-Down
PAN MOVEMENT INVERSION
To reverse horizontal direction of
the beam from left to right and vice
versa on DMX level variation.
TILT MOVEMENT INVERSION
To reverse vertical direction of the
beam from the bottom upwards and
vice versa on DMX level variation
REVERSE DISPLAY
Reverses display's reading
depending on the mounting
position (on the ground or
suspended).
ANTI-
CLOCKWISE
CLOCKWISE
UNIT PLACED
OVERHEAD
UNIT PLACED
ON GROUND
ANTI-
CLOCKWISE
CLOCKWISE

9XR250
WASH
MENU ENTER ENTER
MENU ENTER
MENU ENTER Up-Down ENTER
Up-Down
MENU ENTER Up-Down ENTER
Up-Down ENTER
Up-Down ENTER
MENU ENTER Up-Down ENTER
Up-Down ENTER
Up-DownMENU ENTER
16 CHANNEL Pan/Tilt 16 bit
MENU ENTER
MENU ENTER ENTER Up-Down
Up-Down
Up-Down
Up-Down
MENU ENTER
Up-Down
Up-Down
Up-Down
Up-Down
Up-Down
Up-Down
Up-Down
Up-Down
Up-Down
Up-Down
ENTER
Up-Down
Up-Down
Up-Down
MENU ENTER
REC
Record mode
Up-Down ENTER
Up-Down
Up-Down
MENU ENTER
Up-Down ENTER
Slave
Slave mode as run by GAM.P, Synchronised with master
Up-Down
DMX MODE
To select DMX mode : 8-10-14-16
channels
TEST MODE
Device operation test.
Pcb 8 motors . Pcb PAN&TILT
AUTOMATIC MODE
Automatic demo game without
DMX controller
RESET
To reset all motors function
DEFAULT
To restore default setting (set by DTS)
SOFTWARE VERSION
Electronic card software version.
FAN CONTROL
To control the fan speed .
TIMER
Visualization of lamp life (reset
possible) and total time unit's
working (reset not possible)
SPEED
To change the maximum speed of PAN
and TILT movement
ENTER
MENU Up-Down
Off
H
ENTER
Up-Down
Up-Down
ON/OFF VIA DMX (DEFAULT)
FORCED ON
FORCED OFF
ENTER
ENTER
ENTER

Automatic operation (auto)
XR7 can work in automatic mode without a DMX controller.
First of all connect the projectors with a DMX cable (picture below).
To activate Auto mode on the first unit, use the menu to run through the different modes
until AUTO appears on the display, at this point press enter.
Now it is possible to choose between the different pre-programmed games (GAME 1-2-3)
or Game P which is user programmable through REC mode. To confirm game activation
press ENTER on the chosen GAME.
The first unit that will work as a Master should be placed in Automatic mode (AUTO), the
other projectors have to be place in 16 channels DMX mode (MODE 16CH) and the DMX
address should be set at A001. Once a game is chosen and set it is possible to select the
speed of the game (SPEE) and the gobo focus (FOCU).
The first unit that will function as a Master must be put in (AUTO) mode, the other
projectors have to be put in slave mode (selectable through the menu). In this way all
units will be synchronised with the master, the projectors need not be of the same
model.
On the master unit it is possible to vary the speed of the GAME P (SPEE)
NB: It is possible to run GAME P on the other units even though these do not have GAME
P programmed. You can do this by setting the units to the same mode as the master is
set before programming GAME P (10CH or 16CH DMX) and selecting A001 ad the DMX
address.
It is possible to programme your own game on the XR7 that will then run in AUTO mode
(GAME P). Each unit can have its own programmed game.
In REC mode each projector must be set to the same mode (10CH or 16CH DMX).
For the programming of GAME P besides the channels necessary to control the unit a
further 3 DMX channels are needed. So that in REC mode if the 10CH mode is selected
you will need 13 channels for the programme to work correctly whereas 16CH mode
would occupy 19 channels.
Connect the unit to a DMX mixer/controller, every unit should be set to its own Address
(See the paragraph on DMX addresses). The projectors can also be different of models:
XR7 spot/wash and XR 250 spot/wash. When you are in REC mode R.001 appears on the
display (DMX address).
GAME 1-2-3
GAME P
REC MODE
OUT IN OUT IN OUT
MASTER
10 XR250
WASH

The three new DMX channels are:
Form 0-255 are displayed the programmable scenes (max 16 scenes
M.001 M016)
-From 1-19 the unit runs the scene that has been saved in the units memory and it is
possible to play through the other scenes using the scene channel.
-From 20-235 the unit runs the configuration given by the received input DMX values.
With the channel scene it is possible to pass from one scene to the next while with REC it
is possible to record the selected scene.
-From 236-255 the unit runs the configuration given by the received DMX values from
the projector in that moment. It is possible to select a scene and then close the GAME
P with the REC channel.
Records the set scene with a variable between 0 and 255 (the display flashes indicating
that the scene has been recorded).
It is advised that you keep the REC channel set to 0 and to run through the 255 only
once you have decided to save the scene. If GAME P is not closed, by indicating the last
scene, in playback mode all 16 scenes will be played through even if not programmed.
You can set the PAN and TILT engines at high speed on your Xr7 Wash.
Press menu until you see SPEE.
Press ENTER and select a speed with UP-DOWN (there are 4 speeds). Confirm by
pressing ENTER.
When you use speed 4 (the highest) PAN and TILT speed is very high and your projector
may loose its path. In this case, the encoder corrects the position.
Fan speed regulation makes it possible to reduce fan noise. However, the ambient
temperature must be less than 35° C.
If the ambient temperature is too high, two thermal sensors will turn the lamp off.
In this case, you must increase the fan speed to ensure correct cooling of your XR7.
-Scene channel
-View channel:
-Recording channel (REC)
WARNING!
9.2 Pan & Tilt speed (SPEE) (default: 2)
9.3 Fan speed (FANS)( default: 6)
10- ERROR MESSAGES:
11 XR250
WASH
ERROR POSITIONING OF
ERROR POSITIONING OF ZOOM
ERROR ALIGNMENT SENSORS
ERROR INTERNAL
ERROR ENCODER PAN
ERROR ENCODER TILT
ERROR ADRESS DMX
ERROR LOADING
ERROR COLOUR SENSOR
ERROR POSITIONING OF
ERROR IMPUT IN AUTO MODE
ERROR COLOUR SENSOR
EPROM DATA
CIRCUIT/ZOOM 1
CIRCUIT/ZOOM 2
COLOUR WHEEL
BEAM SHAPE EFFECTS
OF ZOOM LENS
COMMUNICATION
ERROR SYNCHRONIZED FREQUENCY
MEASURE (SYNCHRONISM FOR
LAMP ON)

10.2
10.3
WARNING!
You can set the PAN and TILT engines at high speed on your XR250WASH.
Press menu until you see SPEE.
Press ENTER and select a speed with UP-DOWN (there are 4 speeds). Confirm by
pressing ENTER.
When you use speed 4 (the highest) PAN and TILT speed is very high and your projector
may loose its path. In this case, the encoder corrects the position.
Fan speed regulation makes it possible to reduce fan noise. However, the ambient
temperature must be less than 35° C.
If the ambient temperature is too high, two thermal sensors will turn the lamp off.
In this case, you must increase the fan speed to ensure correct cooling of your
XR250WASH.
For technical personnel only.
To operate this menu:
-Connect the projector to the DMX controller (DMX SIGNAL MUST BE CORRECTLY
RECEIVED)
-Reset the XR250WASH (reset from the display projector, not from the DMX controller!).
-While reset is working, press the MENU and ENTER keys at the same time.
Electronic calibration of the motors.
Reset EEPROM (Reset all settings. ATTENTION: by pressing this key
you must repeat all previous calibrations)
Exit from hidden menu.
12- HIDDEN MENU
Pan & Tilt speed (SPEE) (default: 2)
Fan speed (FANS)( default: 6)
12 XR250
WASH
Up-DownENTERUp-Down
ES.
ENTER
Up-DownENTER
Up-Down
ES.
ENTER
Up-DownENTERUp-Down
ES.
ENTER
Up-DownENTER
ES.
ENTER
Up-DownENTER
ES.
ENTER
Up-Down
Up-Down
ENTER
PAN ALIGNMENT
To align pan movement
TILT ALIGNMENT
To align tilt movement
SHUTTER ALIGNMENT
To align shutter
EFFECT ALIGNMENT
Effect alignement
colour WHEEL ALIGNMENT
To align colour wheel

13- OPENING UP THE PROJECTOR HOUSING
It is possible to inspect the inside of the projector by removing the cover as indicated
below.
WARNING
REMOVE MAINS POWER PRIOR TO ACCESSING THE PROJECTOR’S INTERNAL
COMPONENTS.
1) Loosen the screws which fix the upper and lower covers (photo 1) and unscrew the
side covers (photo 2).
2) Once unscrewed, simply lift the covers to access the internal components (photo 3).
14.1 Lenses and raylight reflector
Even a fine layer of dust can reduce the luminous output substantially. Regularly clean all lenses and
the reflector using a soft cotton cloth, dampened with a specialist lens cleaning solution.
14- PERIODIC CLEANING E CONTROLS
13 XR250
WASH
foto 2foto 1 foto 3
Up-DownENTERUp-Down
ES.
ENTER
Up-DownENTERUp-Down
ES.
ENTER
MAGENTA ALIGNMENT
To align magenta colour
YELLOW ALIGNMENT
To align yellow colour
Up-DownENTERUp-Down
ES.
ENTER
CYAN ALIGNMENT
To align cyan colour
Up-DownENTERUp-Down
ES.
ENTER
ZOOM 2 ALIGNMENT
To align zoom 2
Up-DownENTERUp-Down
ES.
ENTER
ZOOM 1 ALIGNMENT
To align zoom1

14.2 Fans and air passages
14.3 Lamp
14.4 Mechanical parts
14.5 Electrical components
14.6 Fuse replacement
14.7 WARNING!
The fans and air passages must be cleaned approximately every 6 weeks. This periodic cleaning will
depend of course, on the conditions in which the projector is operating. Suitable instruments for
performing this type of maintenance are a brush and a common vacuum cleaner or an air
compressor. If necessary, clean the fans and air passages more frequently.
The lamp should be replaced if there is any visible damage or deformation due to heat. This will help
to avoid the danger of the lamp exploding.
Periodically check all mechanical parts gears, guides, belts, etc. For wear and tear, replacing them if
necessary. Periodically check the lubrication of all components, particularly the parts subject to high
temperatures. If necessary, lubricate with suitable lubricant, available from your D.T.S. distributor.
Check the tension of the belts and adjust if necessary.
Check all electrical components for correct earthing and proper attachment of all connectors,
refastening if necessary.
Locate the fuse, which protects the lamp and electronics, in the base of the .
Using a multimeter, test the condition of the fuse, replacing it with one of equivalent type if
necessary.
Disconnect mains power prior to removing the projector housing.
XR250WASH
14 XR250
WASH

MOTOR ACTUATOR CARD
XR250
WASH
ZOOM 1
(BLACK)
YELLOW
(DARK GREEN)
EFFECTS
(GREY)
STROBE
(YELLOW)
COLOUR WHEEL
(PINK)
MAGENTA
(LIGHT BLUE)
CYAN
(GOLD)
ZOOM 2
(BLUE)
FAN 2
GND
(BLACK)
FAN 1
30 VDC
(RED)
FROM J10
PAN & TILT
(LIGHT GREEN)
FROM J8
PAN & TILT
(VIOLET)
MAGNETIC
SENSORS
(WHITE)
DISPLAY
(WHITE)
RED
BLACK
RED
BLACK
15

FROM J4
8 MOTOR
PAN
(WHITE)
TILT
(BROWN)
GND
(BLACK)
30 VDC
(RED)
FAN
(WHITE)
DMX ING
(WHITE)
FROM J3
8 MOTORI
(VIOLET)
FROM J5
8 MOTORI
(LIGHT GREEN)
ENCODER TILT
(ORANGE)
ENCODER PAN
(RED)
PAN & TILT CARD
DISPLAY CARD
CONECTOR RELAY CARD
XR250
WASH
DATA 1
DATA 2
(VIOLET)
(LIGHT GREEN)
MOTOR TILT
(BROWN)
DISPLAY 1
DISPLAY 2
(ORANGE)
J
J7
IN LAMP
OUT LAMP
˜
ON/OFF LAMP CARD
IF THE PCB DOESN’T WORK MOVE THE CABLE
“IN LAMP” FROM Cn1 TO Cn7
TO DELETE ERROR FROM DISPLAY IN
MENU SELECT
16


  



&+$11(/02'(ELW&+$11(/02'(ELW
'()$8/76(77,1*6

1 DEFAULT COLOUR 1 DEFAULT COLOUR
2 COLOUR 2 COLOUR
3 MACRO CMY/COLOUR 3 MACRO CMY/COLOUR
4 DIMMER/ SHUTTER 4 DIMMER/ SHUTTER
5 PAN msb 5 PAN msb
6 TILT msb 6 TILT msb
7 EFFECT 7 EFFECT
8 ZOOM 8 ZOOM
9 PAN lsb
10TILTlsb
DMX CHANNEL

Parameter: '()$8/7&2/285
DMX range
Value Mid point DMX value
Move
range
(degrees) Mode Option Function
  :KLWH
  &\DQ
  9LROHW
  0DJHQWD
  2UDQJH
  <HOORZ
  *UHHQ
DMX CHANNEL

Parameter: &2/285
DMX range
Value Mid point DMX value
Move
range
(degrees) Mode Option Function
  :KLWH
  &RORXU.
  &RORXU.
  &RORXU
  %L&RORXU
  &RORXU
  %L&RORXU
  &RORXU
  %L&RORXU
  &RORXU
  %L&RORXU
  &RORXU
  %LFRORXU
