Charlotte Triple Wardrobe
INSTRUCTIONS
If there is an
image please
place here
www.dunelm.com

www.dunelm.com
Thank you
Dear Customer
Thank you for purchasing your new piece of furniture from Dunelm. We put a lot of effort in the
design and construction of our products to ensure they set the standard for quality, durability and
ease of assembly.
If for any reason you feel we haven’t lived up to the high standards we set ourselves, please don’t
hesitate in contacting us on 03451 656565 where our team will be very keen to understand what
has gone wrong and, more importantly, put it right.
The next step...
There is no need to feel daunted by the number of
parts and fitting sin front of you, we have compiled
this straight forward, step-by-step guide to make sure
that assembling your furniture is as easy as 1, 2, 3.
Before you begin, we advise that you check that you
have everything you need to get started.
Top tip
Find a space to spread everything out across the
floor before you begin assembling the item. Lay
each panel down on a clean and level area, ideally
in the room of intended use, ensuring there is
enough room to manoeuvre around the item. It
is recommended that two people assemble this
product together. The full list of furniture parts,
fixtures and fittings, as well as the tools you will need
for assembly can be found on page 2 and 3 of this
manual.
Top tip
Identify all of the fittings, make sure that you have
them all prepared and familiarise yourself with each
component, to make things easier when you are
putting it all together.
Safety and care advice
IMPORTANT - The first step you need to take is to
ensure your safety! Please take the time to read and
understand these instructions before assembling
your furniture.
Please keep these instructions for future reference.
Keep children and animals away from the assembly
area. This furniture contains small parts that could
cause choking if swallowed.
Keep all plastic wrapping materials away from babies
and children to avoid danger of suffocation.
Ensure that all packaging is disposed of carefully
and responsibly.
From time to time check that there are no loose
fittings on the unit, re-tighten when necessary.
Two people may be required for the assembly of
this product.
Once items are part or fully assembled they are not
returnable unless faulty.
This item is not for outdoor use –unless stated
otherwise.
Some items will be supplied with a wall fixing strap,
which we recommend is used to secure the item
to the wall, to prevent a child from accidentally
pulling furniture over. Furniture can be dangerous if
incorrectly installed. Assembly should be carried out
by a competent person. No liability will be accepted
for damage or injury caused by incorrectly installed
or assembled furniture.

www.dunelm.com
Component parts supplied
Ref
Description
Visual
Qty
A
Base unit
1
B
Top
1
C
Shot
hanging rail
1
C1
Long
hanging rail
1
C2
Shelf
3
D
Left side
panel
1
D1
Right side
panel
1
D2
Centre
panel
1
Ref
Description
Visual
Qty
E
Left door
1
E1
Middle door
1
E2
Right door
1
F
Back
connecting
panel1
1
F1
Back
connecting
panel2
1
G
Back panel1
2
G1
Back panel2
1
W
Stand
1

www.dunelm.com
Parts and fittings
Fixtures and fittings
supplied (actual size)
Ref
Dimension
Qty
H
8x40mm
(Not
including
bolt head)
10
H1
8x20mm
(Not
including
bolt head)
2
Q
4x20mm
2
Q1
4x22mm
1
R
4x14mm
54
S
3x16mm
14
T
3x12mm
24
U
8x30mm
2
Fixtures and fittings supplied (not to scale)
Ref
Description
Visual
Qty
H2
Washer
2
I
Big angle
hinge
2
I1
Hydraulic
damping big
angle hinge
4
I2
Straight
angle hinge
1
I3
Hydraulic
damping
straight
angle hinge
2
J
Leveller
2
Ref
Description
Visual
Qty
K
Cam bolt
6
L
Cam lock
6
M
Allen key
1
N
Handle
3
O
Magnetic
catch
6
P
Metal plate
6
V
Shelf
support
12

www.dunelm.com

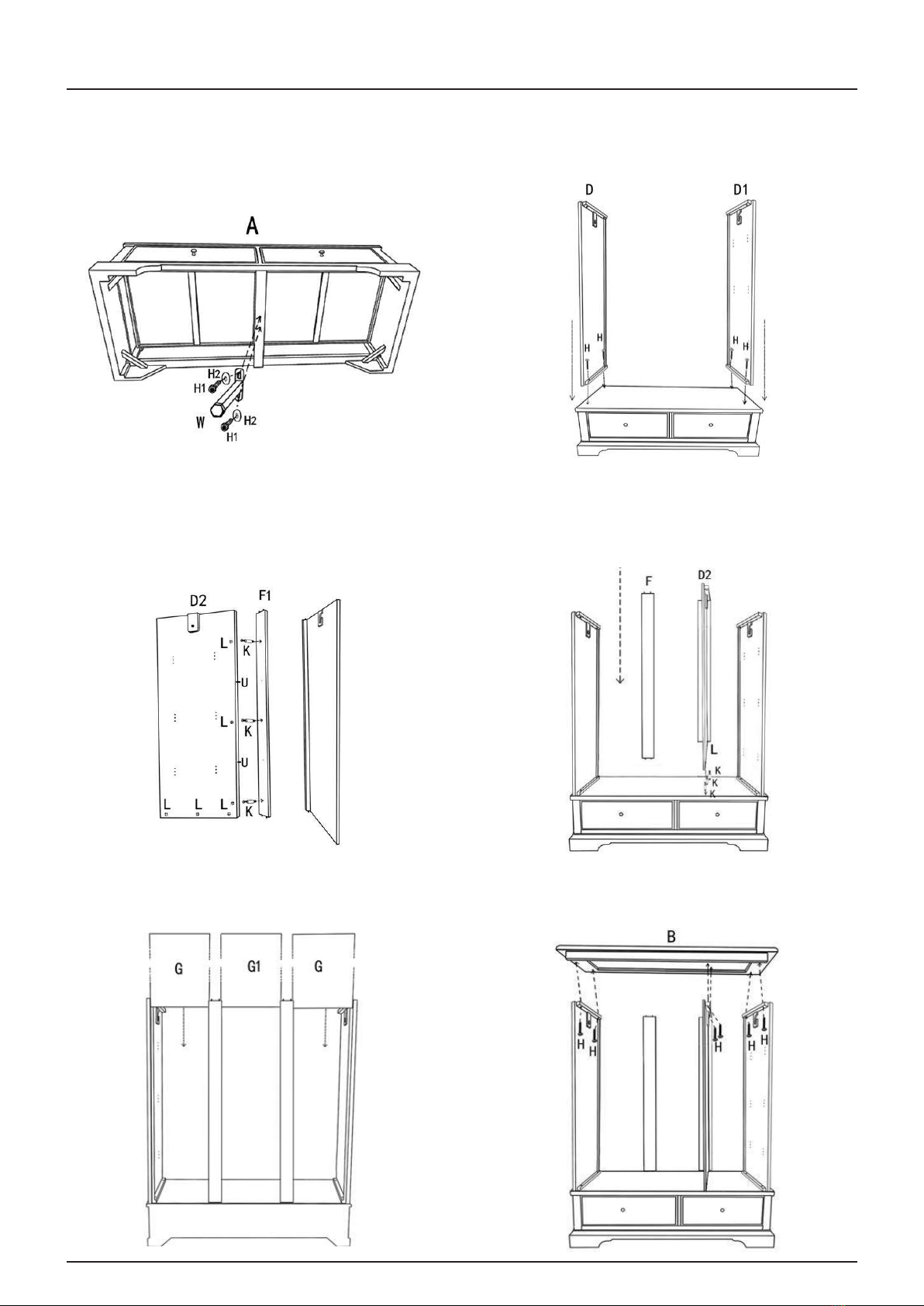

Gently lay the base unit (A) on its back, attach the stand (W) to
the base unit (A) and secure using bolts (H1) x2 and washers
(H2) x2.
Gently stand the unit upright.
Attach the left hand side (D) and the right hand side (D1)
to the base unit (A).
Secure using bolts (H) x4.
Step 1:
Step 2:
Step 3:
Attach cam bolts (K) x3 to back connecting panel (F1).
Insert dowels (U) x2 into centre panel (D2).
Insert cam locks (L) x6 into centre panel (D2).
Attach connecting panel (F1) to centre panel (D2) and secure
by turning cam lock (L).
Step 4:
Attach cam bolts (K) x3 to base unit (A).
Attach centre panel (D2) and secure by turning cam locks (L).
Attach the back connecting panel (F) to the base unit (A).
Ensure that the dowels are inserted into the holes of the base
unit.
Step 5:
Insert back panels (G and G1) into the unit, locating them
into the grooves in the assembled panels and base unit.
Step 6:
Place the top (B) onto the assembled unit.
Secure using bolts (H) x6.

www.dunelm.com
Back panels (G) are screwed inside internal slats of two side
panels using screws (S) x14.
Attach magnetic catches (O) x6 to the top and bottom of
the unit, using screws (T) x12.
Insert hanging rails (C & C1) into the unit.
Insert shelf supports (V) x12 into the unit.
Step 7:
Step 8:
Step 9:
Insert shelves (C2) x3 into the unit.
Step 11:
Attach metal plates (P) x6 onto the corners of the doors using screws (T) x12.
Attach handles (N) x2 to the doors (E & E2) using bolts (Q) x2.
Attach handle (N) x1 to the door (E1) using bolt (Q1) x1.
Step 10:
Attach big angle hinges (I) x2 and hydraulic damping big
angle hinges (I1) x4 to the doors (E & E2) using screws (R) x12.
Attach straight angle hinge (I2)x1 and hydraulic damping
straight angle hinges (I3) x2 to the door (E1) using screws (R)
x6.
E
E1
E2

www.dunelm.com

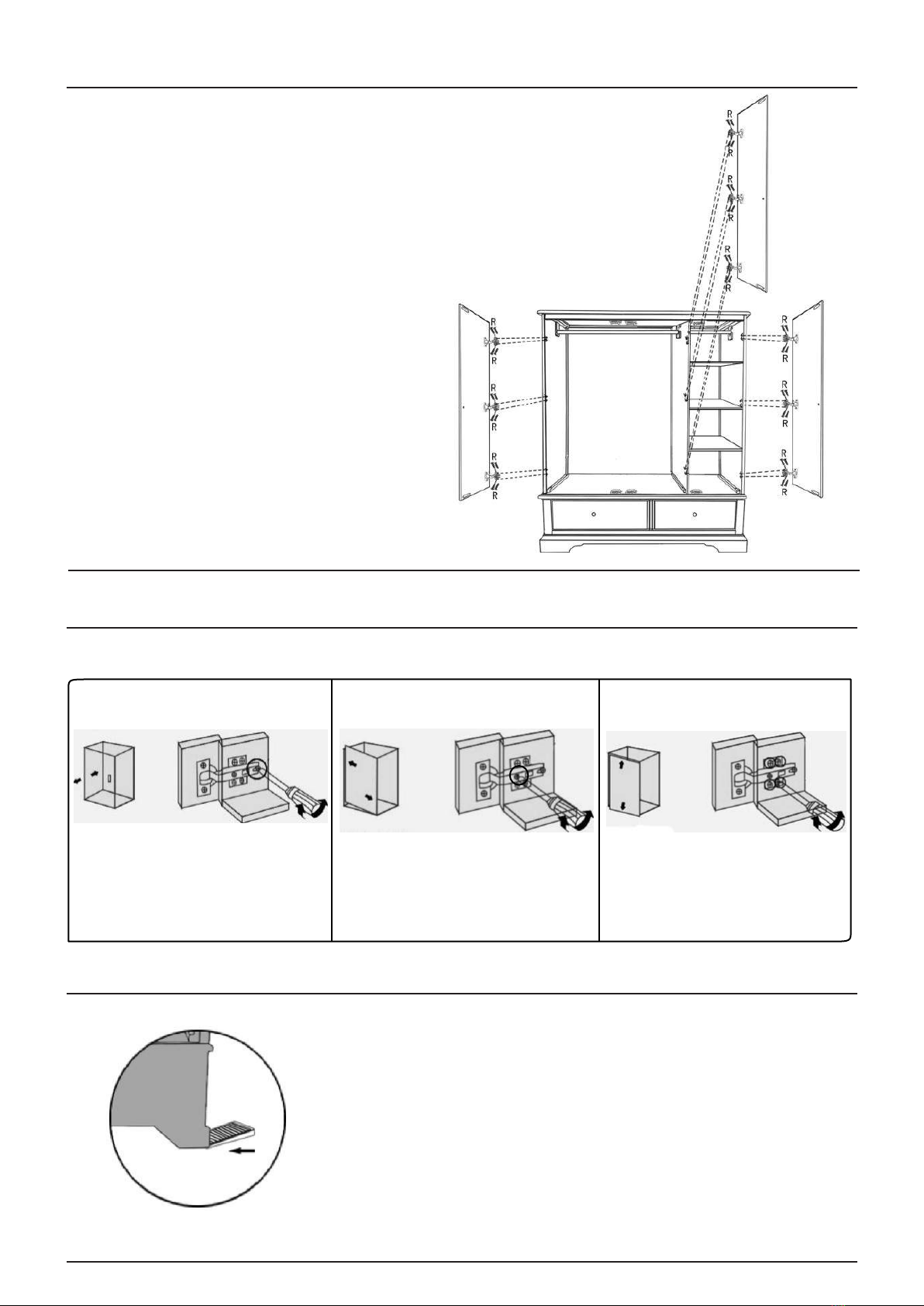

Door adjustment
Forward or backward
Loosen the screw shown in the black
circle first, push the door forward or
backward to the right place, and
then tighten the screw.
Left or right
Turn the screw shown in the black
circle counterclockwise or clockwise
to make the door to the left or right.
Up or down
Loosen the screws shown in the
black circles first, push the door
up or down to the right place, and
then tighten the screws.
Please use the levellers (J) provided if the floor surface is
uneven.
Step 12:
Attach left door (E), middle door (E1) and right door
(E2) to the unit using screws (R) x 36.
Level the doors according to the directions of door
adjustment.
Ensure that the metal plates line up with the magnetic
catches when the doors are closed.
Carefully lift the unit into place. We recommend a
minimum of two people to do this.
E
E2
E1

www.dunelm.com
Tip kit instructions
Your item of furniture has been provided with a wall attachment for your safety. It is highly recommended that
this is used to prevent furniture over tipping which can cause serious or fatal crushing injuries.
•Never allow children to climb or hang on the drawers, doors or shelves.
•Place the heaviest items in the lower drawers or shelves.
•Never open more than one drawer at a time.
•A suitable attachment device is provided with your product; however you will need to source suitable
fixings for your wall.
•If in doubt, please consult a qualified tradesperson.
•Two different wall fixings types could be provided with our furniture, the correct type is in this bag to
suit your furniture. Further information below.
Plastic cable tie image Metal L bracket image
•Please ensure that the plastic bracket is screwed
into the wall as the image shows.
•Wall screws and plugs are not provided however
please use our guide to help you choose the
correct screw / plug type for your wall.
•When drilling the walls, always ensure there are
no hidden wires or pipes.
•Please ensure that the Metal L bracket is screwed
into the wall at the image shows, the bracket
location may vary on unit location and personal
preference.
•Wall screws and plugs are not provided however
please use our guide to help you choose the
correct screw / plug type for your wall.
•When drilling the walls, always ensure there are
no hidden wires or pipes.

www.dunelm.com
Wall fixings
Step by step
Important
When drilling into walls always check there are no hidden wires or pipes
etc. Make sure that the screws and wall plugs being used are suitable for
supporting your unit. Consult a qualified tradesperson if you are unsure.
Hints
1. General Rule; Always use a larger screw and wall plug if you are not sure.
2. Ensure you use the recommended drill bit to match the wall plug and hole size.
3. Ensure you drill the hole horizontally, do not force the drill or enlarge the hole.
4. Take extra care when drilling high walls, ceilings and ceramic tiles. Ensure the plug is fitting below the
ceramic title to avoid splitting or cracking.
5. Ensure wall plugs are well fitted and are a tight fit in the drilled hole.
Types of Walls
You can use one of the following
types of wall plug if your walls
are made of brick, breeze
block, concrete, stone, wood
or plastic board.
1. STANDARD Wall Plug
General wall materials
These come in various sizes
and are made from plastic or
sometimes wood fibre.
2. GENERAL PURPOSE
Wall Plug
Aerated/Breeze block
Generally aerated blocks should
not be used to support heavy loads,
use a specialist fitting in this case.
For light loads, a General Purpose
Plug can be used.
3. SHIELD ANCHOR
Wall Plug
Heavy loads
For use with heavier loads such
as TV & Hi-fiSpeakers and
Satellite Dishes etc.
4. CAVITY FIXING
Wall Plug
For use with plaster board
partitions or hollow wooden
doors.
5. CAVITY FIXING HEAVY
DUTY Wall Plug
For use with plaster board
partitions or hollow wooden
doors.
6. HAMMER FIXING
Wall Plug
For use with walls stuck with
plaster board. The hammer
fixing allows it to be fixed to
the wall rather than the
plaster board. Always check
the fixing is secure to the
retaining wall.
Care and Maintenance
Safety
Always check the fitting and
location to ensure your safety in
and around the home.
Fitting
From time to time check the
fitting to ensure the wall plugs
or screws do not become loose.

www.dunelm.com
Wall fixings
•This wall fixing is provided for your safety and
we recommend that once in position the unit is
secured to the wall for extra stability.
•Wall fixings may vary depending on item of
furniture purchased.
•Wall fittings are not provided as different
wall types require different raw plugs and
screws.
•Please ensure that you use fittings that are
suitable for your wall type (see next page for a
general guide).
•Please ensure that the head of the screws used
has a diameter greater than the diameter of the
hole on the wall fixing and that the fixing is
safe and secure before using.
•When drilling into the walls, always ensure there
are no hidden wires or pipes.
•If you are unsure, we recommend you consult a
qualified Trades person.
Glass care advise
Regular glass care advise
Do not use glass as a chopping board.
Do not use very hot or very cold items on the
glass unless adequate table mats are used to
prevent such items coming into direct contact
with the furniture.
Do not strike the glass with hard or pointed items.
Do not use abrasive cleaners on the glass as these may
scratch and damage the glass.
To clean your item, please use a soft cloth slightly
dampened with water and wipe clean.
Then buff with a dry clean cloth. Use washing
up liquid if necessary.
If the glass is chipped or broken, stop using
the product and consult Dunelm.

www.dunelm.com
Wood care advise
Wood care advise
Wood is a natural product and each piece is
individual.
As a natural product, wood is affected by
temperature and humidity. We recommend that
you avoid placing the furniture directly in front of
heat sources such as radiators or fires as this can
cause cracking or warping over time.
The colour will mellow over time and new items
can vary in shade from items that you have already
purchased.
Strong direct sunlight can affect the colour
dramatically, so try to avoid this as much as
possible, we also recommend that any ornaments,
coasters and items placed on the product are
periodically moved around to allow the colour to
mellow evenly.
Always use matts and coasters to protect the
surface when placing items on the furniture. This
will help to protect the finish from heat, liquids or
items that might scratch your furniture.
If items are to be placed on the surface of your
furniture and have rubber feet, it is advisable to
use mats to prevent marking.
Always lift your furniture into place, avoid
dragging it across the floor as this can cause
damage to joints.
When placing furniture on a wooden or laminate
floor, please ensure that the plastic or felt
protectors are securely fitted and in place.
Only clean using a damp cloth and mild detergent,
do not use bleach or abrasive cleaners.
From time to time check that there are no loose
screws on this unit.
Remove any spills immediately to avoid staining.
Dust regularly with a soft lint free cloth or duster.
The use of abrasive polish or silicon based polishes is
not advised as these can affect the polished finish and
joints over time.
Uneven floors could give the impression that doors
of wall units and wardrobes are out of alignment.
Be aware of this and compensate if necessary by
adjusting the hinges or packing a corner to level the
item. Please refer to the instructions, included with
your furniture, and adjust accordingly.
If your furniture becomes stained, scratched, chipped
or suffers other damage, we recommend professional
help is sought to restore it. Please contact our
customer services line for recommended agents.
Always follow fitting instructions carefully and retain
them for future use.
Finally, we hope you enjoy your
furniture for many years to come
and thanks again for your
purchase.
