Dunelm Toulouse Gents 30168623 User manual
PRODUCT
DESCRIPTION
Toulouse Gents Wardrobe White
1
DEAR CUSTOMER
Thank you for purchasing your new piece of furniture from Dunelm.
We put a lot of effort in the design and construction of our products to ensure they set the standard
for
quality, durability and ease of assembly.
If for any reason you feel we haven’t lived up to the high standards we set ourselves, please don’
t
hesitate in contacting us on 03451 656565 where our team will be very keen to understand what has
gone wrong and, more importantly, put it
right.
The Next Step...
There is
no need
to feel daunted by the number of parts
and
fittings in front of
you,
we
have compiled
this
straight forward, step-by-step
guide
to make sure that
assembling
your furniture is as
easy
as 1, 2, 3.
Before
you begin,
we
advise
that
you
check that
you have
everything
you need
to get
started.
TOP
TIP
Find a space to spread these out across the floor before you begin assembling
them. Lay each panel down in position, ready to build. It is recommended
that
two people assemble this product togethe
r
.
The
full list of furniture parts, fixtures
and
fittings, as well as the tools
you
will
need
for
assembly can be
found
on page
3
and
4of this manual.
TOP
TIP
Identify all of the fittings, make sure that you have them all prepared and
familiarise yourself with each component, to make things easier when you
ar
e
putting it all togethe
r
.
Safety and Care Advice
IMPORTANT -
The
first step
you need
to take is to ensure your
safety!
Please take the time
to
read and understand these instructions
before
assembling your
furnitur
e.
Keep children and animals away from the assembly
ar
ea.
This furniture contains small parts that could cause choking if swallowed.
Keep all plastic wrapping materials away from children to avoid danger of
suf
focation.
Ensure that all packaging is disposed of carefully and responsibly.
Make sure that you allow enough space to move around when assembling your
furnitur
e.
Dust regularly with a soft clean lint free cloth or duste
r
.
The use of abrasive polishes or silicon based polishes is not advised as these can affect the polished
finish and joints over time.
2
Parts & Fittings for the Toulouse Gents Wardrobe
(
30168623
)
Component Panels
B
A C
D
B
E F
G
H
I J
Base unit Top Left side panel
Right side panel
Centre panel Door x2
Back panel x2
Hanging rail x2
Connecting panel Small shelf
3
Component
Fittings
Bolt x2 Wooden dowel x2 Cam bolt x6 Cam lock x6 Screw x8
Handle x2 Bolt x8 Bolt x2 Magnetic catch x4 Metal plate x4
Screw x20 Wall fixing strap x2 Leveller x2
Tools
Requir
ed
Cross head screwdriver (Not provided) Allen key (Provided)
Before you
start
Check
the pack
and make
sure
you have all
the parts listed
above.
If not, contact the
helpline on 03451
656565
who will
be able
to
help
you.
When you
are ready
and
sure that
you have
the right tools to
hand, you
will
need plenty
of
space and
a clean
dry area for assembly.
4x25mm 3x12mm
8x40mm 8x30mm
3x16mm
K L M
N
O
P Q R
S
T
U V W
4
X
Ready?
Follow this step-by-step
guide
Step 1: Attach the left hand side (C) and the right hand
side (D) to the base unit (A).
Secure using bolts (Q) x 4.
Step 2: Attach 3x cam bolts (M) to panel (I).
Insert 2x dowels (L) into the ends of panel (I).
Insert 6x cam locks (N) into centre panel (E).
Attach connecting panel (I) to centre panel (E) and
secure by turning cam lock (N).
Step 3: Attach 3 x cam bolts (M) to base unit (A).
Attach centre panel (E) and secure by turning cam
locks (N).
Step 4: Insert back panels (G) into the unit, locating them into the
grooves in the assembled panels and base unit..
5
Step 5: Place the top (B) onto the assembled unit.
Secure using bolts (R) and (Q).
Step 6: Attach magnetic catches (S) x 4 to the top and
bottom of the unit, using screws (U) x 8.
Attach doors (F) x 2 using screws (U) x 12.
Attach handles (P) to the doors using bolts (K).
Attach metal plates (T) x 4 onto the corners of the
doors using screws (O).
Ensure that the metal plates line up with the
magnetic catches when the doors are closed.
Insert hanging rails (H) x 2 and small shelf (J) into
the unit.
Carefully lift the unit into place. We recommend a
minimum of two people to do this.
6
Important note:
Wall fixings are not supplied as different walls require different fittings
Please ensure you use fittings that are suitable for your wall type.
When drilling into walls always check there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used are suitable for supporting your unit.
Consult a qualified tradesperson if you are unsure.
Customer Services contact number : 0345 165 65 65.
Please use the levellers (W) provided
if the floor surface is uneven.
This wall fixing is provided for your satety and we
recommend that it is used for extra stability of the item.
Care and maintenance
Only
clean using a damp cloth and mild detergent, do not use bleach or abrasive cleaners.
From time to time check that there are no loose fixtures or screws on this unit.
This product should not be discarded with household waste. Take to your local authority waste
disposal centre.
Wood is a natural product and each piece individual. The colour will mellow over time and
new
items can vary in shade from items that you have already purchased. We also recommend that any
ornaments, coasters and items placed on the product are periodically moved around to allow
the
colour to mellow evenly.
As a natural product wood is affected by temperature and humidity. We recommend that you avoid
placing the furniture directly in front of heat sources such as radiators or fires as this can cause
cracking or warping over time.
Always use matts and coaster to protect the surface when placing items on the furniture. This
will
help to protect the finish from heat, liquids or items that might scratch your
furnitur
e.
Some items will be supplied with a wall fixing strap which we recommend is used to secure
the
item to prevent your child from accidentally pulling furniture onto themselves.
Remove any spills immediately to avoid staining
Always lift your furniture into place - avoid dragging it across the floor as this can cause damage
to
joints.
Finally, we hope you enjoy your furniture
for
many years to come and thanks
again
for your
pur
chase.
dunelm.com
7
Table of contents
Other Dunelm Indoor Furnishing manuals
Dunelm
Dunelm Oliver Wide TV Unit User manual
Dunelm
Dunelm Delphi 5 Drawer Chest User manual
Dunelm
Dunelm Taylor User manual
Dunelm
Dunelm 30151824 User manual
Dunelm
Dunelm Brisbane 30151818 User manual
Dunelm
Dunelm Aria Small Sideboard User manual
Dunelm
Dunelm Indi Dressing Table User manual
Dunelm
Dunelm Lopez User manual
Dunelm
Dunelm 30151811 User manual
Dunelm
Dunelm Seattle User manual
Dunelm
Dunelm Carson Extra Wide TV Unit User manual
Dunelm
Dunelm Trio User manual
Dunelm
Dunelm 30502595 User manual
Dunelm
Dunelm Toby User manual
Dunelm
Dunelm Brisbane 2 Door 2 Drawer Robe 30151822 User manual
Dunelm
Dunelm Delphi Large Slim Cabinet User manual
Dunelm
Dunelm Toulouse 30306357 User manual
Dunelm
Dunelm Anya User manual
Dunelm
Dunelm Georgi Extra Wide TV Unit User manual
Dunelm
Dunelm Wilson Coffee Table User manual
Popular Indoor Furnishing manuals by other brands
Whittier Wood
Whittier Wood 1134AFGSPa Assembly instructions
DURAVIT
DURAVIT White Tulip WT 7052 Mounting instructions
Tech Craft
Tech Craft FLEX42W Assembly instructions
DHP
DHP 5458196 manual
KraftMaid
KraftMaid DELUXE ROLL-OUT TRAY TRADITIONAL MOUNTING INSTRUCTIONS
Criterion
Criterion RUSTIC1800 Assembly & instruction manual
expand furniture
expand furniture REVEAL Assembly instruction
Atlantic Furniture
Atlantic Furniture H-7327X Assembly instructions
Lightolier
Lightolier Lytecaster 1013CFL specification
VANCOUVER CLASSICS

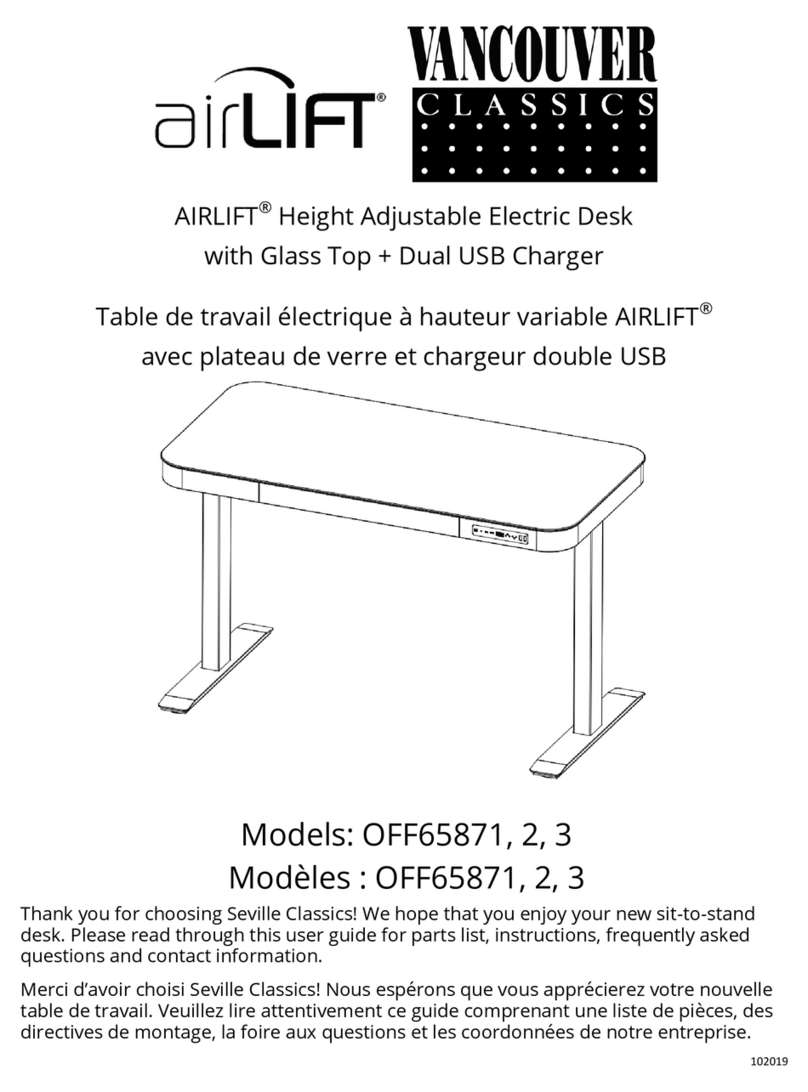

VANCOUVER CLASSICS AIRLIFT OFF65871 Assembly instruction
