Dunster House H4-GS3X6PRG User manual

Installation Manual
For
Utopia Pergola 3m x 6m
H4-GS3X6PRG
Unique product reference number
.........................................................................
www.dunsterhouse.co.uk
V1

Queries Procedure
Important Information
Please retain all documentation with regards to your purchase.
In the unlikely event that you need to contact us, please do so in writing to:
Email: [e-mail]
Post: FAO Customer Services, Dunster House Ltd - Factory 1, Caxton Road, Bedford, MK41 0LF
Our Customer Services department is open 9:00 - 17:00, Monday to Friday. Please include your Sales Order number
starting with SO or your postcode so we can locate your order.
The nature of timber
The timber provided for this product is a soft wood which has been kiln dried and is pressure treated for protection
against rot and insect infestation.
Timber is a natural product and inherent properties can include knots, knot holes, imperfections, cracks and warping.
Due to the inherent properties of timber we make no guarantees that the timber you receive for your product will be
free from these natural properties. We will not replace any components for any of the following reasons:
•Timber that contains knots where they do not influence the structural stability of the product
•Cosmetics appearances - colour variations
•Timber that has shakes, cracks, gaps or sap which do not influence the structural strength of the product
•Timber that has been covered or buried underground
•Twisted timber that can be installed
•Queries arising from a neglectful manner during assembly or as a result of incorrect assembly
•Queries due to modifications by the owner causing the timber to deform
Any valid queries will be satisfied by the exchange or replacement of the defective parts only on a supply only basis.
Colour transfer
This product has been pressure treated with wood preservative and a brown colour additive. Consideration should be
given to the propensity of the material to stain light colour adjacent surfaces, such as paving flags, render or coated
timber surfaces. We recommend contact between the timber and these surfaces is limited, and careful consideration to
storing the product prior to assembly should be taken in order to prevent such discolouration.
Assembly Preparation
This product has been designed for self-assembly and recommend that assembly is carried out by two DIY competent
people. It is important that the assembly instructions are followed carefully and we recommend that the assembly
instructions are read through in their entirety prior to assembly to allow you to familiarise yourself first.
We recommend ensuring that the product is assembled in an appropriate location and on an appropriate base for
the product. It is imperative that the product is installed square, level and plumb.
To assemble your product we recommend that you have the following:
•Stepladder
•Drill and 3mm drill bit
•Spirit level
•Tape measure
•Screwdriver
•Rubber mallet
•Gloves - if you wish for extra protection when handling pressure treated timber
All screw holes need to be pre-drilled using a 3mm drill bit (not provided) to avoid timber splitting.
Pressure treated products do not need to be treated immediately or have a timber preservative applied.
Pressure treatment does not mean that the timbers are waterproof, so you may wish to apply a water repellent.
Page 2

70x35x350.C
10x Pressure Treated Post Fascia
70x35x650.C
12x Pressure Treated Brace
86x43x3000
2x Pressure Treated Beam
86x43x3300
4x Pressure Treated Beam
86x43x3300.N
8x Pressure Treated Beam
30x20x3300
10x Pressure Treated Trim
86x43x3300.EN
1x Pressure Treated Beam
70x70x1965
6x Pressure Treated Post
ACCESSORIES
QTYPART NUMBER
70SCREW 50 mm
78
SCREW 70 mm
12SCREW 95 mm
C:\$VaultWorkspace\Designs\UtopiaPergola(2022)\02.MANUALS\H4-GS3X6PRG-UTOPIAPERGOLA3x6m-INSTALLATIONMANUAL.dwg
Page 3
Components required for Utopia Pergola 3m x 6m
350
35
3300 43
86
650
35
3000 43
86
3300 43
8670
20
30
3300
43
86
3300
1965 70
70
70

COMPONENTS REQUIRED
QTY
PART NUMBER
670x70x1965
286x43x3000
4
86x43x3300
24SCREW 70 mm
STEP:
Please remember to pre-drill all holes before fixing, to avoid the splitting
of timber.
Page 4
1
Utopia Pergola 3m x 6m Installation Manual
Posts and Beams Layout
Ensure that the diagonals A & B
are equal.
Please note that this layout is to
assist you with step 2.
Secure using 2x
screws per end.
•Fix the beams to the posts as shown in the image, use 2x screws per end.
•Fix to the corner posts first and then the middle posts. Ensure the distance from the inpost is
as shown in the Posts and Beams Layout Diagram.
•We recommend using metal brackets, metal connectors etc (not supplied) to secure the
Pergola to the ground.
Secure using 4x
screws per middle post.
View A
View A
View B
View B
86x43x3000
86x43x3000
86x43x3300
86x43x3300
70x70x1965
70x70x1965
70x70x1965
70x70x1965
2860 2860
2860
6600
3000
5930
A
B
SCREW 70 mm SCREW 70 mm
292
View C
View C
SCREW 70 mm

COMPONENTS REQUIRED
QTYPART NUMBER
1270x35x650.C
36SCREW 70 mm
12SCREW 95 mm
STEP:
Please remember to pre-drill all holes before fixing, to avoid the splitting
of timber.
Page 5
2
Utopia Pergola 3m x 6m Installation Manual
•Once the frame is assembled, fix the braces in positions shown using 3x 70mm screws
and 1x 95mm screw per brace. Use the diagram below for reference.
70x35x650.C
70x35x650.C
70x35x650.C
70x35x650.C
70x35x650.C
70x35x650.C
SCREW 70 mm
SCREW 95 mm
SCREW 70 mm
SCREW 95 mm
SCREW 70 mm
SCREW 70 mm
SCREW 70 mm
SCREW 70 mm
SCREW 95 mm
SCREW 95 mm
SCREW 70 mm

COMPONENTS REQUIRED
QTYPART NUMBER
886x43x3300.N
1
86x43x3300.EN
18SCREW 70 mm
STEP:
Please remember to pre-drill all holes before fixing, to avoid the splitting
of timber.
Page 6
3
Utopia Pergola 3m x 6m Installation Manual
Please note that
these dimensions
are approximate.
Flush on all
4 corners
•Using the diagram above as reference, fix the beams
into place. Use 1x screw at either end of the beam. The
beam labeled EN (Extended Notch) must be above the
middle posts
•Ensure that the beams are evenly spaced, as shown
in the diagram below.
Flush
86x43x3300.N
86x43x3300.EN
86x43x3300.N
SCREW 70 mm
Equally Spaced
SCREW 70 mm
SCREW 70 mm

COMPONENTS REQUIRED
QTYPART NUMBER
1030x20x3300
50SCREW 50 mm
STEP:
Please remember to pre-drill all holes before fixing, to avoid the splitting
of timber.
Page 7
4
Utopia Pergola 3m x 6m Installation Manual
Please note
that these
dimensions
are
approximate.
•Fix the trims to the previously installed beams
using 1x screw at each contact point. Use the
diagram above for reference.
•Fix the trims on the opposite direction to the
beams, with even spacing as shown in the
diagram below. Ensure the end trims are flush
with the beam.
Where the timbers join, fix
both screws at an angle.
30x20x3300
30x20x3300
625625
SCREW 50 mm
SCREW 50 mm
EquallySpaced
5x required
5x required
SCREW 50 mm

COMPONENTS REQUIRED
QTYPART NUMBER
1070x35x350.C
20SCREW 50 mm
STEP:
Please remember to pre-drill all holes before fixing, to avoid the splitting
of timber.
Page 8

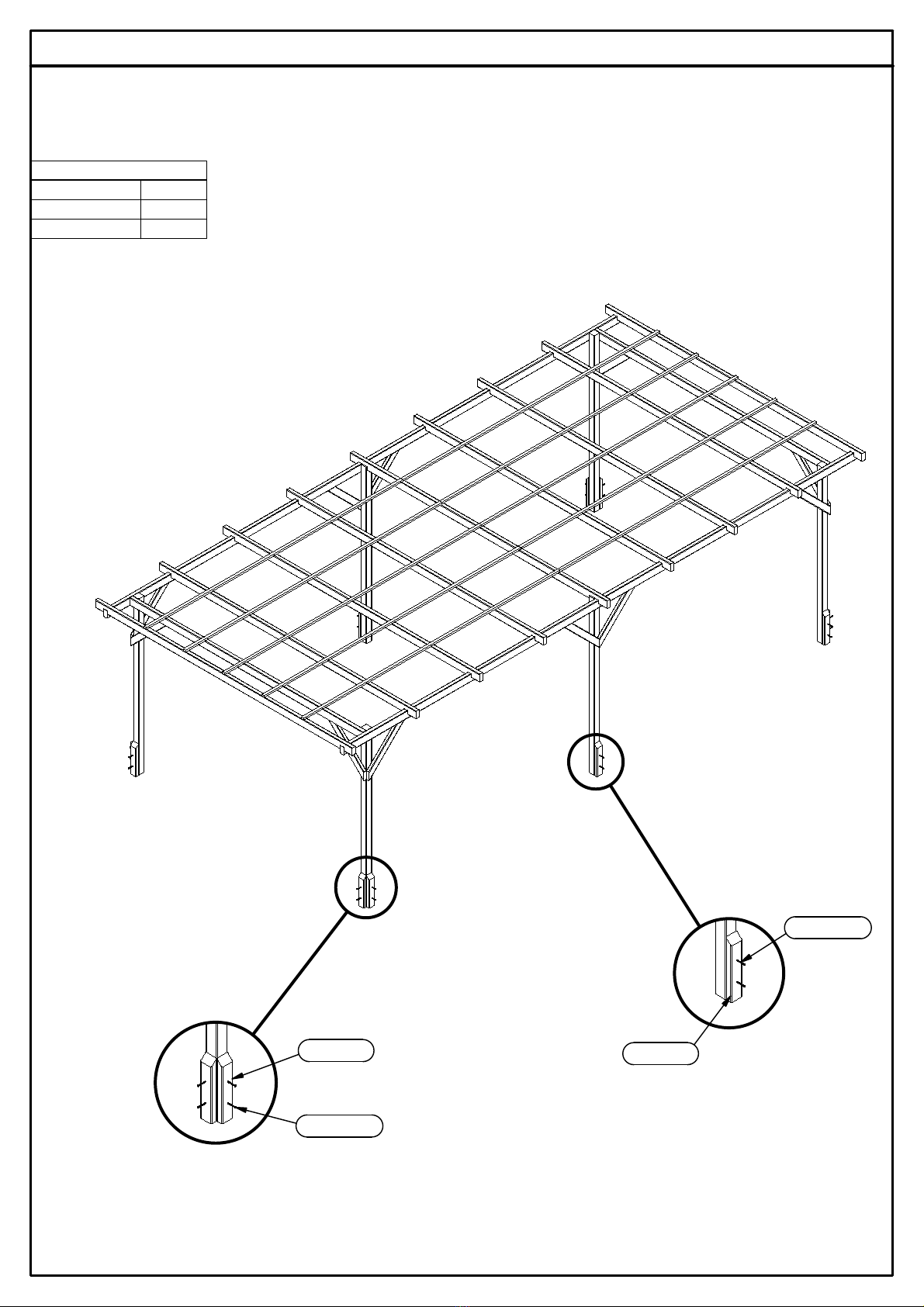

5
Utopia Pergola 3m x 6m Installation Manual
2x required 1x required
70x35x350.C
SCREW 50 mm
2x screws
per post fascia
70x35x350.C
SCREW 50 mm
2x screws
required per
post fascia
•On the base of the posts, fix 2x Post Fascia to each post on the corners, and 1x on the
middle posts on the outside of the Pergola.
•The angled end of this component needs to be pointing upwards. Use 2x screws per
component to fix into position.

Installation Manual
For
Utopia Pergola
(Additional Wall Panel Pack)
Unique product reference number
.........................................................................
http://www.dunsterhouse.co.uk
Dunster House Ltd.

Page 10

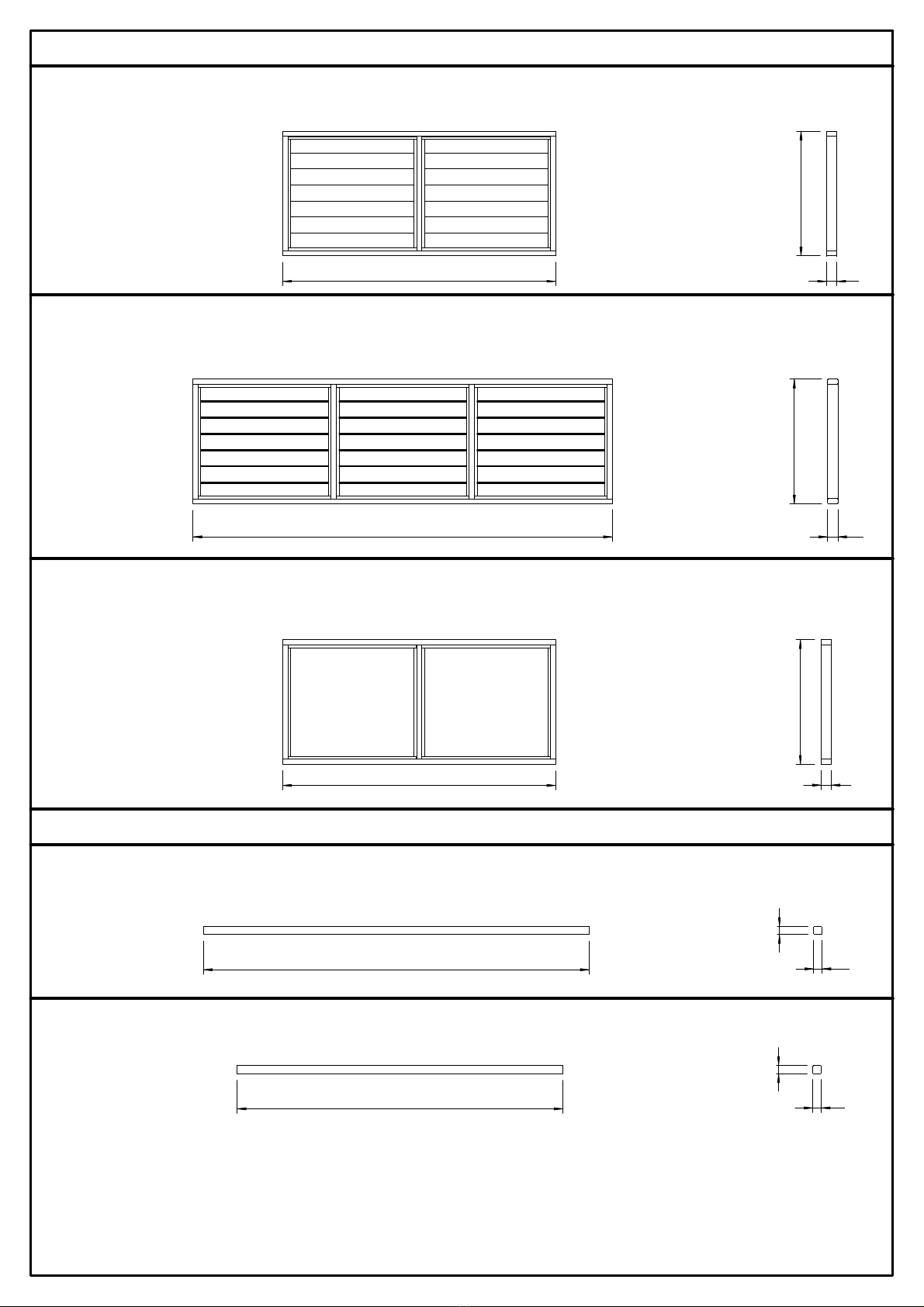

Utopia Pergola 3m x 6m - Pack may contain
2m Solid Wall Panel
Pressure Treated
Solid Wall Panel
3m
Pressure Treated
Pressure Treated
Glass Wall Panel
LOOSE COMPONENTS
2m
2x
2x
Horizontal Beading Timber - Per Window
Pressure Treated
Vertical Beading Timber - Per Window
Pressure Treated
850850
701860
1860 70
850
702860
877
741
19
19
19
19

ACCESSORIES
QTYPART NUMBER
Varies
70mm Screw For Panels
Varies
40mm Pin Nail For Beading Trims
Page 11
Utopia Pergola 3m x 6m - Pack may contain
Pressure Treated
Glass Wall Panel
LOOSE COMPONENTS
3m
2x
2x
Horizontal Beading Trim - Per Window
Pressure Treated
Vertical Beading Trim - Per Window
Pressure Treated
70
2860
850
19
19
905
19
19
741

Page 12
Utopia Pergola 3m x 6m - Additional Panel Assembly
All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture
Full Height Wall Panel Assembly
•Position the solid wall panels between posts as shown in the diagram below.
•Connect panels to posts using 6x Screws. (Repeat this process dependant on how many panels have been
purchased).
•Position a further set of panels directly above previously secured panels and connect using 2x Screws as
shown in the diagram below. (Repeat this process dependant on how many Panels have been purchased).
•Connect panels to posts using 6x screws.
•Use Sealant to seal any gaps which might appear between the panel and the posts.
•3m Solid Wall Panel
•2m Solid Wall Panel
•70mm Screws
SCREW 70 mm
SCREW 70 mm
SCREW 70 mm
**Quantity of components will vary, depending on your purchase

Page 13
Utopia Pergola 3m x 6m - Additional Panel Assembly
All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture
Half Height Wall Panel Assembly
•See Previous page for Solid Wall Panel Installation.
Glass Wall Panel Assembly
SKIP STEP IF CUSTOMER HAS NOT PURCHASED ADDITIONAL GLASS WALL PANELS
•Position Glass Wall Panels directly above previously secured Solid Wall Panels and connect using 2x screws as shown
in the diagram below. (Repeat this process dependant on how many Glass Wall Panels have been purchased).
•Connect Glass Wall Panels to posts using 6x Screw.
•Use Sealant to seal any gaps which might appear between the panel and the posts.
•3m Solid Wall Panel
•3m Glass Wall Panel
•2m Solid Wall Panel
•2m Glass Wall Panel
•70mm Screws
SCREW 70 mm SCREW 70 mm
**Quantity of components will vary,
depending on your purchase

Page 14
Principle of Glass Installation
Step 1: Place silicone around the edge of the frame.
1x - Glass
16x - Pin Nail
2x - Horizontal Beading Trim
2x - Vertical Beading Trim
Step 2: Place the GLASS into panel frame and make sure it is centralised.
Once Glass is in place apply silicone around the glass to secure it into place.
Step 3: Pre-drill the holes for the pin nails into the glass beading timbers.
Step 4: Fix beading ensuring it is parallel with their counterparts and secure using 40mm pin nails as shown in the image
below.
Please note:
The glass is a smaller size compared to panel
frame to compensate for timbers contracting,
swelling and glass not being cut square.
Silicone
Silicone
Silicone Silicone
Silicone
Silicone
Silicone
Silicone
Please Note: This diagram represents how to install one window panel frame. Please apply this procedure to all window
frames purchased.
40mm Pin Nail For Beading Trims
**Quantity of components will vary, depending on your purchase
