(8141.62) Sensor Shelter
Operating Instructions
Sensor Shelter (8141.62)
Operating Instructions
natural ventilation of the sensors
improved lamellar system
suitable protection against direct and
indirect radiation
protection against weather influences
simple mounting on pipes
Function and description
Sensor shelters are used to protect temperature and humid-
ity measuring instruments against unmeant influences of the
weather when effecting measurements in the open air.
Thus, the determined results of measurement are independent
of precipitation and their evaporation as well as of direct and
indirect radiation.
The measuring results are safe and will be comparable.
Constructionally sensor shelters are in such a way arranged
that the data acquisition area of the installed sensor are lo-
cated in the middle of the shelter.
Additionally the three upper lamellae are closed for thermal
insulation purpose. Thus optimal measuring conditions are
ensured.
The plastic lamellae are arranged in a defined distance, one
above the other. By the special lamella design the protection of
the sensor against unmeant influences is extremely effective.
For improvement of ventilation the lowest lamella has a bigger
inner diameter of 73 mm. Furthermore the holder at this place
has special tapers and openings which optimise the ventilation
and prevent fluid retentions.
The sensors are placed from below into the opening of the
shelter and fixed by a clamping screw.
The clamp screw is placed inside the weather shelter which
causes a significantly improved stability of the complete shel-
ter (incl. sensor).
The sensor shelters can be installed on vertical and horizontal
masts or tubes.

2(8141.62) Sensor Shelter Operating Instructions
Operating Instructions
Sensor Shelter (8141.62)
Installation of the shelter at a vertical mast or tube
Installation of the shelter at a horizontal mast or tube
Needed tools:
2 x wrench SW 10
Needed tools:
2 x wrench SW 10

3
(8141.62) Sensor Shelter
Operating Instructions
Sensor Shelter (8141.62)
Operating Instructions
Installation of the sensor in the shelter
Cleaning of the sensor shelter
The cleaning of the shelter is very easy. It can be
done with common household detergents.
The shelter can be disassembled for this proce-
dure. For this the 4 upper screws just need to be
unscrewed and the lamellas need to be pulled up.
The lamellas can be cleaned with a wet cloth. After
cleaning the lamellas will be slipped onto the 4 pil-
lars and fixed with 4 screws.
Note: We recommend securing the screws
with locking varnish or something similar
after loosening them once.
Furthermore it is possible to clean the shelter (with-
out sensor) in a standard dishwasher. Due to our
experiences the hydrophobic features of the plastic
surface will be strengthened after the shelter was
cleaned inside a dishwasher.

4
LAMBRECHT meteo GmbH Tel [phone]
Friedländer Weg 65-67 Fax [phone]
37085 Göttingen E-Mail [email protected]
Germany Internet www.lambrecht.net
8141_62-b.de.indd 11.20


P

DB


DB
P

P

P
P



14...21
(8141.62) Sensor Shelter Operating Instructions
Operating Instructions
Sensor Shelter (8141.62)
Subject to change without notice.

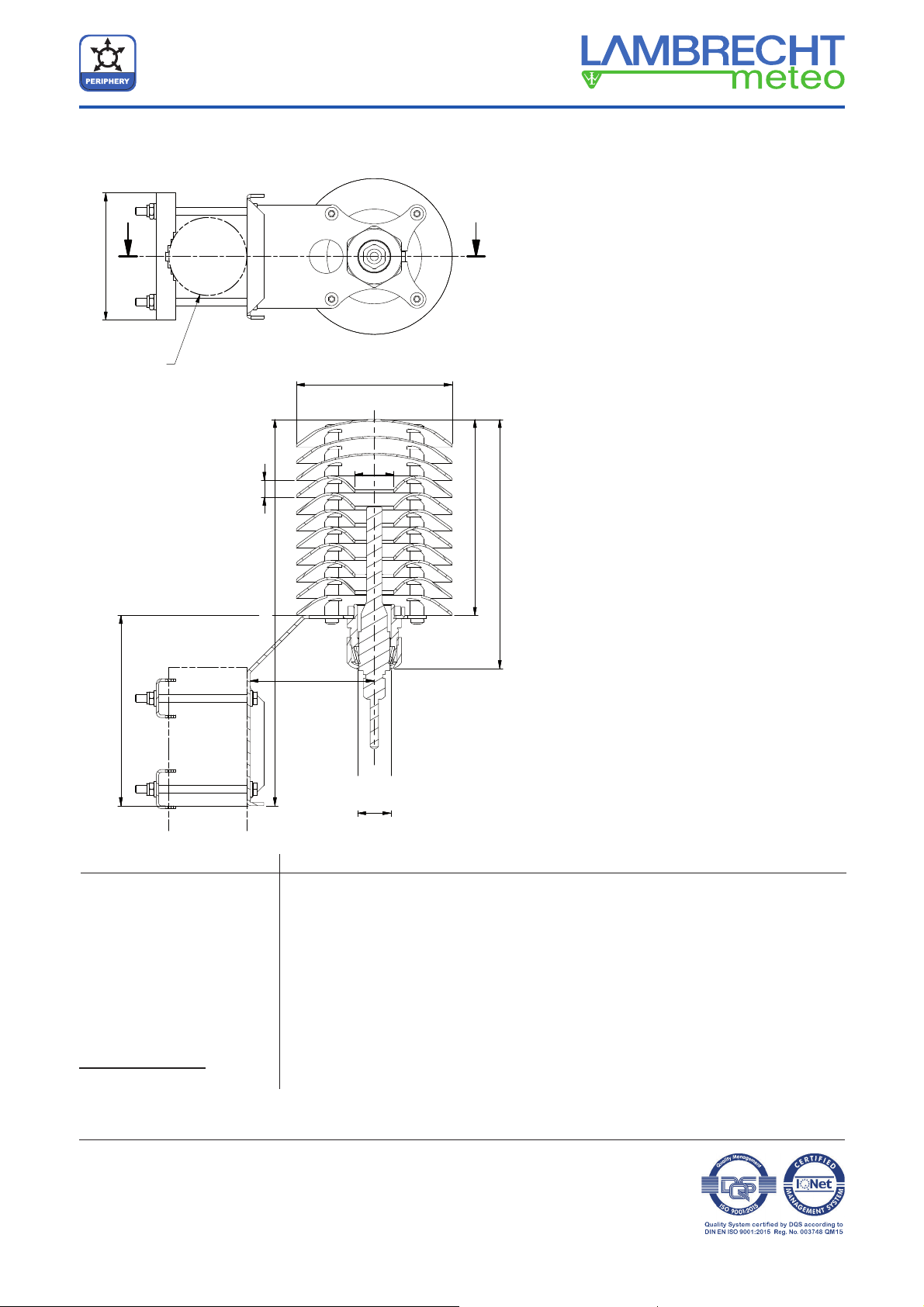

(8141.62) Sensor Shelter Id-No. 00.08141.620000
Range of application: -50...+80 °C
Amount of lamellas: 11 (3 lamellas closed, 7 lamellas normal, 1 lamella with 73 mm diameter opening)
Dimensions: diameter = 120 mm, height = approx. 297 mm (incl. holder)
for mast diameter: 40...60 mm
Screwing for sensor Ø: 14...21 mm
Weight: < 535 g without holder (weight of the holder: < 545 g)
Material: lamellas made of UV resistant plastic material, UL flammability rating HB
holder made of V4A stainless steel, white powder-coated RAL 9003
Further accessories: Screwing for sensor Ø 10...15 mm · screwing for sensor Ø 18...25 mm ·
(please order separately) adapter for sensor diameter 5 mm
Please note the loss that unauthorised
manipulation of the system shall
result in the loss of warranty and
non-liability. Changes to system
components require express written
permission from LAMBRECHT meteo
GmbH. These activities must be
performed by a qualified technician.
The warranty does not cover:
1. Mechanical damage caused by
external impacts (e.g. icefall,
rockfall, vandalism).
2. Impacts or damage caused by over-
voltage or electromagnetic fields
which are beyond the standards and
specifications of the device.
3. Damage caused by improper
handling, e. g. by using the wrong
tools, incorrect installation, incorrect
electrical installation (incorrect
polarity) etc.
4. Damage caused by using the device
outside the specified operation
conditions.
