Sealey MCS01 User manual

VEHICLE STORAGE SHELTER (2.7 x 1.050 x 1.550 mtrs)
MODEL NO: MCS01
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
NOTE: This is a temporary structure and is not recommended as a permanent structure.
9Choose your shelter’s location carefully. Check for overhead utility lines, branches, etc. DO NOT install near roofs or other structures that
may shed snow, ice or excessive run-off onto your shelter. Keep away from electrical wires!
9Have an overview of all parts before attempting installation. Make sure all components are available.
8DO NOT use this product in environments for which it is not intended (i.e. extreme cold, high winds, extreme heat, heavy rainfall, etc).
9Always wear safety glasses when assembling this product. Wear gloves when working with tubing to prevent cuts or abrasions.
WARNING! Anchors must be used with alI shelters. Covers should NOT be installed untiI it has been properly anchored to the ground.
NOTE: Proper anchoring and keeping cover tight and free of snow and debris, is the responsibility of the consumer. Damages caused
by improper anchoring are not covered under warranty.
WARNING! Keep all ame and heat sources away from the shelter fabric. The fabric will burn if left in continuous contact with a ame
source.
8DO NOT use open ames or cooking or heating devices inside or in close proximity to the product, including all types of stoves, gas
heaters, gas lanterns, citronella torches, mosquito coils, etc.
WARNING! In order to reduce risk of burning and avoid damage, DO NOT:
- cook, smoke, refuel or use any open flame devices in or around the shelter.
- store flammable liquids (gasoline, kerosene, propane, etc.) in the shelter.
- operate gas powered equipment in or around the shelter.
WARNING! Keep open ames a safe distance away from the shelter.
8DO NOT use hard-edged tools or instruments, such as rakes or shovels, to remove snow. These can cause punctures to the cover.
▲NEVER start the engine of any vehicle or machine inside a closed shelter. Ensure that there is adequate ventilation for starting
engines and for any work with paints, cleaners, etc.
8DO NOT use bleach, alkaline or harsh detergents for cleaning. Doing so will damage the polycarbonate material. Soap and warm
water are recommended.
9 This temporary shelter is intended to o󰀨er protection from damages caused by the sun, light rain, light snow, tree sap, bird and animal
excrements. DO NOT use it to shield goods from high winds, heavy snow or ice storms. Only use it for its intended purpose.
2. i INTRODUCTION
Made from durable anti-scratch material to protect vehicle’s paintwork. Rigid tubular frame with hinged opening for easy access.
Adjustable side vents allow increased ventilation while still keeping vehicle protected from elements. Includes anchor points for fixing
shelter to driveway/ground (fixings not included). Padlock hasp for increased security when canopy is closed.
Dimensions (L x W x H): 2700 x 1050 x 1550mm.
3. i SPECIFICATION
Model No: .................................................................. MCS01
Size:.......................................................................... Medium
Dimensions (L x W x H) ..........................2700 x 1050 x 1550
4. ASSEMBLY
4.1. ASSEMBLY PREPARATION
4.1.1. Place all parts from the packaging box in a cleared area and arrange them on the ground in front of you.
4.1.2. Remove all packaging materials and place them back in the box. DO NOT dispose of the packaging materials until assembly is
complete.
4.1.3. Check for completeness of components and transport damages.
WARNING! DO NOT place the product under trees from which hard fruit such as apples, walnuts or heavy pine cones, etc., may fall.
4.1.4. Keep children away during assembly. This product contains small parts which can be swallowed by children.
8DO NOT attempt to assemble the product if any parts are missing.
4.1.5. At least 2 people are needed to complete the assembly as some of the steps require awkward lifting and fitting.
WARNING! DO NOT leave the shelter unattended during assembly. Otherwise, personal injury or damage to the shelter may occur!
MCS01 Issue 2 11/03/19
Original Language Version
© Jack Sealey Limited
Refer to
instruction
manual
Wear protective
gloves
Wear eye
protection

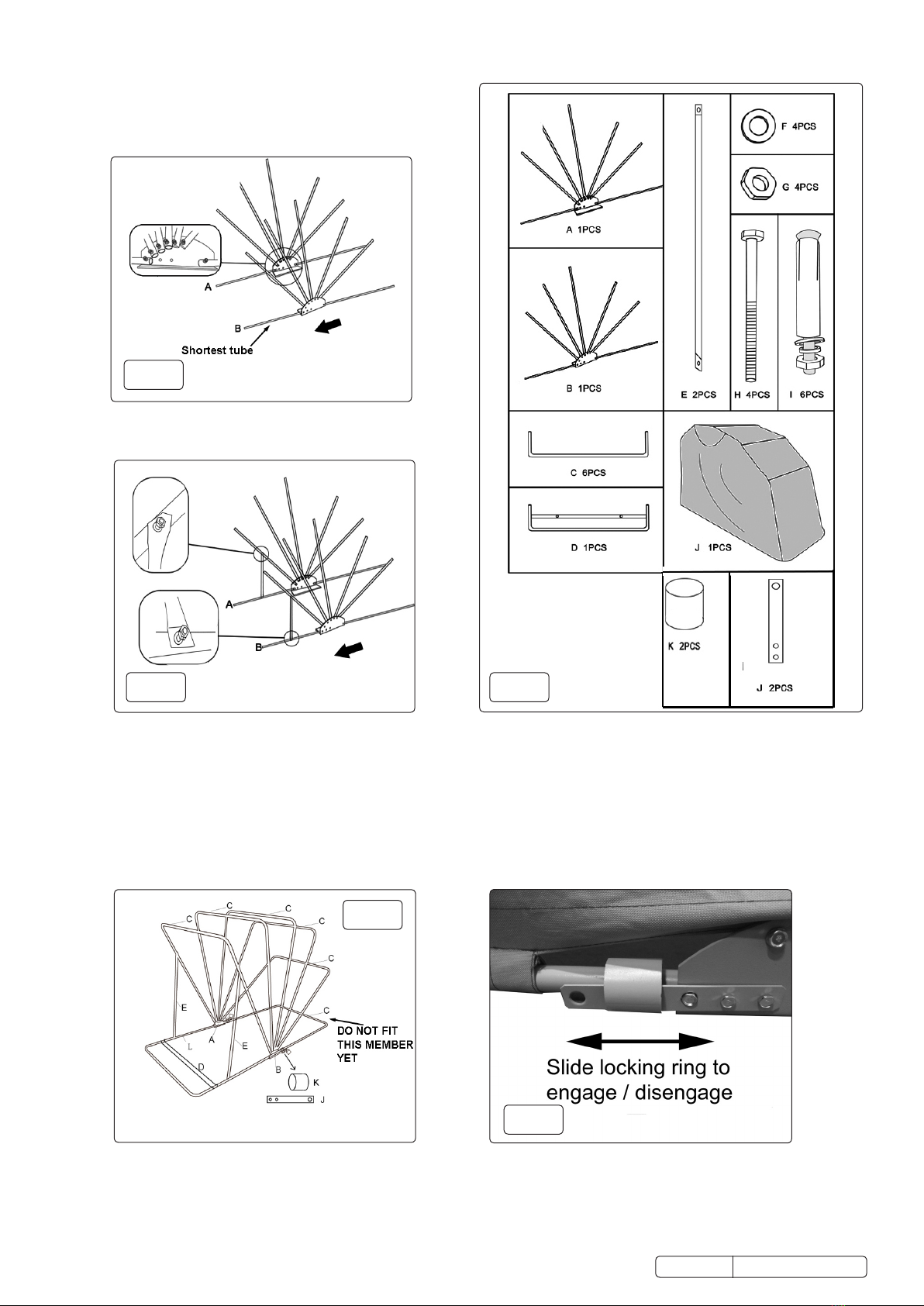

4.2. ASSEMBLY
4.2.1. The Storage Shelter comes partially assembled with
side arms (g1.A and g1.B) pre-built.
4.2.2. Arrange items g1.A and g1.B such that A is to your right and
B on your left with the shortest tubes of the arms is
pointing away from you (g2).
4.2.3. Connect the two vertical support tubes (g1.E) to side
arm arrangements (g1.A, g1.B) using xings g1.F,
g1.G and g1.H as shown in g3.
4.2.4. Connect end brace (g1.D) to side frames (g3.A, g3.B).Connect all top bars (g1.C) across the side frames. Leave last C bar
unconnected at this stage (see g4.)
4.2.5. Fix locking bars (g4.J) to hinge point using supplied xings (positions g4.A, g4.B). Disconnect the lower most tubes and slide
locking rings (g1.K), g5) onto tube. Reconnect tube to central hub (g5). Slide locking collar (g4.K) over open ended tubes and run
down to hinge point. To lock frame, slide locking collar (g4.K) over locking bar (g5).
Original Language Version
© Jack Sealey Limited
fig.2
fig.3fig.1
fig.4
MCS01 Issue 2 11/03/19
fig.5

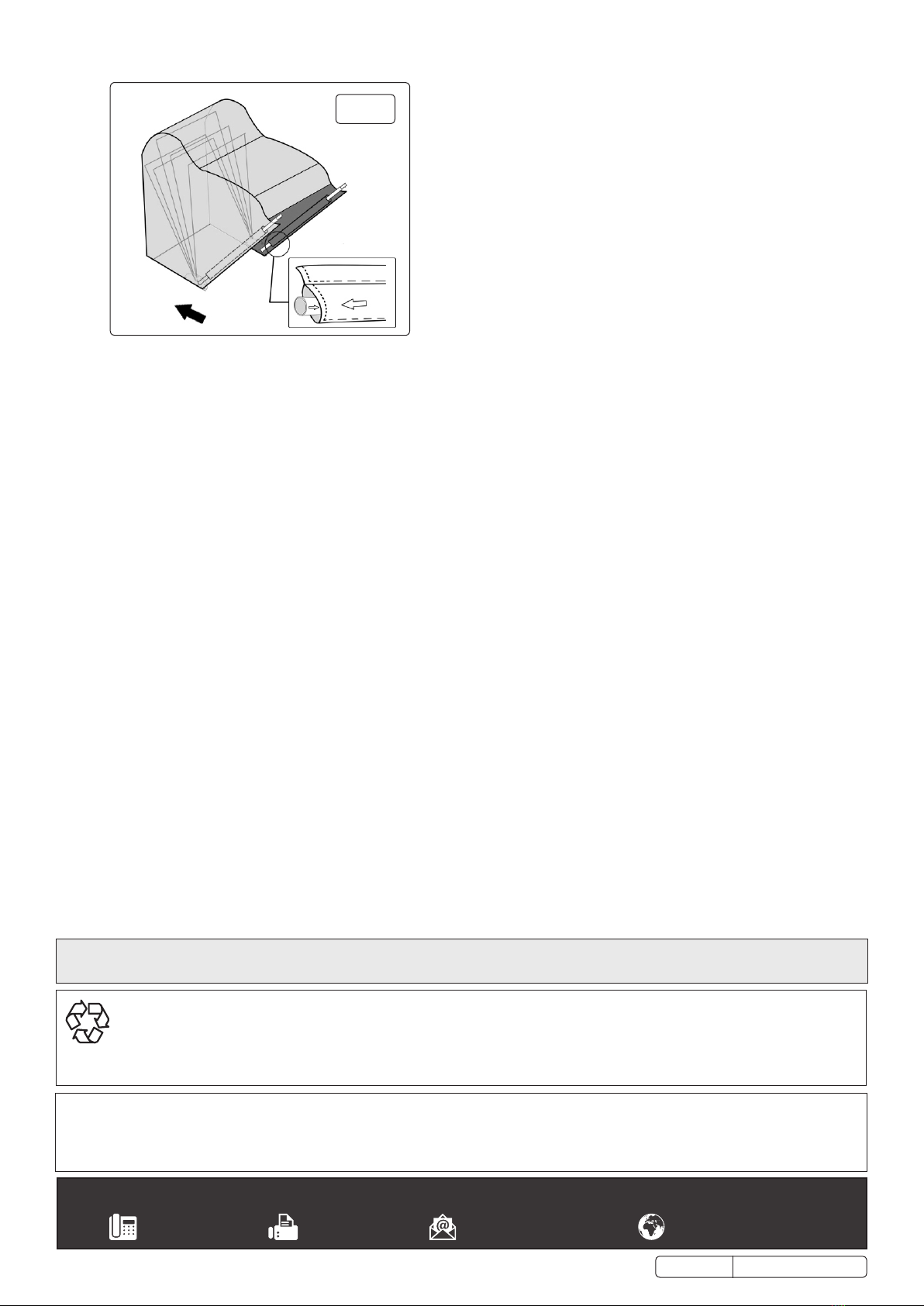

4.2.6. Lay cover over frame work ensuring the correct outer surface is on the outside (g6). Slide the sleeves inside the cover over the open
ends of the assembly (g6). Pass the last top bar (g4.C) through the sleeve on the cover and connect to main assembly.
4.2.7. Fold the cover backwards over the frame and from the inside, wrap the internal velcro fasteners onto the framework.
4.2.8. Mark o󰀨 the location for the rawl bolt ground xings and install if required.
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 [e-mail] www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
Original Language Version
© Jack Sealey Limited
Parts support is available for this product. Please log on to
www.sealey.co.uk, email [e-mail] or telephone [phone]
MCS01 Issue 2 11/03/19
fig.6
