Durabook S15H User manual

DURABOOK®S15H

2
Table of Contents
COPYRIGHT .................................................................................................4
REGULATORY STATEMENT .................................................................................4
Federal Communications Commission Statement..........................................................................................................4
Declaration of Conformity...............................................................................................................................................4
RF exposure warning........................................................................................................................................................5
Battery Disposal................................................................................................................................................................5
CLASS 1 LASER PRODUCT...........................................................................................................................................5
BEFORE YOU START ................................................................ 7
PACKAGE CONTENTS ......................................................................................7
COMPONENTS ..............................................................................................8
FrontView.........................................................................................................................................................................8
Back View........................................................................................................................................................................10
LeftView.......................................................................................................................................................................... 11
Right View........................................................................................................................................................................12
RearView ........................................................................................................................................................................12

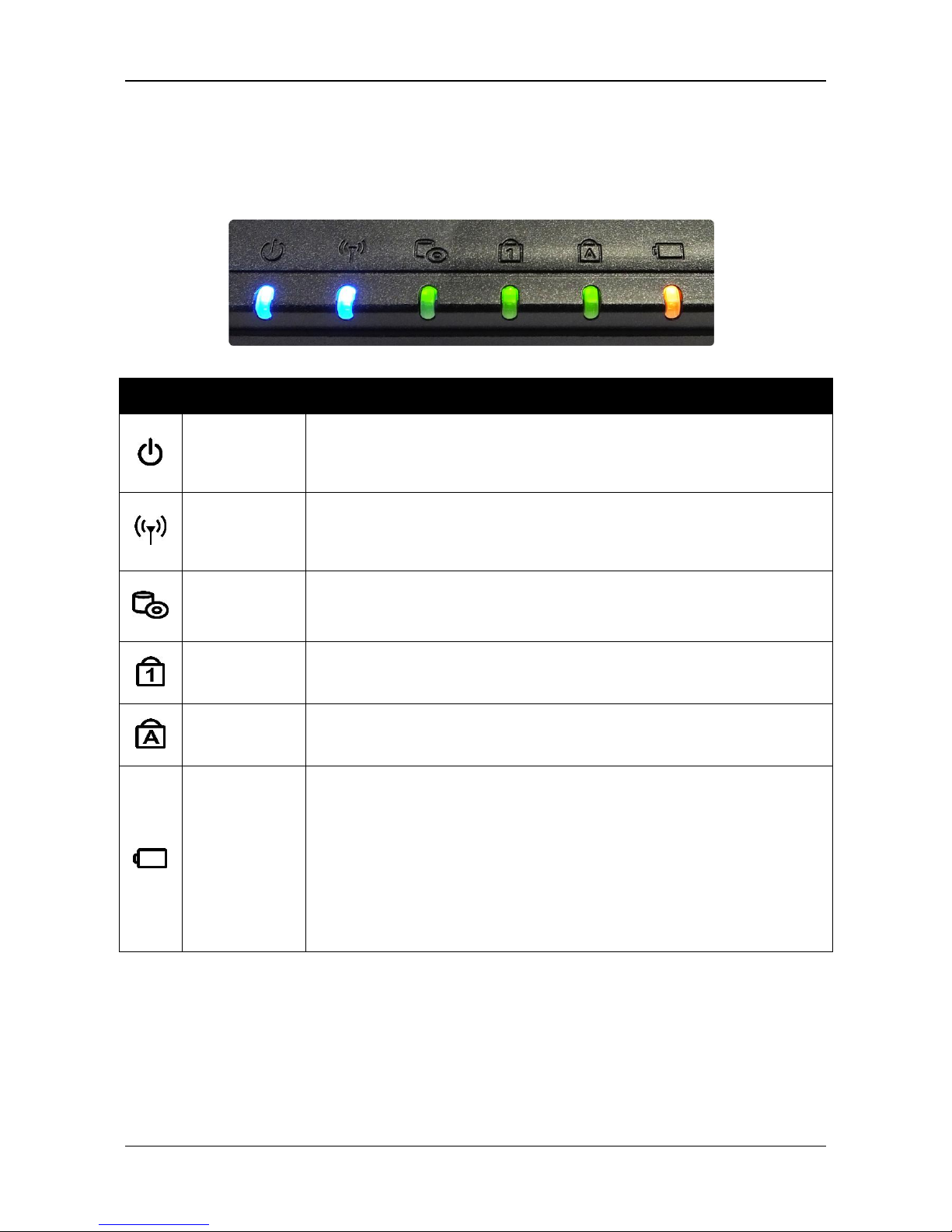

Status Indicators..............................................................................................................................................................13
GETTING STARTED ................................................................ 14
POWERING UP YOUR NOTEBOOK ...................................................................... 14

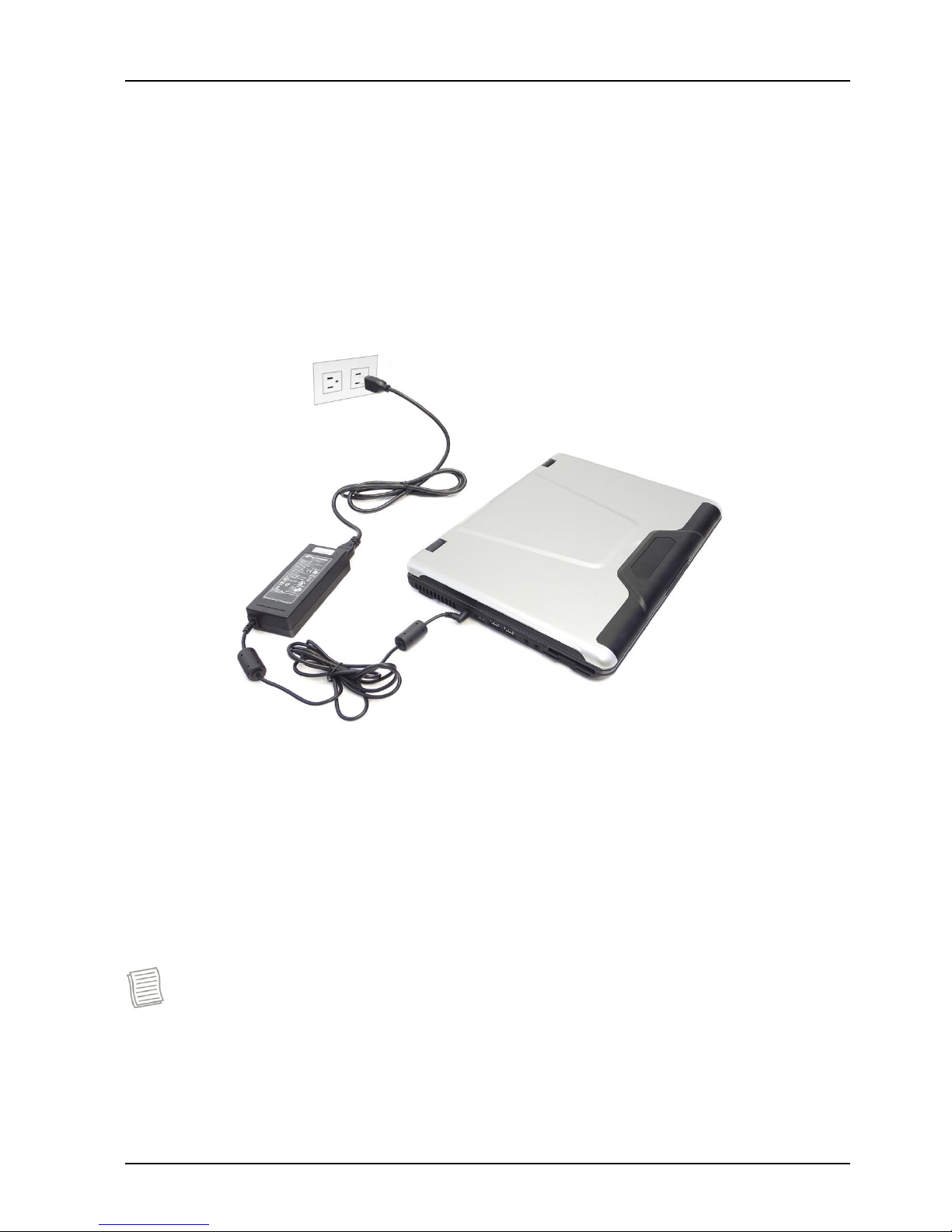

Connecting the AC Adapter............................................................................................................................................14
Using Battery Power ......................................................................................................................................................14
INSTALLING THE BATTERY............................................................................... 15
Charging the Battery.......................................................................................................................................................15
Charging Time.................................................................................................................................................................16
Checking the Battery Level.............................................................................................................................................16
When to replace the Battery Pack..................................................................................................................................17

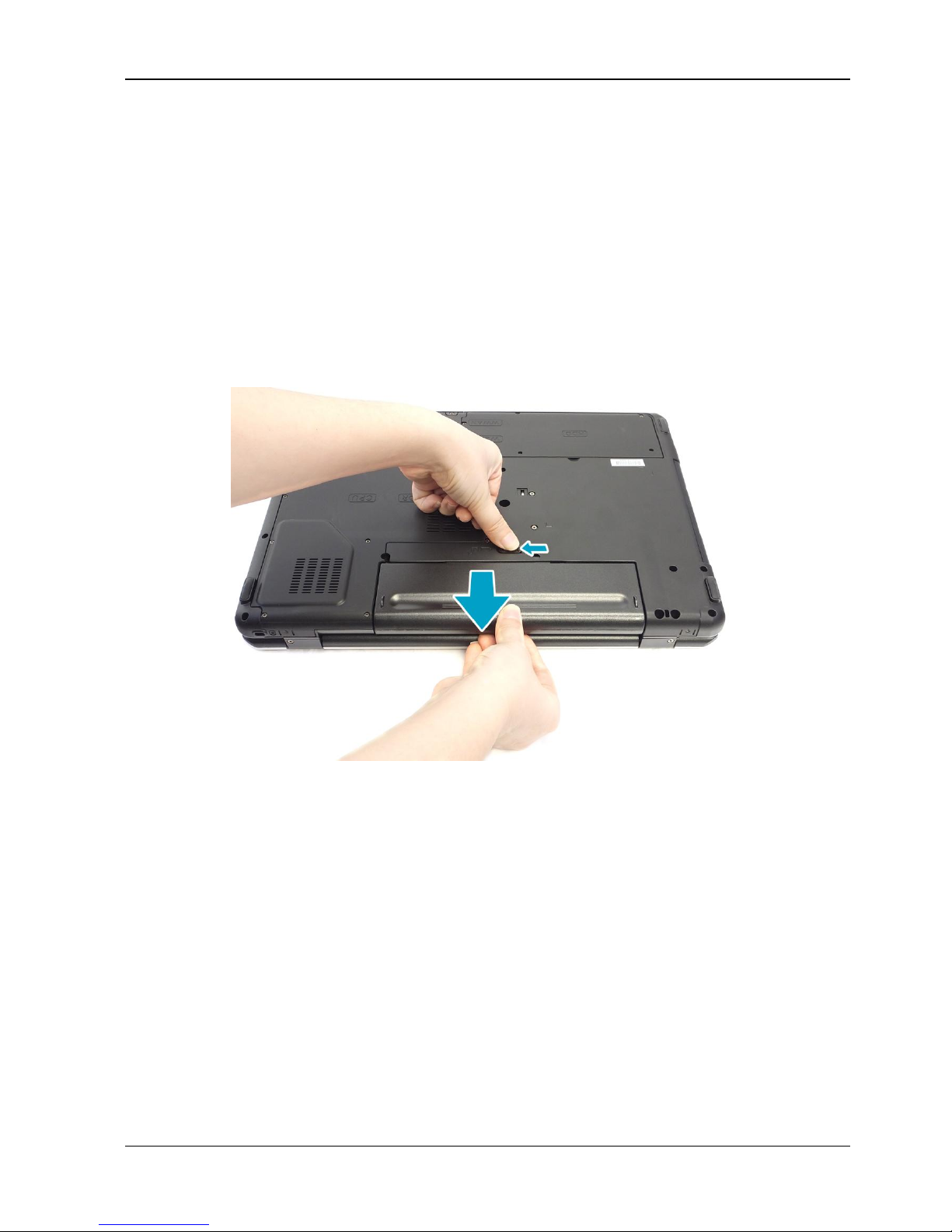

Removing the Battery......................................................................................................................................................17
STARTING YOUR NOTEBOOK ........................................................................... 18
Turning OnYour Notebook.............................................................................................................................................18
Shutting Down Your Notebook.......................................................................................................................................18
USING THE KEYBOARD .................................................................................. 19

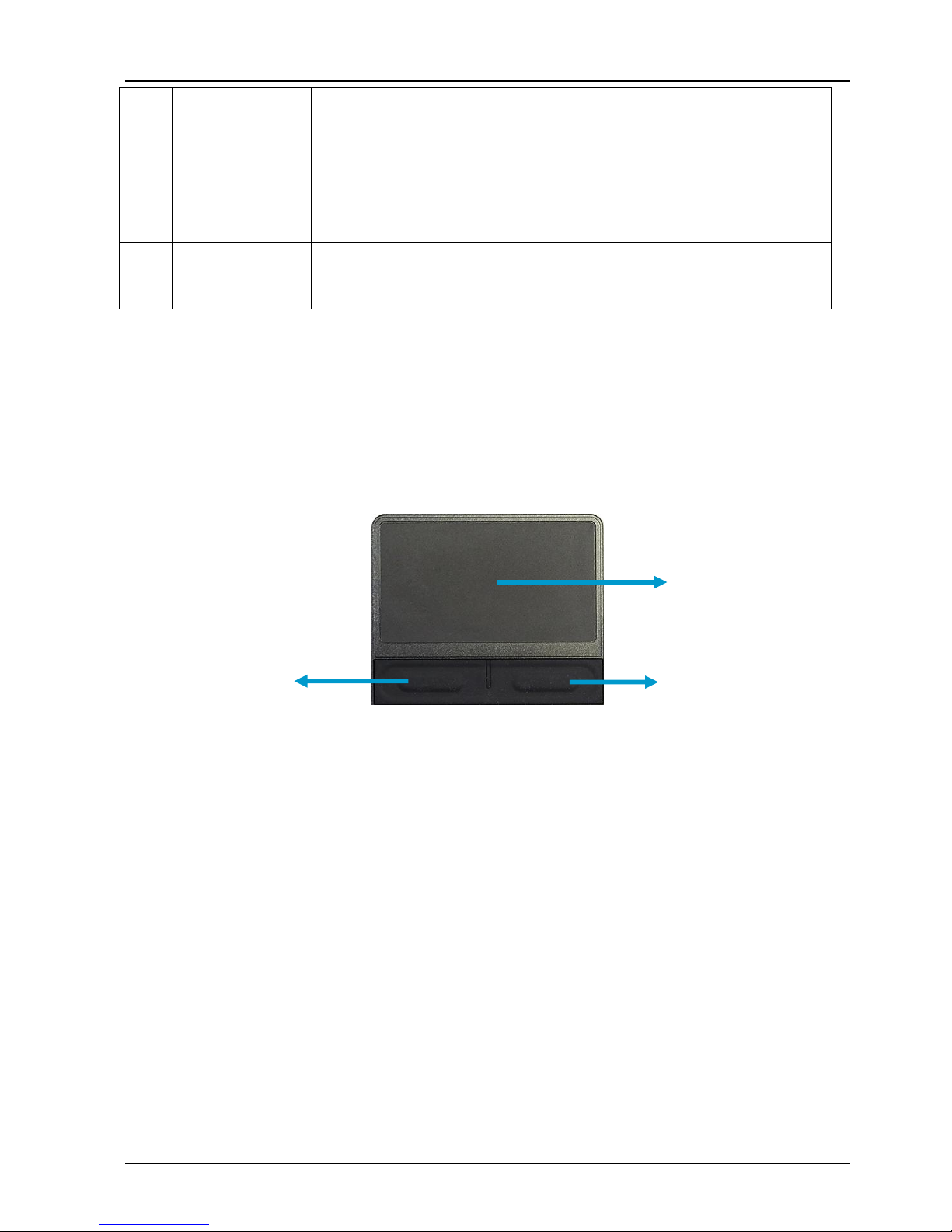

USING THE TOUCH PAD................................................................................. 20
USING THE MEMORY CARDS ........................................................................... 21
Inserting a Memory Card...............................................................................................................................................21
Removing a Memory Card .............................................................................................................................................21
USING THE SIM CARD.................................................................................. 22
Inserting a SIM Card......................................................................................................................................................22
USING THE SMART CARD ............................................................................... 23
Inserting a Smart Card...................................................................................................................................................23
USING THE PC CARDS .................................................................................. 24
Inserting a PC Card........................................................................................................................................................24

USING THE OPTICAL DISK DRIVE ..................................................................... 25
Placing a Disc.................................................................................................................................................................25
CONNECTING TO WIRELESS CONNECTIONS......................... 26
CONNECTING TO A WIRELESS LOCAL AREA NETWORK ............................................. 26
CONNECTING TO A BLUETOOTH DEVICE .............................................................. 27
CONNECTING TO A WIRELESS WIDE AREA NETWORK (WWAN)................................. 29
USING THE BIOS SETUP UTILITY.......................................... 30
BIOS SETUP MENU ..................................................................................... 30
STARTING THE BIOS SETUP UTILITY ................................................................. 30
NAVIGATING AND ENTERING INFORMATION IN BIOS............................................... 31
MAIN MENU .............................................................................................. 32
ADVANCED MENU........................................................................................ 32
BOOT MENU .............................................................................................. 33
SECURITY MENU ......................................................................................... 33
SAVE &EXIT MENU ..................................................................................... 34

Preface
4
Copyright
Copyright©2014. All rights reserved.
No part of this user manual may be transmitted, stored in a retrieval system, or
translated into any language or computer language, in any form or by any
means, without the prior written permission of the manufacturer. Information is
subject to change without prior notice.
Regulatory Statement
Federal Communications Commission Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Shielded interconnect cables and shielded AC power cable must be employed
with this equipment to insure compliance with the pertinent RF emission limits
governing this device. Changes or modifications not expressly approved by the
system's manufacturer could void the user's authority to operate the equipment.
Declaration of Conformity
This device complies with part 15 of the FCC rules. Operation is subject to the
following conditions:
This device may not cause harmful interference
This device must accept any interference received, including interference
that may cause undesired operation.

Preface
5
RF exposure warning
This equipment must be installed and operated in accordance with provided
instructions and must not be co-located or operating in conjunction with any
other antenna or transmitter. End-users and installers must be provided with
antenna installation instructions and transmitter operating conditions for
satisfying RF exposure compliance.
This device is operation in 5.15 –5.25GHz frequency range, then restricted in
indoor use only, Outdoor operations in the 5150~5250MHz is prohibit.
This device is slave equipment, the device is not radar detection and not ad-hoc
operation in the DFS band.
Avertissement d'exposition RF
Cet équipement doit être installé et utilisé conformément aux instructions
fournies et ne doit pas être co-localisées ou opérant en conjonction avec une
autre antenne ou un autre émetteur. Les utilisateurs finaux et les installateurs
doivent être fournis avec des instructions d'installation d'antenne et les
conditions de fonctionnement du transmetteur pour satisfaire aux normes
d'exposition RF.
Cet appareil est en fonctionnement 5,15 - 5,25 GHz plage de fréquence, alors
limité à une utilisation en intérieur, les opérations en plein air dans le 5150 ~
5250MHz est interdit.
Cet appareil est un équipement esclave, le dispositif n'est pas destiné à la
détection radar et non pas pour une opération ad-hoc dans la bande de DFS.
Battery Disposal
THIS PRODUCT CONTAINS A LITHIUM-ION OR NICKEL-METAL HYDRIDE
BATTERY. IT MUST BE DISPOSED OF PROPERLY. CONTACT LOCAL
ENVIRONMENTAL AGENCIES FOR INFORMATION ON RECYCLING AND
DISPOSAL PLANS IN YOUR AREA.
CLASS 1 LASER PRODUCT
LASERSCHUTZKLASSE 1 PRODUKT TO EN60825
CAUTION:
THIS APPLIANCE CONTAINS A LASER SYSTEM AND IS
CLASSIFIED AS A "CLASS 1 LASER PRODUCT.” TO USE THIS
MODEL PROPERLY, READ THE INSTRUCTION MANUAL
CAREFULLY AND KEEP THIS MANUAL FOR FUTURE REFERENCE.
IN CASE OF ANY TROUBLE WITH THIS MODEL, PLEASE CONTACT
YOUR NEAREST "AUTHORIZED SERVICE STATION.” TO PREVENT

Preface
6
DIRECT EXPOSURE TO THE LASER BEAM, DO NOT TRY TO OPEN
THIS ENCLOSURE.
ANNEX IV
Symbol for the marking of electrical and electronic equipment
The symbol indicating separate collection for electrical and electronic equipment
consists of the crossed-out wheeled bin, as shown below. The symbol must be
printed visibly, legibly and indelibly.
CAUTION FOR ADAPTER
THE S15H SEMI-RUGGED NOTEBOOK IS FOR USE WITH DEDICATED AC
ADAPTER (DC +19V, 90W).
Note pour l'adaptateur
Ce Tablet PC est à utiliser avec l'adaptateur secteur spécifique.
BATTERY SAFETY
DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED.
REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE
MANUFACTURER. DISPOSE OF USED BATTERIES ACCORDING TO THE
MANUFACTURER'S INSTRUCTIONS.
SECURITE DE LA BATTERIE
DANGER D'EXPLOSION SI LA BATTERIE EST NON CONFORMES.REMPLACCEES
PAR UNE BATTERIE NON CONFORME
REMPLACER UNIQUEMENT AVEC LE MEME TYPE OU ÉQUIVALENT RECOMMANDÉ
PAR LE FABRICANT. RECYCLAGE DES BATTERIES USAGEES SELON LES
INSTRUCTIONS DU FABRICANT
CAUTION FOR RJ-45
The RJ-45 jack is not used for telephone line connection.

Before You Start
7
Before You Start
Congratulations on your purchase of this notebook.
This rugged notebook is portable and provides users with maximum mobile
computing experience in a wide range of working environments. Before you
begin using your notebook, read this chapter to familiarize yourself with the main
components installed in the system.
Package Contents
If any of following items is damaged, please contact your retailer.
Notebook
Power cord
DC 19V 90W power
adapter
Standard 6-cell Li-ion
Battery
Optional 9-cell Li-ion
Battery
NOTE
The pictures are for reference only, actual items may slightly differ.

Before You Start
8
Components

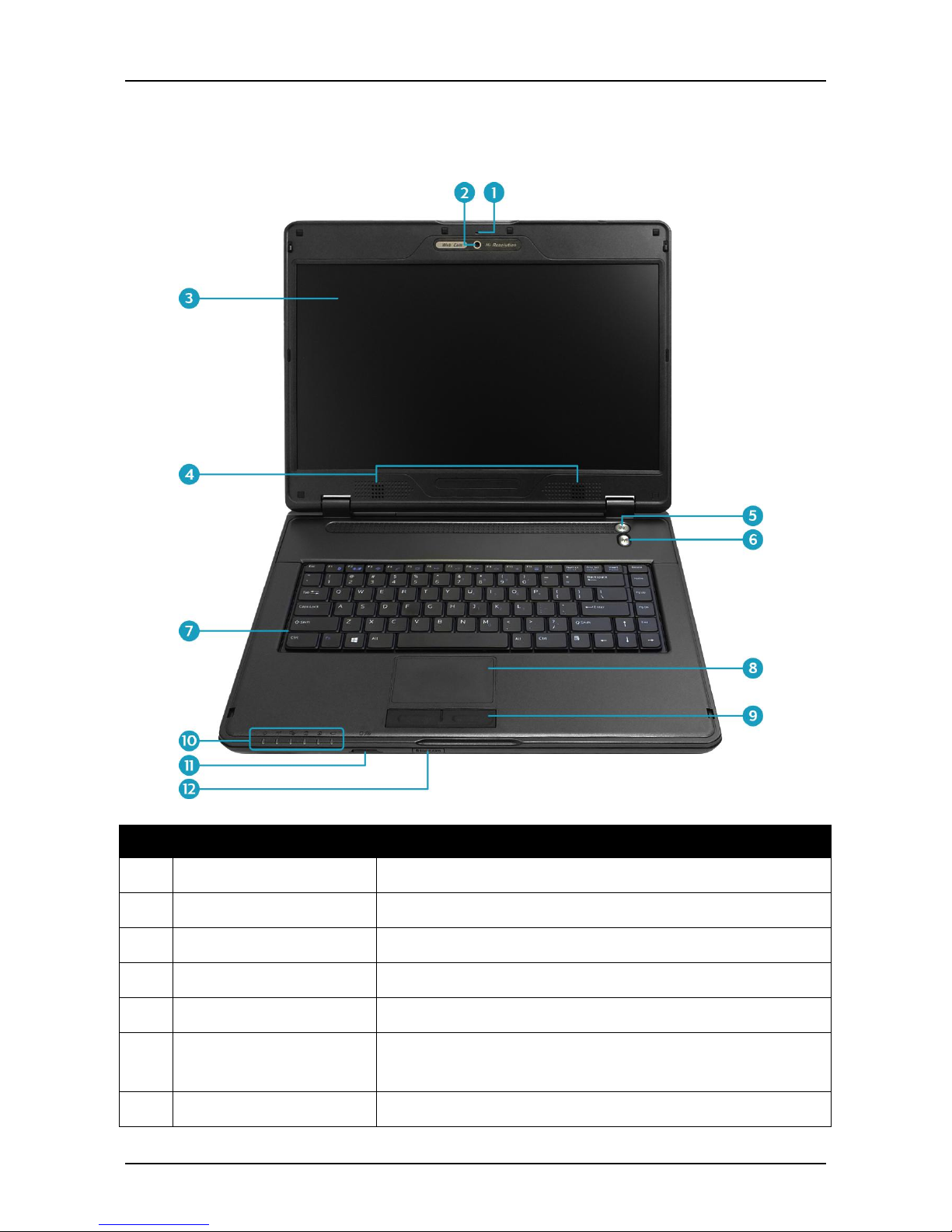

Front View
No.
Item
Description
1
Microphone
Record the surrounding sound.
2
Web camera
Use for video conference.
3
Display screen
Allow users to use the Resistive Single Touch.
4
Speakers
Emit sound.
5
Power button
Press to turn your notebook on or off.
6
RF button
Press to disconnect all wireless network (WLAN
and WWAN) and Bluetooth communications.
7
Waterproof keyboard
Press the keys to input information.

Before You Start
9
No.
Item
Description
8
Touch pad
Use to point, select, drag, or scroll objects on the
screen.
9
Touch pad button
Press to select objects or display a shortcut menu.
10
Device Indicators
(Power, Wireless,
HDD, Caps Lock,
Num lock, Battery)
Indicate the corresponding function status.
11
Card reader
Use to insert memory cards to transfer pictures,
music, and data between your notebook and flash
compatible devices. The card reader supports SD
(Secure Digital), SDXC, Mini-SD (with adapter).
12
SIM card slot
Use to insert SIM card.

Before You Start
10

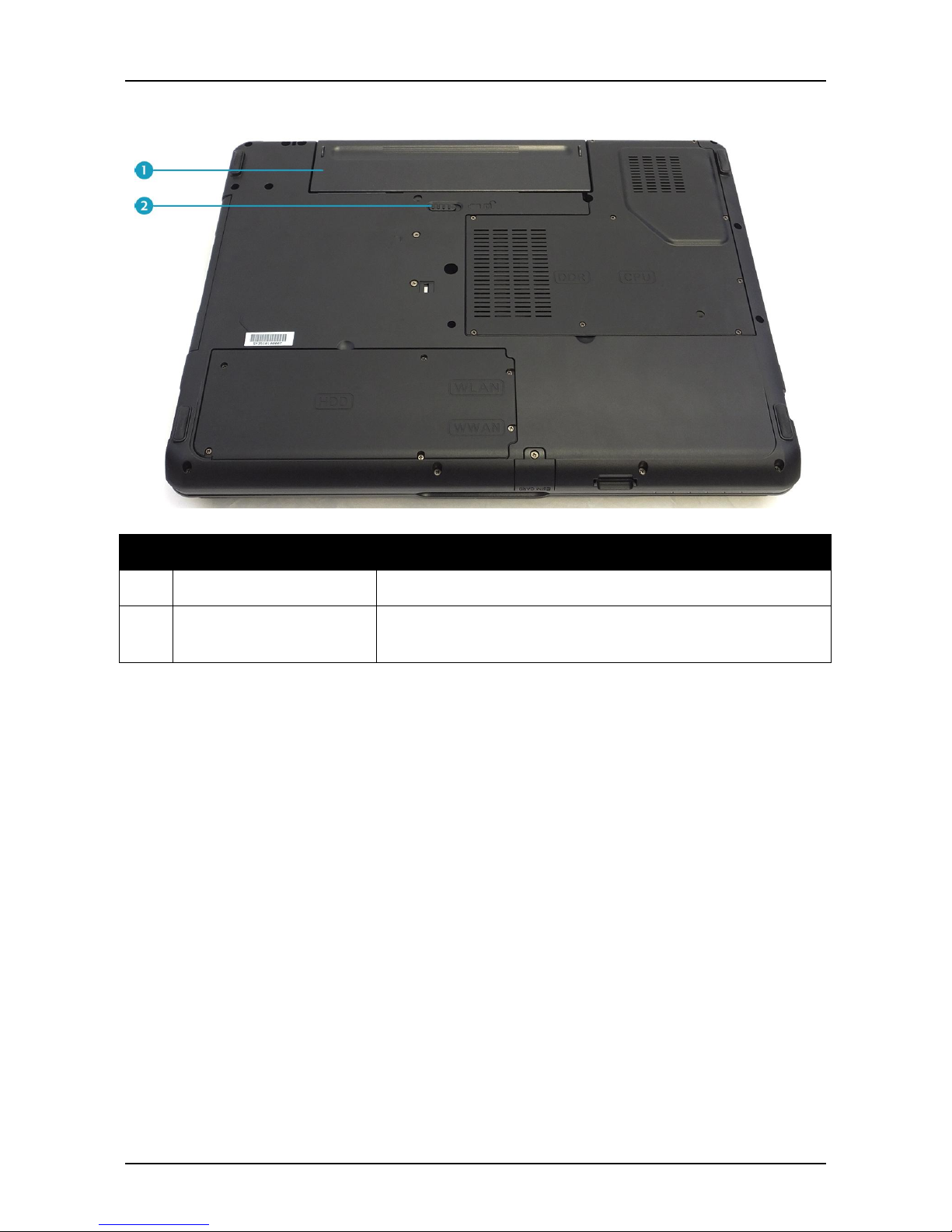

Back View
No.
Item
Description
1
Battery compartment
Install the battery.
2
Battery latch
Slide to the right and hold it in place to remove the
battery.
