Duramaxx 26113 User manual

YARD CHIPPER
ITEM # 0238999
MODEL # 26113
READ YOUR OPERATOR’S MANUAL COMPLETELY AND CAREFULLY BEFORE
ATTEMPTING TO SET UP OR OPERATE YOUR NEW YARD CHIPPER ALL OPERATORS OF THIS
EQUIPMENT SHOULD READ AND UNDERSTAND ALL SAFETY RULES PRINTED ON THE MACHINE
AND IN THIS OPERATOR’S MANUAL BEFORE USE.
CAUTION - FOR YOUR SAFETY
NOTICE: On the nameplate of your machine you will find the serial number and MFG date code of your unit.
Please record these numbers on this manual cover for future service reference.
MFG. DATE ________ PURCHASE DATE: _________
PRINTED IN CHINA
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-866-456-8934, 9:00 a.m.-5:00 p.m. EST, Monday-Friday.
TM

2
Product specification............................................................................................2
General safety rules..........................................................................................3-4
Specific safety rules for yard chippers.................................................................5
Electrical information........................................................................................6-7
Know your chipper...............................................................................................8
Assembly and Adjustments.............................................................................9-11
Operation.......................................................................................................12-13
Troubleshooting..................................................................................................15
Maintenance.......................................................................................................14
Warranty.............................................................................................................16
Parts lists.......................................................................................................17-19
YARD CHIPPER
ITEM NUMBER:.........................................................................................0238999
MODEL NUMBER:.........................................................................................26113
MOTOR..................................................................................120V AC, 60 Hz, 15A
SPEED....................................................................................................4,000RPM
CHIPPER CAPACITY...................................................................1-3/8 in. (35 mm)
DIAMETER...................................................................................1-3/8 in. (35 mm)
DISCHARGE.........................................................Direct to ground / Collection bag
HEIGHT....................................................................................37-1/2 in. (950 mm)
WEIGHT........................................................................................30.8 lbs. (14 kg)
TABLE OF CONTENTS
PRODUCT SPECIFICATIONS

Safety is a combination of common sense, staying alert, and knowing how to
use your yard chipper properly.
1. READ and become familiar with this entire instruction manual. LEARN the
tool’s applications, limitations, and possible hazards.
2. AVOID DANGEROUS CONDITIONS. DO NOT use power tools in wet or
damp areas or expose them to rain.
3. DO NOT use power tools in the presence of flammable liquids or gases.
4. KEEP BYSTANDERS AT A SAFE DISTANCE FROM the work area when
the tool is operating. NEVER allow children near the tool.
5. DO NOT FORCE THE TOOL to do a job for which it was not designed.
6. DRESS FOR SAFETY. DO NOT wear loose clothing, gloves, neckties, or
jewelry (rings, watches, etc.) when operating tool. Loose clothing can get
caught and pull you into moving parts.
7. ALWAYS WEAR EYE PROTECTION.
8. ALWAYS remove the power cord plug from the electric outlet when making
adjustments, changing parts, cleaning or working on the tool.
9. AVOID ACCIDENTAL START-UPS. Make sure the power switch is in the
OFF position before plugging in the power cord.
10. DO NOT abuse the power cord. Do not use it to carry the tool. Keep cord
away from heat, oil, sharp edges, or moving parts. Replace damaged cords
immediately; they may create a shock or fire hazard.
11. NEVER LEAVE A RUNNING TOOL UNATTENDED. Turn the power switch
to OFF. Do not leave the tool until it has come to a complete stop.
12. Keep proper footing and balance at all times. Wear oil-resistant,
rubber-soled footwear.
TO AVOID MISTAKES THAT COULD CAUSE SERIOUS
INJURY, DO NOT PLUG IN THE CHIPPER UNTIL THE FOLLOWING
STEPS HAVE BEEN READ THOROUGHLY.
3
GENERAL SAFETY RULES
WARNING

13. ALWAYS keep tool clean and in good working order.
14. Check for proper alignment of moving parts, binding, breakage,or any other
conditions that may affect the tool’s operation. Any part that is damaged
15. DO NOT operate tool if you are under the influence of any drugs, alcohol
or medication that could affect your ability to use the tool properly.
16. Do not use solvents, brake fluids, gasoline, or other petroleum products to
clean the tool;they may damage plastic parts.
4
should be properly repaired or replaced before use.
GENERAL SAFETY RULES-CONTINUED
ALWAYS WEAR EYE PROTECTION.
A yard chipper can throw foreign objects into your eyes which could
cause permanent eye damage.
ALWAYS wear safety goggles (not glasses). Ordinary eyeglasses
have only impact-resistant lenses—they are
NOT safety goggles.

1. Be thoroughly familiar with the operation of the chipper before initial use.
2. NEVER put your hands into the hopper. Always use the push stick supplied
with your chipper to push items into the hopper.
3. DO NOT try to force objects that exceed the recommended diameter and
capacity of the chipper: 1-3/8 in. (35 cm).
4. AVOID ACCIDENTAL START-UPS. Be sure switch is OFF when
plugging in.
5. DO NOT FORCE THE CHIPPER. It will do the job better and with less
likelihood of injury at the rate for which it was designed.
6. Before putting objects into the hopper, remove any stones, debris, or
objects that could damage the blades.
7. During operation, ensure that there are no other persons or animals within
a radius of 10 feet. Stop using the machine while people, especially
children, or pets, are nearby.
8. NEVER reach under the chipper until it has completely stopped. The
blade may continue to rotate for a time after being switched OFF.
9. MAKE all adjustments with the power OFF and the chipper disconnected
from the power source.
10. ALWAYS use accessories provided or recommended by the manufacturer.
Do not use substitutes.
11. KEEP guards in place and in working order. Keep blades sharp. Keep
hands and feet away from cutting areas.
5
NEVER REACH INTO THE HOPPER UNTIL THE
CHIPPER HAS COME TO A COMPLETE STOP AND IS UNPLUGGED.
THE CHIPPER WILL CONTINUE TO ROTATE FOR A FEW SECONDS
AFTER IT IS SWITCHED OFF.
NEVER PLACE HANDS NEAR DISCHARGE CHUTE.
FAILURE COULD RESULT IN SERIOUS INJURY.
SPECIFIC SAFETY RULES FOR YARD CHIPPERS
WARNING
WARNING

This yard chipper has a plug that looks like the one shown in Fig. 1.
The yard chipper is doubleinsulated to providea dual thickness of insulation
between you andthe tool’s electrical system. All exposed metal parts are
insulated.
IN ALL CASES, MAKE CERTAIN THE RECEPTACLE IN
QUESTION IS PROPERLY GROUNDED. IF YOU ARE NOT SURE,
HAVE A CERTIFIED ELECTRICIAN CHECK THE RECEPTACLE.
6
Fig.1
1) 2-prong plug
2) Properly grounded extension cord
ELECTRICAL INFORMATION
CAUTION
WARNING: TO AVOID ELECTRIC SHOCK HAZARDS, FIRE HAZARDS,
OR DAMAGE TO THE TOOL, USE PROPER CIRCUIT PROTECTION.
YOUR CHIPPER IS WIRED AT THE FACTORY FOR 12O-V OPERATION.
CONNECT TO 120-V, 15-Amp CIRCUIT AND USE A 15-Amp CIRCUIT
BREAKER. TO AVOID SHOCK OR FIRE WHEN THE POWER CORD IS
WORN, CUT, OR DAMAGED IN ANYWAY, REPLACE IT IMMEDIATELY.
DOUBLE INSULATED
WARNING：TO AVOID INJURY，WHEN SERVICING THE CHIPPER
USE ONLY IDENTICAL REPLACEMENT PARTS.1-866-456-8934
WARNING:DOUBLE INSULATION DOES NOT TAKE THE PLACE OF
NORMAL SAFETY PRECAUTION WHEN OPERATING THIS TOOL.
WARNING:TO AVOID ELECTRIC SHOCK:
1. Use only identical replacement parts when serving a tool with double
insulation. Servicing should be performed by a qualified technician.
2. Do not use in wet or damp or expose to rain.

GUIDELINES FOR USING EXTENSION CORDS
Make sure your extension cord is in good condition. When using an extension
cord, be sure to use one of heavy enough gauge to carry the current your product
will draw. An undersized cord will cause a drop in line voltage resulting in loss of
power and overheating. The table below shows the correct size to be used
according to cord length and nameplate ampere rating. If in doubt, use the next
heavier gauge. The smaller the gauge number, the heavier the cord.
Minimum Gauge for Extension Cords (AWG)
(when using 120 V only)
Be sure your extension cord is properly wired and in good condition. Always replace
a damaged extension cord or have it repaired by a qualified person before using it.
Keep your extension cords away from sharp objects, excessive heat and damp or
wet areas.
Use a separate electrical circuit for your tools. This circuit must not be less than
12-gauge cord and should be protected with a 15-amp time delayed fuse.
Before connecting the motor to the power line, make sure the switch is in the OFF
position and the electric current is rated the same as the current stamped on the
motor nameplate. Running at a lower voltage will damage the motor.
THIS TOOL MUST BE GROUNDED WHILE IN USE TO
PROTECT THE OPERATOR FROM ELECTRICAL SHOCK.
Amp Rating Total Length of Cord in Feet (meters)
More Than Not More Than 25 (7.6) 50 (15.2) 100 (30.4) 150 (45.7)
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not Recommended
THIS LAWN TOOL IS FOR OUTDOOR USE ONLY. DO
NOT EXPOSE TO RAIN OR USE IN DAMP LOCATIONS.
7
ELECTRICAL INFORMATION
WARNING
WARNING

8

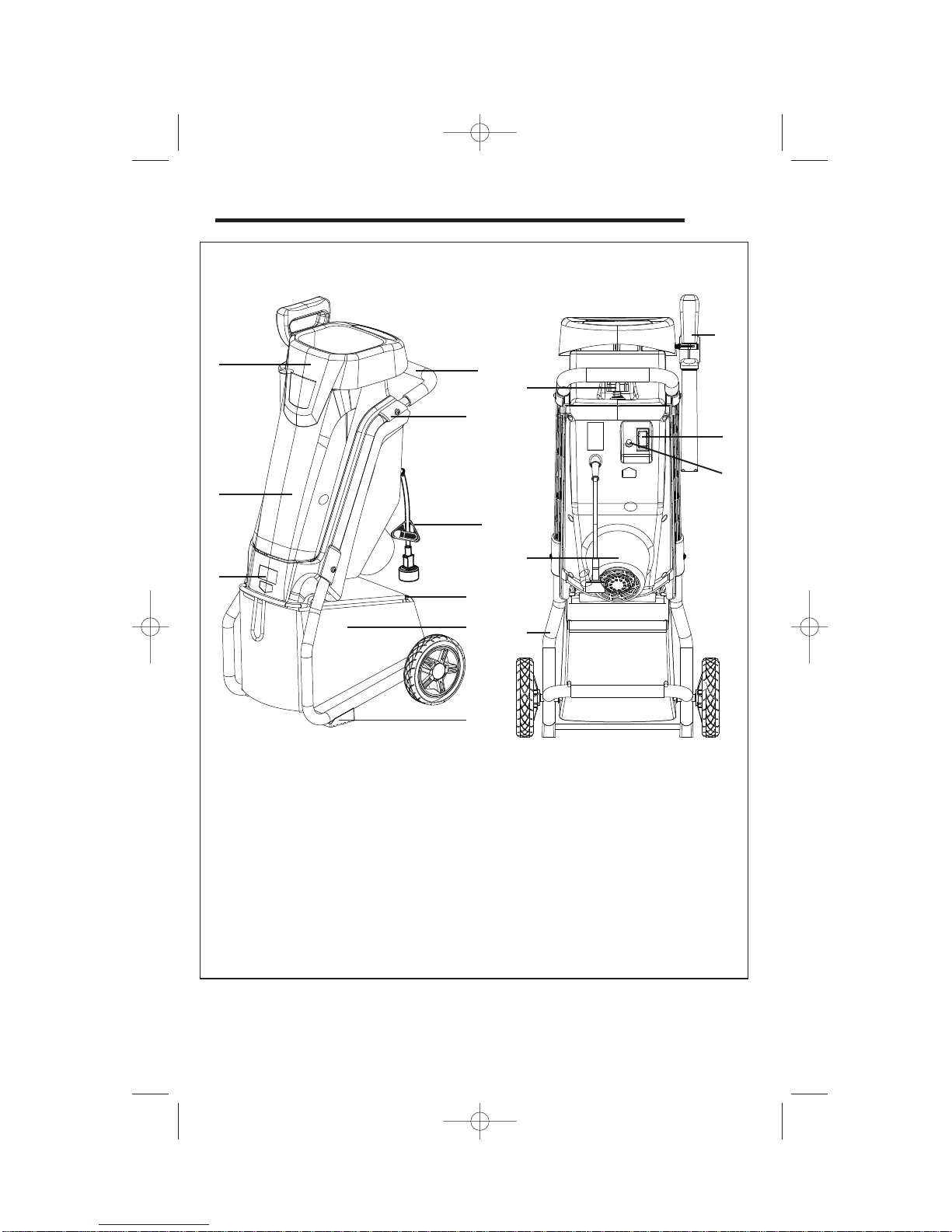

1. Hopper
2. Handle
3. Housing
4. Motor Housing
5. Release Knob
6. Power Switch
7. Discharge Chute
NOTE: Remove label from push paddle prior to use.
8. Stand with Wheels
9. Circuit Breaker
10. Bracket
11. Collection bag
25
6
4
8
7
39
10
11
KNOW YOUR YARD CHIPPER
12
14
15
12. Push Paddle
14. Push Bar
15. Cord Lock
13. Rubber Foot
13
1
Fig.2

14
12
2
57
6
13
10
3
9
8
UNPACKING (Fig. 3)
Remove the chipper components from the packagingand examine them carefully..
NOTE: Do not discard box or any packing material until all parts are examined.
9
Part.1 Housing with hopper 1 pcs
Part.2 Wheel 2 pcs
Part.3 Stand Assembly 1 pcs
1 pcs
Part.4
Part.5 T-wrench 1 pcs
Part.6 Wrench 1 pcs
Part.7 Screw 4 pcs
Part.8 Inner Washer 2 pcs
Part.9 Outer Washer 2 pcs
Part.10 Wheel Nut 2 pcs
Part.11 Wheel Nut Covers 2 pcs
IF ANY PART OF THE CHIPPER IS MISSING OR
DAMAGED, DO NOT PLUGTHETOOL IN UNTIL THE DAMAGED PART IS
REPAIRED OR REPLACED..
Fig.
WARNING
Part 12 Replacement Blades 2 pcs
Part 13 Collection Bag 1 pcs
Push Paddle (remove
label from both sides of
push paddle before use)
ASSEMBLY AND ADJUSTMENTS
11

ASSEMBLY INSTRUCTIONS
The chipper must be fully assembled before use.
10
TO AVOID INJURY, ALWAYS TURN THE SWITCH OFF
AND DISCONNECT THE CHIPPER FROM THE POWER OUTLET
BEFORE MAKING ANY ADJUSTMENTS. (see Fig.4)

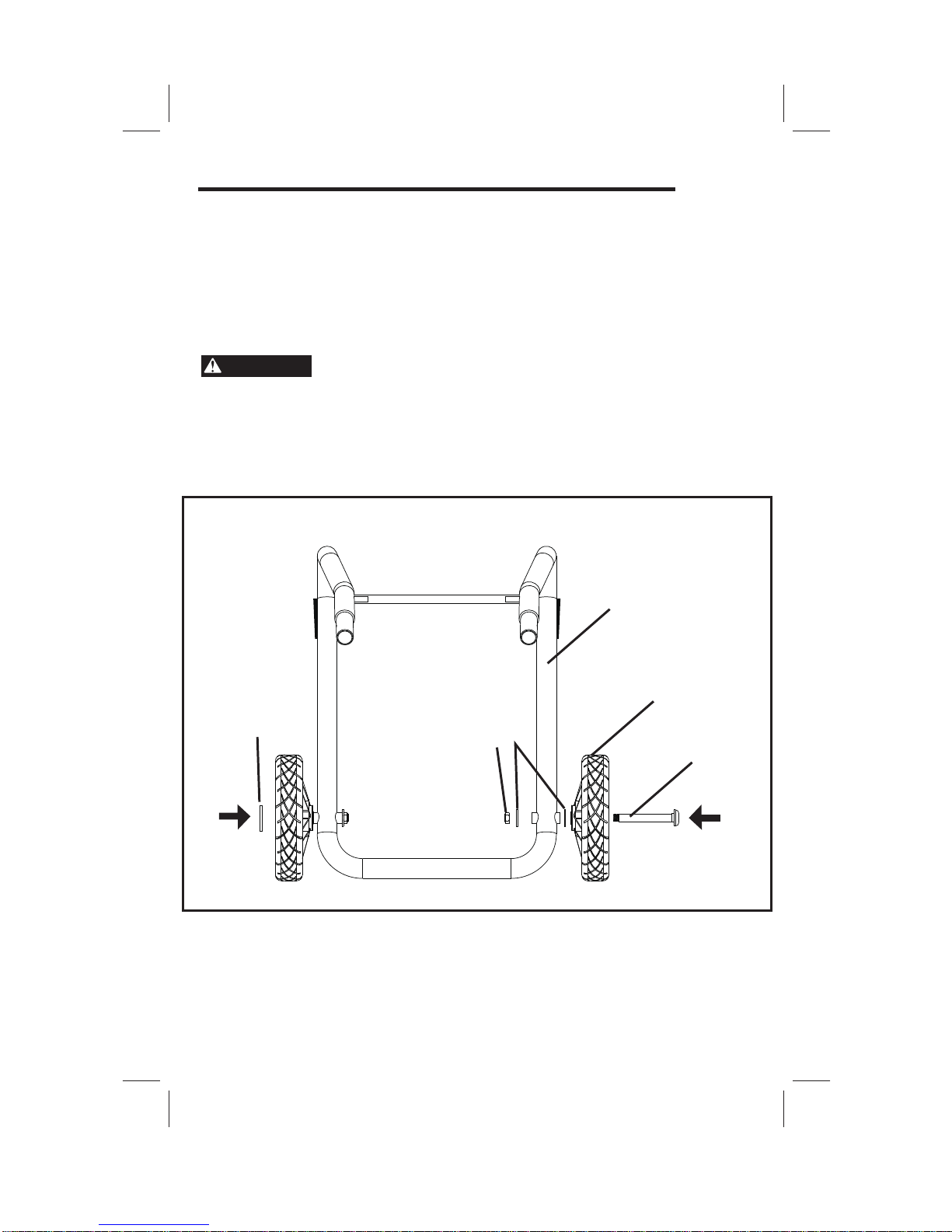

1. Place the wheel bolt (3) through the opening in the wheel (2), add first washer (5)
between wheel and frame. Pass wheel bolt, washer through frame assembly add
second washer (5) and secure with wheel nut (4).
2. Put the wheel bolt covers (6) in place.
WARNING
ASSEMBLY AND ADJUSTSMENTS
Assembling this YARD Chipper need as follows tools:
(I) T-wrench
(II) wrench
(III) Phillips screwdriver
Insert
1
2
3
45
6
Fig.4

11
Attach legs to chipper (see Fig.5)
The legs are attached to the bottom of the chipper.
The handle is attached to the back of the chipper.
1. Place the handle (1) into the holes (4) on the back of the housing.
2. Using a screwdriver tighten the screw (3) and washer (2).
NOTE: Do not overtighten the screws.
1. Place the legs(1) into the holes (4) on the housing.
2. Push firmly into place.
3. Using a screwdriver tighten the screw (3) and washer (2).
ASSEMBLY AND ADJUSTMENTS
1
1
3
2
2
4
Attach handle to chipper (see Fig.6)
3
4
Fig.5
Fig.6
NOTE: Do not overtighten the screws.

OPERATING INSTRUCTIONS
ON/OFF Switch (Fig. 7)
The ON/OFF switch (1). A circuit breaker/reset button (2) is located beside the switch.
To operate the chipper:
1. Plug the chipper into a properly
grounded 3-prong outlet.
2. Flip the switch (1) to the ON
position. If the chipper does not
start, flip the switch to the OFF
position and press the reset
button (2), then flip the switch to the
ON position.
3. Flip the switch (1) to the OFF
position to turn offthe chipper.
Allow at least 5 seconds for the
blade to stop rotating.
Overload protection (Fig. 7)
This yard chipper has a reset overload feature. The reset button will restart the
motor after it shuts offf due to overloading or low voltage. If the motor stops
during operation:
1. Turn the ON/OFF (1) switch to the OFF position.
2. Wait about five minutes for the motor to cool.
3. Push in on the reset button(2).
4. Turn the switch(1) to the ON position.
12
ALWAYS ALLOW 5 SECONDS OR MORE FOR THE
BLADETO STOPROTATING AFTER TURNING OFF THE CHIPPER.
TO PREVENT AN ACCIDENTAL START-UP IF THE RESET
BUTTON IS PUSHED, THE ON/OFF SWITCH SHOULD BE IN THE OFF
POSITION AND THE PLUG SHOULD BE REMOVED FROM THE POWER
SOURCE WHILE COOLDOWN TAKES PLACE.
OPERATION
WARNING
WARNING
1
2
Fig. 7
Cord Lock

Chipping yard waste (Fig. 8)
The chipper is designed to work on yard waste, debris,
sticks and twigs up to 1-3/8 in. (35 mm) in diameter. The chipper material will
accumulate directly on the ground under the chipper.
CAUTION: Do not attempt to chip material that exceeds the capacity of the
chipper.
1. Turn ON the chipper.
2. Place sticks in the narrow opening of
the hopper. Do not place your hands
inside the hopper.
3. Use the push paddle (1) only to help
feed material into the hopper.
4. Turn the chipper OFF and allow it
to come to a complete stop.
13
DO NOT TRY TO CHIP ANY MATERIAL THAT EXCEEDS
THE CAPACITY OF THIS TOOL. DOING SO MAY CAUSE THE MOTOR TO JAM
AND OVERHEAT. NEVER PUT YOUR HANDS IN THE HOPPER OR NEAR THE
BLADE WHENTHE TOOL IS RUNNING.
Fig. 8
OPERATION
WARNING
NOTE: This chipper is designed for dry material only.
Never place green material into the chipper.
Not for use for mulching of leaves. For branches and garden debries only.
Fig. 9
CONNECTING TO POWER SUPPLY (Fig. 9)
This product is designed with a cord lock that
prevents the extension cord from being pulled
loose during use.
1. Form a loop with the end of the extension
cord.
2. Insert loop portion of extension cord through
half moon shaped opening on the retainer and
place over the rectangular tab on cord lock.
3. Slowly pull loop against tab until all slack is
removed.
4. Plug product into extension cord.
NOTE: Failure to remove all excess cord slack
from extension cord could result in plug loosening
from receptacle.
1

BLADE MAINTENANCE
The chipper has two blades that are attached to a rotating support. When one
side of a blade becomes dull, it can be turned to use the other side. Replace or
properly sharpen dull blades.
Replace a blade
GENERAL MAINTENANCE
1. Keep the chipper clean and in good repair for maximum performance and
machine longevity.
2. Before each use, inspect the switch and cord for damage.
3. Check for damaged, missing, or worn parts. Check for loose screws, moving
parts that are jammed or any other conditions that may affect the operation.
4. If abnormal vibration or noise occurs, turn OFF the tool immediately and
correct the problem before further use.
5. Do not use the chipper until it is properly repaired or replaced.
14
Fig.10
ALWAYS TURN OFF THE TOOL AND UNPLUG THE
POWER CORD FROM THE OUTLET BEFORE MAINTAINING THE
CHIPPER.
MAINTENANCE
WARNING

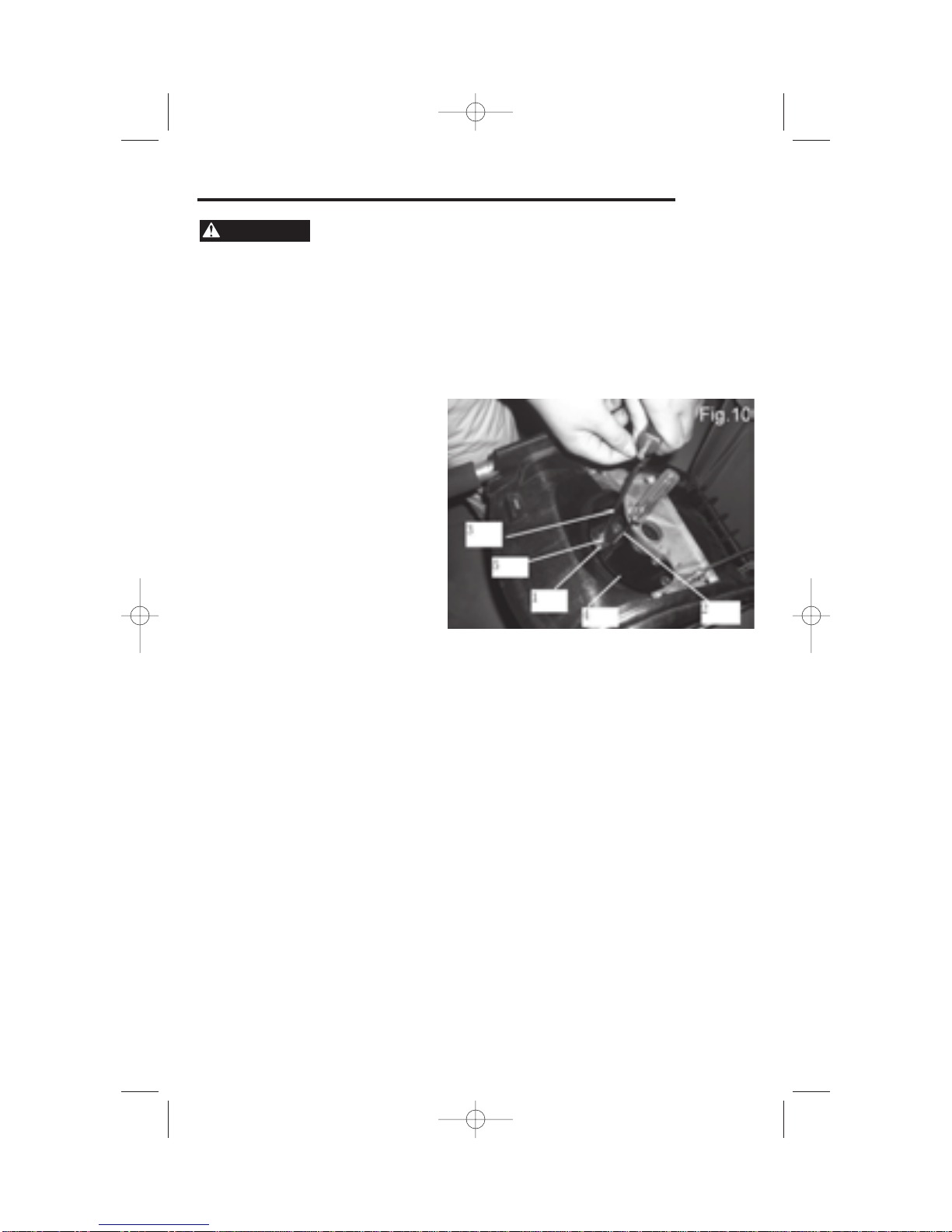

1. Turn off the chipper and remove
the plug from the outlet;
2. Turn the upper housing’s lock
knob counterclockwise until the
housing cover can be opened;
3. Lift up the housing cover to
expose the two blades(1);
4. Using a metal pole like a
screwdriver(2),put its front sides
into the upper screw hole of the
gear box through the blade gap
of the blade support(4) to secure
it and stop it from rotating;
5. Use the 6mm “T” wrench(3) to loosen and remove the two screws(5) that hold
each blade to the blade support;
6. Take out the old blade. Either reinsert the blade with the sharp edge in position
as the cutting surface or insert a replacement blade, and the same method to
replace the other blade.
7. Replace and tighten the two screws to secure the new blade to the support.
Note: Only for branch chipping, not for leaves or vines.

•Wipe the outside of the chipper with a dry soft cloth.
•Remove the hopper from the housing body before washing the inside of the
hopper.
•Do not hose down or wash the tool with water.
TO AVOID INJURY, ELECTRIC SHOCK, OR DAMAGE
TO THE CHIPPER, NEVER ALLOW A LIQUID TO FLOW INSIDE THE
TOOL.
15
TO AVOID DAMAGE OR ELECTRIC SHOCK, DO NOT
USE STRONG SOLVENTS OR DETERGENTS ON THE PLASTIC
HOUSING OR PLASTIC COMPONENTS. CERTAIN HOUSEHOLD
CLEANERS MAY CAUSE DAMAGE AND MAY ALSO CAUSE A SHOCK
HAZARD.
MAINTENACE
WARNING
WARNING
CLEANING

16
LIMITED TWO-YEAR REPAIR WARRANTY
The manufacturer warrants to the original purchaser that each new product and service part is free from defects in
material and workmanship and agrees to repair or replace under this warranty any defective product or part as follows
from the original date of purchase.
2-Year Limited Repair Warranty
THIS WARRANTY IS NOT TRANSFERABLE AND DOES NOT COVER:
Products sold damaged or incomplete, sold “as is”, sold reconditioned or used as rental equipment.
Delivery, installation or normal adjustments explained in the owner’s manual.
Damage or liability caused by shipping, improper handling, improper installation, incorrect voltage or improper wiring,
improper maintenance, improper modification, or the use of accessories and /or attachments not specifically recommended.
Repairs necessary because of operator abuse or negligence, or the failure to install, operate, maintain and store the product
according to the instructions in the owner’s manual.
Damage caused by cold, heat, rain, excessive humidity, corrosive environments and materials, or other contaminants.
Expendable items that become worn during normal use, such as blades.
Cosmetic defects that do not interfere with tool functionality.
Freight costs from customer to vendor.
ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT FROM ANY
DEFECT, FAILURE OR MALFUNCTION OF THE PRODUCT.
Some states do not allow the exclusion or limitations on how long an implied warranty lasts, so the above limitations may
not apply to you.
WARRANTY REPLACEMENT PARTS are available by calling the toll free number, 1-866-456-8934, 9:00 a.m.-5:00 p.m.
EST, Monday-Friday.

17

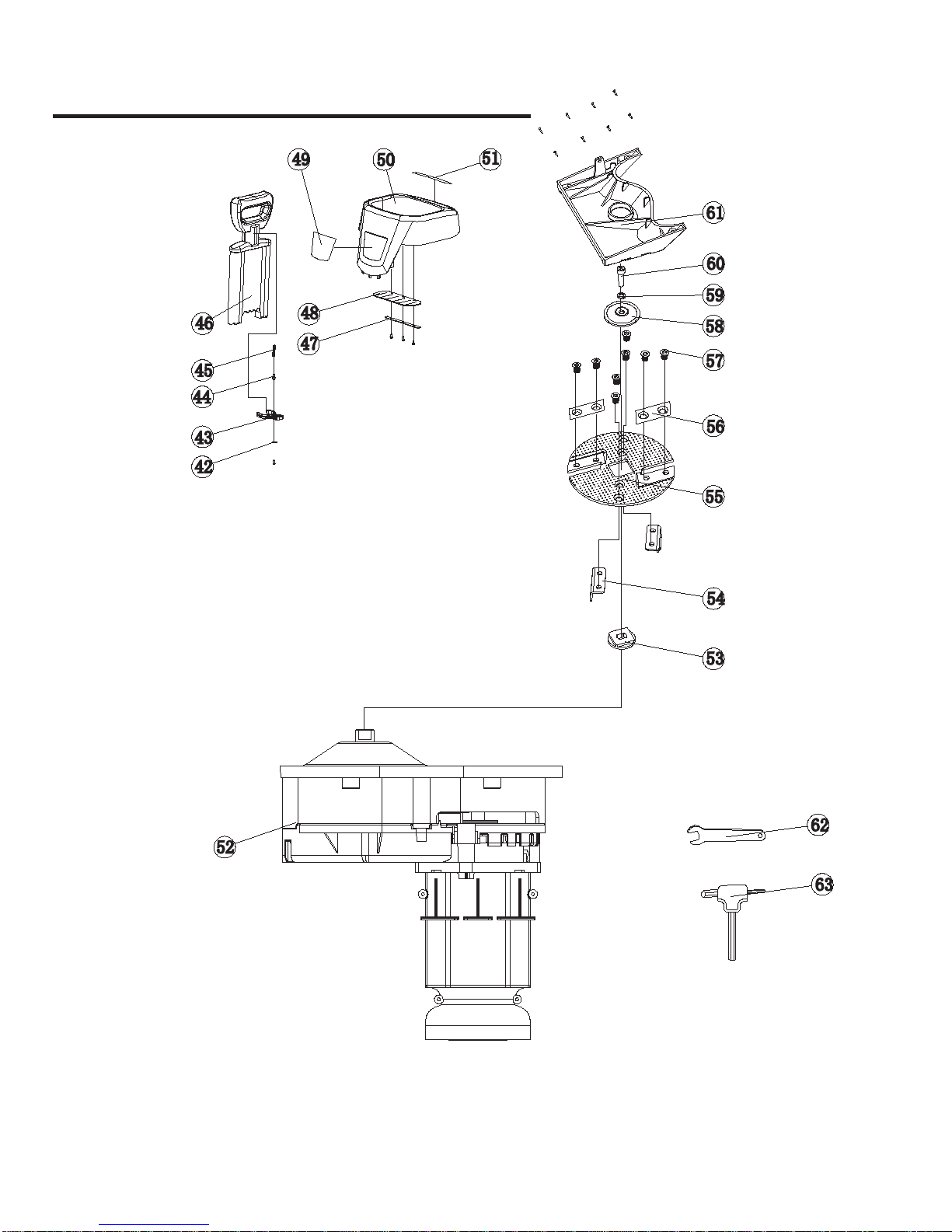

PARTS LIST
34
3
33
2
1
11
10
9
8
13
7
6
5
4
15
16
17
18
21
22
24
27
25
28
29
30
31
19 20
38
39
41
23
26
37
12
14
32
35
36
40

18
PARTS LIST
52
60
59
58
57
56
55
54
53
61
51
42
43
44
45
48
49 50
47
46
62
63

PARTS LIST
19
1collector bag assembly
1.1 1722001
1723004
1723013
collector bag
1.2 1721001 collector bag support
2 tie bar assembly
2.1 1721003 2tie bar 2
2.2 1721004 1tie bar 1
2.3 0011059 rivet
3 1721002 small swivel pin
4 0011017 bolt
5 0011048 flat washer
6 1722002 leg stand base
7 1721006 leg stand
8 0011044 flat washer
9 1723001 7" wheel
10 1721007 axle
11 1722003 7"wheel cover
12 1722004 leg stand bushing
13 0011045 locknut
14 0011046 flat washer
15 1722005 rolling wheel
16 1722006 label 1
17 1722007 label 2
18 0011047 bolt
19 1721005 flat washer
20 1721008 big swivel pin
21 0011049 R pin
22 1722008 front housing
23 1722009 bottom housing
24 1734001 power cord
25 1722010 power cord sheath
26 0011002 bolt
27 1722011 cord clamp plate
28 1734002 overload protector
29 1734003 electromagnetism
switch
30 0172109 nut clamp plate
31 1721010 locknut
32 0011050 bolt
33 0011052 bolt
34 1721011 fixable support
35 1734004 safe switch
36 0011016 nut
37 upper handle assembly
37.1 1721012
1723009 1723012
1723006
upper handle
37.2 1722012 upper handle sponge
38 1721017 switch retaining
patch
39 upper housing
39.1 1722020 knob
39.1.1 1721020 knob mount
39.2 1721018 washer
39.3 0011051 flat washer
39.4 1721019 knob spring
40 1734005 lead cord
41 1734006 lead cord
42 1721013 holder washer
43 1722014 flat push sticker holder
44 1721014 bulb
45 1721015 (holder)spring
46 1722015 flat push sticker
47 1721016 clamp block
48 1722016 flap
49 1722017 label3
53 1722018 feeder hopper
51 1722019 label 4
52 motor drive assembly
52.1 1722021 upper gearbox cover
52.2 0011053 bolt
52.3 0011056 spring check ring
52.4 1721028 motor fan blade
52.5 0011057 bolt
52.6 0011039 spring washer
52.7 0011033 flat washer
52.8 1722022 motor back support
52.9 1734007 stator assembly
(include carbon brush)
52.10
52.12
52.13
52.14
52.15
52.17
52.18
52.19
52.20
52.21
52.22
52.23
52.24
52.25
52.26
52.27
52.28
52.29
52.16
52.11
0011058 washer
0011060 bearing
0011061 spring check ring
1721029 ecarbon brush spring
1734009 armature
1721030 bearing clamp plate
0011020 bolt
0011062 bearing
1722023 left motor housing
1721031 small belt wheel
0011019 screw
1722024 right motor housing
1722025 insulated baffle
0011063 screw
0011064 spring washer
1721032 down gearbox cover
0011065 bearing
1723003 big belt wheel
1721033 main shaft of big belt wheel
1722026 belt
53 1721021 drive block
54 1721022 blade plate
55 1721023 blade plate
56 1721024 blade
57 1721025 screw
58 1721026 clamp block
59 0011054 spring washer
60 0011055 screw
61
62
63
1721027
1721034
1721035
blade cover plate
wrench
T wrench
