Durr Dental XR 24 Pro User manual

INSTALLATION AND OPERATING INSTRUCTIONS
DÜRR XR 24 PRO
X-RAY FILM DEVELOPING APPLIANCE
2006/03

2

3
CONTENT
Important information
1. Instructions ............................................. 4
1.1 EU - Labelling ................................... 4
1.2 Guidelines ......................................... 4
1.3 General Instructions ......................... 4
1.4 General Safety Instructions.............. 4
1.5 Use of additional apparatus ............ 5
1.6 Use of orthocromatic (green-
sensitive) films .................................. 5
1.7 Safety instructions for electric power
protection .......................................... 5
1.8 Warning instructions and symbols .. 6
2. Product information .............................. 6
2.1 Use in accordance
with regulations ................................. 6
2.2 Use not in accordance
with regulations ................................. 6
2.3 Product information .......................... 6
3. Extent of Supply ..................................... 7
3.1 Special accessories ......................... 7
3.2 Consumables .................................... 7
4. Technical data ......................................... 7
5. Functional principle XR 24 PRO .......... 8
6. Functional description of the
XR 24 PRO ............................................... 9
6.1 Arrangement of plates ...................... 9
Mounting and assembly
7. Setting up .............................................. 10
7.1 Area in which machine
is to be set up .................................10
7.2 How to set up machine ................... 11
7.3 Setting up the machine ................... 11
8. Installation ............................................ 12
8.1 Mains water supply ........................ 12
8.2 Wastewater connection .................. 12
8.3 Connection for developer and
Fixer outflow pipe ............................ 13
9. Before operating machine
for first time .......................................... 14
9.1 Cleaning the machine ..................... 14
10. Power point (mains) ............................ 15

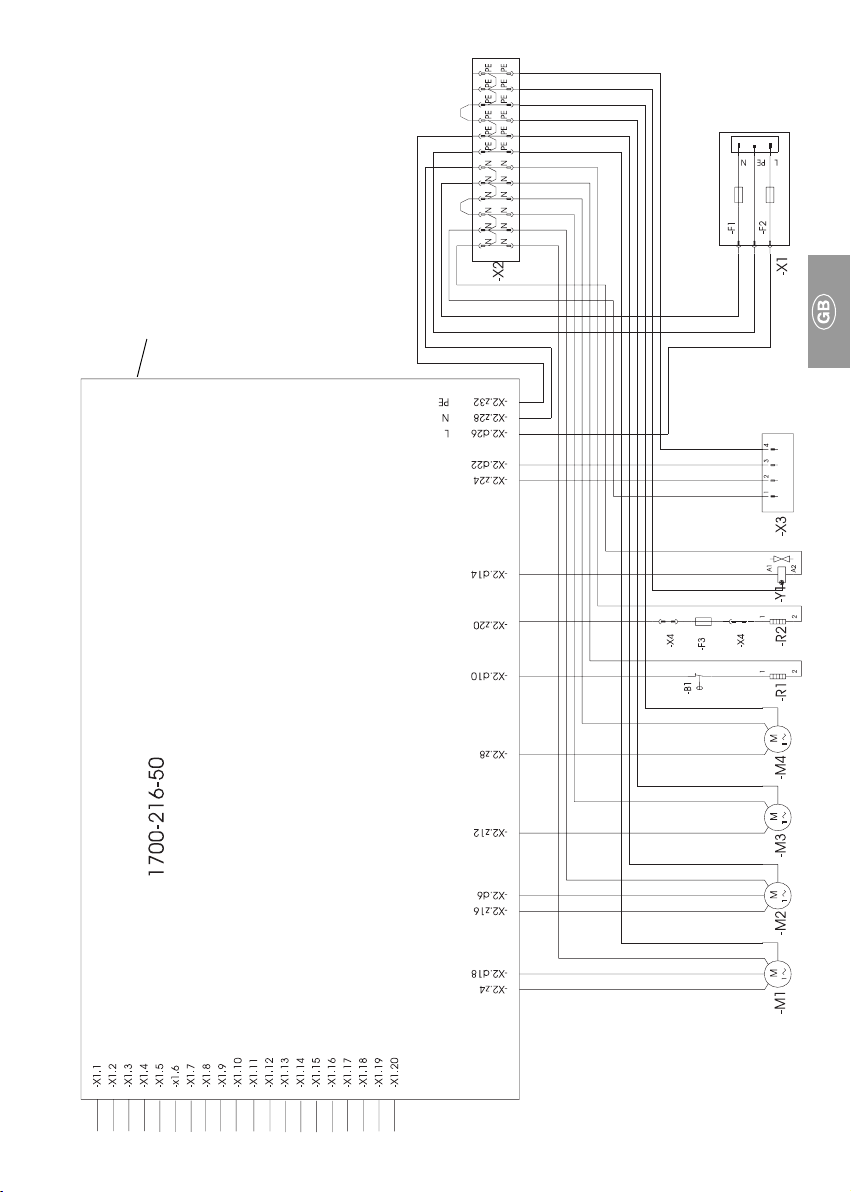

11. Circuit diagram ..................................... 16
12. First time operation ............................. 18
12.1Settings / Servicing work for
technician ........................................ 19
12.2Checking developer temperature and
carrying out acceptance test ......... 20
13. Transporting the machine .................. 21
13.1 Removing the outflow pipes ........... 21
13.2 Protection against damage ............ 21
Usage
14. Operation ............................................... 22
14.1 Procedure to be followed every
morning or before beginning work 23
14.2 Procedure to be followed every
evening or after finishing work ....... 24
14.3 Every week ..................................... 24
14.4 Every 4 weeks ................................ 24
14.5 1x a year .........................................24
14.6 When practice is closed................. 24
14.7 List of reccomended films for Dürr
XR 24 PRO developing machine. ..25
15. Maintenance .......................................... 26
Troubleshooting
16. Tips for the user.................................... 32
17. Tips for Technicians ............................. 34
18. Troubleshooting tips ........................... 35
18.1 Before beginning work ................... 35
18.2 Removing front covering ................ 35
18.3 Removing rear covering ................. 35
18.4 Removing lateral coverings............ 35
18.5 After work has ended .....................35
18.6 Plan for carrying out service work . 36
18.7 Changing the display ..................... 38
18.8 Checking appliance fuses ............. 38
18.9 Replacing flow heating unit with
PTC sensor ..................................... 39
18.10 Checking the water valve ............ 39
18.11 Replacing the water valve ........... 39
18.12 Cleaning the water level sensor .. 40
18.13 Changing the light barrier ............ 40
Disposal
19. Disposing of unit ................................. 40

4
IMPORTANTINFORMATION
1. INSTRUCTIONS
1.1 EU -Labelling
The product carries EU labelling in
accordance with the Council’s guideline on
medicinal products (EU 93/42) and complies
with the basic requirements contained in
appendix 1 of this guideline.
1.2 Guidelines
• The requirement for electromagnetic
capability related to electric medical
appliances has been complied with.
1.3 General Instructions
• The instructions for mounting and using the
appliance are an integral part of the
machine. They must always be stored
close to the machine. These instructions
must be strictly complied with so that the
machine can be used and correctly
operated in accordance with the relevant
regulations. New employees must be
acquainted with the instructions for
mounting and using the machine
• So that the machine may be operated safely
and in a trouble-free manner, original parts
must be used. In addition, only
accessories mentioned in the technical
documentation or expressly released by
Dürr Dental for this purpose may be used.
• No warranty claims shall be made for
damage caused by the use of accessories
or consumables manufactured by external
companies. Dürr Dental can give no
warranty for the safe operating and
functioning of the machine.
• With regard to safety, reliability and
functionality, Dürr Dental shall only be
responsible if the machine has been
mounted, assembled, altered, enlarged or
repaired by Dürr Dental or by a specialist
authorised by Dürr Dental, and if the
machine was used and operated in
accordance with the instructions for
mounting and use.
• The XR 24 PRO developing appliance fulfils
the basic norms on safety and technology.
All rights of protection are reserved for the
circuits, procedures, names, software
programs and appliances mentioned in the
documentation.
• The technical documentation, or parts
thereof, may only be reprinted with the prior
written permission of Dürr Dental.
1.4 General Safety Instructions
The appliance was developed and designed
in such a way that dangers associated with
use in accordance with the relevant
regulations are largely ruled out. However,
we are obliged to list the following safety
measures so that residual dangers can also
be ruled out..
• When the machine is being operated, the
laws and regulations applying in the place
of use must be complied with. It is illegal to
reconstruct or alter the machine in any way;
contravention of this regulation shall lead to
expiry of the permit. If an altered machine
is operated, the operator shall be liable to
prosecution. When the machine is being
operated, the laws and regulations applying
in the place of use must be complied with.
It is illegal to reconstruct or alter the
machine in any way; contravention of this
regulation shall lead to expiry of the permit.
If an altered machine is operated, the
operator shall be liable to prosecution.
• The original packaging must be stored in
case the appliance has to be returned. The
packaging must be kept out of the reach of
children. Only the original packaging can
guarantee that the machine is protected in
the optimum manner while it is being
transported. If the machine has to be
returned during the warranty term, then Dürr
Dental shall not be liable for any damage
which occurred as a result of faulty
packaging while the machine was being
transported.
• The machine complies with the relevant EU
guidelines and may only be used by
qualified persons who are capable of
operating it in the appropriate manner.

5
• Before using the machine, the user must
always check its functional safety and that
it is in proper condition..
• The user must be familiar with the
operating instructions for the machine.
• The machine must not be operated in
medical rooms where explosions are likely
to occur. Explosions may occur in areas
where combustible anaesthetics, skin
cleaning agents, oxygen and skin
disinfectants are used. The machine is not
suitable for operation in a combustible
atmosphere.
1.5 Use of additional apparatus
• Machines may only be used together or with
parts from other systems if a guarantee
exists that the safety of the patient, the user
and the surrounding area is not adversely
affected by his or her doing so. If the user
is unable to tell from the available technical
data whether or not safety is adversely
affected by coupling machines or using
parts from other systems, he or she must
enquire of the manufacturer or a suitably
qualified person in this regard..
1.6 Use of orthocromatic (green-
sensitive) films
To prevent incorrect exposure, the luminous
power of the darkroom light must be reduced
when green-sensitive films are being used.
A qualified technician must carry out the
necessary work in all such cases..
1.7 Safety instructions for electric
powerprotection
• The developing machine may only be
connected to an earthed plug which has
been properly installed.
• Before the machine is connected an
inspection must be made to ensure that the
mains voltage and mains frequency
indicated on the appliance match the
values for the supply network.
• No extension leads may be used for
feeding the current.
• Before it is operated for the first time, the
machine and its leads must be checked to
ensure that they are not damaged in any
way. Damaged leads, plugs and sockets
must be replaced immediately..
• The machine may only be operated, i.e.,
connected to the mains, when sealed
(coverings must be attached and lid put
on).
• In accordance with IEC 601, the machine
should not be operated when patients are
present.

6
1.8 Warning instructions and symbols
The following designations and symbols are
used for particularly important information in
the instructions for mounting and usage:
Information, requirements and
prohibitions on preventing personal
injury and extensive damage to
propert.
Warning about dangerous electrical
voltage
Special information concerning the
economic and profitable use of the
appliance, and other instructions.
EU labelling without Notified Body
Number
Comply with instructions for mounting
and usage
Mains button on / off
/ Select parameters
Confirm selection tigen
Switch on mains button
Switch off mains button
Open bibcock - every morning
Close bibcock - every evening
28 x 24 h
Change chemicals every 4 weeks
Allow chemicals to drain off
Clean machine
2. PRODUCT INFORMATION
2.1 Use in accordance
with regulations
The Dürr XR 24 PRO X-ray developing
machine is to be used exclusively for the
automatic development of extra-oral and
intra-oral X-ray films in accordance with Dürr’s
recommended list of films.
Use in accordance with the regulations
includes compliance with the instructions for
mounting and usage as well as compliance
with the provisions on setting up, installing
and operating the machine, and on warranty.
Use in accordance with the regulations also
includes compliance with all legal provisions
in force in the place where the machine is
being used, with regard to work safety and
the disposal of chemicals.
2.2 Use not in accordance
with regulations
If the machine is used for a purpose other
than the one stated in the regulations, the
manufacturer shall not be legally liable for any
damage arising as a result of same. In such
cases, the user shall incur the risk.
2.3 Product information
The exposed film passes through different
zones within the Dürr XR 24 PRO X-ray
developing machine: the developing, fixing,
rinsing and drying zones.
When the machine has been switched on, the
developing bath and the fixing bath are
heated to the set bath temperature (e.g.
28°C) at a rate of 0.5°C/min. The machine is
then ready to be operated. It starts operating
automatically when a film is slid inside. The
film is transported through the machine. As
soon as the message “MACHINE LOADED”
stops flashing on the display, another film can
be introduced, or up to 6 intra-oral films, can
be introduced together. When the film has
passed through the whole of the machine, it
switches automatically to stand-by.

7
3. EXTENT OF SUPPLY
XR 24 PRO X-ray developing machine
Model 1700-08 (230 V ~, 50-60 Hz)
Model 1700-09 (100-110 V ~, 50-60 Hz)
Accessories, complete1700-001-00
3.1 Special accessories
The following parts are not part of the extent
of supply.
They should be ordered if required!
XR-Cleaning Set for cleaning rack,
Content:
1 x cleaning tray,
2 x universal cleaner,
2 x sponges 1700-007-00
Cleaning films DÜRR clear100 1410-007-00
Water hose with Aqua-Stop 1330-001-51
Replenishing unit (230 V) 1700-820-00
(110 V) 1700-830-00
Collecting tray, 20 litres
for developer 1416-021-00
Collecting tray, 20 litres
for fixer 1416-011-00
DL 24 daylight attachment
with filtering disc 1700-910-00
suitable for following film sizes:
2 x 3 cm up to max. 15 x 30 cm
DL 26 daylight attachment 1700-920-00
suitable for current film sizes
up to max. 24 x 30 cm
DA 24 darkroom attachment 1700-930-00
suitable for following film sizes:
2 x 3 cm up to max. 24 x 30 cm
suitable for following film sizes:
for model 1700-08, 230 V
T 6,3A 9000-115-25
for model 1700-09,110 V
T 10A 9000-115-50
3.2 Consumables
DÜRR-AUTOMAT XR
Developer and fixer concentrate
for 2 applications CXB140C99..
Universal cleaner for cleaning
roller packets, two packets CCB600C55..
WR 2000, Spray Cleaner for
carrier rolls, six packets CCB800C55..
4. TECHNICAL DATA
XR 24 PRO X-ray developing machine
Model 1700-08 (230 V)
Model 1700-09 (110 V)
Model 1700-08 1700-09
Voltage (V) 230 100-110
Frequency (Hz) 50-60 50-60
Power consumption (A) 4,0 9,2
Fuse (A) T 6,3 T 10
Heating capacity (W) 950
Heizleistung
Bath heating (W) 400
Drying (W) 450
Normal heating time (min) approx.20(0,5°C/min)
Time it takes film
to pass through (min)
normal 2:45 - 20
Bath circulation (l/min)
Developer approx. 1,8
Fixer approx. 2,0
Water through-flow (l/min) 2
Water pressure (bar)
min. water pressure 2
max. water pressure 6
Tank volume (l) both 5
Developer, Fixer
Temperature range
Environmental conditions
for machine in operation +10 to +28 °C
Optimal photo quality up to max. +28 °C
Storage and transport -10 to +60 °C
Air humidity
Machine in operation max. 80 %
Storage and transport max. 95 %
Dimensions T=51 cm, B=42 cm, H=44 cm
Weight 25 kg
Protection category IP20
Class of protection I
Overvoltage category II
Certificate-
of conformity EU-Labelling

8
5. FUNCTIONAL PRINCIPLE XR 24 PRO
15 Water valve
16 Continuous heater
17 PTC-sensor
18 Overflow pipe with discharge plug (fixer)
19 Lifting rod
19a Light barrier, lifting tank
20 Lifting motor
21 Overflow plug (developer)
22 Lifting tray
DDeveloping bath
FFixing bath
WWater bath
AMains button on display
Stand By Position
2A3 4 5 6 7
20 19 19a 18 17 16
8
9
10
11
12
13
14
15
22
21
1
FF
FF
F
WW
WW
W
DD
DD
D12a
1Film inlet
2Start flap
3Roller packet, film inlet
4Drive shaft
5Roller set, developer/fixer (D/F)
6Roller set, water
7Water inlet
8Rollen set, drier
9Safety switch for drier
10 Drier heater
11 Ventilator
12 Drive motor
12a Tachometer generator
13 Level sensors (for water)
14 Circulation pump (f. developer and fixer)

9
6. FUNCTIONALDESCRIPTION
OF THE XR 24 PRO
When the mains button is pressed
(min. 2 sec.),,
,,
, the display is illuminated. The
heating-up phase for the developing bath and
the fixing bath begins. The time remaining
until the correct temperature is reached is
displayed in the following manner: “WAITING
TIME… MIN” (display flashes). The machine
does not start at this point.
The bath begins to rotate when it is being
heated up. While this process is taking
place, the chemicals are pumped from the
developing tank and the fixing tank (volume of
5 litres for each tank) into the lifting tray (22)
via the circulation pump (14).
When the set temperature is reached, the
display lights up. The “MACHINE EMPTY”
message appears, indicating that the
machine is now ready to be operated.
As soon as the set temperature falls below
more than 0.5°C, the continuous heater and
the circulation pump (14) are switched on
again.
When a film is slid into the machine, the
start flap (2) opens and the “MACHINE
EMPTY” message flashes on the display
At the same time, a signal for lowering the
lifting tray (22) is triggered and the water
valve (15) opens. The drier heating unit (10),
drive motor (12) and circulating pump (14)
(for rotating the developing bath and the
fixing bath) start up.
The time it takes the film to pass through
the machine is controlled by a tachometer
generator (12a). The lifting tank’s rising and
falling movements are controlled by the disc’s
and the light barrier’s (19a) rotational speed.
When the lifting tray (22) is lowered, the film
is carried between the rolls through the
developing bath and the fixer bath, as well as
through the rinsing and drying zones (8)
within the time set for same.
While the film is being developed, water is fed
into the rinsing zone via water inlet (7).
The water is discharged via the outflow pipe.
Water flows through continuously at a rate of
2 l/min., with water pressure of 2 bar.
Should the outflow pipe be blocked, a signal
is sounded via a level sensor (13). The
water valve (15) closes and no more water is
fed into the machine.
When the film has been slid into the
machine, the start flap (2) closes. As soon as
the message “MACHINE LOADED” flashing
on the display goes out, another film can be
introduced, or up to 6 intra-oral films, can be
introduced together.
If no other film is slid into the machine when a
particular film has passed through it (this is
signalled by a sound) the lifting tray (22)
moves upwards (to stand-by position),
indicating that the machine is now empty.
The drive motor (12), water valve (15) and
drier heater (10) are switched off. When the
machine is in stand-by position, the
developer’s and fixer’s roller packets are
completely immersed in the chemicals. This
prevents deposits from forming on the rollers.
6.1 Arrangement of plates
23 A Operating part
23 B Control part
23 C Power part
23 A
23 B 23 C

10
27
1
2
26
28
24
3
25
MOUNTING AND ASSEMBLY
7. SETTING UP
7.1 Area inwhich machine
is to be set up
• The XR 24 PRO developing machine should
only be set up in a dry, well-aired room.
• In winter, the room temperature should not
fall below +10°C; in summer it should not
rise above +28°C.
Danger. The appliance should not
be directly exposed to the sun’s
rays. There is a danger that the
chemicals may overheat or that the
films might be pre-exposed.
• The room in which the machine is being set
up must contain a R3/4” bibcock (27) with a
ventilation pipe, an outflow pipe (28) with a
ventilated plastic trap, and an earthed plug
(26). Ideally, a washbasin should also be
situated close to the machine.
The operating staff must have easy
access to the bibcock (27) and the
earthed plug (26)..
• We recommend that the XR 24 PRO be set
up in a darkroom. If the machine is notnot
notnot
not set
up in a darkroom, a daylight attachment
(24) (DL24 or DL26) must be fixed to it.
• The following should be taken into
consideration if the machine is being used
with a daylight attachmentwith a daylight attachment
with a daylight attachmentwith a daylight attachment
with a daylight attachment:
Danger. Films should never be
stored in the vicinity of an X-ray
room
Danger. When films are stored in
the daylight attachment’s film
storage part (25), there is a danger
that pre-exposure can occur due to
stray radiation in the appliance.
If necessary, a partition with a lead screen
may be inserted.

11
424
7.2 How to set up machine
• Set the machine up on a horizontal, stable,
even board at working height.
• When the tubes are being passed under,
the board must have an opening measuring
ca. 7 x 10 m
• Ensure that additional space is available so
that servicing work can be carried out and
so that the machine is adequately
ventilated:
There must be at least 10 cm of free
space behind the machine and ca. 50 cm
free space left and right.
At the front there must be enough space in
case a daylight attachment (24) has to be
fixed to the machine. If necessary, detach
the installation feet at the front and screw
them on to the back.
7.3 Setting up the machine
• Undo the plastic bands attached to the
cardboard packaging.
• Take out all small parts.
• Grip the sides of the machine and place it
in suitable position.
• Set it up close to a mains water supply, an
outflow pipe and an earthed pipe (max.
distance 1.5 m)
• Set up the appliance so that it has a slight
tilt, ca. 0.3 ° to the fixer bath (fig. 8).
Adjust the feet of the appliance (29) using
the spanner provided (30) as required.
7
29
30

12
34
35
8
9
36
7
27
31
32
33
34
34a
34b
8. INSTALLATION
8.1 Mains water supply
• Check whether or not pure water is flowing
out of the bibcock (27). When the machine
is being installed initially, rinse the
pipelines thoroughly!
• Because the water quality can vary greatly
from region to region, a fine-mesh filter (32)
must be inserted between the bibcock (27)
and the water pipe (34).
The fine-mesh filter (32) protects the
flow-through limiter in the appliance’s
water valve from impurities
• Close the bibcock (27).
• Connect the 90º bow to the bibcock (27).
Attach the fine-mesh filter (32) (arrow in flow
direction) and double nipple (31) to the
bibcock
Check whether the strainer (34a) and
both seals (34b) are present in the
water pipe’s (34) threaded joints.
• Connect the water pipe to machine’s water
intake point (35) (threaded joint with
strainer) and to the double nipple (31).
8.2 Wastewater connection
• The wastewater connection may only be
connected via a ventilated siphon.
• Move the outflow pipe (36) to the siphon at
a continuous slant. Shorten the pipe to the
correct length.

13
12
43
41
39
Fixierer
37
38
25
10
When moving the outflow pipe,
avoid sagging, constrictions and
reductions.
• Cover exterior of end of pipe with UHU
plaster
• Screw screwed fitting (37) to pipe and
attach to siphon’s (25) muff using pipe clip
(38).
• Secure outflow pipe using pipe clips,
screws and pins.
• The washing basin’s outflow point must be
open!
8.3 Connection for developer and
Fixer outflow pipe
• Set up the collecting tray (39) for the
developer (black level marking) and the
fixer (red level marking) beneath the
appliance so that it is clearly visible and
stable
•Move the pipes (40) at a continuous slant
• Shorten the pipes to the correct length.
• Feed the pipe for the developer (black
marking) into the black lid (41).
• Screw the lid (41) to the collecting tray (39)
for the developer
• Secure the pipe for the fixer (red marking)
to the collecting tray for the fixer in the
same way
When the full level marking has
been reached, empty the collecting
tray (danger of overflow). When
disposing of the developer and the
fixer, regional regulations must be
complied with. In Germany and in
several other countries X-ray
chemicals are classified as special
waste, and are disposed of
accordingly.
40
41
39
11
max. 3 cm

14
11
44
45
13
14
8
8
6
5
3
15
90
90
9. BEFORE OPERATING
MACHINE FOR FIRST TIME
9.1 Cleaning the machine
• Take lid off.
• Remove floating lid from developing bath
and fixing bath
• Open green stop flaps (44) and seals (45).
• Swivel drier packet (8) backwards.
• Remove roller packets for water (6) and
developer/fixer (5).
• Swivel display (90) upwards.
The display may also be removed and
moved to the left.
• Remove roller packet film inlet (3).

15
17
61
22
16
➘
➘
➘

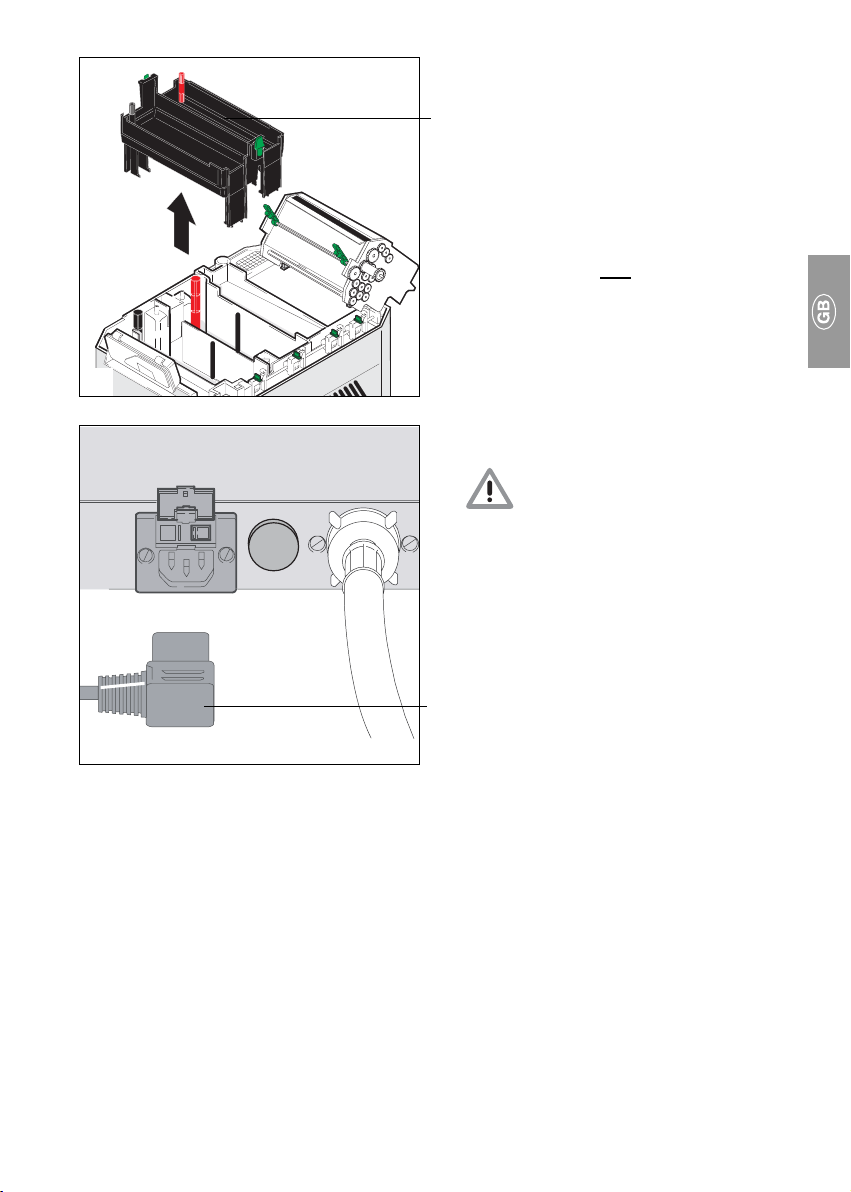

• Actuate lateral lever and remove lifting tank
(22).
• Clean roller packets, lifting tray and tanks
with damp sponge
„
Adding chemicalsAdding chemicals
Adding chemicalsAdding chemicals
Adding chemicals „
and
„
and inserting roller packetsand inserting roller packets
and inserting roller packetsand inserting roller packets
and inserting roller packets „
see chapter on USE, Pt.15.1.3
10. POWER POINT (MAINS)
The machine is designed for use
with a mains voltage of 230 V or
100-110 V/50-60 Hz (see nameplate).
Before connecting the mains cable
check whether the required mains
voltage is available; otherwise the
appliance may be damaged. Use
the Dürr mains cable supplied with
the machine. The machine may only
be connected to the supply network
when it has been shut down and
when the lateral coverings have
been attached and the lid replaced.
• Plug the mains plug (61) into the machine
and the mains socket.

16
11. CIRCUIT DIAGRAM
11.1 Printed circuit board, operating part / 11.2 Printed circuit board, control
(see also pos. 23 A and 23 B under Pt. 6)
11.1 11.2
23 B
23 A
U1 Photo-electric barrier cover U2 Photo-electric barrier cover U3 Photo-electric barrier, lifting tray U4 Photo-electric barrier, film inlet flap R1 Bath temperature temperature sensor X5 Water level sensor M1 Tachometer generator

17
11.3
23 C
11.3 Printed circuit board,
power part 230 V
(see also pos. 23 C under Pt. 6)
M1 Roller drive M2 Ventilator M3 Circulating pump M4 Lifting tray motor R1 Bath heating unit R2 Drier heating unit Y1 Water valve X1/X2 Appliance plug X3 Replenishing unit

18
The operating instructions on the
display for the user are contained in
the chapter on USAGE, point 14
Detailed instructions on how to
service the machine are listed under
maintenance, point 18.6.
• The developing machine must
never be used without roller
packets!
If no roller packets are used, the
developing and fixing fluids can
spurt up and out of the developing
unit when placed under pressure.
Chemicals irritate the eyes and
skin. Serious injuries can be
incurred.
•If no developing and fixing roller
packets are used, the chemicals
cannot be directed into the tanks
There is a danger of the chemicals
being mixed together.
• The developing machine should
never be operated without fluids
(chemicals, water). This can lead
to malfunctioning of the heating
control system.
12. FIRST TIME OPERATION
The XR 24 PRO developing machine has
three settings which determine the amount of
time it takes a film to pass through the
machine. The following values are set for the
machine “ex works”:
Intra-oral films 6 min. (INTRA program)
Extra-oral films 4 min. (EXTRA program)
Endodontal films 2.45 min. (ENDO prog.)
Note: It is not possible to archive X-ray films
which pass through the machine during this
short period of time).
- Developing bath and fixing bath
temperature: 28 ºC
- Drier capacity: 30%
When films with different drier capacities,
and which pass through the machine in
longer or shorter periods of time, are used,
the values can be changed in accordance
with the films which are to be processed.
In this context, see the list of films, point 14.7.
For a program overview, see the chapter on
USAGE
The machine may only be
connected to the supply network
when it has been shut down and
when the lateral coverings have
been attached and the lid replaced!
Whenever the machine is switched on
using the mains button, the “INTRA”
program is started, i.e., whenever the
machine is switched off it is reset to
“INTRA”.

19
12.1 Settings / Servicing work for
technician
•Open the bibcock.
• Check leak tightness of machine and
connections
• Start servicing operation
++
++
+ press at same time (min. 4 s).
Machine now in service mode
• Select service function
Select with buttons and service
funktion
• Change settings
Change with or parameter value
With 1 s, confirm new value
*1 Selected language, frequency or value
appears at first by switch on
*2 Particular values by manufactoring
Change value with and in
5er and 5% steps, confirm with
• End servicing mode
Switch off machine using mains
button (press for min. 2 sec.)
• Parameters such as language, mains
frequency, etc. may be changed on the
display if the instructions are followed:
V18
1
1
2
2
2
PARAMETER?
[ENTER=OK]
DEUTSCH?
[ENTER]=OK
ENGLISH?
[ENTER]=OK
FRANCAIS?
[ENTER]=OK
PROGR. INTRA?
[ENTER]=OK
PROGR. ENDO?
[ENTER]=OK
PROGR. EXTRA?
[ENTER]=OK
PROCESS 6:00
PROCESS 4:00
PROCESS 2:45
[ENTER]=OK
[ENTER]=OK
[ENTER]=OK
DRYER 30%
DRYER 30%
DRYER 30%
[ENTER]=OK
[ENTER]=OK
[ENTER]=OK
50 Hz?
[ENTER]=OK
60 Hz?
[ENTER]=OK
Further
Language...

20
21
12.2 Checking developer temperature
and carrying out acceptance test
The following procedure is only valid
for, e.g., Germany. Users in other
countries should comply with the
relevant local regulations!
• Switch on the machine and wait until
the heating phase for the bath has ended
(see also point 14.1, “in the morning or
before beginning work”).
• In order to check the developer
temperature, switch off the machine.
• Pull out the mains plug.
• Close the bibcock.
• Take off the lid.
• Measure the developer temperature (to the
front and left at a depth of ca. 20 cm).
In accordance with the list of films, the
developer temperature must amount to,
e.g., +28 ºC, +/- 0.5.
• Record the temperature in the acceptance
log and the constancy test log.
• Replace the lid, plug in the mains plug,
open the bibcock and switch on the
machine.
• Insert test film and carry out acceptance
test in accordance with ordinance on X-
rays. Record the test results in the test log.
Store the test film in the archives.
Inform operating staff that constancy tests
must be carried out on a regular basis.
