DVB SRJL-29 User manual

6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
PRODUCT
INSTALLATION MANUAL

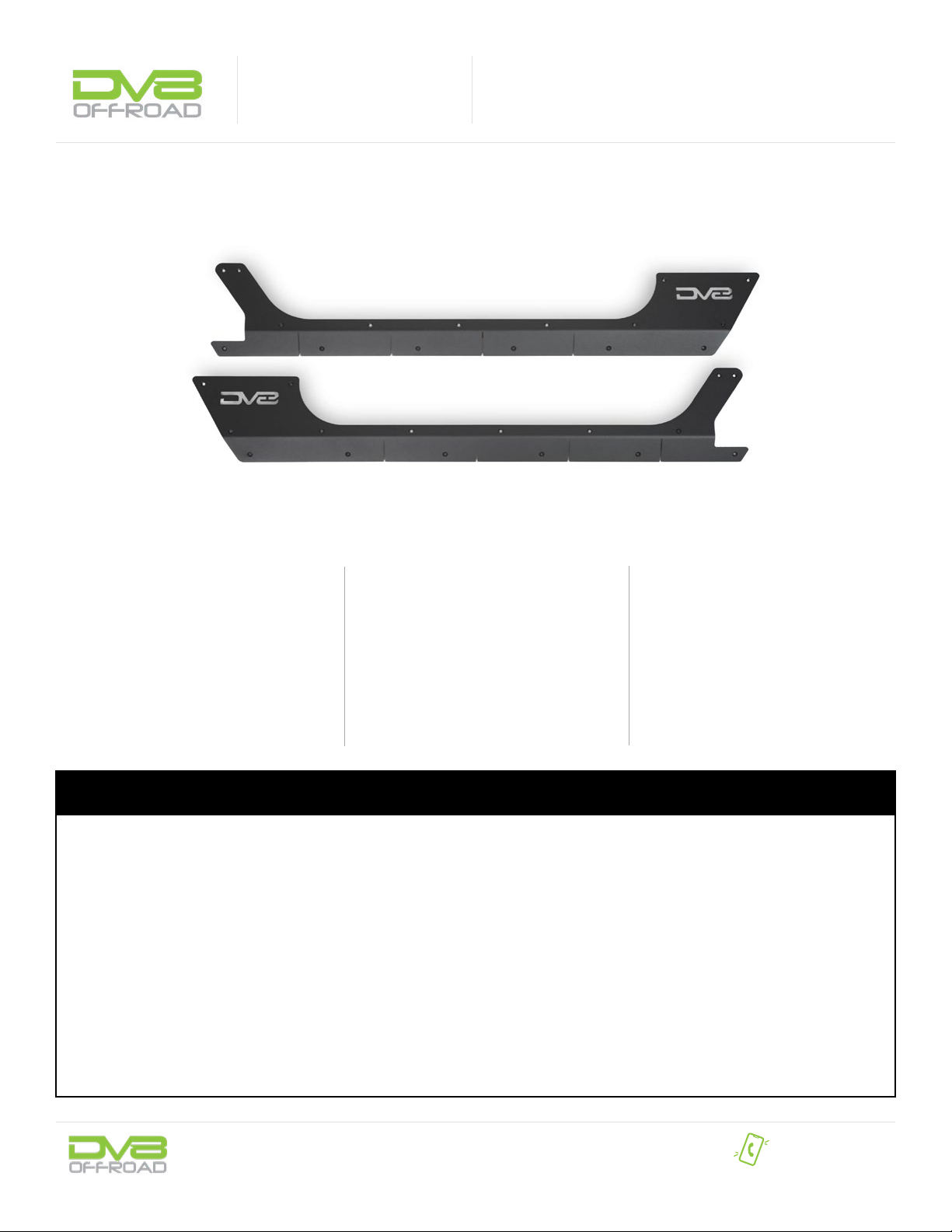

2-DR ROCK SKINS
18+ JEEP JL WRANGLER (2-DOOR)
SRJL-29
TOOLS REQUIRED SKILL LEVEL TIME REQUIRED
- #3 Allen Bit
- Center Punch Tool
- 9/32” Drill Bit
- Sharpie
- 10, 12mm wrench (If you do not have a
nutsert tool)
-HD Double Sided Tape (Optional)
Before you install this kit — Read and understand all
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner’s manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
- Intermediate
- 2 persons
Intermediate skill level required,
additional help is required for
removal and installation of sliders/
skins.
- 3.5 Hrs
Time to install this should take
three and a half hours.
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
855-680-9595
NEED HELP?

INSTALLATION MANUAL
NEED HELP? 855-680-9595
STEP 1 | If you have factory steps or
sliders, they will need to be removed prior
to install.
Use a 10mm socket to remove the factory
nuts securing the slider to the body/pinch
weld.
Then, while a friend supports the slider,
remove the remaining factory hardware
using a 13mm socket.
Remove the slider and set it off to the
side. Repeat steps for opposite side of the
vehicle.
Note: Assistance is recommended to prevent
injury and damage to the product or vehicle.

INSTALLATION MANUAL
NEED HELP? 855-680-9595
STEP 2 | It is recommended to clean
the vehicle of any dirt or debris prior to
beginning installation.
With assistance, lift the rock skin to the
vehicle and determine the placement (see
next page for example tment picture).
Installers Tip: Use HD double sided tape to hold
the skins rmly in place, so you can mark holes
without the worry of the skins shifting.
Begin by unpacking all items and inspecting
for missing pieces or damage. If you have any
concerns, please contact the company the
product was purchased from. Extra hardware
may be included with the product.
(36) M5x12 Nutserts
(32) M5x16 Allen
(1) Nutsert Tool
HARDWARE INCLUDED

INSTALLATION MANUAL
NEED HELP? 855-680-9595
STEP 3 | When satised with the
tment, rmly hold the rock skin in place
and use a sharpie to mark six to seven
mounting holes strategically along the
skin.
Mark holes below and above the bend at
the rear, middle, and front of the rock skin
(Do not use the holes that have “x”s over
them).
DO NOT LET THE SKINS SHIFT WHILE
MARKING THESE HOLES.

INSTALLATION MANUAL
NEED HELP? 855-680-9595
STEP 5 | Drill out the marked
mounting holes using a small drill bit,
working your way up to a 9/32” bit.
STEP 6 | Install the provided nutserts
using a nutsert tool.
If you do not have a nutsert tool, we have
provided one with the hardware kit.
For instructions on how to use the
provided nutsert tool, scroll to the last
page of this manual.
STEP 4 | Remove the rock skins
and use a punch tool gently mark the
mounting holes for drilling.
Be sure to mark the center of the marked
area.

INSTALLATION MANUAL
NEED HELP? 855-680-9595
STEP 7 | Install the rock skins on
the vehicle and secure to the mounting
points using the provided M5 hardware
with a #3 allen bit.
STEP 8 | With the rock skins installed
and the hardware secure, use a punch tool
to mark the remaining mounting holes for
drilling.
Be sure to mark the very center of the
mounting hole.
Once all holes have been marked, remove
the hardware and rock skins.

INSTALLATION MANUAL
NEED HELP? 855-680-9595
STEP 9 | Carefully drill out the
remaining mounting holes using a small
drill bit, working up to a 9/32” bit.
STEP 10 | Install the provided
nutserts into the remaining mounting
holes using a nutsert tool (or the provided
nutsert tool, if you do not have one).
Loosely install rock skins
using the provided M5 hardware. Do not
secure until all hardware is partially
threaded.
Secure using a #3 allen bit.
While working, check previously tightened
hardware often, as it may become
slightly loose as you work to tighten the
remaining hardware.

INSTALLATION MANUAL
NEED HELP? 855-680-9595
STEP 11 | Double check all hardware
is secure.
Repeat steps for opposite side.
STEP 12 | Congrats! You are nished
with the install of the 18+ Jeep JL Wrangler
2-DR Rock Skins.

INSTALLATION MANUAL
NEED HELP? 855-680-9595
STEP 13 | To use the nutsert tool,
slider the M6 washer and spacer onto
the provided M6x50 bolt with the washer
going on the bolt rst.
Then install a nutsert onto the exposed
threads by hand.
STEP 14 | Slide the nutsert tool with
the nutsert into the mounting hole.
Ensure the ange of the nutsert is at
against the vehicle prior to tightening.
STEP 15 | Use a 12mm wrench to hold
the spacer while tightening with a 10mm
socket. Tighten slowly until the nutsert is
set properly. Do not over tighten.
Nutsert should be “crushed” against the
inside of the trim so that it is tight and
secure. When nished remove the nutsert
tool using a 10mm socket and repeat as
needed.
