DVIGear DVI-7335 User manual

DVI-D Fiber Optic Cable
User Guide
DVI + HDCP Fiber Optic Extender
DVI-7335

TABLE OF CONTENTS
SECTION PAGE
PRODUCT SAFETY ....................................1
PRODUCT LIABILITY ...................................1
1. INTRODUCTION ...................................2
2. SPECIFICATIONS ..................................3
3. PACKAGE CONTENTS ..............................4
4. INSTALLATION ....................................4
5. SYSTEM CONNECTIONS ............................5
6. TROUBLESHOOTING ...............................6
7. LIMITED WARRANTY ...............................7
8. REGULATORY COMPLIANCE ........................7

-1-
!WARNING – Product Safety
1. Do not dismantle the product housing or modify the printed circuit board
module as this may result in electrical shock or burn.
2. Do not attempt to service this product yourself as opening or removing the
product housing may expose you to dangerous voltages or other hazards.
Refer all servicing to qualified service personnel.
3. Keep this product away from liquids. Spills into the product housing may result
in fire, electrical shock, or equipment damage. If liquid spills into the housing,
unplug the product immediately. Have the product checked by a qualified
service engineer before using it again.
4. Place the product in an even and stable location. If the product falls or is
dropped, it may cause an injury and/or malfunction.
5. Avoid exposing the product to extreme temperatures or to high humidity levels
as this may result in damage to the product.
6. Only use the supplied External AC Power Adapter. The use of other power
adapters may cause this product to fail or may cause a fire.
7. Do not twist or exert excessive force on the ends of the optical cable as this
can cause it to malfunction. Take precaution to ensure that the fiber optic
cable is not forced to bend tighter than its minimum bend radius.
Product Liability
Every effort has been made to ensure that this product is free of defects.
DVIGear cannot be held liable for the use of this product or for any direct or
indirect consequential damages arising from its use. It is the responsibility of
the users of this product to check that it is suitable for their requirements and
that it is installed correctly.
All rights are reserved. No parts of this manual may be reproduced or
transmitted by any form or means electronic or mechanical, including
photocopying, recording or by any information storage or retrieval system
without the written consent of DVIGear.
DVIGear reserves the right to revise any of its hardware and software following
its policy to modify and/or improve its products where necessary or desirable.
This statement does not affect the legal rights of the user in any way. All
third-party trademarks and copyrights are recognized. The DVIGear logo is a
registered trademark of DVIGear, Inc. All other trademarks are the property of
their respective holders.

-2-
1. INTRODUCTION
The DVI-7335 DVI Fiber Optic Extender enables the transmission of single-
link DVI signals over distances up to 1500 meters (4920 ft.) without any signal
degradation. This makes it an ideal solution for applications where DVI signals
must be routed long distances from the source without introducing artifacts in the
image.
Our professional digital distribution products have been serving the industry
for over ten (10) years. DVIGear offers a full line of high-quality Digital Matrix
Routers, Switchers, Splitters, Video Scalers, Up/Down/Cross Converters, Format
Converters, Analog-Digital Converters, as well as a wide range of long-reach
Digital Cables, Extenders, and Optical Transmission systems.
1.1 Features
This product offers several unique features and benefits:
• Longdistancetransportofhigh-speedsingle-linkDVIorsignalsusing
either single-mode or multi-mode fiber optic cables.
• Usesdetachable3-strandberopticcablesthatcaneasilybepulled
through 1/2” conduit and can be terminated in the field.
• Nocoppercablesarerequired.EDIDandHDCPcommunicationsare
supported through the fiber optic connection.
• Cabledistancesupto1.5kilometerscanbeachievedwithsingle-mode
fiber. Up to 500 meters can be achieved with multi-mode fiber. With
HDCP encrypted signals, the maximum cable length is 300 meters.
• SupportsHDTVresolutionsupto1080p/60with12-bitcolorandPC
resolutions up to 1920x1200 and 2048x1080.
• Supportssingle-linkDVIbitratesupto2.25Gbps.
• SupportsUSB1.1low-speedsignalsupto300metersandUSB1.1
high-speed signals up to 50 meters.
• Immunetoenvironmentalsignalnoise.
• LowRFI/EMIemissionsforsensitiveapplications.
• Includes+5VDCExternalACPowerAdaptersforbothTransmitterand
Receiver units.

-3-
2. SPECIFICATIONS
General Specifications
Maximum Pixel Clock Rates up to 225 MHz
Maximum Bit-Rates up to 2.25 Gbps.
Maximum Supported
Resolutions
PC: up to 1920x1200 or 2048x1080
HDTV: up to1080p / 60 with 12 bit color
Connector Types
DVI Ports: 18+1 pin DVI male gold plated
Optical Ports: 3x LC optical connectors
Power Supply: 3.5 mm jack
USB: Mini-B
Maximum Cable Length
9/125μ Single-Mode Fiber : 1500 meters (4,921 ft.)
50/125μ Multi-Mode Fiber: 500 meters (1,640 ft.)
SM or MM fiber with HDCP: 300 meters (984 ft.)
USB 1.1 Low / High Speed: 300 / 50 meters (328 / 164 ft.)
Optical Specifications
Optical Transmitter FP Laser: 1310nm / 1550nm
Optical Receiver PIN Photo Diode O/E Converter
Suggested Fiber Optic Cable 50/125 μ Multi-Mode or 9/125 μ Single-Mode fiber, 3x LC connectors
Power
Power Source Both Tx and Rx units must use the included AC power adapters.
External AC Power Adapters Input: 100-240VAC, 50-60Hz 0.5A Output: +5VDC @ 3.0A
Power Consumption DVI-7335-Tx: 2.2 watts DVI-7335-Rx: 2.0 watts
Mechanical
Dimensions (L x W x H) 3.16” x 1.70” x 0.70” (80.3 mm x 43.1 mm x 17.7 mm)
Net Weight (RX and TX each) 3.95 oz. (112 g)
Shipping Weight 1.0 lb. (0.45 kg)
Construction Die-cast Aluminum enclosure with black satin finish
Environmental Specifications
Operating Temperature Range 32° to 122° F / 0° to 50° C
Storage Temperature Range -4° to 158° F / -20° to 70° C
Humidity (Operating / Storage) 10% - 90% non-condensing
Model Numbers
DVI-7335 DVI + HDCP Fiber Optic Extender
Regulatory Approvals
Extenders FCC Class B and CE, RoHS
Power Adapters UL, CSA and CE, RoHS
Conformance DVI v1.0, HDMI v1.3, HDCP v1.4

-4-
3. PACKAGE CONTENTS
Before starting installation, please check the package contents:
• 1x Transmitter Unit (DVI-7335-Tx)
• 1x Receiver Unit (DVI-7335-Rx)
• 2x External AC Power Adapters
• 1x USB Type A male to USB Mini-B Cable, 12”
• 1x USB Type A female to USB Mini-B Cable, 12”
• 1x User Guide
4. INSTALLATION

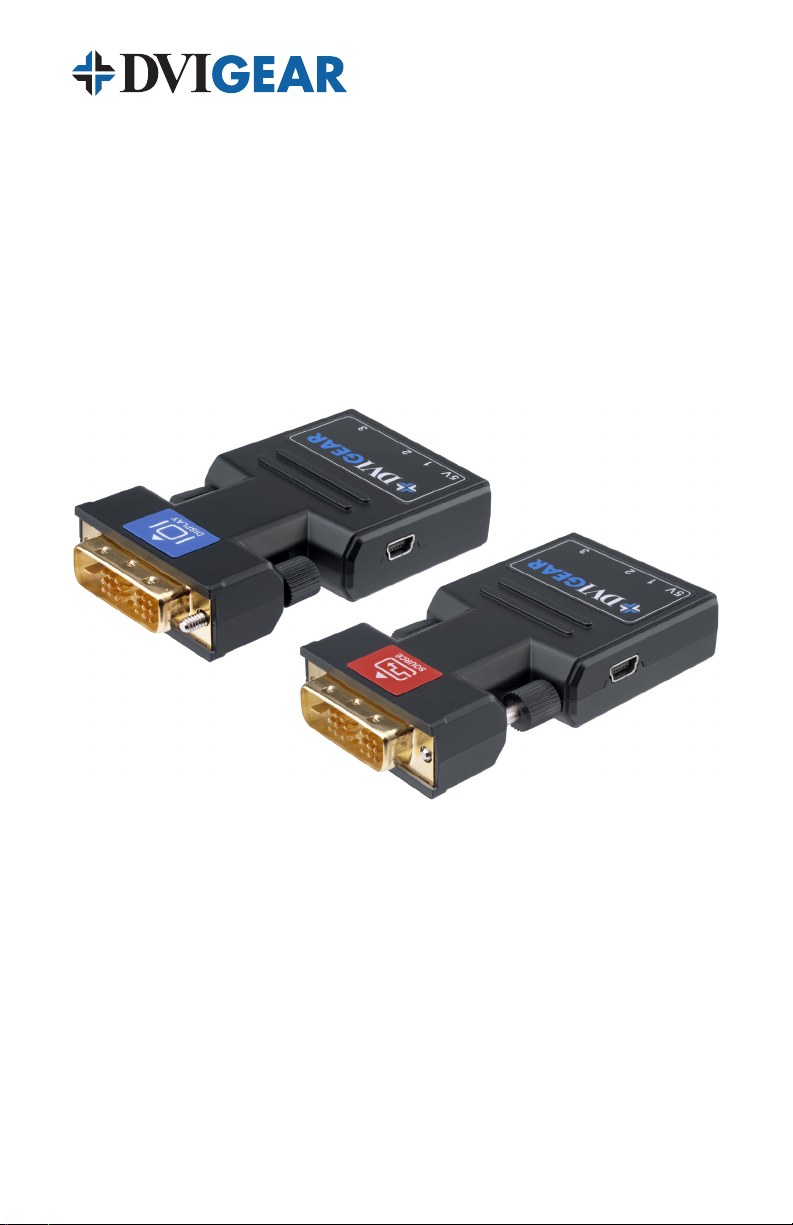

This product includes both a Transmitter and a Receiver unit. The Transmitter unit
(red label) should be connected to the DVI output port of the signal source (such
as a PC). The Receiver (blue label) should be connected to the DVI input port of a
digital display. This product may be connected to an HDMI source and/or display
using a DVI Female to HDMI Male Adapter Cable (DVIGear p.n. DVI-8511b).
The DVI signal components are routed from the Transmitter unit to the Receiver
unit using an optical cable with three (3) fibers that are terminated with LC optical
connectors. The optical cable may use either single-mode or multi-mode fiber.

-5-
5. SYSTEM CONNECTIONS
DVI-7335-RX
Receiver
AC Power
Adapter
DVI-D Port
DVI-7335-TX
Transmitter
AC Power
Adapter
DVI-D Port
Typical System Diagram
5.1 DVI Interconnections
1. Connect each strand of the fiber optic cable to the corresponding
optical ports on the Transmitter and Receiver units which are marked
with the numbers 1, 2, and 3.
2. Connect the Transmitter unit (red label) to the source (e.g., PC, Blu-
Ray, receiver/switcher output).
3. Connect the Receiver unit (blue label) to the display (or receiver input,
switcher input).
4. Connect the supplied AC Power Adapters to the power input jacks on
the Transmitter and Receiver units and then to an AC power source.
5. Turn ON the Display, and then turn ON switchers and other distribution
equipment (if it exists). Finally, turn ON the source. Test the system to
ensure proper performance.
5.2 USB Interconnections
This unit is equipped with a USB 1.1 port that supports remote extension of
certain USB devices over the optical link. USB 1.1 operation is supported at
different distances based on the required data rates:
• USB1.1LowSpeed:(Keyboard,Mouse):300meters+/-10%
• USB1.1FullSpeed:(ExternalHardDrive,memorystick,USBHub):
50meters+/-10%(Useofahubwillreducethemaximumdistance.)

-6-
1. Connect a USB adapter cable with a Mini-B connector to the
port provided on the Transmitter unit. Connect the other end
of the cable with a USB standard-A connector to the host
USB device (such as a PC).
2. Connect a USB adapter cable with a Mini-B connector to
the port provided on the Receiver unit. Connect the other
end of the cable with a USB standard-A connector to the
downstream USB device such as a monitor, keyboard, or
mouse.
Note: To use both a keyboard and a mouse, use a USB to PS/2
cable.
6. TROUBLESHOOTING
If the system fails to display a signal, power OFF all devices and check that the
following connections are properly installed:
• TheTransmitterunitmustbeconnectedtotheSource.TheReceiver
unit must be connected to the Display.
• BoththeTransmitterandReceiverunitsmustbepoweredusingthe
supplied AC Power Adapters and must be connected to a known
working AC power source. Confirm there is power to both devices.
• Allthree(3)strandsoftheberopticcablemustberoutedtotheLC
optical port with the corresponding number on both the Transmitter and
Receiver units. For example, Fiber Strand #1 must be connected to
Optical Port 1 on both the Transmitter and Receiver units. This applies
to strands 2 and 3 as well.
Once all connections have been verified, power ON the monitor first, then any
intermediate equipment such as switchers, and finally the DVI signal source.
If the system still fails to display an image, check to ensure that the DVI signal
source is compatible with the display by making a direct connection between the
two so as to bypass the DVI-7335 DVI + HDCP Fiber Optic Extender. If there
is still no image, then there is a compatibility issue between the source and the
display that must be resolved.
After trying the above suggestions, should the problem still persist, contact your
dealer for additional suggestions. Should the dealer’s technical personnel be
unable to assist you, please contact DVIGear via telephone at 1.888.463.9927
(United States and Canada); international callers may dial 1+770.421.6699, or
contact by e-mail at [email protected].
USB Type A
USB Mini-B Type

-7-
7. LIMITED WARRANTY
LIMITED WARRANTY – With the exceptions noted in the next paragraph,
DVIGear, Inc. warrants the original purchaser that the equipment it manufactures
or sells will be free from defects in materials and workmanship for a period of
one year from the date of purchase. Should this product, in DVIGear’s opinion,
prove defective within this warranty period, DVIGear, at its option, will repair or
replace this product without charge. Any defective parts replaced become the
property of DVIGear. This warranty does not apply to those products which
have been damaged due to accident, unauthorized alterations, improper repair,
modifications, inadequate maintenance and care, or use in any manner for which
the product was not originally intended.
If repairs are necessary under this warranty policy, the original purchaser must
obtain a Return Authorization Number from DVIGear and return the product,
freight prepaid, to a location designated by DVIGear. After repairs are complete,
the product will be returned, freight prepaid.
LIMITATIONS – All products sold are “as is” and the above Limited Warranty is
in lieu of all other warranties for this product, expressed or implied, and is strictly
limited to one (1) year from the date of purchase. DVIGear assumes no liability
to distributors, resellers, end-users, or any third parties for any loss of use,
revenue, or profit.
DVIGear makes no other representation of warranty as to fitness for the purpose
or merchantability or otherwise in respect of any of the products sold. The liability
of DVIGear with respect to any defective products will be limited to the repair
or replacement of such products. In no event shall DVIGear be responsible or
liable for any damage arising from the use of such defective products whether
such damages are direct, indirect, consequential or otherwise, and whether such
damages are incurred by the reseller, end-user or any third party.
8. REGULATORY COMPLIANCE
This product has been tested and found to be in compliance with applicable FCC
(Class A) and CE regulations. The External AC Power Adapter is compliant with
UL, CUL, CE, PSE, and GS regulations. These products are RoHS compliant.

Your Digital Connectivity Experts
400 Meadowmont Village Circle
Suite 425
Chapel Hill, NC 27517
Toll Free 888.463.9927
Phone [phone]
Fax [phone]
www.dvigear.com
www.dvigear.com
Toll Free 888.463.9927 DVIGear, Inc.
Phone [phone] Triad Court, Suite 8
Fax [phone] Marietta, Georgia 30062-2258
DVI-7335-UG-01 / Dec.2011
