Dyconn XCarger 5000 User manual

1
TM

Introduction
The Dyconn XCharger is a portable battery bank
for all your mobile devices and accessories. The
XCharger has the impressive capability of charging
two devices at the same time. As a measure of
convenience, the XCharger features four bright LED
lights that serve as a battery indicator to show the
amount of charge left in the unit. The XCharger
automatically shuts down when not in use to
save power.
Package Contents:
• XCharger Device
• Micro USB Cable
• Mini USB Cable
• USB Sync/Charge Cable
(compatible with Apple devices)
• Instruction Guide
Product Features:
• 2 USB output
• Powerful with Long Operation Time
• Portable and Convenient
• Power-Saving Function
• Long Life Cycle
• 5000 & 7800 Rapid charge (for iPad)*
*When charging with only 1 port
• 10000 Rapid charge (for iPad)*
*When charging only with the 2.1A port

Specications: 
Model: 5000mAh
• USB 1 Output 5V/1A
• USB 2 Output 5V/1A
• Input 5V/1A max
• Capacity 5000mAh
• Cell Type Polymer Lithium-Ion
Battery
• Dimension (W*H*D) 3.75” x 2.45” x 0.8”
(95 x 62 x 21mm)
• Weight 4.4 oz. (124g)
• Charging Time 6 Hours
• Charge/Discharge 500 times
Life Cycle
• OperatingTemperature -10˚C~45˚C

Specications:
Model: 7800mAh
• USB 1 Output 5V/1A
• USB 2 Output 5V/1A
• Input 5V/1A max
• Capacity 7800mAh
• Cell Type Polymer Lithium-Ion
Battery
• Dimension (W*H*D) 3.75” x 2.45” x 0.9”
(95 x 62 x 23mm)
• Weight 6.34 oz. (180g)
• Charging Time 8 Hours
• Charge/Discharge 500 times
Life Cycle
• OperatingTemperature -10˚C~45˚C

Specications:
Model: 10,000mAh
• USB 1 Output 5V/1A
(Dedicated Port)
• USB 2 Output 5V/2.1A
(Dedicated Port)
• Total Max Output 3.1A (Dual Ports)
• Input 5V/2A max
• Capacity 10,000mAh
• Cell Type Polymer Lithium-Ion
Battery
• Dimension (W*H*D) (5.23” x 2.75” x 0.8”)
(133 x 70 x 22mm)
• Weight 8.8 oz. (240g)
• Charging Time *6 Hours~11Hours
*(5V/2A power adapter
sold separately)
• Charge/Discharge 500 times
Life Cycle
• OperatingTemperature -10˚C~45˚C
Protection:
Protection: Smart chip protection, overcharge
protection, overload protection, overheat protection
and short circuit protection.

Extended Usage
XCharger Charging Output
Using the XCharger affords different charging output
depending upon the device that is being charged.
Therefore, the following information provides insight
as to the charging capability of the XCharger based
on product type.
The extended usage of the Dyconn XCharger is
dependent upon your device. Due to the diversity of
electronic devices, they inherently possess variances
of mAh (1000-11000mAh) which determines
charging capacity.

Getting Started
Thank you for purchasing the Dyconn XCharger
5000, 7800, 10,000. The Dyconn XCharger charges
your iPad, tablet, PDA, iPhone, smart phone, mobile
phone, MP3 player, mobile game system, and
almost any device that can be charged via USB
cable connection.
The Dyconn XCharger 5000 and 7800 offers load
balancing. The total output on a single port is 2.1A,
but when using the dual ports, it will split the output
to 1.0A to each port. To fully charge an iPad or tablet,
one port must be used as it requires 2.1A. You can
use either port to charge your iPad or tablet.
The Dyconn 10000 charges two devices at the same
time with a maximum output of 3.1A. Use either of
the designated ports (1.0A or 2.1A) based on your
preferred charging method. To fully charge an iPad or
tablet, use the designated 2.1A port.

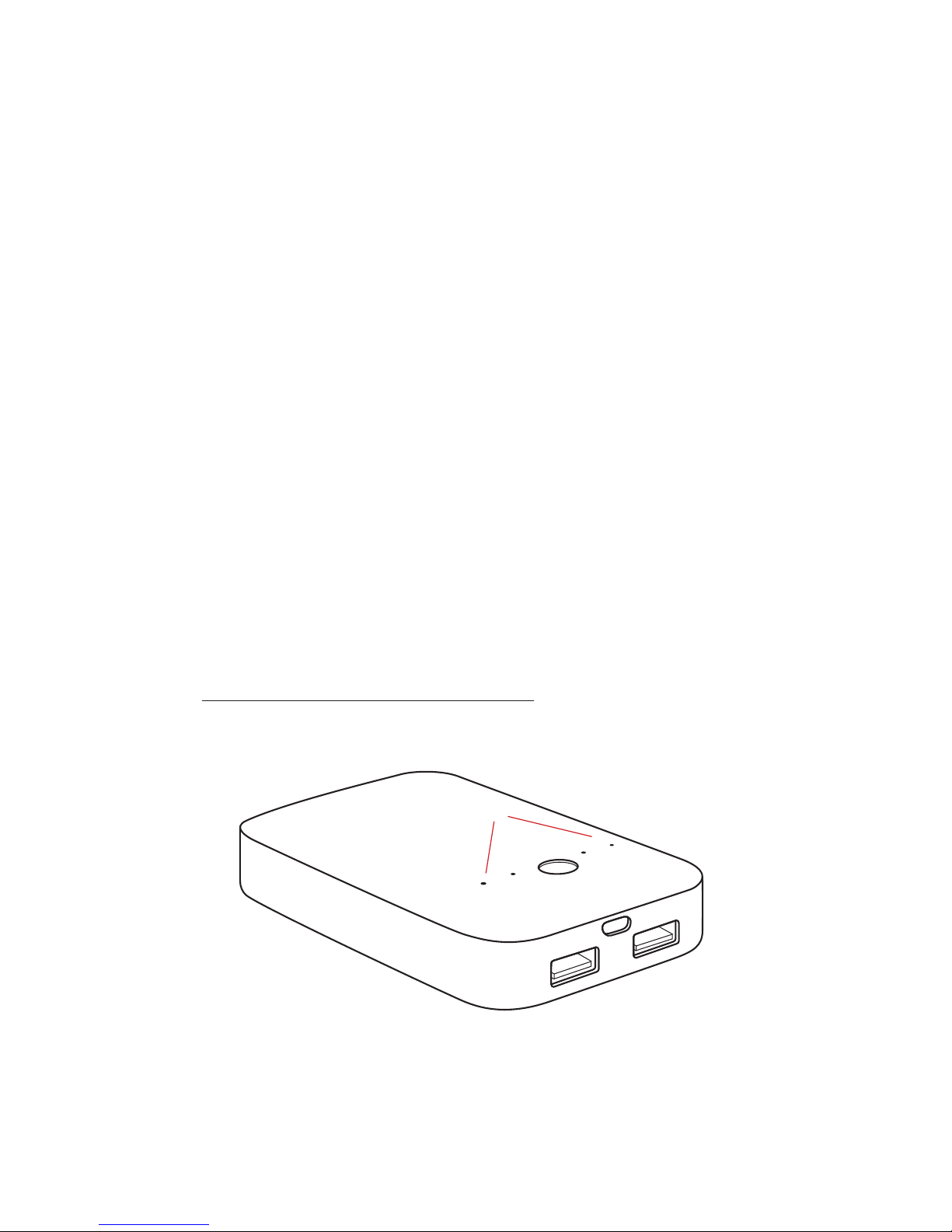

Product Part Identication
1. LED Indicator 4. USB Output Port 2
2. Power Button 5. Micro USB Port
3. USB Output Port 1
1.
2.
3.
5.
4.
7800 Model Shown

Getting Started
Product Part Identication (Continued)
XCharger Cables
1. USB Sync/Charge Cable 2. Micro USB Cable
(compatible with Apple devices)
3. Mini USB Cable 4. Power Adapter
(sold separately)
1.
3.
2.
4.

Operating Your XCharger
Checking Battery Life
You have the option of checking the remaining
battery life (charge) left in the XCharger. To check
the remaining battery life, simply push the Power
button while the Dyconn XCharger is connected to
any device.
1. One LED indicate 0% - 25% power
2. Two LEDs indicate 26% - 50% power
3. Three LEDs indicate 51% - 75% power
4. Four LEDs indicate 76% - 100% power
1. 2. 3. 4.

Operating Your XCharger
Charging your XCharger
You can charge the Dyconn XCharger with the
included Micro-USB to USB cable. Just plug the
Micro-USB cable into the Micro-USB input port, and
the other end into your computer’s USB port. If you
have a USB wall plug style adapter or a USB car
adapter, you can use these as well.
The LED status indicators show the current charging
status of the Dyconn XCharger. The 4th LED will
show a solid blue light when charging. (Waiting on
complete charge LED).
Note:
TheDyconnXChargermustbechargedpriortorst
use and may become warm during charging and use.
Connecting Your XCharger to your Device
Attach your device using the provided adaptors or
your USB charging/sync cable (not included) to the
Dyconn XCharger. Once USB cable is attached, push
the Power Button once, turning it “ON”. Depending
on the device, the XCharger will either power or
charge it. If it detects no device is connected within 10
seconds, it will automatically shut down.
Caution:
When not in use, unplug the Dyconn XCharger from
all cables and devices. Do not drop. Recycle or
dispose of the Dyconn XCharger properly. If disposed
ofinreorashortcircuit,theDyconnXChargermay
leak or explode, causing personal injury.

Dyconn Limited Warranty
DYCONN warrants only to the original purchaser of
this product from a Dyconn-authorized reseller or
distributor that this product will be free from defects
in material and workmanship under normal use and
service for one year after date of purchase. Purchaser
must present acceptable proof of original ownership
(such as original receipt, warranty card registration,
on-line registration, or other documentation Dyconn
deems acceptable) for the product. DYCONN, at its
option, shall repair or replace the defective unit
covered by this warranty. In order to keep this limited
warranty in effect, the product must have been
handled and used as prescribed in the instructions
accompanying this warranty. This limited warranty
does not cover any damage due to accident, misuse,
abuse or negligence. This limited warranty is
non-transferable and does not apply to any purchaser
who bought the product from a reseller or distributor
not authorized by Dyconn, including but not limited to
purchases from internet auction sites. This warranty
does not affect any other legal rights you may have
by operation of law. Contact DYCONN at
1-[phone] for warranty service procedures.
DISCLAIMEROFWARRANTYEXCEPTFORTHE
LIMITED WARRANTY PROVIDED HEREIN, TO
THE EXTENT PERMITTED BY LAW, DYCONN
DISCLAIMS ALL WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING ALL WARRANTIES OF
MERCHANTABILITY AND/OR FITNESS FOR A
PARTICULAR PURPOSE. TO THE EXTENT THAT
ANY IMPLIED WARRANTIES MAY NONETHELESS
EXIST BY OPERATION OF LAW, ANY SUCH
WARRANTIES ARE LIMITED TO THE DURATION
OF THIS WARRANTY. SOME STATES/PROVINCES
DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, SO THE ABOVE
LIMITATIONS MAY NOT APPLY TO YOU.

Dyconn Limited Warranty
LIMITATIONOFLIABILITYREPAIROR
REPLACEMENT OF THIS PRODUCT, AS
PROVIDED HEREIN, IS YOUR EXCLUSIVE
REMEDY. DYCONN SHALL NOT BE LIABLE FOR
ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES, INCLUDING, BUT NOT LIMITED TO,
LOST REVENUES, LOST PROFITS, LOSS OF USE
OF SOFTWARE, LOSS OR RECOVERY OF DATA,
RENTAL OF REPLACEMENT EQUIPMENT,
DOWNTIME, DAMAGE TO PROPERTY, AND
THIRD-PARTY CLAIMS, ARISING OUT OF ANY
THEORY OF RECOVERY, INCLUDING WARRANTY,
CONTRACT, STATUTORY OR TORT.
NOTWITHSTANDING THE TERM OF ANY LIMITED
WARRANTY OR ANY WARRANTY IMPLIED BY
LAW, OR IN THE EVENT THAT ANY LIMITED
WARRANTY FAILS OF ITS ESSENTIAL PURPOSE,
IN NO EVENT WILL DYCONN’S ENTIRE LIABILITY
EXCEED THE PURCHASE PRICE OF THIS
PRODUCT. SOME STATES/PROVINCES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU. THIS WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO
HAVE OTHER RIGHTS THAT VARY FROM STATE
TO STATE AND PROVINCE TO PROVINCE.
Technical Support
For technical support, call 1-[phone]. You may
also reach Dyconn technical support at
[email protected].
