Dyna-Glo KFA80C User manual

CONSUMER : Retain this manual for future reference.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 877-447-4768 8:30 a.m. - 4:30 pm CST, Monday - Friday.
or email us at [email protected]
INDOOR/OUTDOOR PRODUCTS
KEROSENE PORTABLE
FORCED AIR HEATERS
“USER’S MANUAL AND
OPERATING INSTRUCTIONS”
Before the first use of this heater, please read this USER’S MANUAL very
carefully. This USER’S MANUAL has been designed to instruct you as to
the proper manner in which to assemble, maintain, store, and most
importantly, how to operate the heater in a safe and efficient manner.
Please keep this manual for future reference.
COMPLIES WITH UL733 AND
ANSI A10.10-1998
CAN/CSA/B140.0-03 AND CSA
B140.8-1967
MODEL : KFA80C, KFA135C, KFA220C
IMKFAC-HDA

1
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
DANGER:IMPROPER USEOF THIS HEATER CAN RESULT IN SERIOUS INJURY OR DEATH
FROM BURNS, FIRE, EXPLOSION, ELECTRICALSHOCK AND/OR CARBON
MONOXIDEPOISONING.
WARNINGS:
1. RISK OF INDOOR AIR POLLUTION!
•Usethis heater only in well ventilated areas. Provide at least a three-square foot(2,800 sq. cm.)
opening of fresh outside air for each 100,000 BTU/hr. of heater rating.
•People with breathing problems should consult a physician beforeusing the heater.
•Carbon monoxide poisoning: Early signs of carbon monoxide poisoning resemble the flu, with headaches, dizziness
and/or nausea. If you have these signs, the heater may notbeworking properly.
Get fresh air at once!Have the heater serviced. Some people are more affected by carbon monoxide than others.
These includepregnant women, persons with heart or lung disease or anemia, thoseunder the influence of alcohol, or
those at high altitudes.
•Never use this heater in living or sleeping areas.
2. RISK OFBURNS/FIRE/EXPLOSION!
•NEVER use any fuel other than 1-K kerosene, #1/#2 disel/fuel oil, JET A or JP-8 fuels in this heater.
•NEVER use fuel suchasgasoline, benzene, paint thinners or otheroil compounds in this heater.
(RISK OF FIRE OR EXPLOSION)
•NEVER use thisheater where flammable vapors may be present.
•NEVER refill the heaters fuel tank while heater is operating or is still hot.
Minimum Clearances: Outlet: 8 feet (250cm) /Sides, top and rear: 4 feet (125cm)
•NEVER block airinlet (rear) or air outlet (front) of heater.
•NEVER use duct work in front orbehind of heater.
•NEVER move, handle, service a hot, operating or plugged in heater.
•NEVER transport heater with fuel init’s tank.
•When used withanoptional thermostat or if equipped with a thermostat heater may start at any time.
•ALWAYSlocate heaterona stable and level surface.
•ALWAYSkeep children andanimalsaway from heater.
•Bulk fuel storage should be a minimum of 25 ft. from heaters, torches, portable generators or other sources of ignition.
All fuel storage should be in accordance with federal, state or local authorities having jurisdiction.
3. RISK OF ELECTRIC SHOCK!
•Use only the electrical power (voltage and frequency) specified on the model plate of the heater.
•Use only a three-prong, grounded outlet and extension cord.
•ALWAYSinstall the heater so that it is not directlyexposed to water spray, rain, dripping water or wind.
•ALWAYSunplug the heater when not in use.
PROPOSITION 65 WARNING: Fuels used in gas, wood-burning or oil fired appliances, and the
products of combustion of such fuels, contain chemicals known to the State of California to cause cancer,
birth defects and other reproductive harm.
MASSACHUSETTS RESIDENTS: Massachusetts state law prohibits the use of this heater in any
building which is used in whole or in part for human habitation. Use of this heating device in
Massachusetts requires local fire dept. permit (M.E.L.C. 148, Section 10A.)
CANADIAN RESIDENTS: Use of this heater shall be in accordance with authorities having
jurisdiction and CSA Standard B139.
NEW YORK CITY RESIDENTS: For use only at construction sites in accordance with applicable NYC
codes under NYCFD certificate of approval # 5034 and 5037.
CAUTION :Hot while in operation. Do not touch. Keep children,
clothing and combustibles away from heater.

2
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
ITEM PAGE #
1EDIUGYTEFAS-SNOITUACERP
2NOITCUDORTNI.1
2SERUTAEF.2
4YLBMESSADNAGNIKCAPNU.3
6FUELS.4
7NGISEDRETAEHFOWEIVREVO.5
8RETAEHRUOYGNILEUF.6
8NOITAREPO.7
9RETAEHRUOYFOEGAROTSMRETGNOL.8

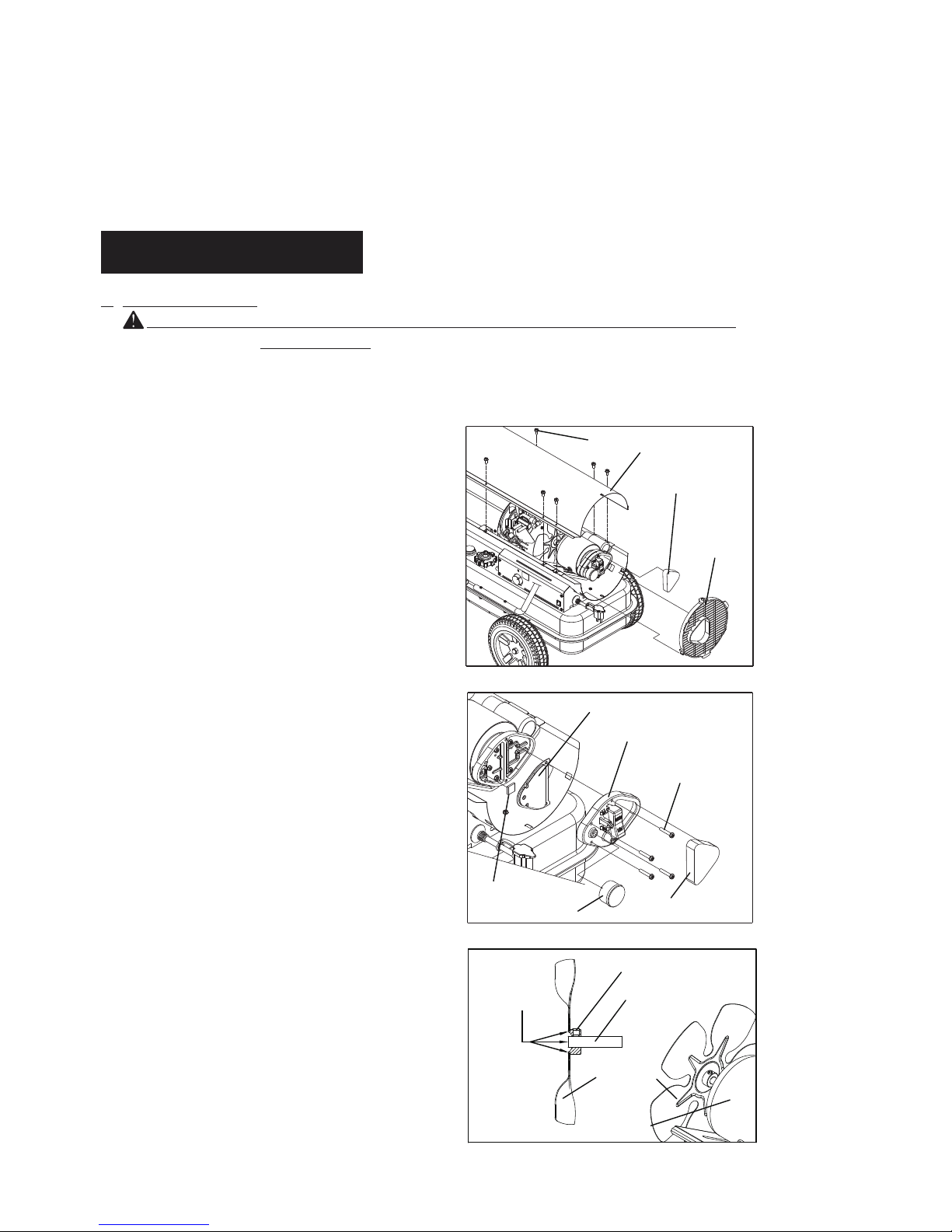

01ECNANETNIAM.9

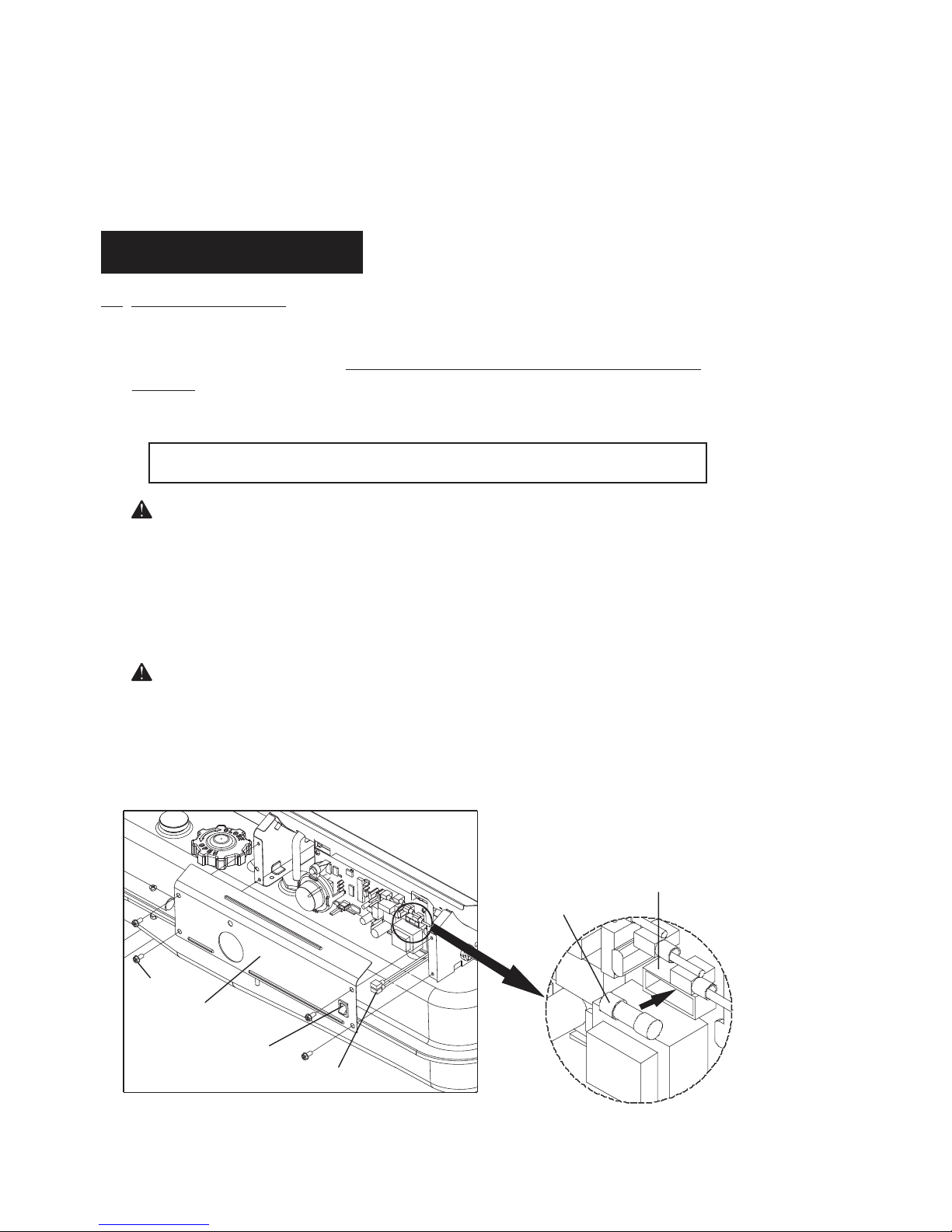

41ESUFGNICALPER.01
51EDIUGGNITOOHSELBUORT.11
61MARGAIDGNIRIW.21

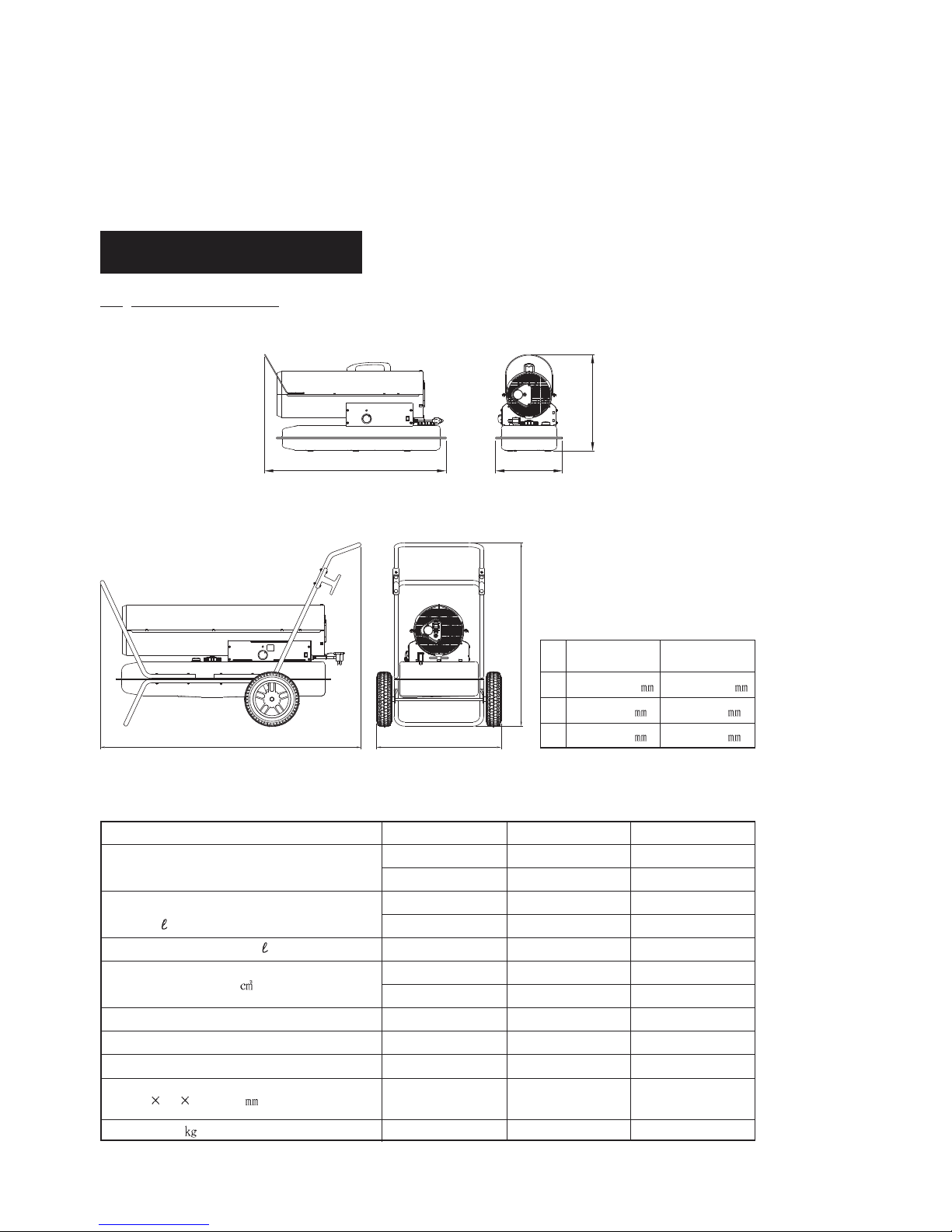

71SNOITACIFICEPS.31

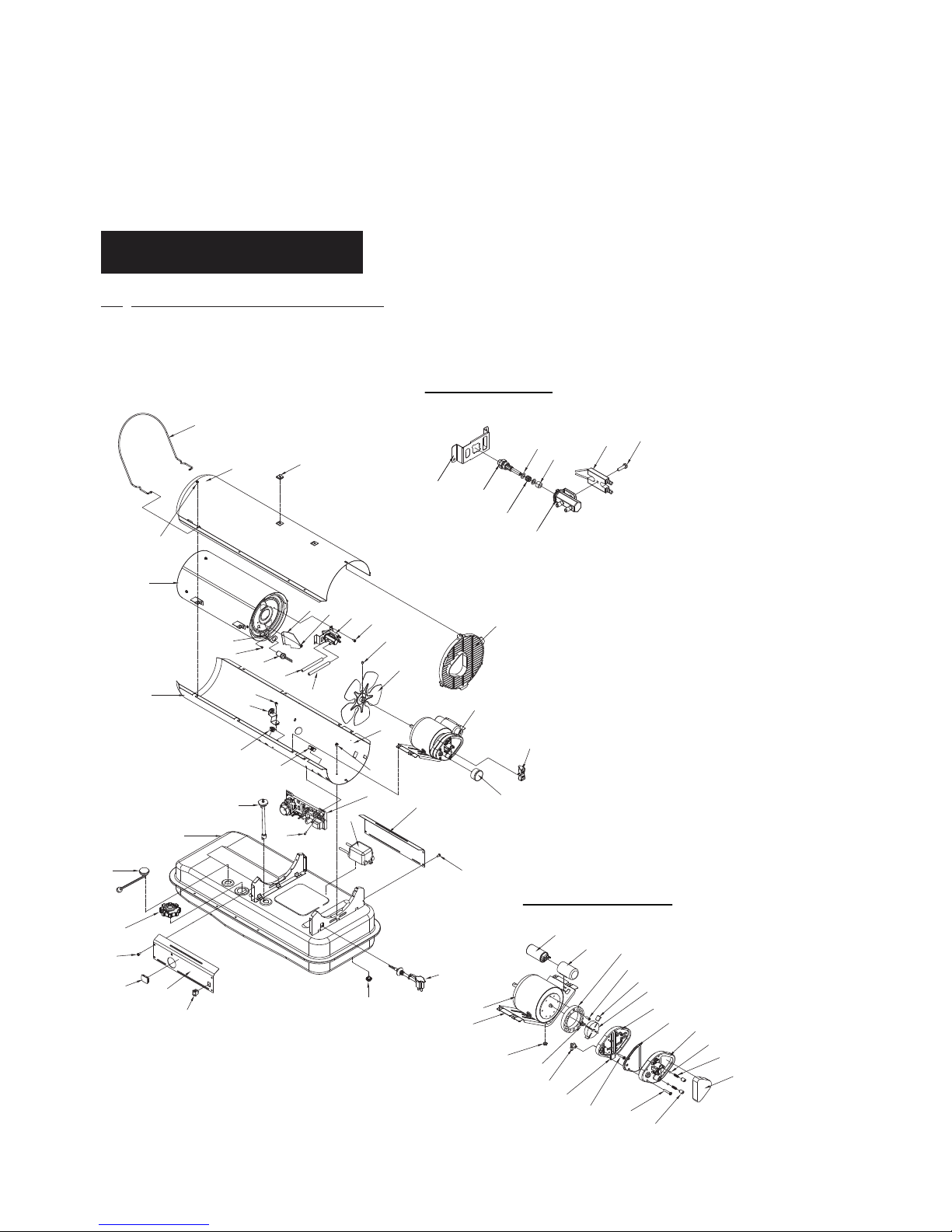

18&21GNIWARDSTRAPDEDOLPXE.41
19,20&22,23TSILSTRAP.51
1. INTRODUCTION
Please read this USER’S MANUAL carefully. It will show you how to assemble, maintain, and operate the
heater safely and efficiently to obtain full benefits from its many built-in features.
2. FEATURES
CONTENTS OF USER’S MANUAL
Fan Guard
BTU Control Switch
Cord Wrap
Pressure Gauge
Fuel Gauge
Fuel Cap
Front Guard
Hot Air Outlet
Lower Shell
Fuel Tank
Side Cover
Lamp
Thermostot Knob
Power/Reset Switch
Power Cord
(Piggy Back)
Upper Shell
Handle
Figure 1. KFA80C MODEL

3
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
Figure 2. KFA135C MODEL
Figure 3. KFA220C MODEL
Hot Air Outlet
Shell Lower
Fuel Gauge
Fuel Cap
Side Cover
Lamp
Thermostot Knob
Room Temp. Display
Power/Reset Switch
10” Flat Free Wheel
Hot Air Outlet
Shell Lower
Fuel Gauge
Fuel Cap
Side Cover
Thermostot Knob
Lamp
Room Temp. Display
Power/Reset Switch
10” Flat Free Wheel
Front Handle
Rear Handle
Rear Handle
Upper Shell
Front Handle
Upper Shell
Cord Wrap
Cord Wrap
BTU Control Switch
Pressure Gauge
Fan Guard
Power Cord
(Piggy Back)
(Piggy Back)
Fuel Drain Bolt
BTU Control Switch
Pressure Gauge
Fan Guard
Power Cord
Fuel Drain Bolt

4
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!

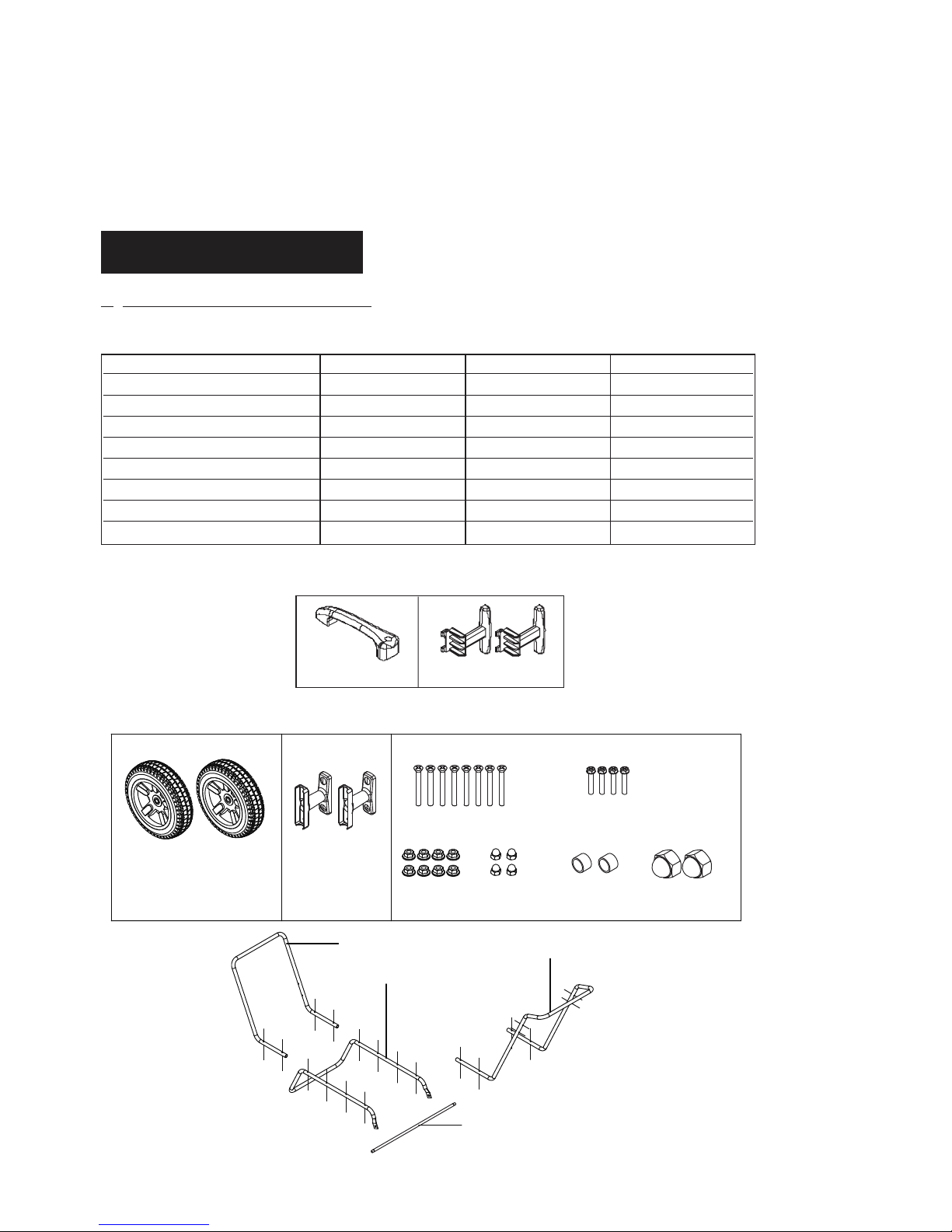

3. UNPACKING AND ASSEMBLY
1. REMOVE THE HEATER AND ALL PACKING MATERIALS FROM THE BOX. (Fig. 4 and 5)
NOTE : Save the shipping carton and packing materials for future storage.
Figure 4. KFA80C MODEL
KFA80C KFA135C KFA220C
Wheel Support Frame No Yes Yes
Wheel No Yes Yes
seYseYoNThreaded Axle
seYseYoNFront Handle
Rear Handle seYseYoN
oNoNseYeldnaH
seYseYseYparWdroC
Hardware kit : HW-KFA1016 No Yes Yes
Cap Nuts S
Hardware Kit : HW-KFA1016
(10" Flat Free)
Wheels
Cord Wraps
Screws Flange Screws
Nuts Bushings Cap Nuts L
Axle
Rear Handle
Wheel Support Frame
Front Handle
Handle Cord Wraps
Figure 5. KFA135C/ KFA220C MODELS

NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
2. ASSEMBLY
For KFA80C Model only
(Assembly time for this product is 3minutes)
For KFA135C/220C Models only (Assembly time for this product is 10 minutes)
Tools Required
•Medium Phillips Screwdriver.
1) Lift front guard for arrow direction and
make sure that guard’s wedged portion
fits into the slit hole on the upper housing.
Tools Required
• Medium Phillips Screwdriver.
• 3/4 inch socket or adjustable wrench
Assembling Handle & Wheel and Cord Wrap
1) Slide threaded axle through the rear section of the wheel support frane.
2) Slide one axle bushing on to each side of the axle. Slide one wheel on to each side of the axle.
Attach one cap nut on to each side of the threaded axle and tighten well.
3) Place heater on wheel support frame. Align the holes on fuel tank flange with holes on wheel support frame.
4) Position the Handles on top of fuel tank flange.
Insert screws through handles, fuel tank flange and wheel support frames as shown in Figure 8 and
attach nut finger tight after each screw is inserted.
5) Align the hole on the handles with the mounting hole on the Cord Wrap.
Insert Screws through Cord Wrap, handles and attach nut finger tight after each screw is inserted.
6) After all screws are inserted, tighten nuts firmly.
2) Remove the pre-assembled screws on the
shell upper and side cover.
3) Align the holesin the upper housing with
two mounting holes on the handle as
shown in Figure 6.
4) Secure handle with the screws removed.
5) Insert card wrap intothe rectangle holeson the
supportor and align the hole on the cord wrap with
the mounting hole on the side cover as shown in
Figure 6.
6) Secure cord wrap with the screws removed.
Figure 6. Assembling Handle & Cord Wrap
Handle Screw
Front Guard
Wedged Portion
Slit Hole
Side Cover
Cord Wrap
Screw
Shell Upper
Remove Screws
Remove
Screws
5

6
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!

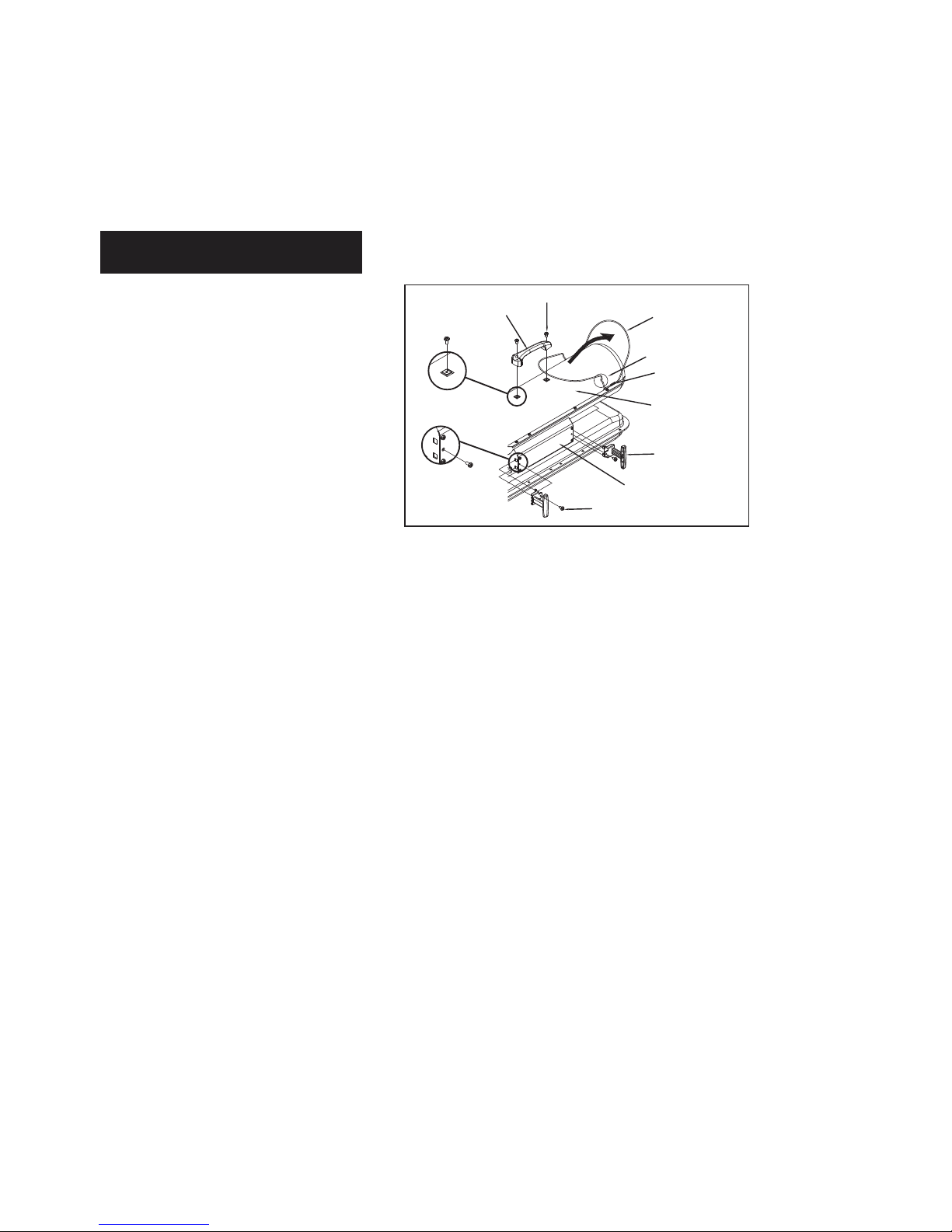

CAUTION : DO NOT OPERATE heater without support frame assembled to tank.
NOTE : Heater should be inspected before each use, and at least annually by a qualified service person.
Cap Nut L
Wheel Wheel Bushing
Threaded Axle
Rear Handle
Air Inlet
Cord Wrap
Cap Nut S
Nut
Hot Air Outlet
Screw
Flange Screw
Front Handle
Wheel Support Frame
Flange
Fuel Tank
4. FUELS
For optimal performance of this heater, it is strongly suggested that 1-K kerosene be used. 1-K kerosene has
been refined to virtually eliminate contaminants, such as sulpher. Which can cause a rotten egg odor during
is not available. Be advised that these fuels do not burn as clean as 1-K kerosene, and care should be taken to
KEROSENE SHOULD ONLY BE STORED IN A BLUE CONTAINER THAT IS CLEARLY
MARKED “KEROSENE”. NEVER STORE KEROSENE IN A RED CONTAINER.
Red containers are associated with gasoline.
NEVER store kerosene in the living space. Kerosene should be stored in a well ventilated place outside the
living area.
NEVER
NEVER use fuel such as gasoline, benzene, alcohol, white gas, camp stove fuel, paint thinners, or other oil
compounds in this heater. These are volatile fuels that can cause an explosion or uncontrolled flames.
NEVER store kerosene in direct sunlight or near a source of heat.
NEVER use kerosene that has been stored from one season to the next. Kerosene deteriorates over time.
“OLD KEROSENE” WILL NOT BUR N PROPERLY IN THIS HEATER.
the operation of the heater. However, #1/#2 diesel/fuel oil, JET A or JP-8 fuels may also be used if 1-K kerosene
provide more fresh air ventilation to accomodate any added contaminants that may be added to the heated space.
#2 diesel/fuel oil heavier than 1-K kerosene in extreme cold temperatures without nontoxic anti-icer additives
will not ignite properly.
use any fuel other than 1-K kerosene (#1/#2 diesel/fuel oil, JET A or JP-8 fuels are acceptable substitutes)
Figure 7. Assembling Handle, Wheel and Cord wrap

5. OVERVIEW OF HEATERS DESIGN
Fuel System : This heater is equipped with an electric
air pump that forces air through the air
line connected to the fuel intake and then
through a nozzle in the burner head.
When the air passes in front of the fuel
intake it causes fuel to rise from the tank
and into the burner nozzle. This fuel and
air mixture is then sprayed into the
combustion chamber in a fine mist.
“Sure Fire Ignition” : The electronic ignitor sends voltage to a specially designed spark plug.
The spark plug ignites the fuel and air mixture described above.
The Air System : The heavy duty motor turns a fan that forces air into and around the combustion chamber.
Here the air is heated and then forced out the front of the heater.
The Safety System :
A. Temperature Limit Control : This heater is equipped with a Temperature Limit Control designed to turn
off the heater should the internal temperature rise to an unsafe level. If this
device activates and turns your heater off it may require service.
Once the temperature falls below the reset temperature you will be able to start your heater.
B. Electrical System Protection : This heaters electrical system is protected by a fuse mounted to the PCB
assembly that protects it and other electrical components from damage.
If your heater fails to operate check this fuse first and replace as needed.
C. Flame-Out Sensor : Utilizes a photocell to monitor the flame in burn chamber during normal operation.
It will cause the heater to shut-off should the burner flame extinguish.
7
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
Internal Shut-Off Temp. Reset Temperature
MODELS Plus/Minus 10 Degrees Plus/Minus 10 Degrees
KFA80C 158˚F/70˚C104˚F/40˚C
KFA135C 158˚F/70˚C104˚F/40˚C
KFA220C 194˚F/90˚C140˚F/60˚C
FUSE TYPE: All Models 125 volt / 8 amps

8
6. FUELING YOUR HEATER
NEVER FILL THE HEATER FUEL TANKIN THE LIVING SPACE: FILL THE TANK OUTDOORS.
DO NOT OVERFILL YOUR HEATER AND BE SURE HEATER IS LEVELED.
IMPORTANTNOTICEREGARDING FIRSTIGNITION OF HEATER :
The first time you light the heater, it should be done outdoors. This allows the oils, etc. used in
manufacturing the heater to burn off outside.
WARNING!! : NEVER REFILL HEATER FUEL TANKWHEN HEATER IS OPERATINGOR STILL HOT.
7. OPERATION
A.) VENTILATION
RISK OF INDOOR AIR POLLUTION/USE HEATER ONLY IN WELL VENTILATED AREAS.
Provide a fresh air opening of at least three square feet (2,800 sq. cm) for each 100,000 BTU/Hr.
rating. Provide extra fresh air if more heaters are being used.
Example : A KFA220C heater requires one of the following:
• a two-car garage door raised six inches (15.24 cm)
• a single-car garage door raised nine inches (22.86 cm)
• two, thirty-inch (76.20 cm) windows raised fifteen inches (38.1 cm)
B.) OPERATION
TO START HEATER
1. Fill fuel tank with fuel.
NOTE : Kerosene is recommended when the temperature drops below 0℉(-18℃) to prevent ignition
delay or failure.
2. Attach fuel cap.
3. Plug power cord of heater into three-prong, grounded extension cord. Extension cord must be at
least six feet long.
Extension Cord Wire Size Requirements
• 6 to 100 feet (1.8 to 30.5 meters) long, use 16 AWG conductor.
• 101 to 200 feet (30.8 to 61 meters) long, use 14 AWG conductor.
4. Turn “THERMOSTAT CONTROL knob” to desired setting (setting range : 40˚F ~ 110˚F)
5. Push “BTU control Switch” to “High” level.(See Figure 8.)
6. Push Power Switch to “ON” position, Power lndicator Lamp will light and heater will start.
7. After startup, push “BTU control switch” to desired level “High or Low”
NOTE : Room Temperature display explanations are as follows: (KFA135C/220C Models only)
•When the room temperature is less 0℉, the LED display will show “Lo”
When room temp is between 0℉ and 99℉, the number shown on the display is the current
room temperature.
When room temperature is greater than 99℉, the LED display will show “Hi”
•
•If heater does not start, the thermostat setting may be too low, turn “thermostat Control Knob” to
higher position to start heater. If heater still does not start, turn power switch to “OFF” and then to
“ON” position. If heater still does not start, see Troubleshootiong Guide on page15.
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
NOTE : User can select to operate the heater on two different BTU levels(High or Low).
To stabilize heater and prevent ignition delay, select BTU level after turning the heater on, or
while it is in operation by pushing the BTU control switch. If the heater started at low BTU level
in cold weather or low fuel tank, ignition failure can occur.
NOTE : In cold weather, ignition may be improved by holding a finger over the end of the relief valve or
block fanguard in half with newspaper etc. until the heater ignites.

9
NOTICE : The major electrical components of this heater are protected by a safety fuse mounted to the PCBboard.
If your heater fails to start, check this fusefirst and replace as necessary. You should also check your
power source to insure that proper voltage and frequency are being supplied to the heater.
TO STOP HEATER
1. Turn switch to “OFF” and unplug power cord.
TO RESTART HEATER
1.Wait 10 seconds after stopping heater.
2. Repeat steps under to start heater.
PIGGYBACK POWER CORD
WARNING : SHOCK HAZARD!
8. LONG TERM STORAGE OF YOUR HEATER
FUEL TANK DRAIN
1. Drain fuel tank through fuel cap opening.
(For KFA80C Model Only)
2. Remove fuel drain bolt from rear bottom side of fuel tank using 3/4” socket or adjustable wrench and drain.
(For KFA135C /220C Models Only. See Figure 10)
3. Using a small amount of kerosene, swirl and rinse the inside of the tank.
NEVER mix water with the kerosene as it will cause rust inside the tank.
Pour the kerosene out making sure that you remove it all.
IMPORTANT : Do not store kerosene over summer months for use during next heating season.
Using old fuel could damage heater.
4. Reinstall fuel cap. Properly dispose of old and dirty fuel.
(For KFA80C Models Only)
5. Reinstall fuel drain bolt to Fuel tank and tighten firmly using 3/4” socket
or adjustable wrench. (For KFA135C /220C Models Only. See Figure 10)
IMPORTANT : Before reinstalling the fuel drain bolt, make sure the
seal is on the bolt. If the seal is not used the bolt cannot
be installed correctly and the fuel tank will leak.
6. Store heater in dry well ventilated area. Make sure storage place is free
of dust and corrosive fumes.
7. Store the heater in the original box with the original packing material and keep the USER’SMANUAL
with the heater.
•Always cover electric outlet when not in use.
•Don’t plug and use a appliance more than 120V/60Hz 5A
current in this outlet.
Figure 10. Fuel Drain Bolt
Fuel Drain Bolt
Seal
revoC
Figure 9. PiggyBack Power Cord
Outlet
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
Figure 8. Controls for All Models
Power Switch
KFA80C Model KFA135C/220C Models
Room Temp. Display
Power Switch
Thermostat
Control Knob
Thermostat
Control Knob
Lamp Lamp
Fan Guard
Btu Control Switch
Btu Control Switch
Push to"HIGH"
Push to"LOW" Relief Valve

A.) FUEL TANK
FLUSH EVERY 200 HOURS OF OPERATION
OR AS NEEDED (SEE STORAGE, PAGE 9)
B.) AIR INTAKE FILTER
WASH AND DRY WITH SOAP AND WATER
EVERY 500 HOURS OF OPERATION OR AS
NEEDED.
- Remove screws along each side of heater using
medium phillips screwdriver.
- Lift upper shell off.
- Remove fan guard.
- Wash or replace air intake filter.
- Reinstall fan guard and upper shell.
C.) AIR OUTPUT FILTER, LINT FILTER
REPLACE EVERY 500 HOURS OF OPERATION
OR ONCE A YEAR.
- Removeupper shell and fan guard (See Air Intake Filter).
- Trun Air pressure gauge counter-clock wise and
remove.
- Remove end filter cover screws using medium
phillips screwdriver.
- Remove end filter cover.
- Replace air output and lint filter.
- Reinstall end filter cover and air pressure gauge.
- Reinstall fan guard and upper shell.
D.) FAN BLADES
CLEAN EVERY SEASON OR AS NEEDED.
- Remove upper shell (See Air Intake Filter).
- Use M6 allen wrench to loosen set screw
which holds fan blade to motor shaft.
- Slip fan blade off motor shaft.
- Clean fan blade using a soft cloth moistened with
kerosene or solvent.
- Dry fan blade thoroughly.
- Reinstall fan blade on motor shaft. Place fan
blade hub flush with end of motor shaft.
- Place set screw on flat of shaft. Tighten set screw
firmly (40-50 inch-pounds/4.5-5.6 N-m).
- Reinstall upper shell. 10
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
9. MAINTENANCE
WARNING!! : NEVER SERVICE HEATER WHILE IT IS PLUGGED IN OR
WHILE HOT!
USE ORIGINAL EQUIPMENT REPLACEMENT PARTS. Use of third party or
other alternate components will void warranty and may cause unsafe operating
conditions.
Figure 11. Air Intake Filter Access
Figure 12. Air Outprt Filter Access
Screw Upper Shell
Air Intake Filter
Fan Guard
Air Intake Filter
Pressure Gauge
Screw
Air Output Filter
End Filter Cover
Lint Filter
Figure 13. Fan Assembly
Motor
Flush
Fan Blade
Motor Shaft
Set Screw

11
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
E.) NOZZLE
REMOVEDIRTIN NOZZLE AS NEEDED (SEE PAGE16).
(For KFA80C/135C Models Only)
- Remove upper shell (See page 10).
- Remove fan blade (See page 10).
- Remove fuel and air line hoses from nozzle adaptor.
- Remove ignitor wire from spark plug.
- Remove spark plug from nozzle adaptor using medium
phillips screwdriver.
- Turn nozzle adaptor 1/9 turn(40°) to counter clock wise
and pull toward motor to remove. (See Figure 14)
- Place plastic hex-body into vise and lightlry tighten.
- Carefully remove nozzle from nozzle adaptor using 5/8”
socket wrench.
- Blow compressed air through face of nozzle.
(this will remove any dirt in nozzle)
- Reinstall nozzle into nozzle adaptor until nozzle seats.
Tighten 1/3 turn more using 5/8” socket wrench.
(40~45 inch-pounds)
- Reinstall nozzle adaptor to bracket adaptor.
- Reinstall spark plug to nozzle adaptor.
- Attach ignitor wire to spark plug.
- Attach fuel and air line hoses to nozzle adaptor.
- Reinstall fan blade and upper shell.
(For KFA220C Model Only)
- Remove upper shell (See page 10).
- Remove fan (See page 10).
- Remove fuel and air line hoses from nozzle adaptor.
- Remove ignitor wire from spark plug.
- Remove spark plug from nozzle adaptor using medium
phillips screwdriver.
- Turn nozzle adaptor 1/8 turn (45°) to counter clock wise
and pull toward motor to remove. (See Figure 15)
- Place plastic hex-body into vise and lightly tighten.
- Carefully remove nozzle from nozzle adaptor using 5/8”
socket wrench.
- Blow compressed air through face of nozzle.
(this will remove any dirt in nozzle)
- Reinstall nozzle into nozzle adaptor until nozzle seats
Tighten 1/3 turn more using 5/8” socket wrench
(40~45 inch-pounds)
- Reinstall nozzle adaptor to burner bracket
- Reinstall spark plug to nozzle adaptor.
- Attach ignitor wire to spark plug.
- Attach fuel and air line hoses to nozzle adaptor.
- Reinstall fan blade and upper shell. Figure 15. Nozzle Replacement
Figure 14. Nozzle Replacement
Fuel Line
Air Line
Nozzle Adaptor
Combustion Chamber
Screw
Ignitor Wire
Spark Plug
Bracket-Burner
Nozzle Adaptor
Nozzle Face
Nozzle
Nozzle Adaptor
Combustion Chamber
Nozzle
Nozzle Adaptor
Nozzle Face
Screw
Ignitor Wire
Fuel Line
Air Line
Bracket-Adaptor
Nozzle Adaptor

12
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
F.) SPARK PLUG
CLEAN AND REGAP EVERY 600 HOURS
OPERATION OR REPLACE AS NEEDED.
(For KFA80C/135C Models Only)
- Remove upper shell (See page 10).
- Remove fan (See page 10).
- Remove ignitor wire from spark plug.
- Remove spark plug from nozzle adaptor using medium
phillips screwdriver.
- Clean and regap spark plug electrodes to 3.5mm gap.
- Reinstall spark plug to nozzle adaptor.
- Attach ignitor wire to spark plug.
- Reinstall fan and upper shell.
(For KFA220C Model Only)
- Remove upper shell (See page 10).
- Remove fan (See page 10).
- Remove ignitor wire from nozzle adaptor.
- Remove spark plug from nozzle adaptor using medium
phillips screwdriver.
- Clean and regap spark plug electrodes to 3.5mm gap.
(0.138”)
(0.138”)
- ReInstall spark plug to nozzle adaptor.
- Attach ignitor wire to spark plug.
- Reinstall fan and upper shell.
G.) PHOTOCELL
CLEAN PHOTOCELL ANNUALLY OR AS
NEEDED.
- Remove upper shell (See page 10).
- Remove fan (See page 10).
- Remove photocell from it’s mounting.
Clean photocell lens with cotton swab.
TO REPLACE:
- Remove side cover screws using medium phillips
screwdriver.
- Disconnect switch wires from power switch and
remove side cover.
- Disconnect wires from circuit board and remove
photocell.
- Install new photocell and connect wires to circuit
board.
- Replace switch wires to power switch and side cover.
- Replace fan and upper shell.
Figure 16. Spark Plug Regap
Figure 17. Spark Plug Regap
Nozzle Adaptor
Ignitor Wire
Spark Plug
Screw
GAP
Spark Plug
Figure 18. Photocell Replacement
Power
Side Cover
Switch
Wires
Screw
Wire
Bracket
Photocell
Switch
Lens
Install Photocell
CorrectIncorrect
Photocell
Screw
GAP
Spark Plug
Nozzle Adaptor Spark Plug
Ignitor Wire

H.) FUEL FILTER
CLEAN OR REPLACE TWICE A HEATING
SEASON OR AS NEED.
- Remove side cover screws using medium phillips
screwdriver.
- Disconnect switch wires from power switch and
remove side cover.
- Pull fuel line off fuel filter neck.
- Turn fuel filter 90˚ to counter clockwise and pull to
remove (KFA80C Model only).
- Turn fuel filter 90˚ to clockwise and pull to remove
(KFA135C/220C Models only).
- Wash fuel filter with clean fuel and replace in tank.
- Attach fuel line to fuel filter neck.
- Replace switch wires to power switch.
- Reinstall side cover.
I.) PUMP PRESSURE ADJUSTMENT
NOTE: If the pump pressure needs to be adjusted,
make sure the heater is running on the
HIGH BTU setting.
- Push the BTU control switch to HIGH .
(See Operation on page 8)
- Start heater (See Operation, page 8)
Allow motor to reach full speed
- Adjust pressure (Using a flat blade screwdriver)
Turn relief valve to clockwise to increase pressure.
Turn relief valve to counter clockwise to decrease
pressure.
- Stop heater (See Operation, page 8)
NOTE : USE ONLY ORIGINAL EQUIPMENT
REPLACEMENT PARTS.
Use of alternate or third party components
will void any warranty and may cause unsafe
operating condition.
Pump Pressure
High BTU level Low BTU level
KFA80C
KFA135C
KFA220C
13
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
Figure 20. Adjusting Pump Pressure
MODEL
3.8 psi
5.5 psi
8.5 psi
2.7 psi
3.5 psi
6.5 psi
Figure 19. Fuel Filter Replacement
Fuel Filter
Fuel line
Switch Wires
Screw
Side Cover
Power Switch
Flat blade
Screwdriver
Pressure Gauge
Relief Valve

14
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
10. REPLACING FUSE
NOTICE : This heater is fuse protected.
If your heater fails to ignite, DO NOT RETURN YOUR HEATER TO THE
STORE.
Please follow the simple instruction below to inspect and change the fuse.
WARNING : SHOCK HAZARD
To prevent personal injury, unplug the power cord before replacing fuse.
1. Unplug heater.
2. Remove side cover screws using medium phillips screw driver.
3. Disconnect switch wires from power switch.
4. Remove fuse from fuse holder.(See Figure 21.)
5. Replace fuse.
WARNING : FIRE HAZARD
To avoid fire, Do not substitute with a higher or lower current rating.
6. Replace switch wires to power switch.
7. Replace side cover.
NOTE : Specified fuse rating : AC 125/8A
PROCEDURE FOR REPLACING FUSE
Screw
Side Cover
Power Switch
Switch Wire
Fuse
Fuse Holder
Figure 21. Replacing Fuse

15
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
11. TROUBLE SHOOTING GUIDE
2. See Air Output,Air intake2. Dirty Air Output,Air Intake
a short period of time.
Heater will not turn-on
room temp. display indicates "E3")
(Indicator Lamp is flickering and
room temp. display indicates "E2")
(Indicator Lamp is flickering and
(Indicator Lamp is on or flickering)
was in the " ON " Position.
is plugged in and power switch
Fan does not turn when heater
indicates " E1 ")
and room temp.display
of time.(Indicator Lamp is flickering
motor runs for a short period
Heater will not ignite but
room temp. display indicates " E1 ")
(Indicator Lamp is flickering and
(Indicator Lamp is off)
temperature limit safety device
and PCB board.
4. Bad electrical connection between
1. Sensor Failure.
3. Blown fuse.
2. No electrical power
device is overheated.
1. Temperature limit safety
1. Thermostat switch failure.
See Wiring Diagram, Page 16.
4. Check electrical connections
3. Replace safety fuse in PCB board.
Check power supply.
extension cord are plugged in.
2. Check to insure heater cord and
and allow to cool(about 10 min.)
1. Turn power switch to "OFF"
See Wiring diagram, Page 16.
1. Replace switch.
See Wiring diagram, Page 16.
1. Replace sensor.
8. Ignitor wire is not attached to
PCB assembly.
between motor and MAIN
2. Bad electrical connection
1. Thermostat setting is too low.
spark plug.
PCB assembly.
between ignitor and MAIN
7. Bad electrical connection
6. Water in fuel tank.
5. Dirt in Nozzle.
4. Dirty fuel filter.
plug and/or improper gap.
3. Carbon deposits on spark
2. Wrong pump pressure.
1. No fuel in tank.
8. Defective Photocell.
PCB assembly.
between photocell and MAIN
7. Bad electrical connection
Properly installed.(Not seeing the
flame)
6. Photocell Assembly not
5. Dirty Photocell Lens.
4. Dirt in Nozzle.
3. Dirty Fuel Filter.
or Lint Filter.
See Wiring Diagram, Page 16.
2. Check electrical connections,
to a higher setting.
1. Turn thermostat control knob
plug. See Spark Plug, Page 12.
8. Attach ignitor wire to spark
See wiring diagram, Page 16.
7. Check electrical components
kerosene, Page 9.
6. Flush fuel tank with clean
5. See Nozzle,Page 11.
4. See Fuel Filter,Page 13.
3. See Spark Plug,Page 12.
Page 13.
2. See Pump Pressure Adjustment,
1. Fill tank with kerosene.
8. Replace Photocell, Page 12.
See wiring diagram, Page 16.
7. Check electrical components
Page 12.
properly seated in bracket,
6. Make sure photocell boot is
5. Clean Photocell Lens, Page 12.
4. See Nozzle, Page 11.
3. See Fuel Filter, Page 13.
and Lint Filters, page 10.
assembly shuts heater off after
Heater ignites but MAIN PCB
TROUBLE POSSIBLE CAUSE
1. Wrong pump pressure Page 13. 1. See Pump Pressure Adjustment,
CORRECTIVE ACTION

16
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
12. WIRING DIAGRAM
CN3
RED
RED
SWITCH CONTROL
BLACK
GREEN
EARTH
AC120V
60Hz
PLUG 8A/125VAC
BLACK
WHITE
SPARK PLUG
(TEMP. CONTROL)
BLACK
BLACK
THERMOSTAT
CELL
POWER FUSE
SENSOR
ROOM
POWER LIMIT
BLACK
WHITE
CN2(AC2)/
CN1(AC1)/
CN6
CN5
WHT
BLK EARTH
GREEN CAPACITOR
RED WHITE
MOTOR
POWER LAMP
(LED)
IGNITOR
ORANGE
CN4
BLACK
BLACK
PUMP
BLACK
CONTROL PCB
MODEL CAPACITOR
KFA80C
KFA135C/220C 20uF/350VAC
15uF/230VAC

17
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
KFA80C Model
23.1"(587 )
33.5"(850 )
KFA135C KFA220C
41.9"(1,063 ) 47.4"(1,205 )
32.4"(824 )
21.5"(547 )
D
W
H
MODEL KFA80C KFA135C KFA220C
HIGH 80,000 135,000 220,000
LOW 55,000 95,000 180,000
0.60(2.27) 1.02(3.86) 1.66(6.28)
0.42(1.59) 0.72(2.73) 1.36(5.15)
HIGH
LOW
Fuel Tank Capacity - Gal.(./Hr)5(18.9) 10(37.9) 13(49.2)
HIGH 3.8(0.27) 5.5(0.39) 8.5(0.60)
LOW 2.7(0.19) 3.5(0.25) 6.5(0.46)
zH06/caV021zH06/caV021zH06/caV021zH/tloV
7.35.26.1.spmA
111esahP
32.0×11.7×16.7
(813×297×424) 41.9×21.5×32.4 (1,063×547×824) 47.4×23.1×33.5 (1,205×587×850)
Weight Lbs.( 26.9(12.2) 52.2(23.7) 60.2(27.3)
)
13. SPECIFICATIONS
Fuel Consumption
- Gal./Hr(./Hr)
Pump Pressure PSI(kgf/)
BTU/Hr.
Size(D W H), Inch( )
KFA135C / KFA220C Models
H
WD
16.7"(424mm)
11.7"(297mm)32.0"(813mm)

NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
14. EXPLODED PARTS DRAWING (KFA80C/135C Models Only)
NOTE : SPECIFY MODEL NUMBER AND PART NUMBER WHEN ORDERING PARTS.
18
BURNER HEAD ASSEMBLY
MOTOR AND PUMP ASSEMBLY
12
31
32 2
34
5
6
28
29
3
4
1
36
30 35
22
10
9
15
8
14
7
15
13
24
25
16
40
37
41
38
33
11
17
20 21
23
26
39
18 19
27
23-3
23-21
23-20
23-19
23-18
23-9
23-8
23-1
23-6
23-2
23-5
23-7
23-11
23-15 23-16
23-10
23-12
23-1323-14
23-4 23-17
20-6
20-5
20-3
20-4
20-2
20-1
20-7 20-8

19
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
15. PARTS LIST (KFA80C/135C Models Only)
KEY NO. DESCRIPTION PART NO.
KFA80C KFA135C
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20-1
20-2
20-3
20-4
20-5
20-6
20-7
20-8
21
22
23
23-1
23-2
23-3
23-4
23-5
23-6
23-7
23-8
23-9
Fuel Tank Assembly
Fuel Drain-Bolt
Fuel Gauge
Fuel Filter Assembly
Fuel Cap
Power Cord
Shell Lower
Flange Screw
Bushing-Grommet(S)
Bushing-Grommet(L)
Air-Line
Temperature Limit Assembly
Flange-Screw
Chamber Assembly
Bracket Photocell
Screw-BH1
Photocell Assembl
Air Deflector
Flange Screw
y
Burner Head Assembly
Bracket Adaptor
Nozzle
Washer-Nozzle Seal
Spring-Nozzle Seal
O-Ring
Nozzle adaptor
Spark Plug
Bolt-Flange
Flange Screw
Fuel Line
Motorand Pump Assembly
Motor
Capacitor
Motor Support
Nut-Hex
Capacitor Holder
2151-0047-01
-
2156-0049-00
2155-0005-00
2151-0041-00
3980-0275-00
3111-0501-03
4319-0015-00
3231-0120-00
3231-0121-00
3341-0035-00
2153-0013-00
4319-0015-00
2152-0227-00
3131-0159-00
4311-0068-00
*SP-KFA1007
3131-0574-00
4319-0015-00
2152-0228-00
3131-0576-00
*SP-KFA1027
4349-0016-00
3431-0010-00
3311-0002-00
3231-0180-00
*SP-KFA1021
4329-0079-00
4319-0015-00
3341-0034-00
2154-0140-00
3970-0210-00
3820-0257-00
3111-0440-00
4331-0022-00
-
3541-0022-00
4321-0198-00
See SP-KFA1000
1
See SP-KFA1000
1
2151-0048-01
4329-0072-00
2156-0051-00
2155-0001-00
2151-0041-00
3980-0275-00
3111-0506-03
4319-0015-00
3231-0120-00
3231-0121-00
3341-0036-00
2153-0013-00
4319-0015-00
2152-0230-00
3131-0159-00
4311-0068-00
*SP-KFA1007
3131-0575-00
4319-0015-00
2152-0193-00
3131-0576-00
*SP-KFA1003
4349-0016-00
3431-0010-00
3311-0002-00
3231-0180-00
*SP-KFA1021
4329-0079-00
4319-0015-00
3341-0032-00
2154-0141-00
3970-0211-00
3820-0258-00
3111-0439-00
4331-0022-00
3231-0182-00
3541-0022-00
4321-0198-00
See SP-KFA1000
1
See SP-KFA1000
1
1
1
1
1
1
1
1
4
1
2
1
1
1
1
1
2
1
2
2
1
1
1
2
1
1
1
1
1
2
1
1
1
1
1
2
1
1
2
1
4
Quantity
Pump Body
Bolt-BH Special
Rotor
Blade
