Dynapac BG70 Installer manual

DYNAPAC
CONCRETE EQUIPMENT
BG70 Power Floats
INSTRUCTIONS & SPARE PARTS CATALOGUE BG70 - IS - 10682 - ENG
RAMIRENT

2
SAFETY INSTRUCTIONS
- MACHINES SUBMITTED : Powered with : Electric, Pneumatic, Petrol or Diesel engine.
- SYMBOLS : The words WARNING and CAUTION used in safety instructions, have the following meanings :
WARNING indicates hazards or hazardous procedures which could result in serious injury or death
if the WARNING is not observed.
CAUTION indicates hazards or hazardous procedures which could result in injury or damage to
equipment if the WARNING is not observed.
- IMPORTANT RULES FOR YOUR SAFETY :
WARNING
The machine must not be modified without prior consent of the manufacturer. Use only original parts. If
modifications are made without prior consent of the manufacturer there is a risk of serious injury to the
personal.
− These safety recommendations have been compiled from international safety standards.
Local regulations must also be checked and observed. Before using the machine, read carefully
these instructions and keep them in a safe place.
− Make sure that the signs about using, safety, and maintenance are always legible.
− The use of the machine is restricted to the applications specified in the product literature.
− Always change damaged parts immediately. Change wear parts in due time.
- SAFETY EQUIPMENT :
WARNING
The admissible sound level of 85 dB (A), can be exceeded because of the machine and/or the application. Long
time exposure to loud noise without ear protectors can cause permanent damage to hearing.
Long time exposure to vibrations can damage the hands, fingers and wrists. Do not use the machine if you are
experiencing discomfort, cramp or pain. Consult a doctor before working again with the machine.
− Always use approved safety equipment. The following safety equipment applies to operators and
other personnel in the immediate vicinity of the working zone.
− Safety helmet.
− Ear protectors.
− Dust mask in dusty environments.
− Protective gloves.
− Protective shoes.
− Goggles.
To avoid the risk of clothes being caught in the machine, avoid wearing loose-lifting clothes. If you have long hair,
cover it with a hair net.
- WORKING AREA :
WARNING
Do not use the machine in explosive environments.
Do not operate a machine powered by a petrol or diesel engine in poorly ventilated spaces. These types of
engines produce toxic gases which can cause serious health troubles.
RAMIRENT

3
-POWER SUPPLY :
WARNING
Make sure that the power supply equipment complies with the relevant safety requirements of the local and the
international standards.
- Electric machine : It must be ensured that the machine is connected to the voltage and the frequency
specified on the name plate. The power supply cable has to be properly sized. Check that the cable and the plug of
the machine are not damaged. Never switch off the machine by pulling the plug from its socket. Use the machine
switch. Keep the cable out of the moving parts of the machine.
- Pneumatic machine : Check that the compressed-air hose and the hose coupling are not damaged.
Never attempt to loosen a compressed-air hose which is pressurized. First switch off the air at the compressor and
then leave the machine running itself to discharge the hose after some seconds.
- Machine powered by petrol or diesel engine : Petrol has an extremely low flash-point and can be
explosive in certain situations. Keep away from all hot or spark-generating objects, do not smoke, when handling
fuel. Wait until the machine has cooled before filling the tank. Avoid spilling petrol or diesel on the ground.
-STARTING THE MACHINE :
CAUTION
Before starting make yourself familiar with the machine and make sure that the machine does not show any
obvious faults. Then start the machine according the instruction and spare parts catalogue.
-OPERATION :
CAUTION
Use the machine only for the purpose for which it is intended. Make sure you know how to stop the machine
quickly in the event of an emergency situation. Do not touch rotating parts during operation.
-MAINTENANCE :
CAUTION
Maintenance work must only be carried out by skilled personnel. Keep unauthorized persons away from the
machine. Do not carry out maintenance work while the machine is moving or the engine is running. Never use a
machine which is damaged.
-BE ALERT :
CAUTION
Always concentrate on what you are doing. Use common sense. Never operate the machine if you are tired or
under the influence of drugs alcohol or other substances which can affect your vision, reaction, ability or
judgement.
RAMIRENT

4
GENERAL
The DYNAPAC ride on double floats BG70 is designed for large surfaces trowelling.
Working width 1830mm 72" feature two four blades rotors.
DESIGN
BG70 is driven by a twin cylinder four strokes petrol engine (1).
It is equipped with a safety switch which stops the engine if the operator leaves the seat (2).
The engine power is transmitted to the rotors supporting the blades (3) through a centrifugal clutch, two V belts, a
drive shaft and two reduction gear boxes (4).
The blades are protected by a guard ring (5).
Blade speed can be smoothly adjusted from 70 to 160 rpm by the throttle pedal (6).
Three powerful halogen lights (7) permit precision finishing in poorly lit conditions.
Blade pitch control (8) carried out manually allows adjustment of blades pitch.
Two adjustable control levers (9) accurately and easily steer the BG double float.
The retardant spray system (10) allows operator to apply a fine spray of retardant on the slab during the finishing
operation. The retardant is stored in a tank mounted on the rear of the machine. The spray system is activated when
a button on the left control lever (9) is pressed.
It is equipped with an electric start supplied with a battery (11).

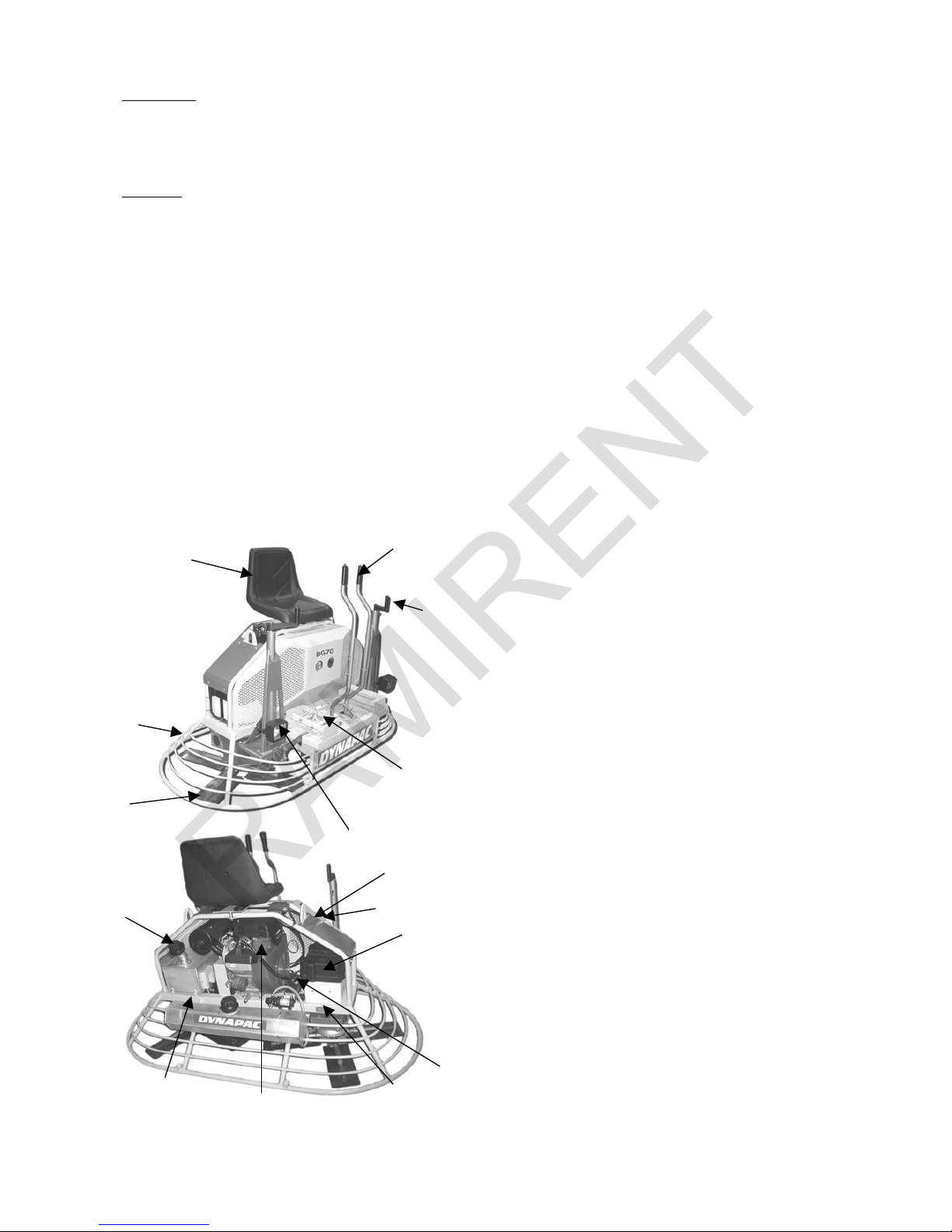

2. Seat
3. Blades
5. Guard ring
6. Throttle pedal
7. Halogen light
8. Control levers
9. Blade pitch control
1. Petrol engine
4. Reduction gear box
10. Spray system
11. Battery
12. Fuel tank
13. Hour meter / tachometer
14. Ignition switch key
15. Lights switch
2
5
3
8
9
6
7
12
11
1
10 4
13
14
15
RAMIRENT

5
TECHNICAL DATA
BG70 Europe
P/N 368678
BG70 USA
P/N 368942
Operating weight Kg-(lb) 300-(551) 300-(551)
Working Width mm-(in) 1830-(72) 1830-(72)
Blade speed (rpm) 70 to 160 70 to 160
Number of blades 2x4 2x4
2 Smoothing disks yes yes
Overlapping no no
POWER UNIT
Make Honda Honda
Model GX 620 GX 620EPA CARB
Rated power KW-(hp) 15-(20) 15-(20)
At (rpm) 3600 3600
Gasoline tank capacity l-(gal) 14-(3) 14-(3)
Water tank capacity 15 – (3.2) 15 – (3.2)
Consumption l/h-(gph) 1,5 – (0.32) 1,5 – (0.32)
Noise level measured in air at 1m from the
power floats dB(A), according to ISO 6081.
DIMENSIONS
L x w x h mm (in) 1016x1930x1315 – (40x76x52)
EQUIPMENT
STANDARD
- Single pitch control system
- Electric retardant spray system
- Hour meter
- Set of 8 blades
- 3 Halogen lights
- Lifting hooks
OPTIONS
- Set of 2 smoothing disks
- Transport trolley
OPERATING INSTRUCTIONS
BEFORE STARTING
- Check engine oil level.
- Make sure that all blades are at the same angle. If necessary adjust the blade angle.
- Make sure that the safety switch works properly.
STARTING
ALWAYS HAVE THE THROTTLE PEDAL AT IDLE WHEN STARTING ENGINE.
- Take place on the seat. If the operator is not in place, because of the safety switch, the engine will never start.
- Pull the choke lever. Only if the engine is cold.
- Turn the ignition switch key "ON" in order to start engine.
- After the engine starts push the choke lever and let the engine warm up for two or three minutes at idle speed.
- Apply throttle pedal slowly. Blades will start to turn. Continue applying throttle until desired speed is obtained.
RAMIRENT

6
STOPPING
Release the throttle pedal at idle position.
Switch ignition key "OFF".
IMPORTANT
KEEP CLEAR OF ROTATING PARTS WHEN OPERATING.
ALWAYS HAVE THROTTLE POSITION AT IDLE WHEN STARTING ENGINE.
NEVER LIFT BY THE GUARD RING.
REMOVE SMOOTHING DISC BEFORE LIFTING.
ALWAYS TEST SAFETY SWITCH FOR PROPER OPERATION BEFORE BEGINING.
NEVER REFUEL WHILE RUNNING OR WHILE ENGINE IS HOT.
REFUEL IN WELL VENTILATED AREA, AWAY FROM SPARKS AND OPEN FLAME.
ALWAYS DISCONNECT SPARK PLUG BEFORE SERVICING.
BE CAREFUL WHEN WORKING AROUND PIPES AND EDGES.
GET HELP WHEN LIFTING OR MOVING THE POWER TROWEL.
NEVER OPERATE WITH BELT OR ANY OTHER GUARD REMOVED.
MAINTENANCE
DAILY
Clean cement from machine and coat blades arms with diesel fuel after each use.
Check oil in engine. Add oil as needed to reach up to the maximum level.
Do not overfill. Refer to the engine instruction book.
Check oil in reduction gear box by removing check plug at side of gear box.
Refill as needed with SAE 140-160 gear oil.
Clean air filter foam cover.
Check blade pitch adjustment for proper operation.
Check safety switch for proper operation
WEEKLY (50 hours)
Check belts tension.
Check blades for excessive wear. If necessary reverse or replace the blades.
Change engine oil. Refer to the engine instruction book.
If necessary grease the blade arms (6 points) main shaft bearing (x2).
and the pitch control (6 points).
BELTS REPLACEMENT :
Remove drive belt guard. Cut old belts off machine.
Remove spare belt carrier from fuel tank. After spare belts are accessed spare part belt carrier should be reinstalled.
Install belts over clutch and pulley. Start engine and check clutch operation and adjust belt if required.
Reinstall belt guard.
PART NUMBERS :
BG70 HBA H P/N 368678
BG70 HBA H USA P/N 368942
Set of (x2) smooting discs P/N 368979
Set of (x8) blades P/N 367277
Transport trolley P/N 360442
RAMIRENT

7

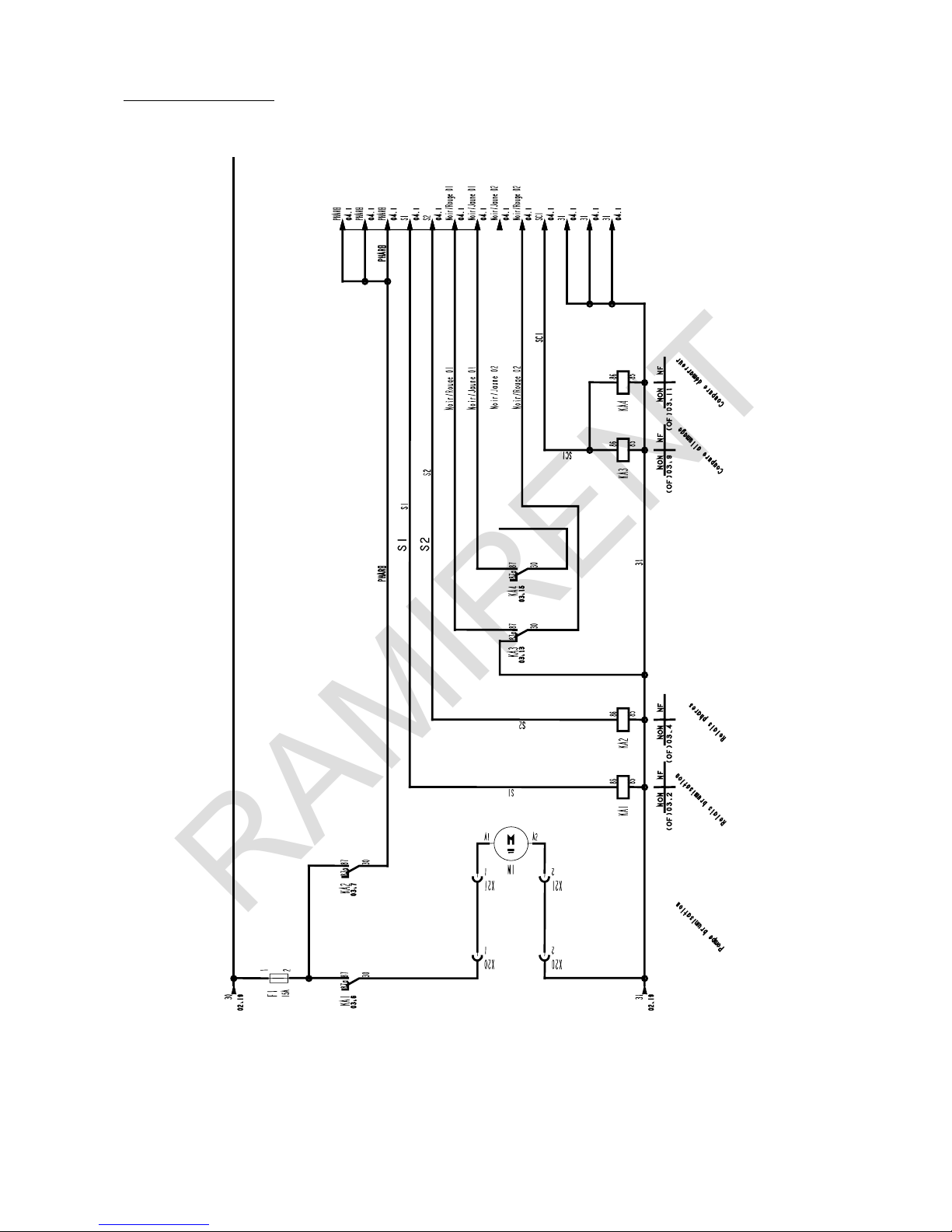

WIRINGS DIAGRAM
