Dynapac LH 300 Troubleshooting guide

Forward and Reversible Vibrating Plates
LH 300, LH 700
Operation & Maintenance
ILH300EN4, April 2002
Petrol Engine:
LH 300: Honda GX270
Diesel Engine:
LH 300: Hatz 1B30
LH 700: Hatz 1D90V
These instructions apply from:
LH 300 PIN (S/N) *30060135* Honda
LH 300 PIN (S/N) *30030130* Hatz
LH 700 PIN (S/N) *70030170* Hatz
Reservation for changes.
Printed in Sweden.
The Dynapac LH 300 and LH 700 forward and reversible plate compactors are
heavy-duty plates for soil applications, ideally used for compaction of backfill in pipe
and cable trenches, as well as road repair and maintenance work.
They are fully hydraulic, which greatly improves the engine plate’s devibration. High
operational reliability is guaranteed because no moving parts are subjected to vibration.
The LH design includes a strong cover that withstands severe shock and also protects all vital
parts of the machine. The engine cover is foldable for easier access and service. The LH plates
are designed for operation in well ventilated spaces, as all combustion engine machines.
KEEP THIS MANUAL
AVAILABLE FOR
FUTURE USE

2LH 300/700 ILH300EN4
CONTENTS
WARNING SYMBOLS
WARNING Indicates danger or hazardous
procedure that could result in serious or fatal
personal injury if the warning is ignored.
CAUTION Indicates danger or hazardous proce-
dure that could result in damage to machine or
property if the warning is ignored.
Read through the entire manual before
starting any maintenance operations.
Ensure good ventilation (air extraction) if the
engine is run indoors.
The safety instructions are included in this
manual and must be studied by the operator.
Always follow the safety rules and keep the
manual available for future use.
SAFETY INSTRUCTIONS CALIFORNIA
Proposition 65 Warning
Diesel engine exhaust and some of
its constituents are known to the State
of California to cause cancer, birth
defects, and other reproductive harm.
WARNING
CAUTION
WARNING
WARNING
WARNING
Page
General............................................................................ 3
Machine plate .................................................................. 3
Safety instructions (For all Light products) ................. 4-6
Safety when driving ........................................................ 7
Safety decals, Location/Description ........................... 8-9
Fuel and lubricants ........................................................ 10
Technical data............................................................... 11

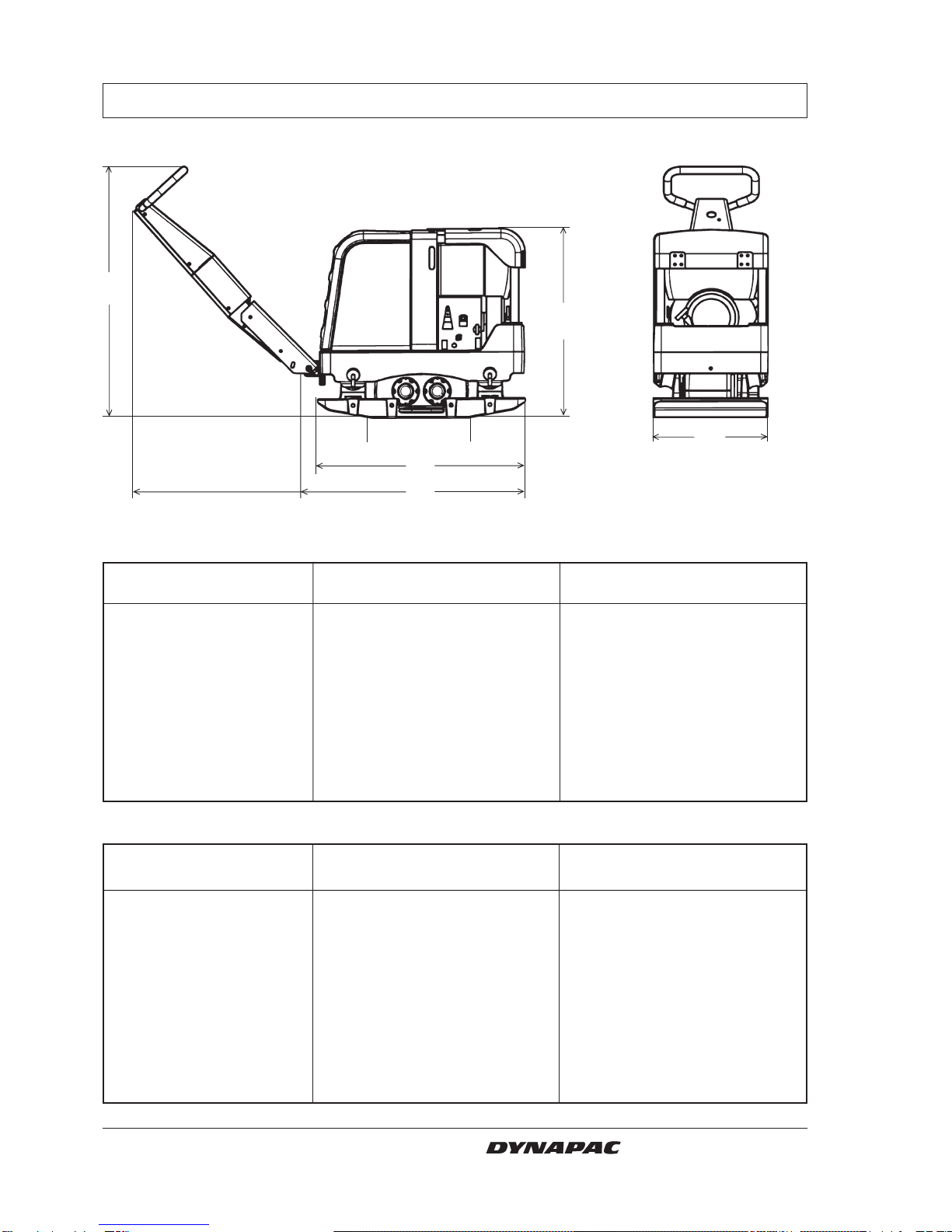

Technical data – Dimensions ....................................... 12

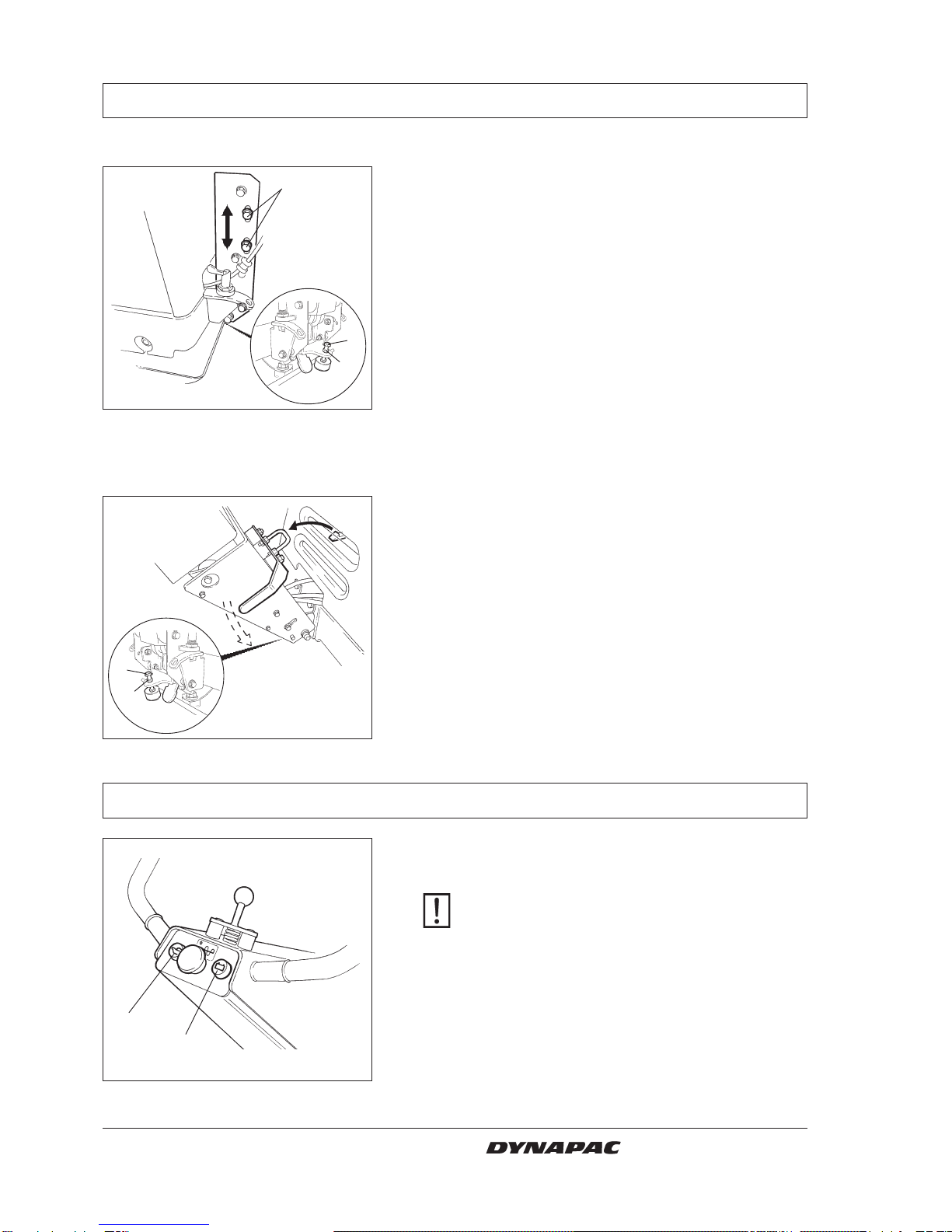

Handle position ............................................................. 13

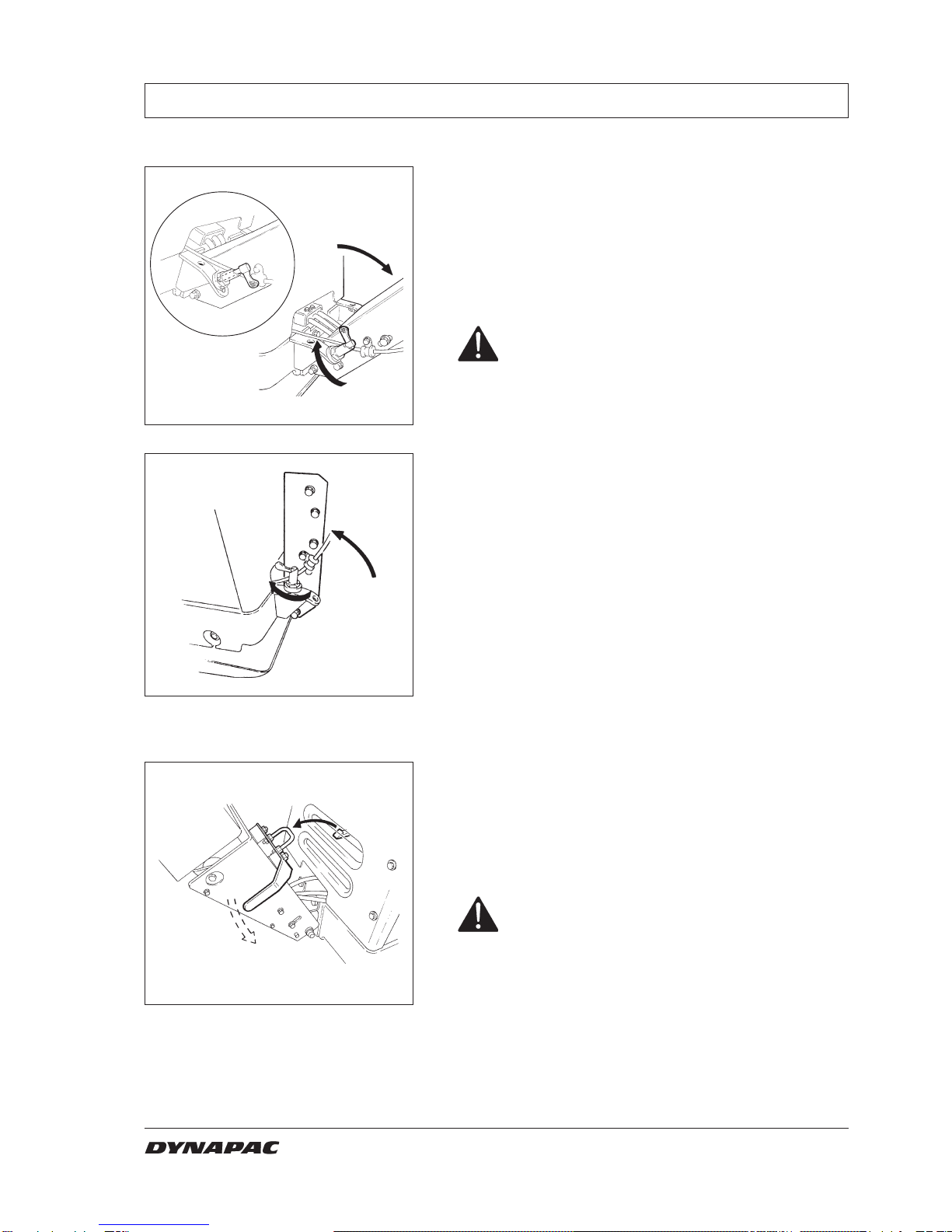

Handle adjustments ...................................................... 14
Kontrollampor – LH 700 ................................................ 14
Operation – Honda GX270, manual start................ 15-16
Operation – Hatz 1B30, manual start ...................... 17-18
Operation – Hatz 1B30, 1D90V, El.start ................. 19-20
Operation ...................................................................... 21
Lifting and transportation .............................................. 22
Maintenance – Service points ................................. 23-24
Maintenance – Every 10 hours of operation ............... 25
Maintenance – Every 100 hours of operation ............. 26
Maintenance – Every 500 hours of operation ............. 27
Maintenance – Every 1000 hours of operation ........... 28

3
LH 300/700 ILH300EN4
....................................... ......................................

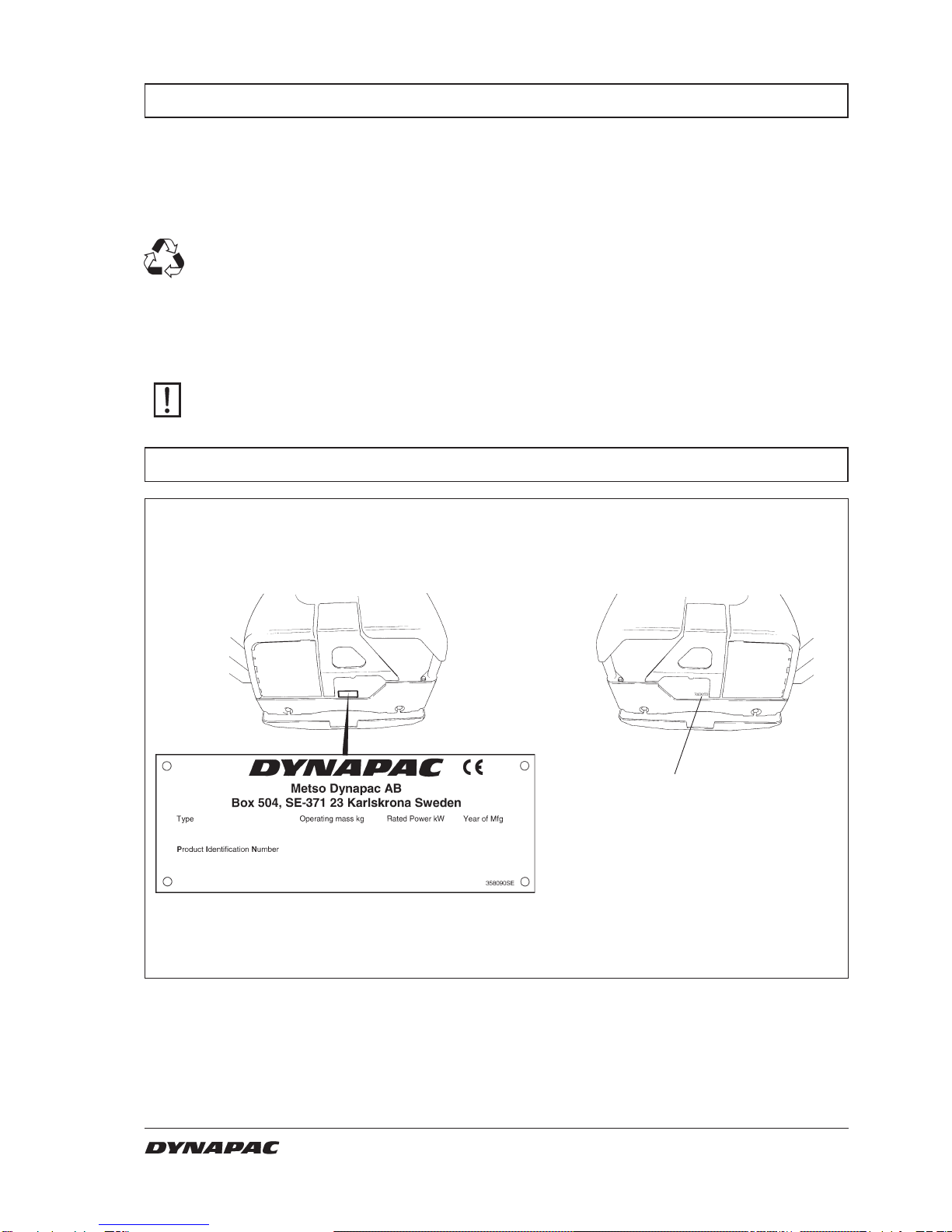

Engine Model EngineNumber
Serial number on frame
MACHINE PLATE
Fill in all data below, when delivering and
commissioning the machine.
GENERAL
L000473A L000474A
It is important that the machine is maintained correctly to ensure proper function. It should be
kept clean so that any leakage, loose bolts and loose connections can be discovered in time.
Make a habit of inspecting the machine every day before starting up by checking all round it to
detect any sign of leakage or other faults.
SPARE A THOUGHT FOR THE ENVIRONMENT!
Do not let oil, fuel and other environmentally hazardous substances contaminate the
environment. Always dispose of used filters, drained oil and any remaining fuel
properly.
This manual contains instructions for periodic attention which should normally be carried out by
the operator.
There are additional instructions relating to the engine, for which the manufacturer’s
instructions are detailed in the engine manual.
CAUTION

4LH 300/700 ILH300EN4
SAFETY INSTRUCTIONS (FOR ALL LIGHT PRODUCTS)
Symbols
The signal words WARNING and CAUTION
used in the safety instructions have the
following meanings:
WARNING: Indicates danger or
hazardous procedure that could
lead to serious or mortal injury if
the warning is neglected.
CAUTION: Indicates danger or
hazardous procedure that could
lead to machine or property dam-
age if the warning is neglected.
Important rules for your safety
The machine must not be modified
withoutthepriorconsentoftheman-
ufacturer. Use only original parts.
Use only the accessories recom-
mendedbyDynapac.Ifmodifications
not approved by Dynapac are car-
ried out, these could result in seri-
ous injury to yourself or other per-
sonnel.
• These recommendations are based on
international safety standards.
• You must also observe any local safety
regulations which may be in force. Read
all instructions carefully before operating
the machine. Keep the instructions in a safe
place.
• Signs and stickers giving important informa-
tion about safety and maintenance are
supplied with every machine. Make sure
that they are always legible. The ordering
numbers for new stickers can be found in
the spare parts list.
• Use of the machine and its accessories is
restricted to the applications specified in
the product literature.
• For reasons of product safety, the ma-
chine must not be modified in any way.
• Replace damaged parts immediately.
Replace all wear parts in good time.
Be alert
Always pay attention to what you are doing,
and use your common sense. Do not use the
machine if you are tired or under the influence
of drugs, alcohol or other substances which
can effect your vision, reaction ability or judge-
ment.
Safety equipment
Longexposure toloud noisewithout
ear protectors can cause permanent
damage to hearing.
Longexposuretovibrationscandam-
age the hands, fingers and wrists.
Do not use the machine if you experi-
ence discomfort, cramp or pain. Con-
sult a doctor before resuming work
with the machine.
Always use approved safety equipment. The
operator, and people in the immediate vicinity
of the working area, must wear:
• Safety helmet
• Safety goggles
• Ear protectors
• Dust mask in dusty environments
• High-visibility clothing
• Protective gloves
• Protective shoes
Avoid wearing loosely fitting clothing that might
get caught in the machine. If you have long
hair, cover it with a hair net. Vibrations from
hand-held machines are transmitted into the
hands via the handles of the machine. Dynapac
machines feature a handle design that ab-
sorbs a large part of the machine vibrations.
The vibrations are not eliminated entirely, but
it is possible to use the machines for longer
periods of time without the risk of injury.
Be alert to acoustic signals from other ma-
chines in the working area.
Working area
Do not use the machine near flammable mate-
rial or in explosive environments. Sparks can
be emitted from the exhaust pipe, and these
can ignite flammable material. When you take
a pause or have finished working with the
machine, do not park it on or near flammable
materials. The exhaust pipe can get very hot
during operation, and can cause certain mate-
rial to ignite. Make sure that there are no other
personnel inside the working area while the
machine is in use. Keep the worksite clean and
free of extraneous objects. Store the machine
in a safe place, out of unauthorized’s reach,
preferably in a locked container.
WARNING
CAUTION
WARNING
WARNING
WARNING

5
LH 300/700 ILH300EN4
SAFETY INSTRUCTIONS (FOR ALL LIGHT PRODUCTS)
Always take extreme care when driv-
ing the machine on slopes. Always
drivestraightupanddownonslopes.
Do not exceed the maximum grada-
bilityof themachine accordingtothe
instruction book. Stay clear of ma-
chine when operating on a slope or
in a trench.
Do not touch the engine, the exhaust pipe or
the eccentric element of the machine. They
gets very hot during operation and can
cause burn injuries.
Do not touch V-belts or rotating parts during
operation.
Parking
Park the machine on ground as level and
firm as possible. Before leaving machine:
• Apply the parking brake.
• Shut off the engine and pull the ignition key
out.
Loading/Unloading
Never remain under or in the
immediate vicinity of the machine
when it is lifted by a crane. Only use
marked lifting points. Always make
sure that all lifting devices are
dimensioned for the weight of the
products.
Maintenance
Maintenance work must only be carried out by
skilled personnel. Keep unauthorized persons
away from the machine. Do not carry out
maintenance work while the machine is mov-
ing or the engine is running.
Fillingwithfuel(Gasoline/diesel)
Petrol has an extremely low flash-
pointandcanbeexplosiveincertain
situations.Donotsmoke.Makesure
that worksite ventilation is good.
Keep away from all hot or spark-generating
objects when handling fuel. Wait until the ma-
chine has cooled before filling the tank. Fill the
tank at least 3 metres away from where you
intend to use the machine. Avoid spilling pet-
rol, diesel or oil on the ground. Protect your
hands from contact with petrol, diesel and oil.
Open the tank cap slowly to release any
overpressure that might exist in the tank. Do
not overfill the tank. Inspect the machine for
fuel leakage regularly.
Do not use a machine that is leaking fuel.
Starting the machine
Before starting read instruction
book and make your self familiar
with the machine and make sure
that:
• All handles are free from grease, oil and dirt.
• The machine does not show any obvious
faults.
• All protective devices are securely fastened
in their places.
• All control levers in ”neutral” position.
Start the machine according to the instruc-
tion-book.
Operation
Keep your feet well clear of the
machine.
Do not operate the machine in
poorly ventilated spaces. There is
a risk of carbon monoxide poison-
ing.
Use the machine only for the purpose for
which it is intended. Make sure you know how
to stop the machine quickly in the event of an
emergency situation.
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING

6LH 300/700 ILH300EN4
SAFETY INSTRUCTIONS (FOR ALL LIGHT PRODUCTS)
Working with the hydraulic system
Regular maintenance of the hydraulic system
is important. Minor damage or a split hose or
coupling can have devastating conse-
quences. Bear in mind that the hydraulic hoses
are made of rubber and can deteriorate with
age, which can result in splitting. In all cases of
uncertainty with regard to durability or wear,
replace the hoses with new original hoses
from Dynapac.
Working with battery
The battery contains poisonous and corro-
sive sulphuric acid. Wear protective glasses
and avoid getting acid on your skin, clothes or
on the machines. If you get sulphuric acid on
yourself, rinse the skin with water. If you get
acid in your eyes, rinse them with water for at
least 15 minutes and seek immediate medical
treatment. The gas that is emitted by the
battery is explosive. When fitting or replacing
a battery, always take care so that you do not
short- circuit the battery poles.
Repair
Never use a machine that is damaged. Quali-
fied repair work requires trained personnel,
please contact your nearest authorized work-
shop.
Extinguishing fires
If there is a fire in or on the machine, it is
best to use an ABE-class fire extinguisher.
However, a BE-class CO2extinguisher is
also suitable.

7
LH 300/700 ILH300EN4
SAFETY WHEN DRIVING
L000264A
L000263A
L000262A
Max 20°
or 36%
Slopes
Driving on slopes
Max 20°
or 36%
Tippingangleonsideslopes
When driving near an edge, at least two thirds of the
plate must be on firm solid ground.
If the machine tips over, switch off the
engine before attempting to lift the machine.
Make sure that the work site is safe. Wet and loose
earth reduces manoeuvrability especially on sloping
ground. Always observe particular caution on slop-
ing and uneven terrain.
Where possible, avoid all driving across a
slope. Instead, drive up and down on slop-
ing ground.
Never work on slopes that are greater than the
capability of the machine. Maximum slope of the
machine in operation is 20° (depending on condition
of the ground).
The tilting angle is measured on a hard, level sur-
face with the machine stationary. Vibration switched
OFF and all tanks full. Remember that loose ground,
vibration switched ON, and driving speed can all
cause the machine to topple even on a smaller
slope than specified here.
Never leave the machine unattended with
the engine running.
Driving near an edge
At least
2/3
Machine location when operating on edges
WARNING
WARNING
WARNING

8LH 300/700 ILH300EN4
SAFETY DECALS, LOCATION/DESCRIPTION
51 3
462
78
L000425A

9
LH 300/700 ILH300EN4
Lifting
point Diesel
Use ear
protectors
The operator must read the
safety manual, and the
operation and maintenance
instructions before using
the machine.
Warning for rotating engine
components. Keep your
hands at a safe distance
from the danger zone.
Hydraulic
fluid Hydraulic
bio-fluid
Lock the handle during
transport.
Petrol
Warning - Crush zone.
Keep your hands at a safe
distance from the danger
zone.
283743
272372
904601
991658283743
Bio-Hydr.
1. 2.
3.
6.
4.
5.
7. 8. Alt. 1 Alt. 2
Alt. 1 Alt. 2
SAFETY DECALS, LOCATION/DESCRIPTION

10 LH 300/700 ILH300EN4
Stop the engine before refilling the fuel
tank. Never refuel near an open flame or
sparks, which could start a fire. Don't smo-
ke. Use pure fuel and clean filling equip-
ment. Take care not to spill fuel.
FUEL AND LUBRICANTS
ENGINE OIL Use SAE 15W/40:
Honda GX270 1,1 l (1.2 qts) Shell Rimula TX15W-40
Hatz 1B30 1,1 l (1.2 qts) Shell Rimula TX15W-40
Hatz 1D90V 1,9 l (2.0 qts) Shell Rimula TX15W-40
EXCENTEROLJA Use SAE 15W/40:
LH 300 0,5 l (0.5 qts) Shell Rimula TX15W-40
LH 700 0,5 l (0.5 qts) Shell Rimula TX15W-40
HYDRAULIC FLUID Hydraulic fluid, recommendations:
LH 300 19,0 l (5.0 gal) Shell Tellus TX68
LH 700 27,0 l (7.1 gal) Shell Tellus TX68
BIODEGRADABLE Shell Naturelle HF-E46
HYDRAULIC FLUID On delivery from the factory the machine may have been
filled with biodegradable fluid. Always use the same type of
oil when changing or topping off.
FUEL Honda
Use ordinary grade petrol (unleaded)
Volume: Honda GX270 6,0 l (6.3 qts)
FUEL Hatz
Use diesel oil which satisfy EN 590 or DIN 51601
Volume: Hatz 1B30 5,0 l (5.3 qts)
Hatz 1D90V 7,0 l (7.4 qts)
Service parts P/N
HondaGX270 Hatz1B30 Hatz1D90V
Engineair filter element 93 74 99 93 70 13 23 94 23
Engineoilfilter - 93 74 15 23 93 26
Enginefuelfilter 23 82 62 93 74 14 93 74 30
LH300 LH300 LH700
Hydraulicfilter 28 41 79 28 41 79 28 41 79
WARNING

11
LH 300/700 ILH300EN4
TECHNICAL DATA
Order No. LH 300 LH 300 LH 300 LH 700
Honda Hatz Man. Hatz El. Hatz El.
Weight
Operating weight
EN500, kg (lbs) 322 (710) 327 (721) 337 (743) 768 (1.693)
Compaction data
Vibr. frequency, Hz 68 68 68 53
Vibr. frequency, vpm 4080 4080 4080 3180
Centrifugal force, kN (lbf) 40 (9.000) 40 (9.000) 40 (9.000) 95 (21.400)
Amplitude, mm (in) 1,9 (0.75) 1,9 (0.75) 1,9 (0.75) 2,5 (0.98)
Operating data
Speed of travel,
m/min (feet/min) up to 22 (72) up to 22 (72) up to 22 (72) up to 30 (98)
Max. tilt, % 35 35 35 35
Volumes
Fuel tank, lit. (qts) 6.0 (6.3) 5.0 (5.3) 5.0 (5.3) 7.0 (7.4)
Crank case, lit. (qts) 1.1 (1.2) 1.1 (1.2) 1.1 (1.2) 1.9 (2.0)
Hydraulic fluid, lit. (gal) 19.0 (5.0) 19.0 (5.0) 19.0 (5.0) 27.0 (7.1)
Eccentric element, lit. (qts) 0.5 (0.5) 0.5 (0.5) 0.5 (0.5) 1.5 (1.6)
Fuel consumtion, l/h (qts/h) 1.5 (1.6) 1.5 (1.6) 1.5 (1.6) 2.3 (2.4)
Engine
Model Honda Hatz Hatz Hatz
GX270 1B30 1B30 1D90V
Recoil start Recoil start Elstart/Recoil start Elstart
Output, kW (hp) 6.6 (8.8) 5.0 (6.7) 5.0 (6.7) 11.5 (15.4)
Engine speed, rpm 3500 3500 3500 3000
Noise and Vibrations
Noise level Sound pressure level at the operator's ear according to ISO 6394:
LpA dB(A) = 92 95 95 95
Sound power level according to ISO 3744:
LwA dB(A) = 106 108 108 111
Vibration values Hand - arm vibration values according to ISO 5349:
am/s2 = 0,27 1,10 1,53 0,45
The above noise level and vibration values were determined at normal engine speed with
vibration on. The machine was placed on an elastic base.
During operation these values may differ because of the actual operational conditions.
Noise level according to EU directive 2000/14/EC for EU equipped machine, on macadam
course with vibration switched ON:
Measured sound power level,
LwA, dB(A) = 107 107 107 108
Guaranteed sound power level,
LwA, dB(A) = 108 108 108 109

12 LH 300/700 ILH300EN4
LH 300 LH 700
Amm (inch) 1430 (56) 1880 (74)
Bmm (inch) 450 (18) 660 (26)
Cmm (inch) 720 (28) 795 (31)
Dmm (inch) 1090 (43) 1180 (46)
Emm (inch) 820 (32) 1050 (41)
Contact area,
m2(sq feet) 0,173 (1.86) 0,290 (3.12)
Tillbehör LH 300 LH 700
Extension plates
Width, mm (inch) 2x75=150 (2x3=6) / 2x75=150 (2x3=6) /
2x125=250 (2x5=10) 2x150=300 (2x6=12)
Weight, kg (lbs) 9.2 (20) / 13.6 (30) 14.6 (32) / 24.6 (54)
Contact area, Width Width
m2(sq feet) 150 (6): 0.231 (2.49) 150 (6): 0,356 (3.83)
250 (10): 0.270 (2.91) 300 (12): 0.422 (4.54)
TECHNICAL DATA – DIMENSIONS
B
CONTACT AREA
E
D
A
C
L000436
L000425A

13
LH 300/700 ILH300EN4
HANDLE POSITION
LH 300
LH 700
L000426A
L000427
L000437
L000428
1. Working/Extra power positions:
The handle has two operating positions. The
normal working position is with the locking device
unlocked, so the handle can move freely. The
extra power position, with the locking device in
the lower locked position, is used to get power
and control on wet and very soft materials.
Hold the handle while releasing the catch.
There are two catches, one on each side of
the handle.
1. Working/transport positions:
The handle has two positions. When operating
the machine, press the locking device lever and
pull the handle down to the lower position. When
transporting the machine, raise the handle and
push it to locked position.
Hold the handle while releasing the catch.
Extra power position
Transportposition
2. Transport position:
When transporting the machine, turn and lift the
locking device and raise the handle to the upper
position. Always lock the handle when transpor-
ting the machine.
Workingposition
Workingposition
WARNING
WARNING

14 LH 300/700 ILH300EN4
HANDLE ADJUSTMENTS
LH 700
LH 300
1
KONTROLLAMPOR – LH 700
2
1
3
2
3
2
L000439
L000438
L000439
L000440
L000441
LH 300 and 700
The operation angle of the handle can be adjusted
by loosening the bolt (2) and tightening it in desired
position. Loosen the bolt and lock nut (3) and pull
them to the desired position.
LH 300
Handle stiffness can be adjusted by loosening the
bolts (1). The flex of the shock absorbers can be
adjusted by moving the pins outward for a stiffer
handle with more control, or inward for a softer but
more de-vibrated handle.
1. Stiffness adjustment bolt
2. Angle adjustment bolt
3. Lock nut
2. Angle adjustment bolt
3. Lock nut
The LH 700 has two warning lamps, one for oil pres-
sure (1) and one for charging (2).
The charging and oil pressure lamps must be
extinguished during normal operation. If the
lamps do not go out, stop the machine and
take corrective action.
1. Oil pressure lamp
2. Charging lamp
CAUTION

15
LH 300/700 ILH300EN4
OPERATION – HONDA GX270, MANUAL START
Max.
2
1
6
3
5
9
4
7
10
8
L000442
L000443
L000444
L000445
L000446
1. Open upper cover by pulling it forward.
2. Fill the fuel tank. Tank volume 6.0 lit. (6.3 qts)
Before start
Starting the engine 3. Check the engine oil level.
Oil volume 1.1 lit. (1.2 qts)
4. Set the fuel handle at open position.
5. Move the choke lever to the left for full choke.
Do not use the choke if the engine is warm or
ambient temperature is high.
6. Turn the start button to start the engine.
7. Set the throttle in starting mode, indicated by the
forward position of the recess.
8. Pull out the handle slowly to the point where you
feel resistance, then pull briskly. Then return the
handle to its initial position.
9. When you start the engine, leave it in
neutral a few minutes and warm up with
no load. The plate begins to move when
you apply hydraulic power by giving full
throttle.
10. As the engine warms up, gradually move the
choke lever to the right to disable choke.
WARNING

16 LH 300/700 ILH300EN4
OPERATION – HONDA GX270, MANUAL START
1 2
3
4
L000447
L000448
L000449
Stopping the engine
4. Close the fuel handle.
3. Turn the stop button to stop the engine.
1. Put the throttle in neutral. Let engine run a few
minutes.
2. Throttle in stop position.

17
LH 300/700 ILH300EN4
OPERATION – HATZ 1B30, MANUAL START
Max.
2
1
3
5 6
7
8
4
L000452
L000445
L000451
L000450
1. Open upper cover by pulling it forward.
2. Fill the fuel tank. Tank volume 5.0 lit. (5.3 qts)
Before start
Starting the engine
3. Check the engine oil level.
Oil volume 1.1 lit. (1.2 qts)
5. Pull the starting cable out by the handle until you
feel a slight resistance. Let the cable run back; in
this way the entire length of the starting cable can
be used to start the engine.
6. Grip the handle with both hands.
7. Begin pulling the starting cable vigorously and at
an increasing speed (do not jerk it violently) until
the engine starts.
If after several attempts at starting the exhaust
begins to emit white smoke, move the speed
control lever to the stop position and pull the
starting cable out slowly 5 times. Repeat the
starting procedure.
8. When you start the engine, leave it in
neutral a few minutes and warm up with
no load. The plate begins to move when
you apply hydraulic power by giving full
throttle.
4. Set the throttle in starting mode, indicated by the
forward position of the recess.
WARNING
CAUTION

18 LH 300/700 ILH300EN4
OPERATION – HATZ 1B30, MANUAL START
1 2
3
L000447
L000453
Stopping the engine
1. Put the throttle in neutral. Let the engine idle for a
few minutes to cool down.
2. Put the throttle in stop mode.
3. Push the engine switch to OFF.

19
LH 300/700 ILH300EN4
OPERATION – HATZ 1B30, 1D90V, EL.START
Max.
2
Hatz 1B30
Hatz 1D90V
2
3
5
I
II
O
6
III
LH 700
4
L000450
L000455
L000456
L000457
1
L000454

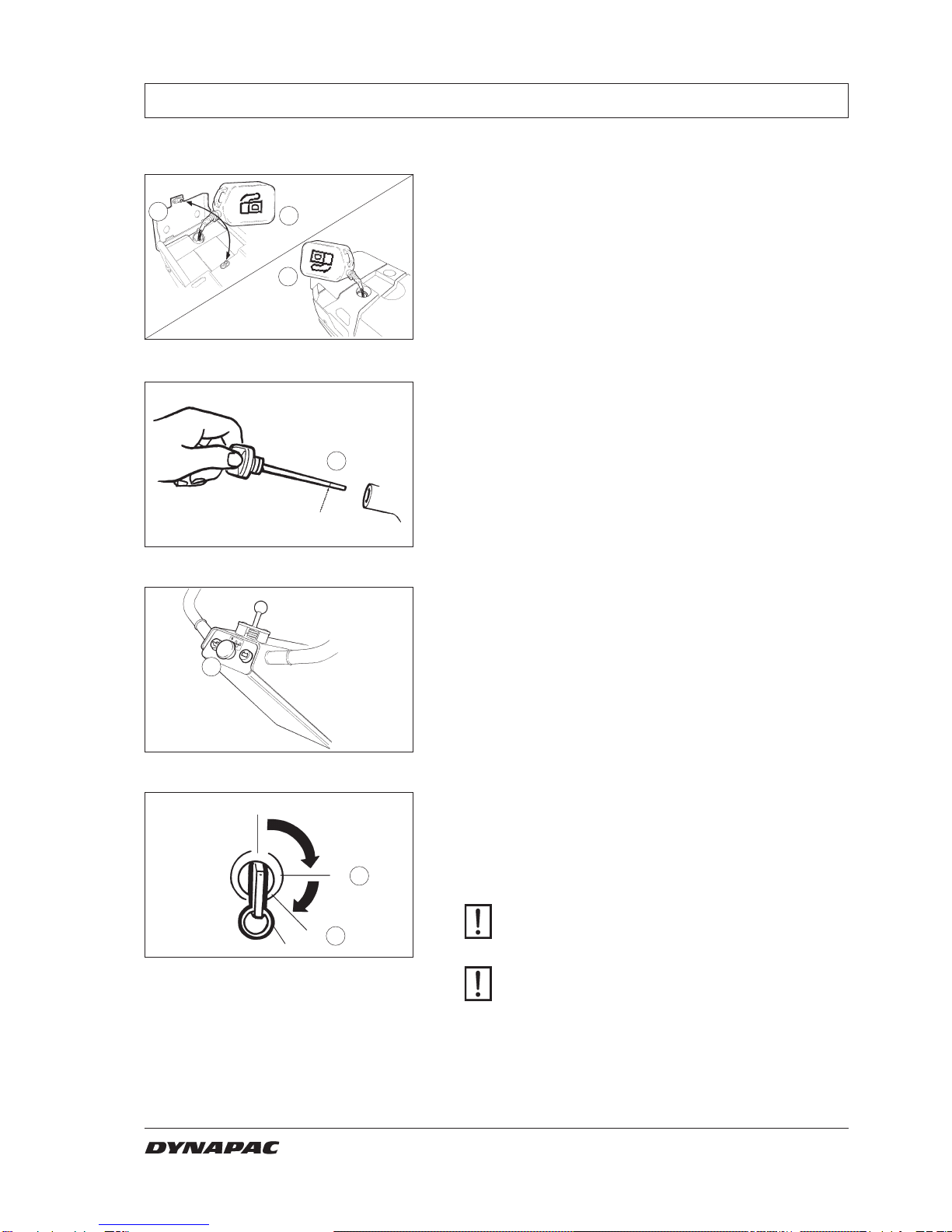

1. Hatz 1B30; open upper cover by pulling it for-
ward.
2. Fill the fuel tank.
Tank volume: Hatz 1B30 5.0 lit. (5.3 qts)
Hatz 1D90V 7.0 lit. (7.4 qts)
Before start
Starting the engine
3. Check the engine oil level.
Oil volume: Hatz 1B30 1.1 lit. (1.2 qts)
Hatz 1D90V 1.9 lit. (2.0 qts)
4. LH 700: Press the emergency knob (vibration
OFF).
5. Insert the starter key and turn it to position I.
Charging and oil pressure indicators light up.
6. Turn the starter key through position II to III.
Release the key as soon as the engine runs.
Ensure that the key stays at mode II.
The charging and oil pressure lamps must be
extinguished during normal operation. If the
lamps do not go out, stop the machine and
take corrective action.
CAUTION
CAUTION

20 LH 300/700 ILH300EN4
OPERATION – HATZ 1B30, 1D90V, EL.START
1
O
2
L000459
L000458
Stopping the engine
1. Throttle in stop position.
2. Turn the starter key to position Oand remove it.
All indicator lights must go out.
The ignition key must be turned to O, or else
the machine will consume electric power.
Always remove the key when you leave the
machine, and keep it in a safe place. This
will make it difficult for any unauthorized
person to start and drive the machine.
CAUTION
WARNING
