Dyson airblade AB02 User manual

Owner’s Manual
Owner’s Manual
5year parts limited warranty
5year parts limited warranty
120v – US specification
120v – US specification
18695_AB02_OP_MAN_US.qxd 29/8/07 14:42 Page 1

Why Dyson developed the
AirbladeTM hand dryer
Paper towels have always been expensive, labor-intensive,
and bad for the environment. Conventional hand dryers are
more economical, but are notoriously frustrating to use.
Finally, a hand dryer that works properly.
The Dyson AirbladeTM was engineered to be the fastest, most
hygienic hand dryer available. It is also energy-efficient and
cost-effective to run.
Fastest dry
The AirbladeTM hand dryer dries hands differently. It uses a high
velocity blade of air to literally wipe water from hands, leaving
them completely dry in just 12 seconds.
1Thank you for buying the Dyson AirbladeTMhand dryer.
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer.If you have
questions, contact the manufacturer.
2. Before servicing or cleaning unit, switch power off at service panel and lock
the service disconnecting means to prevent power from being switched on
accidentally. When the service disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag,to the service panel.
3. Installation work and electrical wiring must be done by qualified person(s) in
accordance with all federal, state and local applicable codes and standards,
including fire-rated construction.
4. When cutting or drilling into wall or ceiling,do not damage electrical
wiring and other hidden utilities.
ENG
18695_AB02_OP_MAN_US.qxd 29/8/07 14:42 Page 2

The most hygienic hand dryer
The Dyson AirbladeTMuses a HEPA filter to remove over 99.9%
of bacteria from the air used to dry hands and has anti-microbial
additives integrated into its surfaces.
Uses up to 80% less energy
Conventional hand dryers rely on inefficient motor technology and high power
heating elements to dry hands, often taking over 22 seconds and wasting energy.
The AirbladeTM hand dryer is powered by the energy efficient 1400w Dyson
Digital Motor, has no heating element, and takes only 12 seconds to dry
hands. As a result, the AirbladeTM hand dryer uses up to 80% less energy per
drying cycle.
1. Insert your hands and the
AirbladeTM hand dryer will start
automatically.
2. Withdraw your hands slowly
upwards through the air a
couple of times to dry hands
thoroughly in 12 seconds
or less.
How to use
The AirbladeTM hand dryer generates a high velocity blade of air
that wipes hands dry in just 12 seconds.
Cost-effective
It is very expensive to procure, stock and dispose of paper towels.
Conventional hand dryers consume large amounts of electricity.
The AirbladeTMhand dryer, with a combination of high reliability,
low maintenance, and energy efficiency, offers considerable cost
savings throughout its lifetime. It uses up to 80% less energy than
conventional hand dryers, so running costs are considerably
lower. When compared to paper towels, the AirbladeTM hand
dryer offers operating cost savings of nearly 98%.
2
ENG
Dyson AirbladeTM
US $26.03
Paper towels
US $1200
Operating costs based on
200 dries/day and 300 days/year.
Paper towel costs based on
US $0.01/towel and 2 towels/dry.
They do not include any labor and
costs associated with dispensing
and disposing of paper. Dyson
AirbladeT M costs are based on
US $0.09/kWh and 12 seconds
dry time.
18695_AB02_OP_MAN_US.qxd 29/8/07 14:42 Page 3

READ BEFORE PROCEEDING FURTHER
CAUTION: Risk of electric shock! Do not remove casing or attempt repair unless
unit is being serviced by qualified service personnel. If casing is removed or handled
improperly the internal components of the Dyson AirbladeTM may cause harm or
become permanently damaged.
WARNING: To reduce the risk of fire or electric shock, do not expose the internal
mechanism/components of this unit to rain or moisture.
General notes:
The instructions contained within the Owner’s Manual must be read carefully before attempting
to install the AirbladeTM hand dryer. Read and retain for future reference.
Failure to accurately follow the instructions may result in the incorrect operation of the AirbladeTM
hand dryer,damage to property and/or personal injury.
Dyson will not be held liable for any damage to property or personal injury as a result of failure
to comply with the instructions contained herein.
Do not use AirbladeTM hand dryer for anything other than drying hands.
The AirbladeTM hand dryer must be grounded properly.
Trouble free operation and safety can only be continued by using genuine Dyson spare parts.
WARNING:
This product may contain substances known to the state of California to cause cancer,birth defects
and other reproductive harm. Wash hands after handling.
3
Important Safety
Information
Contents
4 Glossary of Terms
Contents of Box
•Tools needed
5 Installation Procedures
•Electrical requirements
6•Positioning
•Mounting Bracket
7• Removing the Fascia Cover
8•Connecting to Electrical Supply
9• Refitting Front Fascia & Access Panel
10 Final Inspection
Cleaning and Maintenance Advice
11 Troubleshooting
12-14 Limited Warranty Information
15 Contacting Dyson
READ AND SAVE THESE INSTRUCTIONS
Dyson AirbladeTM hand dryer
ENG
18695_AB02_OP_MAN_US.qxd 29/8/07 14:42 Page 4

4
Contents of Box
Dyson AirbladeTM hand dryer
Information pack containing:
•Owner’s Manual including warranty information
•Registration information and reply envelope
•Mounting Template
•Tamper proof service tool
•Mounting bracket
To install the AirbladeTM hand dryer you will need:
Electric drill & appropriate bits
Phillips screwdriver
Flat-head screwdriver
Level
Pencil or marking tool
Appropriate electrical fittings
(6) screws, toggle or masonry bolts and appropriate fittings.
(Recommended minimum size of 1/4”)
Dyson recommends the use of protective clothing,eyewear
and materials as necessary.
Glossary of Terms
Dyson AirbladeTM hand dryer
Air slots
Rating plate
Access panel Air inlet
Sensors x 4
Front fascia
Dyson Digital Motor
HEPAfilter
ENG
18695_AB02_OP_MAN_US.qxd 29/8/07 14:42 Page 5

Dyson AirbladeTM hand dryer
5
Electrical requirements
Installation Procedures

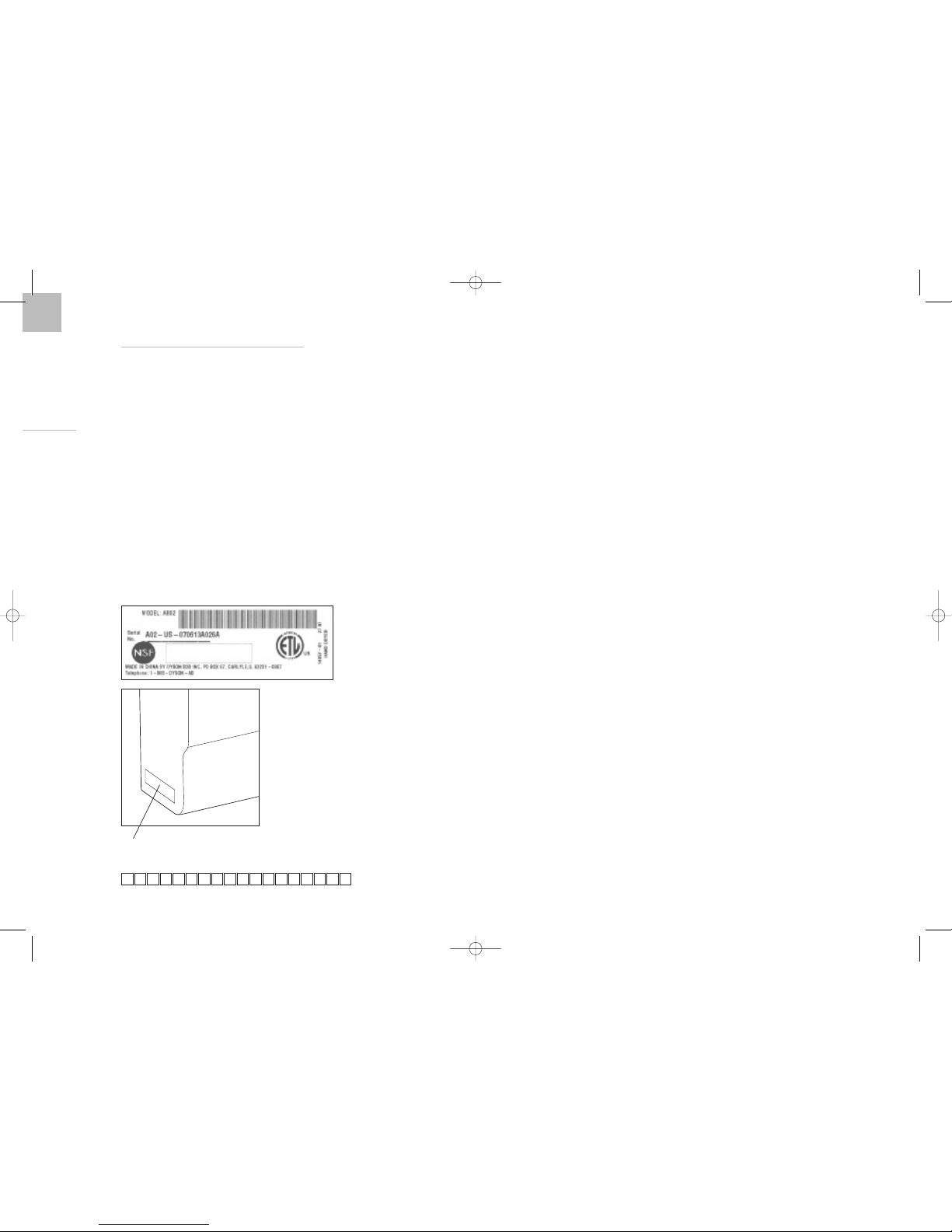

Check that the electrical
supply will correspond with the
rating plate located on the
lower left side of the unit.
If the unit is connected to any
electrical supply other than
what is stated on the rating
plate of the unit, permanent
damage or improper/unsafe
operation of the AirbladeTM
may result.
A means for all pole
disconnection must be
incorporated in the fixed wiring
to the appliance in accordance
with local wiring regulations.
Installation work and
electrical wiring must be
done by qualified person(s)
in accordance with all federal,
state and local applicable
codes and standards,
including fire-rated
construction.
The Dyson AirbladeTM
requires:
Aseparate or dedicated circuit
Aminimum 15amp time delay
fuse or circuit breaker
If you have any questions
on the installation please
call our Dyson Helpline toll
free at 1-888-DYSON-AB
ENG
18695_AB02_OP_MAN_US.qxd 29/8/07 14:42 Page 6

6
Select a location that will allow
accessibility to the AirbladeTM
and proper clearance from
surroundings and floor. Make
sure that the unit is installed in
compliance with all building
codes and/or regulations.
Position the mounting template
provided on the wall where the
AirbladeTM hand dryer is to be
installed.
Recommended heights are
shown in Fig 1,but may need to
be adjusted for each individual
installation.
Mark the 6 mounting holes as
highlighted in Fig 1.
Verify marks are level and in
the correct locations.
Drill holes where marked.
Electrical supply connection
2”
Bracket mounting height:
39” adult male height
36” adult female height
32” child/wheelchair user height
29.75”adult male height
26.75”adult female height
22.75”child/wheelchair user height
Floor
Positioning
Installation Procedures
Fig 1
There are two electrical
entrance locations available to
ease with the installation of the
AirbladeTM.Mark only one of
the electrical supply locations
illustrated in Fig 1 and drill
the hole large enough to
accommodate the incoming
flexible metal conduit and
supply cable.
Mounting Bracket
Fig 2
x 2
Ensure that marks are level and
in the correct location as
illustrated in Fig 2.
Securely fasten the mounting
bracket to the wall.
Dyson AirbladeTM hand dryer
ENG
WARNING: Before
beginning any installation
work you must confirm the
following:
Make sure that the electrical
supply has been disconnected
or switched off before attempting
installation to avoid the risk of
electrical shock or electrocution.
Ensure no pipe work
(gas, water, air) or electrical
cables, wires or ductwork are
located directly behind the
drilling area.
18695_AB02_OP_MAN_US.qxd 29/8/07 14:42 Page 7

Dyson AirbladeTM hand dryer
Installation Procedures
Fig 5 Fig 6
Removing the
Fascia Cover
WARNING: Use caution
when removing casing.
The casing may have sharp
edges/corners which may
cut or cause harm.
Place the AirbladeTM hand dryer
face up on a dry and clean
work surface to protect the
product and the property from
damage.
Fig 3
Fig 4
7Remove the (5) tamper proof
screws from the unit in the
sequence illustrated in Figs 3-5
with the provided tamper proof
service tool, then remove the
fascia cover as illustrated in Fig 6.
ENG
18695_AB02_OP_MAN_US.qxd 29/8/07 14:42 Page 8

Dyson AirbladeTM hand dryer
8
Connecting to the
Electrical Supply
CAUTION: Risk of electric
shock! Do not remove
casing or attempt repair
unless unit is being
serviced by qualified
service personnel.
If casing is removed or
handled improperly the
internal components of
the Dyson AirbladeTM may
cause harm or become
permanently damaged.
Connect to the electrical supply
using approved flexible or solid
conduit and electrical fittings.
Ensure that the flexible or solid
conduit and the electrical cable
is of sufficient length to make
the necessary connection to the
backplate and that the wires
are of sufficient length to reach
the terminal block.
Step 1.
Using a flat-head screwdriver,
pry the appropriate metal knock-
out from backplate in one of the
locations pictured in Fig 7.
Step 2.
Install electrical entrance fitting
into knock-out.
If mounting in knock-out 1:
Lay the unit flat on its back.
Remove the T-25 Torx screw at
the bottom of the PCB housing,
tilt the PCB housing up and pull
downward as illustrated in Fig 8.
Pull outward of gasket and turn
the PCB Housing clockwise
and set off to the side. Route
the incoming supply wires to
the terminal block and secure
them into the proper locations
as illustrated in Fig 9.
Installation Procedures
View from Back
Reconnect the PCB Housing
in the opposite order as it
was removed.
Proceed to step 3.
If mounting in knock-out 2:
Route the incoming supply
wires to the terminal block and
secure them into the proper
locations as illustrated in Fig 9.
Fig 8
Fig 7
Knock-outs
21
ENG
18695_AB02_OP_MAN_US.qxd 29/8/07 14:42 Page 9

Dyson AirbladeTM hand dryer
9
Refitting Fascia &
Access Panels
Attach the front fascia panel
back on by latching the top lip
onto the middle fascia first and
then pivoting the fascia cover
downward until flush.
Install the bottom left and
right tamper proof screws back
into the machine using the
supplied tool.
Hanging unit
Hang the unit on the secured
mounting bracket as illustrated
in Fig 10.
Secure the unit through the 4
holes in the lower section of
the unit, illustrated in Fig 11.
Fig 10 Fig 11
Installation Procedures
Install the (2) tamper proof
screws back into the inner
section of the fascia panel.
Re-install the Access panel
and tamper proof screw.
ENG
Step 3.
Terminal block connections:
120 volt unit:
Secure the Line, Neutral and
Ground wires into the proper
terminal block locations.
Connecting to the
Electrical Supply cont.
Fig 9
L N
120v MODEL
18695_AB02_OP_MAN_US.qxd 29/8/07 14:42 Page 10

Dyson AirbladeTM hand dryer
10
Make sure that power is
switched on to the unit.
Place hands into the AirbladeTM
hand dryer and unit and
airflow will begin automatically.
Withdraw hands slowly
upwards through the air a
couple times to thoroughly dry
hands in 12 seconds.
Remove hands and the unit will
shut off.
Please register your product
information with us.
•You may send in the
completed registration card
in the provided pre-paid
envelope.
•Call our Dyson Helpline toll
free at 1-888-DYSON-AB
•Visit us on the web at
www.dysonairblade.com
Surfaces
Make sure that all surfaces of
the AirbladeTMhand dryer are
cleaned daily with a soft cloth
and non-abrasive, non-caustic
cleaning solution.
Air Inlet
Regularly check at the base
of the AirbladeTMhand dryer
to ensure that it is free from
dust and debris. If the air
inlet gets dirty simply remove
dust or debris with a dry cloth
or vacuum Fig 12.
Make sure that all of the
AirbladeTM hand dryer's surfaces
and the (4)-sensor lenses are
wiped down daily to maintain
uninterupted operation of the
unit Fig 13.
Cleaning AdviceTesting
Cleaning and
Maintenance Advice
Maintenance Advice
Final Inspection
Fig 12 Fig 13
ENG
18695_AB02_OP_MAN_US.qxd 29/8/07 14:42 Page 11

Dyson AirbladeTM hand dryer
11
The AirbladeTMhand dryer
fails to start.
The AirbladeTM hand dryer is
turning on and off erratically.
The AirbladeTM hand dryer
sometimes cuts out when in
use, but resumes operation
after a period of time.
Air is coming out of the front
or back of unit.
Unit is making a rattling noise.
Unit continues to run after user
removes hands.
Unit is not drying hands as fast
as it used to.
Unit runs for a couple of
seconds and then turns off.
Check to make sure the unit is connected and wired correctly, and that it is turned on.
Check sensor lenses are clean.
Check the air inlet at the base is clean and free of dust.
If the air inlet is dusty, simply remove dust with dry cloth or vacuum cleaner.
Check for and remove any obstructions.
Ensure that none of the tamper proof screws are loose.
Tighten if necessary.
They are illustrated in figs 3-6 of this manual.
Unit runs for approximately 4-6 seconds -
The unit is operating correctly. There is a time delay function built into the unit.
Unit runs for longer periods than 6 seconds -
Check to ensure that the IR sensors are not obstructed or dirty.
Verify that the air inlet is not blocked or obstructed. If necessary, clean the air inlet
with a vacuum or damp cloth.
Verify that the air inlet is not blocked or obstructed. If necessary, clean the air inlet
with a vacuum or damp cloth.
Call Dyson Helpline at
1-888-DYSON-AB
Call Dyson Helpline at
1-888-DYSON-AB
Call Dyson Helpline at
1-888-DYSON-AB
Call Dyson Helpline at
1-888-DYSON-AB
Call Dyson Helpline at
1-888-DYSON-AB
Call Dyson Helpline at
1-888-DYSON-AB
Call Dyson Helpline at
1-888-DYSON-AB
Call Dyson Helpline at
1-888-DYSON-AB
Important: Turn off power before troubleshooting/servicing.
Note: Please try and have model & serial number available before calling the Dyson Helpline. The model/serial plate is located on the left, lower side
corner of the unit.
Problem Action If Problem Persists
Troubleshooting
ENG
18695_AB02_OP_MAN_US.qxd 29/8/07 14:42 Page 12

Dyson AirbladeTM hand dryer
12
• 5 year parts limited warranty
• Additional 1st year labor limited warranty
• Dedicated Dyson helpline
The full terms and conditions of the Dyson limited
warranties are described on the following pages.
Thank you for choosing to buy a Dyson.
If you have a question about the Dyson AirbladeTM hand dryer,
please call the Dyson Helpline at 1-888-DYSON-AB with
your serial number and purchase information. Your serial
number can be found on the serial plate, located at the lower
left side of the unit.
Most of the time problems can be handled over the phone by our
trained technical support staff. If service is required (which may
include replacing a defective part), our staff will coordinate and
discuss options to have your machine serviced by Dyson or its
authorized agent. If your machine is covered under warranty, and
the repair is covered, Dyson will provide replacement parts at no
cost to the unit owner (which can be installed by Dyson or its
authorized agents for additional costs at prevailing rates) for a
period of 5 years from date of purchase (or date of delivery,
whichever is later).
In addition, during the 1st year,this warranty provides at no
extra cost to unit owner all the labor necessary to ensure that
your Dyson AirbladeTM hand dryer is in proper operating
condition. All repair work pursuant to this warranty must be
carried out by Dyson or its authorized agents.
Repairs or replacement of your Dyson AirbladeTM machine under
any Dyson warranty will not extend the period of any warranties
herein. The product owner is responsible for securing access to
the product. Any parts replaced or removed by Dyson or its
authorized agents during the first year will become the property
of Dyson.
Limited Warranty Information
ENG
This product is protected by the following Intellectual Property Rights Patent/Patent Application Nos:
GB 2428570; MY 20063471; TH 0601003575; TW 95127597; WO 2007/015040; GB 2434195; TH 0601006285; TW 96101042; WO 2007/080364; GB2434266; TW 95148304; WO 2007/083075;
GB2428571; MY 20063473; TH 0601003578; TW 200722021; WO 2007/015045; MY 20063477; TH 0601003579; TW 200722022; WO 2007/015046; GB 2434094; WO 2007/080412; GB2434095;
PCT/GB07/000106; GB 2428568; MY 20063476; WO 2007/015041; MY 20063475; TW 95127598; WO 2007/015039; GB 2434160; TW 96101015; WO 2007/080363; GB 2428573;
WO 2007/015042; MY 20063470; GB 2428572; MY 20063474; TH 0601003577; TW 95127599; WO 2007/015044; GB 0618483.2; PCT/GB07/000426; GB 0618616.7; GB 2435133;
PCT/GB07/000379; GB 2428569; MY 20063472; TH 0601003576; TW 200722020; WO 2007/015043; GB 2434745; TW 95149367; PCT/GB06/004681; AU 309345; CA 113889; JP 2005-37027;
NZ 406935; US 29/244,805; ZA A2005/1819; CN 200630131448.3; ED 469689-0001; GB 2433428
Equivalent patents, registered designs and applications exist in other countries
NSF Protocol 335 Hygienic Commercial Hand Dryers
18695_AB02_OP_MAN_US.qxd 29/8/07 14:42 Page 13

Dyson AirbladeTM hand dryer
13
Limited Warranty Information
Example of rating plate
Your serial number can be found on the rating plate.
Note your serial number for future reference:
Please register your product with us.
There are 3 ways to do this:
• You may fill out and send in the completed pre-paid
registration card
• Call our Dyson Helpline toll free at 1-888-DYSON-AB
•Visit us on the web at www.dysonairblade.com
This will confirm ownership of your Dyson AirbladeTM hand dryer
in the event of an insurance loss and enable us to contact you
if necessary.
5Year Parts Limited Warranty
All factory parts of your Dyson AirbladeTM hand dryer are
warranted against original defects, material and workmanship
when used in accordance with the Owner’s Manual for a
period of 5 years.
The 5 year parts limited warranty commences on the date
of purchase (or on the date of delivery, whichever is later).
The 5 year parts limited warranty will expire on the fifth
anniversary of its commencement. The unit owner must provide
proof of purchase before any replacement parts will be provided
for repair pursuant to this warranty. Without this proof of
warranty,the owner is liable to pay for any parts on the product
by Dyson or its authorized agents at the prevailing rate.
All functional factory replacement parts can be installed by
Dyson or its authorized agents for additional costs at the
prevailing rates.
Additional 1st Year Labor Limited Warranty
This warranty commences on the date of purchase (or on the
date of delivery,whichever is later). The 1 year labor limited
warranty will expire on the 1st anniversary of its commencement.
In addition, during the 1st year, this warranty provides at no
extra cost to unit owner all the labor necessary to ensure that
your Dyson AirbladeTM hand dryer is in proper operating
condition. All repair work pursuant to this warranty must be
carried out by Dyson or its authorized agents. Any labor charges
involved with defective replacement parts after the 1st year
labor limited warranty expires are the sole responsibility of the
product owner.
ENG
18695_AB02_OP_MAN_US.qxd 29/8/07 14:42 Page 14

The 5 year parts limited warranty and the additional 1st
year labor limited warranty are subject to the following:
What is not covered by the 5 year parts limited warranty or the
1year labor limited warranty.
Dyson B2B, Inc. shall not be liable for costs incurred as a result of:
• Machines purchased from an unauthorized dealer.
•Accidental damage, faults caused by negligent use or care,
misuse, neglect, careless operation or handling of the machine
which is not in line with the Dyson AirbladeTM Owner’s Manual.
• Use of parts not in accordance with the Owner’s Manual of the
AirbladeTM hand dryer.
• Blockages, other than those caused by soap and water in normal
use. In case of other types of blockages please refer to the
Troubleshooting section of the Owner’s Manual or call the Dyson
Helpline for advice.
• External sources such as weather.
• Repairs or alterations carried out by unauthorized parties or
agents.
• Faulty installation except where installed by Dyson B2B, Inc.
or an authorized agent.
• Use of parts and/or accessories other than those produced,
assembled, installed or recommended by Dyson B2B, Inc.
or an authorized agent.
If you have any doubts as to what is covered by your warranties,
please call the Dyson Helpline at 1-888-DYSON-AB.
Warranty Service
• Please fill out and return the Product Registration Form, or
register online at www.dysonairblade.com or call the Dyson
Helpline at 1-888-DYSON-AB.
• Before any service can take place, the terms of both
warranties require that you contact the Dyson Helpline with your
serial number,and the date of purchase or delivery (which ever
comes later).
Limited Warranty Information
• Please keep your purchase receipt or information in a safe
place to ensure that you have this information available.
• All covered repair work will be carried out by Dyson B2B, Inc.
or its authorized agents.
• Any replaced defective parts will become the property of
Dyson B2B, Inc. during the first year.
•Service under the warranties (which may include replacing
adefective part) will not extend the period of any warranty.
• If your machine is not functioning properly, please call the
Dyson Helpline at 1-888-DYSON-AB.Most issues can be
resolved over the telephone by our trained helpline and
technical support staff.If this is not possible, Dyson B2B,Inc.
will arrange for your Dyson AirbladeTM to be repaired pursuant
to the terms of the Dyson AirbladeTM warranties.
Other Limitations and Exclusions of Warranties
• Any representations, warranties or conditions relating to your Dyson AirbladeTM,
express or implied, statutory or otherwise, including but not limited to warranty
of merchantability or warranty of fitness for a particular purpose, are limited
to the duration of this warranty. This limitation is not allowed by some states
and so this limitation may not apply to you.
• Your remedy for breach of the warranties is limited to the warranties described
above. Dyson B2B,Inc. will not be liable for any consequential damages or
incidental damages you may incur in connection with your purchase and use
of your Dyson AirbladeTM hand dryer. This limitation is not allowed by some
states and so this limitation may not apply to you.
•In no event shall Dyson B2B,Inc. be liable for any damages arising directly or
indirectly from any tort (including negligence or gross negligence) committed
by Dyson B2B, Inc. or their affiliates, agents or employees, or for any breach
of contract, fundamental or otherwise.
•These warranties give you specific legal rights. You may have other rights
which may vary by state.
• These warranties are not transferable.
ENG
14
Dyson AirbladeTM hand dryer
18695_AB02_OP_MAN_US.qxd 29/8/07 14:42 Page 15

TESTED. CERTIFIED. HYGIENIC.
Contacting Dyson
Dyson Helpline can be contacted by calling 1-888-DYSON-AB
When calling the Dyson Helpline, please make sure you have
the serial number and the purchase date of the AirbladeTM hand dryer
ready. The serial number can be found on the warranty registration
information enclosed or the serial plate located on
the lower left side of the unit.
For further information about the AirbladeTM hand dryer, please visit
www.dysonairblade.com
Limited Warranty Information
The AirbladeTM hand dryer is covered by a 5 year parts limited
warranty and an additional 1st year labor limited warranty.
See enclosed warranty registration information for details.
You can register your warranty online at
www.dysonairblade.com
or by calling
1-888-DYSON-AB
For further information about what is included in the
Dyson 5 year parts limited warranty and additional 1st year
labor limited warranty, please visit
www.dysonairblade.com
ENG
Dyson AirbladeTM hand dryer
15
18695_AB02_OP_MAN_US.qxd 29/8/07 14:42 Page 16

Dyson AirbladeTM hand dryer
16
18695_AB02_OP_MAN_US.qxd 29/8/07 14:42 Page 17

ES
33
Fastest dry
The AirbladeTM hand dryer dries hands differently. It uses a high
velocity blade of air to literally wipe water from hands, leaving
them completely dry in just 12 seconds.
Why Dyson developed the
AirbladeTM hand dryer
Paper towels have always been expensive, labor-intensive,
and bad for the environment. Conventional hand dryers are
more economical, but are notoriously frustrating to use.
Finally, a hand dryer that works properly.
The Dyson AirbladeTM was engineered to be the fastest, most
hygienic hand dryer available. It is also energy-efficient and
cost-effective to run.
Thank you for buying the Dyson AirbladeTM hand dryer.
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer.If you have
questions, contact the manufacturer.
2. Before servicing or cleaning unit, switch power off at service panel and lock
the service disconnecting means to prevent power from being switched on
accidentally. When the service disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag,to the service panel.
3. Installation work and electrical wiring must be done by qualified person(s) in
accordance with all federal, state and local applicable codes and standards,
including fire-rated construction.
4. When cutting or drilling into wall or ceiling,do not damage electrical
wiring and other hidden utilities.
18695_AB02_OP_MAN_US.qxd 29/8/07 14:42 Page 18

ES
34
Dyson AirbladeTM
US $26.03
Paper towels
US $1200
Operating costs based on
200 dries/day and 300 days/year.
Paper towel costs based on
US $0.01/towel and 2 towels/dry.
They do not include any labor and
costs associated with dispensing
and disposing of paper. Dyson
AirbladeT M costs are based on
US $0.09/kWh and 12 seconds
dry time.
The most hygienic hand dryer
The Dyson AirbladeTM uses a HEPA filter to remove over 99.9%
of bacteria from the air used to dry hands and has anti-microbial
additives integrated into its surfaces.
Uses up to 80% less energy
Conventional hand dryers rely on inefficient motor technology and high power
heating elements to dry hands, often taking over 22 seconds and wasting energy.
The AirbladeTM hand dryer is powered by the energy efficient 1400w Dyson
Digital Motor, has no heating element, and takes only 12 seconds to dry
hands. As a result, the AirbladeTM hand dryer uses up to 80% less energy per
drying cycle.
1. Insert your hands and the
AirbladeTM hand dryer will start
automatically.
2. Withdraw your hands slowly
upwards through the air a
couple of times to dry hands
thoroughly in 12 seconds
or less.
How to use
The AirbladeTM hand dryer generates a high velocity blade of air
that wipes hands dry in just 12 seconds.
Cost-effective
It is very expensive to procure, stock and dispose of paper towels.
Conventional hand dryers consume large amounts of electricity.
The AirbladeTMhand dryer, with a combination of high reliability,
low maintenance, and energy efficiency, offers considerable cost
savings throughout its lifetime. It uses up to 80% less energy than
conventional hand dryers, so running costs are considerably
lower. When compared to paper towels, the AirbladeTM hand
dryer offers operating cost savings of nearly 98%.
18695_AB02_OP_MAN_US.qxd 29/8/07 14:42 Page 19

ES
35 READ BEFORE PROCEEDING FURTHER
CAUTION: Risk of electric shock! Do not remove casing or attempt repair unless
unit is being serviced by qualified service personnel. If casing is removed or handled
improperly the internal components of the Dyson AirbladeTM may cause harm or
become permanently damaged.
WARNING: To reduce the risk of fire or electric shock, do not expose the internal
mechanism/components of this unit to rain or moisture.
General notes:
The instructions contained within the Owner’s Manual must be read carefully before attempting
to install the AirbladeTM hand dryer. Read and retain for future reference.
Failure to accurately follow the instructions may result in the incorrect operation of the AirbladeTM
hand dryer,damage to property and/or personal injury.
Dyson will not be held liable for any damage to property or personal injury as a result of failure
to comply with the instructions contained herein.
Do not use AirbladeTM hand dryer for anything other than drying hands.
The AirbladeTM hand dryer must be grounded properly.
Trouble free operation and safety can only be continued by using genuine Dyson spare parts.
WARNING:
This product may contain substances known to the state of California to cause cancer,birth defects
and other reproductive harm. Wash hands after handling.
Important Safety
Information
Contents
36 Glossary of Terms
Contents of Box
•Tools needed
37 Installation Procedures
•Electrical requirements
38 •Positioning
•Mounting Bracket
39 • Removing the Fascia Cover
40 •Connecting to Electrical Supply
41 • Refitting Front Fascia & Access Panel
42 Final Inspection
Cleaning and Maintenance Advice
43 Troubleshooting
44-46 Limited Warranty Information
47 Contacting Dyson
READ AND SAVE THESE INSTRUCTIONS
Dyson AirbladeTM hand dryer
18695_AB02_OP_MAN_US.qxd 29/8/07 14:42 Page 20
