Dyson AM04 User manual

OPERATING MANUAL
REGISTER
YOUR FREE 2YEAR
GUARANTEE TODAY

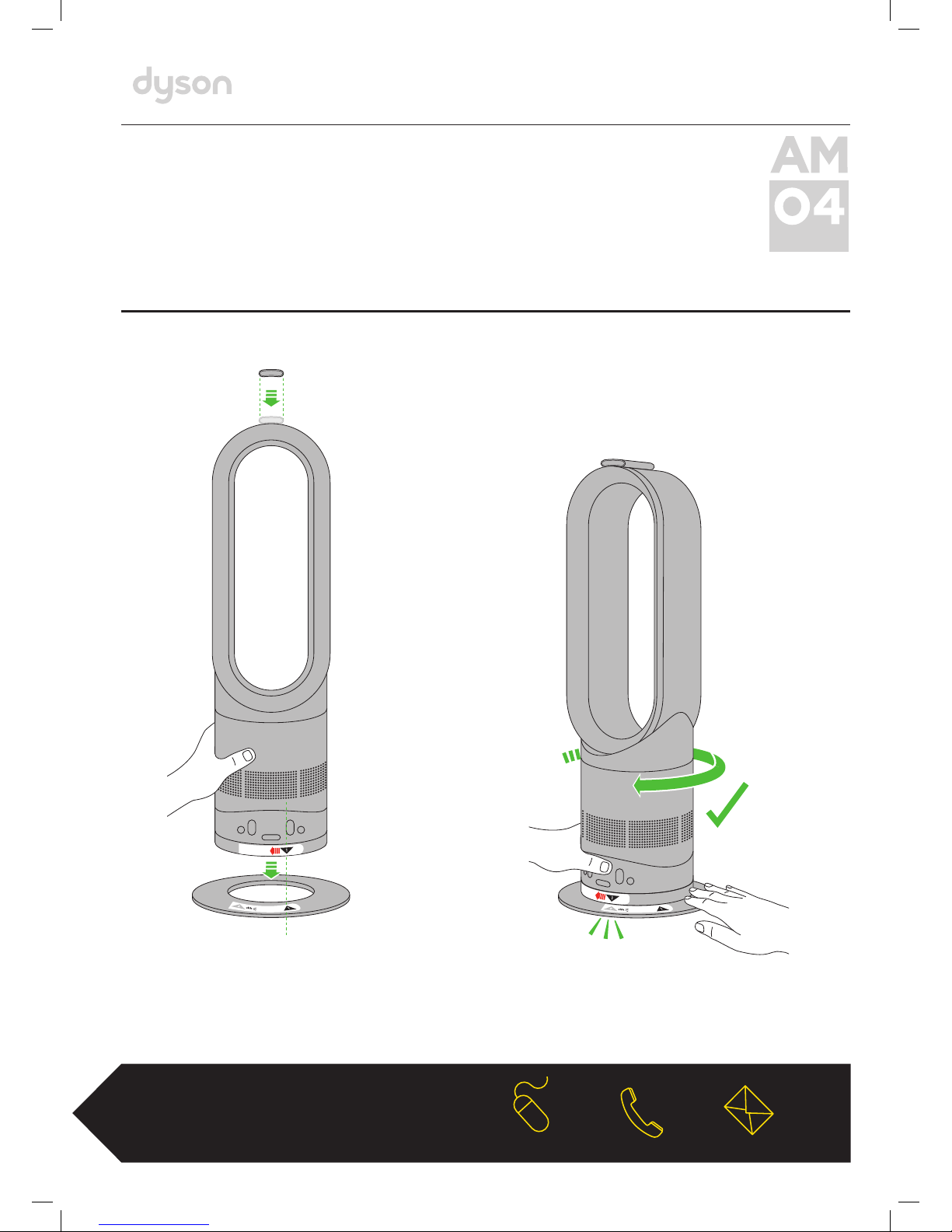

ASSEMBLY
1 2
Align the black arrows. Then twist clockwise
until it clicks and locks.
click
Remote control docks magnetically.

23
Controls
Heating mode Cool air mode Power and remote control*Tilt function
Remote control docks magnetically
Attach remote control to top of heater
with the buttons facing down.
To operate, point remote control toward the front of the base.
Carefully hold the base and the top of the air loop amplifier.
Tilt forward or backward for the required airflow angle.
On first use, the heater will default to a temperature
1°C higher than the current room temperature.
Thereafter, the heater will remember the last target
temperature set.
Select the desired room temperature. Pressing red
increases the target temperature, blue decreases
it. The heater will not operate unless the target
temperature is above the room temperature.
To change the airflow speed press the airflow speed
control button. The digital display will show the new
speed; after 3seconds it will change back to the
target temperature.
To start the heater oscillating, press the oscillation
control button. To stop the heater oscillating, press it
again. The heater will not oscillate when the control
buttons are pressed.
Press the blue thermostat control button to change the target
temperature to 0°C. The power button light will change from
red to blue. To adjust the airflow speed use the airflow
speed control.
Press the red thermostat control button until the digital display
shows the desired target temperature. The power button light
will change from blue to red.
For best results turn on the oscillation control.
Select a high flow of air.
Select a low flow of air.
To return to heating mode
Whole room
Spot heat Stand by
on/off
*Remote control with select models only.
Airflow speed
control
Oscillation
on/off
Thermostat
control
1. Power on 2. Thermostat control 3. Airflow speed control 4. Oscillation control

45
IMPORTANT SAFETY INSTRUCTIONS
BEFORE USING THIS APPLIANCE READ ALL INSTRUCTIONS AND CAUTIONARY MARKINGS IN THIS MANUAL
AND ON THE APPLIANCE
When using an electrical appliance, basic precautions should always be followed, including the following:
WARNING
THE HEATER AND THE REMOTE CONTROL BOTH CONTAIN MAGNETS.
1. Pacemakers and defibrillators may be affected by strong magnetic fields. If you or someone in your household has a pacemaker or defibrillator, avoid placing the remote
control in a pocket or near to the device.
2. Credit cards and electronic storage media may also be affected by magnets and should be kept away from the remote control and the top of the heater.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:
1. This heater is hot when in use and for a short period after use. To avoid burns, do not let bare skin touch hot surfaces. When moving the heater hold it by the base, not the
air loop amplifier.
2. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and cur tains, at least 0.9m (3 feet) from the front of the heater and keep them away from
the sides and rear when the heater is plugged in.
3. Extreme caution is necessary when any heater is used by or near children or infirm persons and whenever the heater is left operating and unattended.
4. Do not allow to be used as a toy. Close attention is necessary when used by or near young children. Children should be supervised to ensure that they do not play with the
heater or remote control.
5. This heater and remote control are not intended for use by young children or infirm persons with reduced physical, sensory or reasoning capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction by a responsible person concerning use of the heater to ensure that they can use it safely.
6. The base must be fitted securely before operating. Do not dismantle or use without the base fitted.
7. Suitable for dry locations ONLY. Do not use outdoors or on wet surfaces. Do not use in bathrooms, laundr y areas and similar indoor locations. Never locate the heater
where it may fall into a bath or other water container. Do not use or store where it may get wet or in the immediate surroundings of a bath, a shower, or a swimming pool.
8. A heater has hot parts inside. Do not use it in areas where petrol, paint, or flammable liquids are used or stored or where their vapours are present. Do not use in
conjunction with or directly next to an air freshener or similar products.
9. Do not locate directly below a mains electricity supply socket.
10. Always plug directly into a wall socket. Never use with an extension cable as overloading may result in the cable overheating and catching fire.
11. Do not handle any part of the plug or heater with wet hands.
12. Do not unplug by pulling on the cable. To unplug, grasp the plug, not the cable.
13. Do not stretch the cable or place the cable under strain. Do not run the cable under carpeting. Do not cover the cable with throw rugs, runners, or similar coverings. Do
not route the cable under furniture or appliances. To avoid a tripping hazard arrange the cable away from traffic area so that it will not be tripped over.
14. Do not use with a damaged cable or plug. If the supply cable is damaged it must be replaced by Dyson or its service agent or similarly qualified persons in order to
avoid a hazard.
15. To disconnect the heater, turn the controls off, then remove the plug from the socket. Always unplug the heater when not in use.
16. Do not use if the heater malfunctions or has been dropped or damaged in any manner. Contact the Dyson Helpline or return to an authorised service facility for
examination and/or repair.
17. To prevent a possible fire, do not use with any opening or exhaust blocked, and keep free of dust, lint, hair, and anything that may reduce airflow. Do not put any object
into the inlet grill or the exhaust opening as this may cause an electric shock or fire, or damage the heater.
18. Do not use on sof t surfaces, such as a bed, where openings may become blocked.
19. Use only as described in this Dyson Operating Manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
20. In order to avoid overheating and fire hazard, do not cover the heater.
21. Choking hazard: the remote control unit contains a small batter y. Keep the remote control away from children and do not swallow the battery. If the battery is swallowed
seek medical advice at once.
22. The heater should be positioned so the airflow is directed away from any walls or room corners.
IMPORTANT SAFETY FEATURES
For your safety this heater is fitted with automatic cut-out switches that operate if the heater tips over or overheats. If the switches operate, unplug the heater and allow it to cool.
Before restarting the heater check and clear any blockages and ensure the heater is on a solid level surface.
READ AND SAVE THESE INSTRUCTIONS
THIS DYSON APPLIANCE IS INTENDED FOR HOUSEHOLD USE ONLY
Do not pull
on the cable.
Do not store near
heat sources.
Do not use near
open flames.
Do not carry
by the air loop
amplifier. The air
loop amplifier is
not a handle.
In order to avoid
overheating and
fire hazard, do not
cover the heater.
Press the end of the remote to release the battery.
Remote control with selected models only.
Ensure the heater is unplugged and has been allowed
to cool. Look for blockages in the air inlet holes and
in the small aperture inside the air loop amplifier.
Use a soft brush to remove debris.
This heater is hot when in use and for a short period after use.
Do not let bare skin touch hot surfaces. If children are present,
consider positioning the heater out of their reach.
Unplug from the mains electricity supply. Allow to cool for
1to2hours before cleaning if the heater has been in use.
To clean, wipe with a dry or damp cloth. Do not use detergents
or polishes.
Clearing blockages
Caution: hot when in use Battery replacement
Cleaning
A blue light on the heater will flash when the remote’s
buttons are pressed. If the blue light stops flashing, replace
the remote’s battery.
Battery type CR 2032.
4

USING YOUR DYSON HEATER
PLEASE READ THE ‘IMPORTANT SAFETY INSTRUCTIONS’ IN THIS
DYSON OPER ATING MANUAL BEFORE PROCEEDING.
OPERATION
• The base must be fitted securely before operating. Do not dismantle or use
without the base fitted.
• The heater will not operate unless the target temperature is above the
room temperature.
• The heater will not oscillate when the control buttons are pressed.
• For your safety this heater is fitted with automatic cut-out switches that operate if
the heater tips over or overheats. If the switches operate, unplug the heater and
allow it to cool. Before restarting the heater check and clear any blockages and
ensure the heater is on a solid level surface.
• If power is interrupted an E1 failure message will be displayed. The heater will
need to be turned of f and then on again. If the problem persists, call the
Dyson Helpline.
• Do not carry out any maintenance or repair work other than that shown in this
Dyson Operating Manual, or advised by the Dyson Helpline.
• Do not lubricate any part of this heater.
TILT FUNCTION
Carefully hold the base and the top of the air loop amplifier. Tilt forward or
backward for the required airflow angle.
CLEANING
• Turn the heater into stand by mode/off.
• Unplug from the mains electricity supply.
• Allow to cool for 1 to 2 hours before cleaning if the heater has been in use.
• To clean, wipe with a dry or damp cloth only.
• Do not use detergents or polishes to clean the heater.
STORAGE
• When not in use, unplug from the mains electricity supply.
• Store the heater in a dry location and arrange the cable away from the traffic
area so that it will not be tripped over or damaged.
BATTERY REPLACEMENT
CAUTION:
• Turn the heater into stand by mode and unplug from the mains electricity supply
before replacing the battery.
• Ensure the polarity is correct when installing the battery.
• Do not attempt to dismantle or charge the battery. Keep away from fire.
• Follow battery manufacturers’ instructions when installing the new battery
(battery type CR 2032).
TROUBLESHOOTING
• Remember: Always unplug from the mains electricity supply before inspecting
for problems.
• If the heater will not operate, first check the mains socket has electricity supply
and that the plug is properly inserted into the socket.
• If you are still experiencing problems, call the Dyson Helpline.
• For additional online help visit:
UK: w ww.dyson.co.uk/A M04gettingstarted
ROI: w ww.dyson.ie/AM04gettingstarted
GUARANTEE TERMS & CONDITIONS
DYSON CUSTOMER CARE
THANK YOU FOR CHOOSING TO BUY A DYSON APPLIANCE
After registering your free 2year guarantee, your Dyson appliance will be
covered for parts and labour for 2years from the date of purchase, subject to
the terms of the guarantee.
If you have any questions about your Dyson appliance, call the Dyson Helpline
with your serial number and details of where/when you bought the appliance.
Most questions can be solved over the phone by one of our trained Dyson
Helpline staff.
Alternatively, visit ww w.dyson.co.uk/support for online help, general tips and
useful information about Dyson.
If your Dyson appliance needs a service, call the Dyson Helpline so we can
discuss the available options. If your Dyson appliance is under guarantee, and
the repair is covered, it will be repaired at no cost.
Your serial number can be found on your rating plate which is on the base of
the appliance.
PLEASE REGISTER AS A DYSON APPLIANCE
OWNER
To help us ensure you receive prompt and efficient service, please register as a
Dyson appliance owner. There are three ways to do this:
• Online at ww w.dyson.co.uk/register
• Telephone the Dyson Helpline.
• Complete the enclosed form and post it to us.
This will confirm ownership of your Dyson appliance in the event of an insurance
loss, and enable us to contact you if necessary.
LIMITED 2 YEAR GUARANTEE
TER MS AND CONDITIONS OF THE DYSON 2 YEAR LIMITED
GUARANTEE
WHAT IS COVERED
• The repair or replacement of your Dyson appliance (at Dyson’s discretion) if it
is found to be defective due to faulty materials, workmanship or function within
2 years of purchase or delivery (if any part is no longer available or out of
manufacture Dyson will replace it with a functional replacement part).
• Use of the Dyson appliance in the country of purchase only.
WHAT IS NOT COVERED
Dyson does not guarantee the repair or replacement of a product as a
result of:
• Accidental damage, faults caused by negligent use or care, misuse, neglect,
careless operation or handling of the appliance which is not in accordance with
the Dyson Operating Manual.
• Use of the appliance for anything other than normal domestic
household purposes.
• Use of parts not assembled or installed in accordance with the instructions
of Dyson.
• Use of parts and accessories which are not genuine Dyson components.
• Fault y installation (except where installed by Dyson).
• Repairs or alterations carried out by parties other than Dyson or its
authorised agents.
• Blockages – please refer to the Dyson Operating Manual for details of how to
look for and clear blockages.
• Normal wear and tear, such as the battery.
If you are in any doubt as to what is covered by your guarantee,
please contact Dyson.
SUMMARY OF COVER
• The guarantee becomes effective at the date of purchase (or the date of deliver y
if this is later).
• You must provide proof of (both the original and any subsequent) delivery/
purchase before any work can be carried out on your Dyson appliance. Without
this proof, any work carried out will be chargeable. Keep your receipt or
delivery note.
• All work will be carried out by Dyson or its authorised agents.
• Any parts which are replaced will become the proper ty of Dyson.
• The repair or replacement of your Dyson appliance under guarantee will not
extend the period of guarantee.
• The guarantee provides benefits which are additional to and do not affect your
statutor y rights as a consumer.
ABOUT YOUR PRIVACY
• Your information will be held by Dyson Limited and its agents for promotional,
marketing and servicing purposes.
• If your personal details change, if you change your mind about any of your
marketing preferences or if you have any queries about how we use your
information, please contact Dyson Limited.
• For more information on how we protect your privacy, please see our privacy
policy on the Dyson website.
DISPOSAL INFORMATION
Dyson products are made from high grade recyclable materials. Please dispose
of this product responsibly and recycle where possible.
PRODUCT INFORMATION
Please note: Small details may vary from those shown.
Net weight: 2.57kg
DYSON CONTACT DETAILS
Website: www.dyson.com/support
UK:
Dyson Helpline: UK:08002980298
Open 7am–10pm. 7 days a week.
Email: [e-mail]
Address: Dyson Limited, Tetbury Hill, Malmesbury, Wiltshire SN160RP England.
ROI:
Dyson Helpline: ROI:014757109
Open 7am–10pm. 7 days a week.
Email: [e-mail]
Address: Unit 10, Grants Lane, Greenogue Business Park, Rathcoole, Dublin 24.
6
Note your serial number for future reference.
This illustration is for example purposes only.
JN. 42377 PN.22247-02-02 14.07.11

GUARANTEE FORM
REGISTER
BY MAIL
Complete and return
the form to Dyson in the
envelope supplied.
REGISTER
BY PHONE
Call our dedicated Helpline.
Open 7am–10pm.
7 days a week.
REGISTER
ONLINE
Visit our website to register
your full parts and labour
guarantee online.
www.dyson.com/register
UK 0800 298 0298
ROI 01 475 7109
3 EASY WAYS TO REGISTER YOUR FREE 2 YEAR GUARANTEE
Serial number
As a Dyson appliance owner, you can hear about
Dyson inventions, services and products before anyone
else. If it’s okay to contact you, please let us know how
we may do this.
By mail Yes

No

By phone Yes

No

By email Yes

No

By text message Yes

No

We sometimes ask other companies (such as market researchers) to
contact owners on our behalf. We do this to get feedback on ideas or
ask you to try new products and services. Would this be okay?
Yes

No

Date of purchase

/

/

Country of purchase

UK

ROI
Title Surname
 
First name

Address





Postcode

email

Telephone Mobile
 
