Introduction
ABOUT ////////
E-XTEQ is a battery diagnostic tool and equipment manufacturer with a broad
spectrum of knowledge and understanding of battery technology for Industrial,
OE and Aftermarket Maintenance including EV/HEV applications.
Our mission is to be a passionate global leader of innovative measurement solutions
by providing premium testing equipment and unsurpassed services to our valued
customers and partners.
GM DCBS supports battery diagnostic test including functional true ½ CCA load
test and provide a true reserve capacity test. DCBS has built-in 12V/80-(100A when
properly equipped) battery charger/maintainer that provides in-depth features
and functions to stabilize battery voltage during ECU reashing and is capable
of charging different chemistry batteries. The remote is a comprehensive battery
analyzer with intuitive features and functions that promotes user friendliness, speed,
accuracy and intelligence, enabling technicians to manage diagnostics through every
step of the process from start to nish and can be used simultaneously.
Table of Contents
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Getting Started
Safety Reminders
Appearance and Dimensions
Trolley LED’s
Remote Presentation
Remote Job Storage
Accessories
Initial Setup
Installation
Battery Cable Clamps Connection
Power Cable Connection and Power On
BAC Input
Wi-Fi Connection (Remote to Trolley Only)
Workow
The Main Menu
Vehicle Selection from Database
Manual Selection of Battery
Remote Diagnostic
PDI Test
Trolley Diagnostic
Charge
Load Test
Reserve Capacity Test
History
Settings
Warranty
Limited Warranty
How to Obtain Warranty
Support Information
Local Support

4/43
GM DCBS EL-52800 User Manual / Ref. MAN_DCBS_GM_EN_V1.0
Safety Guidelines 1/2
Please read the safety guidelines carefully.
This section indicates the areas that need to be protected in order to prevent harm
to people who use this equipment, damage to property and to enable proper use
of this product.
MAINTENANCE AND STORAGE ////////
Keep this product dry. Do not expose the DCBS to rain or snow.
Discontinue use and contact technical support if an overheat event has occurred,
or if corrosion or deterioration has been identied in the cables or other parts of the
product.
BEFORE USE ////////
Keep the exterior clean and free of dust.
Do not disassemble or modify the main unit
as it may cause an electrical shortage or re.
To reduce the risk of electrical shortage, unplug the
AC power plug before cleaning and maintenance.
Extreme caution: Keep liquids and conductive tools away from the DCBS while
operating.
DCBS must be used in a well-ventilated area.
When operating the equipment make sure the surface is dry and clean to minimize
any risks.
The battery contains chemicals that may generate
explosive gases. Before handling the battery,
remove all metal accessories such as rings, bracelets
and necklaces. Short circuit at battery terminals may
cause burns. Do not place batteries near ames or
other heat sources.
The battery uid is highly corrosive. If the battery uid
gets on your skin or clothes, immediately wash it with
soap and water. If electrolyte gets in your eyes, immediately
ush with cold water for at least 10 minutes and seek
medical attention.
Table of Contents
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Getting Started
Safety Reminders
Appearance and Dimensions
Trolley LED’s
Remote Presentation
Remote Job Storage
Accessories
Initial Setup
Installation
Battery Cable Clamps Connection
Power Cable Connection and Power On
BAC Input
Wi-Fi Connection (Remote to Trolley Only)
Workow
The Main Menu
Vehicle Selection from Database
Manual Selection of Battery
Remote Diagnostic
PDI Test
Trolley Diagnostic
Charge
Load Test
Reserve Capacity Test
History
Settings
Warranty
Limited Warranty
How to Obtain Warranty
Support Information
Local Support

5/43
GM DCBS EL-52800 User Manual / Ref. MAN_DCBS_GM_EN_V1.0
Safety Guidelines 2/2
USAGE PRECAUTIONS ////////
Do not use extension cords as there is a risk of re and electrical shortage.
If use is necessary, check that the extension cord has the following:
1. Identical plug, cable size and the same electrical wiring as the DCBS.
2. Make sure the equipment is securely connected before use.
When unplugging the cord from the outlet, hold the frame of the plug to avoid
damaging the plug or power cord. Pulling the cord may cause the cable plug
to break. Replace power cord immediately if damaged.
If the outlet shape does not t the plug, please contact the E-XTEQ service
department.
Phone: [phone]
E-mail: [e-mail]
Do not touch the power connector during use.
Keep away and Do Not Touch restricted areas
of this equipment.
DISASSEMBLY/DAMAGE/REMOVAL ////////
Do not disassemble the product or damage or remove the stickers or labels on the
product. If the product’s case has been disassembled or damaged by the user, all
warranties will be void. Always contact a designated E-XTEQ Service Center for
repairs.
Do not insert metallic objects into the unit to prevent electric shock, re, short
circuit, possible leaking of harmful substances and personal injuries. Do not store
the product in a wet or humid place. Always store the product in a dry place.
CLEANING THE PRODUCT ////////
It is recommended that you clean the product by wiping it gently using a soft cloth.
Do not use water, chemical substances or detergents. They may cause discoloration
or corrosion to the product’s exterior and may cause a re or electric shock.
Table of Contents
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Getting Started
Safety Reminders
Appearance and Dimensions
Trolley LED’s
Remote Presentation
Remote Job Storage
Accessories
Initial Setup
Installation
Battery Cable Clamps Connection
Power Cable Connection and Power On
BAC Input
Wi-Fi Connection (Remote to Trolley Only)
Workow
The Main Menu
Vehicle Selection from Database
Manual Selection of Battery
Remote Diagnostic
PDI Test
Trolley Diagnostic
Charge
Load Test
Reserve Capacity Test
History
Settings
Warranty
Limited Warranty
How to Obtain Warranty
Support Information
Local Support

6/43
GM DCBS EL-52800 User Manual / Ref. MAN_DCBS_GM_EN_V1.0
Getting Started 1/4
SAFETY REMINDERS ////////
Please review the safety guidelines in this manual before using the DCBS for safety
operations
When unplugging the DCBS, pull on the plug frame rather than the cord to reduce
the risk of damaging the power plug or cord.
The DCBS is designed for indoor use. Use outside in dry weather only.
The GM DCBS enables a wide range diagnostic procedures with 0-15V/0-80A
(100A Optional) charge capability.
APPEARANCE AND DIMENSIONS ////////
Dimension Details: Weight:
Metrics: 1300 x 580 x 690 (mm) Kilogram: 67 (kg)
Imperial: 51.18 x 22.83 x 27.16 (inch) Pounds: 148 (lbs.)
Width
51.18in / 22.83cm
Table of Contents
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Getting Started
Safety Reminders
Appearance and Dimensions
Trolley LED’s
Remote Presentation
Remote Job Storage
Accessories
Initial Setup
Installation
Battery Cable Clamps Connection
Power Cable Connection and Power On
BAC Input
Wi-Fi Connection (Remote to Trolley Only)
Workow
The Main Menu
Vehicle Selection from Database
Manual Selection of Battery
Remote Diagnostic
PDI Test
Trolley Diagnostic
Charge
Load Test
Reserve Capacity Test
History
Settings
Warranty
Limited Warranty
How to Obtain Warranty
Support Information
Local Support
Depth
27.16in / 69cm
Height
51.18in / 22.83cm

7/43
GM DCBS EL-52800 User Manual / Ref. MAN_DCBS_GM_EN_V1.0
Getting Started 2/4
APPE
TROLLEY LED’S ////////
ARANCE AND DIMENSIONS
REMOTE PRESENTATION ////////
1
2
3
4
5
6
7
8
9
10
11
12
13
IR Thermometer
Connection to Trolley
Remote Battery Status
Diagnostic/Charge Indicator
Trolley Connection Indicator
Error Mode Indicator
Load Test Indicator
Start Test
Cancel, Previous Step
OK, Next Step
Navigating Arrows
Power On/Off
Remote Clamps
Connection Port
1. Charge – The Charge LED will blink during
diagnostic and charge operations.
2. Wi-Fi Connection (Remote to Trolley only) –
The Wi-Fi connection LED will turn GREEN once
connection is established
or turn RED if connection is lost.
3. Status – If the Status LED is RED, the trolley has
encountered an error.
4. Load Test –The Load Test LED will blink BLUE
during a Load Test and a Reserve Capacity Test.
1
2
3
4
13
11
10
12
1
2
4 5 6 7
9
8
3
Table of Contents
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Getting Started
Safety Reminders
Appearance and Dimensions
Trolley LED’s
Remote Presentation
Remote Job Storage
Accessories
Initial Setup
Installation
Battery Cable Clamps Connection
Power Cable Connection and Power On
BAC Input
Wi-Fi Connection (Remote to Trolley Only)
Workow
The Main Menu
Vehicle Selection from Database
Manual Selection of Battery
Remote Diagnostic
PDI Test
Trolley Diagnostic
Charge
Load Test
Reserve Capacity Test
History
Settings
Warranty
Limited Warranty
How to Obtain Warranty
Support Information
Local Support

8/43
GM DCBS EL-52800 User Manual / Ref. MAN_DCBS_GM_EN_V1.0
Getting Started 3/4
REMOTE JOB STORAGE ////////
The remote has expandable storage through an SD card located on the right side
of the tool inside the rubber protective boot.
The tool will come with a 16 GB removable SD card.
Acceptable sizes for replacements are 4GB, 8GB and 16GB formatted with FAT32 le
system.
ACCESSORIES ////////

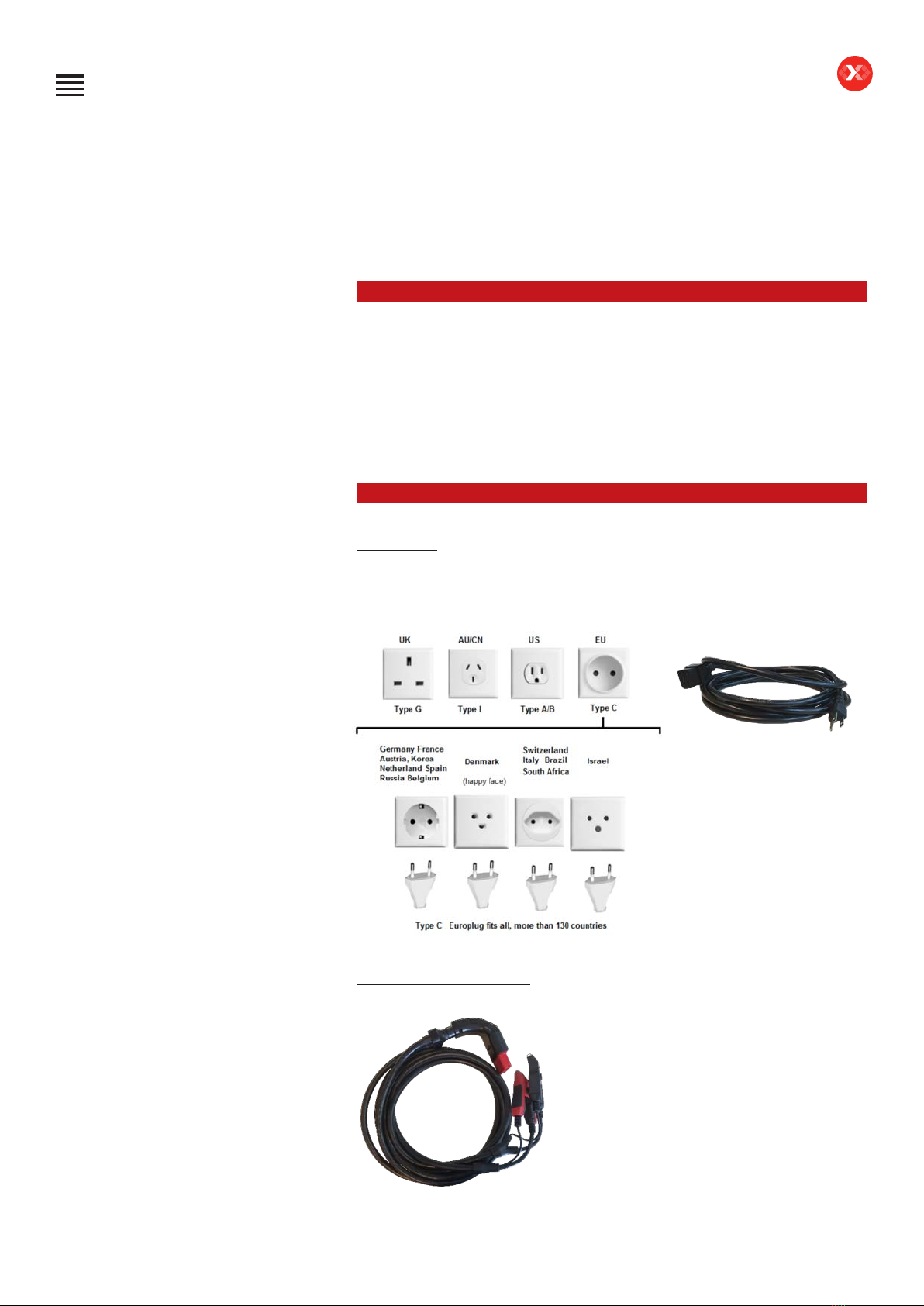

Power Cord
16.4 ft/5m power cord is supplied with the GM DCBS.
*The cord will be suitable based on the destination country standards*
Charge Cable with Clamp
The cable will be used for trolley diagnostic
and charging.
Table of Contents
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Getting Started
Safety Reminders
Appearance and Dimensions
Trolley LED’s
Remote Presentation
Remote Job Storage
Accessories
Initial Setup
Installation
Battery Cable Clamps Connection
Power Cable Connection and Power On
BAC Input
Wi-Fi Connection (Remote to Trolley Only)
Workow
The Main Menu
Vehicle Selection from Database
Manual Selection of Battery
Remote Diagnostic
PDI Test
Trolley Diagnostic
Charge
Load Test
Reserve Capacity Test
History
Settings
Warranty
Limited Warranty
How to Obtain Warranty
Support Information
Local Support

9/43
GM DCBS EL-52800 User Manual / Ref. MAN_DCBS_GM_EN_V1.0
Getting Started 4/4
ACCESSORIES ////////
Accessories Box
1. 8 Short Screws
2. 2 Long Screws
3. Printer Paper Roll
4. 1.5mm Specic Remote Clamps
5. 2 Hooks (For Rear Part of the Trolley)
6. 1 Hook (Docking Station)
2. 3.1.
6.5.4.
Table of Contents
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Getting Started
Safety Reminders
Appearance and Dimensions
Trolley LED’s
Remote Presentation
Remote Job Storage
Accessories
Initial Setup
Installation
Battery Cable Clamps Connection
Power Cable Connection and Power On
BAC Input
Wi-Fi Connection (Remote to Trolley Only)
Workow
The Main Menu
Vehicle Selection from Database
Manual Selection of Battery
Remote Diagnostic
PDI Test
Trolley Diagnostic
Charge
Load Test
Reserve Capacity Test
History
Settings
Warranty
Limited Warranty
How to Obtain Warranty
Support Information
Local Support

10/43
GM DCBS EL-52800 User Manual / Ref. MAN_DCBS_GM_EN_V1.0
Initial Setup 1/4
INSTALLATION ////////
The unit needs to be placed in a clean, dry and ventilated area.
Tools necessary to assemble trolley:
- 4mm Allen Wrench, 10mm Socket/Wrench. (Step 3, use long screws)
- 3mm Allen Wrench. (Step 4, use short screw)
Once the unit is out of the box, the next step is to connect the docking station
to the trolley.
Then install the remote clamps hook and install the printer and the paper.
To use the remote by itself, connect the clamps on the side of the remote.
1.
3.
5.
2.
4.
6.
Table of Contents
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Getting Started
Safety Reminders
Appearance and Dimensions
Trolley LED’s
Remote Presentation
Remote Job Storage
Accessories
Initial Setup
Installation
Battery Cable Clamps Connection
Power Cable Connection and Power On
BAC Input
Wi-Fi Connection (Remote to Trolley Only)
Workow
The Main Menu
Vehicle Selection from Database
Manual Selection of Battery
Remote Diagnostic
PDI Test
Trolley Diagnostic
Charge
Load Test
Reserve Capacity Test
History
Settings
Warranty
Limited Warranty
How to Obtain Warranty
Support Information
Local Support

11/43
GM DCBS EL-52800 User Manual / Ref. MAN_DCBS_GM_EN_V1.0
Initial Setup 2/4
BATTERY CABLE CLAMPS CONNECTION ////////
Remove the battery cable clamps from the box to connect them through the
connector in the rear of the DCBS Trolley.
POWER CABLE CONNECTION AND POWER ON ////////
Input power information
Voltage 100 – 240 V
Frequency 50/60 Hz
Consumption 2 kW Maximum
Connect the power cord to the connector located on the back of the DCBS, then
connect the opposite plug to a standard electrical socket. Switch on the device by
setting the switch to the “I” position.
Table of Contents
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Getting Started
Safety Reminders
Appearance and Dimensions
Trolley LED’s
Remote Presentation
Remote Job Storage
Accessories
Initial Setup
Installation
Battery Cable Clamps Connection
Power Cable Connection and Power On
BAC Input
Wi-Fi Connection (Remote to Trolley Only)
Workow
The Main Menu
Vehicle Selection from Database
Manual Selection of Battery
Remote Diagnostic
PDI Test
Trolley Diagnostic
Charge
Load Test
Reserve Capacity Test
History
Settings
Warranty
Limited Warranty
How to Obtain Warranty
Support Information
Local Support

12/43
GM DCBS EL-52800 User Manual / Ref. MAN_DCBS_GM_EN_V1.0
Initial Setup 3/4
Table of Contents
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Getting Started
Safety Reminders
Appearance and Dimensions
Trolley LED’s
Remote Presentation
Remote Job Storage
Accessories
Initial Setup
Installation
Battery Cable Clamps Connection
Power Cable Connection and Power On
BAC Input
Wi-Fi Connection (Remote to Trolley Only)
Workow
The Main Menu
Vehicle Selection from Database
Manual Selection of Battery
Remote Diagnostic
PDI Test
Trolley Diagnostic
Charge
Load Test
Reserve Capacity Test
History
Settings
Warranty
Limited Warranty
How to Obtain Warranty
Support Information
Local Support
BAC INPUT ////////
After trolley has been setup, turn on the remote and follow the steps below to input
the BAC Code into the tool. (BAC code is required to generate warranty code).
*** BAC Code will be recorded, no need to re-enter after initial setup ***
1. Go to the Settings Menu. 2. Go to the Information Icon.
3. Go to the BAC Icon. 4. Input BAC Code and Press Enter,
then Back to Save.

13/43
GM DCBS EL-52800 User Manual / Ref. MAN_DCBS_GM_EN_V1.0
Initial Setup 4/4
WI-FI CONNECTION (REMOTE TO TROLLEY ONLY) ////////
Wi-Fi Connection is to connect
Remote to the Trolley Only.
1. Turn on the Remote and go to the
“Settings” icon.
2. Go to the “Wireless” icon.
3. Select “Settings” once in “Wireless”
menu.
4. 4.Select “Barcode Scan” for the
tool to scan the trolley serial number
or “Manual” to manually input the
trolley serial number.
5. The Serial Number can be found
on the back of the trolley. Refer to
picture for visual conrmation.
Table of Contents
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Getting Started
Safety Reminders
Appearance and Dimensions
Trolley LED’s
Remote Presentation
Remote Job Storage
Accessories
Initial Setup
Installation
Battery Cable Clamps Connection
Power Cable Connection and Power On
BAC Input
Wi-Fi Connection (Remote to Trolley Only)
Workow
The Main Menu
Vehicle Selection from Database
Manual Selection of Battery
Remote Diagnostic
PDI Test
Trolley Diagnostic
Charge
Load Test
Reserve Capacity Test
History
Settings
Warranty
Limited Warranty
How to Obtain Warranty
Support Information
Local Support

14/43
GM DCBS EL-52800 User Manual / Ref. MAN_DCBS_GM_EN_V1.0
Workow 1/28
THE MAIN MENU ////////
The Main Menu is the home
screen of the tool. It gives access
to all the available features of the
DCBS Remote.
VEHICLE SELECTION FROM DATABASE ////////

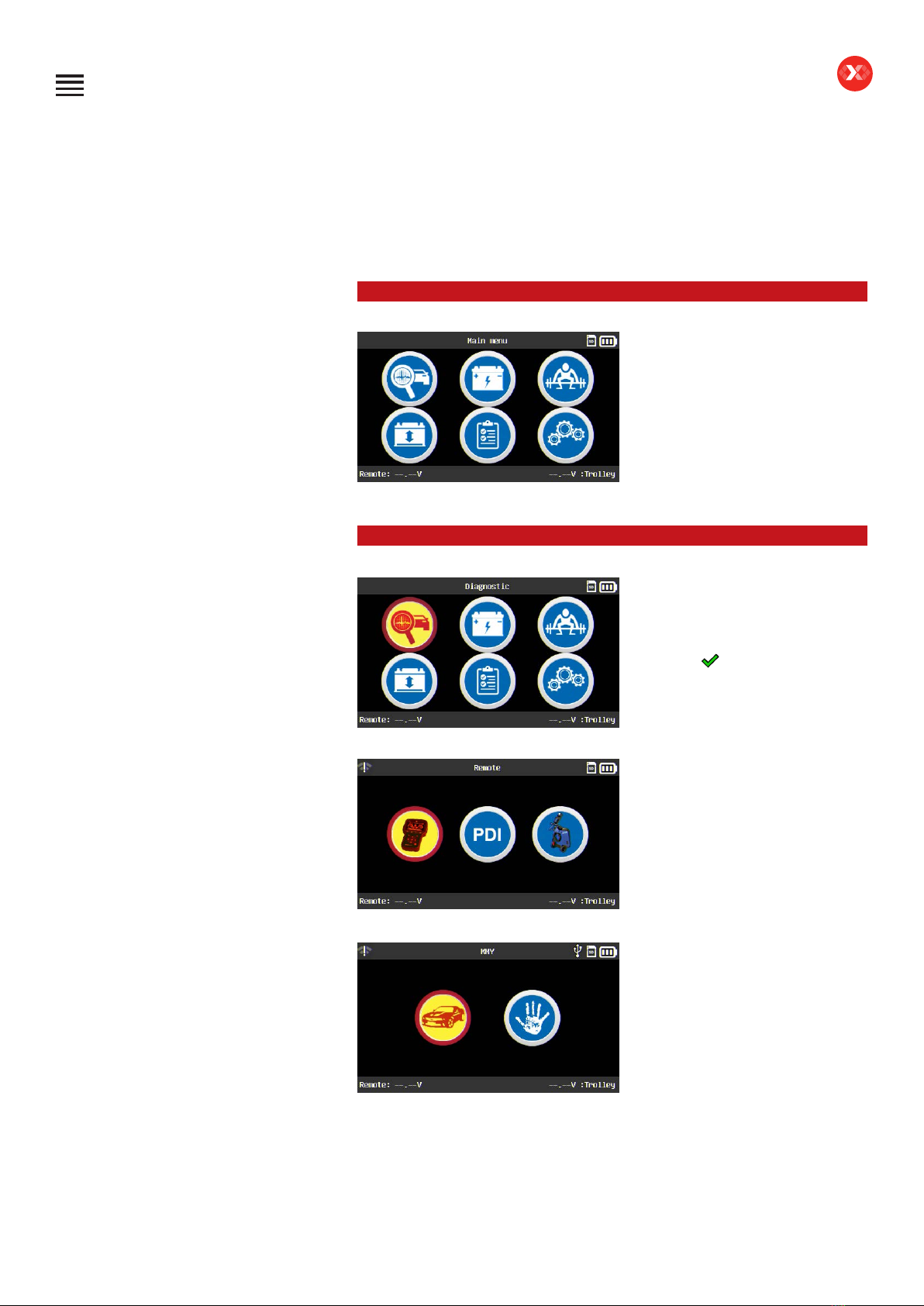

Press any key to highlight the
“Diagnostic” icon.
Press the button on the
keypad to go to the next screen.
Select “Remote”, “PDI” or “Trolley”.
Select “MMY” selection to use the
embedded Database of the tool.
Table of Contents
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Getting Started
Safety Reminders
Appearance and Dimensions
Trolley LED’s
Remote Presentation
Remote Job Storage
Accessories
Initial Setup
Installation
Battery Cable Clamps Connection
Power Cable Connection and Power On
BAC Input
Wi-Fi Connection (Remote to Trolley Only)
Workow
The Main Menu
Vehicle Selection from Database
Manual Selection of Battery
Remote Diagnostic
PDI Test
Trolley Diagnostic
Charge
Load Test
Reserve Capacity Test
History
Settings
Warranty
Limited Warranty
How to Obtain Warranty
Support Information
Local Support

15/43
GM DCBS EL-52800 User Manual / Ref. MAN_DCBS_GM_EN_V1.0
Table of Contents
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Getting Started
Safety Reminders
Appearance and Dimensions
Trolley LED’s
Remote Presentation
Remote Job Storage
Accessories
Initial Setup
Installation
Battery Cable Clamps Connection
Power Cable Connection and Power On
BAC Input
Wi-Fi Connection (Remote to Trolley Only)
Workow
The Main Menu
Vehicle Selection from Database
Manual Selection of Battery
Remote Diagnostic
PDI Test
Trolley Diagnostic
Charge
Load Test
Reserve Capacity Test
History
Settings
Warranty
Limited Warranty
How to Obtain Warranty
Support Information
Local Support
Workow 2/28
VEHICLE SELECTION FROM DATABASE ////////

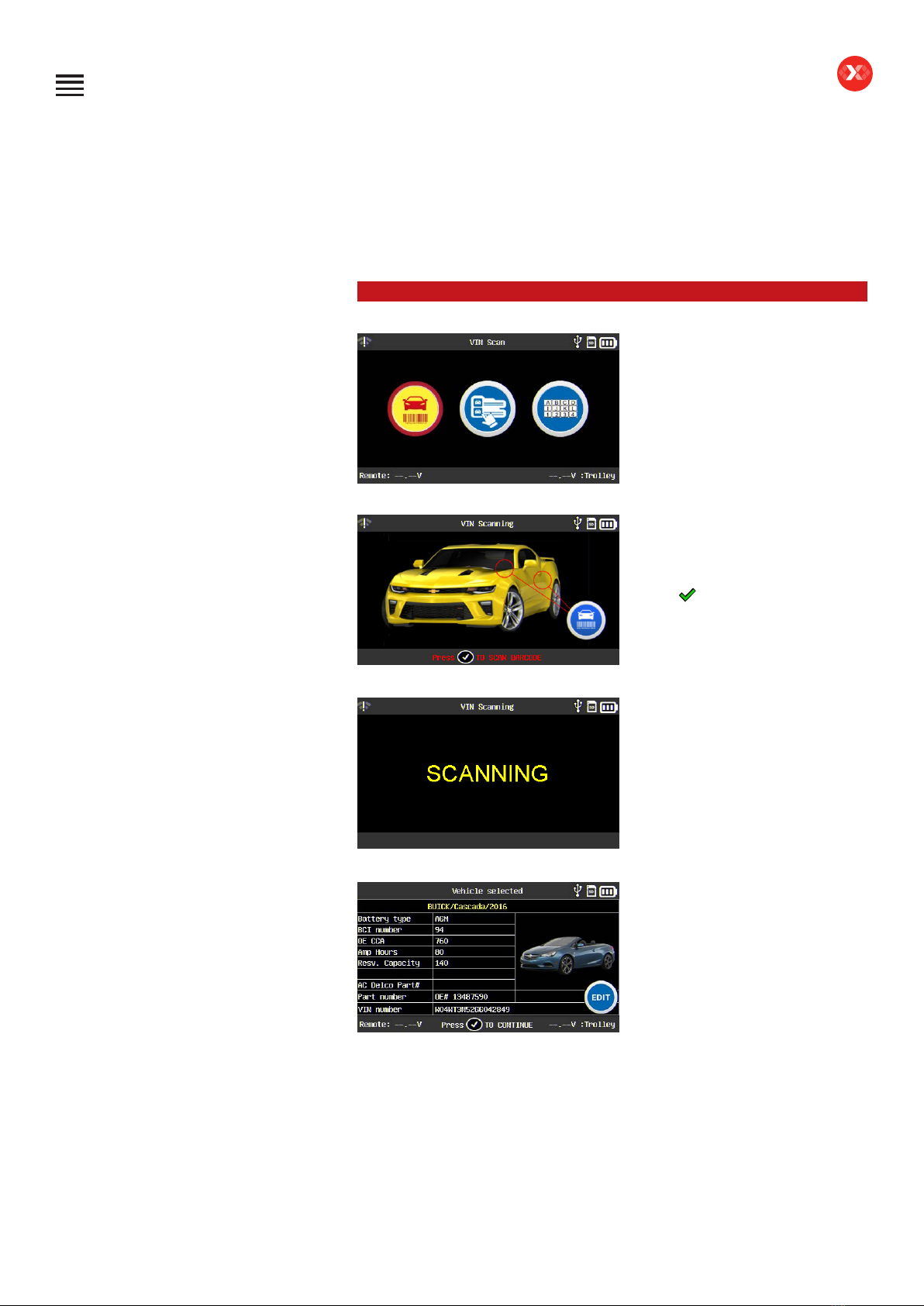

Select “VIN Scan” to scan the VIN
of the vehicle.
***VIN Scan will only work with
vehicles MY 2012-Current***
Press to start the process.
Position the tool by the door jam
or by the window and scan the
QR code.
The “Vehicle selected” will come up
once the VIN is scanned.

16/43
GM DCBS EL-52800 User Manual / Ref. MAN_DCBS_GM_EN_V1.0
Table of Contents
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Getting Started
Safety Reminders
Appearance and Dimensions
Trolley LED’s
Remote Presentation
Remote Job Storage
Accessories
Initial Setup
Installation
Battery Cable Clamps Connection
Power Cable Connection and Power On
BAC Input
Wi-Fi Connection (Remote to Trolley Only)
Workow
The Main Menu
Vehicle Selection from Database
Manual Selection of Battery
Remote Diagnostic
PDI Test
Trolley Diagnostic
Charge
Load Test
Reserve Capacity Test
History
Settings
Warranty
Limited Warranty
How to Obtain Warranty
Support Information
Local Support
Workow 3/28
VEHICLE SELECTION FROM DATABASE ////////
If the VIN is not available to scan, or vehicle is MY below 2012, Manual Selection is
available.
Press to start the process.
Select the BRAND of the car being
tested.
***MMY Selection will only work
with vehicles MY 2010-current***
Select the Model of the vehicle.
Select the Year of the vehicle.
The Vehicle selected screen will
come up.

17/43
GM DCBS EL-52800 User Manual / Ref. MAN_DCBS_GM_EN_V1.0
Table of Contents
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Getting Started
Safety Reminders
Appearance and Dimensions
Trolley LED’s
Remote Presentation
Remote Job Storage
Accessories
Initial Setup
Installation
Battery Cable Clamps Connection
Power Cable Connection and Power On
BAC Input
Wi-Fi Connection (Remote to Trolley Only)
Workow
The Main Menu
Vehicle Selection from Database
Manual Selection of Battery
Remote Diagnostic
PDI Test
Trolley Diagnostic
Charge
Load Test
Reserve Capacity Test
History
Settings
Warranty
Limited Warranty
How to Obtain Warranty
Support Information
Local Support
Workow 4/28
VEHICLE SELECTION FROM DATABASE ////////

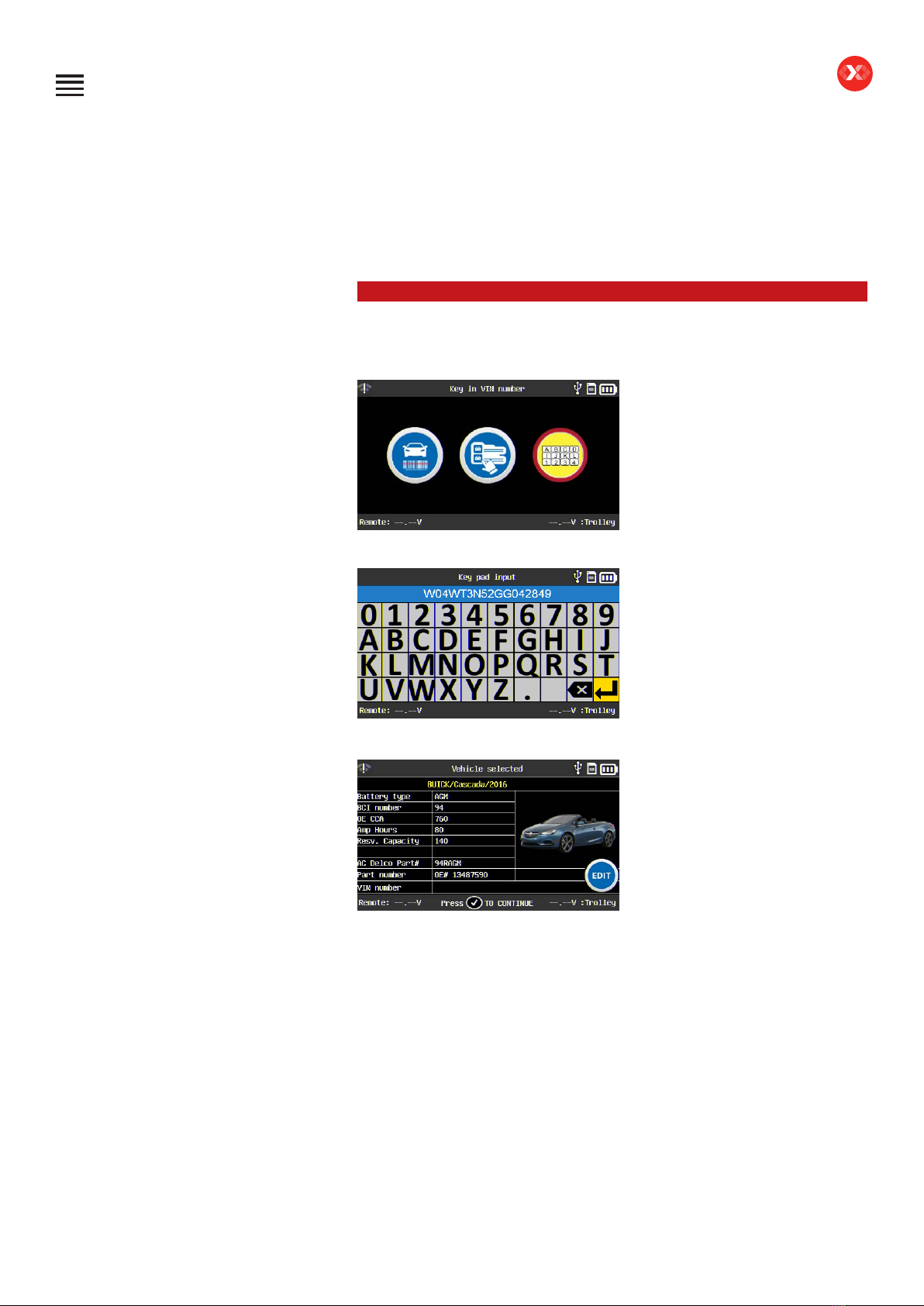

If the VIN is not available to scan, Manual VIN entry is available.
To manually enter the VIN, select
the “Key in VIN number” option.
***VIN Scan will only work with
vehicles MY 2012 -Current***
A keypad will appear. Use the
ARROWS on the key pad to type.
The Vehicle selected screen will
come up.
***Database selection is not available under Charge, Load Test,
and RC Test menus***

18/43
GM DCBS EL-52800 User Manual / Ref. MAN_DCBS_GM_EN_V1.0
Table of Contents
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Getting Started
Safety Reminders
Appearance and Dimensions
Trolley LED’s
Remote Presentation
Remote Job Storage
Accessories
Initial Setup
Installation
Battery Cable Clamps Connection
Power Cable Connection and Power On
BAC Input
Wi-Fi Connection (Remote to Trolley Only)
Workow
The Main Menu
Vehicle Selection from Database
Manual Selection of Battery
Remote Diagnostic
PDI Test
Trolley Diagnostic
Charge
Load Test
Reserve Capacity Test
History
Settings
Warranty
Limited Warranty
How to Obtain Warranty
Support Information
Local Support
Workow 5/28
MANUAL SELECTION OF BATTERY ////////
If the vehicle is older than 2010, or the vehicle is not made by GM, Manual Selection
is available.
When the tool asks for “MMY”
or “Manual” selection, select
“Manual”.
The option to select the battery
type will show to select between
Flooded, AGM, and EFB batteries.
Once the type has been selected,
the battery standard EN, DIN, JIS,
and CCA will be available to select.
(CCA Shown).
Manual selection for EN, DIN, JIS, or
CCA will be available. (CCA Shown).

19/43
GM DCBS EL-52800 User Manual / Ref. MAN_DCBS_GM_EN_V1.0
Table of Contents
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Getting Started
Safety Reminders
Appearance and Dimensions
Trolley LED’s
Remote Presentation
Remote Job Storage
Accessories
Initial Setup
Installation
Battery Cable Clamps Connection
Power Cable Connection and Power On
BAC Input
Wi-Fi Connection (Remote to Trolley Only)
Workow
The Main Menu
Vehicle Selection from Database
Manual Selection of Battery
Remote Diagnostic
PDI Test
Trolley Diagnostic
Charge
Load Test
Reserve Capacity Test
History
Settings
Warranty
Limited Warranty
How to Obtain Warranty
Support Information
Local Support
Workow 6/28
REMOTE DIAGNOSTIC ////////
To start the Remote Diagnostic,
select Diagnostic and then select
Remote. Follow the steps in
Database Selection or Manual
Selection to select the vehicle
or battery.
After vehicle or battery selection
is made, the tool will ask to measure
the temperature of the battery.
***Do NOT point laser at individuals
or reective objects***
If the clamps are not connected, the
tool will ask to connect the clamps.
If the battery voltage is too low,
(below 12.4V) the tool will ask you
to charge the battery.
If the battery is connected on the
opposite polarity, the screen
“Reverse Voltage” will appear.

20/43
GM DCBS EL-52800 User Manual / Ref. MAN_DCBS_GM_EN_V1.0
Table of Contents
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Getting Started
Safety Reminders
Appearance and Dimensions
Trolley LED’s
Remote Presentation
Remote Job Storage
Accessories
Initial Setup
Installation
Battery Cable Clamps Connection
Power Cable Connection and Power On
BAC Input
Wi-Fi Connection (Remote to Trolley Only)
Workow
The Main Menu
Vehicle Selection from Database
Manual Selection of Battery
Remote Diagnostic
PDI Test
Trolley Diagnostic
Charge
Load Test
Reserve Capacity Test
History
Settings
Warranty
Limited Warranty
How to Obtain Warranty
Support Information
Local Support
Workow 7/28
REMOTE DIAGNOSTIC ////////

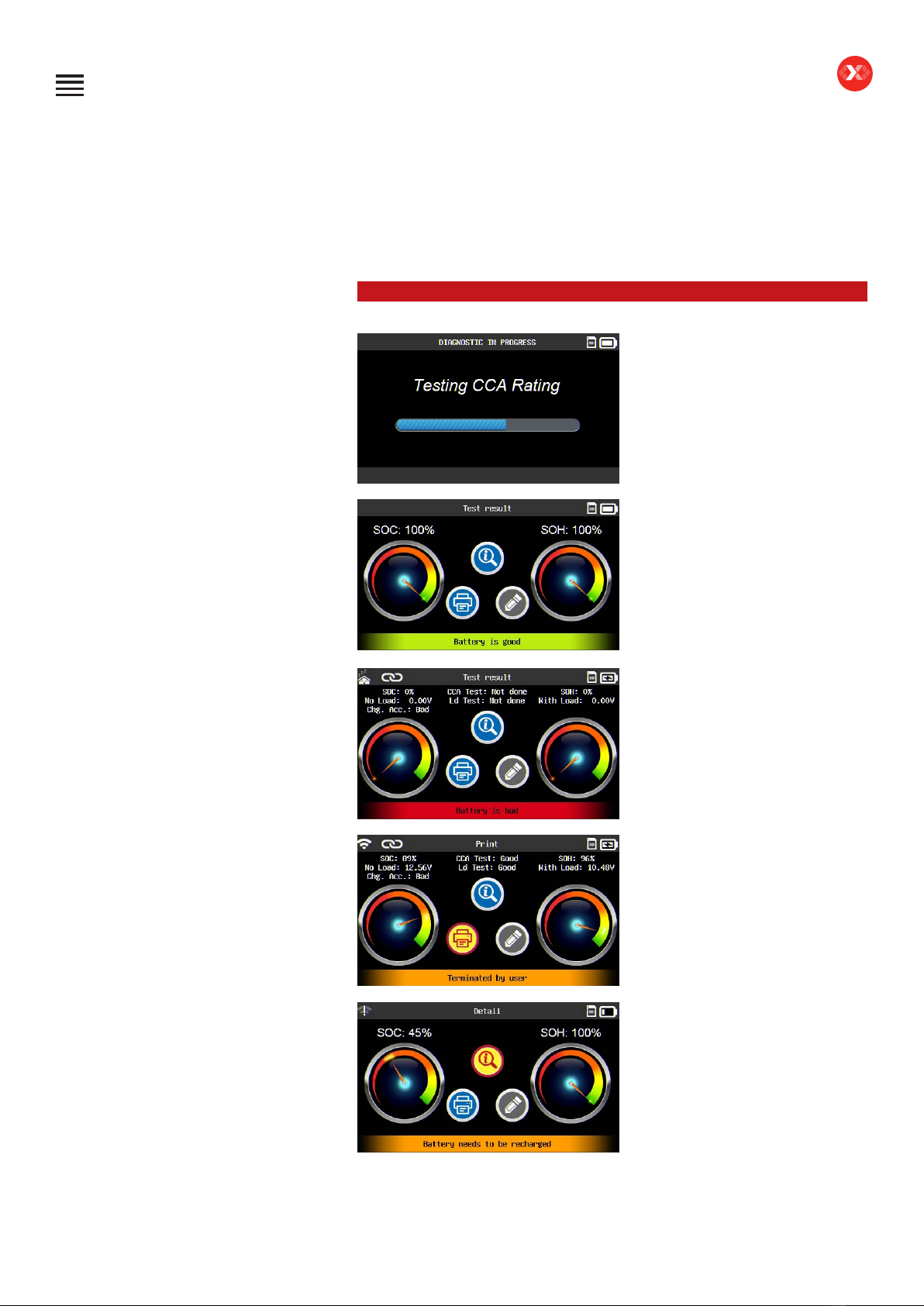

If everything is connected properly,
the tool will do its calculations and
come back with a result.
If the results come back GOOD, the
tool will show “Battery is good”.
The left dial represents the state of
charge based on Voltage and the
right dial represents the state of
health based on Internal Resistance.
If the results come back as BAD, the
tool will show “Battery is bad”.
*** No Warranty Code will be
generated when the test is done
with Remote only***
If the test is terminated, the tool will
show “Terminated by User”.
If the test comes back that the
battery needs to be recharged,
the tool will show “Battery needs
to be recharged”.
