EASEPAL EC-385A Manual

中国·厦门蒙发利科技有限公司
Xiamen Comfort Science & Technology Co.,Ltd
产 品 维 修 手 册
Maintenance Service Manual
产品型号/MODEL：EC-385A
适用电压规格/voltage specification：220-240V
蒙发利集团·客服
By the Easepal`s Customer Service Dept.

一、产品故障列表 Trouble List
如下为 EC-385A 常见的故障现象及维修方法。
Common Troubles and Maintenance Methods are listed as below:
故障序
号 NO
现象
phenomenon
描述
Description
维修方法
maintenance method
A.手控器无显示：LCD NO VISION
①、保险丝烧掉 Fuse melts
（电源盒处和中心板上(in the
Power Source Box and main PCB)
②、电源电路接触不良。Power supply
circuit Poorly connected
③、电源滤波器坏
EMC Board Failed
④、中心板坏 Main PCB failed
①、更换保险丝
Replace Fuse
②、更换电源盒
Replace Power Box
③、更换电源滤波器
Replace EMC Board
④、更换中心板
Replace main PCB
01 开机无功能
No function
B.手控器有显示：LCD HAS Vision
①、机械开关坏掉
或是机械开关的线材断开。
Mechanical switch failed or
the wire of it broken
②、上下行程光电坏。
Up or Down sensor of
photo-electricity was failed
③、中心板坏掉 Main PCB failed
④、开机直揉捏其他按键无效
No response from other
buttons except the kneading
function
①、更换机械开关或是线材
replace Mechanical
Switch or Wire
②、更换行程光电
Replace the Sensor of
Photo-electricity
③、更换中心板
Replace main PCB
④、宽度检测板坏，
更换宽度检测板
Replace the Width
Inspection Board

02 宽中窄不能切换
the Width
switchover
unchangeable
①、中心板宽度检测端子线材接触不
良。The terminals of Width
Inspection on main PCB with wires
were poorly connected
②、机芯宽度检测板端子线材接触不
良。The terminals of Width
Inspection on mechanism with
wires were poorly connected
③、宽度检测板坏。
Width Inspection Board failed
④、中心板坏 Main PCB failed
①、②点将端子接插到位或是更换线
材
Plug the terminals well or replace
the wires when meet problems of
①、②
③、更换宽度检测板
Replace Width Inspection Board
④、更换中心板
Replace the main PCB
03 不行走
NO Rolling
①、端子或是线材接触不良
Terminals or Wires Poorly
Contact
②、上、下行程光电组件坏。
Subassembly of the UP/
Down-sensor Photo-electricity
Failed
③、行走电机坏
Rolling Motor Failed
④、中心板坏 Main PCB failed
①、将端子接插到位或是更换线材。
Plug the terminal well or replace
the wires
②、更换上、下行程组件
Replace the Subassemblies of
UP/Down sensor
③、更换机芯。
Replace gear box
④、更换中心板
Replace main PCB
04 不揉捏
No kneading
①、中心板端子没插到位或是线材接
触不良。The terminals on main PCB
and wires are poorly connected
②、揉捏电机坏
Kneading motor failed
③、中心板坏 Main PCB failed
①、将端子接插到位或是更换线材。
Plug the terminal well or
replace the wires
②、更换机芯
Replace gear box
③、更换中心板。
Replace main PCB
05 不敲击 ①、中心板端子没插到位 ①、将端子接插到位

No tapping The terminals on main PCB
and wires are poorly connected
②、敲击电机坏
Tapping motor failed
③、中心板坏掉 Main PCB failed
Plug the terminal well
②、更换机芯
Replace gear box
③、更换中心板
Replace the main PCB
06 手控器上按键无
反映
No response for
all the buttons
of controller
①、端子接触不良或线材接触不良
The terminals and wires are
poorly connected
②、手控器 PCB 板坏
The PCB in the controller failed
①、将端子接插到位或是更换线材。
Plug the terminal well or
replace the wires
②、更换手控器
Replace the controller
07 不升倒背
Backrest can’t
recline or lift
①、电动推杆连接线未接插到位
The terminal of reclining
actuator and wires are poorly
connected
②、电动推杆坏
The electrically operated
pusher failed
③、中心板坏
Main PCB failed
①、将连接线接插到位
Plug the terminal well
②、更换电动推杆
Replace the reclining actuator
③、更换中心板
Replace main PCB
08 小腿不能升降
calves-rest can`t
lift or recline
①、电动推杆连接线未接插到位
The terminal of calves-rest
actuator and wires are poorly
connected
②、电动推杆坏
The calves-rest failed
③、中心板坏 Main PCB failed
①、将连接线接插到位
Plug the terminal well
②、更换电动推杆
Replace the calves-rest
actuator
③、更换中心板
Replace main PCB

9 电机不振动
no vibration by the
motor in the
seat-pad
①、振动电机坏
Vibration motors failed
②、端子接触不良或是线材坏掉。
The terminals and wires are
poorly connected or the
wires failed
③、中心板坏。Main PCB failed
①、更换振动电机
Replace the vibration motor
②、将端子接插到位或者更换线材。
Plug the terminal well or
replace the wires
③、更换中心板
Replace main PCB
10 座部不充气
no air in the
seat-pad
11 小腿不充气
no gas charging in
the calves-rest
12 披风不充气
no gas charging in
the manteau of
backrest
①、气泵泄气阀端子接触不良
The terminal of the air discharge
of inflator valves and wires are
poorly connected
②、泄气阀坏
The air discharge of inflator
valves failed
③、气泵坏 The inflator pump
failed
④、中心板坏 Main PCB failed
①、将端子接好
Plug the terminal well
②、更换泄气阀。
Replace the air discharge of
inflator valves
③、更换气泵。
Replace the inflator pump
④、更换中心板
Replace the main PCB
13 小腿不伸缩
no extending
or shrinking of the
calves-rest
①、端子接触不良
The terminals and wires are
poorly connected
②、检查端子是否有 24V 输出
The output voltage is not 24VAC
③、检查光耦是否有问题
The optocouplers failed
④、电机不良 The motor failed
①、将端子接好。
Plug the terminal well
②、无输出为中心板坏
Replace the main PCB if no
voltage output
③、有更换光电组件
Replace the optocouplers
④、更换电机
Replace the motor

14 音乐无功能
no music
①、端子接触不良
The terminals and wires are
poorly connected
②、检查端子是否有 24V 输出
The output voltage is not 24VAC
③检查喇叭是否损坏
The loudspeaker OK or not
④音频版坏
The music PCB failed
①、将端子接好。
Plug the terminal well
②、无输出为中心板坏
Replace the main PCB if no voltage
output
③、更换喇叭
Replace the loudspeaker
⑤更换音频版
Replace the music PCB

二.故障检修流程图 Troubleshooting Process
在修理或者替换零配件过程中注意下面几点：
A. 在拆卸连线，移动连接器，或者替换部件前一定要断开电源线插头。
B. 因为半导体（像集成电路，或者其它的）很容易被静电损坏，所以当要触摸 PCB 前，请确保你的身
体和大地有连线（佩带静电手环），或可以将手放在地端，以释放身体上所带的静电。
Notes for repairing chair or replacing parts
A. Make sure the power is off when you tear down the wires, move terminals or replacing parts.
B. The semiconductors( like IC or something else) will easily be damaged by static.
So you touch the PCB before, please make sure your body is connected with the ground.
1、开机无功能/ No function
是
上下行程组件端子线是否连接好
Check the terminals of Up and Down
Stroke Subassembly connected well
检查上下行程组件
是否损坏
Check the UP/DOWN
Stroke Subassembly
连接好端子线
Touch well
更换上下行程组件
Replace the UP or
DOWN Stroke
宽度检测板是否坏
Check the width board
更换中心板 Replace Main PCB
更换宽度检测板
Replace the width board
液晶片是否显示
Does LCD has display
NG
OK NG
检查保险丝是否烧
Check the fuse is
更换保险丝
Replace fuse
电源线是否断路
Check the power cord
电源滤波器是否损坏
Chenck the EMC Board
更换电源线
Replace fuse
更换电源滤波器
Replace the EMC board
NG
OK
NG
OK
NG
OK
NG
OK
NG
OK
OK

2、机芯宽中窄不能切换 No width switchover
3、不行走/ NO ROLLING
检查宽度检测板连接线是否与中心板连接好
Does the terminal of Width Inspection Board and
main PCB connected securely?
将连接线接好
Touch well
宽度检测板是否损坏
Check width Inspection board
更换宽度检测板
Replace the width inspection
更换中心板
Replace Main PCB
检查行走电机连接线是否与中心板连接好
Check the terminals of rolling motor wire with
main PCB connected securely?
将连接线接好
Touch well
检查行走电机是否损坏
Check the rolling motor
更换机芯
Replace gear box
更换中心板
Replace the Main PCB
OK
NG
NG
OK
NG
OK
NG
检查上下行程组件是否损坏
Check the UP or DOWN
Stroke Subassembly
更换上下行程组件
Replace the UP or DOWN Stroke
subassembly
NG
OK
OK

4、不揉捏/ NO KNEADING
否
5、不敲击/ NO TAPPING
更换中心板
Replace the Main PCB
检查敲击电机是否损坏
Check the tapping motor
将连接线接好
Touch well
更换机芯
Replace gear box
检查行走电机连接线是否与中心板连接好
Check the terminals of Kneading motor wire
with main PCB connected securely?
将连接线接好
Touch well
检查行走电机是否损坏
Check the Kneading motor
更换机芯
Replace gear box
宽度检测板是否损坏
Check width Inspection board
更换宽度检测板
Replace the width inspection
NG
OK
NG
OK
NG
OK
检查行走电机连接线是否与中心板连接好
Check the terminals of Tapping motor wire
with main PCB connected securely?
NG
OK
NG
OK
更换中心板
Replace the Main PCB

6、手控器上按键无反应
The all buttons of controller aren`t response
7、电动推杆(靠背/小腿/零重力)不工作
Actuator doesn’t work.(Backrest/leg rest/zero G)
检查手控器连接线是否与中心板连接好
Check the terminals of remote controller wire
and main PCB connected securely?
检查导电橡胶是否损坏
Check the conductive rubber
更换手控器
Replace the remote controller
将连接线接好
Touch well
更换导电橡胶
Replace it
检查电动推杆连接线与中心板是否连接好
The terminals of their actuator with main PCB
connected securely?
检查电动推杆是否损坏
Check the actuator
更换中心板
Replace the main PCB
将连接线接好
Touch well
更换电动推杆
Replace it
OK
NG
NG
OK
NG
OK
NG
OK

8、振动电机不工作
No vibration
9、座部/腿部/靠背披风/肩部不充气
No gas charging（Seat pad / Calves-rest/Backrest part/should massage）
检查振动电机连接线与中心板是否连接好
The terminals of their print motors with main
PCB connected securely?
检查座部振动电机对插线是否连接好
Check the connectors in the middle of the wire
connected securely?
更换中心板
Replace the main PCB
将连接线接好
Touch well
检查振动电机是否损坏
Check the print motor
更换振动电机
Replace print motor
检查座部泄气阀连接线是否与中心板连接好
Check the terminals of snuffle valve for bags with main
PCB connected securely?
检查泄气阀是否损坏
Check the snuffle valve
将连接线接好
Touch well
检查气泵连接线是否与中心板连接好
Check the terminals of inflator pump with main
PCB connected securely?
更换泄气阀
Replce snuffle valve
将连接线接好
Touch well
将连接线接好
Touch well
NG
OK
OK
OK
NG
NG
NG
OK
OK
NG
NG
OK

10、小腿伸缩无功能
No extending or shrinking of the calves-rest
更换气泵
Replace the inflator pump
检查气泵是否损坏
Check the inflator pump
更换中心板
Replace the main PCB
检查小腿连接板端子是否与中心板是否连接好
Check the terminals of legrest with main PCB
connected securely?
将连接线接好
Touch well
检查小腿内光电组件是否损坏
Check the electric Subassembly
更换中心板
Replace the main PCB
更换光电组件
Replace it
检查小腿电机接线是否连接好
Check the terminals of motor
将连接线接好
Touch well
检查小腿电机是否损坏
Check the motor of legrest
更换电机
Replace it
OK
NG
NG
OK
NG
NG
OK
OK
NG
OK

目录
Table of Contents
1.靠背的拆卸 Disassembly of the backrest ................................................................................................................ 14
2.拉绒布的拆卸 Disassembly of the cloth of the front cover..................................................................................... 15
3．靠背前后盖的拆卸 Disassembly of the backrest cover........................................................................................ 16
4. 机芯的拆解 Disconnect Robot Mechanism........................................................................................................... 16
5. 小车与背架的分离 Disconnect Rolling Car.......................................................................................................... 18
6.靠背小枕头的拆解 Disassembly of the pillow（small）....................................................................................... 18
7．靠背大枕头的更换 Replace the pillow(big)......................................................................................................... 19
8．披风的拆卸 Disassembly of the backrest pad....................................................................................................... 19
9．肩部按摩器的拆卸 Disassembly of the shoulder massage.................................................................................... 20
10．侧板的拆卸 Disassembly of the side board......................................................................................................... 20
11．手控器的更换 Replace the remove control.......................................................................................................... 21
12．坐垫的拆卸 Disassembly of the seat pad.......................................................................................................... 22
13．座侧按摩器的拆卸 Disassembly of the side seat massage................................................................................. 23
14. 更换前挡板 Replace Front board........................................................................................................................ 24
15. 更换靠背&座部&小腿电动推杆 Replace the backrest 、seat-rest and legrest actuator................................. 25
16. 更换中心板 Replace The Main PCB ................................................................................................................... 25
17．小腿组件的拆卸 Disconnect Legrest ................................................................................................................. 26
18．小腿电机的更换 Replacement the extend motor................................................................................................. 27
19．小腿行程光电的更换 Legrest `s stroke photo-electricity.................................................................................28
20．小腿 PCB 板的更换 Replace the legrest PCB.................................................................................................... 28
21．触地检测开关的更换 Replace the sensors switch of ground.............................................................................. 28
22．小腿丝杆螺母座的更换 Replace pin rocker bearing `s nut ............................................................................... 29
23．小腿外套的更换 Replace Legrest `s coat............................................................................................................ 30

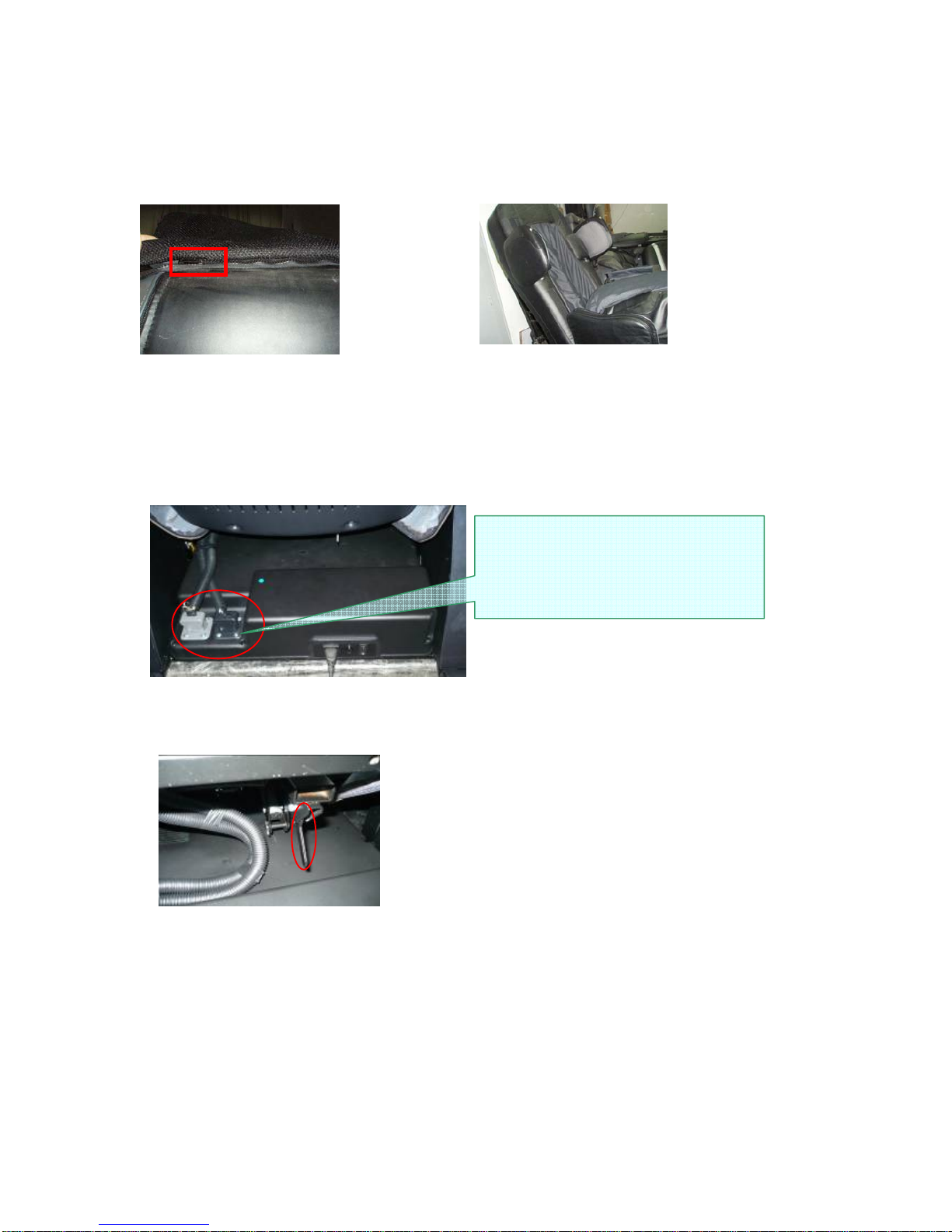

1.靠背的拆卸 Disassembly of the backrest
A．拉开披风与靠背的拉链，可将披风放在座位上。
Find the zipper on the top of the back rest, unzip it and then the backrest pad can be placed on the
seat part.
B. 拔掉靠背在底座上的电源线与数据线
Find the wire plugs and pull out them.
C. 找个靠背底座上的卡位销，并向上拉起
Find the “stopper” under the backrest and press it, then you can fold backrest on seat part.
D．拔下靠背底端的 2根气管
Pull out the connectors of the hoses on the bottom of the backrest
E. 然后再拆卸座部电动推杆，使电动推杆与靠背分离
Unattach the connecting rod and the U stay fork of the reclining actuator with a flat head rivet, and pull out
the split pin.
拉开披风与靠背连接的拉链
The zipper on the top of the
backrest.
将披风放在座位上
Place the backrest pad on the
seat part seat part
注意区分不同颜色插头及正反面
Note: Insert the wire plugs black to black
and gray to gray correctly, otherwise
damage to the chair may result

F．现在可以把靠背竖起与座部的卡槽口并行，就样就容易把靠背从座部提起分离
Lift the backrest at 90 degrees, then take it away from the chair
2.拉绒布的拆卸 Replacement of cloth of the front cover
A．取下披风后，可以看到靠背上的拉绒布
Find the cloth after taking down the backrest pad.
B．在靠背左下部可以找到拉链; 将拉链拉开，使其与靠背分离, 必要时更改拉绒布即可.
You can find the zipper of the cloth at the left side. Unzip it and replace the cloth if needed.
拉开拉链就可以更换拉绒布了
Unfasten the zipper to replace the cloth
靠背与座架成 90°
Lift the backrest at 90 degrees.
A. Connecting rod (on the backrest)
B. U stay fork of reclining actuator (on the seat)
C. Flat head rivet
D. Split pin

3．靠背前后盖的拆卸 Disassembly and replacement of the rear cover and the front cover
A．拉开靠背皮套的拉链,掀开皮套
Unfasten the zippers of the outer cloth of the rear cover.
B．取下背盖上的 4颗螺丝，拿下后背盖
Find 4 pieces of screws fixing the rear cover and remove the screws with a plus screwdriver.
C．取下前背盖上的 6枚螺丝，拿下前背盖
Find 6 pieces of screws fixing the front cover and remove the screws with a plus screwdriver,
and then the front cover can be removed.
4. 机芯的拆解 Disconnect Robot Mechanism
首先把机芯上方有碍机芯取出的线材理清,拆下接线头，还有电机皮带等，然后再进一步拆解
First,clean the wires on the robot , eg: disconnect wire terminals and motor belt…….
靠背皮套的 2边拉链
The zippers of the outer clothing of the rear cover.
靠背后盖上的 4枚螺丝
The 4 screws of the rear cover
理清线材、对插线等
Clean the line and
wire terminals
拆卸皮带
Motor belt

A. 拆除机芯与小车的固定螺丝(4PCS)
Disconnect mechanism with rolling car
B. 宽度检测板和敲击电机的拆卸
Disconnect width inspection board and tapping motor
C. 提取机芯 Disconnect mechanism
D. 拆卸揉捏电机 Disconnect the kneading motor
拆除 4枚螺丝和皮带
即可拆卸敲击电机
Disconnect tapping motor
just slacken and remove
the screw (4pcs)
拆除 2枚螺丝后就可取出检测板
Disconnect width inspection board
just remove the screw (2pcs)
机芯上方 2枚螺丝
Slacken and remove
the screw(2pcs)
on upper
机芯下方 2枚螺丝
Slacken and remove
the screw(2pcs)
on lower
拆除电机上的 4枚螺丝
Just remove
the screws(4pcs)

5. 小车与背架的分离 Disconnect Rolling Car
A. 拆除背架顶端的横条
Remove the rail on the top of backrest
B. 使小车从齿轨中走出来，有两种方法：
①给行走电机加 24V 直流电压，此方法省力省时
②用冶具（例“—”螺丝刀），来旋转电机机轴，比较麻烦；见下图
Remove rolling car take from rack rail have 2 ways
①Fist way is better than②, Just give rolling motor to 24V
②Use tools turn around axletree to revolve until the rolling car take from backrest.
(See image below)
6.靠背小枕头的拆解 Disassembly of the pillow（small）
A．拉开小枕头的粘毛扣，断开 2处气管接头，取下小枕头
Disconnect the 2 hose terminals，take down the pillow.（small）
2小枕头的 2处粘毛扣
pull here and take down the pillow
小枕头的 2处气管（small）
the 2 terminals of the small pillow
拆除背架顶端两侧
的两个螺丝
Slacken and remove
the screws (2pcs)on
the two side
用冶具旋转此
轴就可使小四
行走（注意行
走方向）

B：拉开小枕头的拉链，掀开皮套，断开气管
Unzip the zipper of the pillow（small），lift the cover，disconnect the hose
C．可以直接更换小枕头上的气袋
Then replace the air bag of the pillow（small）
7．靠背大枕头的更换 Replace the pillow(big)
A．取下小枕头（参考靠背小枕头的拆解）
Take down the small pillow(refer to the disassembly of the small pillow)
B．拉开大枕头的拉链，取下大枕头
Unzip zipper of the big pillow，replace a new one
8．披风的拆卸 Disassembly of the backrest pad
A．拉开披风与靠背的拉链和披风与座部的拉链，将披风放在座位上（参考拉绒布的拆卸）
Unzip zippers of the pad，put the pad on the seat（refer to the disassembly of the cloth ）
B．拔开披风下方的气管和加热器接线头，取下披风
Find and disconnect the hoses of the pad and the terminal of the heater，take down the backrest pad
小枕头上的拉链
The zipper of the pillow（small）断开此处的气管可以分离小枕头
Disconnect the hoses of the pillow
加热器接线头
the terminal of the heate
r
披风与靠背的拉链
the zipper fixing the pad and the backrest
披风与座部的拉链
The zipper fixing the pad and the seat cover

9．肩部按摩器的拆卸 Disassembly of the shoulder massage
A．拉开肩部按摩器的拉链
Unzip the zipper of the shoulder massage
B．拔开气管和喇叭接线头，取下 3枚螺丝
Disconnect the hose，slack and remover the 2 screws
10．侧板的拆卸 Disassembly of the side board
A：首先用内六角扳手将固定侧板的 2个内六角螺母取掉
Find inside hexagon nut(2pcs) and remove them( the position re. Image )
内六角螺拄位置
The position of hexagon screws (2pcs)
掀开座垫，取下前面的螺丝
Put up the cover of seat rest，take down the
in front screw
2边的肩部按摩器
the shoulder massage
肩部按摩器的拉链
the zipper of the shoulder
断开肩部按摩器的气管和喇叭接线头
disconnect the hose and the terminal of the loudspeaker 取下 3枚螺丝就可以分离肩部按摩器了
Take down the 3 screws to disassemble the
shoulder massage
