Eastron SDM630 User manual

JIAXING EASTRON ELECTRONIC INSTRUMENTS CO.,LTD.
TEL:[phone] 83698882 FAX: [phone]
WEB: www.eastrongroup.com Email: [e-mail]
Add: No.1369. Chengnan Road, Nanhu, Jiaxing, Zhejiang, China 314001.
- 1 -
SMART
SMART
SMART
SMART MINI
MINI
MINI
MINI POWER
POWER
POWER
POWER
SDM630
SDM630
SDM630
SDM630
USER
USER
USER
USER MANUAL
MANUAL
MANUAL
MANUAL
2012
2012
2012
2012 V1.1
V1.1
V1.1
V1.1

JIAXING EASTRON ELECTRONIC INSTRUMENTS CO.,LTD.
TEL:[phone] 83698882 FAX: [phone]
WEB: www.eastrongroup.com Email: [e-mail]
Add: No.1369. Chengnan Road, Nanhu, Jiaxing, Zhejiang, China 314001.
- 2 -
Installation
Installation
Installation
Installation and
and
and
and Operation
Operation
Operation
Operation Instructions
Instructions
Instructions
Instructions
Important Safety Information is contained in the Maintenance section. Familiarise yourself with this
information before attempting installation or other procedures.
Symbols used in this document:
Risk of Danger: These instructions contain important safety information :
Read them before starting installation or servicing of the equipment
Caution: Risk of Electric Shock

JIAXING EASTRON ELECTRONIC INSTRUMENTS CO.,LTD.
TEL:[phone] 83698882 FAX: [phone]
WEB: www.eastrongroup.com Email: [e-mail]
Add: No.1369. Chengnan Road, Nanhu, Jiaxing, Zhejiang, China 314001.
- 3 -
1
1
1
1 Introduction
Introduction
Introduction
Introduction
This document provides operating, maintenance and installation instructions for the Eastron SDM630 din
rail mounted energy meter. T he unit measures and displays the characteristics of single phase two wires and
three phase four wires supplies, including voltage, frequency, current, power and active and reactive energy,
imported or exported. E nergy is measured in terms of kWh, kVarh. Maximum demand current can be
measured over preset periods of up to 60minutes. I n order to measure energy, the unit requires voltage and
current inputs in addition to the supply required to power the product. T he requisite current input(s) are
obtained via current transformers (CT).
The SDM630 can be configured to work with a wide range of CTs, giving the unit a wide range of
operation. Built-in interfaces provide pulse and RS485 Modbus RTU outputs. C onfiguration is password
protected.
The unit can be powered from a separate auxiliary ( AC or DC) supply. Alternatively it can be powered
from the monitored supply, where appropriate.
1.1
1.1
1.1
1.1 Unit
Unit
Unit
Unit Characteristics
Characteristics
Characteristics
Characteristics
T he SDM630 can measure and display:
�Line voltage and THD% (total harmonic distortion) of all phases
�Line Frequency
�Currents, Current demands and current THD% of all phases
�Power, maximum power demand and power factor
�A ctive energy imported and exported
�R eactive energy imported and exported
T he unit has password-protected set-up screens for:
�Changing password
�S upply system selection 1phase2wire, 3phase 4wires
�CT primary current (1 to 9999A)
�PT (1 to 500000V)
�Demand Interval time
�Reset for demand measurements
�Pulse output duration
A pulse output indicates real-time energy measurement . A n RS485 output allows remote monitoring from
another display or a computer.
1.2
1.2
1.2
1.2 Current
Current
Current
Current Transformer
Transformer
Transformer
Transformer Primary
Primary
Primary
Primary Current
Current
Current
Current
The unit can be configured to operate with CT primary current of between 1 and 9999A. Maximum CT
primary current corresponds to a maximum input current to the unit of 5A.
1.3
1.3
1.3
1.3 RS485
RS485
RS485
RS485 Serial
Serial
Serial
Serial –
–
–
– Modbus
Modbus
Modbus
Modbus RTU
RTU
RTU
RTU
This uses an RS485 serial port with Modbus RTU protocol to provide a means of remotely monitoring and

JIAXING EASTRON ELECTRONIC INSTRUMENTS CO.,LTD.
TEL:[phone] 83698882 FAX: [phone]
WEB: www.eastrongroup.com Email: [e-mail]
Add: No.1369. Chengnan Road, Nanhu, Jiaxing, Zhejiang, China 314001.
- 4 -
controlling the SDM630.
Set-up screens are provided for setting up the RS485 port. S ee section 4.8
1.4
1.4
1.4
1.4 Pulse
Pulse
Pulse
Pulse output
output
output
output
This provides 2 pulse outputs th at clocks up measured active and reactive energy. T he constant for reactive
energy is 3200imp/kVarh. T he pulse width for active energy can be set from the Set-up menu.
2.
2.
2.
2. Start
Start
Start
Start Up
Up
Up
Up Screens
Screens
Screens
Screens
T he first screen lights all display segments
and can be used as a display check
T he second screen indicates the firmware
installed in the unit and its build number.
Next the unit performs a self-test and
indicates if the test passes.
A fter a short delay, the screen will display active energy measurements .
3.
3.
3.
3. Measurements
Measurements
Measurements
Measurements
The buttons operate as follows:

JIAXING EASTRON ELECTRONIC INSTRUMENTS CO.,LTD.
TEL:[phone] 83698882 FAX: [phone]
WEB: www.eastrongroup.com Email: [e-mail]
Add: No.1369. Chengnan Road, Nanhu, Jiaxing, Zhejiang, China 314001.
- 5 -
S elects the Voltage and Current display screens
I n Set-up Mode, this is the “ Left ” or “ Back ” button.
Select the Frequency and Power factor screens
I n Set-up Mode, this is the “ Up ” button
Select the Power screens
In Set-up Mode, this is the “ Down ” button
Select the Energy display screens
I n Set-up mode, this is the “ Enter ” or “ Right ” button
3.1
3.1
3.1
3.1 Voltage
Voltage
Voltage
Voltage and
and
and
and Current
Current
Current
Current
Each successive pressing of the button selects a new range:
Phase to neutral voltages
C urrent on each phase

JIAXING EASTRON ELECTRONIC INSTRUMENTS CO.,LTD.
TEL:[phone] 83698882 FAX: [phone]
WEB: www.eastrongroup.com Email: [e-mail]
Add: No.1369. Chengnan Road, Nanhu, Jiaxing, Zhejiang, China 314001.
- 6 -

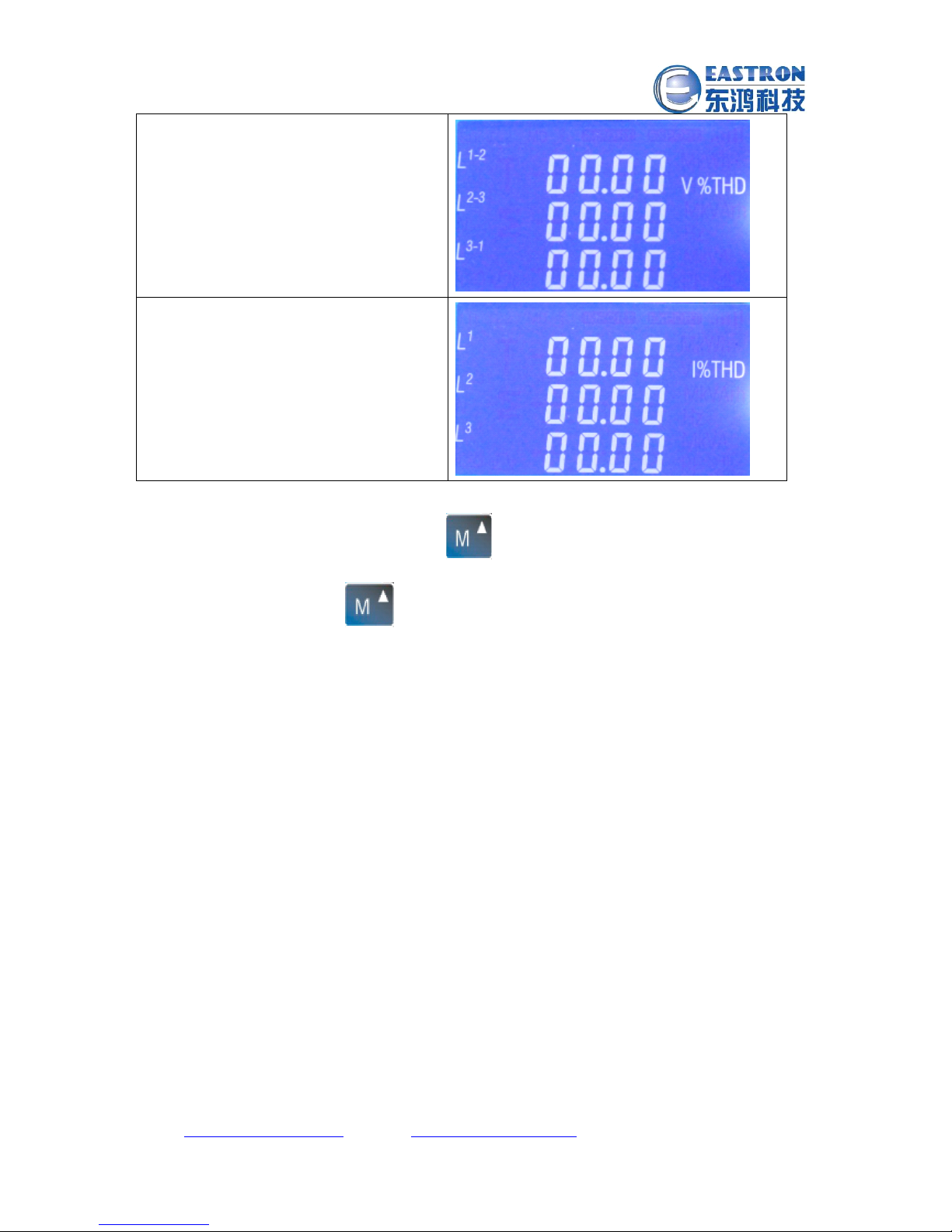

P hase to neutral voltage THD%
C urrent THD% for each phase
3.2
3.2
3.2
3.2 Frequency
Frequency
Frequency
Frequency and
and
and
and Power
Power
Power
Power factor
factor
factor
factor and
and
and
and demand
demand
demand
demand
Each successive pressing of the button selects a new range:

JIAXING EASTRON ELECTRONIC INSTRUMENTS CO.,LTD.
TEL:[phone] 83698882 FAX: [phone]
WEB: www.eastrongroup.com Email: [e-mail]
Add: No.1369. Chengnan Road, Nanhu, Jiaxing, Zhejiang, China 314001.
- 7 -
Frequency
Power factor (total)
Power factor of each phase
Max. Power demand
Max. Current demand
3.3
3.3
3.3
3.3 Power
Power
Power
Power
Each successive pressing of the button select a new range:

JIAXING EASTRON ELECTRONIC INSTRUMENTS CO.,LTD.
TEL:[phone] 83698882 FAX: [phone]
WEB: www.eastrongroup.com Email: [e-mail]
Add: No.1369. Chengnan Road, Nanhu, Jiaxing, Zhejiang, China 314001.
- 8 -
I nstantaneous active power kW
I nstantaneous reactive power kVar
I nstantaneous Volt-amps KVA
Total kW, kVarh, kVA
3.4
3.4
3.4
3.4 Energy
Energy
Energy
Energy Measurements
Measurements
Measurements
Measurements
Each successive pressing of the button selects a new range:

JIAXING EASTRON ELECTRONIC INSTRUMENTS CO.,LTD.
TEL:[phone] 83698882 FAX: [phone]
WEB: www.eastrongroup.com Email: [e-mail]
Add: No.1369. Chengnan Road, Nanhu, Jiaxing, Zhejiang, China 314001.
- 9 -
Imported active energy in kWh
Exported active energy in kWh
I mported reactive energy in
kVarh
Exported reactive energy in
kVarh
Total active energy in kWh

JIAXING EASTRON ELECTRONIC INSTRUMENTS CO.,LTD.
TEL:[phone] 83698882 FAX: [phone]
WEB: www.eastrongroup.com Email: [e-mail]
Add: No.1369. Chengnan Road, Nanhu, Jiaxing, Zhejiang, China 314001.
- 10 -
Total reactive energy in kVAh
4.
4.
4.
4. Setting
Setting
Setting
Setting Up
Up
Up
Up

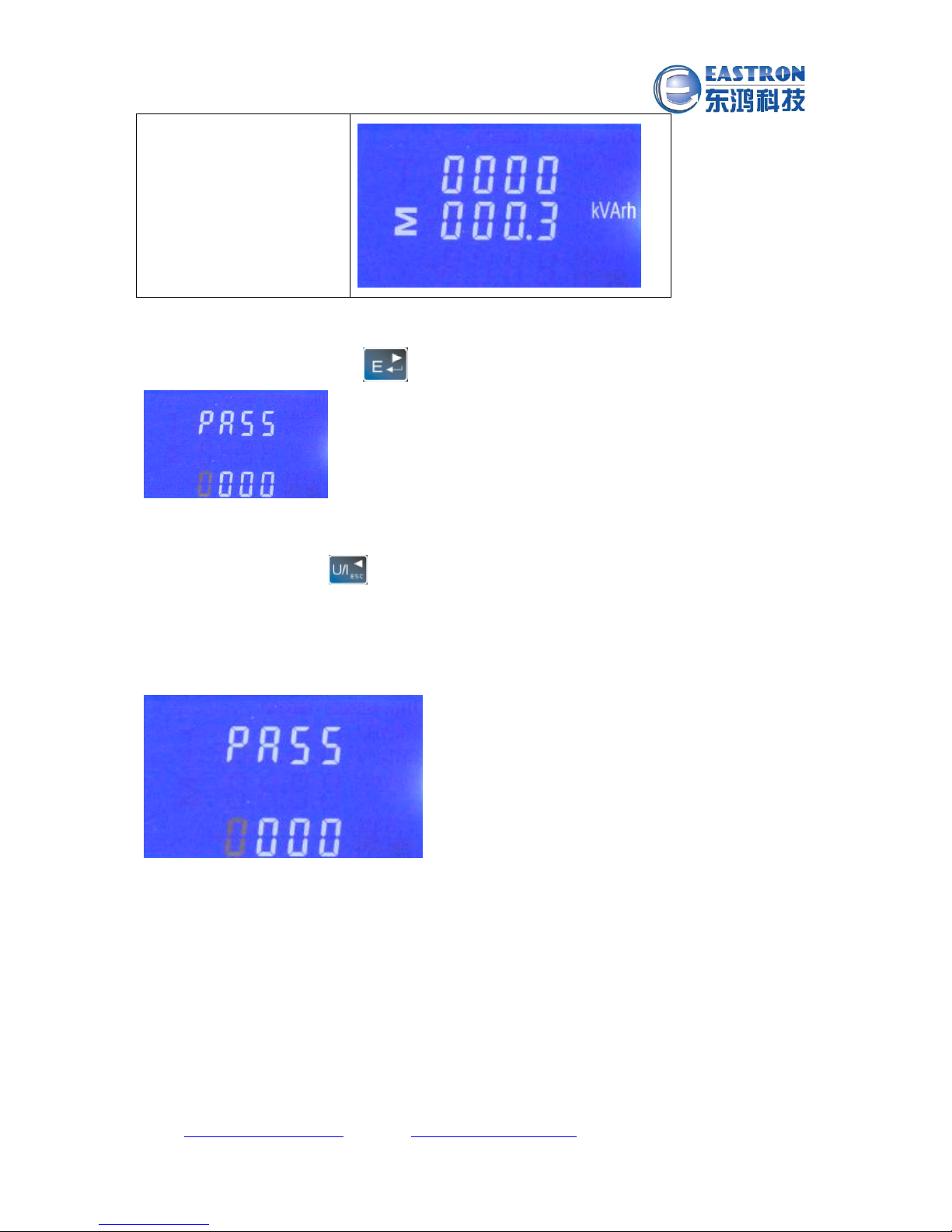

T o enter set-up mode, pressing the button for 3 seconds, until the password screen appears.
S etting up is password-protected so you must enter the correct password
(default ‘ 1000 ’ ) before processing. I f an incorrect password is entered, the display will show: PASS Err
T o exit setting-up mode, press repeatedly until the measurement screen is restored.
4.1
4.1
4.1
4.1 Set-up
Set-up
Set-up
Set-up Menu
Menu
Menu
Menu Structure
Structure
Structure
Structure
Change password
nnnn 4-digit number – default ‘ 1000 ’

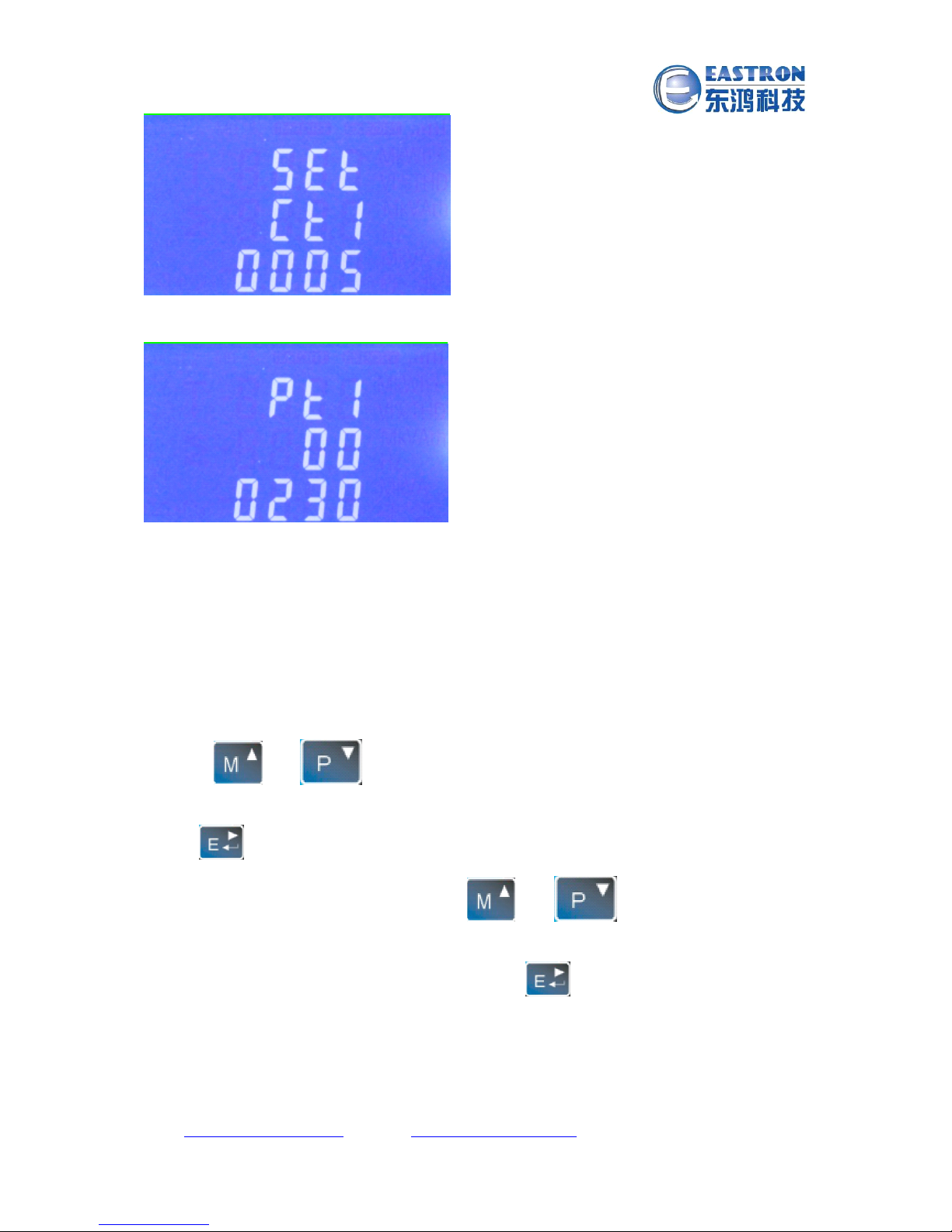

CT Set the value of the CT primary in use
nnnn 4-digit number 0001~9999.

JIAXING EASTRON ELECTRONIC INSTRUMENTS CO.,LTD.
TEL:[phone] 83698882 FAX: [phone]
WEB: www.eastrongroup.com Email: [e-mail]
Add: No.1369. Chengnan Road, Nanhu, Jiaxing, Zhejiang, China 314001.
- 11 -
PT set the value of PT primary in use
N nnn 6-digit number 000001~500000.
DIT Demand Integration Time
T his is the period in minutes over which the current and power readings are integrated for maximum
demand measurement. O ptions are: off, 5 , 10, 15, 30 and 60minutes.
4.2
4.2
4.2
4.2 Set-up
Set-up
Set-up
Set-up Entry
Entry
Entry
Entry Methods
Methods
Methods
Methods
Some menu items, such as password and CT, require a four-digit number entry while others, such as supply
system, require selection from a number of menu options.
4.2.1
4.2.1
4.2.1
4.2.1 Menu
Menu
Menu
Menu Option
Option
Option
Option Selection
Selection
Selection
Selection

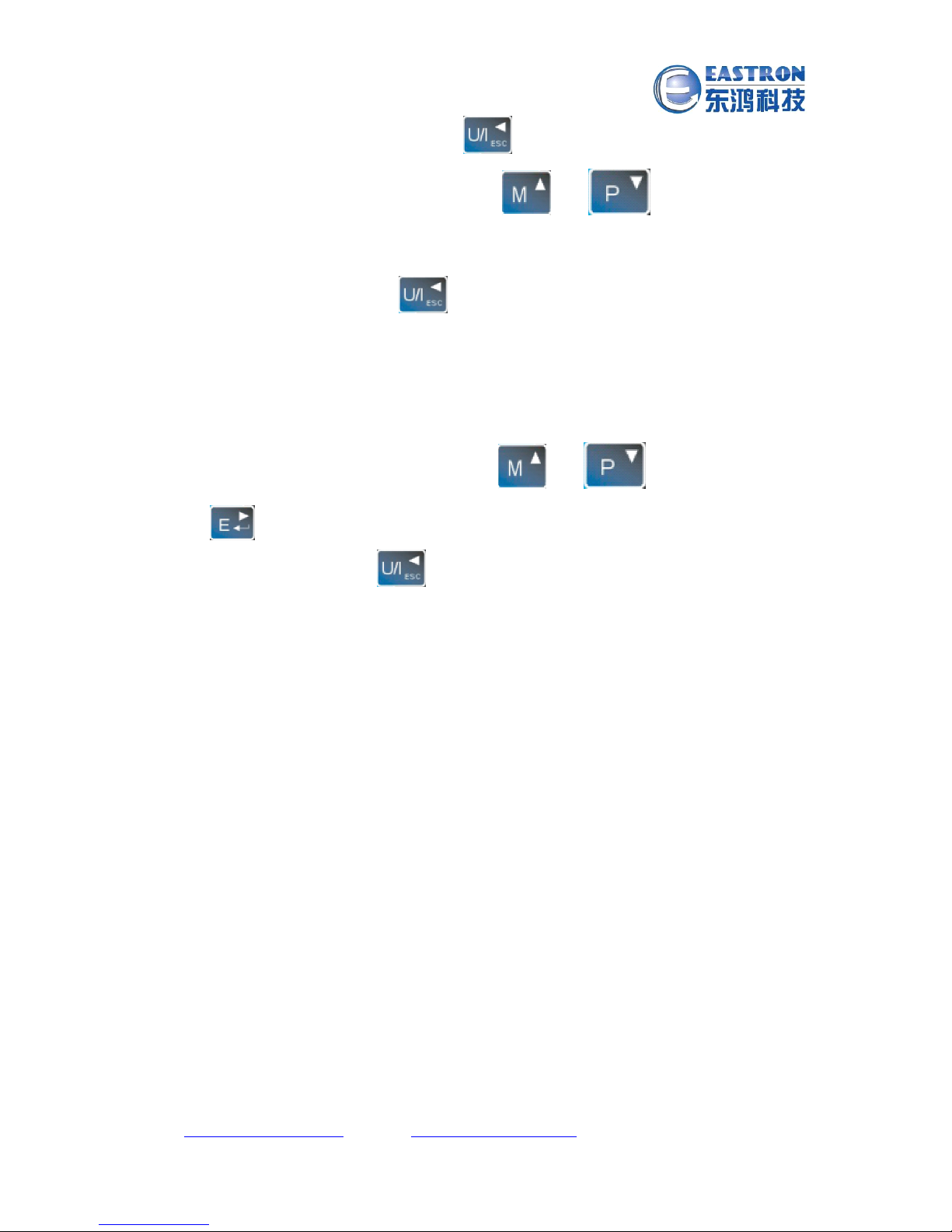

1. Use the and buttons to select the required item from the menu shown in section 4.1.
selection does not roll over between bottom and top of list
2. Press to confirm your selection
3. if an item flashes, then it can be adjusted by the and buttons. I f not, there maybe a
further layer.
4. Having selected an option from the current layer, press to confirm your selection. T he SET
indicator will appear.

JIAXING EASTRON ELECTRONIC INSTRUMENTS CO.,LTD.
TEL:[phone] 83698882 FAX: [phone]
WEB: www.eastrongroup.com Email: [e-mail]
Add: No.1369. Chengnan Road, Nanhu, Jiaxing, Zhejiang, China 314001.
- 12 -
5. Having completed a parameter setting, press to return to a higher menu level. T he SET
indicator will be removed and you will be able to use the and buttons for further menu
selection.
6. On completion of all setting-up, press repeatedly until the measurement screen is restored.
4.2.2
4.2.2
4.2.2
4.2.2 Number
Number
Number
Number Entry
Entry
Entry
Entry Procedure
Procedure
Procedure
Procedure
When Setting up the unit , some screens require the entering of a number. I n particular, on entry to the
setting up section, a password must be entered. D igits are set individually, from left to right. T he procedure
is as follows:
1. the current digit to be set flashes and is set using the and buttons
2. Press to confirm each digit setting. T he SET indicator appears after the last digit has been set.
3. After setting the last digit, press to exit the number setting routine. T he SET indicator will be
removed.

JIAXING EASTRON ELECTRONIC INSTRUMENTS CO.,LTD.
TEL:[phone] 83698882 FAX: [phone]
WEB: www.eastrongroup.com Email: [e-mail]
Add: No.1369. Chengnan Road, Nanhu, Jiaxing, Zhejiang, China 314001.
- 13 -
4.3
4.3
4.3
4.3 Change
Change
Change
Change password
password
password
password
1
U se the and to choose the change password
option
2
P ress the to enter the change password routine.
T he new password screen will appear with the first digit
flashing
3
U se and to set the first digit and press
to confirm your selection. T he next digit will flash.
4 R epeat the procedure for the remaining three digits
5 A fter setting the last digit, SET will show.
6
Press to exit the number setting routine and return to the Set-up menu. SET will be removed
4.4
4.4
4.4
4.4 DIT
DIT
DIT
DIT Demand
Demand
Demand
Demand Integration
Integration
Integration
Integration Time
Time
Time
Time
This sets the period in minutes over which the current and power readings are integrated for maximum
demand measurement. T he options are: off, 5, 10,15 30,60 minutes

JIAXING EASTRON ELECTRONIC INSTRUMENTS CO.,LTD.
TEL:[phone] 83698882 FAX: [phone]
WEB: www.eastrongroup.com Email: [e-mail]
Add: No.1369. Chengnan Road, Nanhu, Jiaxing, Zhejiang, China 314001.
- 14 -
1
F rom the set-up menu, use and buttons
to select the dIT option. T he screen will show the
currently selected integration time.
2
Press to enter the selection routine. T he current
time interval will flash
3
Use and buttons to select the time
required.
4
P ress to confirm the selection. SET indicator will
appear.
5
P ress to exit the dIT selection routine and return to the menu.
4.5
4.5
4.5
4.5 Supply
Supply
Supply
Supply System
System
System
System
Use this section to set the type of power supply being monitored.
1
From the Set-up menu, use and
buttons to select the System option. T he screen will
show the currently selected power supply .

JIAXING EASTRON ELECTRONIC INSTRUMENTS CO.,LTD.
TEL:[phone] 83698882 FAX: [phone]
WEB: www.eastrongroup.com Email: [e-mail]
Add: No.1369. Chengnan Road, Nanhu, Jiaxing, Zhejiang, China 314001.
- 15 -

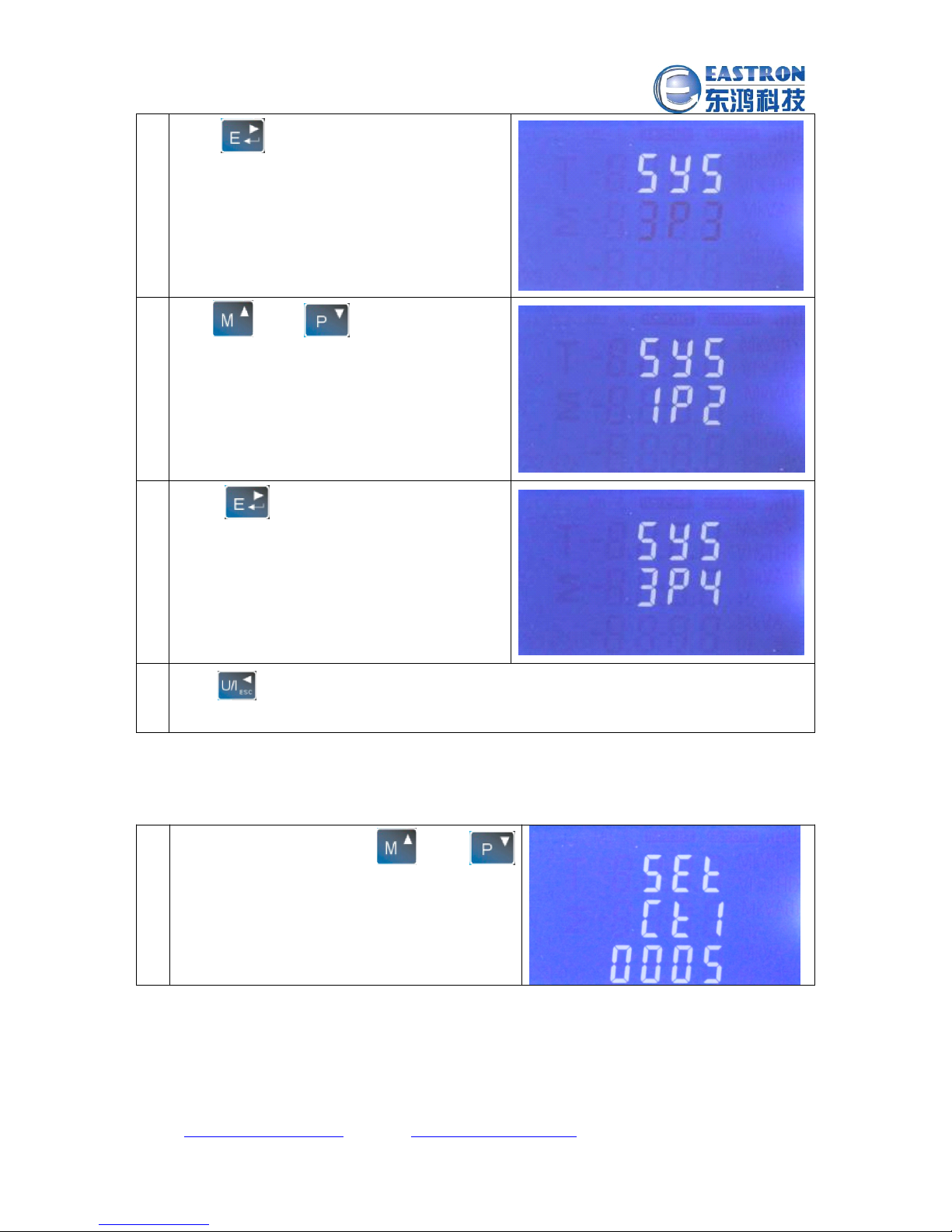

2
Press to enter the selection routine. T he
current selection will flash
3
Use and buttons to select the
required system option: 3P4W 3P3W or 1P2W
4
P ress to confirm the selection. SET
indicator will appear.
5
P ress to exit the system selection routine and return to the menu. SET will disappear and you
will be returned to the main Set-up Menu
4.6
4.6
4.6
4.6 CT
CT
CT
CT
The CT option sets the primary current (CT1 1~9999A) and secondary current(CT2 1A or 5A) of the
current transformer (CT) that wires to the meter.
1
From the Set-up menu, use and
buttons to select the CT option. T he screen will show
the current CT primary current value.

JIAXING EASTRON ELECTRONIC INSTRUMENTS CO.,LTD.
TEL:[phone] 83698882 FAX: [phone]
WEB: www.eastrongroup.com Email: [e-mail]
Add: No.1369. Chengnan Road, Nanhu, Jiaxing, Zhejiang, China 314001.
- 16 -
2
Press to enter the CT primary current
selection routine. T he first digit will flash.
3 Use the method described in section 4.2.2 to set the 4-digit number to the maximum CT primary
current, e.g. 500A
4
O n Completion of the entry procedure, press
to return to the main set up menu.
5. Secondary CT setting
T he setting method is same as Primary Current setting
CT1
4.7
4.7
4.7
4.7 PT
PT
PT
PT
The PT option sets the primary voltage (PT1 100~500000V) and secondary voltage ( PT2 100~ 500V) of the
Voltage transformer (PT) th at wires to the meter. T he default value is 230V for both primary and secondary
voltage.
1
From the Set-up menu, use and
buttons to select the PT option. T he screen will show
the voltage PT primary voltage value .

JIAXING EASTRON ELECTRONIC INSTRUMENTS CO.,LTD.
TEL:[phone] 83698882 FAX: [phone]
WEB: www.eastrongroup.com Email: [e-mail]
Add: No.1369. Chengnan Road, Nanhu, Jiaxing, Zhejiang, China 314001.
- 17 -
2
Press to enter the PT primary current selection
routine. T he first digit will flash.
3 Use the method described in section 4.2.2 to set the 6-digit number to the maximum PT primary
current(500000)
4
O n Completion of the entry procedure, press to confirm the setting and press to
return to the main set up menu.
5. Secondary PT setting
T he setting method is same as Primary voltage setting
PT1
Max PT2 value is 500V
4.8
4.8
4.8
4.8 Pulse
Pulse
Pulse
Pulse output
output
output
output
T his option allows you to configure the pulse output. T he output can be set to provide a pulse for a defined
amount of energy active or reactive.
Use this section to set up the relay pulse output —
Units: kWh , kVarh
1
From the Set-up menu, use and
buttons to select the Pulse output option.
2
Press to enter the selection routine. T he
unit symbol will flash.

JIAXING EASTRON ELECTRONIC INSTRUMENTS CO.,LTD.
TEL:[phone] 83698882 FAX: [phone]
WEB: www.eastrongroup.com Email: [e-mail]
Add: No.1369. Chengnan Road, Nanhu, Jiaxing, Zhejiang, China 314001.
- 18 -
3
Use and buttons to choose kWh or
kVarh.
4
O n Completion of the entry procedure, press to confirm the setting and press
to return to the main set up menu.
4.8.1
4.8.1
4.8.1
4.8.1 Pulse
Pulse
Pulse
Pulse rate
rate
rate
rate
Use this to set the energy represented by each pulse. Rate can be set to 1 pulse per
0.01kWh/0.1kWh/1kWh/10kWh/100kWh.
( It shows 1 impulse = 10kWh/kVarh)
1
From the Set-up menu, use and
buttons to select the Pulse Rate option.
2
Press to enter the selection routine. T he
current setting will flash.
3
Use and buttons to choose pulse
rate.
0.01/0.1/1/10/100kWh/kVarh per
pulse
4
O n Completion of the entry procedure, press to confirm the setting and press
to return to the main set up menu.
4.
4.
4.
4. 8.2
8.2
8.2
8.2 Pulse
Pulse
Pulse
Pulse Duration
Duration
Duration
Duration
T he energy monitored can be active or reactive and the pulse width can be selected as 200, 100 or 60ms.

JIAXING EASTRON ELECTRONIC INSTRUMENTS CO.,LTD.
TEL:[phone] 83698882 FAX: [phone]
WEB: www.eastrongroup.com Email: [e-mail]
Add: No.1369. Chengnan Road, Nanhu, Jiaxing, Zhejiang, China 314001.
- 19 -
( It shows pulse width of 200ms)
1
From the Set-up menu, use and
buttons to select the Pulse width option.
2
Press to enter the selection routine. T he
current setting will flash.
3
Use and buttons to choose pulse
width.
200/100/60ms
4
O n Completion of the entry procedure, press to confirm the setting and press
to return to the main set up menu.
4.9
4.9
4.9
4.9 Communication
Communication
Communication
Communication
There is a RS485 port can be used for communication using Modbus RTU protocol. F or Modbus RTU,
parameters are selected from Front panel.
4.9.1 RS485 Address
4.9.2
4.9.2
4.9.2
4.9.2 Baud
Baud
Baud
Baud Rate
Rate
Rate
Rate
1
From the Set-up menu, use and
buttons to select the Baud Rate option.

JIAXING EASTRON ELECTRONIC INSTRUMENTS CO.,LTD.
TEL:[phone] 83698882 FAX: [phone]
WEB: www.eastrongroup.com Email: [e-mail]
Add: No.1369. Chengnan Road, Nanhu, Jiaxing, Zhejiang, China 314001.
- 20 -
2
Press to enter the selection routine. T he
current setting will flash.
3
Use and buttons to choose Baud
rate 2.4k. 4.8k, 9.6k, 19.2k, 38.4k
4
O n Completion of the entry procedure, press to confirm the setting and press
to return to the main set up menu.
4.9.3
4.9.3
4.9.3
4.9.3 Parity
Parity
Parity
Parity
1
From the Set-up menu, use and
buttons to select the Parity option.
2
Press to enter the selection routine. T he
current setting will flash.
3
Use and buttons to choose
Parity (EVEN / ODD / NONE)
