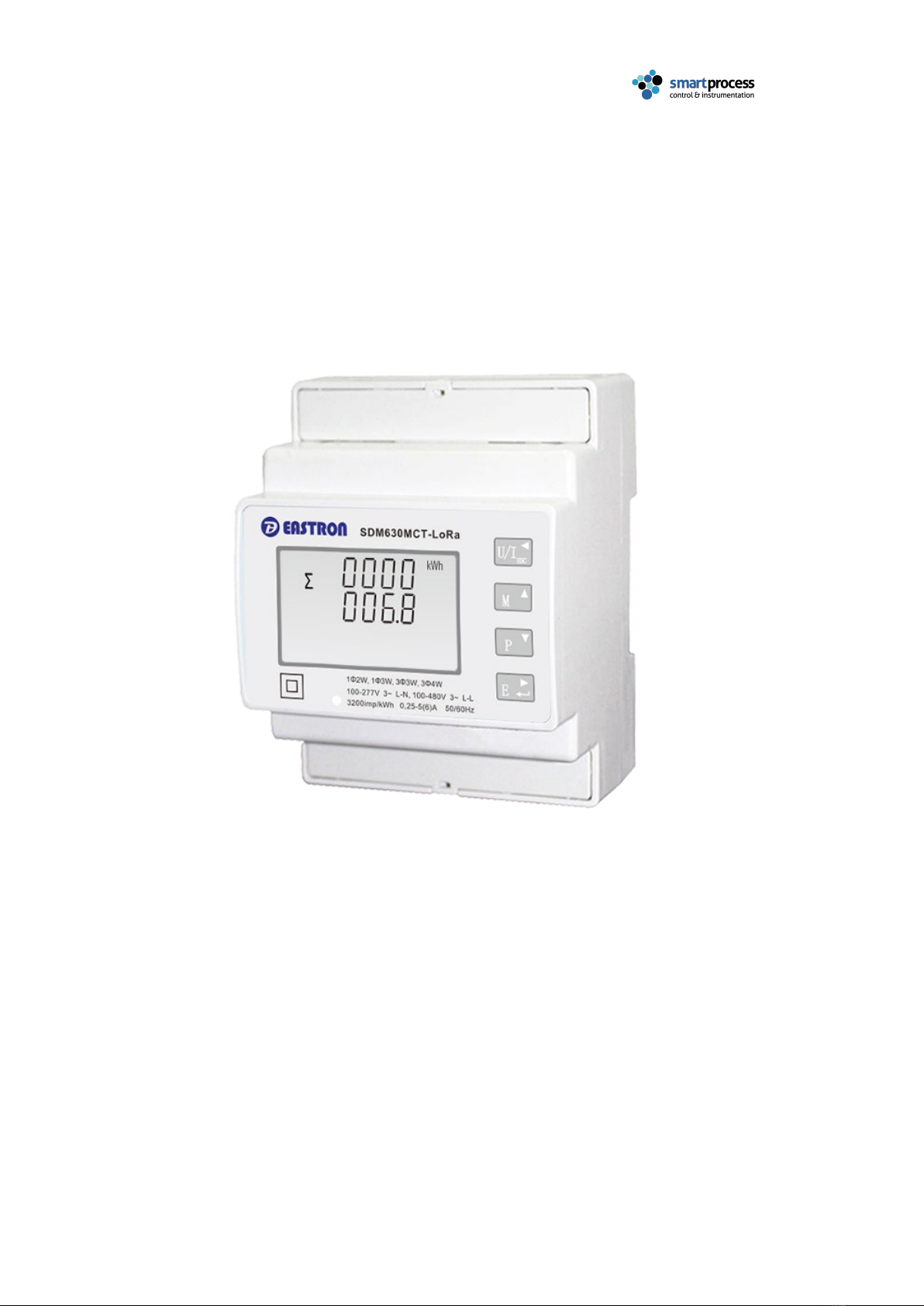

1Introduction
This document provides operating, maintenance and installation instructions .
The unit measures and displays the characteristics of single phase two wire(1p2w) , single phase
three wire(1p3w), three phase three wire(3p3w,) and three phase four wire(3p4w) supplies,
including KWh, kVArh, kW, kVAr, kVA, PF, Frequency, Voltage, Current, dmd. THD etc. Energy is
measured in terms of kWh, kVArh. Maximum demand current can be measured over preset
periods of up to 60minutes.
The requisite current input(s) are obtained via current transformers (CT). This meter can be
configured to work with a wide range of CTs, giving the unit a wide range of operation.
Configuration is password protected.
This unit has a built-in LoRaWAN module which allows long range wireless communication. Two
pulse outputs are available for real time energy measurement.
1.1 Unit Characteristics
The Unit can measure and display:
Line voltage and THD% (total harmonic distortion) of all phases
Line Frequency
Currents, Current demands and current THD% of all phases
Power, maximum power demand and power factor
Active energy imported and exported
Reactive energy imported and exported
The unit has password-protected set-up screens for:
Changing password
Supply system selection 1p2w, 1p3w, 3p3w, 3p4w
Demand Interval time, backlight time
Reset for demand measurements
Pulse output type/ duration
Current inputs correction
1.2 CT Ratio
The unit can be configured to operate with different ratio of CTs. The Primary current can up to
9999A. The secondary CT has two options: 1A/5A
1.3 Pulse outputs
The unit provides two pulse outputs. Both pulse outputs are passive type.
Pulse output 1 is configurable. The pulse output can be set to generate pulses to represent total/
import/ export kWh or kVArh.
The pulse constant can be set to generate 1 pulse per:
0.01 = 10 Wh/VArh
0.1 = 100 Wh/VArh
1 = 1 kWh/kVArh
10 = 10 kWh/kVArh
100 = 100 kWh/kVArh
Smart Process & Control LTD
Unit 11, Totman Close, Brook Road Industrial Estate, Rayleigh, Essex, SS6 7UZ
Telephone: [phone] - www.smartprocess.co.uk - [email protected]

SDM630MCT-LoRaWAN User Manual
- 2 -
1000=1000 kWh/kVArh
Pulse width: 200/100(default)/60ms.
Pulse output 2 is non-configurable. It is fixed to total kWh. The constant is 3200imp/kWh.
1.4. LoRaWAN Classes
Eastron LoRaWAN energy meter is implement Class C functionality. The device will upload
message after receiving the data sent from the network.
1.5 Active Upload Mode
The device also can be customized to active upload mode. Total 30 parameters can be set for
automatic uploading.
Interval time can be set from 0 to 255 through communication. 0 means the function is OFF. If
there are many parameters, the interval shouldn’t be set too short in case of conflicting on data
uploading.
The meter will upload automatically once it joins the network. And after the interval time, it will
upload again.
The interval time is calculated since the last data uploading. Sometimes the interval time may
have around 1-2 minutes difference due to the timer error.
1.6 Join
The unit uses standard LoRaWAN protocol for long range communication. Before Communication,
the meter has to join the LoRaWAN network first.
There are two Activation Ways for Joining: OTAA(Over-the-Air Activatioin) and ABP(Activation by
Personalization).
To ensure the meter join gateway successfully, below information must be confirmed:
I. DevEui, AppEui, Appkey or DevAddr, NwkSKey, AppSKey information are correctly recorded into
the gateway.
II. The Uplink and downlink frequency are same as the gateway.
III. RX2 (frequency and SF) information are same as the gateway.
If the Join delay function is ON, the meter will join the network with a few seconds delay by
random.
1.7 Communication
LoRaWAN meter communicate based on international general purpose protocol. The
communication data is placed in data segment of LoRaWAN protocol, they will be appointed
follow the specified command format.
Smart Process & Control LTD
Unit 11, Totman Close, Brook Road Industrial Estate, Rayleigh, Essex, SS6 7UZ
Telephone: [phone] - www.smartprocess.co.uk - [email protected]

SDM630MCT-LoRaWAN User Manual
- 3 -
The format of standard LoRaWAN is shown below:
The following description of the text is defined the data in the segment of FRMPayload region in
LoRaWAN protocol. The software in PC only need to get this part of data from gateway. According
to the following protocol definition to parse the data.
The data format and encoding of meter communication protocol are modified based on the
Modbus ASCII transmission mode. Remove the start and end characters from the Modbus ASCII
transmission mode and change LRC validation to CRC validation.
Encoding of data: communication data is encoded with ASCII, and each byte of data is sent with
two ASCII characters.
E.g.: a byte data 0x5b is encoded as two characters: 0x35 and 0x62 (ASCII code 0x35= "5", 0x62=
"b")
Command format definition:
I: The data format of the gateway sending the copy command:
Reserved Function
Code
The first Address of The
Register to Read Data
The Number of Registers
to Read Data
CRC Check
Codes
1byte 1byte 2byte 2byte 2byte
Note: the reserved bit is fixed as 0x01
II: the data format returned by the meter after receiving the copy command:
Reserved Function
Code
The Length of
Data Returned
Specific Data Returned by The
Meter
CRC Check
Codes
1byte 1byte 1byte N byte 2byte
Note: the reserved bit is fixed as 0x01
III: Note: the above commands need to be ASCII, so 1byte data will have 2 characters.
E.g.

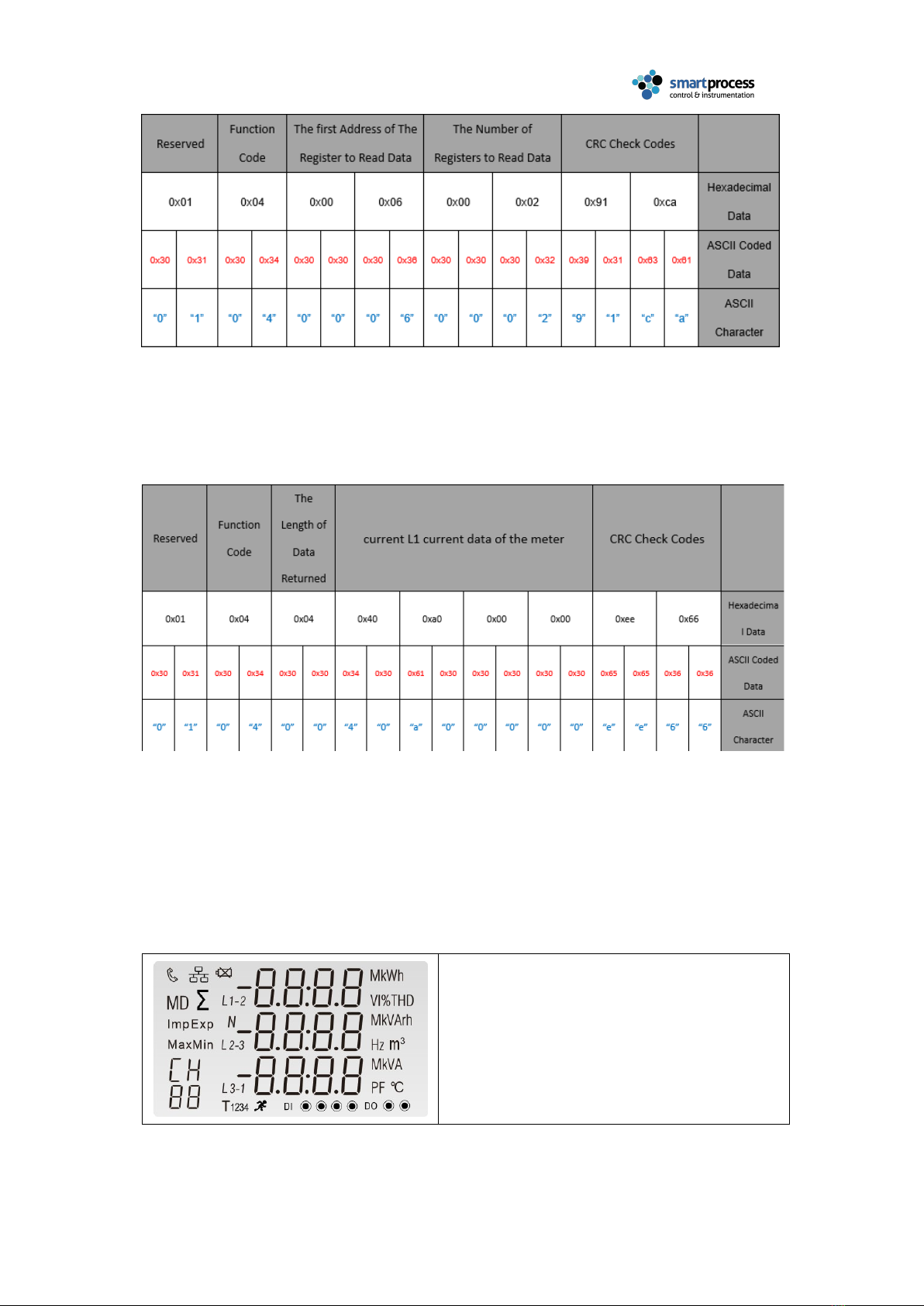

1). Suppose to read the current data of the meter L1, the data sent by the gateway is the ASCII
coded data as shown in the following table:
Smart Process & Control LTD
Unit 11, Totman Close, Brook Road Industrial Estate, Rayleigh, Essex, SS6 7UZ
Telephone: [phone] - www.smartprocess.co.uk - [email protected]

SDM630MCT-LoRaWAN User Manual
- 4 -
Note: the first address of the register of the meter L1 current is 00 06 and the number of registers
is 2.
2) After receiving the above command, the meter will return the current L1 current data of the
meter, as shown in the following table after ASCII coding.
Note: Assume that the current meter's L1 current is 5.0A, since the data is in floating point
format, the Hex data is converted to 0x40, 0xa0, 0x00 and 0x00.
To ensure the successful communication, below information must be confirmed:
1. The command is sent through Class C mode.
2. The command is sent in ASCII format.
2. Start Up Screens
The first screen lights up all display segments and
can be used as a display check.
Smart Process & Control LTD
Unit 11, Totman Close, Brook Road Industrial Estate, Rayleigh, Essex, SS6 7UZ
Telephone: [phone] - www.smartprocess.co.uk - [email protected]

SDM630MCT-LoRaWAN User Manual
- 5 -
The second screen indicates the firmware version.
(left picture is for reference only)
The interface performs a self-test and
indicates the result if the test passes.
*After a short delay, the screen will display active energy measurements.
3. Measurements
The buttons operate as follows:
Selects the Voltage and Current display screens
In Set-up Mode, this is the “Left” or “Back” button.
Select the Frequency and Power factor display screens
In Set-up Mode, this is the “Up” button
Select the Power display screens
In Set-up Mode, this is the “Down” button
Select the Energy display screens
In Set-up mode, this is the “Enter” or “Right” button
3.1 Voltage and Current
Each successive pressing of the button selects a new range:
Phase to neutral voltages
Smart Process & Control LTD
Unit 11, Totman Close, Brook Road Industrial Estate, Rayleigh, Essex, SS6 7UZ
Telephone: [phone] - www.smartprocess.co.uk - [email protected]

SDM630MCT-LoRaWAN User Manual
- 6 -
Phase to Phase Voltages
Current on each phase
Neutral Current
Phase to neutral voltage THD%
Current THD% for each phase
3.2 Frequency and Power factor and Demand
Each successive pressing of the button selects a new range:
Smart Process & Control LTD
Unit 11, Totman Close, Brook Road Industrial Estate, Rayleigh, Essex, SS6 7UZ
Telephone: [phone] - www.smartprocess.co.uk - [email protected]

SDM630MCT-LoRaWAN User Manual
- 7 -
Frequency and Power Factor (total)
Power Factor of each phase
Maximum Current Demand
Maximum Power Demand
3.3 Power
Each successive pressing of the button select a new range:
Instantaneous Active Power in kW
Smart Process & Control LTD
Unit 11, Totman Close, Brook Road Industrial Estate, Rayleigh, Essex, SS6 7UZ
Telephone: [phone] - www.smartprocess.co.uk - [email protected]

SDM630MCT-LoRaWAN User Manual
- 8 -

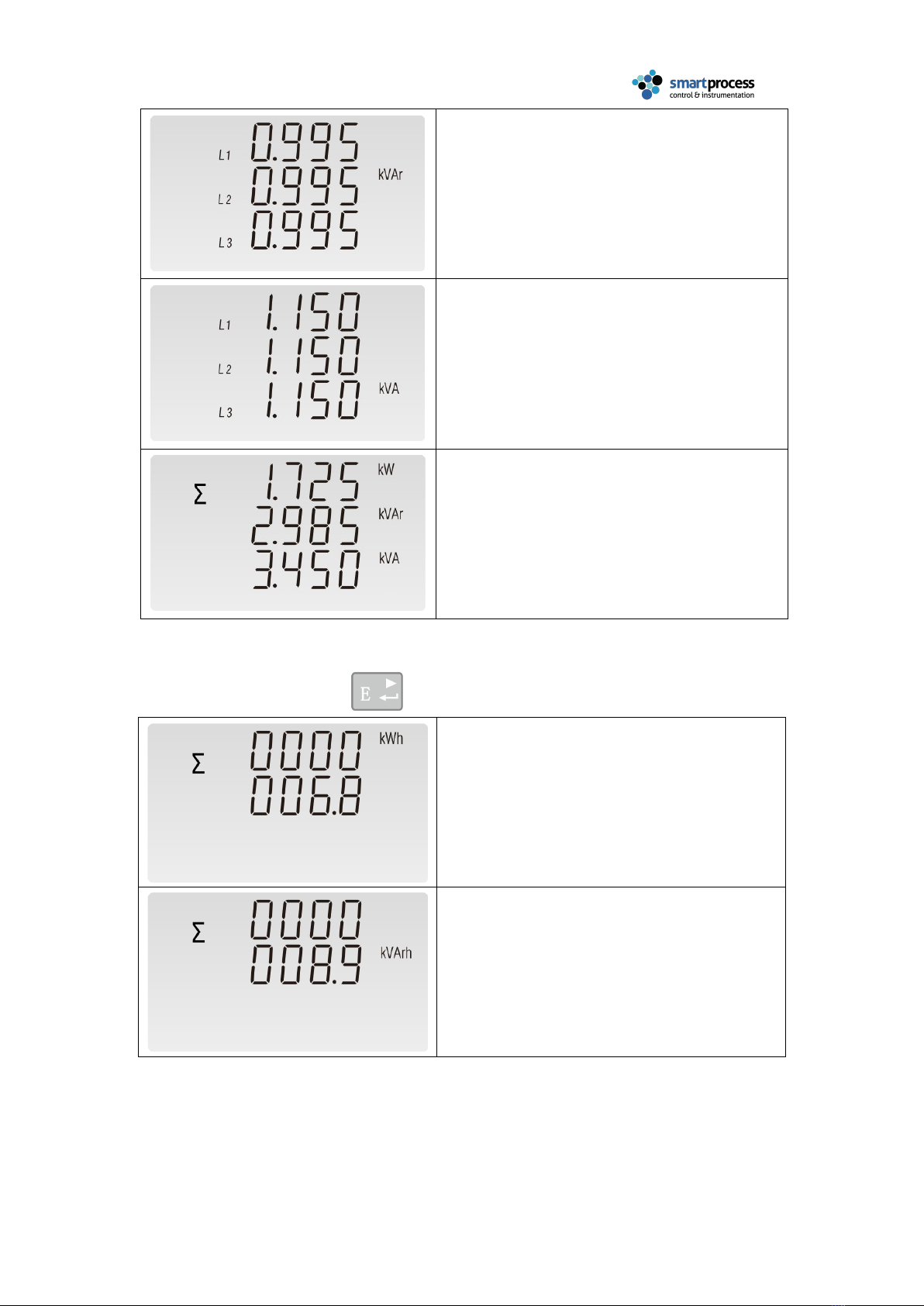

Instantaneous Reactive Power in kVAr
Instantaneous Volt-amps in KVA
Total kW, kVArh, kVA
3.4 Energy Measurements
Each successive pressing of the button selects a new range:
Total active energy in kWh
Imported active energy in kWh
Total reactive energy in kVArh
Smart Process & Control LTD
Unit 11, Totman Close, Brook Road Industrial Estate, Rayleigh, Essex, SS6 7UZ
Telephone: [phone] - www.smartprocess.co.uk - [email protected]

SDM630MCT-LoRaWAN User Manual
- 9 -

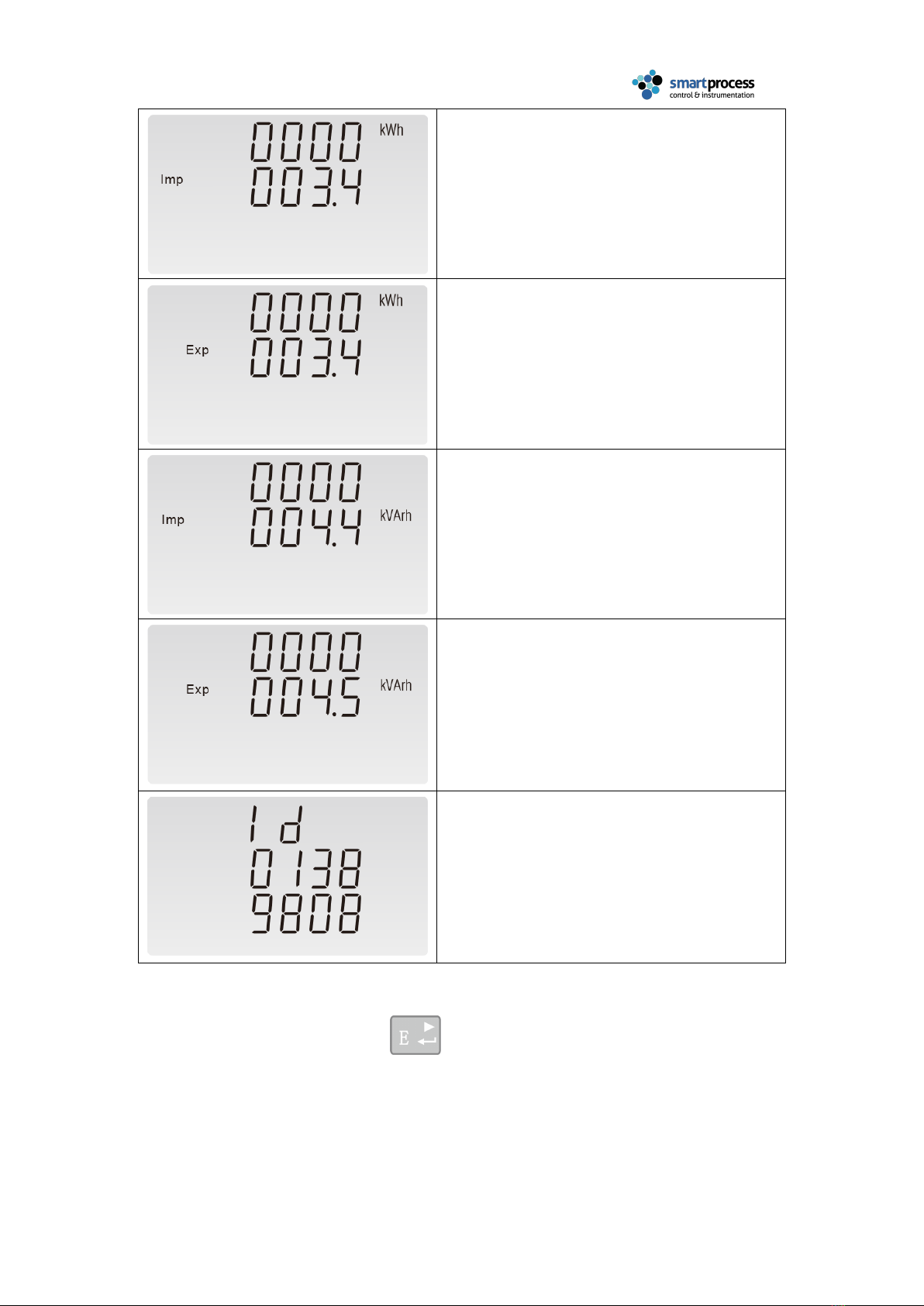

Imported active energy in kWh
Exported active energy in kWh
Imported reactive energy in kVArh
Exported reactive energy in kVArh
Meter ID (Serial Number)
4. Setting Up
To enter set-up mode, pressing the button for 3 seconds, until the password screen
appears.
Smart Process & Control LTD
Unit 11, Totman Close, Brook Road Industrial Estate, Rayleigh, Essex, SS6 7UZ
Telephone: [phone] - www.smartprocess.co.uk - [email protected]

SDM630MCT-LoRaWAN User Manual
- 10
Setting up is password-protected so you must enter the correct password before processing. If an
incorrect password is entered, the display will show: PASS Err
To exit setting-up mode, press repeatedly until the measurement screen is restored.
4.1 Set-up Entry Methods
Some menu items, such as password and CT, require a four-digit number entry while others, such
as supply system, require selection from a number of menu options.
4.1.1 Menu Option Selection

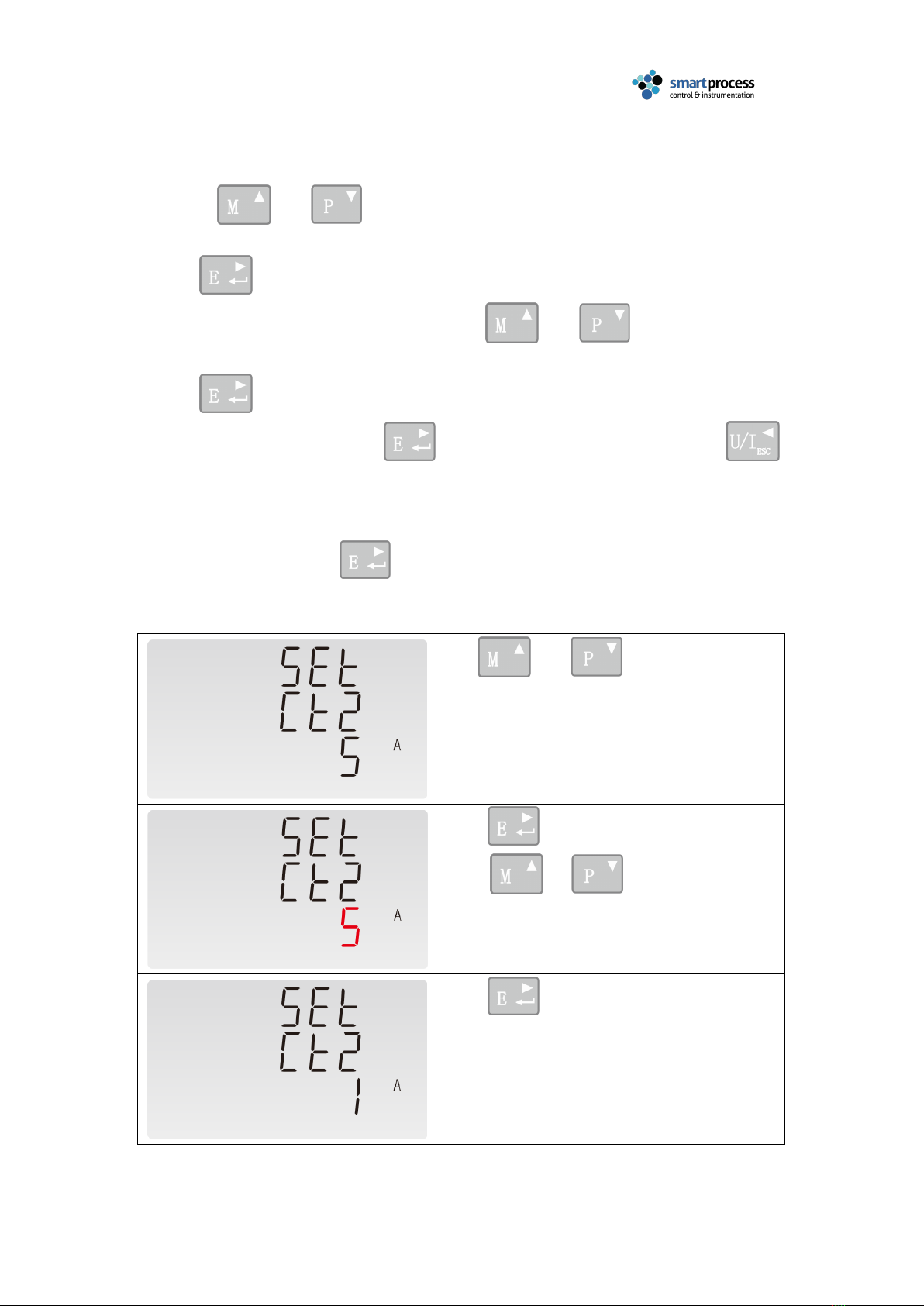

1) Use the and buttons to select the required item from the menu shown in
section 4.1.
2) Press to confirm your selection
3) If an item flashes, then it can be adjusted by the and buttons. If not, there
maybe a further layer.
4) Having selected an option from the current layer, press to confirm your selection.
5) Having completed a parameter setting, press to return to last menu. and you will be
able to use the and buttons for further menu selections.
6) After completing all setting-up, press repeatedly until exit the setting mode.
4.1.2 Number Entry Procedure
Smart Process & Control LTD
Unit 11, Totman Close, Brook Road Industrial Estate, Rayleigh, Essex, SS6 7UZ
Telephone: [phone] - www.smartprocess.co.uk - [email protected]

SDM630MCT-LoRaWAN User Manual
- 11
When Setting up the unit, some screens require the entering of a number. E.g. the setting of
password. Digits are set individually, from left to right. The procedure is as below:
1) Use the and buttons to select the required item from the menu shown in
section 4.1.
2) Press for 3s to confirm your selection
3) The current digit to be set flashes and press the and button to choose the
required digit.
4) Press to move to the next digit.
5) After setting the last digit, press for 3s to confirm your setting. And press
repeatedly until exit the setting mode.
4.2 Setting 1
Input Password “1000”, press for 3s to enter into the setting up page.
4.2.1 CT2
Use and to find the secondary
current input setting.
Options: 5A or 1A
Default CT2: 5A
Press for 3s, the current digit will flash.
Press or to choose the
selection.
Press for 3s to confirm.
Smart Process & Control LTD
Unit 11, Totman Close, Brook Road Industrial Estate, Rayleigh, Essex, SS6 7UZ
Telephone: [phone] - www.smartprocess.co.uk - [email protected]

SDM630MCT-LoRaWAN User Manual
- 12
4.2.2 CT1
Use and to find the primary
current input setting.
Options: 1-9999A
Default CT1: 5A
Press for 3s, the current digit will flash.
Press or to choose the
selection.
Press for 3s to confirm.
Press to exit the setting mode
4.2.3 PT2
Use and to find the PT set up
menu.
Options: 30-500V
Default PT2: 230V under 3P4W mode
400V under 3P3W mode
Press for 3s, the current digit will flash.
Use , and to select
PT2.
Press to exit the setting mode
Smart Process & Control LTD
Unit 11, Totman Close, Brook Road Industrial Estate, Rayleigh, Essex, SS6 7UZ
Telephone: [phone] - www.smartprocess.co.uk - [email protected]

SDM630MCT-LoRaWAN User Manual
- 13
Press for 3s to confirm.
Press to exit the setting mode
4.2.4 PT1
Use and to find the PT set up
menu.
Options: 30-500000V
Default PT1: 230V
Press for 3s, the current digit will flash.
Use , and to select
PT2.
Press for 3s to confirm.
Press to exit the setting mode
Note:
The PT option sets the Primary voltage and secondary voltage of the voltage transformer (PT)
that give into the meter.
For example: if the PT connect to the meter is 10000/100V (Primary voltage is 10000V, secondary
voltage is 100V
4.2.5 Pulse Output Type:
Smart Process & Control LTD
Unit 11, Totman Close, Brook Road Industrial Estate, Rayleigh, Essex, SS6 7UZ
Telephone: [phone] - www.smartprocess.co.uk - [email protected]

SDM630MCT-LoRaWAN User Manual
- 14

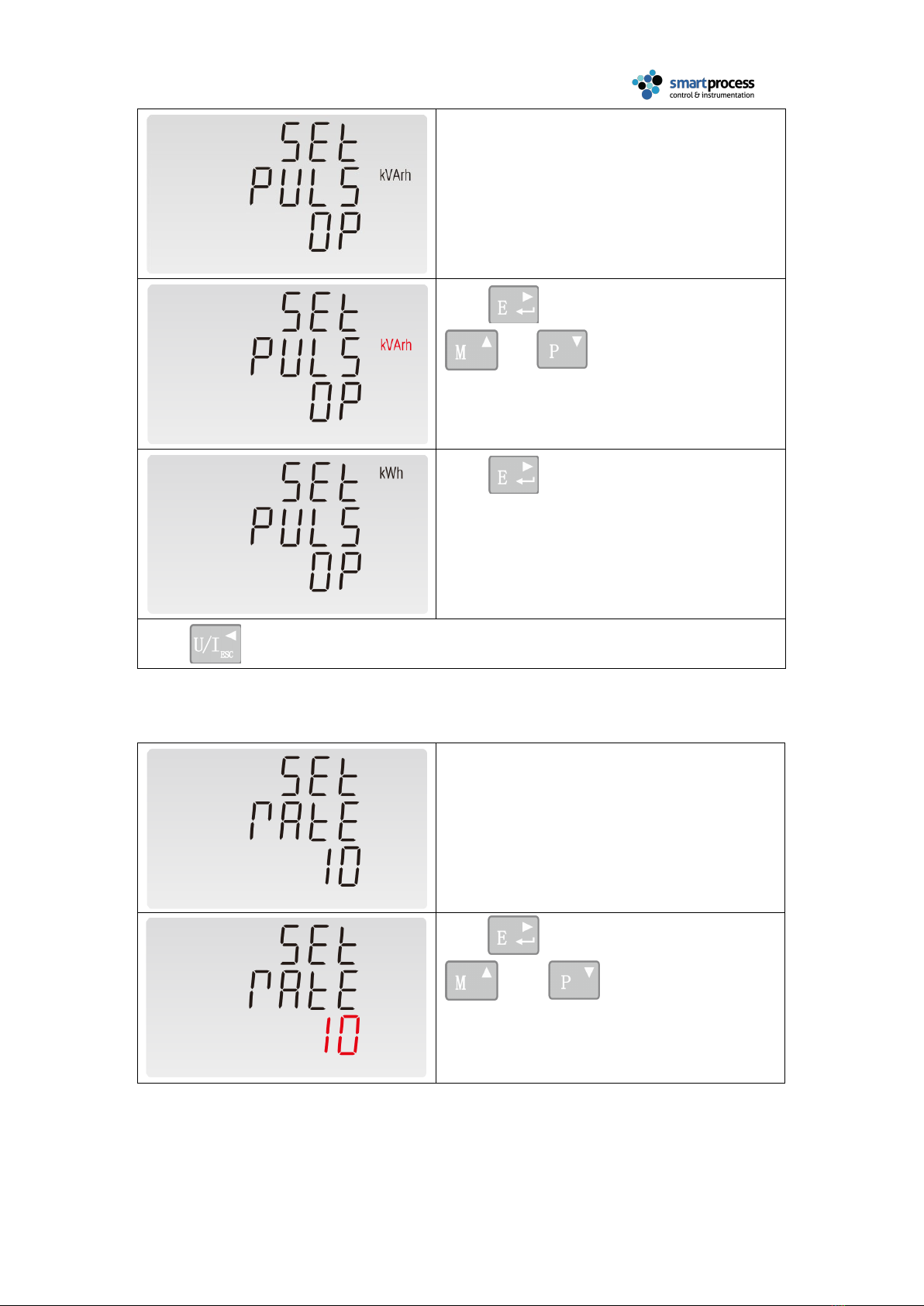

Pulse Output Type
Default: kVArh
Range: kVArh, imp kVArh, Exp kVArh, kWh, Exp
kWh, imp kWh.
Press
selection.
or
for 3s, the red part will flash. Press
to choose the required
Press for 3s to confirm.
Press to exit the setting mode
4.2.6 Pulse Constant
Use this to set the energy represented by each pulse
Pulse Constant
Default: 0.01 kWh
Range: 0.001/ 0.01/ 0.1/1 / 10/ 100/ 1000 kWh
(left picture means 1 impulse = 10 kWh/kVArh)
Press for 3s, the red part will flash. Press
or to choose the required
selection.
Smart Process & Control LTD
Unit 11, Totman Close, Brook Road Industrial Estate, Rayleigh, Essex, SS6 7UZ
Telephone: [phone] - www.smartprocess.co.uk - [email protected]

SDM630MCT-LoRaWAN User Manual
- 15
Press for 3s to confirm.
Press to exit the setting mode
4.2.7 Pulse Duration
Pulse Duration
Default: 200
Range: 60/ 100/ 200 mS
Press for 3s, the red part will flash. Press
or to choose the required
selection.
Press for 3s to confirm.
Press to exit the setting mode

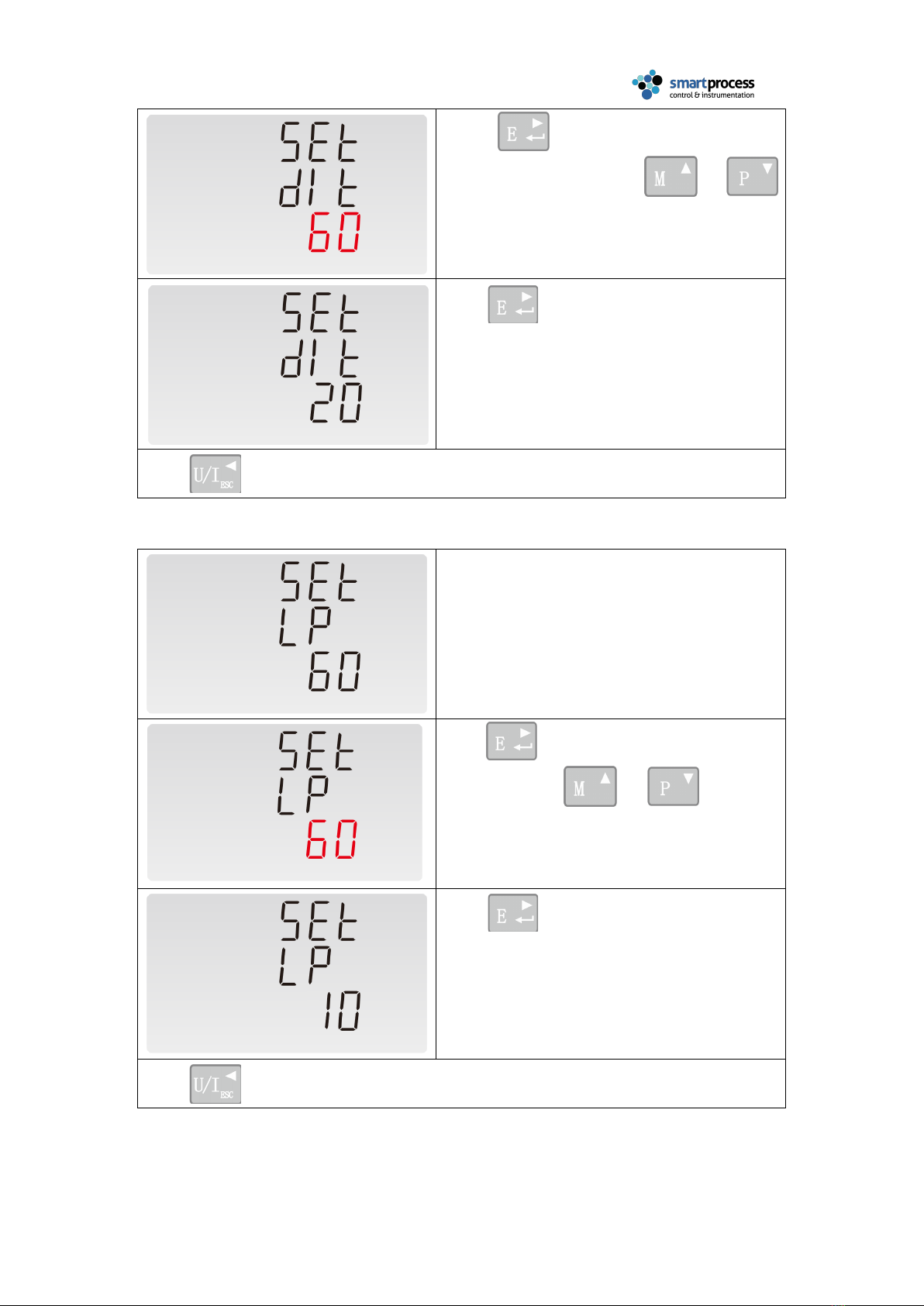

4.2.8 Demand Interval Time (DIT)
The screen will show the currently selected
integration time.
Default: 60
Range: 60/ 30/ 20/ 15/ 10/ 8/ 5/ 0.
Smart Process & Control LTD
Unit 11, Totman Close, Brook Road Industrial Estate, Rayleigh, Essex, SS6 7UZ
Telephone: [phone] - www.smartprocess.co.uk - [email protected]

SDM630MCT-LoRaWAN User Manual
- 16
Press for 3s, the current demand
interval time will flash. Press or
to choose the required selection.
Press for 3s to confirm.
Press to exit the setting mode
4.2.9 Backlight Time (LP)
The screen will show the currently selected
backlight time.
Default: 60 minutes
Range: 120/ 60/ 30/ 10/ 5/ON/ OFF
If it is seated as 5, the backlit will be off in 5
minutes. If it is set as ON, the backlit will always
be on.
Press for 3s, the current backlight time
will flash. Press or to choose
the required selection.
Press for 3s to confirm.
Press to exit the setting mode
Smart Process & Control LTD
Unit 11, Totman Close, Brook Road Industrial Estate, Rayleigh, Essex, SS6 7UZ
Telephone: [phone] - www.smartprocess.co.uk - [email protected]

SDM630MCT-LoRaWAN User Manual
- 17
4.2.10 System
The screen shows the currently selected power
supply is three phase four wire.
Default: 3P4W
Range: 1P2W/ 1P3W/ 3P3W/ 3P4W
Press for 3s, the current system type
will flash. Press or to choose
the required system.
Press for 3s to confirm.
Press
to exit the setting mode
4.2.11 Clear Demand Information
This option is to reset the demand information. It would reset current and power demand
information.
From the Set-up menu, use and
buttons to select the reset option.
Press for 3s to enter the selection
routine. The MD will flash.
Press again for 3s to confirm the
resetting.
Smart Process & Control LTD
Unit 11, Totman Close, Brook Road Industrial Estate, Rayleigh, Essex, SS6 7UZ
Telephone: [phone] - www.smartprocess.co.uk - [email protected]
