Easy@Home VC 2016 User manual

ID: #05007
m
y
h
a
n
s
e
c
o
n
t
r
o
l
.
c
o
m
M
A
N
U
A
L
D
E
V
E
L
O
P
E
D
I
N
G
E
R
M
A
N
Y
User-friendly
Manual
User Manual
Manual
del usuario
HANDHELD WET/DRY VACUUM
ASPIRADOR DE MANO
RECARGABLE
English... Page 06
Español...Página 27

QR codes take you where you want to go
quickly and easily
Whether you require product information, spare parts or accessories, de-
tails on warranties or aftersales services, or if you want to watch a product
demonstration video, our QR codes will take you there in no time at all.
What is a QR code?
A QR code (QR = Quick Response) is a type of matrix that can be read with a
smartphone camera and that contains a link to a website or contact details,
for example.
Advantage:You do not need to manually enter a website address or contact
details.
How it works
To scan the QR code, all you need is a smartphone with QR code reader soft-
ware and an internet connection.* This type of software can be downloaded
for free from your smartphone’s app store.
Try it out now
Just scan the QR code with your smartphone and find out
more about the Aldi product you have purchased.*
Your Aldi Service Portal
All details mentioned above can also be found in the
Aldi Service Portal at www.aldi.us.
*Depending on your tariff plan you may be charged for the connection.

Contents
Overview ............................................................................ 4
Use....................................................................................... 5
Product contents/device parts.......................................... 6
General information............................................................7
Reading and storing the user manual ..................................7
Explanation of symbols ...........................................................7
Safety...................................................................................8
Proper use................................................................................. 8
Safety notes.............................................................................. 8
Checking the vacuum cleaner and product contents ......12
First use...............................................................................12
Mounting the wall bracket.................................................... 12
Operation........................................................................... 14
Charging the vacuum cleaner..............................................14
Vacuuming...............................................................................15
Overview of suction nozzles .................................................16
Cleaning..............................................................................17
Storage .............................................................................. 19
Maintenance and troubleshooting .................................. 19
Removing the battery pack..............................................20
Technical data ....................................................................21
FCC Declaration of Conformity .......................................... 22
Disposal.............................................................................. 23
Disposing of the packaging ..................................................23
Disposing of the vacuum cleaner.........................................23
Warranty card....................................................................25
Warranty conditions..........................................................26

A
4
USA
MAX.
1
6
1113
14
15
16
34
8
7
12
5
17
18 19 20 2
9
10

D E
5
USA
B C
F
MAX.
MAX.
MAX.
MAX.
MAX.
19 20

6
USA

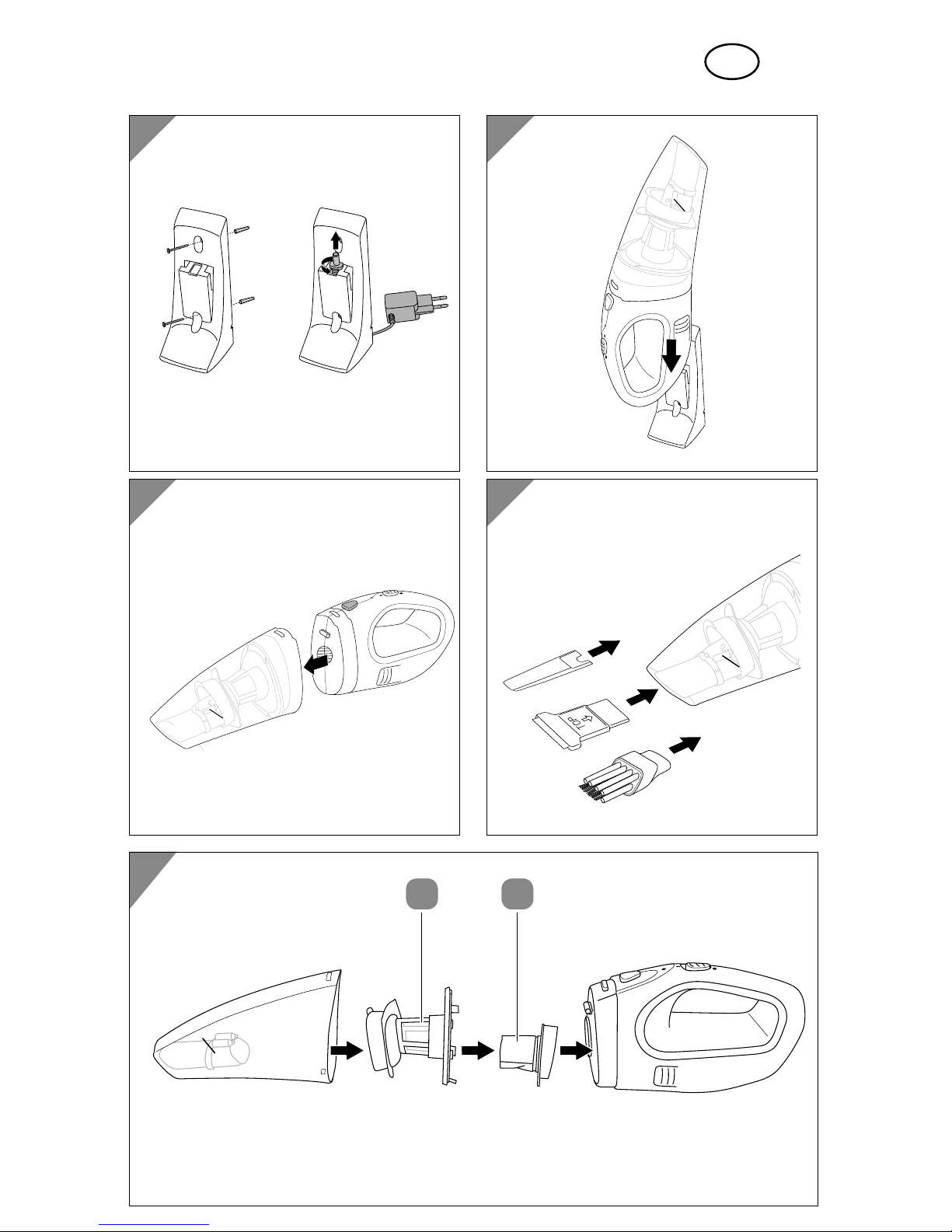

Product contents⁄device parts
1Locking button
2Power indicator light
3On/Off switch
4Motor housing
5Vents, 3×
6Maximum fill level for liquids
7Slot for the charging plug
8Screw hole, 2×
9Wall bracket/charging station
10 Screws, 2×
11 Crevice nozzle
12 Dowels, 2×
13 Fine dirt nozzle
14 Suction nozzle with rubber lip/wet vacuuming
15 Charging plug
16 Mains adapter
17 Suction opening/receptacle for the suction nozzles
18 Dust bin
19 Filter housing with coarse dirt filter
20 Dust filter

AFTER SALES SUPPORT
USA
General information
7
USA
1-800-886-8506 [e-mail]
General information
Reading and storing the user manual
This user manual accompanies this handheld wet/dry vacuum. It
contains important information on use and handling.
For improved readability, the handheld wet/dry vacuum will be
referred to only as the “vacuum cleaner” below.
Before using the vacuum cleaner, read the user manual carefully. This partic-
ularly applies for the safety notes. Failure to comply with this user manual may
result in severe injury or damage to the vacuum cleaner.
Store the user manual for future use. If you pass the vacuum cleaner on to third
parties, be absolutely sure to include this user manual.
Explanation of symbols
The following symbols and signal words are used in this user manual, on the
vacuum cleaner or on the packaging.
WARNING! This signal symbol/word designates a hazard
with moderate risk, which may result in death
or severe injury if not avoided.
CAUTION! This signal symbol/word designates a hazard
with low risk that, if not avoided, may result in
minor or moderate injury.
NOTICE! This signal word warns against potential dam-
ages to property.
This symbol provides you with useful supplementary information
on assembly or operation.
This adapter has met the United States of America electrical
product safety requirements and has earned the ETL Listed
Mark.
Products marked with this symbol may only be operated in
indoor areas.

Safety
USA
AFTER SALES SUPPORT
8
USA
1-800-886-8506
[e-mail]
Products marked with this symbol have positive polarity. They
should only be connected with products that also have posi-
tive polarity.
Safety
Proper use
The vacuum cleaner is only designed for vacuuming up loose, dry dirt such as
dust, lint, crumbs on floor surfaces and cushions around the home and in your
car. You can also use the vacuum cleaner to vacuum up liquids such as water. The
device is exclusively intended for private use and is not suitable for commercial
application.
Only use the vacuum cleaner with the original accessories and only as described
in this user manual. Any other use is deemed improper and may result in damage
to property or even personal injury. The vacuum cleaner is not a children’s toy.
The manufacturer or vendor cannot be held liable for damages incurred through
improper or incorrect use.
Safety notes
WARNING!
Risk of electric shock!
A faulty electrical installation or excessive line voltage may
result in an electric shock.
− Only connect the mains adapter if the line voltage of the
socket corresponds to the data on the nameplate.
− Only use the enclosed mains adapter to charge or operate
the vacuum cleaner.
− Only connect the mains adapter to an easily accessible
socket so that you can quickly disconnect the mains adapter
from the grid in the event of a fault.
− Do not use the vacuum cleaner if it or parts thereof are
visibly damaged or the mains adapter or the connector cord
is defective.

AFTER SALES SUPPORT
USA
Safety
9
USA
1-800-886-8506 [e-mail]
− A damaged connector cord cannot be replaced. Dispose of a
damaged mains adapter and replace it with a mains adapt-
er of the same type. Regularly check the mains adapter and
the connector cord for damages to prevent risks.
− Do not open the housing of the vacuum cleaner or the
mains adapter; instead, have a qualified professional per-
form repairs. Liability and warranty claims are waived in the
event of repairs performed by the user, improper connec-
tion or incorrect operation.
− Only parts that comply with the original device data may
be used for repairs. This vacuum cleaner contains electrical
and mechanical parts, which are essential for providing
protection against sources of danger.
− Do not immerse the vacuum cleaner, the mains adapter
or the connector cord in water or other liquids and do not
touch them if your hands are wet.
− Do not pull the mains adapter out of the socket by the
connector cord; instead, always do so by taking hold of the
mains adapter.
− Never use the connector cord as a carrying strap.
− Keep the vacuum cleaner, the mains adapter and the
connector cord away from open flames and hot surfaces.
− Lay the connector cord so that no one trips over it.
− Do not kink the connector cord and do not lay it over sharp
edges.
− Only use the vacuum cleaner in indoor spaces. Never use it
in wet rooms.
− Never store the vacuum cleaner so that it is at risk of falling
into a bath tub or washbasin.
− Never reach to retrieve an electrical device if it has fallen in
water. In such a case, immediately disconnect the power
plug or mains adapter.
− Make sure that children do not insert any objects in the
vacuum cleaner.

Safety
USA
AFTER SALES SUPPORT
10
USA
1-800-886-8506
[e-mail]
− Always switch the vacuum cleaner off and disconnect it
from the charging cable if you don’t use or charge the
vacuum cleaner, clean it or in the event of a fault.
− Pull the mains adapter each time before cleaning and
maintenance.
WARNING!
Danger for children and persons with impaired physical,
sensory or mental capacities (e.g. partially disabled per-
sons, older persons with reduced physical and mental ca-
pacities) or lack of experience and knowledge (e.g. older
children).
− This vacuum cleaner may be used by children ages eight
and over as well as persons with impaired physical, sensory
or mental capacities or those lacking experience and
knowledge if they are supervised or have been instructed
in how to safely use the vacuum cleaner and mains adapter
and have understood the risks associated with using it.
− Children must not play with the vacuum cleaner or the
mains adapter.
− Children must not perform cleaning and user maintenance
if they are unsupervised.
− Keep children under eight years of age away from the
vacuum cleaner, the mains adapter and connector cable.
− Do not leave the vacuum cleaner unattended while in
operation.
− Make sure that children do not play with the packaging
wrapper. They may get caught in it when playing and
suffocate.

AFTER SALES SUPPORT
USA
Safety
11
USA
1-800-886-8506 [e-mail]
NOTICE!
Risk of damage!
Improperhandling of thevacuumcleaner or themains adapter
may result in damage to the vacuum cleaner or the mains
adapter.
− Do not place the vacuum cleaner on the edge of the work
surface.
− Never place the vacuum cleaner on or near hot surfaces.
− Never expose the vacuum cleaner, the mains adapter or
the connector cord to high temperatures (heater etc.) or
to the effects of the weather (rain etc.) and do not bring
them into contact with hot parts.
− Stop using the vacuum cleaner if the plastic parts of the
vacuum cleaner or the mains adapter exhibit cracks,
breaks or are deformed. Only replace damaged parts with
corresponding original spare parts.
− Always switch the vacuum cleaner off before attaching or
removing one of the suction nozzles or other accessories
to prevent risks.
− Do not use any suction nozzles other than the enclosed
ones to prevent risks.
− Never operate the vacuum cleaner with damaged filters or
even without the corresponding filters.

USA
AFTER SALES SUPPORT
12
USA
1-800-886-8506
[e-mail]
Checking the vacuum cleaner and product contents
Checking the vacuum cleaner and
product contents
NOTICE!
Risk of damage!
If you are not cautious when opening the packaging with a
sharp knife or other pointy objects, you may damage the
vacuum cleaner.
− Therefore, be careful when opening it.
1. Take the vacuum cleaner and the accessories out of the packaging.
2. Remove the packaging material and all protective foils.
3. Check to make sure that the delivery is complete (see fig. A).
4. Check whether the vacuum cleaner or the individual parts exhibit damage.
If this is the case, do not use the vacuum cleaner. Contact the manufacturer
at the service address specified on the warranty card.
First use
Mounting the wall bracket
WARNING!
Risk of electric shock!
There is a risk of electric shock if you damage electrical lines or
water lines when mounting the wall bracket on the wall.
− Make sure that there are no electrical lines or water lines
under the point where you would like to drill a hole.
− Use a cable detector for this or ask a qualified person.

AFTER SALES SUPPORT
USA
First use
13
USA
1-800-886-8506 [e-mail]
Select the area where you would like to mount the wall
bracket so that the vacuum cleaner can be easily removed
from the bracket when you need it.
When mounting the wall bracket, make sure that it is close to
a properly installed socket so that you are still able to reach
the socket with the mains adapter after installing the charging
plug in the wall bracket.
A wall bracket for the vacuum cleaner is included in the product contents to
ensure that the vacuum cleaner is always handy and so that it can be safely
stored. Proceed as follows to mount the wall bracket:
1. Select a suitable location for mounting the wall bracket 9
(see fig.A and B).
2. Hold the wall bracket up to the position where you would like to mount it
and, through the screw holes 8, mark the two drill holes on the wall with
a pencil.
3. Drill a hole at each of the two marks; the depth must correspond to the dow-
el length. Use a drill bit whose size corresponds to the dowels for this.
4. Insert the dowels in the two drill holes.
5. Insert the charging plug 15 through the hole 7and turn it by 90° so that
it is securely in place (see fig.B).
6. Hold the wall bracket up to the wall so that you can screw the two enclosed
screws 10 through the wall bracket into the drill holes or dowels
(see fig. B).
7. Use a cross-slotted screwdriver to screw the wall bracket in place.
8. Store the vacuum cleaner by attaching the back of it to the wall bracket
(see fig. C).
You can now charge the vacuum cleaner as described in the chapter
“Charging the vacuum cleaner”.

Operation
USA
AFTER SALES SUPPORT
14
USA
1-800-886-8506
[e-mail]
Operation
Charging the vacuum cleaner
NOTICE!
Risk of damage!
Improperly charging the vacuum cleaner could damage it.
− Only charge the vacuum cleaner at an ambient
temperature of at least 0°C and no more than 40°C.
− Once you have finished charging, pull the power plug out
of the socket.
The rechargeable battery of the vacuum cleaner must be charged for
14 to 16 hours before using it for the first time. To do so, proceed as follows:
1. Use the hanger assembly on the back of the vacuum cleaner to attach it to
the wall bracket (see fig. A and C).
2. Insert the mains adapter in a properly installed socket.
The power indicator light 2on the vacuum cleaner will illuminate
(see fig.A).
Pull the mains adapter 16 to stop the charging process.
You can continually leave the vacuum cleaner in the wall
bracket/charging station as this device generally cannot be
damaged as the result of overcharging. However, we recom-
mend that you pull the mains adapter out of the socket after
the specified charging time.
You can also charge the vacuum cleaner directly via the mains
adapter. For this, insert the charging plug in the charging slot
on the vacuum cleaner and then the mains adapter in the
socket.

AFTER SALES SUPPORT
USA
Operation
15
USA
1-800-886-8506 [e-mail]
Vacuuming
WARNING!
Risk of fire and explosion!
If you use the vacuum cleaner to vacuum up embers or
substances that pose a fire or explosion hazard or are harmful
to health, there is a risk of fire and explosion!
− Do not use the vacuum cleaner to vacuum up substances
that are corrosive, toxic, hazardous to health, pose a fire
hazard or explosive substances.
− Do not use the vacuum cleaner to vacuum up any hot
ashes or embers.
− Do not vacuum up large or pointy objects or glass splinters
with the vacuum cleaner.
NOTICE!
Risk of damage!
If the filter or the filter housing is not correctly inserted or is
damaged while you use the vacuum cleaner, dust or liquids
that are sucked up may infiltrate the motor housing and
damage the vacuum cleaner.
− Only use the vacuum cleaner if the filters and filter
housing with the coarse dirt filter are not damaged and
have been correctly inserted.
NOTICE!
Risk of damage!
If you do not use suitable suction nozzles or change the suction
nozzles while the vacuum cleaner is on, you may accidentally
suck up things or damage the vacuum cleaner.
− Always switch the vacuum cleaner off before attaching or
removing one of the suction nozzles.
− Only use the enclosed suction nozzles.
− Never use the suction nozzles if they are defective.

Operation
USA
AFTER SALES SUPPORT
16
USA
1-800-886-8506
[e-mail]
1. Make sure that the vacuum cleaner is sufficiently charged
(see chapter “Charging the vacuum cleaner”).
2. Take the vacuum cleaner out of the wall bracket.
3. Check whether the dust filter 20 has been correctly inserted as described
in the chapter “Cleaning”.
4. Check whether the filter housing with the coarse dirt filter 19 and the dust
bin 18 have been correctly inserted as described in the chapter “Cleaning”.
5. If desired, fit the crevice nozzle 11 or the suction nozzle with the rubber
lip 14 in the receptacle for the suction nozzles 17 . You can also fit the fine
dirt nozzle 13 on the crevice nozzle (see fig. E and chapter “Overview of
suction nozzles”).
6. To switch the vacuum cleaner on, move the On/Off switch 3forward
(see fig. A) and push it forward while vacuuming.
The vacuum cleaner will start vacuuming.
7. Let go of the On/Off switch to switch the vacuum cleaner off.
The On/Off switch will jump to the “0” position. The vacuum cleaner will switch
off.
After vacuuming up liquids, hold the vacuum cleaner so that
the suction opening is facing down. This will prevent the liquid
from infiltrating the motor housing.
Overview of suction nozzles
Suction nozzle Use
Crevice nozzle • Used as an adapter for the fine
dirt nozzle.
• Used for cleaning crevices and
dry vacuuming.
Fine dirt nozzle • Is fitted on the crevice nozzle.
• Used for removing dust in
areas where there are objects
that are not to be vacuumed
up (e.g. drawers). The dirt is
loosened by the bristles and it
is sucked up through the tube
ends. Larger objects are not
vacuumed up.

AFTER SALES SUPPORT
USA
Cleaning
17
USA
1-800-886-8506 [e-mail]
Suction nozzle Use
Suction nozzle with rubber lip • Is inserted in the suction open-
ing so that the inscription “Top”
is up.
• Used for vacuuming up liquids.
Cleaning
WARNING!
Risk of short circuit!
Water in the housing can cause a short-circuit.
− Pull the mains adapter each time before cleaning.
− Never immerse the vacuum cleaner and/or the mains
adapter in water.
− Make sure that no water penetrates the housing of the
vacuum cleaner or mains adapter.
− Make sure that you do not accidentally switch the vacuum
cleaner on while cleaning.
CAUTION!
Burn hazard!
The battery pack of the vacuum cleaner may become hot
during operation.
− Always let the vacuum cleaner cool off completely before
cleaning it.
NOTICE!
Risk of damage!
If you do not clean the dust bin often enough or improperly,
the vacuum cleaner could be damaged or the suction power
may diminish.
− Always empty the dust bin after vacuuming.
− Always clean the dust filter and filter housing with the
coarse dirt filter after vacuuming.

Cleaning
USA
AFTER SALES SUPPORT
18
USA
1-800-886-8506
[e-mail]
NOTICE!
Risk of damage!
If the dust bin is too full or the amount of liquid has exceeded
the MAXmark, dust orliquid could penetrate themotorhousing
and damage the vacuum cleaner.
− When vacuuming up liquids, the dust bin must be emptied
no later than once the “MAX” mark has been reached.
NOTICE!
Risk of damage!
Improperly cleaning the vacuum cleaner can cause damage.
− Do not use any aggressive cleaners, brushes with metal or
nylon bristles, sharp or metallic cleaning utensils such as
knives, hard scrapers and the like. They could damage the
surfaces.
− Do not in any case put the vacuum cleaner in the
dishwasher. It would be destroyed as a result.
1. Switch the vacuum cleaner off and pull the mains adapter out of the socket.
Take the vacuum cleaner out of the wall bracket or, if necessary, pull the
charging plug 15 out of the charging slot of the vacuum cleaner
(see fig. A).
2. Let the vacuum cleaner cool off completely.
3. Brush the vents 5on the motor housing 4off with a soft brush.
4. Use a damp cloth to wipe off the motor housing.
5. Rub the motor housing until it is completely dry.
6. Push and hold the locking button on the dust bin 1and pull the dust bin
18 off of the motor housing (see fig. D).
7. Pull the dust filter 20 out of the filter housing with the
coarse dirt filter 19 (see fig. F).
8. Carefully pull the filter housing with the coarse dirt filter out of the dust bin.
At the same time, make sure that neither dust nor liquids leak out of the
dust bin.
9. Empty the dust bin.

AFTER SALES SUPPORT
USA
Storage
19
USA
1-800-886-8506 [e-mail]
10. Wipe the dust bin and the filter housing with the coarse dirt filter off with a
damp cloth.
11. Clean the dust filter. If heavily soiled, wash it with soapy water and rinse it
thoroughly with clean water.
12. Let all parts dry completely.
13. Insert the filter housing with the coarse dirt filter back into the dust bin. At
the same time, make sure that the narrow side is facing up
(see fig. F).
14. Put the dust filter back into the filter housing with the coarse dirt filter. Make
sure that the narrow side is facing up (see fig. F).
15. Mount the dust bin on the motor housing so that it audibly locks into place.
Tip:
The dust filter is designed for continuous use. If, however, it is
damaged and has to be replaced, you can order a new dust
filter via the service address specified on the warranty card.
In order to provide for constant suction power, the dust filter
must be cleaned regularly. Be absolutely sure to clean the dust
filter each time after vacuuming up liquids.
Storage
− Store the vacuum cleaner by fitting it in the corresponding wall bracket or
store it in a dry area.
− Store the vacuum cleaner in a location that is not accessible for children.
Maintenance and troubleshooting
Fault Cause Solution
The vacuum
cleaner is not
working.
The rechargeable battery
of the vacuum cleaner is
low or empty.
Charge the vacuum cleaner
as described in the chapter
“Charging the vacuum cleaner”.
The power
indicator light
does not light
up.
The power supply unit or
mains adapter does not
have proper contact.
Check the connection to the
socket and the vacuum cleaner.

Removing the battery pack
USA
AFTER SALES SUPPORT
20
USA
1-800-886-8506
[e-mail]
Fault Cause Solution
The suction
power is low.
The dust bin is full or the
filters are plugged.
− Empty the dust bin.
− Clean the filters and the
vents as described in the
chapter “Cleaning”.
The vacuum cleaner is not
fully charged.
Charge the vacuum cleaner
as described in the chapter
“Charging the vacuum cleaner”.
Dust is emitted
from the vents.
There is a hole in the dust
filter.
Order a new dust filter. For this,
contact the manufacturer at the
service address specified on the
warranty card.
If you are unable to resolve the problem with the device with these steps, con-
tact the manufacturer at the service address specified on the warranty card.
You can request the user manual in PDF format from our customer service
department.
Removing the battery pack
WARNING!
Risk of short circuit!
If the battery pack is not completely discharged when removed
and there is an electrically conductive connection between the
battery contacts, there is a risk of a short circuit!
− Make sure that there is no electrically conductive
connection between the battery contacts.
− Completely discharge the battery pack before you remove
it. To do so, operate the vacuum cleaner until it no longer
functions.
− Disconnect the vacuum cleaner from the mains adapter
before you remove the battery pack.
