1. Introduction
Thank you for purchasing the Green Motion DC 22 EV charger. Green Motion DC 22 is an electric vehicle fast
charging station for everyone. It offers fast charging speed at high efficiency with a compact design and it can
be fixed to a wall or floor-mounted as an option, for indoor or outdoor use.
Before you start
This manual contains important instructions that must be followed during the installation, operation and maintenance of the
Green Motion DC 22 EV charger. All instructions must be read before installing and operating the equipment. This manual
should be retained for future reference. Please note that the Green Motion DC 22 EV charger must only be installed by
professional and qualified personnel, i.e. an Eaton technical support representative or a professional installer. There are
no user serviceable parts inside the Green Motion DC 22 EV charger. Failure to observe the above will void the guarantee
provided and Eaton cannot be held legally accountable.
The contents of this manual are the copyright of the publisher and may not be reproduced (even in extracts) without the
prior written approval of Eaton. While every care has been taken to ensure the accuracy of the information contained in this
manual, Eaton assumes no liability for any error or omission. Eaton reserves the right to modify the designs of its products.
The unauthorized copying and lending of this manual is prohibited.
Technical disclaimer
All drawings, descriptions or illustrations contained in this document serve to provide a clear overview and/or technical
explanation of the present product and its various components and accessories. In line with our goal to continuously
improve the products and the customer service we provide, all specifications contained in this document are subject to
change without notice.
Legal entity
Eaton Industries Manufacturing GmbH
Address: Place de la Gare 2
1345 Le Lieu
SWITZERLAND
Web: www.eaton.com

5 GREEN MOTION DC 22 EV CHARGER USER MANUAL MN192003EN October 2022 www.eaton.com
1.1 Scope of the document
This manual is intended for end-users of Green Motion DC 22 EV charger. It describes the operating environment, the
product and its operating behavior. The document does not cover installation and uninstallation, commissioning guidance
and troubleshooting.
1.2 Symbols used in this manual
Hazardous behaviors that could cause serious injuries.
Hazardous behaviors that could cause death.
Imminent dangers causing serious injuries. Danger of death.
Behaviors that could cause minor injuries to people or minor damages to things.
An electric shock can be fatal.
Avoid touching internal or external parts normally live while the system is powered on.
The notes preceded by this symbol relate to technical issues and ease of operation.
The EU Directive on Waste Electrical and Electronic Equipment (WEEE).

6 GREEN MOTION DC 22 EV CHARGER USER MANUAL MN192003EN October 2022 www.eaton.com
2. Cautions
Before carrying out any operations, ensure you have read and understood this manual. Do not make changes
and do not carry out maintenance operations not described in this manual. The manufacturer does not accept
responsibility for injuries to people and damages to things occurred if the information within this manual has
not been read and followed.
The installation, commissioning, maintenance or retrofitting must be carried out only by professional and
qualified personnel.
It is strictly prohibited to open the EV charger.
2.1 Operating environment and restrictions
Each system must be used exclusively for the operations it was designed for and within the operative ranges specified
in the nameplate and/or in the relative technical datasheet, in accordance with the national and international safety
standards.
Any use different from the intended use specified by the manufacturer is to be considered totally inappropriate and
dangerous and in this case the manufacturer declines all responsibility.
Check the regulations applied by the electricity provider.
The unit can be connected to the distribution network in accordance with local rules.
The unit should only be used in accordance with the technical specifications.
Improper or unauthorized use:
Although carefully constructed, like all electrical appliances the unit can catch fire.
The unit is intended for indoor or outdoor installation.
Recommended operating temperature range of the unit is -25 °C to +45 °C
The unit must be transported and stored in indoor locations in the temperature range -25 °C to +45 °C.
The unit must be used in locations free from acids, gases or other corrosive substances.
The unit must be used and stored in locations with relative humidity below 95 %.
The unit must be transported in conditions with relative humidity below 95 %.
The unit must be used at altitude not exceeding 2000 m above sea level.

7 GREEN MOTION DC 22 EV CHARGER USER MANUAL MN192003EN October 2022 www.eaton.com
3. Discover your Green Motion DC 22 EV charger
3.1 Checking the box contents
The Green Motion DC 22 EV charger box must contain the following parts:
• EV Charger
• Quick start guide,
• Safety guidelines
• EV cable(s), depending on customer configuration:
• CCS plug, cable, plug holder,
• CCS and CHAdeMO plugs, cables, plug holders,
• Screws, cable glands and cable gland cap,
• Wall-mount gaskets (four pieces)
3.2 Front and back views
Figure 1. Front and back views of Green Motion DC 22 EV charger
Tag Description
1Color touchscreen display
2RFID reader
3LED indicator
4Cable glands
5Mounting holes
Green Motion DC 22 EV charger is designed for a seamless use.
35 mm (1.4 inch)
440 mm (17.3 inch)
45 mm (1.8 inch)
49 mm
(1.9 inch)
532 mm
(20.9 inch)
55
55
3
4
RFID
1
2

8 GREEN MOTION DC 22 EV CHARGER USER MANUAL MN192003EN October 2022 www.eaton.com
3.3 Bottom view
Green Motion DC 22 EV charger provides two types of cables and connectors:
1. Cable Combined Charging System (CCS) for the EU market. This is the default cable.
2. CHAdeMO. This cable is optional.
The maximum power that Green Motion DC 22 EV charger can deliver is 22 kW. The instantaneous charging power can
vary upon other variables such as grid power available, installation and car model. For those reasons, Eaton declines any
responsibility on the actual power value delivered.
Green Motion DC 22 EV charger Cable Options CCS CHAdeMO
Default configuration X
CCS and CHAdeMO X X

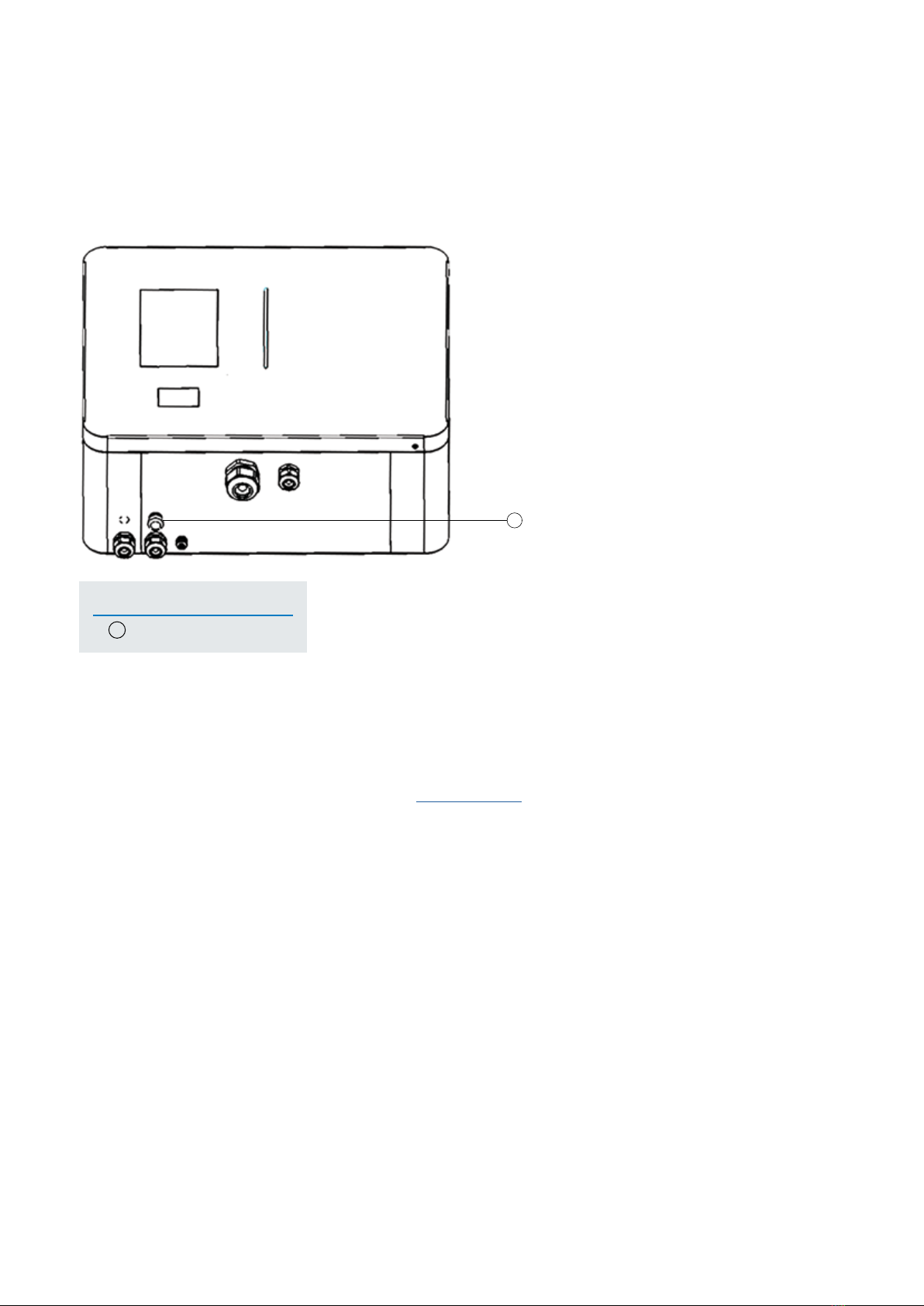

Figure 2. Bottom view of Green Motion DC 22 EV charger
Tag Description
1Emergency stop button
2Cable glands
3.4 Type of cables
Table 1. Possible cable configurations available with the charger

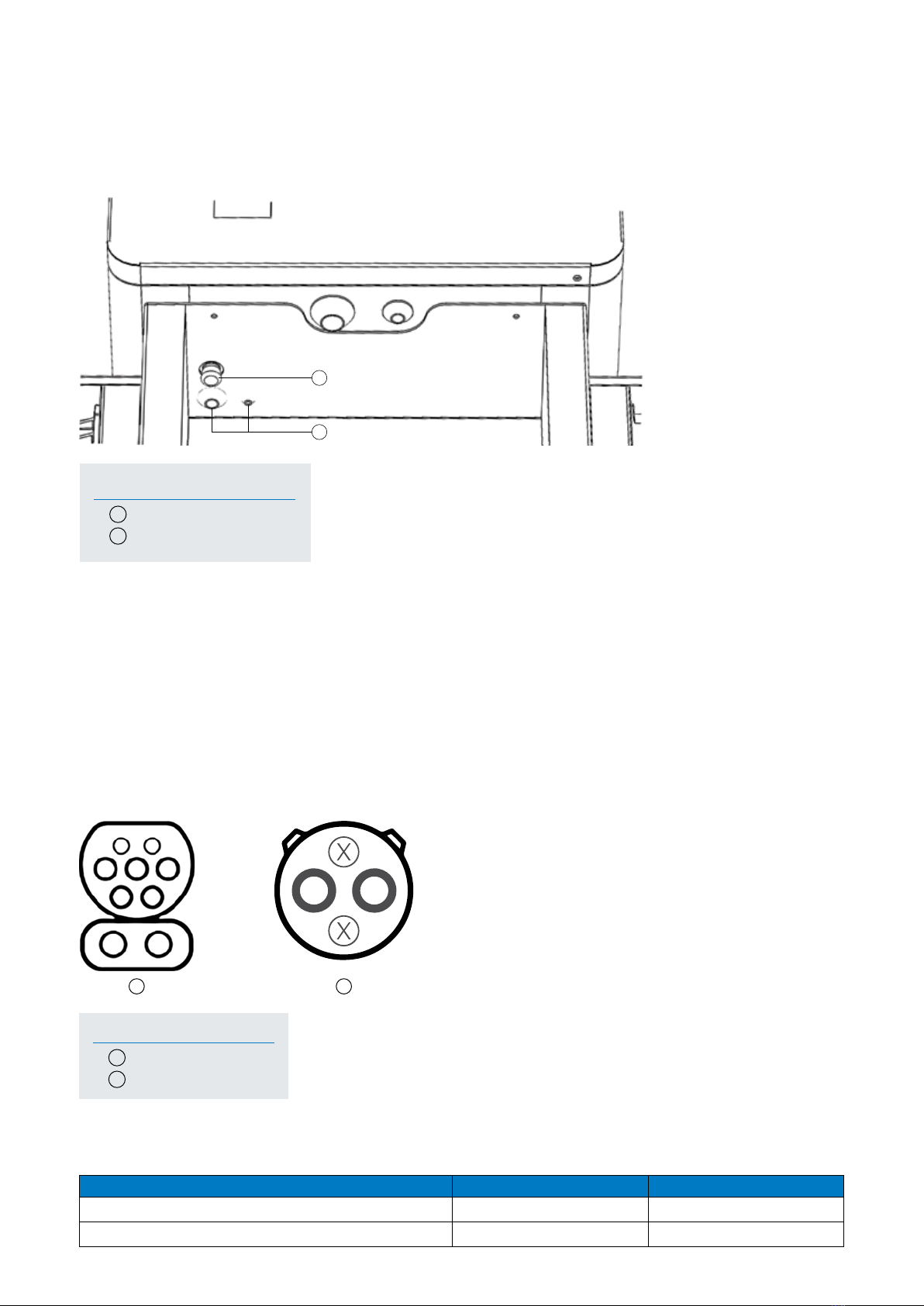

Figure 3. Illustration of connector types available with Green Motion DC 22 EV charger
Tag Description
ACCS Type 2
BCHAdeMO
The unit can be equipped with either CCS or both as reported in the table below.
AB
1
2

9 GREEN MOTION DC 22 EV CHARGER USER MANUAL MN192003EN October 2022 www.eaton.com
4. How to start and stop charging
Electrical systems or devices must be checked by the installer of the system before commissioning and
switching on the unit for the first time.
Follow these steps to charge:
Step 1. Check that the EV charger is ready for use with the LED in green. See Chapter 5.
Step 2. Hold the cable connector of the EV charger and plug it to the appropriate car socket.
Step 3. If the EV charger is equipped with a RFID reader place the RFID card close to the reader to authenticate yourself.
If the card is recognized, the LED starts flashing blue and after it shows the level of state of charge (see Figure 4).
If the CHAdeMO plug is used, this is mandatory for the user to select the plug on the screen. Refer to the next sections.
If the card is not authorized, the charge will not start, and a red indication is displayed on the charging station display.
See Chapter 5.
If the charging cable is disconnected from the car and there is no power consumption within two minutes, the user is
automatically deauthenticated.
Figure 4. Where to place the RFID card on the EV charger for user authentication
While your vehicle is charging, the EV charger display shows the LED as charging with a breathing blue light. See
Chapter 5.
When the battery is fully charged, the EV charger display shows the LED in a steady blue light as fully charged. See
Chapter 5.
Step 4. To stop charging, unplug the connector from your vehicle. Usually, the connector must be released from inside your
vehicle first. See the instruction manual of your vehicle.
RFID

10 GREEN MOTION DC 22 EV CHARGER USER MANUAL MN192003EN October 2022 www.eaton.com
5. Indicators and User interfaces
The EV charger has three different indicator levels and user interfaces embedded, as shown in Chapter 3:
• LED indicators,
• Color touchscreen display,
• Emergency stop button.

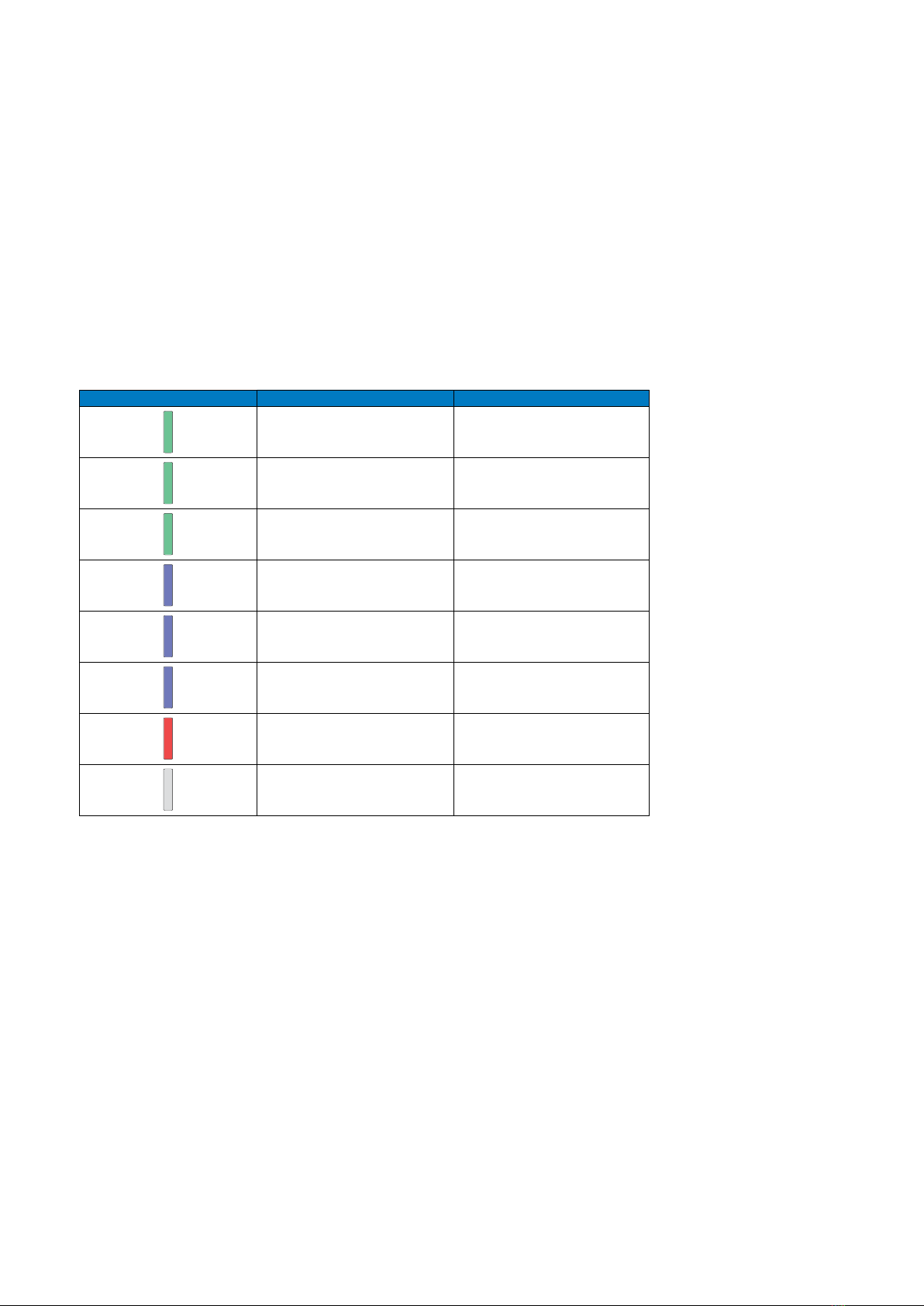

Table 2. LED indicators of the Green Motion DC 22 EV charger
Visual indicator Description Status
Green light on Ready for use
Flashing green light Start-up stage
Breathing green light Waiting for user interaction
Flashing blue light Charge start-up stage
Breathing blue light Vehicle in charge
Blue light on Vehicle charged
Red light on Error in charging
No light Stopped or not powered
5.1 LED indicators
The EV charger is equipped with a LED indicator located on the front door. See Figure 1. Table 3 summarizes the possible
colors of the LED indicator during the operation.

11 GREEN MOTION DC 22 EV CHARGER USER MANUAL MN192003EN October 2022 www.eaton.com
During the charge, the LED indicator also shows the state of charge of the vehicle, as per Figure 5.
Figure 5. LED indicator of the state of charge
5.2 Color touchscreen display
Green Motion DC 22 EV charger is equipped with a color touchscreen display located on the front door. See Figure 1.
Table 4 provides an example of the screens at startup phase. Due to continuous improvement, it is possible that changes
will be implemented in the future to enhance the user experience.
Table 3. Examples of information available from the color touchscreen display
Display Description
Touchscreen display.
Touch the screen to wake up.
Authentication screen.
Before any operation, ensure that the 4G sign is colored in blue.
If the bar graph is RED, there is no connection to the server.
Choose your language by touching the flag.
Present the RFID badge on the RFID reader to initiate authentication.
Select the plug type.
The state of charge of the vehicle.
Tag Description
A50 % charge of the vehicle
B100 % charge of the vehicle
AB
RFID
RFID

12 GREEN MOTION DC 22 EV CHARGER USER MANUAL MN192003EN October 2022 www.eaton.com
6. Software suite
5.3 Emergency stop button
The emergency stop button is located on the bottom left side of the Green Motion DC 22 EV charger, as per Figure 6.
Push the button in cases of emergencies.
Figure 6. Location of theemergency stop button
Green Motion DC 22 EV charger works in combination with an advanced software called Charging network manager.
This is an all-in-one software management system designed to control the charging stations network. Refer to the Eaton
Charging network manager user manual, available on www.eaton.com, for further details.
Tag Description
1Emergency stop button
1

13 GREEN MOTION DC 22 EV CHARGER USER MANUAL MN192003EN October 2022 www.eaton.com
7. Maintenance
It is mandatory to install and maintain the units with the latest system updates to enable new features and bug
fixes, or the guarantee conditions may be voided.
For units that are online, this must be done via the Eaton Charging network manager software platform.
Please refer to the Eaton Charging network manager user manual, available on www.eaton.com, for further
details. For units that are offline, please contact your Eaton service representative using the email address
[e-mail].
Installation, commissioning, maintenance or retrofitting of the EV charger must be performed by professional
and qualified personnel who are responsible for complying with existing standards and local installation
regulations.
Before starting connection operations, make sure that the external AC-line main switch is disconnected, and
circuit breakers are open.
Any operation requiring the opening of the housing of the EV charger can lead to electric shock hazards.
In case the unit shows a failure and the emergency stop button is pushed, check the integrity of the unit,
cables and connectors before starting the maintenance process.
The opening of the EV charger as well as any configuration changes must be carried out by a professional and
qualified personnel in accordance with the local safety and electrical regulations and laws.
Before carrying out any maintenance on the unit, disconnect the unit from the power supply and wait at least
ten minutes to allow its components to cool down and any static electricity storage devices to discharge.
The enclosure could overheat during its operation or be heated by direct sunlight, and it can cause burns by
contact. To avoid burns, please use suitable PPE or wait for the equipment to cool down before accessing it.
7.1 How to put the unit as out of order
The unit can be set as out of order in two ways:
1. On-site method: Press the emergency stop button.
2. Remote method: Access the Eaton Charging network manager and set the unit as out of order.
7.2 Station updates

14 GREEN MOTION DC 22 EV CHARGER USER MANUAL MN192003EN October 2022 www.eaton.com
8. Frequently asked questions
This section contains information and procedures for solving possible problems that may occur with the
EV charger.
Possible problems Solutions
The EV charger does not start • Check that the connection between the connector of the charging cable and the car socket is properly established.
• Check the LED status color and read the indication on the touchscreen display.
The EV charger visual indicators are red • Unplug the connector from the vehicle and reinsert it. Check the LED status color and read the indication on the
touchscreen display.
The vehicle does not charge • Visually inspect the condition of either the CCS or CHAdeMo cable.
• In case the CHAdeMO cable is used, select the appropriate plug on the touch screen to initiate the charging session.
The charging cable cannot be released
from the vehicle
• Check that the charging session has been stopped.
• Check the LED status color and read the indication on the touchscreen display.
• Usually, the connector must be released from inside your vehicle first. Refer to the instruction manual of your vehicle.
• In case of an emergency, the cable can always be unlocked using the emergency stop button.
Authentication refused • Check the LED status color and read the indication on the touchscreen display.
• Check that the connection of the EV charger to the backend is available.
How long is the warranty period? • The warranty period is 2 years.
If the problem persists, contact your local installer or your Eaton technical support representative using the email address
[e-mail].
Table 4. Frequently asked questions
7.3 Cleaning or replacing lters
Check the filters on a yearly basis to ensure that they are not obstructed, and they work properly.
In case of obstruction, filters need to be replaced as soon as possible and Eaton recommends not to use the
unit and wait for the replacement of the filters.
Before starting any operation, please contact your Eaton service representative using the email address
[e-mail].
When the charging station reaches the end of its service life, the end user should contact professional and qualified
personnel for disposal instructions. Please refer to www.eaton.com/recycling for further details.
7.4 Disposal
The EU Directive on Waste Electrical and Electronic Equipment (WEEE) (Directive 2012/19/EU) establishes
common rules on the management of electrical and electronic equipment and minimize its impact — from
design until disposal — on the environment. As a manufacturer of electrical and electronic equipment, Eaton
actively supports the requirements of the WEEE Directive.
In compliance with the EU standard EN 50419 for marking of electrical and electronic equipment, we include
the crossed-out wheeled bin symbol on our products. This symbol alerts users that these products should be
recycled in accordance with local environmental regulations and not discarded with household waste. When
end users recycle WEEE they are helping to ensure that they are neither incinerated nor sent to landfills,
minimizing potential negative impact on human health and the environment.
Any device that is no longer needed must therefore be returned to the distributor or disposed to an authorized
collection and recycling center in the area. Eaton encourages all its customers and end users to make
responsible decisions when it comes to disposing products.
Eaton is not responsible for the transportation of the device to the collection point or recycling center.

15 GREEN MOTION DC 22 EV CHARGER USER MANUAL MN192003EN October 2022 www.eaton.com
9. Technical data
The labels must NOT be hidden with foreign objects (rags, boxes, equipment etc.); they must be periodically
cleaned and kept always clearly visible.
9.1 Rating plate
To locate the rating plate on the equipment, refer to Figure 7.
The technical specifications shown in this manual do not replace those that appear on the rating plate attached
to the equipment.
The labels attached on the equipment must NEVER be removed, damaged, soiled or hidden for any reason.
The information reported on the rating plate:
1. Manufacturer
2. Model
3. Ratings
4. Certification marks
5. Warnings
6. Serial Number
Figure 7. Location of the rating plate
Tag Description
1Rating plate
9.2 Technical datasheet
The latest version of the technical datasheet is available for download from www.eaton.com/GreenMotiondc22.
CE certification is also available on www.eaton.com/GreenMotiondc22 or contact your local Eaton service representative.
1

Should any technical problems arise during the operation of the EV charger, contact your Eaton technical support
representative for assistance using the email address [e-mail].
The following information should be provided when contacting the Eaton technical support representative:
• Product model and serial number,
• Fault messages.
10. Contact support information
Eaton is a registered trademark.
All trademarks are property
of their respective owners.
Eaton Industries
Manufacturing GmbH
Place de la Gare 2
1345 Le Lieu, Switzerland
Eaton.com/greenmotiondc22
© 2022 Eaton
All Rights Reserved
Publication No. MN192003EN
October 2022
