Ordering information
To order the 35 kV Insulated Protective Cap Kit, refer to Table 2.
Each kit contains:
• Protective Cap with Copper Drain Wire
• Silicone Lubricant
• Installation Instruction Sheet

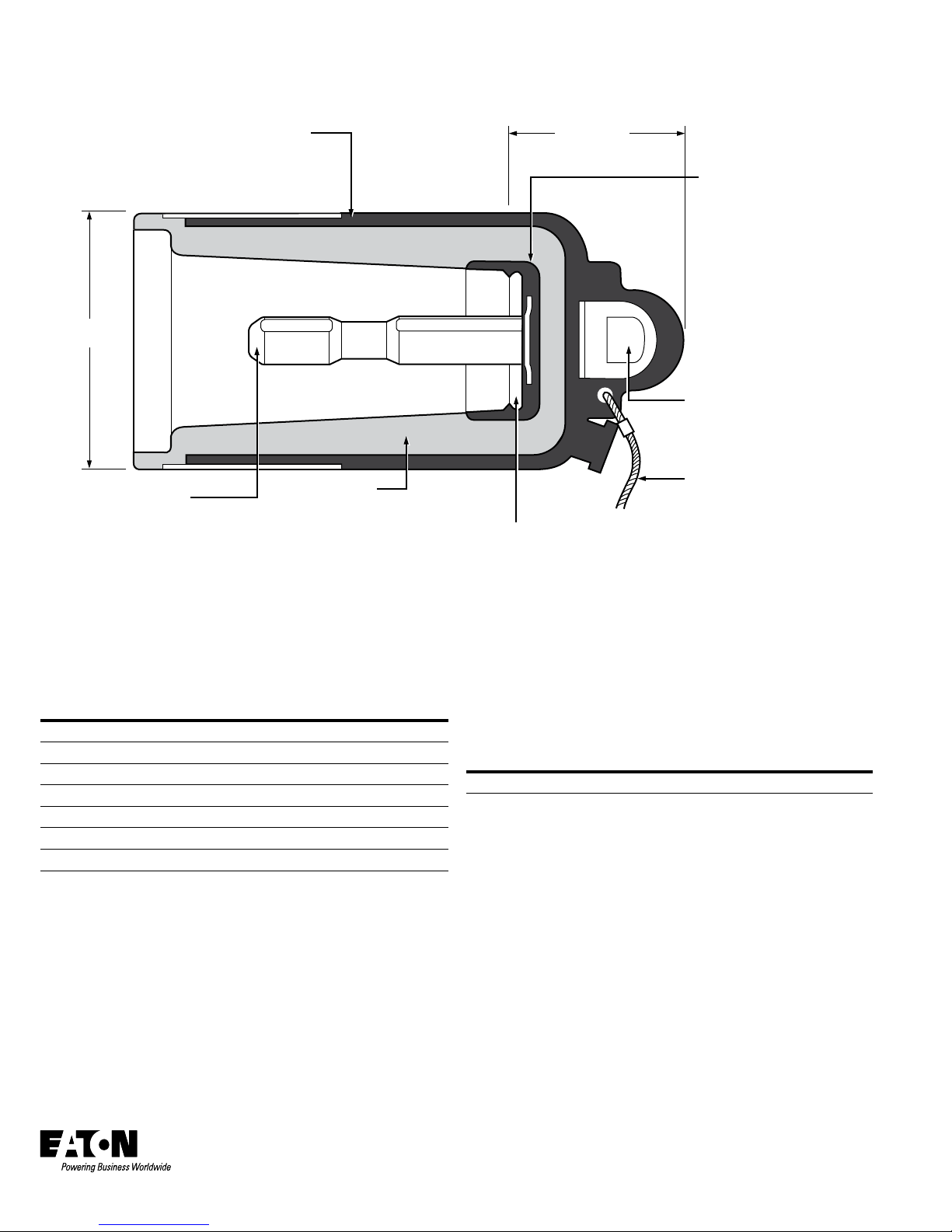

Figure 1. Cutaway drawing shows design integrity and stacking dimensions.
ote:N Dimensions given are for references only
FARADAY CAGE
Semi-Conductive Insert, molded
out of Peroxide Cured EPDM
Rubber, equalizes and relieves
voltage stresses created around
probe base.
SEMI-CONDUCTIVE SHIELD
Molded Semi-Conductive
Peroxide Cured EPDM
Shield meets requirements of
IEEE Std 592™-2007 standard.
4.0”
(102 mm)
PULLING EYE
Stainless Steel Reinforced
Pulling Eye ensures high
strength for clampstick opera-
tion.
DRAIN WIRE AND
GROUNDING EYE
48-inch, #14 AWG Stranded
Copper Drain Wire ensures
deadfront construction and
avoids low energy discharge
from the molded semi-
conductive shield. Tin plating
helps prevent corrosion of
drain wire.
BRASS PROBE
Brass Probe provides reliable
conductive path with mating
female contacts.
S3
2.66”
(67.5mm)
LOCKING RING
Semi-Conductive Molded
Locking Ring locks cap onto
nose piece of mating interface
and provides stress relief.
EPDM INSULATION
High Quality Peroxide Cured
EPDM Insulation is mixed
and formulated in-house
for complete control of raw
rubber characteristics.
For a Protective Cap Kit individually packaged in a corrugated cardboard box, insert
an “X” as the last character in the part number. Example: LPC235X.
Voltage ratings and characteristcs are in accordance with IEEE Std 386™-2006
standard.
Table 2. Protective Cap Kit
Description Catalog Number
Protective Cap LPC235
Table 1. Voltage Ratings and Characteristics
Description kV
Standard Voltage Class 35
Maximum Rating Phase‑to‑Phase 36.6
Maximum Rating Phase‑to‑Ground 21.1
AC 60 Hz 1 Minute Withstand 50
DC 15 Minute Withstand 103
BIL and Full Wave Crest 150
Minimum Corona Voltage Level 26
200 A 35 kV insulated protective cap
