1 Introduction
The ELC-COENETM is an Ethernet communication module for remote configuration,
monitoring and control. It` supports the `Modbus TCP communication protocol as both a client
and server device. Acting as a server device, the ELC-COENETM provides remote monitoring
from SCADA (Supervisor Control and Data Acquisition) software or HMI (Human Machine
Interfaces) panels.Acting as a client device, the ELC-COENETM can poll server devices such
as VFDs and remote I/O products for use in the ELC control program.
In addition to Modbus TCP support, the ELC-COENETM module allows the ELC control
program to be remotely monitored and updated from ELCSoft or EIPSoft over Ethernet. It also
provides email support for event notification and provides for ELC clock synchronization from
an NTP server.
Features
zSupports MODBUS TCP
zSupports Master and Slave Data Exchange
zELC-PV28NNDR/TAutomatic Time Correction
zSupports E-Mail
zRS-232/Ethernet Configuration
zTransmission Speed: 10/100 Mbps
2 Specification
Functions Specification
Network Interface
Interface RJ-45 with Auto MDI/MDIX
Number of ports 1 Port
Transmission
method IEEE 802.3, IEEE 802.3u
Transmission cable Category 5e (TIA/EIA-568-A,TIA/EIA-568-B)
Transmission Rate 10/100 Mbps Auto-Detect
Protocol ICMP, IP, TCP, UDP, DHCP, SMTP, NTP, MODBUS TCP
Serial Interface
Interface RS-232
Number of Ports 1 Port
Transmission Cable ELC-CBPCELC3
Electrical Specification
Power supply
voltage 24VDC (-15% ~ 20%) (Power is supplied by the internal bus of MPU)
Power Consumption 1.5W

ELC-COENETM
4 For more Information visit: www.eaton.com MN05006001E
Noise Immunity
ESD (IEC 61131-2, IEC 61000-4-2): 8KV Air Discharge
EFT (IEC 61131-2, IEC 61000-4-4): Power Line: 2KV,
Communication I/O: 1KV
Damped-Oscillatory Wave: Power Line: 1KV, Digital I/O: 1KV
RS (IEC 61131-2, IEC 61000-4-3): 26MHz ~ 1GHz, 10V/m
Insulation voltage 500V
Vibration/Shock
Immunity Standard: IEC61131-2, IEC 68-2-6 (TEST Fc)/IEC61131-2 & IEC
68-2-27 (TEST Ea)
Operation/storage
temperature
Operation: 0°C ~ 55°C (temperature), 50 ~ 95% (humidity),
pollution degree 2;
Storage: -25°C ~ 70°C (temperature), 5 ~ 95% (humidity)
Certificates , Operating temperature code: T5
Weight (g) 92 (g)
3 Product Profile and Outline
LAN
100M
RS-232
LNK
POWER
RS-232
1
2
6
7
8
5
4
3

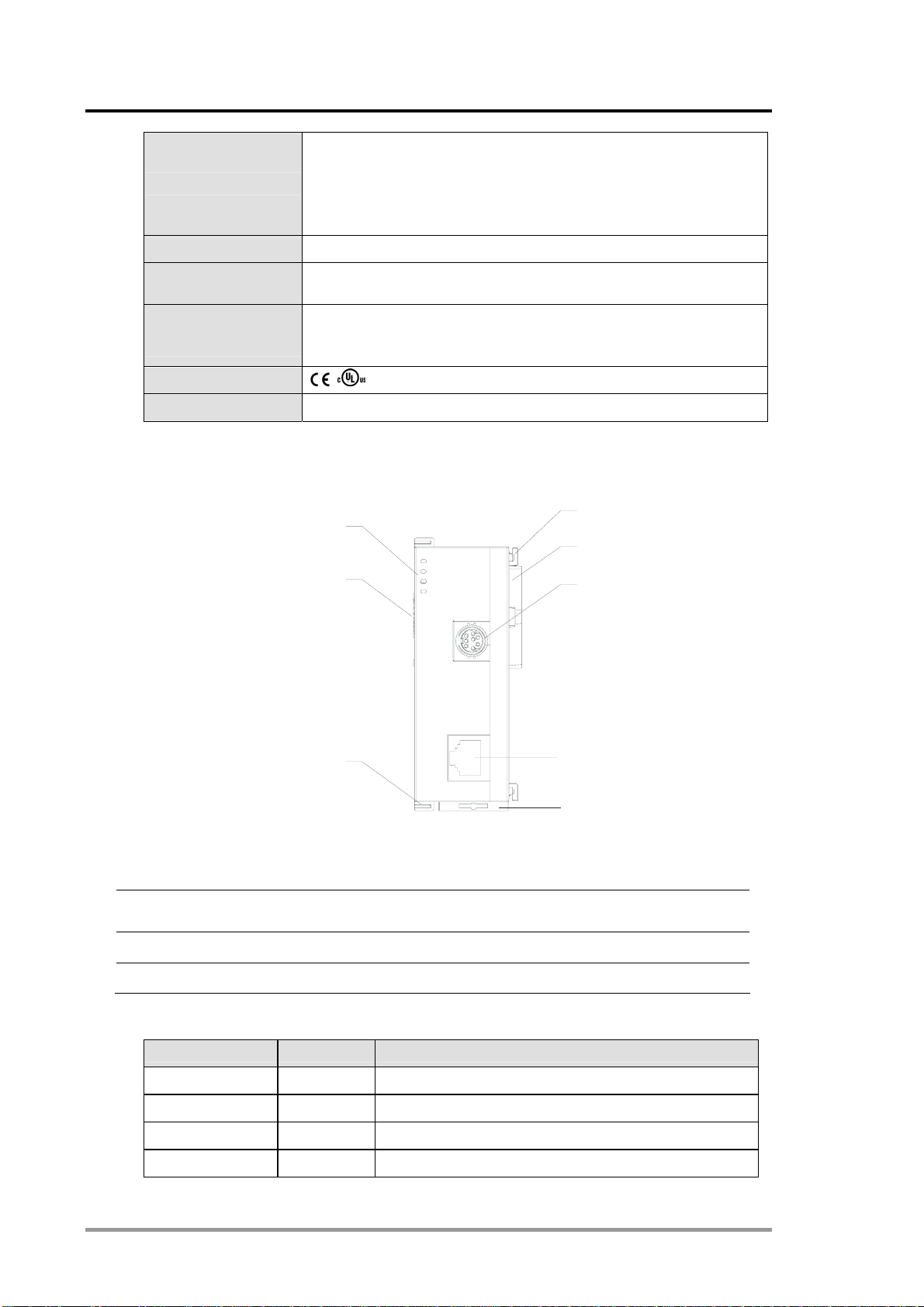

1. POWER, LINK, RS-232, 100M LED 2. Extension Port to connect Extension
modules
3. Extension clip 4. Extension hole for mounting unit or
module
5. Extension Port to connect I/O Modules 6. RS-232 port
7. Ethernet RJ-45 port 8. DIN rail clip
LED indicators
Indicator Color Indication
POWER Green Power indication
RS-232 Red Communication status for the serial port
100M Orange Network connection status
LINK Green Network communication speed

ELC-COENETM
MN05006001E For more Information visit: www.eaton.com 5

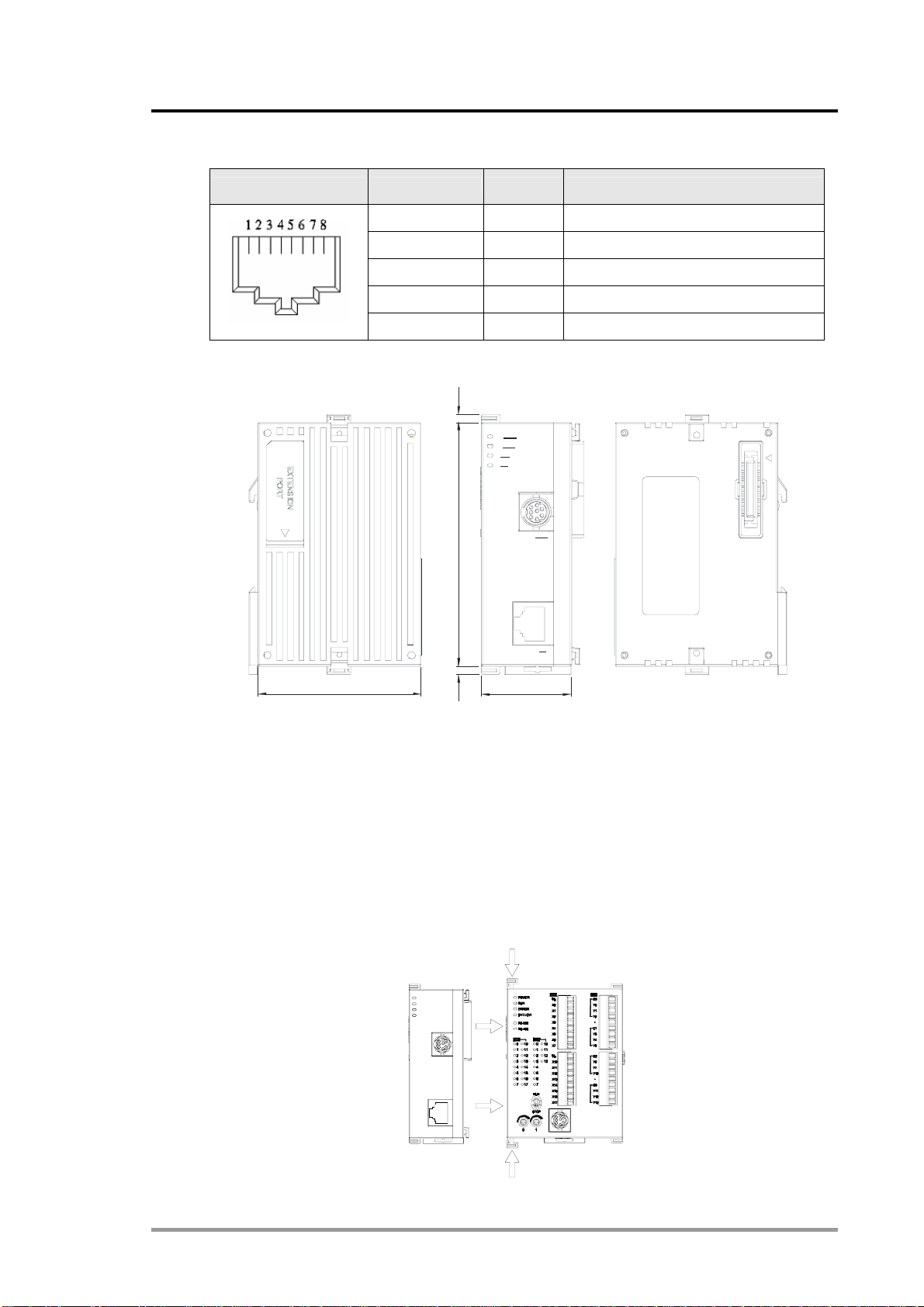

RJ-45 PIN definition
RJ-45 sketch Terminal No. Definition Explanation
1 Tx+ Positive pole for data transmission
2 Tx- Negative pole for data transmission
3 Rx+ Positive pole for data receiving
6 Rx- Negative pole for data receiving
4, 5, 7, 8 - N/C
Dimension
ELC-COENETM
60 33
3
90
3
Unit: mm
4 Installation and Wiring
How to Connect the ELC-COENETM with the ELC processor
zOpen the extension clips on the left side of the MPU.
zConnect the extension port of the ELC controller to the ELC-COENETM as shown
below.
zClose the extension clips.
AN
RS-232
RS-232
NK
00M
OWER

ELC-COENETM
6 For more Information visit: www.eaton.com MN05006001E
Installing the ELC-COENETM With Other Extension Modules

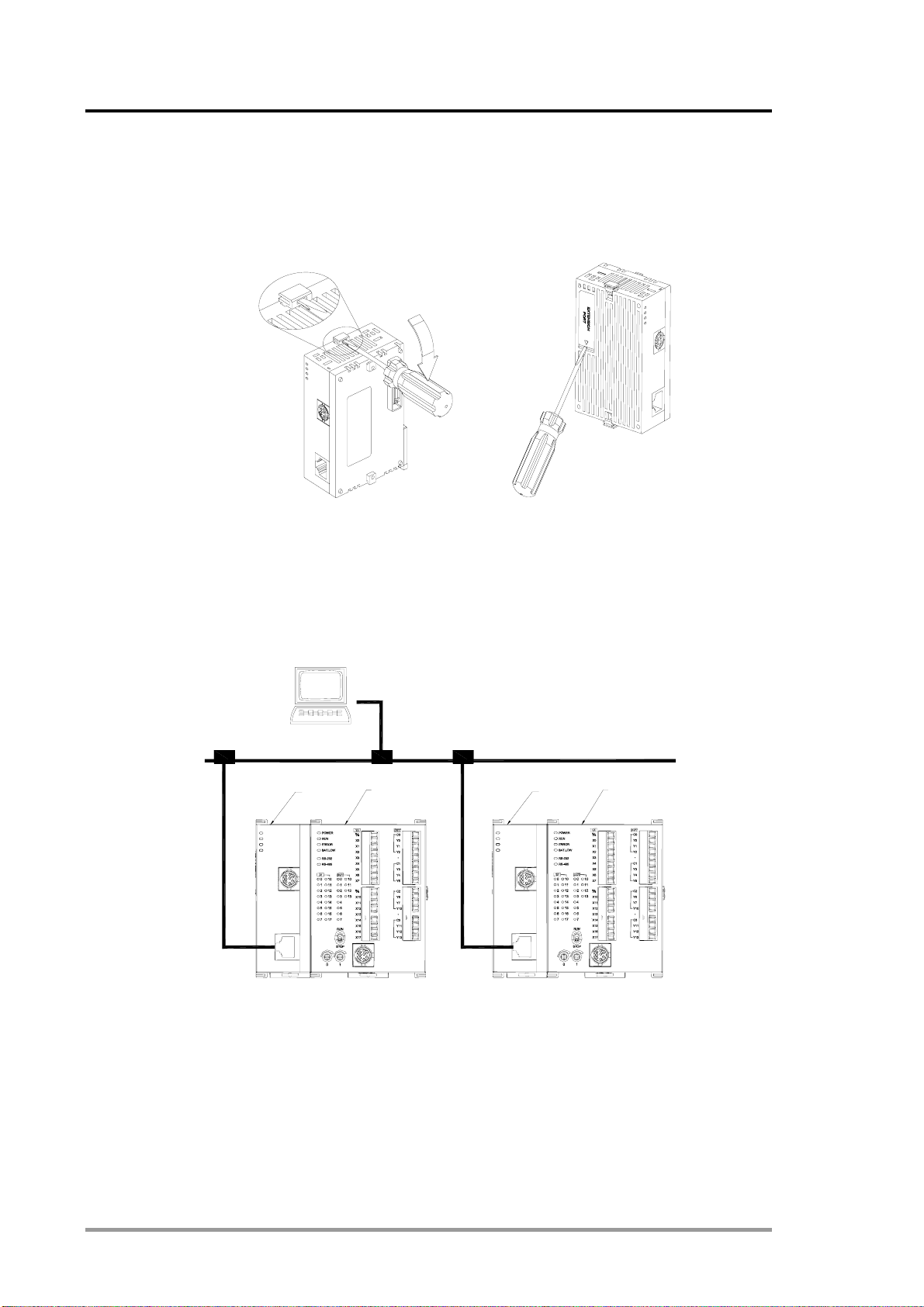

To connect ELC-COENETM with other extension modules, lift the extension clips of the
extension module with a screwdriver and remove the side cover. Connect the second
ELC-COENETM as described above. A maximum of 8 left side communication modules are
supported.
Connecting the ELC-COENETM to the network
zConnect ELC-COENETM to the Ethernet switch using a standard CAT-5e cable.
ELC-COENETM providesAuto MDI/MDIX function; therefore, ELC-COENETM does
not need to use a cross over cable for direct connection to a PC.
zA typical Network connection between the PC and ELC-COENETM is shown below:
5 Configuring and applying the ELC-COENETM using ELCSoft (V2.0 or
later)
ELCSoft integrates the capabilities to configure the ELC-COENETM module in the same
programming environment used to generate your ELC control program. The following settings
are described in this section:
Ethernet
PC Maste
r
DVP28SV
AN
RS-232
RS-232
INK
00M
DVPEN01
OWER
ELC-P
V
COENET
DVP28SV
AN
RS 232
RS-232
NK
00M
DVPEN01
OWER
ELC-PV
COENET

ELC-COENETM
MN05006001E For more Information visit: www.eaton.com 7
zEstablishing communications between ELCSoft and the ELC-COENETM module
zAssigning a new module name and network settings for the module
zSetting up and clearing password protection
zRecovering from a lost password
zSetting IP Filter Protection to restrict access
zSetting up email notification
zSetting up data exchange between ELC processors (continuous exchange)
zSetting up data exchange with any Modbus TCP server
zSetting up data exchange with any Modbus TCP client
zSetting up data exchange to an ELC remote I/O communications adapter
(ELC-CAENET)
5.1 Connecting the PC to the ELC-COENETM through a LAN

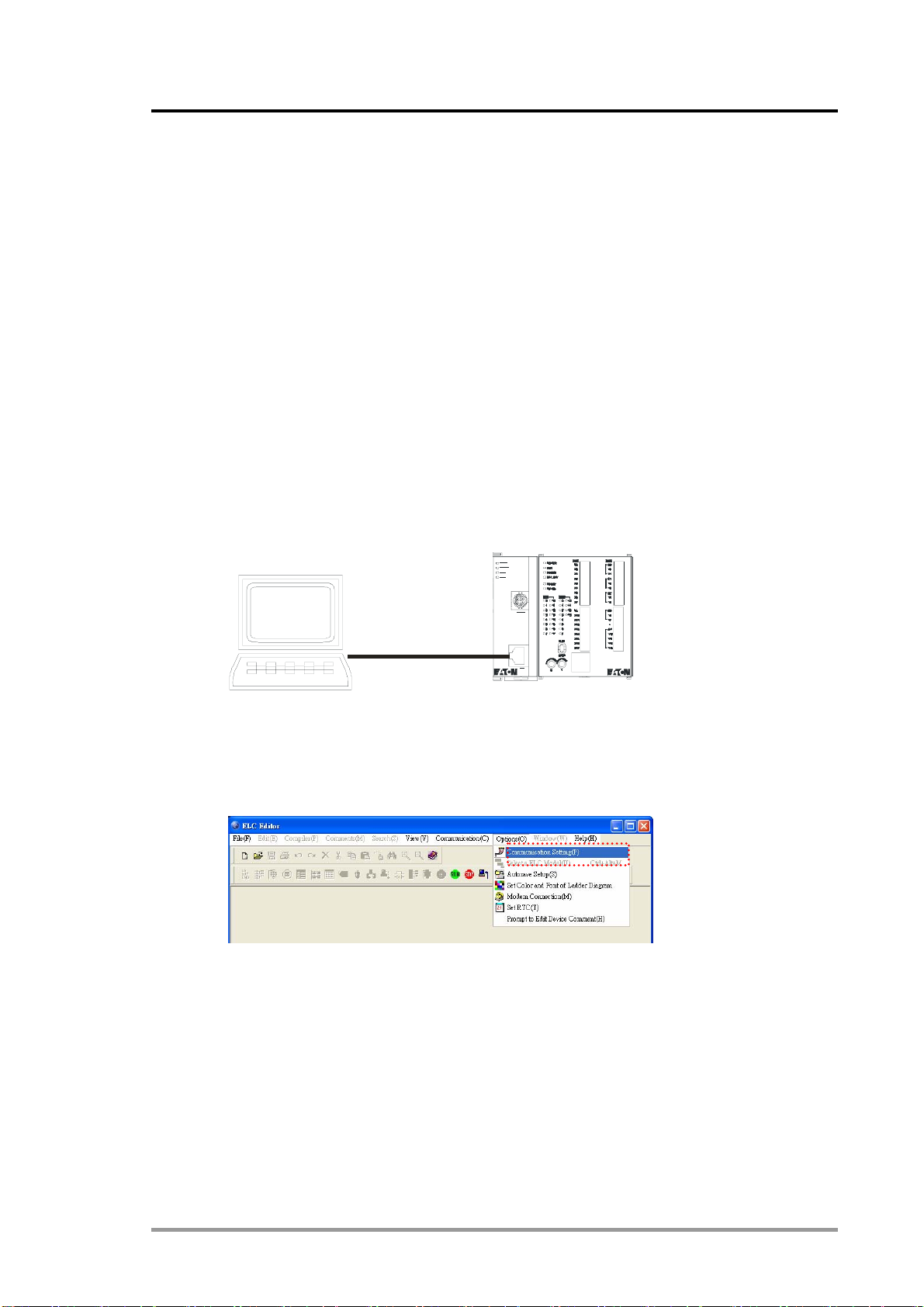

(1) Connect the PC running ELCSoft and the ELC-COENETM to a common LAN. A direct
RJ cable connection can also be used
ELC-PV28NNDT
ELC-COENETM
PC
ELC-PV28NNDT
ELC-CONENETM
(Note: the default IP address setting for the ELC-COENETM module is IP address =
192.168.1.5. The PC IP address and network mask need to be set up to reside on the
same network as the ELC-COENETM)

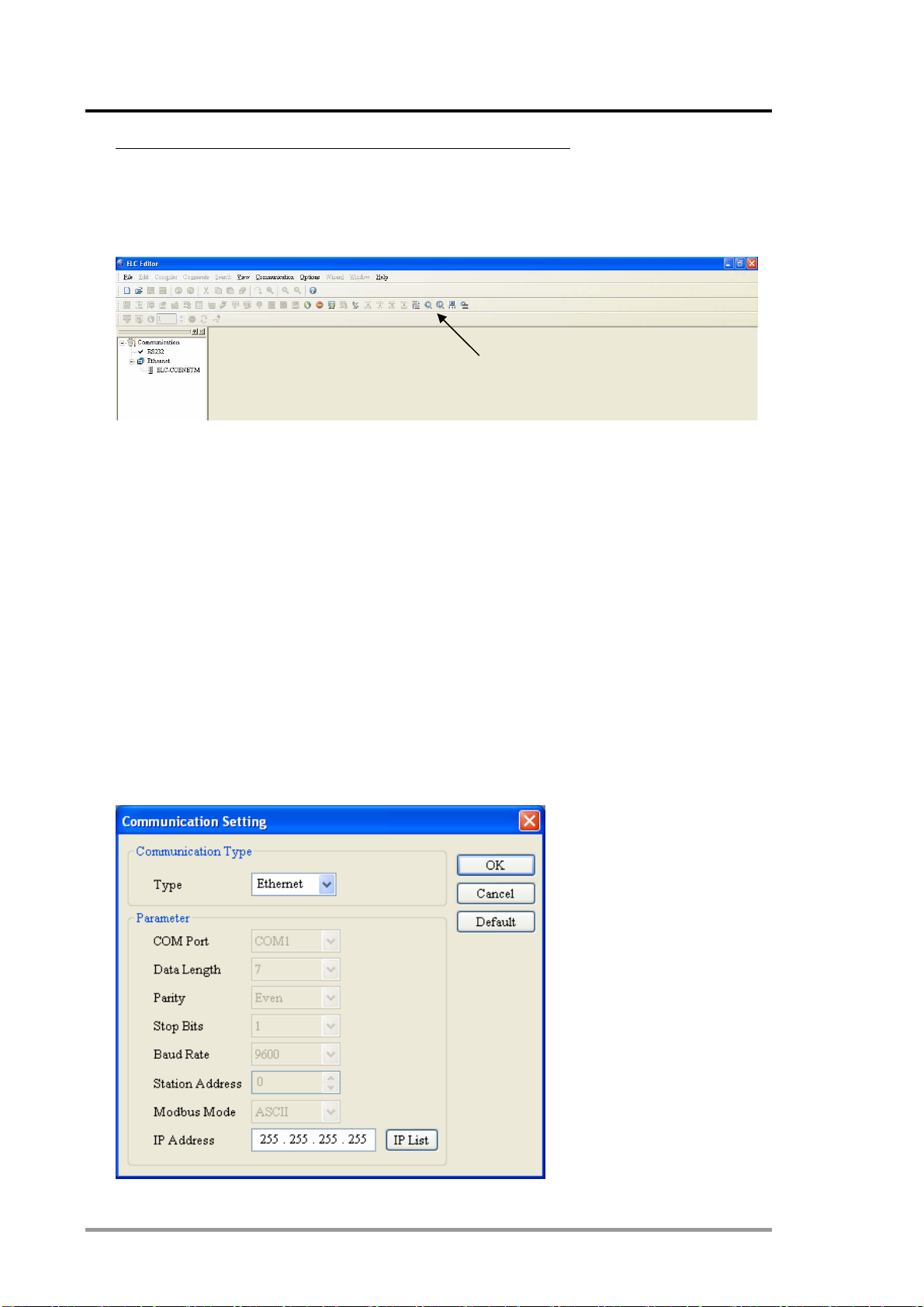

(2) Open “Communication Setting” in ELCSoft.
(3) Select “Ethernet” and press “OK”.

ELC-COENETM
8 For more Information visit: www.eaton.com MN05006001E

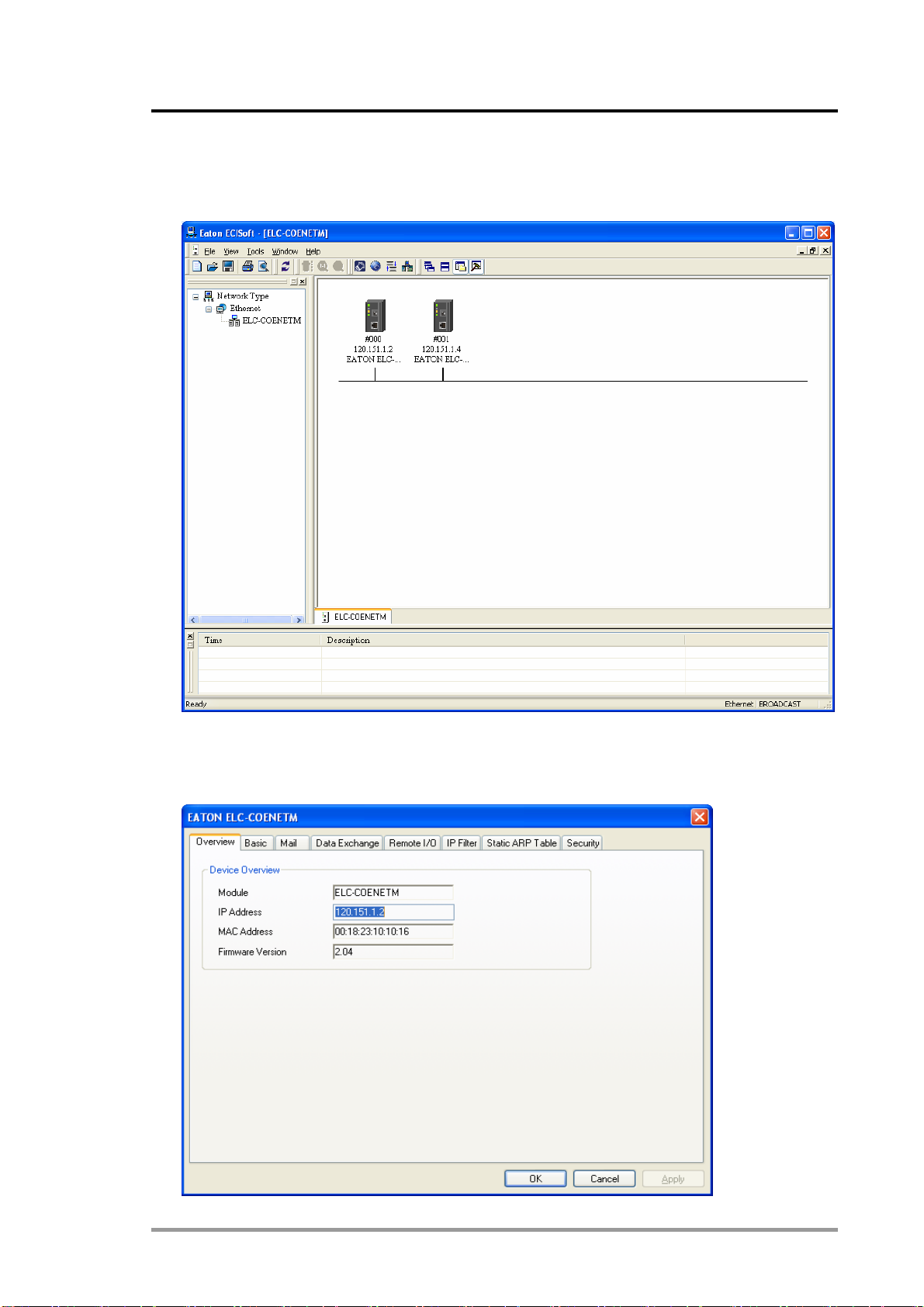

(4) Click the “Auto-Search” icon to search for all ELC-COENETM modules on the network.
Follow “View ÆWorkspace ÆCommunication” or “View ÆWorkspace ÆProject” to find
the detected ELC-COENETM modules (default module name: EATON ELC-COENETM,
IP: 192.168.1.5) in the window.
(5) Select the ELC-COENETM and double click it to open the setup page. All further
ELC-COENETM configuration is done through the setup page

ELC-COENETM
MN05006001E For more Information visit: www.eaton.com 9
5.2 Changing the ELC-COENETM module name and IP address settings

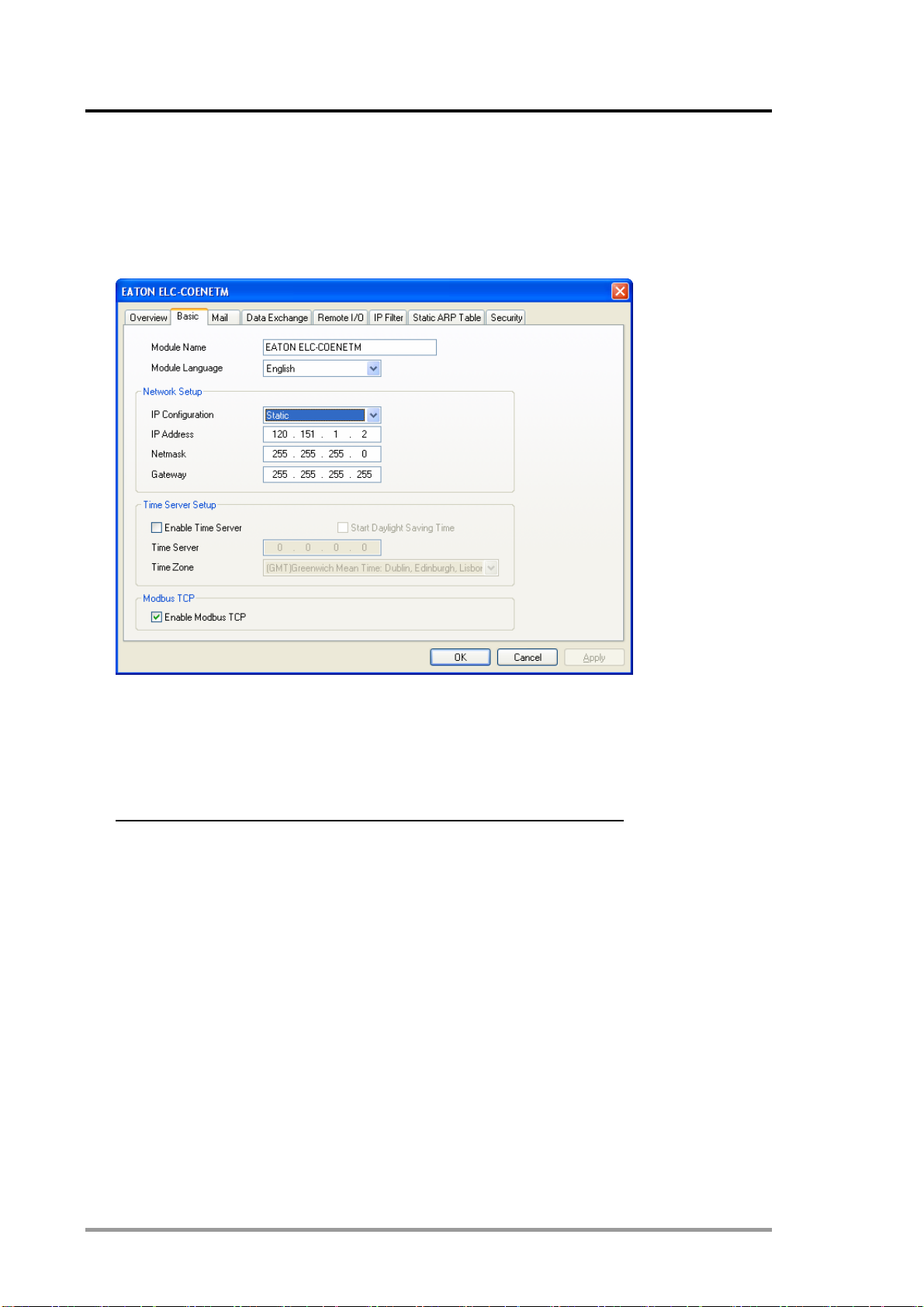

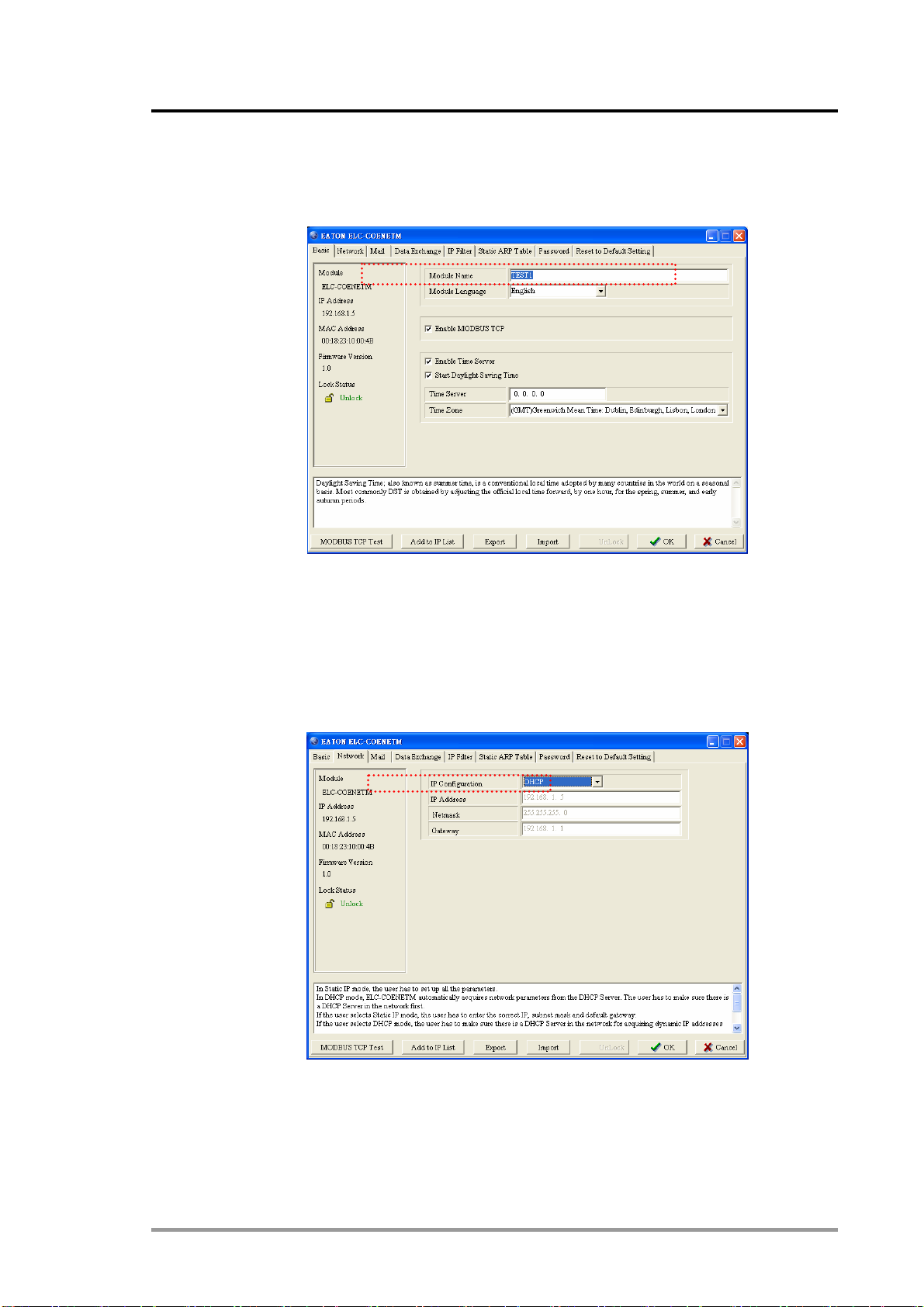

(1) After you open the setup dialog you will be on the Basic tab. You can modify the module
name for easier identification.
(2) Next, set up the new IP address for the ELC-COENETM. First switch to “Network” setup
page. If there is a DHCP server on the LAN, you may select DHCP in “IP Configuration”.
If there is no DHCP server on the LAN, you must set a static IP. Please note that the
settings for subnet mask and gateway have to be the same as the settings in the same
LAN. Press “OK” to complete the setting, and ELCSoft will automatically search for the
ELC-COENETM again.
(3) The module name and IP of ELC-COENETM have been modified into new settings
(TEST1: 172.16.156.68).

ELC-COENETM
10 For more Information visit: www.eaton.com MN05006001E

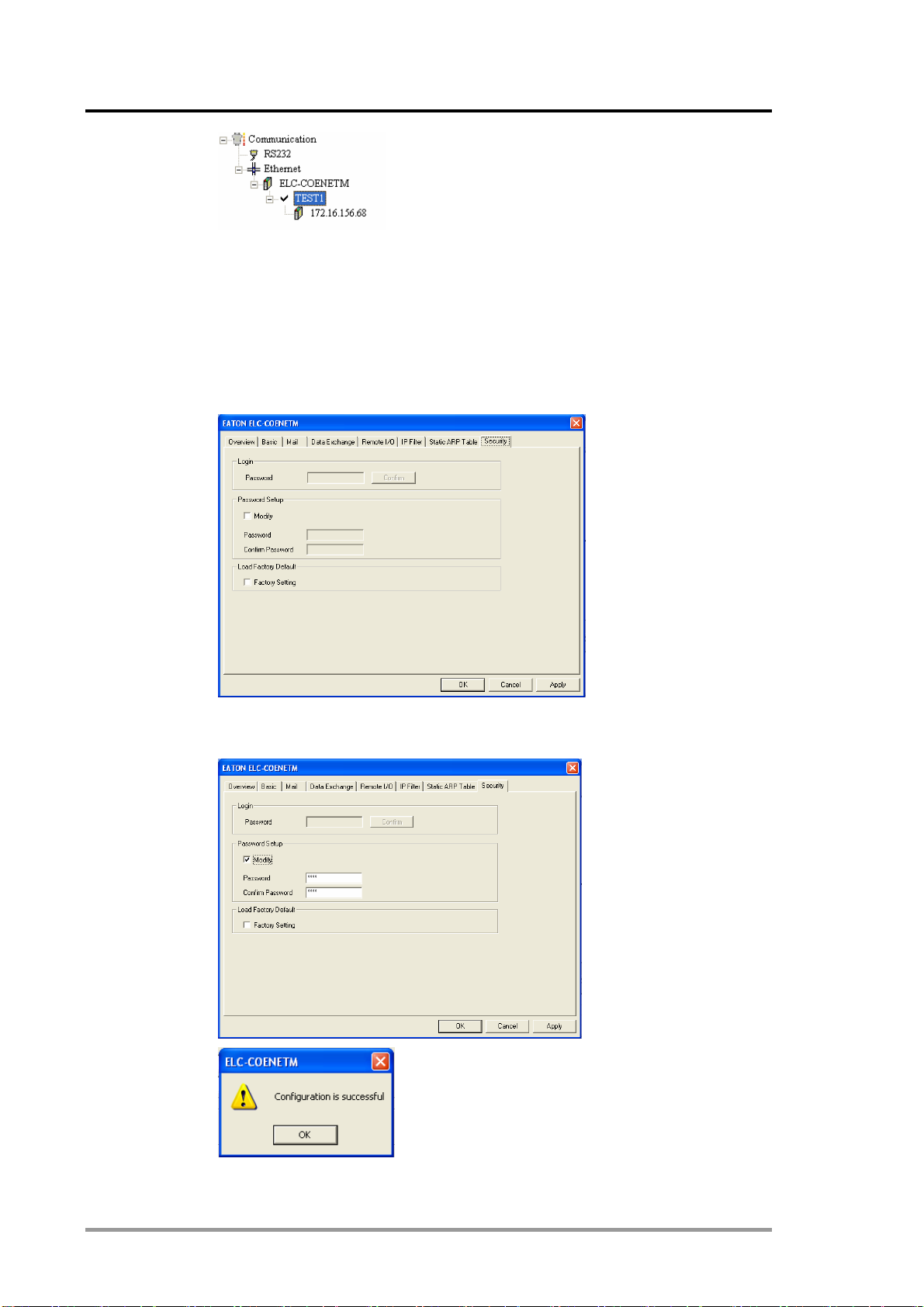

(4) Click on EATON ELC-COENETM, and ELCSoft will be able to communicate with the
ELC controller (e.g. uploading/downloading program or monitoring devices) via Ethernet.

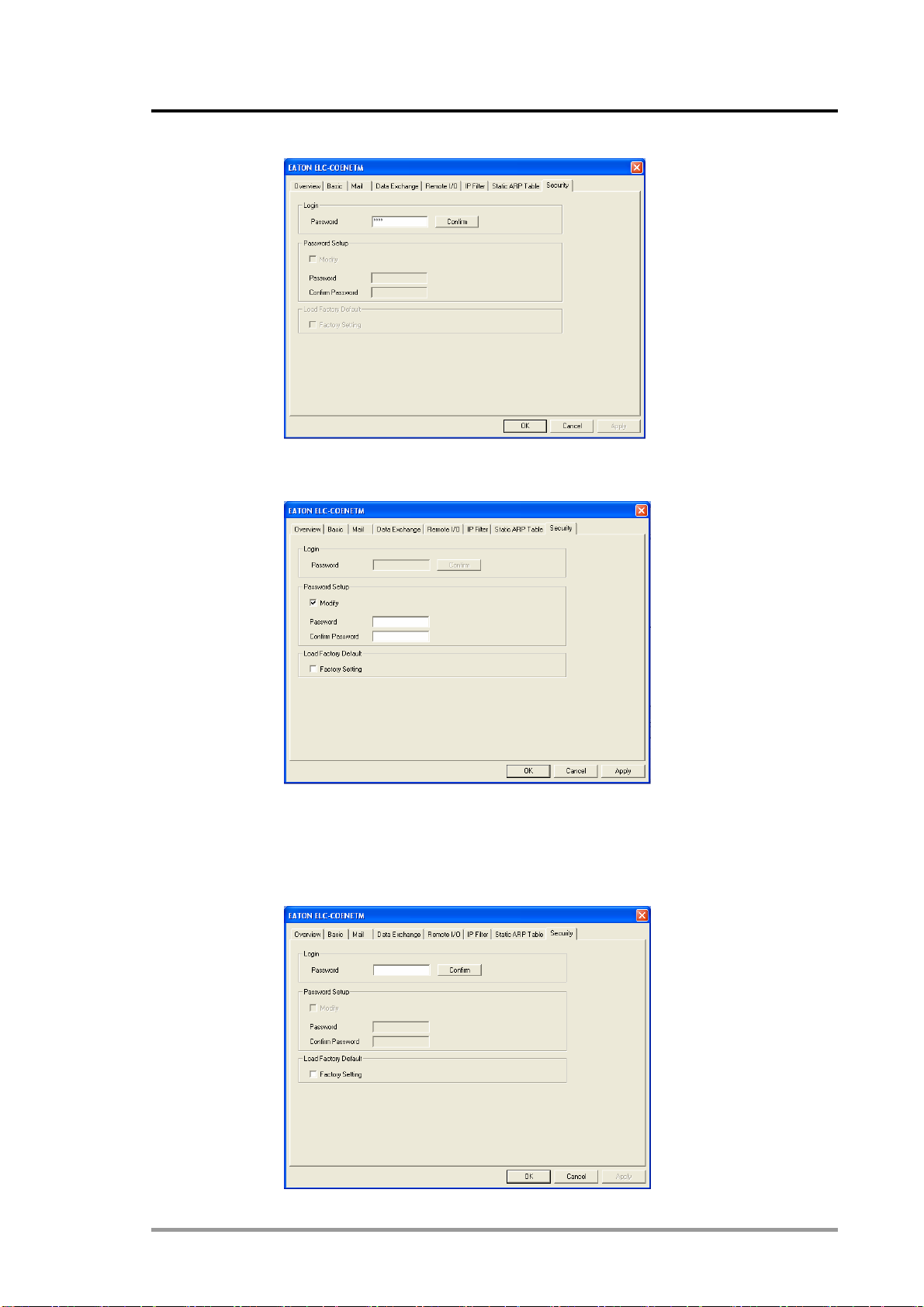

5.3 Setting up and Clearing a Password
(1) Follow the steps in: Connecting the PC to the ELC-COENETM through a LAN
(2) Open the setup page and switch to the “Security” page.
(3) Check “Modify” box and enter “aabb” in “Password” and “Confirm Password" columns.
Click on “OK” to save the password.
(4) Open the setup page again. The ELC-COENETM is now locked by the password. You

ELC-COENETM
MN05006001E For more Information visit: www.eaton.com 11
cannot open any of the settings without entering the module password.
(5) To clear the password, simply leave the password columns blank. Click on “OK” to clear
the password.
5.4 Recovering from a lost password
(1) Use ELC-CBPCELC3 cable to connect the PC and ELC-COENETM and open the setup
page. Open the “Security” page.

ELC-COENETM
12 For more Information visit: www.eaton.com MN05006001E

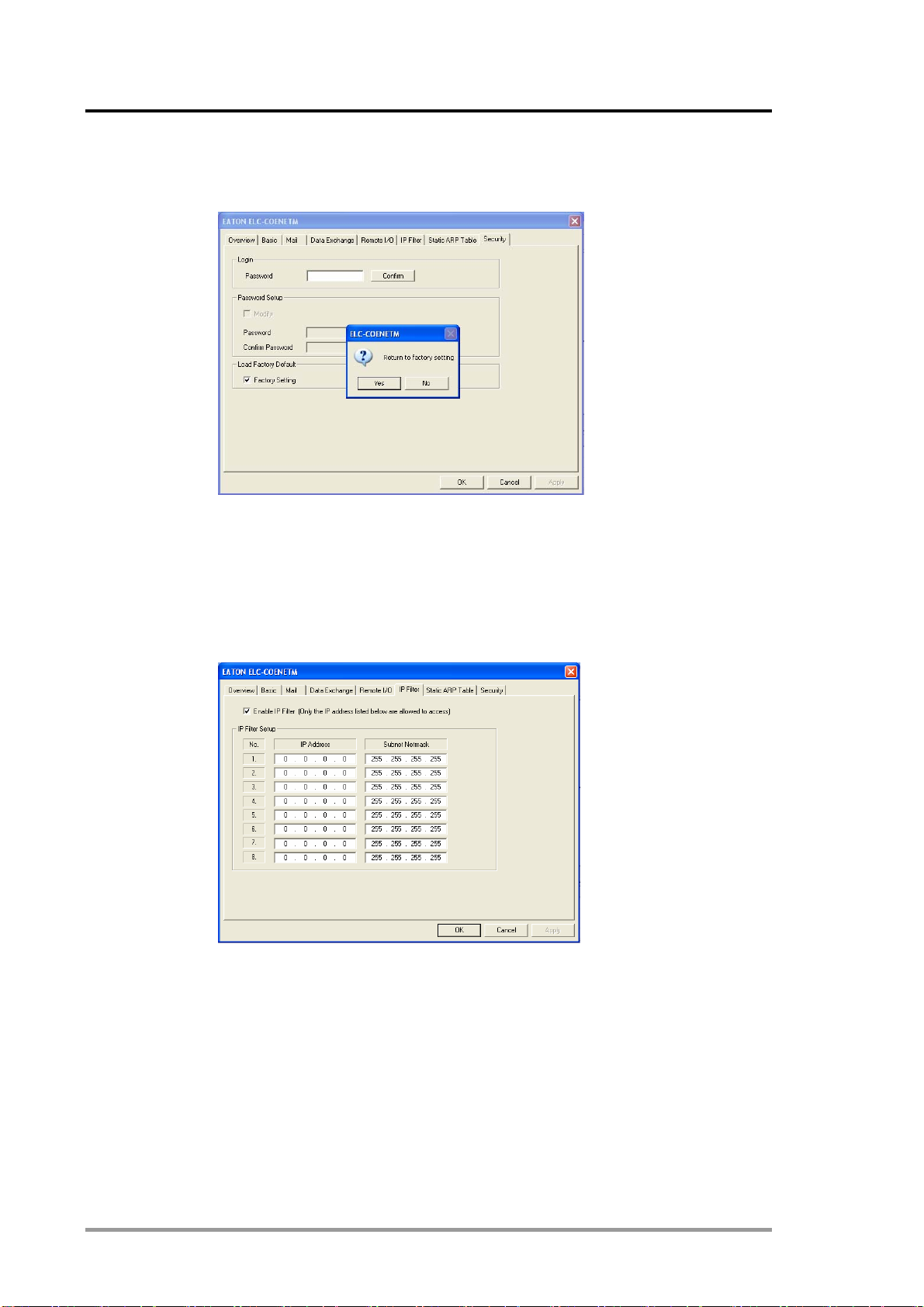

(2) Check the “Factory Setting” box and the “Warning” dialog box will appear. Click on “Yes”
to return to default setting (in approx. 5 ~ 10 seconds), and the password will be cleared
as well.
Note: this action returns all parameters are to their default settings.
5.5 Setting IP Filter Protection to restrict access
(1) Follow the steps in: Connecting the PC to the ELC-COENETM through a LAN

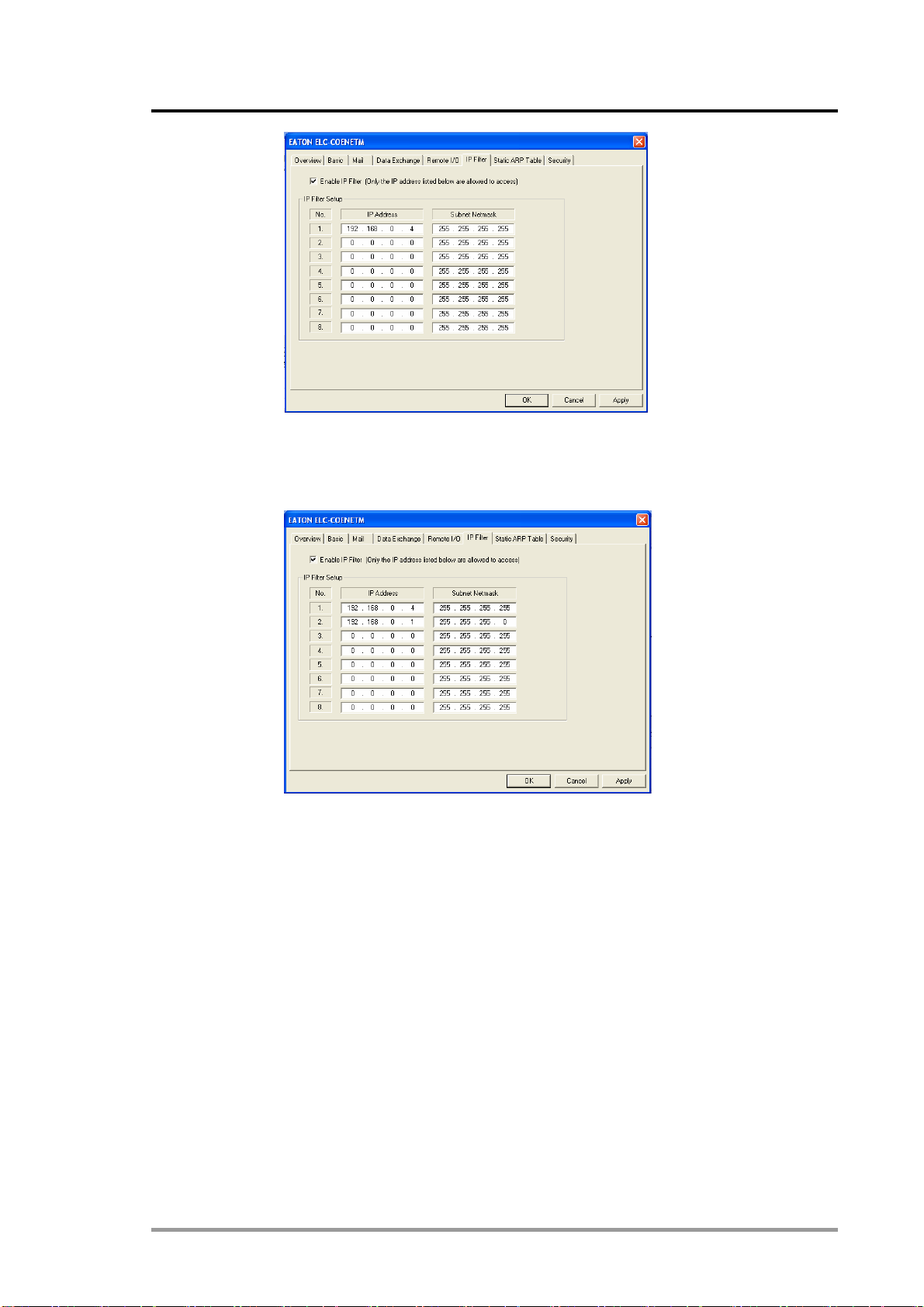

(2) Open the setup page and switch to the “IP Filter” page.
(3) Check the “Enable IP Filter” box. Enter “192.168.0.4” in the No. 1 “IP Address” and
“255.255.255.255” in all “Subnet Netmask” columns.

ELC-COENETM
MN05006001E For more Information visit: www.eaton.com 13
(4) Enter “192.168.0.1” in No. 2 “IP Address” and “255.255.255.0” in the No.2 “Subnet
Netmask” column. Click on "OK” to complete the setting. Only the equipment within the
IP range can be connected to the ELC-COENETM module.

ELC-COENETM
14 For more Information visit: www.eaton.com MN05006001E
5.6 Setting up E-Mail notification
(1) Follow the steps in: Connecting the PC to the ELC-COENETM through a LAN.
(2) Open the setup page and switch to "Mail” page.

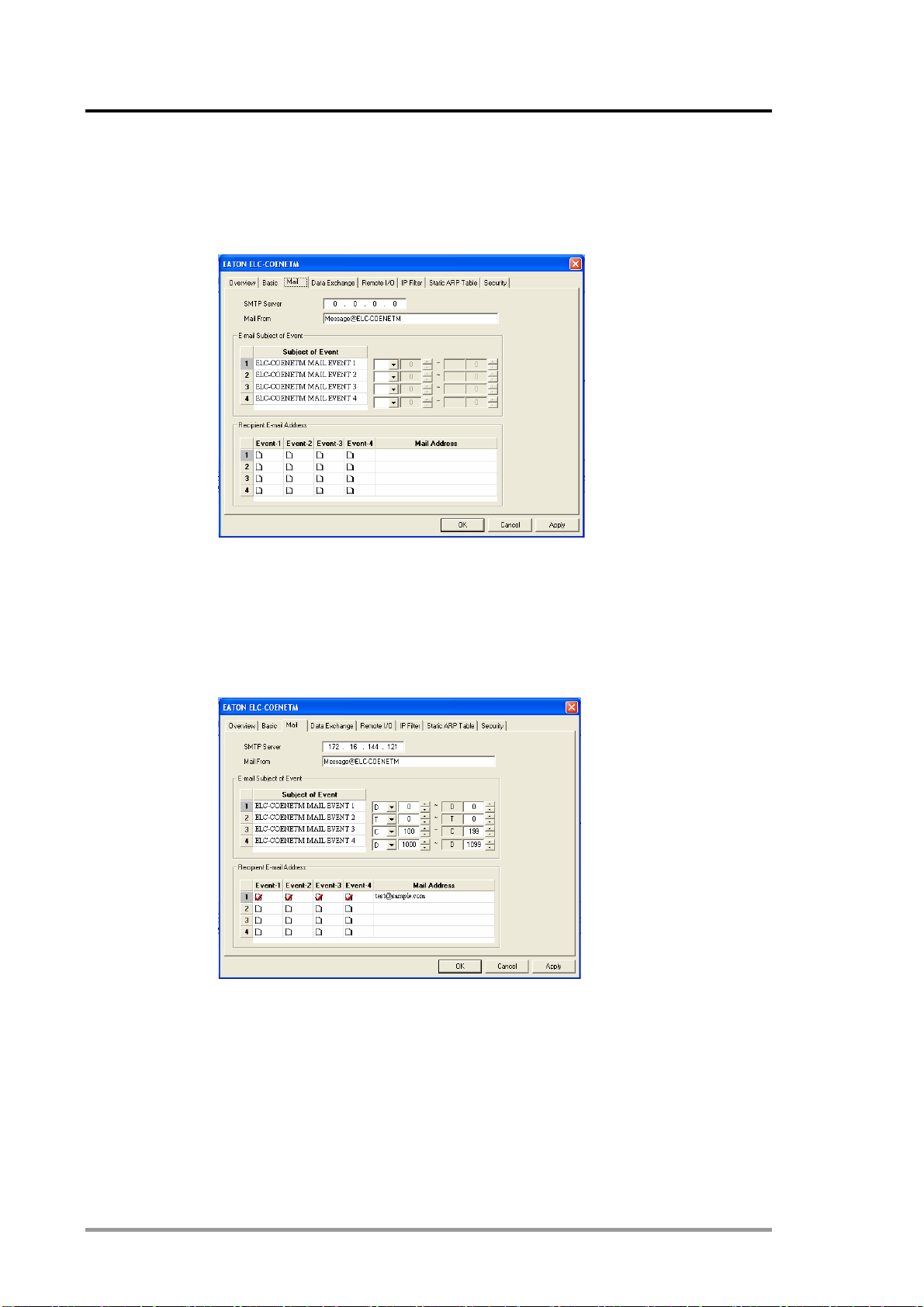

(3) In the “Mail” page, enter the address of the SMTP server, subject of event (up to 4), and
mail address of the recipient. Next to the subject of event define the data you want to
include in the email for that event.
(4) Check all the events that you want to trigger emails to “Recipient 1”. Click on “OK” to
complete the setting.
(5) The emails are triggered by writes to the appropriate CRs of the ELC-COENETM module
(CR#3-CR#6). After all the settings in ELC-COENETM are completed, enter a program
that loads the CR registers based on desired trigger event, compile the ladder diagram
and download it to the MPU. An example program is shown below

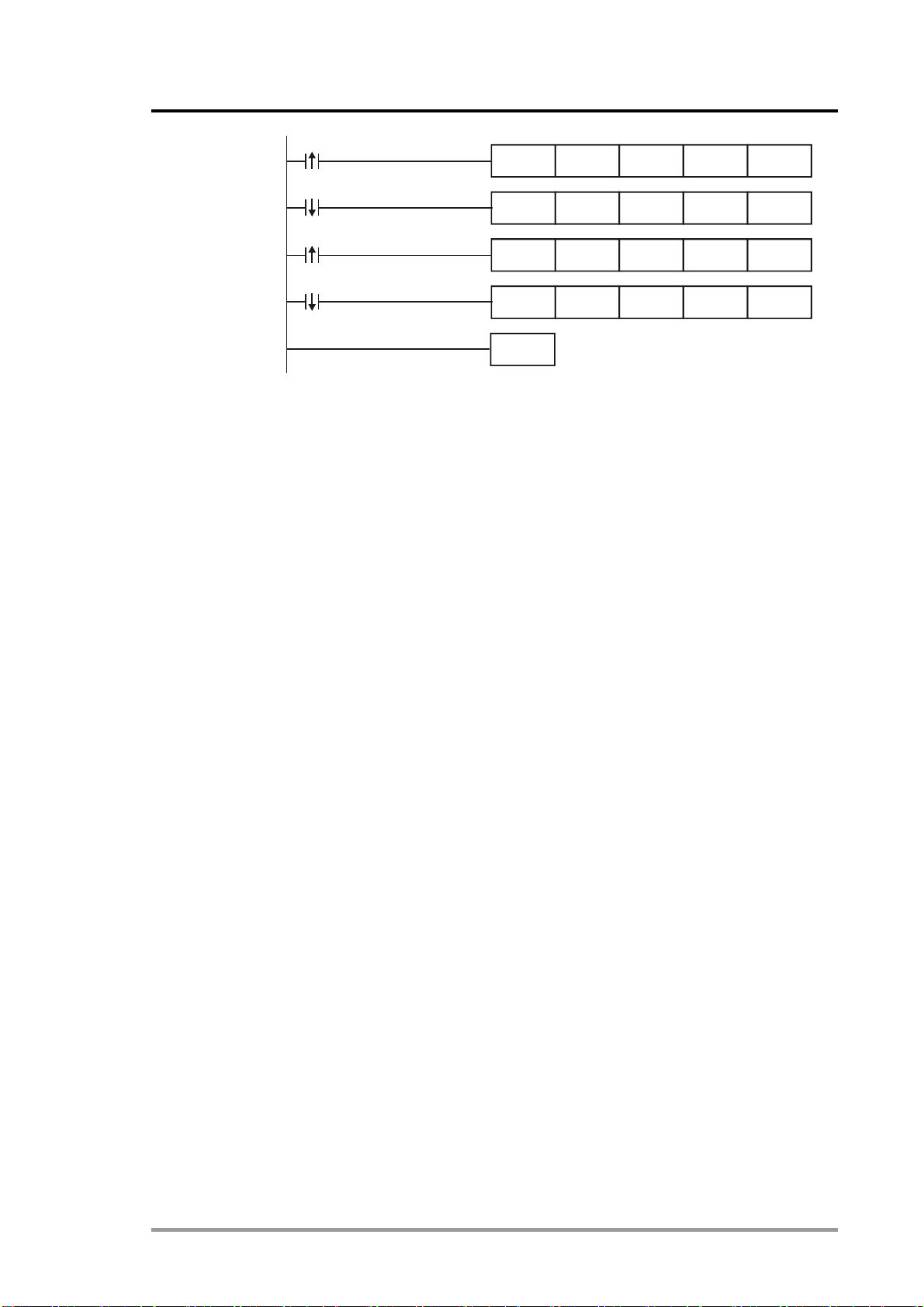

ELC-COENETM
MN05006001E For more Information visit: www.eaton.com 15
END
X0 T0 K100 K3 K1
K4
K5
K6
K1
X0 T0 K100 K1 K1
T0 K100 K1 K1
T0 K100 K1 K1
Y0
Y0
Description:
If X0 transitions from Off to On, Write “1” into CR#3 of ELC-COENETM, and the first
E-Mail will be sent out.
If X0 transitions from On to Off. Write “1” into CR#4 of ELC-COENETM, and the
second E-Mail will be sent out.
If Y0 transitions from Off to On. Write “1” into CR#5 of ELC-COENETM, and the
third E-Mail will be sent out.
If Y0 transitions from On to Off. Write “1” into CR#6 of ELC-COENETM, and the
fourth E-Mail will be sent out.
5.7 Setting up Data Exchange between ELC processors
This application example will demonstrate how to configure an ELC-COENETM Ethernet
module to read and write data to another ELC-COENETM/ELC-PV controller. These messages
may be set up to be sent continuously without ELC-PV control or triggered by the controller. The
software used to configure the messages is called ECISoft and is included in ELCSoft.
The system used for this application example consists of the following:
(2) ELC-PV28 controllers
(2) ELC-COENETM Ethernet modules (Modbus TCP protocol)
(1) ELC-PS01 24vdc power supply
(1) Ethernet switch 10/100mbps
(3) Ethernet patch cables
Both Ethernet modules are connected to the switch along with the computer running ELCSoft.
The Subnet mask used for all devices is: 255.255.255.0. The IP addresses used for each
device are:
1. ELC-COENETM ( message initiator) 120.151.1.2
2. ELC-COENETM (message receiver) 120.151.1.4
3. Computer running ELCSoft 120.151.1.1

ELC-COENETM
16 For more Information visit: www.eaton.com MN05006001E
Setting up messages in an ELC-COENETM module using ECISoft
Start ELCSoft, then click the button shown below to start ECISoft. When holding the curser over
the button, it will display ECISoft. Use this to verify that you’re clicking the correct button.
ECISoft will look like the following:
The ELC programming cable (ELC-CBPCELC3) may be used to connect to and configure each
Ethernet module or Ethernet may be used to connect to both modules. For this example,
RS232 was used to initially configure the IP address and Subnet Mask for each Ethernet
module. The Ethernet modules do support DHCP. Note: the default IP address setting for the
ELC-COENETM module is IPaddress 192.168.1.5. The PC IPaddress and network mask need
to be set up to reside on the same network as the ELC-COENETM. This will allow you to
connect to each module using ECISoft on Ethernet. If you choose to use RS232 to configure
the Ethernet modules, use the ELC programming cable to connect to each Ethernet module to
set the IP address and Subnet Mask. The computer and both Ethernet modules must then be
connected to an Ethernet switch. Be sure the subnet mask is the same for all devices.
Select the Tools drop down menu then choose Communication Setting. For this example the IP
addresses are set up for each device as shown earlier in this document. The Communication
Setting page looks like the following:

ELC-COENETM
MN05006001E For more Information visit: www.eaton.com 17
Click OK after selecting Ethernet for the Type. Then in ECISoft, click the IP “magnifying glass”
and the software will search for all ELC Ethernet devices connected to the same Ethernet
network. When complete, the following screen will be displayed:
To access the configuration pages for each module, double click its icon. When the icon for the
first ELC-COENETM module is double clicked, the following window will open:

ELC-COENETM
18 For more Information visit: www.eaton.com MN05006001E
The Overview window displays specifics about each module. The Basic tab allows the IP
address to be changed as well as the subnet mask and gateway address. This is also where
the IP address can be made Static or DHCP. Be sure Modbus TCP is enabled in the bottom left
portion of the screen. When finished, the Basic tab looks like the following for this example:
Configure the other Ethernet module in the same manner. The Ethernet module at IP address
120.151.1.4 will only require setting up the IP address, subnet mask and optional gateway
address. It will only be receiving messages from the other Ethernet module.
Setting up peer-to-peer Ethernet messages in an ELC-COENETM module.
From ECISoft, open the Data Exchange tab for the Ethernet module at IP address 120.151.1.2.
It looks like the following:
