Eaton M-Max series User manual

M-Max Series
adjustable frequency drive
Quick start guide
Effective February 2010
Supersedes June 2009

M-Max Series adjustable frequency drive
MN04020002E For more information visit:
www.eaton.com
i
February 2010
Important notice—please read
The product discussed in this literature is subject to terms and conditions outlined in Eaton
selling policies. The sole source governing the rights and remedies of any purchaser of this
equipment is the relevant Eaton selling policy.
NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF FITNESS FOR
A PARTICULAR PURPOSE OR MERCHANTABILITY, OR WARRANTIES ARISING FROM
COURSE OF DEALING OR USAGE OF TRADE, ARE MADE REGARDING THE INFORMATION,
RECOMMENDATIONS AND DESCRIPTIONS CONTAINED HEREIN. In no event will Eaton be
responsible to the purchaser or user in contract, in tort (including negligence), strict liability
or otherwise for any special, indirect, incidental or consequential damage or loss whatsoever,
including but not limited to damage or loss of use of equipment, plant or power system, cost
of capital, loss of power, additional expenses in the use of existing power facilities, or claims
against the purchaser or user by its customers resulting from the use of the information,
recommendations and descriptions contained herein.
The information contained in this manual is subject to change without notice.

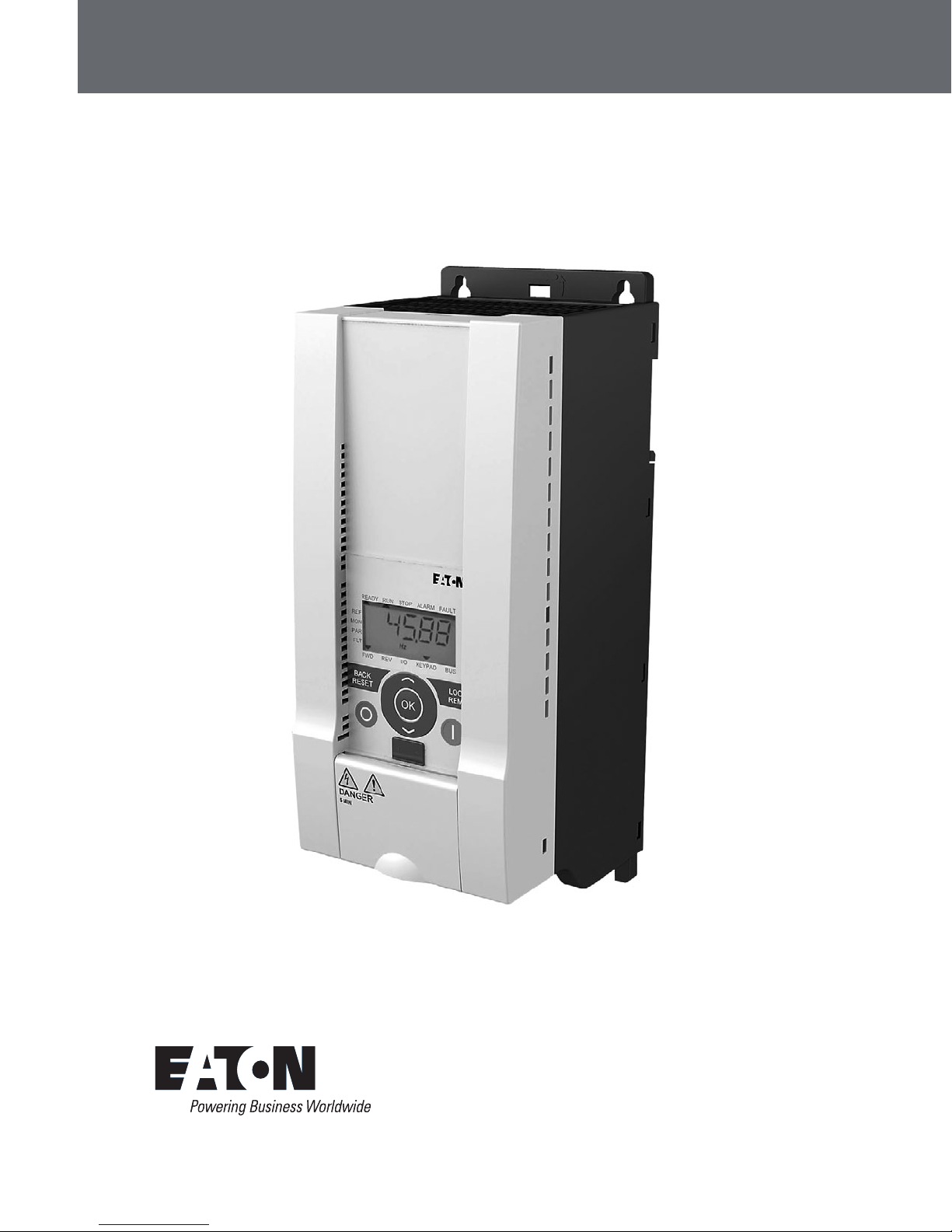

Cover Photo: Eaton’s M-Max  Series adjustable frequency drive.

M-Max Series adjustable frequency drive
ii
For more information visit: www.eaton.com
MN04020002E
February 2010
Table of contents
List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
List of Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
Safety
Definitions and symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Hazardous high voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Danger and dangerous electrical voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Before commencing the installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
M-Max Series
About this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Notes about the M-Max product enhancement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Writing conversions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Rated operational data on the nameplate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Mains voltages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Technical Data
Control signal terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operation
Checklist for commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Hazard warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Error and Warning Messages
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Acknowledge fault message (Reset) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fault log (FLT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Alarm messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Parameters
Control unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Display unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
General information on menu navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Setting parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Parameter menu (PAR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Quick start wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Example: Motor parameters (P7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
List of parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Quick configuration (basis) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
All Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

M-Max Series adjustable frequency drive
MN04020002E For more information visit:
www.eaton.com
iii
February 2010
List of figures
Figure 1: M-Max Series Adjustable Frequency Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Figure 2: Control Signal Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Figure 3: Schematic Arrangement and Designation of Control Signal Terminals . . . . . . . . 8
Figure 4: Block Diagram MMX11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Figure 5: MMX12 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Figure 6: Block Diagram MMX32 and MMX34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Figure 7: Error Message Example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Figure 8: Example of an Alarm Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Figure 9: View: Control Unit With LCD Display, Function Keys, and Interface . . . . . . . . . . . 20
Figure 10: LCD Display (Areas) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Figure 11: Operational Data Indicator (Operational) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Figure 12: Parameter Menu (P1.1 = 1, Quick-Configuration) . . . . . . . . . . . . . . . . . . . . . . . . . 26
Figure 13: Schematic Representation of Parameter Access. . . . . . . . . . . . . . . . . . . . . . . . . . 27
Figure 14: Motor Parameters From Ratings Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Figure 15: Circuits (Delta, Star) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
List of tables
Table 1: Nameplate Inscriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Table 2: General Rated Operational Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Table 3: Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Table 4: Cable Cross Section (Cu): 0.5 – 1.5 mm
2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Table 5: List of Fault Messages (F) and Warning Messages (AL) . . . . . . . . . . . . . . . . . . . . . . 18
Table 6: Control Unit Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Table 7: Areas of the LCD Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Table 8: LCD Display in Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Table 9: Quick Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Table 10: Predefined Application Parameters From Parameter P1.2 . . . . . . . . . . . . . . . . . . . 32
Table 11: All Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

M-Max Series adjustable frequency drive
iv
For more information visit: www.eaton.com
MN04020002E
February 2010
Safety
Definitions and symbols
VOLTAGE
This symbol indicates high voltage. It calls your attention to items
or operations that could be dangerous to you and other persons
operating this equipment. Read the message and follow the
instructions carefully.
This symbol is the “Safety Alert Symbol.” It occurs with either of
two signal words: CAUTION or WARNING, as described below.
WARNING
Indicates a potentially hazardous situation which, if not avoided,
can result in serious injury or death.
CAUTION
Indicates a potentially hazardous situation which, if not avoided,
can result in minor to moderate injury, or serious damage to the
product. The situation described in the CAUTION may, if not
avoided, lead to serious results. Important safety measures are
described in CAUTION (as well as WARNING).
Hazardous high voltage
VOLTAGE
Motor control equipment and electronic controllers are connected
to hazardous line voltages. When servicing drives and electronic
controllers, there may be exposed components with housings or
protrusions at or above line potential. Extreme care should be taken
to protect against shock.
Stand on an insulating pad and make it a habit to use only one
hand when checking components. Always work with another
person in case an emergency occurs. Disconnect power before
checking controllers or performing maintenance. Be sure
equipment is properly grounded. Wear safety glasses whenever
working on electronic controllers or rotating machinery.

M-Max Series adjustable frequency drive
MN04020002E For more information visit:
www.eaton.com
v
February 2010
Cautions and notices
Read this manual thoroughly and make sure you understand the procedures before you
attempt to install, set up, or operate Eaton’s M-Max Series adjustable frequency drive.
Cautions
CAUTION
Be ABSOLUTELY sure not to connect two functions to one and
same output in order to avoid function overruns and to ensure
flawless operation.
CAUTION
The calculated model does not protect the motor if the airflow to
the motor is reduced by blocked air intake grill.
Notices
Notice
The inputs , unlike the outputs , cannot be changed in RUN state.
Danger and dangerous electrical voltage
Before commencing the installation
Disconnect the power supply of the device.
Ensure that devices cannot be accidentally restarted.
Verify isolation from the supply.
Earth and short circuit the device.
Cover or enclose any adjacent live components.
Follow the engineering instructions IL04020001E for the device
concerned.
Only suitably qualified personnel in accordance with EN 50110-1/-2
(VDE 0105 Part 100) may work on this device/system.
Before installation and before touching the device, ensure that you
are free of electrostatic charge.
The functional earth (FE, PES) must be connected to the protective
earth (PE) or the potential equalization. The system installer is
responsible for implementing this connection.
Connecting cables and signal lines should be installed so that
inductive or capacitive interference does not impair the automation
functions.
Install automation devices and related operating elements in such a
way that they are well protected against unintentional operation.

M-Max Series adjustable frequency drive
vi
For more information visit: www.eaton.com
MN04020002E
February 2010
Suitable safety hardware and software measures should be
implemented for the I/O interface so that an open circuit on the
signal side does not result in undefined states in the automation
devices.
Ensure a reliable electrical isolation of the extra-low voltage of the
24V supply. Only use power supply units complying with IEC 60364-
4-41 (VDE 0100 Part 410) or HD384.4.41 52.
Deviations of the mains voltage from the rated value must not
exceed the tolerance limits given in the specifications, otherwise
this may cause malfunction and dangerous operation.
Emergency stop devices complying with IEC/EN 60204-1 must be
effective in all operating modes of the automation devices.
Unlatching the emergency-stop devices must not cause a restart.
Devices that are designed for mounting in housings or control
cabinets must only be operated and controlled after they have been
installed and with the housing closed. Desktop or portable units
must only be operated and controlled in enclosed housings.
Measures should be taken to ensure the proper restart of programs
interrupted after a voltage dip or failure. This should not cause
dangerous operating states even for a short time. If necessary,
emergency-stop devices should be implemented.
Wherever faults in the automation system may cause injury or
material damage, external measures must be implemented to
ensure a safe operating state in the event of a fault or malfunction
(for example, by means of separate limit switches, mechanical
interlocks, etc.).
Depending on their degree of protection, frequency inverters may
contain live bright metal parts, moving or rotating components, or
hot surfaces during and immediately after operation.
Removal of the required covers, improper installation or incorrect
operation of motor or frequency inverter may cause the failure of
the device and may lead to serious injury or damage.
The applicable national accident prevention and safety regulations
apply to all work carried on live frequency inverters.
The electrical installation must be carried out in accordance with
the relevant regulations (e.g., with regard to cable cross sections,
fuses, PE).
Transport, installation, commissioning and maintenance work must
be carried out only by qualified personnel (IEC 60364, HD 384 and
national occupational safety regulations).
Installations containing frequency inverters must be provided with
additional monitoring and protective devices in accordance with
the applicable safety regulations. Modifications to the frequency
inverters using the operating software are permitted.

M-Max Series adjustable frequency drive
MN04020002E For more information visit:
www.eaton.com
vii
February 2010

M-Max Series adjustable frequency drive
viii
For more information visit: www.eaton.com
MN04020002E
February 2010

M-Max Series adjustable frequency drive
MN04020002E For more information visit:
www.eaton.com
1
February 2010
M-Max  Series
About this manual
Notes about the M-Max Series product enhancement
This third edition of the quick reference guide describes the extended functionality (as of
production date January 2010, see Figure 1 ) of the M-Max Series of adjustable frequency drives .
Key features of this enhancement are:
● New controller board with a higher-performance microprocessor
● Field bus interfaces on device side 
●
Two additional control keys 
● Extended functionality of the digital and analog inputs and outputs 
Figure 1: M-Max Series Adjustable Frequency Drive
I
OK
BACK
RESET
L
OC
REM




M-Max Series adjustable frequency drive
2
For more information visit: www.eaton.com
MN04020002E
February 2010

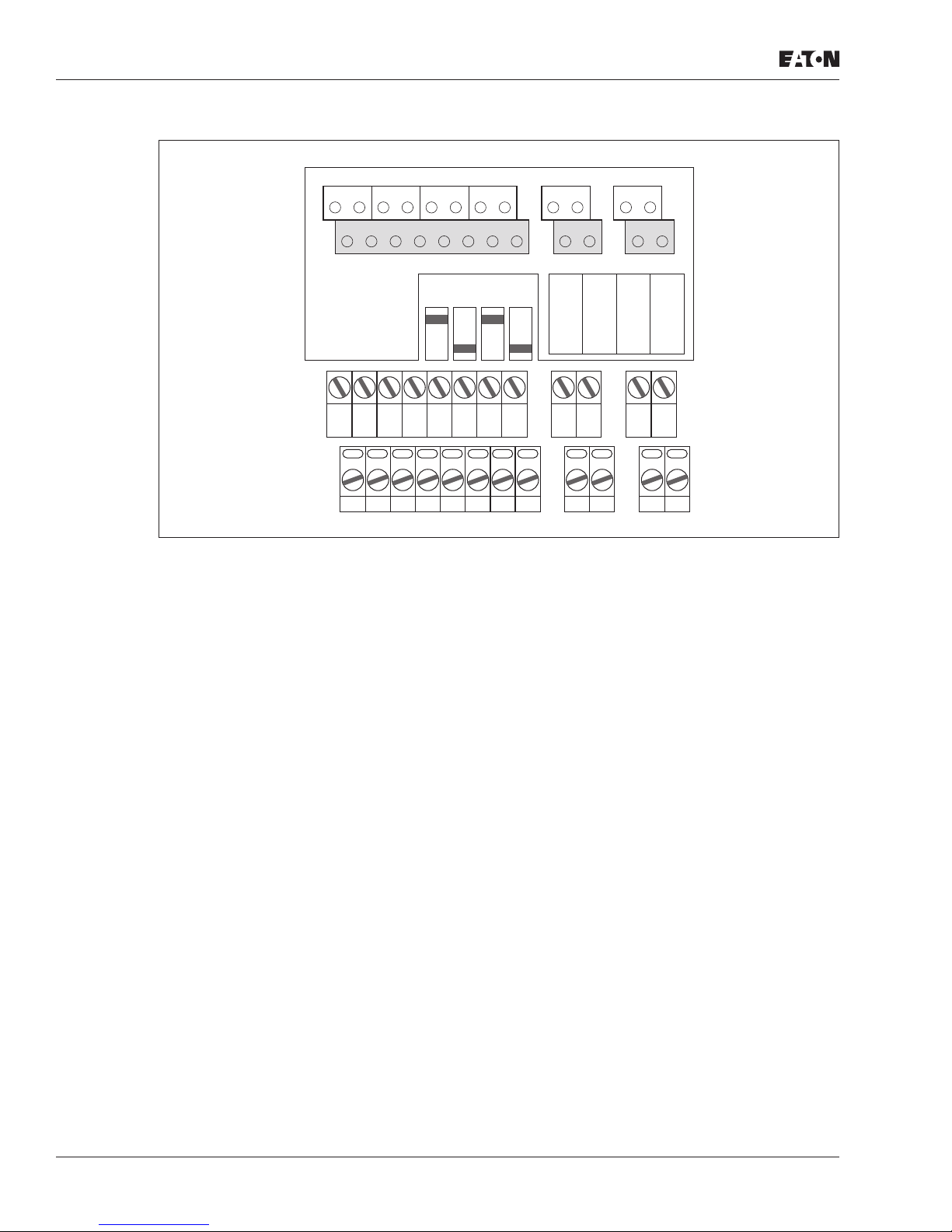

Figure 2: Control Signal Terminals
This quick reference guide contains selected information about the M-Max Series adjustable
frequency drives.
This quick reference guide is a summary of manual MN04020001E and contains technical
data, parameter lists and information about operating the adjustable frequency drives. It is
intended to support experienced, qualified users in the use of the M-Max Series adjustable
frequency drive.
It is assumed that you have thoroughly read manual MN04020001E and that the adjustable
frequency drive has been correctly installed and commissioned as described in manual
MN04020001E and installation instructions IL04020001E.
123678910 25 24
4 5 13 14 15 16 1820 22 23 26
AI2
GND DO– DI4 DI5 DI6 AO DO+ R13 R14 – R24
+ 10V AI1 GND 24V Dl-C DI1 DI2 DI3 A
LOGIC
AJ 1
– +
V mA
AJ 2
V mA
RS 485
Term
B R21 R22

M-Max Series adjustable frequency drive
MN04020002E For more information visit:
www.eaton.com
3
February 2010
Writing conversions
The symbols used in this manual have the following meanings:
 Indicates instructions to be followed
Indicates useful tips and additional information.
Caution!
warns of the risk of material damage.
Warning!
Warns about the possibility of serious property damage and minor injuries.
Danger!
Warns about the possibility of major property damage and serious injuries or death.
In order to make it easier to follow the manual, the name of the current chapter is shown
in the header of the left-hand page and the name of the current section is shown in the
header of the right-hand page. This does not apply to pages at the start of a chapter or to
empty pages at the end of a chapter.
In order to make it easier to understand some of the figures included in this manual, the
housing of the adjustable frequency drive, as well as other safety-relevant parts, have
been left out. However, it is important to note that the adjustable frequency drive must
only be operated with its housing placed properly, as well as with all required safety-
relevant parts.
All the specifications in this manual refer to the hardware and software versions
documented in it.
For more detailed indications and explanations on project planning, installation, and
parameter configuration, please consult manual
MN04020001E
The complete documentation for the M-Max Series of frequency converters is stored
electronically on a CD-ROM. This CD-ROM is part of the scope of supply.
Additional information on the series described here can be found on the Internet under:
www.eaton.com/M-Max
!

M-Max Series adjustable frequency drive
4
For more information visit: www.eaton.com
MN04020002E
February 2010
Rated operational data on the nameplate
The device-specific rated operational data for M-Max Series adjustable frequency drives
is shown on the nameplate on the device's side and on the back of the control signal
terminal cover.
The inscription of the nameplates has the following meaning (example):
Table 1: Nameplate Inscriptions
Mains voltages
The given rated operational voltages in Table 2 are based on the standardized rated values in
centrally earthed star networks.
In ring-type networks (e.g., Europe) the rated voltage corresponds the value of the consumer
networks (e.g., 230V, 400V) at the utility company’s transfer point.
In star-type mains (e.g., North America) the rated voltage at the utility company’s transfer
point is higher than in the consumer network. For example: 120V  115V, 240V  230V,
480V  460V.
Label Meaning
MMX34AA3D3F0-0 Part no.:
MMX = M-Max Series adjustable frequency drive
3 = Three-phase power connection
4 = 400V voltage category
AA = Instance (Software version A and alphanumerical display)
3D3 = 3.3A rated current (3-decimal-3)
F = Integrated radio interference suppression filter
0 = IP20 protection class
0 = No integrated optional assembly
Input Power connection rating:
Three-phase AC voltage (U
e
3~ AC),
380 – 480V voltage, 50/60 Hz frequency, input phase current (4.0A)
Output Load side (motor) rating:
Three-phase AC voltage (0 – U
e
), output phase current (3.3A), output
frequency (0 – 320 Hz)
Power Assigned motor rating
1.1 kW at 400 V/1.5 hp at 460V for a four-pole internally cooled or
surface-cooled three-phase asynchronous motor
(1500 rpm at 50 Hz/ 1800 rpm at 60 Hz)
S/N Serial number
Adjustable frequency drive is an electrical apparatus.
Read the manual (in this case
MN04020001E
) before making any
electrical connections and commissioning.
IP20/Open Type Degree of protection of the enclosure: IP20,
UL  (cUL  ) Open type
40W09 Manufacturing date
Calendar week 40 of the year 2009

M-Max Series adjustable frequency drive
MN04020002E For more information visit:
www.eaton.com
5
February 2010
Table 2:
General Rated Operational Data
Technical data Unit Value
General
Standards and regulations EMC: IEC/EN 61800-3,
Safety: IEC/EN 61800-5, UL 508C
Certifications and manufacturer’s
declarations on conformity
EMC: CE, CB, c-Tick
Safety: CE, CB, UL, cUL, phenum rated
Production quality RoHS, ISO  9001
Climatic proofing < 95%, average relative humidity,
noncondensing (EN 50178)
Air quality
Chemical vapors IEC 721-3-3: Device in operation, Class 3C2
Mechanical particles IEC 721-3-3: Device in operation, Class 3S2
Ambient temperature
Operation ºC –10 to +50

Storage ºC –40 to +70
Installation altitude H 0 – 1000m above sea level, over 1000m with 1%
power reduction per 100m, maximum 2000m,
at maximum +50ºC ambient temperature.
2000m maximum for corner grounded device,
4500m for non-corner grounded device
Mounting position Vertical (± 90 degrees lateral rotation)
Protection type IP20
Busbar tag shroud BGV A3 (VBG4, finger and back-of-hand safe)
Overvoltage category/degree of
pollution
—
Mechanical shock resistance IEC 68-2-27
Storage and transport: 15g, 11 ms
(in the packaging)
UPS drop test (for applicable UPS weights)
Vibration EN 60068-2-6
3 – 150 Hz, oscillation amplitude 1 mm (Peak)
at 3 – 15.8 Hz, maximum acceleration amplitude 1g
at 15.8 – 150 Hz
Emitted interference with internal EMC
filter (maximum motor cable length)
C2: Class A in 1st environment (residential area with
commercial utilization)
C3: Class A in 2nd environment (Industrial)
MMX11 C2 (5m), C3 (30m)
MMX12, MMX32 C2 (5m), C3 (30m)
MMX34 C2 (5m), C3 (30m)
Power Section
Rated operational voltage at 50/60 Hz ±10 %
MMX11 U
e
1 AC 115V (110V – 15% ... 120V + 10%)
MMX12 U
e
1 AC 230V (208V – 15% ... 240V + 10%)
MMX32 U
e
3 AC 230V (208V – 15% ... 240V + 10%)
MMX34 U
e
3 AC 400V (380V – 15% ... 480V + 10%)

M-Max Series adjustable frequency drive
6
For more information visit: www.eaton.com
MN04020002E
February 2010
Table 2: General Rated Operational Data (continued)

With MMX34AA014F0-0, the maximum permitted ambient temperature is limited to +40 ºC
and the maximum pulse frequency (f
PWM
) to 4 kHz.
Technical data Unit Value
Power Section (continued)
Mains network configuration
(AC power supply network)
Center-point grounded star network (TN-S network)
Phase grounded AC networks are not permitted.
Mains switch-on frequency Maximum one time per minute
Mains current THD >120%
Short-circuit current max. < 50 kA
Mains frequency f
LN
50/60 Hz (45 – 66 Hz ±0%)
Pulse frequency (switching frequency
of the inverter)
f
PWM
1 kHz – 16 kHz (WE: 6 kHz)

Operating mode V/Hz-characteristic curve control (WE), sensorless
vector control (open loop)
Output voltage U
2
3 AC 230V (MMX11), 3 AC U
e
(MMX12, MMX32, MMX34)
Output frequency f
2
0 – 320 Hz (WE: 0 – 50 Hz)
Frequency resolution (set point value) Hz 0.01
Rated operational current I
e
100% continuous current at maximum +50ºC
ambient temperature
Overload current 150% for 60s every 600s
Starting current 200% for 2s every 20s
Braking torque Maximum 30% M
N
for all sizes
up to maximum 100% M
N
only as of size
MMX34…4D3... with external braking resistance
Control Section
Control voltage (output) V DC 24, max. 50 mA
Reference voltage (output) V DC 10, max. 10 mA
Input, digital, parameter definable 6 x, max. +30 Vdc, R
i
> 12k ohm
Permitted residual ripple with external
control voltage (+24V)
Max. 5%  U
a
/U
a
Input, analog, parameter definable
2 x 0 – +10 Vdc , R
i
> 200k ohm /0 (4) – 20 mA,
R
B
~ 200 ohm
Resolution
Bit 10
Output, analog, parameter definable 1 x 0 – 10 Vdc, max. 10 mA
Resolution Bit 10
Output, digital, parameter definable 1 x Transistor, max. 48 Vdc, max. 50 mA
Output relay, parameter definable 1 x N/O 250 Vac maximum 2A/250 Vdc,
maximum 0.4A
Output relay, parameter definable 1 x C/O 250 Vac maximum 2A/250 Vdc,
maximum 0.4A
Serial interface RS-485/Modbus RTU

M-Max Series adjustable frequency drive
MN04020002E For more information visit: www.eaton.com 7
February 2010
Technical Data
Table 3: Technical Data
Rated motor currents for normal four-pole internally cooled and surface-cooled three-phase asynchronous motors
(1500 rpm at 50 Hz, 1800 rpm at 60 Hz).
Calculated motor rating (no normalized value). The mains voltage of 115V is raised to 230V (output voltage) through
an internal voltage double connection.
Part Number
Rated
Opera-
tional
Current
Overload
Current
(150%) Assigned Motor Rating
Installation
Size
IeIe150 P (230V, 50 Hz) P (230V, 60 Hz)
[A] [A] [kW] [A] [hp] [A] 
Power Connection Voltage: 1 AC 115V, 50/60 Hz (94 – 132V ± 0%, 45 – 66 Hz ± 0%)
MMX11AA1D7.... 1.7 2.6 0.25 1.4 1/3 1.5 FS2
MMX11AA2D4.... 2.4 3.6 0.37 2.0 1/2 2.2 FS2
MMX11AA2D8.... 2.8 4.2 0.55 2.7 3/4 2.2 FS2
MMX11AA3D7.... 3.7 5.6 0.75 3.2 1 3.2 FS2
MMX11AA4D8.... 4.8 7.2 1.10 4.6 1-1/2 4.2 FS3
Power Connection Voltage: 1 AC 230V, 50/60 Hz (177 – 264V ± 0%, 45 – 66 Hz ± 0%)
MMX12AA1D7.... 1.7 2.6 0.25 1.4 1/3 1.5 FS1
MMX12AA2D4.... 2.4 3.6 0.37 2.0 1/2 2.2 FS1
MMX12AA2D8.... 2.8 4.2 0.55 2.7 3/4 2.2 FS1
MMX12AA3D7.... 3.7 5.6 0.75 3.2 1 3.2 FS2
MMX12AA4D8.... 4.8 7.2 1.10 4.6 1-1/2 4.2 FS2
MMX12AA7D0.... 7.0 10.5 1.50 6.3 2 6.8 FS2
MMX12AA9D6.... 9.6 14.4 2.20 8.7 3 9.6 FS3
Power Connection Voltage: 3AC 230V, 50/60 Hz (177 – 264V ± 0%, 45 – 66 Hz ± 0%)
MMX32AA1D7.... 1.7 2.6 0.25 1.4 1/3 1.5 FS1
MMX32AA2D4.... 2.4 3.6 0.37 2.0 1/2 2.2 FS1
MMX32AA2D8.... 2.8 4.2 0.55 2.7 3/4 2.2 FS1
MMX32AA3D7.... 3.7 5.6 0.75 3.2 1 3.2 FS2
MMX32AA4D8.... 4.8 7.2 1.10 4.6 1-1/2 4.2 FS2
MMX32AA7D0.... 7.0 10.5 1.50 6.3 2 6.8 FS2
MMX32AA011.... 11.0 14.4 2.20 8.7 3 9.6 FS3

M-Max Series adjustable frequency drive
8For more information visit: www.eaton.com MN04020002E
February 2010
Table 3: Technical Data (continued)
Rated motor currents for normal four-pole internally-cooled and surface-cooled three-phase asynchronous motors
(1500 rpm at 50 Hz, 1800 rpm at 60 Hz).
Allocated motor output at a maximum ambient temperature of +40ºC and a maximum pulse frequency of 4 kHz.
Operation with reduced load torque (about –10% MN).
Control signal terminals
The control section, with the corresponding control signal terminals, is shown below.

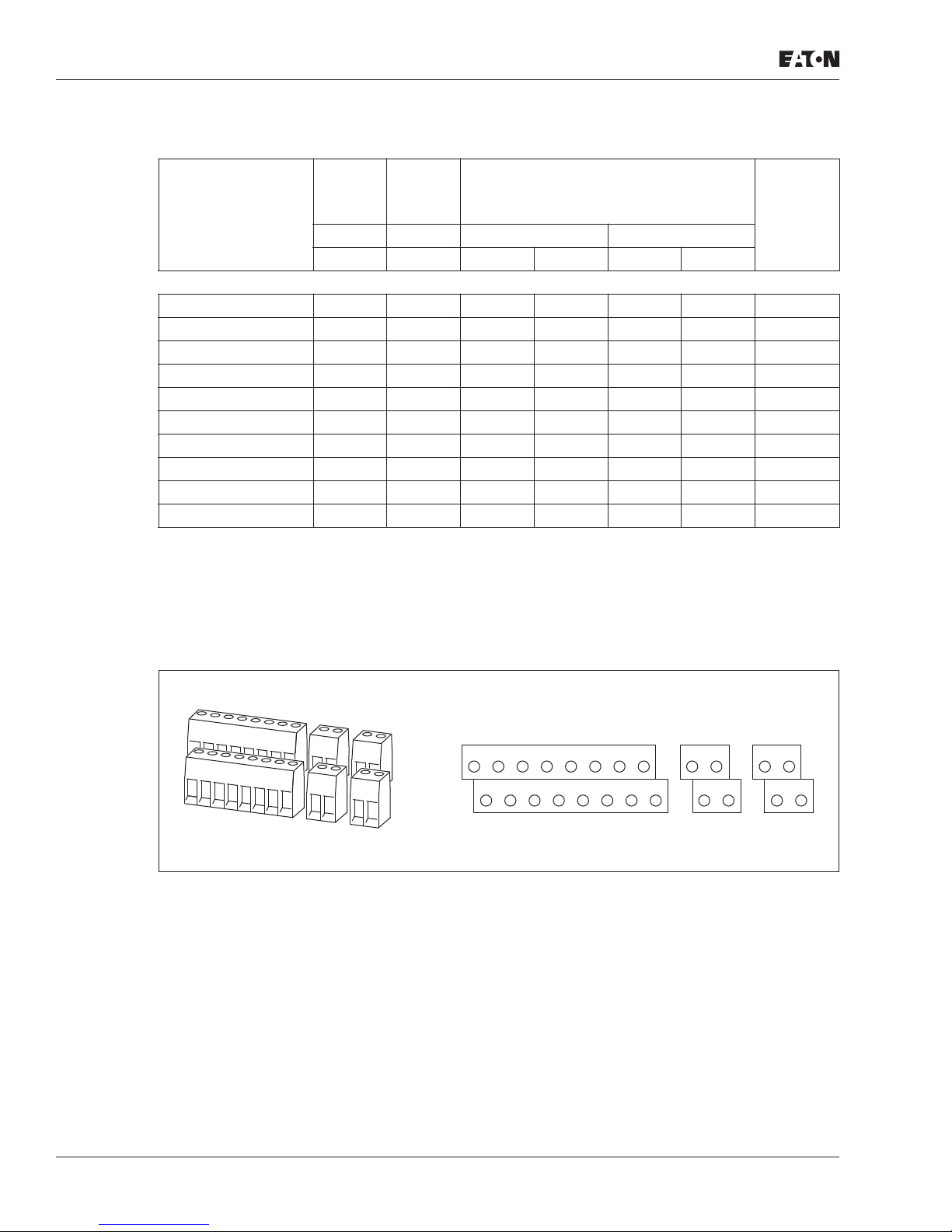

Figure 3: Schematic Arrangement and Designation of Control Signal Terminals
Part Number
Rated
Opera-
tional
Current
Overload
Current
(150%) Assigned Motor Rating
Installation
Size
IeIe150 P (230V, 50 Hz) P (230V, 60 Hz)
[A] [A] [kW] [A] [hp] [A] 
Power Connection Voltage: 3 AC 400V/460V, 50/60 Hz (323 – 528V ± 0%, 45 – 66 Hz ± 0%)
MMX34AA1D3.... 1.3 2.0 0.37 1.1 1/2 1.1 FS1
MMX34AA1D9.... 1.9 2.9 0.55 1.5 3/4 1.6 FS1
MMX34AA2D4.... 2.4 3.6 0.75 1.9 1 2.1 FS1
MMX34AA3D3.... 3.3 5.0 1.10 2.6 1-1/2 3 FS2
MMX34AA4D3.... 4.3 6.5 1.50 3.6 2 3.4 FS2
MMX34AA5D6.... 5.6 8.4 2.20 5.0 3 4.8 FS2
MMX34AA7D6.... 7.6 11.4 3.00 6.6 4 7.6 FS3
MMX34AA9D0.... 9.0 13.5 4.00 8.5 5.5 7.6 FS3
MMX34AA012.... 12.0 18.0 5.50 11.3 7-1/2 11 FS3
MMX34AA014.... 14.0 21.0 7.50 (15.2) 10 14 FS3
123678910 25 24
4 5 13 14 15 16 18 20 22 23 26
AI2
DO– GND DI4 DI5 DI6 AO DO+ R13 R14 – R24
+ 10V AI1 GND 24V DI-C DI1 DI2 DI3 A B R22 R21

M-Max Series adjustable frequency drive
MN04020002E For more information visit: www.eaton.com 9
February 2010
Table 4: Cable Cross Section (Cu): 0.5 – 1.5 mm2
Programmable function (section “List of parameters,” Page 30).
Terminal
Blocks Signal Factory Setting Description
1 +10V Output nominal voltage — Maximum load 10 mA,
reference potential GND
2 AI1 Analog signal input 1 Frequency reference value 0 – +10V (Ri> 200k ohms)
0/4 – 20 mA (RB= 200 ohms)
Selectable with microswitch S2
3 GND Reference potential — 0V
6 24V Control voltage for
DI1 – DI6, output (+24V)
— Maximum load 50 mA,
reference potential GND
7 DI-C Reference potential of
digital inputs DI1 – DI6
LOGIC– (GND) Selectable through microswitch
LOGIC –/+
8 DI1 Digital input 1 FWD start enable, forward 0 – +30V (Ri> 12k ohms)
9 DI2 Digital input 2 REV start enable, reverse 0 – +30 (Ri> 12k ohms)
10 DI3 Digital input 3 Fixed frequency B0 0 – +30V (Ri> 12k ohms)
4 AI2 Analog input 2 PI actual value 0 – +10V (Ri> 200k ohms))
0/4 – 20 mA (RB= 200 ohms)
Selectable through
microswitch S3
5 GND Reference potential — 0V
13 DO– Digital output Active = READY Transistor, max. 50 mA,
terminal 20 supply voltage
14 DI4 Digital input 4 Fixed frequency B1 0 – +30V (Ri= 12k ohms)
15 DI5 Digital input 5 Error acknowledgment 0 – +30V (Ri= 12k ohms)
16 DI6 Digital input 6 PI controller deactivated 0 – +30V (Ri= 12k ohms)
18 AO Analog output Output frequency 0 – +10V, max. 10 mA
20 DO+ Digital output Supply voltage,
see terminal 13
Supply voltage for digital
output DO– max. 48 Vdc, max.
50 mA
A A RS-485 signal A BUS-Communication Modbus RTU
B B RS-485 signal B BUS-Communication Modbus RTU
22 R13 Relay 1, normally open
contact
Active = RUN Maximum switching load:
250 Vac/2A or 250 Vdc/0.4A
23 R14 Relay 1, normally open
contact
Active = RUN Maximum switching load:
250 Vac/2A or 250 Vdc/0.4A
24 R22 Relay 2, normally closed
contact
Active = FAULT Maximum switching load:
250 Vac/2A or 250 Vdc/0.4A
25 R21 Relay 2, common
contact
Active = FAULT Maximum switching load:
250 Vac/2A or 250 Vdc/0.4A
26 R24 Relay 2, normally open
contact
Active = FAULT Maximum switching load:
250 Vac/2A or 250 Vdc/0.4A

M-Max Series adjustable frequency drive
10 For more information visit: www.eaton.com MN04020002E
February 2010
Block diagram
The following diagrams show all the terminals on an M-Max Series adjustable frequency
drive and their functions at the default settings.
Figure 4: Block Diagram MMX11
Note: Block diagram MMX11 has a voltage doubler connection in the internal DC link.
At a connection voltage of 1 AC 120V (115V), a motor voltage of 3 AC 230V is output.
2
3
22
PE
PE
W
V
U
M
3
~
X1
B
A
–
C
e
24
2
6
2
5
1
2
3
5
4
DO
–
AO
7
8
9
1
8
DI1
DI2
Al1
D
I
3
DI4
D
I5
D
I
6
G
ND
D
I
_
COM
<
1
0
mA
14
1
5
16
1
0
R
1
3
R14
R22
R21
R24
S4
S3
S2
S1
FWD
R
E
V
FF1
FF2
Reset
P
l-
O
ff
24
V
6
<
50
mA
+24
+
V
O
ut
G
ND
+
1
0
V
Out
12
0
Ω
<
50
mA
<
1
0
mA
DO
+
2
0
1
3
+
L2
/N
1 A
C
12
0V
3
A
C
2
30V
L
3
2
00
k
Ω
2
00
k
Ω
2
00
Ω
2
00
Ω
AI2
Ru
n
E
rr
o
r
R
ead
y
0
... +1
0
V
0
... +1
0
V
P
l-1
st
0
(
4
)
... 20 mA
f-
So
ll
f
-
Out
EM
C
