Eaton PowerXL DM1 Series Manual

Instruction Leaet PUB53675 Effective June 2020
Supersedes January 2020
PowerXL DM1 and DM1 Pro series VFD
Instruction Leaflet ɂɧɫɬɪɭɤɰɢɹ ɩɨ ɦɨɧɬɚɠɭ Asennusohje Instrukcja montaĪu
Montageanweisung Montagehandleiding Návod k montáži Navodila za montažo
Notice d’installation Montagevejledning Paigaldusjuhend Návod na montáž
Instrucciones de montaje ȅįȘȖȓİȢ İȖțĮIJȐıIJĮıȘȢ Szerelési utasítás Ɇɨɧɬɚɠɧɢ
ɢɧɫɬɪɭɤɰɢɢ
Istruzioni per il montaggio Instruções de montagem MontƗžas instrukcija InstrucĠiuni de montaj
ᆹ㻵䈤᰾ Monteringsanvisning Montavimo instrukcija
Electric Current! Danger to Life!
Only skilled or instructed persons may carry out the following operations.
Lebensgefahr durch elektrischen Strom!
Nur Elektrofachkräfte und elektrotechnisch unterwiesene Personen
dürfen die im Folgenden beschriebenen Arbeiten ausführen.
Tension électrique dangereuse !
Seules les personnes qualifiées et averties doivent exécuter les
travaux ci-après.
¡Corriente eléctrica! ¡Peligro de muerte!
El trabajo a continuación descrito debe ser realizado por personas
cualificadas y advertidas.
Tensione elettrica: Pericolo di morte!
Solo persone abilitate e qualificate possono eseguire le operazioni di
seguito riportate.
䀖
䀖
⭥
⭥
ড
ড
䲙
䲙
ʽ
ʽ
ݱ䇨уъӪઈ઼䗷уъ䇝㓳ⲴӪઈ䘋㹼 лࡇᐕ֌DŽ
ɗɥɟɤɬɪɢɱɟɫɤɢɣ ɬɨɤ! Ɉɩɚɫɧɨ ɞɥɹ ɠɢɡɧɢ!
Ɍɨɥɶɤɨ ɫɩɟɰɢɚɥɢɫɬɵ ɢɥɢ ɩɪɨɢɧɫɬɪɭɤɬɢɪɨɜɚɧɧɵɟ ɥɢɰɚ ɦɨɝɭɬ
ɜɵɩɨɥɧɹɬɶ ɫɥɟɞɭɸɳɢɟ ɨɩɟɪɚɰɢɢ.
Levensgevaar door elektrische stroom!
Uitsluitelijk deskundigen in elektriciteit en elektrotechnisch
geinstrueerde personen is het toegestaan, de navolgend
beschrevene werkzaamheden uit te voeren.
Livsfare på grund af elektrisk strøm!
Kun uddannede el-installatører og personer der e instruerede i
elektrotekniske arbejdsopgaver, må udføre de nedenfor anførte
arbejder.
ȆȡȠıȠȤȒ, țȓȞįȣȞȠȢ ȘȜİțIJȡȠʌȜȘȟȓĮȢ!
ȅȚ İȡȖĮıȓİȢ ʌȠȣ ĮȞĮijȑȡȠȞIJĮȚ ıIJȘ ıȣȞȑȤİȚĮ șĮ ʌȡȑʌİȚ ȞĮ İțIJİȜȠȪȞIJĮȚ
ȝȩȞȠ Įʌȩ ȘȜİțIJȡȠȜȩȖȠȣȢ țĮȚ ȘȜİțIJȡȠIJİȤȞȓIJİȢ.
Perigo de vida devido a corrente eléctrica!
Apenas electricistas e pessoas com formação electrotécnica podem
executar os trabalhos que a seguir se descrevem.
Livsfara genom elektrisk ström!
Endast utbildade elektriker och personer som undervisats i
elektroteknik får utföra de arbeten som beskrivs nedan.
Hengenvaarallinen jännite!
Vain pätevät sähköasentajat ja opastusta saaneet henkilöt saavat
suorittaa seuraavat työt.
en
de
fr
es
it
zh
ru
nl
da
el
pt
sv


2
Instruction Leaet PUB53675
Effective June 2020
PowerXL DM1 and DM1 Pro series VFD
EATON www.eaton.com
Nebezpeþí úrazu elektrickým proudem!
Níže uvedené práce smČjí provádČt pouze osoby s elektrotechnickým
vzdČláním.
Eluohtlik! Elektrilöögioht!
Järgnevalt kirjeldatud töid tohib teostada ainult elektriala spetsialist vĘi
elektrotehnilise instrueerimise läbinud personal.
Életveszély az elektromos áram révén!
Csak elektromos szakemberek és elektrotechnikában képzett személyek
végezhetik el a következĘkben leírt munkákat.
ElektriskƗstrƗva apdraud dzƯvƯbu!
TƗlƗk aprakstƯtos darbus drƯkst veikt tikaielektrospeciƗlisti un darbam ar
elektrotehniskƗm ekƗrtƗm instruƝtƗs personas!
Pavojus gyvybei dơl elektros srovơs!
Tik elektrikai ir elektrotechnikos specialistai gali atlikti žemiau aprašytus
darbus.
PoraĪenie prądem elektrycznym stanowi zagroĪenie
dla Īycia!
Opisane poniĪej prace mogą przeprowadzaü
tylko wykwalifikowani elektrycy
oraz osoby odpowiednio poinstruowane w zakresie elektrotechniki.
Življenjska nevarnost zaradi elektriþnega toka!
Spodaj opisana dela smejo izvajati samo elektrostrokovnjaki in elektrotehniþ
no
pouþene osebe.
Nebezpeþenstvo ohrozenia života elektrickým prúdom!
Práce, ktoré sú nižšie opísané, smú vykonávat’ iba elektroodborníci a osoby s
elektrotechnickým vzdelaním.
Ɉɩɚɫɧɨɫɬ ɡɚ ɠɢɜɨɬɚ ɨɬ ɟɥɟɤɬɪɢɱɟɫɤɢ ɬɨɤ!
Ɉɩɟɪɚɰɢɢɬɟ, ɨɩɢɫɚɧɢ ɜ ɫɥɟɞɜɚɳɢɬɟ ɪɚɡɞɟɥɢ, ɦɨɝɚɬ ɞɚ ɫɟ ɢɡɜɴɪɲɜɚɬ
ɫɚɦɨ
ɨɬ ɫɩɟɰɢɚɥɢɫɬɢ-ɟɥɟɤɬɪɨɬɟɯɧɢɰɢ ɢ ɢɧɫɬɪɭɤɬɢɪɚɧ ɟɥɟɤɬɪɨɬɟɯɧɢɱɟɫɤɢ
ɩɟɪɫɨɧɚɥ.
AtenĠie! Pericol electric!
Toate lucrările descrise trebuie efectuate numai de personal de specialitate
calificat úi de persoane cu cunoútiinĠe profunde în electrotehnică.
cs
et
hu
lv
lt
pl
sl
sk
bg
ro

3
Instruction Leaet PUB53675
Effective June 2020
PowerXL DM1 and DM1 Pro series VFD
EATON www.eaton.com
Series Power part Options Region
D M 1 - 3 4 4 D 3 E B - S 2 0 S -
Basic naming
D= Drive
Series
M= Machinery
Product generation
1= First generation
2= Second generation
Phase reference
3= 3~INPUT / 3~OUTPUT
1= 1~INPUT / 3~OUTPUT
Input / output voltage rating
1= 115 V (100 - 120 V + 10%/-15%)
2= 230 V (200 - 240 V + 10%/-15%)
4= 400 V (380 - 480 V + 10%/-15%)
5= 575 V (525 - 600 V + 10%/-15%)
Output current rating (single phase) Output current rating (three phase)
100 - 120 v 200 - 240 v 200 - 240 v 380 - 480 v 525 - 600 v
1D6 = 1.6 A, 0.18 kW, 0.25 hp 1D6 = 1.6 A, 0.18 kW, 0.25 hp 1D6 = 1.6 A, 0.18 kW, 0.25 hp 1D5 = 1.5 A, 0.37 kW, 0.50 hp 4D5 = 4.5 A, 2.20 kW, 3.00 hp
3D0 = 3.0 A, 0.37 kW, 0.50 hp 3D0 = 3.0 A, 0.37 kW, 0.50 hp 3D0 = 3.0 A, 0.37 kW, 0.50 hp 2D2 = 2.2 A, 0.75 kW, 1.00 hp 7D5 = 7.5 A, 3.00 kW, 5.00 hp
4D8 = 4.8 A, 0.75 kW, 1.00 hp 4D8 = 4.8 A, 0.75 kW, 1.00 hp 4D8 = 4.8 A, 0.75 kW, 1.00 hp 4D3 = 4.3 A, 1.50 kW, 2.00 hp 010 = 10.0 A, 5.50 kW, 7.50 hp
6D9 = 6.9 A, 1.10 kW, 1.50 hp 7D8 = 7.8 A, 1.50 kW, 2.00 hp 7D8 = 7.8 A, 1.50 kW, 2.00 hp 5D6 = 5.6 A, 2.20 kW, 3.00 hp 013 = 13.5 A, 7.50 kW, 10.00 hp
011 = 11.0 A, 2.20 kW, 3.00 hp 011 = 11.0 A, 2.20 kW, 3.00 hp 7D6 = 7.6 A, 3.00 kW, 5.00 hp 018 = 18.0 A, 11.00 kW, 15.00 hp
017 = 17.5 A, 4.00 kW, 5.00 hp 017 = 17.5 A, 4.00 kW, 5.00 hp 012 = 12.0 A, 5.50 kW, 7.50 hp 022 = 22.0 A, 15.00 kW, 20.00 hp
025 = 25.3 A, 5.50 kW, 7.50 hp 016 = 16.0 A, 7.50 kW, 10.00 hp
032 = 32.2 A, 7.50 kW, 10.00 hp 023 = 23.0 A, 11.00 kW, 15.00 hp
048 = 48.3 A, 11.00 kW, 15.00 hp 031 = 31.0 A, 15.00 kW, 20.00 hp
038 = 38.0 A, 18.50 kW, 25.00 hp
Shading legend
FR1 FR2 FR3 FR4
DM1 option cards list:
1) DXM-NET-PROFIBUS : DM1 PROFIBUS communications card
2) DXM-NET-CANOPEN : DM1 CANOPEN communication card
3) DXG-NET-SWD-IP20 DG1: Smartwire communication card and module IP20
4) DXG-NET-SWD-IP54 DG1 : Smartwire communication card and module IP54
Internal EMC filter
E= Internal EMC filter
N= No EMC filter
Internal brake chopper
N= No brake chopper
B= Brake chopper
Display options
N= No display
S= Multi-segment LCD display
(DM1 Pro)
IP rating
20 = IP20
Control options
B= No STO, No Ethernet communications, and
No option cards
S= STO SIL2 and Ethernet I/P, Modbus TCP
onboard, and Option card port (DM1 Pro)
Region
Blank = US
EM = EMEA
AP = APAC
Catalog numbering system

4
Instruction Leaet PUB53675
Effective June 2020
PowerXL DM1 and DM1 Pro series VFD
EATON www.eaton.com
Table 1. Approximate mounting dimensions in inches (mm).
Output rating Dimensions Weight
Input
voltage Frame size Drive catalog
number
CT/IH
current
amps
VT/IL
current
amps
D
in. (mm) H1 in. (mm) H2 in. (mm) W1 in. (mm) W2 in. (mm) W3 in. (mm) Ф
in. (mm)
lb (kg)
100 Vac to
120 Vac
50/60 Hz
1 phase
FR1 DM1-111D6… 1.6 2.5 7.09 (180) 5.98 (152) 5.51 (140) 2.83 (72) 2.26 (57.5) 2.26 (57.5) 0.20 (5.2) 2.6 (1.2)
DM1-113D0… 34.8 7.09 (180) 5.98 (152) 5.51 (140) 2.83 (72) 2.26 (57.5) 2.26 (57.5) 0.20 (5.2) 2.6 (1.2)
FR2 DM1-114D8… 4.8 6.9 7.0 9 (180) 8.66 (220) 8.15 (207) 4.29 (109) 3.56 (90.5) 3.56 (90.5) 0.22 (5.5) 5.7 (2.6)
DM1-116D9… 6.9 7.8 7.09 (180) 8.66 (220) 8.15 (207) 4.29 (109) 3.56 (90.5) 3.56 (90.5) 0.22 (5.5) 5.7 (2.6)
200 Vac to
240 Vac
50/60 Hz
1 phase
FR1 DM1-121D6… 1.6 2.5 7.0 9 (18 0) 5.98 (152) 5.51 (140) 2.83 (72) 2.26 (57.5) 2.26 (57.5) 0.20 (5.2) 2.6 (1.2)
DM1-123D0… 34.8 7.09 (18 0) 5.98 (152) 5.51 (140) 2.83 (72) 2.26 (57.5) 2.26 (57.5) 0.20 (5.2) 2.6 (1.2)
DM1-124D8… 4.8 7.8 7.09 (180) 5.98 (152) 5.51 (140) 2.83 (72) 2.26 (57.5) 2.26 (57.5) 0.20 (5.2) 2.6 (1.2)
FR2 DM1-127D8… 7.8 11 7.0 9 (18 0) 8.66 (220) 8.15 (207) 4.29 (109) 3.56 (90.5) 3.56 (90.5) 0.22 (5.5) 5.7 (2.6)
DM1-12011… 11 17.5 7.0 9 (18 0) 8.66 (220) 8.15 (207) 4.29 (109) 3.56 (90.5) 3.56 (90.5) 0.22 (5.5) 5.7 (2.6)
FR3 D M1-12 0 17… 17.5 25.3 7.09 (18 0) 10.24 (260) 9.72 (247) 5.12 (130) 4.57 (116) 4.57 (116) 0.22 (5.5) 8.2 (3.7)
200 Vac to
240 Vac
50/60 Hz
3 phase
FR1 DM1-321D6… 1.6 2.5 7.0 9 (18 0) 5.98 (152) 5.51 (140) 2.83 (72) 2.26 (57.5) 2.26 (57.5) 0.20 (5.2) 2.6 (1.2)
DM1-323D0… 34.8 7.09 (180) 5.98 (152) 5.51 (140) 2.83 (72) 2.26 (57.5) 2.26 (57.5) 0.20 (5.2) 2.6 (1.2)
DM1-324D8… 4.8 7.8 7.09 (180) 5.98 (152) 5.51 (140) 2.83 (72) 2.26 (57.5) 2.26 (57.5) 0.20 (5.2) 2.6 (1.2)
DM1-327D8… 7.8 11 7.0 9 (180) 5.98 (152) 5.51 (140) 2.83 (72) 2.26 (57.5) 2.26 (57.5) 0.20 (5.2) 2.6 (1.2)
FR2 DM1-32011… 11 17.5 7.09 (180) 8.66 (220) 8.15 (207) 4.29 (109) 3.56 (90.5) 3.56 (90.5) 0.22 (5.5) 5.7 (2.6)
DM1-32017… 17.5 25.3 7.09 (180) 8.66 (220) 8.15 (207) 4.29 (109) 3.56 (90.5) 3.56 (90.5) 0.22 (5.5) 5.7 (2.6)
FR3 DM1-32025… 25.3 32.2 7.09 (18 0) 10.24 (260) 9.72 (247) 5.12 (130) 4.57 (116) 4.57 (116) 0.22 (5.5) 8.2 (3.7)
FR4 DM1-32032… 32.2 48.3 7.68 (195) 11.81 (300) 11.06 (281) 7.24 (18 4) 6.3 (160) 6.3 (160) 0.24 (6) 13.9 (6.3)
DM1-32048… 48.3 62.1 7.68 (195) 11.81 (300) 11.06 (281) 7.24 (18 4) 6.3 (160) 6.3 (160) 0.24 (6) 13.9 (6.3)
Dimensions and weights—Dimensões e pesos—Encombrements et poids—Abmessungen und Gewichte—
Dimensioni e pesi—Afmetingen en gewichten—Dimensioner og vægt—
ǻȚĮıIJȐıİȚȢ țĮȚ ȕȐȡȘ—
Dimensiones y pesos—Mått och vikter—Mitat ja painot—
RozmČry a hmotnosti—Mõõdud ja kaalud—
Méretek és tömeg
—IzmƝri un svars—Matmenys ir masơ—Wymiary i ciĊĪary—Mere in teže—
Rozmery a hmotnosti
—Ɋɚɡɦɟɪɢ ɢɬɟɝɥɨ—Dimensiuni úi greutăĠi—Ɋɚɡɦɟɪɵ ɢɜɟɫ—ቪ
ቪ
ረ
ረ
઼
઼
䟽
䟽
䟿
䟿
W2
H2
Ø
W1
H1
DW3

5
Instruction Leaet PUB53675
Effective June 2020
PowerXL DM1 and DM1 Pro series VFD
EATON www.eaton.com
Table 1. Approximate mounting dimensions in inches (mm).
Output rating Dimensions Weight
Input
voltage Frame size Drive catalog
number
CT/IH
current
amps
VT/IL
current
amps
D
in. (mm) H1 in. (mm) H2 in. (mm) W1 in. (mm) W2 in. (mm) W3 in. (mm) Ф
in. (mm)
lb (kg)
380 Vac to
480 Vac
50/60 Hz
3 phase
FR1 DM1-341D5… 1.5 2.2 7.09 (180) 5.98 (152) 5.51 (140) 2.83 (72) 2.26 (57.5) 2.26 (57.5) 0.20 (5.2) 2.6 (1.2)
DM1-342D2… 2.2 4.3 7.0 9 (18 0) 5.98 (152) 5.51 (140) 2.83 (72) 2.26 (57.5) 2.26 (57.5) 0.20 (5.2) 2.6 (1.2)
DM1-344D3… 4.3 5.6 7.0 9 (180) 5.98 (152) 5.51 (140) 2.83 (72) 2.26 (57.5) 2.26 (57.5) 0.20 (5.2) 2.6 (1.2)
DM1-345D6… 5.6 7.6 7.0 9 (18 0) 5.98 (152) 5.51 (140) 2.83 (72) 2.26 (57.5) 2.26 (57.5) 0.20 (5.2) 2.6 (1.2)
FR2 DM1-347D6… 7.6 12 7.0 9 (18 0) 8.66 (220) 8.15 (207) 4.29 (109) 3.56 (90.5) 3.56 (90.5) 0.22 (5.5) 5.7 (2.6)
DM1-34012… 12 16 7.09 (18 0) 8.66 (220) 8.15 (207) 4.29 (109) 3.56 (90.5) 3.56 (90.5) 0.22 (5.5) 5.7 (2.6)
DM1-34016… 16 23 7.09 (180) 8.66 (220) 8.15 (207) 4.29 (109) 3.56 (90.5) 3.56 (90.5) 0.22 (5.5) 5.7 (2.6)
FR3 DM1-34023.. 23 31 7.09 (180) 10.24 (260) 9.72 (247) 5.12 (130) 4.57 (116) 4.57 (116) 0.22 (5.5) 8.2 (3.7)
FR4 DM1-3 4031… 31 38 7.68 (195) 11.81 (300) 11.06 (281) 7.24 (18 4) 6.3 (160) 6.3 (160) 0.24 (6) 13.9 (6.3)
DM1-34038… 38 46 7.68 (195) 11.81 (300) 11.06 (281) 7.24 (18 4) 6.3 (160) 6.3 (160) 0.24 (6) 13.9 (6.3)
525 Vac to
600 Vac
50/60 Hz
3 phase
FR2 DM1-351D7… 1.7 2.7 7.09 (180) 8.66 (220) 8.15 (207) 4.29 (109) 3.56 (90.5) 3.56 (90.5) 0.22 (5.5) 5.7 (2.6)
DM1-352D7… 2.7 4.5 7.0 9 (180) 8.66 (220) 8.15 (207) 4.29 (109) 3.56 (90.5) 3.56 (90.5) 0.22 (5.5) 5.7 (2.6)
DM1-354D5… 4.5 7.5 7.09 (18 0) 8.66 (220) 8.15 (207) 4.29 (109) 3.56 (90.5) 3.56 (90.5) 0.22 (5.5) 5.7 (2.6)
DM1-357D5… 7.5 10 7.09 (18 0) 8.66 (220) 8.15 (207) 4.29 (109) 3.56 (90.5) 3.56 (90.5) 0.22 (5.5) 5.7 (2.6)
DM1-35010… 10 13.5 7.09 (180) 8.66 (220) 8.15 (207) 4.29 (109) 3.56 (90.5) 3.56 (90.5) 0.22 (5.5) 5.7 (2.6)
FR3 DM1-35013… 13.5 18 7.09 (180) 10.24 (260) 9.72 (247) 5.12 (130) 4.57 (116) 4.57 (116) 0.22 (5.5) 8.2 (3.7)
FR4 DM1-35018… 18 22 7.6 8 (195) 11.81 (300) 11.06 (281) 7. 24 (184) 6.3 (160) 6.3 (160) 0.24 (6) 13.9 (6.3)
DM1-35022… 22 27 7.6 8 (195) 11.81 (300) 11.06 (281) 7.24 (184) 6.3 (160) 6.3 (160) 0.24 (6) 13.9 (6.3)
(Continued).

6
Instruction Leaet PUB53675
Effective June 2020
PowerXL DM1 and DM1 Pro series VFD
EATON www.eaton.com

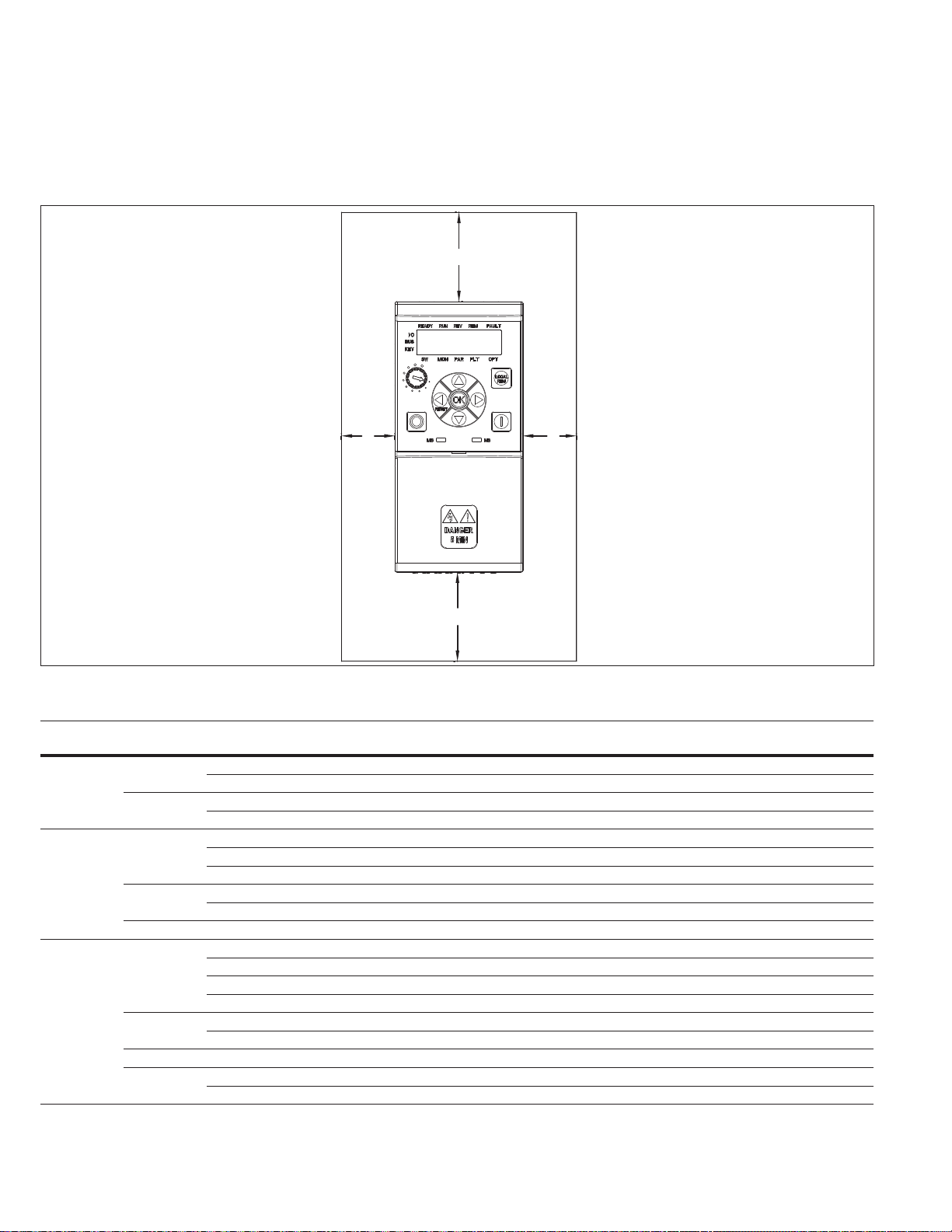

Table 2. Approximate space requirements in inches (mm).
Output rating Mounting clearance imperial Airflow
Input voltage Frame size Drive
catalog
number
CT/IH
current
amps
VT/IL
current
amps
A
in. (mm) B in. (mm) C in. (mm) D in. (mm) CFM (m3/h)
100 Vac to 120
Vac, 50/60 Hz
1 phase
FR1 DM1-111D6… 1.6 2.5 001.97 (50) 1.97 (50) 14.83 (25.2)
DM1-113D0… 34.8 001.97 (50) 1.97 (50) 14.83 (25.2)
FR2 DM1-114D8… 4.8 6.9 001.97 (50) 1.97 (50) 24.72 (42)
DM1-116D9… 6.9 7.8 001.97 (50) 1.97 (50) 24.72 (42)
200 Vac to 240
Vac, 50/60 Hz
1 phase
FR1 DM1-121D6… 1.6 2.5 001.97 (50) 1.97 (50) 14.83 (25.2)
DM1-123D0… 34.8 001.97 (50) 1.97 (50) 14.83 (25.2)
DM1-124D8… 4.8 7.8 001.97 (50) 1.97 (50) 14.83 (25.2)
FR2 DM1-127D8… 7.8 11 001.97 (50) 1.97 (50) 24.72 (42)
DM1-12011… 11 17.5 001.97 (50) 1.97 (50) 24.72 (42)
FR3 D M1-12 0 17… 17.5 25.3 001.97 (50) 1.97 (50) 42.37 (72)
200 Vac to 240
Vac, 50/60 Hz
3 phase
FR1 DM1-321D6… 1.6 2.5 001.97 (50) 1.97 (50) 14.83 (25.2)
DM1-323D0… 34.8 001.97 (50) 1.97 (50) 14.83 (25.2)
DM1-324D8… 4.8 7.8 001.97 (50) 1.97 (50) 14.83 (25.2)
DM1-327D8… 7.8 11 001.97 (50) 1.97 (50) 14.83 (25.2)
FR2 DM1-32011… 11 17.5 001.97 (50) 1.97 (50) 24.72 (42)
DM1-32017… 17.5 25.3 001.97 (50) 1.97 (50) 24.72 (42)
FR3 DM1-32025… 25.3 32.2 001.97 (50) 1.97 (50) 42.37 (72)
FR4 DM1-32032… 32.2 48.3 001.97 (50) 1.97 (50) 75.56 (128.4)
DM1-32048… 48.3 62.1 001.97 (50) 1.97 (50) 75.56 (128.4)
Note: For DM1 drives with option cards, allow 2.76 in. or 70 mm for dimension A for the option card enclosure.
Mounting—Montaje—Montage—Montaggio—Montering—ȉȠʌȠșȑIJȘıȘ—Montagem—Asennus—
Montáž—Paigaldamine—Felszerelése—MontƗža—Montavimas—MontaĪ—Montaža—Ɇɨɧɬɚɠ—
Montarea—Ɇɨɧɬɚɠ—ᆹ
ᆹ
㻵
㻵
AB
C
D

7
Instruction Leaet PUB53675
Effective June 2020
PowerXL DM1 and DM1 Pro series VFD
EATON www.eaton.com
Table 2. Approximate space requirements in inches (mm).
Output rating Mounting clearance imperial Airflow
Input voltage Frame size Drive
catalog
number
CT/IH
current
amps
VT/IL
current
amps
A
in. (mm) B in. (mm) C in. (mm) D in. (mm) CFM (m3/h)
380 Vac to 480
Vac, 50/60 Hz
3 phase
FR1 DM1-341D5… 1.5 2.2 001.97 (50) 1.97 (50) 14.83 (25.2)
DM1-342D2… 2.2 4.3 001.97 (50) 1.97 (50) 14.83 (25.2)
DM1-344D3… 4.3 5.6 001.97 (50) 1.97 (50) 14.83 (25.2)
DM1-345D6… 5.6 7.6 001.97 (50) 1.97 (50) 14.83 (25.2)
FR2 DM1-347D6… 7.6 12 001.97 (50) 1.97 (50) 37.4 3 (63.6)
DM1-34012… 12 16 001.97 (50) 1.97 (50) 37.4 3 (63.6)
DM1-34016… 16 23 001.97 (50) 1.97 (50) 37.4 3 (63.6)
FR3 DM1-34023.. 23 31 001.97 (50) 1.97 (50) 58.61 (99.6)
FR4 DM1-3 4031… 31 38 001.97 (50) 1.97 (50) 57.56 (9 7.8)
DM1-34038… 38 46 001.97 (50) 1.97 (50) 5 7.56 (9 7.8)
525 Vac to 600
Vac, 50/60 Hz
3 phase
FR2 DM1-351D7… 1.7 2.7 001.97 (50) 1.97 (50) 37.4 3 (63.6)
DM1-352D7… 2.7 4.5 001.97 (50) 1.97 (50) 37.43 (6 3.6)
DM1-354D5… 4.5 7.5 001.97 (50) 1.97 (50) 37.4 3 (63.6)
DM1-357D5… 7.5 10 001.97 (50) 1.97 (50) 37.4 3 (63.6)
DM1-35010… 10 13.5 001.97 (50) 1.97 (50) 37.4 3 (6 3.6)
FR3 DM1-35013… 13.5 18 001.97 (50) 1.97 (50) 58.61 (99.6)
FR4 DM1-35018… 18 22 001.97 (50) 1.97 (50) 57.5 6 (97.8)
DM1-35022… 22 27 001.97 (50) 1.97 (50) 57.5 6 (97.8)
Note: For DM1 drives with option cards, allow 2.76 in. or 70 mm for dimension A for the option card enclosure.
(Continued).

8
Instruction Leaet PUB53675
Effective June 2020
PowerXL DM1 and DM1 Pro series VFD
EATON www.eaton.com

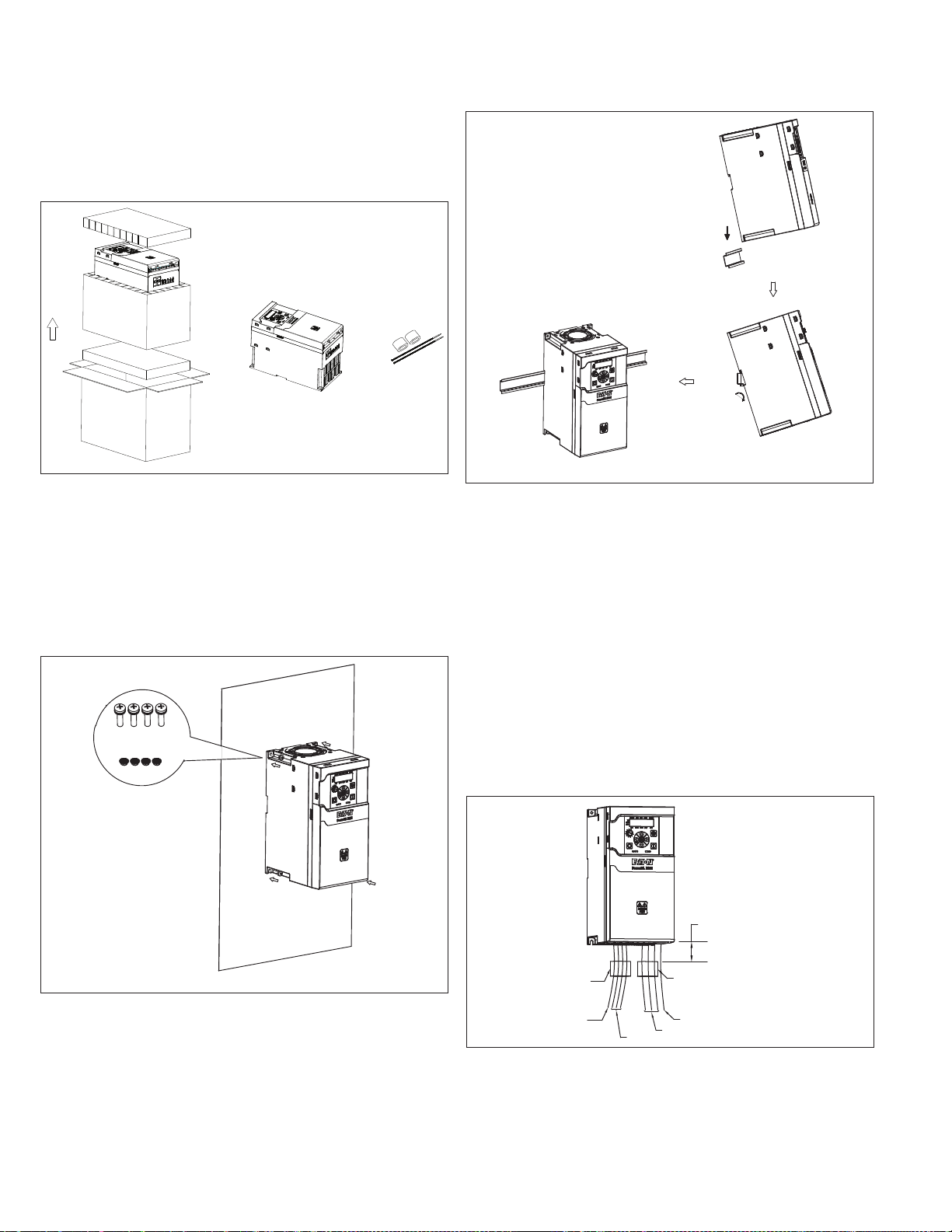

FR1 mounting instructions
Step 1.
Lift the drive out from the carton and remove the packaging. The
magnetic cores and cable ties are only included in EMI version drive.
Step 2.
Screw mounting: Attach the drive to the mounting plate with
two M5x20 (or 3/16 in.) screws and two M5 (or 3/16 in.) nuts. The
opening dimension on the mounting plate should follow required
dimension (refer to the dimension drawing in Table 1 of this docu-
ment).
DIN Rail mounting: Lift the drive at an angle about 30 degrees.
Align the top hooks of drive DIN rail mounting slot with DIN rail top
edge. Push down and rotate the drive to clip the bottom hooks on
the bottom DIN rail edge.
Step 3. (EMI version only):
The input wires (including 3 line wires and 1 input grounding wire)
should run through the input magnetic core before connecting to
input terminal block and grounding hole. Use a cable tie to tie the
input magnetic cores to the input wires. The output wires (only 3
motor wires) should run through the output magnetic core before
connecting to output terminal block.
The output grounding wire should not run through the output
magnetic core. Use a cable tie to tie the output magnetic cores to
the output wires. The maximum distance between input / output
magnetic cores top surface and drive bottom surface is 100 mm
(3.94 in.). The input magnetic core and output magnetic core are the
same for FR1.
+
Screw mounting
Two M5x20 or 3/16 inch screws
Two M5 or 3/16 inch nuts
Torque: 3 N.m (26.6 lb/in.)
DIN Rail mounting
3 line wires
Input grounding wire Output grounding wire
Max. distance: 100 mm (3.94 in.)
3 motor wires
Input magnetic core Output magnetic core

9
Instruction Leaet PUB53675
Effective June 2020
PowerXL DM1 and DM1 Pro series VFD
EATON www.eaton.com
FR2 mounting instructions
Step 1.
Lift the drive out from the carton, remove the packaging. The
magnetic cores and cable ties are only included in EMI version drive.
Step 2.
Screw mounting: Attach the drive to the mounting plate with four
M5X20 (or 3/16 in.) screws and four M5 (or 3/16 in.) nuts. The
opening dimension on the mounting plate should follow required
dimension (refer to the dimension drawing in the instruction leaflet).
DIN Rail mounting: Lift the drive at an angle about 30 degrees.
Align the top hooks of drive DIN rail mounting slot with DIN rail top
edge. Push down and rotate the drive to clip the bottom hooks on
the bottom DIN rail edge.
+
Screw mounting
Four M5x20 or 3/16 inch screws
Four M5 or 3/16 inch nuts
Torque: 3 N.m (26.6 lb/in.)
Step 3. (EMI version only):
The input wires (including 3 line wires and 1 input grounding wire)
should run through the input magnetic core before connecting to
input terminal block and grounding hole. Use a cable tie to tie the
input magnetic cores to the input wires. The output wires (only 3
motor wires) should run through the output magnetic core before
connecting to output terminal block.
The output grounding wire should not run through the output
magnetic core. Use a cable tie to tie the output magnetic cores to
the output wires. The maximum distance between input / output
magnetic cores top surface and drive bottom surface is 100 mm
(3.94 in.). The height of input magnetic core is bigger than output
magnetic core for 3 phase FR2 EMI version, but they are the same
for 1 phase FR2 EMI version.
DIN Rail mounting
3 line wires
Input grounding wire Output grounding wire
Max. distance: 100 mm (3.94 in.)
3 motor wires
Input magnetic core
Output magnetic core

10
Instruction Leaet PUB53675
Effective June 2020
PowerXL DM1 and DM1 Pro series VFD
EATON www.eaton.com
FR3 mounting instructions
Step 1.
Lift the drive out from the carton, remove the packaging. The
magnetic cores and cable ties are only included in EMI version drive.
Step 2.
Screw mounting: Attach the drive to the mounting plate with four
M5X20 (or 3/16 in.) screws and four M5 (or 3/16 in.) nuts. The
opening dimension on the mounting plate should follow required
dimension (refer to the dimension drawing in the instruction leaflet).
DIN Rail mounting: Lift the drive at an angle about 30 degrees.
Align the top hooks of drive DIN rail mounting slot with DIN rail top
edge. Push down and rotate the drive to clip the bottom hooks on
the bottom DIN rail edge.
Step 3. (EMI version only):
The input wires (including three line wires and one input grounding
wire) should run through the input magnetic core before connecting
to input terminal block and grounding hole. Use a cable tie to tie the
input magnetic cores to the input wires.
For 3-phase FR3 EMI version, the output wires (only three motor
wires) should run through the output magnetic core before connect-
ing to output terminal block. The output grounding wire should not
run through the output magnetic core. Use a cable tie to tie the
output magnetic cores to the output wires. For 1-phase FR3 EMI
version, there is no output magnetic core. The motor wires and
output grounding wire can be connected to corresponding terminals
directly.
The maximum distance between input / output magnetic cores top
surface and drive bottom surface is 100 mm.
The input magnetic core and output magnetic core are the same for
3-phase FR3 EMI version.
+
Screw mounting
Four M5x20 or 3/16 inch screws
Four M5 or 3/16 inch nuts
Torque: 3 N.m (26.6 lb/in.)
DIN Rail mounting
3 line wires
Input grounding wire Output grounding wire
Max. distance: 100 mm (3.94 in.)
3 motor wires
Input magnetic core Output magnetic core

11
Instruction Leaet PUB53675
Effective June 2020
PowerXL DM1 and DM1 Pro series VFD
EATON www.eaton.com
FR4 mounting instructions
Step 1.
Lift the drive out from the carton, remove the packaging. The
magnetic cores and cable ties are only included in EMI version drive.
Step 2.
Screw mounting: Attach the drive to the mounting plate with
four M5x20 (or 3/16 in.) screws and four M5 (or 3/16 in.) nuts. The
opening dimension on the mounting plate should follow required
dimension (refer to the dimension drawing in the instruction leaflet).
Step 3. (EMI version only):
The input wires (including 3 line wires and 1 input grounding wire)
should run through the input magnetic core before connecting to
input terminal block and grounding hole. Use a cable tie to tie the
input magnetic cores to the input wires. The output wires (only 3
motor wires) should run through the output magnetic core before
connecting to output terminal block.
+
Screw mounting
Four M5x20 or 3/16 inch screws
Four M5 or 3/16 inch nuts
Torque: 3 N.m (26.6 lb/in.)
The output grounding wire should not run through the output
magnetic core. Use a cable tie to tie the output magnetic cores to
the output wires. The maximum distance between input / output
magnetic cores top surface and drive bottom surface is 100 mm
(3.94 in.). The height of input magnetic core is bigger than output
magnetic core for FR4. .
3 line wires
Input grounding wire Output grounding wire
Max. distance: 100 mm (3.94 in.)
3 motor wires
Input magnetic core
Output magnetic core

12
Instruction Leaet PUB53675
Effective June 2020
PowerXL DM1 and DM1 Pro series VFD
EATON www.eaton.com

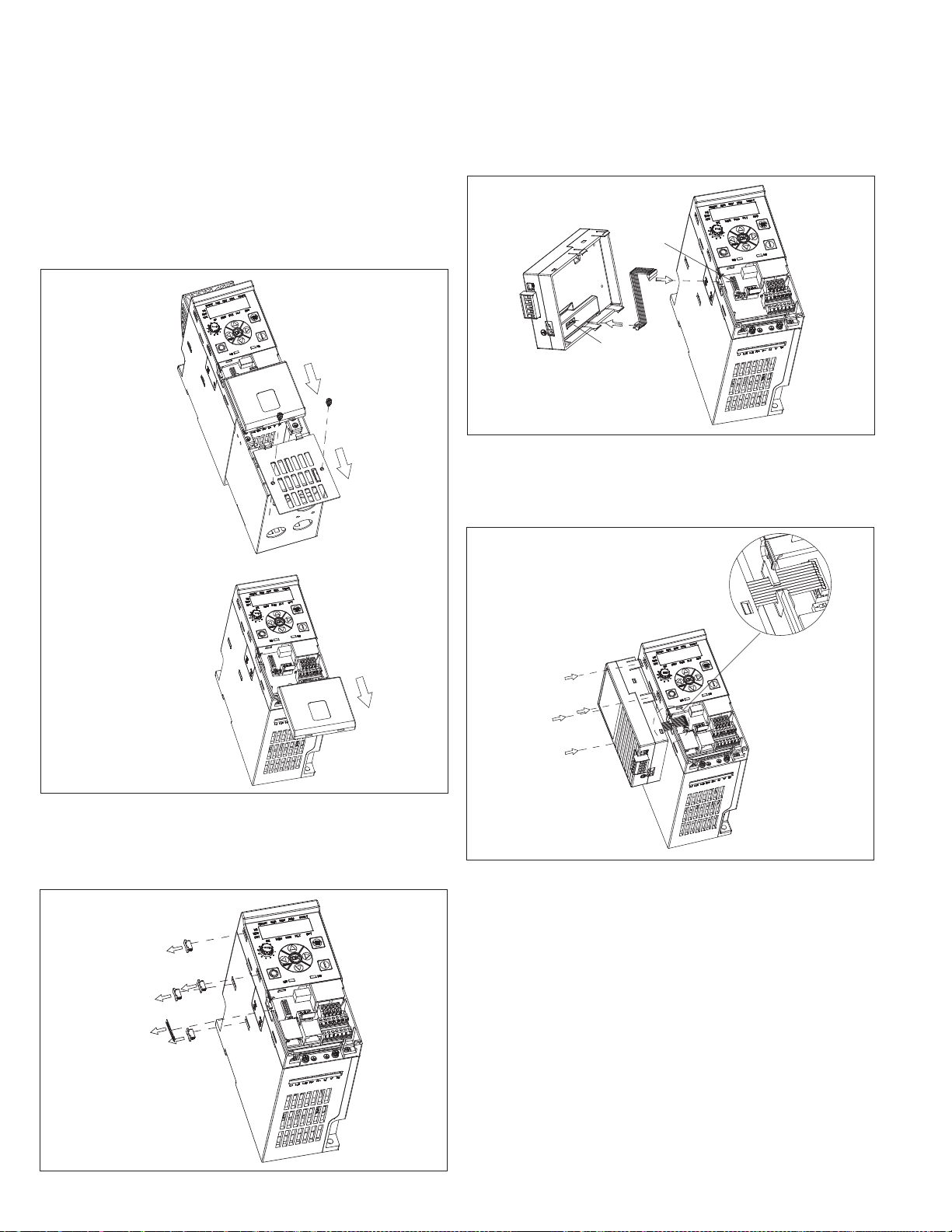

Mounting instruction for option cards
Step 1.
For enclosed type:
Remove the front cover (1) from NEMA 1 kit then remove the termi-
nal cover (2) from drive.
For open type:
Only remove the terminal cover.
Step 2.
Remove the option card port label and four snap covers from the
drive.
2
1
Enclosed type
Open type
Step 3.
Connect the cable to option card connector (3) and MCU board
connector (4).
Step 4.
Clamp the cable with the optional card port. Mount the option card
to the drive by inserting the four snaps into the slots on drive.
3
4

13
Instruction Leaet PUB53675
Effective June 2020
PowerXL DM1 and DM1 Pro series VFD
EATON www.eaton.com
Step 5.
For enclosed type:
Install the terminal cover (1) to the drive then install the front cover
(2) to NEMA 1 kit.
For open type:
Only install the terminal cover to the drive.

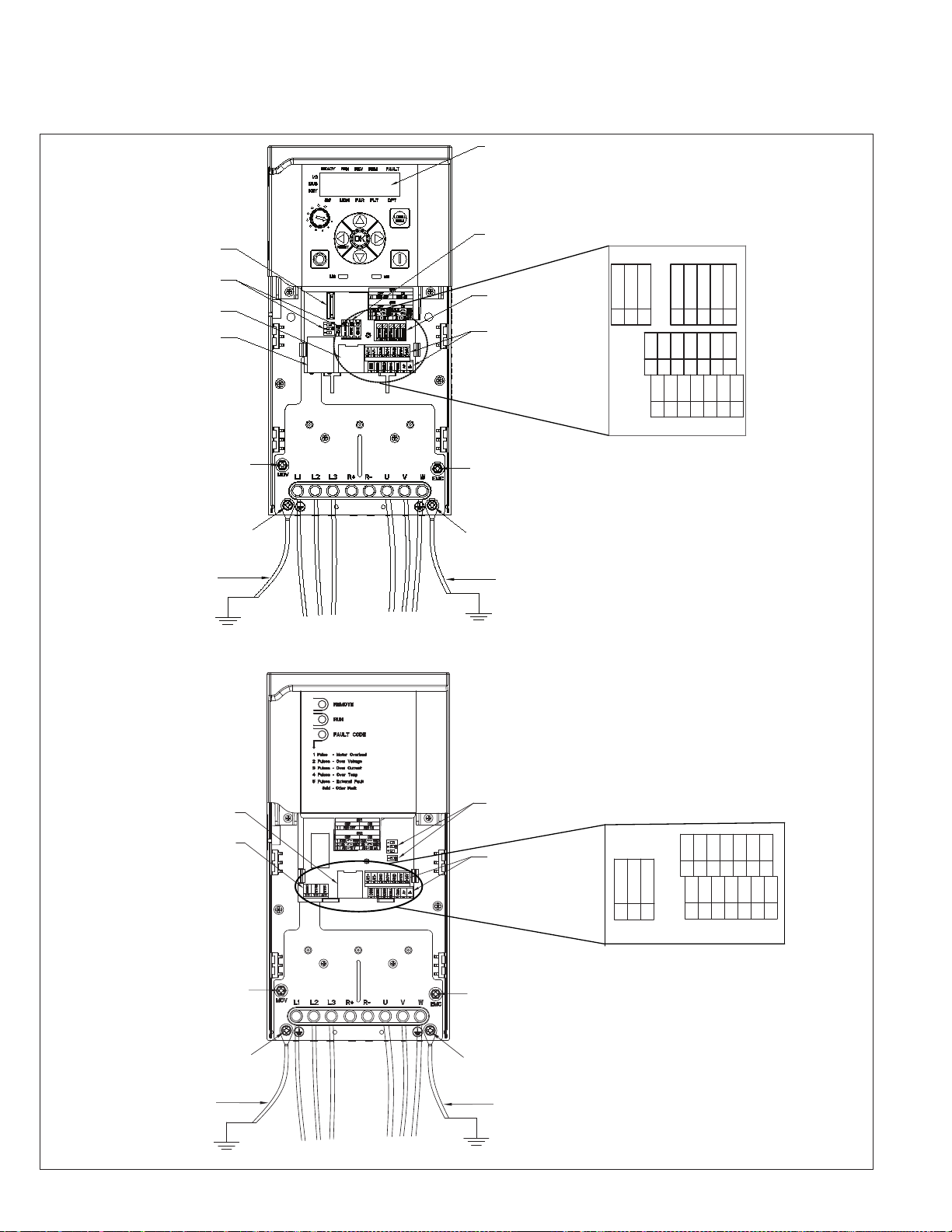

Wiring instruction.
2
Enclosed type
Open type
1
Termination resistor dip switch
ON-120 Ωtermination resistor On
Off-120 Ωtermination resistor Off
13
245
User terminal
24V_V+
CAN_H
Shield
CAN_L
GND_V-
Grounding terminal
5. DGND
4. RTS
3. RXD/TXD-P
2. No Use
1. No Use
9. No Use
8. RXD/TXD-N
7. No Use
6. VP
User terminals (DB9 connector)
Grounding terminal
CANOpen card
Profibus card

14
Instruction Leaet PUB53675
Effective June 2020
PowerXL DM1 and DM1 Pro series VFD
EATON www.eaton.com

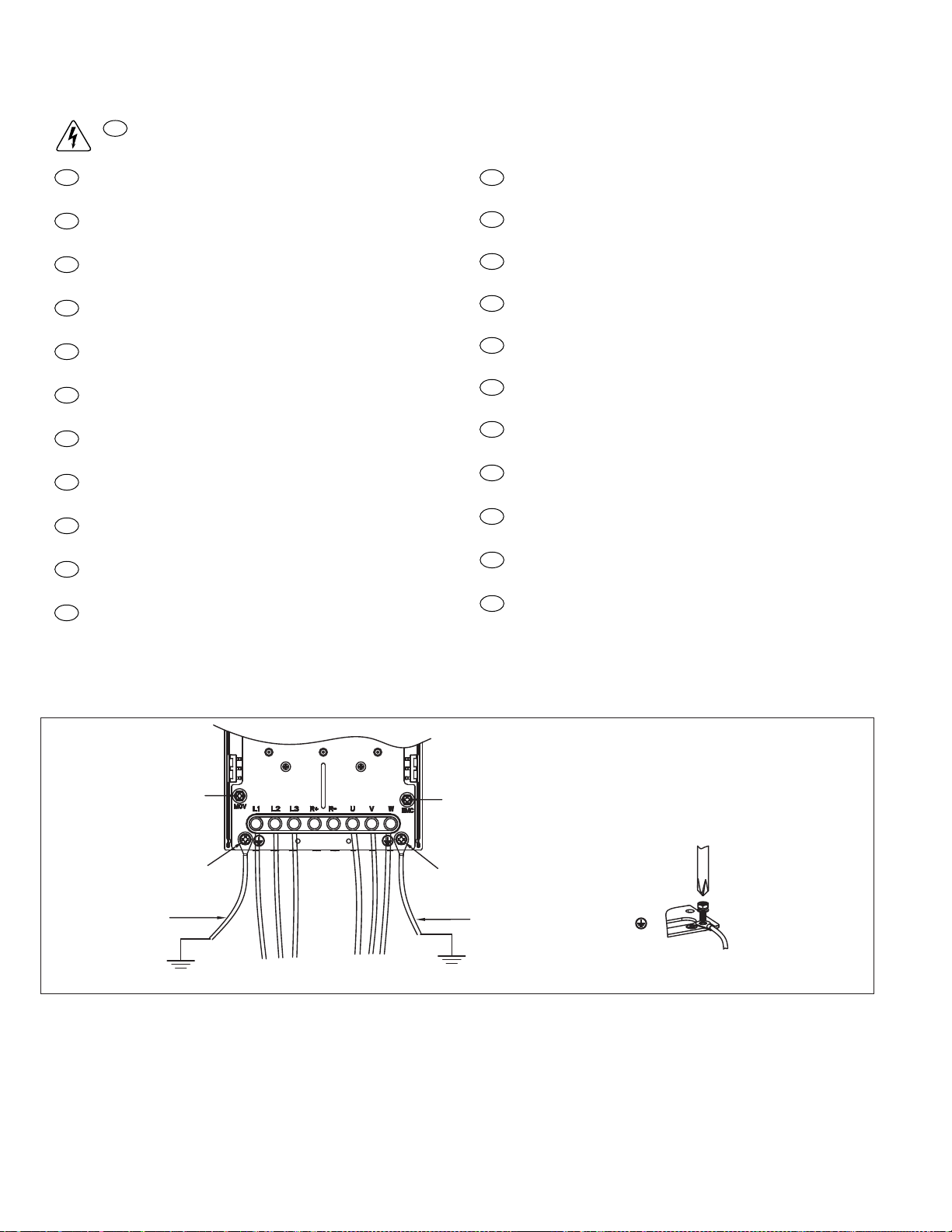

Ground wiring
Warning!
Connect only in voltage-free state!
¡Advertencia!
¡Conectar únicamente en estado sin tensión!
Avertissement !
Raccordez l’appareil uniquement hors tension !
Warnung!
Nur im spannungsfreien Zustand anschließen!
Avvertimento!
Collegare solo in assenza di tensione!
Waarschuwing!
Alleen in spanningsloze toestand aansluiten!
Advarsel!
Må kun tilsluttes i spændingsfri tilstand!
ȆȡȠİȚįȠʌȠȓȘıȘ!
ȈȣȞįȑıIJİ ȝȩȞȠ ȩIJĮȞ įİȞ İʌȚțȡĮIJİȓ IJȐıȘ!
Atenção!
Ligar apenas com a tensão desligada!
Varning!
Får endast anslutas i spänningsfritt tillstånd!
Varoitus!
Kytke vain jännitteettömässä tilassa!
Varování!
PĜipojujte jen pĜi zcela odpojeném napájení!
Hoiatus!
Ühendada ainult pingevabas olekus!
Figyelmeztetés!
Csak feszültségmentes állapotban csatlakoztassa!
BrƯdinƗjums!
PieslƝgt tikai tad, kad nenotiek sprieguma padeve!
Perspơjimas!
Prijungti tik tada, kai išjungta Ƴtampa!
OstrzeĪenie!
Podáączaüzawsze po uprzednim odáączeniu od zasilania elektrycznego!
Opozorilo!
Napravo prikljuþite le, ko ni pod napetostjo!
Varovanie!
NapájatÚlen v stave bez napätia!
ɉɪɟɞɭɩɪɟɠɞɟɧɢɟ!
ɋɜɴɪɡɜɚɣɬɟ ɫɚɦɨ, ɤɨɝɚɬɨ ɭɪɟɞɚ ɧɟ ɟɩɨɞ ɧɚɩɪɟɠɟɧɢɟ!
AtenĠie!
ConectaĠi doar când aparatul nu se aflăsub tensiune!
ɉɪɟɞɭɩɪɟɠɞɟɧɢɟ!
ɉɨɞɤɥɸɱɚɬɶ ɬɨɥɶɤɨ ɜɨɛɟɫɬɨɱɟɧɧɨɦ ɫɨɫɬɨɹɧɢɢ!
䆖
䆖




ᗵ享൘ᯝ⭥⣦ᘱл䘋㹼䘎᧕ʽ
en
es
fr
de
it
nl
da
el
pt
sv

cs
et
hu
lv
lt
pl
sl
sk
bg
ro
ru
zh
Removable
EMC screw
Line wires Motor wires
Line grounding position Motor grounding position
Motor grounding wire
Line grounding wire
MOV screw
PE
(FR1-FR2)
M3, 7 in-lb (0.8 N
· m)
(FR3-FR4)
M4, 14 in-lb (1.6 N
· m)

15
Instruction Leaet PUB53675
Effective June 2020
PowerXL DM1 and DM1 Pro series VFD
EATON www.eaton.com
Input power and motor cable stripping lengths
Table 3. Stripping lengths.
Frame size Power wiring Motor wiring
A1
in. (mm) B1 in. (mm) C1 in. (mm) D1 in. (mm). A2 in. (mm) B2 in. (mm) C2 in. (mm) D2 in. (mm)
FR1 0.39 (10) 2.76 (70) 0.39 (10) 2.76 (70) 0.39 (10) 2.76 (70) 0.39 (10) 2.76 (70)
FR2 0.47 (12) 2.76 (70) 0.47 (12) 2.76 (70) 0.47 (12) 2.76 (70) 0.47 (12) 2.76 (70)
FR3 0.47 (12) 3.54 (90) 0.47 (12) 3.54 (90) 0.47 (12) 3.54 (90) 0.47 (12) 3.54 (90)
FR4 0.79 (20) 4.53 (115) 0.79 (20) 4.53 (115) 0.79 (20) 4.53 (115) 0.79 (20) 4.53 (115)
ote:N For I/O / STO / Relay output wires, the stripping length = 0.236-0.276 in. (6-7 mm).
Table 4. Connection sizes and torques.
Output rating Size and torque
Input voltage Frame
size Drive catalog
number
CT/IH
current
amps
VT/IL
current
amps
Power
wire size
AWG
(mm2)
Power wire
torque
in.-lb (N·m)
Ground
wire size
AWG
(mm2)
Ground
wire
torque
in.-lb (N·m)
Control
wire size
AWG (mm2)
Control
wire torque
in.-lb (N·m)
AI/DI 
RO
100 Vac to 120 Vac
50/60 Hz
1 phase
FR1 DM1-111D6… 1.6 2.5 14 (2.5) 4.4 (0.5) 14 (2.5) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
DM1-113D0… 34.8 14 (2.5) 4.4 (0.5) 14 (2.5) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
FR2 DM1-114D8… 4.8 6.9 10 (6) 10.5 (1.2) 10 (6) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
DM1-116D9… 6.9 7.8 10 (6) 10.5 (1.2) 10 (6) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
200 Vac to 240 Vac
50/60 Hz
1 phase
FR1 DM1-121D6… 1.6 2.5 14 (2.5) 4.4 (0.5) 14 (2.5) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
DM1-123D0… 34.8 14 (2.5) 4.4 (0.5) 14 (2.5) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
DM1-124D8… 4.8 7.8 14 (2.5) 4.4 (0.5) 14 (2.5) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
FR2 DM1-127D8… 7.8 11 10 (6) 10.5 (1.2) 10 (6) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
DM1-12011… 11 17.5 10 (6) 10.5 (1.2) 10 (6) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
FR3 D M1-12 0 17… 17.5 25.3 8 (10) 10.5 (1.2) 8 (10) 14.2 (1.6) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
200 Vac to 240 Vac
50/60 Hz
3 phase
FR1 DM1-321D6… 1.6 2.5 14 (2.5) 4.4 (0.5) 14 (2.5) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
DM1-323D0… 34.8 14 (2.5) 4.4 (0.5) 14 (2.5) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
DM1-324D8… 4.8 7.8 14 (2.5) 4.4 (0.5) 12 (2.5) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
DM1-327D8… 7.8 11 12 (4) 4.4 (0.5) 10 (4) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
FR2 DM1-32011… 11 17.5 10 (6) 10.5 (1.2) 10 (6) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
DM1-32017… 17.5 25.3 8 (10) 10.5 (1.2) 10 (10) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
FR3 DM1-32025… 25.3 32.2 8 (10) 10.5 (1.2) 8 (10) 14.2 (1.6) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
FR4 DM1-32032… 32.2 48.3 4 (25) 33 (3.73) 8 (16) 14.2 (1.6) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
DM1-32048… 48.3 62.1 3 (35) 33 (3.73) 6 (16) 14.2 (1.6) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)

16
Instruction Leaet PUB53675
Effective June 2020
PowerXL DM1 and DM1 Pro series VFD
EATON www.eaton.com
Table 4. Connection sizes and torques.
Output rating Size and torque
Input voltage Frame
size Drive catalog
number
CT/IH
current
amps
VT/IL
current
amps
Power
wire size
AWG
(mm2)
Power wire
torque
in.-lb (N·m)
Ground
wire size
AWG
(mm2)
Ground
wire
torque
in.-lb (N·m)
Control
wire size
AWG (mm2)
Control
wire torque
in.-lb (N·m)
AI/DI 
RO
380 Vac to 480 Vac
50/60 Hz
3 phase
FR1 DM1-341D5… 1.5 2.2 14 (2.5) 4.4 (0.5) 14 (2.5) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
DM1-342D2… 2.2 4.3 14 (2.5) 4.4 (0.5) 14 (2.5) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
DM1-344D3… 4.3 5.6 14 (2.5) 4.4 (0.5) 14 (2.5) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
DM1-345D6… 5.6 7.6 14 (2.5) 4.4 (0.5) 10 (2.5) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
FR2 DM1-347D6… 7.6 12 12 (4) 10.5 (1.2) 10 (4) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
DM1-34012… 12 16 10 (6) 10.5 (1.2) 10 (6) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
DM1-34016… 16 23 8 (10) 10.5 (1.2) 10 (10) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
FR3 DM1-34023.. 23 31 8 (10) 10.5 (1.2) 8 (10) 14.2 (1.6) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
FR4 DM1-3 4031… 31 38 6 (16) 33 (3.73) 8 (16) 14.2 (1.6) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
DM1-34038… 38 46 4 (25) 33 (3.73) 8 (16) 14.2 (1.6) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
525 Vac to 600 Vac
50/60 Hz
3 phase
FR2 DM1-351D7… 1.7 2.7 12 (4) 10.5 (1.2) 10 (4) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
DM1-352D7… 2.7 4.5 12 (4) 10.5 (1.2) 10 (4) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
DM1-354D5… 4.5 7.5 12 (4) 10.5 (1.2) 10 (4) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
DM1-357D5… 7.5 10 12 (4) 10.5 (1.2) 10 (4) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
DM1-35010… 10 13.5 12 (4) 10.5 (1.2) 10 (4) 7.1 (0.8) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
FR3 DM1-35013… 13.5 18 8 (10) 10.5 (1.2) 8 (10) 14.2 (1.6) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
FR4 DM1-35018… 18 22 6 (16) 33 (3.73) 8 (16) 14.2 (1.6) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
DM1-35022… 22 27 4 (25) 33 (3.73) 8 (16) 14.2 (1.6) 28-16 (0.5-1.5) 1.73 (0.2) 4.5 (0.5)
Notes:
Strip the motor and power cables as shown above.
Both UL®and IEC tools may be used.
Applies to strained wire, solid wire, or ferrule installations.
(Continued).

17
Instruction Leaet PUB53675
Effective June 2020
PowerXL DM1 and DM1 Pro series VFD
EATON www.eaton.com
Cable and fuse guidelines
Table 5. North America cable and fuse sizes. 
UL cable and fuse sizes
Output rating Input rating UL application
Input
voltage Frame size Drive catalog
number
CT/IH
current
amps
VT/IL
current
amps
CT/IH
current
amps
VT/IL
current
amps
Recom-
mended
fuse
(Max.
rating)
100
kAIC
Recom-
mended
miniature
circuit
breaker
(Max.
rating)
10/14
kAIC
Recom-
mended
Type
E CMC
(Max.
Rating)
65 kAIC
Recom-
mended
circuit
breaker
(Max.
rating)
100 kAIC
(Open
type only)
NEC
wire
size
line
and
motor
AWG
NEC
wire
size
ground
AWG
Terminal
size
line and
motor
AWG
Terminal
size
ground
AWG
100 Vac
to
120 Vac
50/60
Hz
1 phase
FR1 DM1-111D6… 1.6 2.5 6.4 9.6
DM1-113D0… 34.8 12 20
FR2 DM1-114D8… 4.8 6.9 20 29
DM1-116D9… 6.9 7.8 29 34.3
200 Vac
to
240 Vac
50/60
Hz
1 phase
FR1 DM1-121D6… 1.6 2.5 3.2 5
DM1-123D0… 34.8 6 9.6
DM1-124D8… 4.8 7.8 10 16
FR2 DM1-127D8… 7.8 11 16 23
DM1-12011… 11 17.5 23 35
FR3 D M1-12 0 17… 17.5 25.3 39.6 49.6
200 Vac
to
240 Vac
50/60
Hz
3 phase
FR1 DM1-321D6… 1.6 2.5 2.1 3.3 6 5 6.3 15 14 14 18-8 16-10
DM1-323D0… 34.8 3.9 5.8 15 10 6.3 15 14 14 18-8 16-10
DM1-324D8… 4.8 7.8 5.8 9.4 20 15 10 15 14 12 18-8 16-10
DM1-327D8… 7.8 11 9.4 13.2 30 20 16 20 12 10 18-8 16-10
FR2 DM1-32011… 11 17.5 12.7 20.1 40 30 25 30 10 10 20-6 12-8
DM1-32017… 17.5 25.3 20.1 29.1 60 40 32 45 8 10 20-6 12-8
FR3 DM1-32025… 25.3 32.2 29.1 37 70 50 40 50 8 8 20-6 10-8
FR4 DM1-32032… 32.2 48.3 35.4 53.1 100 \ \ 80 4 8 20-2 8-6
DM1-32048… 48.3 62.1 5 3.1 68.3 125 \ \ 100 3 6 20-2 8-6
380 Vac
to
480 Vac
50/60
Hz
3 phase
FR1 DM1-341D5… 1.5 2.2 1.8 2.6 6 4 6.3 15 14 14 18-8 16-10
DM1-342D2… 2.2 4.3 2.6 5.2 10 8 6.3 15 14 14 18-8 16-10
DM1-344D3… 4.3 5.6 5.2 6.7 15 10 10 15 14 14 18-8 16-10
DM1-345D6… 5.6 7.6 6.7 9.1 30 15 10 15 14 10 18-8 16-10
FR2 DM1-347D6… 7.6 12 9.1 14.4 30 20 16 20 12 10 20-6 12-8
DM1-34012… 12 16 14.4 19.2 40 25 25 30 10 10 20-6 12-8
DM1-34016… 16 23 19.2 27.6 60 32 32 40 8 10 20-6 12-8
FR3 DM1-34023.. 23 31 26.5 35.7 70 \ 40 50 8 820-6 10-8
FR4 DM1-3 4031… 31 38 35.7 43.7 70 \ 50 70 6 8 20-2 8-6
DM1-34038… 38 46 43.7 52.9 80 \ 58 80 4 8 20-2 8-6
525 Vac
to
600 Vac
50/60
Hz
3 phase
FR2 DM1-351D7… 1.7 2.7
DM1-352D7… 2.7 4.5
DM1-354D5… 4.5 7.5
DM1-357D5… 7.5 10
DM1-35010… 10 13.5
FR3 DM1-35013… 13.5 18
FR4 DM1-35018… 18 22
DM1-35022… 22 27
Notes:
Line and motor cable size is selected according to UL 508C Table 40.3 for copper conductor rated 75°C. Use only with copper wire rated 75°C here. Size requirements for
other different wire types are defined in the National Electrical Code®, ANSI/NFPA®70.
Earthing conductor size is determined by the maximum overcurrent device rating used ahead of the drive according to UL 508C Table 6.4.
If power cubes or bypass are used, a UL listed Class RK5, J, T or equivalent fuse is recommended.

18
Instruction Leaet PUB53675
Effective June 2020
PowerXL DM1 and DM1 Pro series VFD
EATON www.eaton.com
Table 6. Table 6. International cable and fuse sizes. 
IEC Cable and Fuse Sizes
Output rating Input rating IEC application
Input
voltage Frame size Catalog number CT/IH current
amps
VT/IL
current
amps
CT/IH
current
amps
VT/IL
current
amps
Recom-
mended
fuse
(Max.
rating)
100
kAIC
Recom-
mended
miniature
circuit
breaker
(Max.
rating)
10/14
kAIC
Recom-
mended
Type E
CMC
(Max.
rating)
65 kAIC
Recom-
mended
circuit
breaker
(Max.
rating)
100 kAIC
(Open
type
only)
IEC
cable
size
Line
and
motor
mm2
IEC
cable
size
Ground
mm2
Terminal
size
Line and
motor
mm2
Terminal
size
Ground
mm2
100 Vac
to
120 Vac
50/60
Hz
1 phase
FR1 DM1-111D6… 1.6 2.5 6.4 9.6 30 30 \ 30 2.5 2.5 0.2-6 TBD
DM1-113D0… 34.8 12 20 70 63 \ 70 6 6 0.2-6 TBD
FR2 DM1-114D8… 4.8 6.9 20 29 90 63 \ 90 10 10 0.5-16 TBD
DM1-116D9… 6.9 7.8 29 34.3 125 63 \ 125 10 10 0.5-16 TBD
200 Vac
to
240 Vac
50/60
Hz
1 phase
FR1 DM1-121D6… 1.6 2.5 3.2 5 15 15 \ 15 2.5 2.5 0.2-6 TBD
DM1-123D0… 34.8 6 9.6 30 30 \ 30 2.5 2.5 0.2-6 TBD
DM1-124D8… 4.8 7.8 10 16 60 63 \ 60 4 4 0.2-6 TBD
FR2 DM1-127D8… 7.8 11 16 23 80 63 \ 80 6 6 0.5-16 TBD
DM1-12011… 11 17.5 23 35 125 63 \ 125 10 10 0.5-16 TBD
FR3 D M1-12 0 17… 17.5 25.3 39.6 49.6 200 \ \ 200 16 16 0.5-16 TBD
200 Vac
to
240 Vac
50/60
Hz
3 phase
FR1 DM1-321D6… 1.6 2.5 2.1 3.3 6 5 6.3 15 2.5 2.5 0.2-6 1.5-6.0
DM1-323D0… 34.8 3.9 5.8 15 10 6.3 15 2.5 2.5 0.2-6 1.5-6.0
DM1-324D8… 4.8 7.8 5.8 9.4 20 15 10 15 2.5 2.5 0.2-6 1.5-6.0
DM1-327D8… 7.8 11 9.4 13.2 30 20 16 20 44 0.2-6 1.5-6.0
FR2 DM1-32011… 11 17.5 12.7 20.1 40 30 25 30 6 6 0.5-16  4.0-10
DM1-32017… 17.5 25.3 20.1 29.1 60 40 32 45 10 10 0.5-16 4.0-10
FR3 DM1-32025… 25.3 32.2 29.1 37 70 50 40 50 10 10 0.5-16 6.0-10
FR4 DM1-32032… 32.2 48.3 35.4 53.1 100 \ \ 80 25 16 0.5-35 10-16
DM1-32048… 48.3 62.1 5 3.1 68.3 125 \ \ 100 35 16 0.5-35 10-16
380 Vac
to
480 Vac
50/60
Hz
3 phase
FR1 DM1-341D5… 1.5 2.2 1.8 2.6 6 4 6.3 15 2.5 2.5 0.2-6 1.5-6.0
DM1-342D2… 2.2 4.3 2.6 5.2 10 8 6.3 15 2.5 2.5 0.2-6 1.5-6.0
DM1-344D3… 4.3 5.6 5.2 6.7 15 10 10 15 2.5 2.5 0.2-6 1.5-6.0
DM1-345D6… 5.6 7.6 6.7 9.1 30 15 10 15 2.5 2.5 0.2-6 1.5-6.0
FR2 DM1-347D6… 7.6 12 9.1 14.4 30 20 16 20 4 4 0.5-16 4.0-10
DM1-34012… 12 16 14.4 19.2 40 25 25 30 6 6 0.5-16 4.0-10
DM1-34016… 16 23 19.2 27.6 60 32 32 40 10 10 0.5-16 4.0-10
FR3 DM1-34023.. 23 31 26.5 35.7 70 \ 40 50 10 10 0.5-16 6.0-10
FR4 DM1-3 4031… 31 38 35.7 43.7 70 \ 50 70 16 16 0.5-35 10-16
DM1-34038… 38 46 43.7 52.9 80 \ 58 80 25 16 0.5-35 10-16
525 Vac
to
600 Vac
50/60
Hz
3 phase
FR2 DM1-351D7… 1.7 2.7
DM1-352D7… 2.7 4.5
DM1-354D5… 4.5 7.5
DM1-357D5… 7.5 10
DM1-35010… 10 13.5
FR3 DM1-35013… 13.5 18
FR4 DM1-35018… 18 22
DM1-35022… 22 27
Notes:
Line and motor cable size is selected according to IEC 60364-5-52:2009 Table B.52.4 for copper conductor with PVC insulation with a wiring condition of ambient temperature
30°C in air and an installation method of “B2” (cables in conduit and cable trunking systems). For other wiring conditions, please refer to the standard of IEC 60364-5-52:2009
for suitable cable sizes.
Earthing conductor size is determined by the cross-sectional area of phase conductors according to IEC/EN 61800-5-1:2007 Table 5. So if phase conductor size is changed,
earthing conductor size should also be changed accordingly.
If power cubes or bypass are used, a Class gG/gL fuse is recommended.

19
Instruction Leaet PUB53675
Effective June 2020
PowerXL DM1 and DM1 Pro series VFD
EATON www.eaton.com
Installation overview for DM1
2
DM1
L1, L2, L3, R+, R-, U, V, W

20
Instruction Leaet PUB53675
Effective June 2020
PowerXL DM1 and DM1 Pro series VFD
EATON www.eaton.com
Control board layout
IO terminals
Relay terminals
DIP switches
RJ45 port for Keypad/PC
Removable
EMC screw
Line wires Motor wires
Line grounding position Motor grounding position
Motor grounding wire
Line grounding wire
MOV screw
STO terminals Relay terminals
I/O terminals
15 STO_COM 16 STO2 17 STO1
18 RY1NO
19 RY1CM
20 RY1NC 21 RY2NO 22 RY2CM
8 AI1+
9 AI1-
10 GND 11 AO1+ 12 GND 13 +10 V 14 +24 V
1 DIN1
2 DIN2
3 DIN3
4 DIN4
5 CMA
6 A+
7 B-
Relay terminals I/O terminals
18 RY1NO
19 RY1CM
20 RY1NC
1 DIN1
2 DIN2
3 DIN3
4 DIN4
5 CMA
6 A+
7 B-
8 AI1+
9 AI1-
10 GND 11 AO1+ 12 GND 13 +10 V 14 +24 V
LCD
STO terminals
IO terminals
Relay terminals
MOV screw Removable
EMC screw
Option card port
DIP switches
RJ45 port for Keypad/PC
RJ45 port for Ethernet
Line grounding position Motor grounding position
Motor grounding wire
Line wires Motor wires
Line grounding wire
DM1 Pro face plate
DM1 face plate
