Quick Start Guide

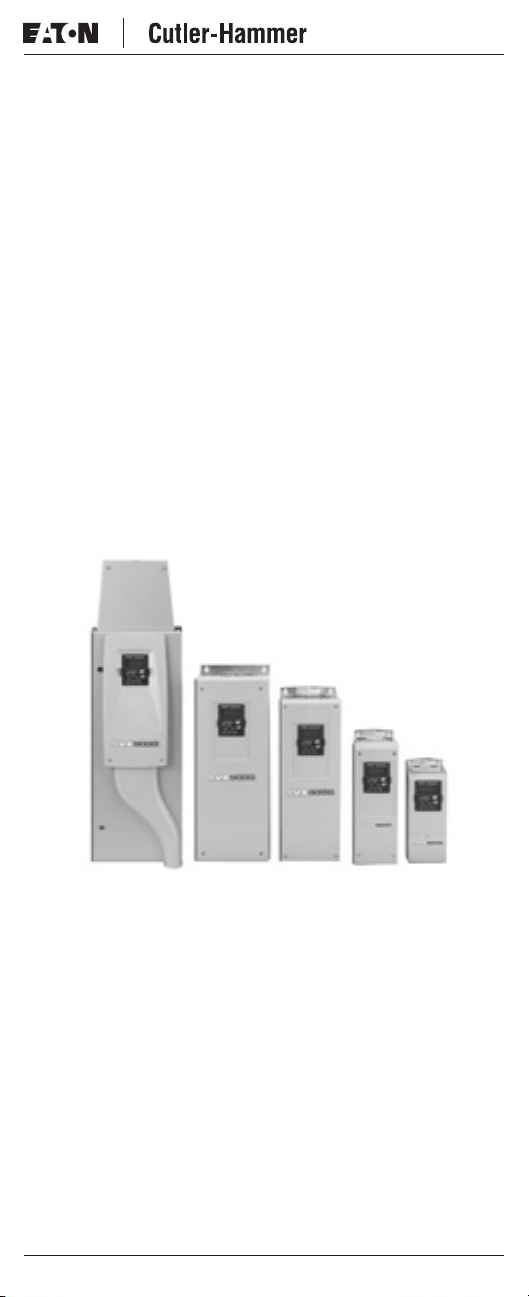

Cutler-Hammer SVX9000 Drives from Eaton Corporation
CONTENT
STEP 1 — Keypad Operation Overview
STEP 2 — Standard Wiring Diagrams and Connections
STEP 3 — Start-Up Wizard
STEP 4 — Operating and Programming Menu
Navigation
STEP 5 — Faults and Warning Indication
STEP 6 — Monitoring Menu
MN04003009E.fm Page 0 Thursday, February 17, 2005 11:59 AM

MN04003009E
1
December 2003
STEP 1
Keypad Operation Overview
Keypad and Display
LCD Status Indicators
LED Status Indicators
Indicator Description
Run
Indicates that the SVX9000 is running and controlling the load. Blinks
when a stop command has been given but the SVX9000 is still
ramping down.
Counterclockwise Operation
The output phase rotation is BAC, corresponding to counterclockwise
rotation of most motors.
Clockwise Operation
The output phase rotation is ABC, corresponding to clockwise rotation
of most motors.
Stop
Indicates that the SVX9000 is stopped and not controlling the load.
Ready
Indicates that the SVX9000 is ready to be started.
Alarm
Indicates that there is one or more active drive alarm(s).
Fault
Indicates that there is one or more active drive fault(s).
I/O Terminal
Indicates that the I/O terminals have been chosen for control.
Keypad
Indicates that the keypad has been chosen for control.
Bus/Communications
Indicates that the communications bus control has been chosen for
control.
Indicator Description
local Local — Steady Illumination
Indicates that the SVX9000 is ready to be started and operated from
the Local mode.
Local — Flashing
Indicates that the SVX9000 is ready for operating command to select
Local or Remote operation.
remote Remote
Indicates that the SVX9000 is operating and controlling the load
remotely.
Remote — Flashing
Indicates that the SVX9000 is ready for operating command to select
Local or Remote operation.
fault Fault
Indicates that there is one or more active drive fault(s).
MN04003009E.fm Page 1 Thursday, February 17, 2005 11:59 AM

MN04003009E
2
December 2003
STEP 1 (Continued)
Navigation Buttons
Menu Navigation
Navigation Tips
● To navigate within one level of a menu, use the up and down arrows.
● To move deeper into the menu structure and back out, use the right
and left arrows.
● To edit a parameter, navigate to show that parameter’s value, and press
the right arrow button to enter the edit mode. In edit mode, the
parameter value will flash.

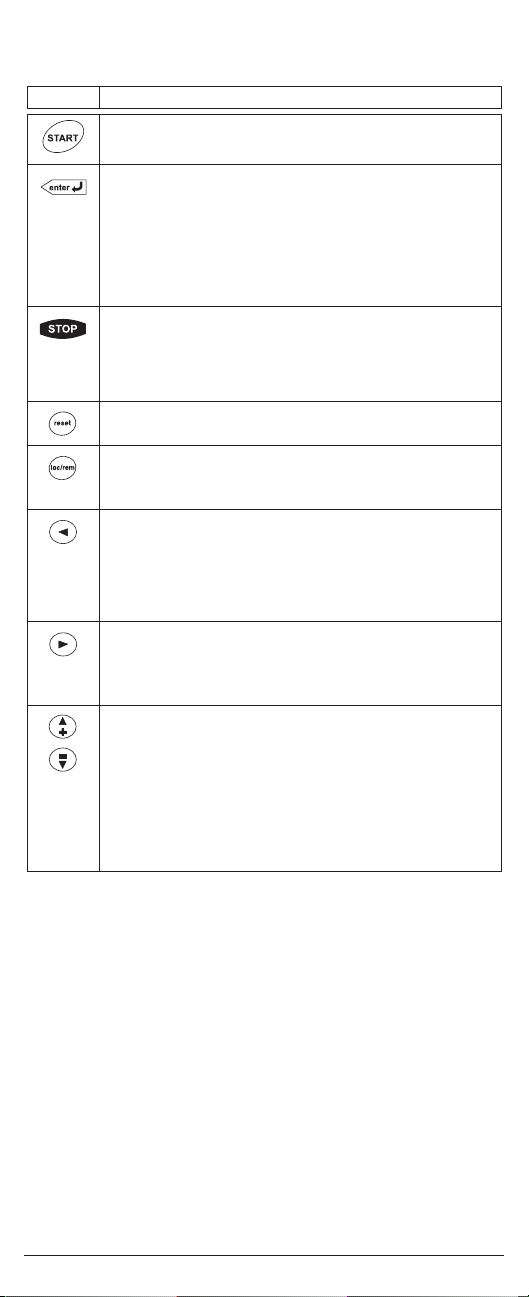

Button Description
Start
This button operates as the START button for normal operation when
the “Keypad” is selected as the active control.
Enter
This button is used in the parameter edit mode to save the parameter
setting and move to the next parameter …
•to reset the Fault History if pressed while in the “Fault History”
menu.
•to confirm the acceptance of a change.
•to change a virtual button status while in the “Button” menu.
•to confirm the start-up list at the end of the Start-Up Wizard.
•when the “Operate” menu is active, to exit the “Operate” submenu.
Stop
This button has two integrated operations. The button operates as
STOP button during normal operation …
•motor STOP from the keypad, which is always active unless
disabled by the “StopButtonActive” parameter.
•used to reset the active faults.
Reset
Resets the active faults.
Local / Remote
Switches between LOCAL and REMOTE control for start, speed
reference and reverse functions. The control locations corresponding
to local and remote can be selected within an application.
Left Arrow
•navigation button, movement to left.
•in parameter edit mode, exits mode, backs up one step.
•cancels edited parameter (exit from a parameter edit mode).
•When in “Operate” menu will move backward through menu.
•At end of “Start-Up Wizard”, repeats the “Start-Up Wizard”
setup menu.
Right Arrow
•navigation button, movement to right.
•enter parameter group mode.
•enter parameter mode from group mode.
•When in “Operate” menu will move forward through menu.
Up and Down Arrows
•move either up or down a menu list to select the desired menu item.
•editing a parameter/password, while the active digit/character is
scrolled.
•increase/decrease the reference value of the selected parameter.
•in the “Operate” menu, will cause the display of the active reference
source and value and allow its change if the keypad is the active
reference source. Used to set the password (if defined) when
leaving the “Operate” menu.
•scroll through the “Active Faults” menu when the SVX9000 is
stopped.
MN04003009E.fm Page 2 Thursday, February 17, 2005 11:59 AM

MN04003009E
3
December 2003
STEP 1 (Continued)
● When in edit mode, the parameter value can be changed by pressing
the up or down arrow keys.
● When in edit mode, pressing the right arrow a second time will allow
you to edit the parameter value digit by digit.
● To confirm the parameter change you must press the ENTER button.
The value will not change unless the ENTER button is pushed.
● Some parameters can not be changed while the SVX9000 is running.
The screen will display LOCKED if you attempt to edit these parameters
while the drive is running. Stop the drive to edit these parameters. See
the SVX9000 Application Manual for identification of these parameters
specific to your chosen application.
Main Menu
The data on the control keypad are arranged in menus and submenus. The
first menu level consists of M1 to M8 and is called the Main Menu. The Main
Menu is illustrated on Page 7. Some of the submenus will vary for each
application choice.
STEP 2
Standard Wiring Diagrams and Terminal Locations
Power and Motor Wiring Terminal Schematic for SVX9000 Drives
SVX9000 Power and Motor Wiring for Low Horsepower Drives (1 – 30 hp)
UVW
B+
M
3~
L1 L2 L3
L1 L2 L3 B- R-
External
RFI-Filter
(Optional)
BR
(Optional)
External
Filter
(Optional)
BR
Power
Board
230V 1 – 15 hp
480V 1-1/2 – 30 hp
Control
Board
MN04003009E.fm Page 3 Thursday, February 17, 2005 11:59 AM

MN04003009E
4
December 2003
STEP 2 (Continued)
SVX9000 Power and Motor Wiring for
Large Horsepower Drives (20 – 250 hp)
UVW
B+
M
3~
L1 L2 L3
L1 L2 L3 B- R-
External
RFI-Filter
(Optional)
BR
(Optional)
External
Filter
(Optional)
BR
Power
Board
230V 20 – 30 hp
480V 40 – 250 hp
Control
Board
MN04003009E.fm Page 4 Thursday, February 17, 2005 11:59 AM

MN04003009E
5
December 2003
STEP 2 (Continued)
Basic Application Default I/O Configuration

GND terminals 3, 7 and 13 are internally connected.

For the STANDARD Application, input signals at DIN1 and DIN2 are
programmed as a pair using parameter 2.1.

Connect CMA/CMB inputs to either logic high or logic low depending
upon your application. Refer to the SVX9000 User Manual and
SVReady Application Manual for additional information.

Maximum Switching Voltage: 300V DC, 250V AC
Maximum Switching Load: 8A/24V DC; 0.4A/250V DC; 2 kVA/250V AC
Maximum Continuous Load: 2A rms
Terminal Signal Description
NXOPTA9
1+10Vref Reference output Voltage for potentiometer, etc.
2AI1+ Analog input,
voltage range
0–10V DC
Voltage input frequency
reference
3AI1- I/O Ground Ground for reference and
controls
4AI2+ Analog input,
current range
0–20 mA
Current input frequency
reference
5AI2-
6+24V Control voltage
output
Voltage for switches, etc.
max 0.1A
7GND I/O ground Ground for reference and
controls
8DIN1 Start forward Contact closed = start forward
9DIN2 Start reverse Contact closed = start reverse
10 DIN3 External fault
input
(programmable)
Contact open = no fault
Contact closed = fault
11 CMA Common for
DIN 1 – DIN 3
Connect to GND or +24V
12 +24V Control voltage
output
Voltage for switches
(see terminal 6)
13 GND I/O ground Ground for reference and
controls
14 DIN4 Multi-step speed
select 1 DIN4 DIN5
Frequency
ref.
15 DIN5 Multi-step speed
select 2
Open
Closed
Open
Closed
Open
Open
Closed
Closed
Ref.Vin
Multi-step
ref.1
Multi-step
ref.2
RefMax
16 DIN6 Fault reset Contact open = no action
Contact closed = fault reset
17 CMB Common for
DIN4 – DIN6
Connect to GND or +24V
18 AO1+ Output frequency
Analog output
Programmable
Range 0 – 20 mA, RLmax.
5001
19 AO1-
20 DO1 Digital output
READY
Programmable
Open collector, I)50 mA,
V)48V DC
NXOPTA2
21 RO1 Relay
output 1

RUN
22 RO1
23 RO1
24 RO2 Relay
output 2

FAULT
25 RO2
26 RO2
Remote reference
0(4) – 20 mA
READY
Reference potentiometer
1–10 k1
mA
RUN







MN04003009E.fm Page 5 Thursday, February 17, 2005 11:59 AM

MN04003009E
6
December 2003
STEP 3
Start-Up Wizard
If the wizard is not enabled at power-up, press the RESET button for 10 secs.
to enable it.
Startup Wizard
“Press Enter”
Language
“English”
Application
“Basic”
Setup Starts
“Press Enter”
Min. Freq
“0.00” Hz
Max. Freq
“60.00” Hz
Accel. Time
“3.0” s
Decel Time 1
“3.0” s
Current Limit
“3.30” A
Motor NP Volt
“460” V
Motor NP Freq
“60.00” Hz
Motor NP Speed
“1720” rpm
Motor NP Current
“2.20” A
Power Factor
“0.85”
Start Mode
“Ramping”
Stop Mode
“Ramping”
Loc. Ctrl. Place
“Keypad”
Rem. Ctrl. Place
“I/O Terminal”
Remote Reference
“AI1”
Repeat Setup?
Press
Operating Menu
3 Seconds
Wait
Setup Done
MN04003009E.fm Page 6 Thursday, February 17, 2005 11:59 AM

MN04003009E
7
December 2003
STEP 4
Operating & Programming Menu Navigation
Output Freq
“29.6” Hz
O1
Freq Reference
“29.6” Hz
O2
Parameters
P1 P22
M1
Fault History
H1 H8
M4
Motor Speed
“885” rpm
O3
Motor Current
“0.09” A
O4
Keypad Control
M2
Motor Torque
“2.6” %
O5
Motor Power
“0.5” %
O6
Active Faults
F0
M3
Motor Voltage
“255.7” V
O7
DC – Bus Volt
“580” V
O8
Unit Temp.
“32°” C
O9
Motor Temp.
“0.1” %
O10 M5
Programming
“Press Enter”
M6
M7
Operate Mode
“Press Enter”
M8
Operate Menu Programming
System Menu
S1 S8
Expander Boards
G1 G5
Monitor
V1 M17
If the program were password
protected, the password would be
needed for access into the program.
You may log out of any of the above
parameters directly into “Programming”
by pressing the key for 2 seconds.
MN04003009E.fm Page 7 Thursday, February 17, 2005 11:59 AM

MN04003009E
8
December 2003
STEP 4 (Continued)
Operate Menu — M8
The Operate Menu provides a easy to use method of viewing key numerical
Monitoring Menu items. Some applications also support the setting of
reference values in this menu. The items displayed vary by application. The
table below is an example for the Standard application.
Operate Menu Items — Standard Application Example
The menu is navigated by using the left and right arrow buttons. If a
reference level is available for setting, the up and down arrow buttons adjust
the value. To exit the Operate Menu to access the other menus, depress the
ENTER button for 2 seconds. While in the other menus, if there is no keypad
activity, the display will return to the Operate Menu after 30 seconds.
Code Signal Name Unit Description
O.1 Output Frequency Hz Output frequency
O.2 FreqReference Hz Frequency reference
O.3 Motor Speed rpm Calculated motor speed
O.4 Motor Current A Measured motor current
O.5 Motor Torque % Calculated torque based on nominal motor
torque
O.6 Motor Power % Calculated power based on nominal motor
power
O.7 Motor Voltage V Calculated motor voltage
O.8 DC-Bus Voltage V Measured DC-bus voltage
O.9 Unit Temperature °C Heatsink temperature
O.10 MotorTemperature % Calculated motor temperature based on the
motor nameplate information and the
calculated motor load
R1 Keypad Reference Hz Keypad frequency reference setting
MN04003009E.fm Page 8 Thursday, February 17, 2005 11:59 AM

MN04003009E
9
December 2003
STEP 4 (Continued)
Parameters — M1
Basic Parameters — M1

Parameter value can only be changed when the SVX9000 is stopped.
Code Parameter Min. Max. Unit Default Cust ID Note
P1.1 Min frequency 0.00 P1.2 Hz 0.00 101
P1.2 Max frequency P1.1 320.00 Hz 60.00 102 NOTE: If f
Max
> motor
synchronous speed,
check suitability for
motor and drive system
P1.3 Acceleration time
1
0.1 3000.0 s 3.0 103
P1.4 Deceleration time
1
0.1 3000.0 s 3.0 104
P1.5 Current limit 0.4 x
I
H
2 x I
H
AI
L
107 I
H
is the nominal current
rating of the SVX9000
P1.6

Nominal voltage
of the motor
180 690 V HVX-2:
230V
HVX-4:
460V
110 Motor nameplate value
P1.7

Nominal
frequency of the
motor
30.00 320.00 Hz 60.00 111 Motor nameplate value
P1.8

Nominal speed of
the motor
300 20 000 rpm 1775 112 Motor nameplate value
— The default applies
for a 4-pole motor and a
nominal size SVX9000.
P1.9

Nominal current
of the motor
0.4 x
I
H
2 x I
H
AI
H
113 Motor nameplate value
P1.10

Power factor 0.30 1.00 0.85 120 Motor nameplate value
P1.11 Start function 0 1 0 505 0= Ramp
1= Flying start
P1.12 Stop function 0 3 1 506 0= Coasting
1= Ramp
2= Ramp+Run enable
coast
3= Coast+Run enable
ramp
P1.13 Local Control
Place
13 2 171 1 = I/O Terminal
2 = Keypad
3 = Fieldbus
P1.14 Remote Control
Place
13 1 172 1 = I/O Terminal
2 = Keypad
3 = Fieldbus
P1.15 Remote reference 0 3 0 174 0= AI1
1= AI2
2= Keypad
3= Fieldbus
P1.16

V/Hz optimization 0 1 0 109 0= Not used
1= Automatic torque
boost
P1.17 Current reference
offset
01 1 302 0= No offset, 0 – 20 mA
1= Offset, 4 mA – 20 mA
P1.18 Analog output
function
08 1 307 0= Not used
1= Output freq. (0 – f
Max
)
2= Freq. reference
(0 – f
Max
)
3= Motor speed
(0 – Motor nominal
speed)
4= Output current
(0 – I
nMotor
)
5= Motor torque
(0 – T
nMotor
)
6= Motor power
(0 – P
nMotor
)
7= Motor voltage
(0 – U
nMotor
)
8= DC-bus volt
(0 – 1000V)
P1.19

DIN3 function 0 6 1 301 0= Not used
1= Ext. fault, closing
cont.
2= Ext. fault, opening
cont.
3= Run enable, cc
4= Run enable, oc
5= Force cp. to Local
6= Force cp. to Remote
P1.20 Preset speed 1 0.00 P1.2 Hz 0.00 105 Speeds preset by
operator
P1.21 Preset speed 2 0.00 P1.2 Hz 60.00 106 Speeds preset by
operator
P1.22 Automatic restart 0 1 0 731 0= Disabled
1= Enabled
MN04003009E.fm Page 9 Thursday, February 17, 2005 11:59 AM

MN04003009E
10
December 2003
STEP 4 (Continued)
Input Signals — M1 ➔G1.2

Parameter value can only be changed when the SVX9000 is stopped.

Rising edge pulse required.
Output Signals — M1 ➔G1.3
Code Parameter Min. Max. Unit Default Cust ID Note
P1.2.1

Start/Stop logic 0 6 0 300 DIN1 DIN2
0
1
2
3
4
5
6
Start fwd
Start/Stop
Start/Stop
Start pulse
Fwd

Start

/
Stop
Start

/
Stop
Start rev
Rev/Fwd
Run
enable
Stop
pulse
Rev

Rev

/
Fwd
Run
enable

P1.2.2

DIN3 function 0 7 1 301 0= Not used
1= Ext. fault, closing
contact
2= Ext. fault, opening
contact
3= Run enable
4= Acc./Dec. time select
5= Force control pt. to
Local
6= Force control pt. to
Remote
7= Rev (if P1.2.1 = 3)
P1.2.3 Current
reference offset
01 1 302 0= 0 – 20 mA
1= 4 – 20 mA
P1.2.4 Reference
scaling
minimum value
0.00 P1.2.5 Hz 0.00 303 Selects the frequency that
corresponds to the min.
reference signal
P1.2.5 Reference
scaling
maximum value
0.00 320.00 Hz 0.00 304 Selects the frequency that
corresponds to the max.
reference signal
0.00 = No scaling
P1.2.6 Reference
inversion
01 0 305 0= Not inverted
1= Inverted
P1.2.7 Reference filter
time
0.00 10.00 s 0.10 306 0.00 = No filtering
P1.2.8 AI1 signal
selection
AnIN:
0.1
AnIN:
E.10
AnIN:
A.1
377 TTF programming
method used.
P1.2.9 AI2 signal
selection
AnIN:
0.1
AnIN:
E.10
AnIN:
A.2
388 TTF programming
method used.
Code Parameter Min. Max. Unit Default Cust ID Note
P1.3.1 Analog
output 1
signal
selection
AnOUT:
0.1
AnOUT:
E.10
AnOUT:
A.1
464 TTF programming
method used.
P1.3.2 Analog output
function
08 1 307 0= Not used
1= Output freq.
(0 – f
Max
)
2= Freq. reference
(0 – f
Max
)
3= Motor speed
(0 – Motor nominal
speed)
4= Motor current
(0 – I
nMotor
)
5= Motor torque
(0 – T
nMotor
6= Motor power
(0 – P
nMotor
)
7= Motor voltage
(0 – V
nMotor
)
8= DC-Bus volt
(0 – 1000V)
P1.3.3 Analog output
filter time
0.00 10.00 s 1.00 308 0.00 = No filtering
P1.3.4 Analog output
inversion
01 0 309 0= Not inverted
1= Inverted
P1.3.5 Analog output
minimum
01 0 310 0= 0 mA
1= 4 mA
P1.3.6 Analog output
scale
10 1000 % 100 311 100 = No scaling
MN04003009E.fm Page 10 Thursday, February 17, 2005 11:59 AM

MN04003009E
11
December 2003
STEP 4 (Continued)
Output Signals — M1 ➔G1.3, continued
Drive Control Parameters — M1 ➔G1.4

Parameter value can only be changed when the SVX9000 is stopped.
Code Parameter Min. Max. Unit Default Cust ID Note
P1.3.7 Digital output 1
function
016 1 312 0= Not used
1= Ready
2= Run
3= Fault
4= Fault inverted
5= FC overheat
warning
6= Ext. fault or
warning
7= Ref. fault or
warning
8= Warning
9= Reversed
10 = Preset speed 1
11 = At speed
12 = Motor. regulator
active
13 = Freq. limit 1
supervision
14 = Remote control
active
15 = Thermistor fault
warning
16 = Fieldbus digital
input 1
P1.3.8 Relay output 1
function
0162 313 Same as P1.3.7
P1.3.9 Relay output 2
function
0163 314 Same as P1.3.7
P1.3.10 Output
frequency limit
1 supervision
02 0 315 0= No limit
1= Low limit
supervision
2= High limit
supervision
P1.3.11 Output
frequency limit
1; Supervised
value
0.00 P1.1.2 Hz 0.00 316
P1.3.12 Analog output
2 signal
selection
AnOUT:
0.1
AnOUT:
E.10
AnOUT:
0.1
471 TTF programming
method used.
P1.3.13 Analog output
2 function
08 4 472 See P1.3.2
P1.3.14 Analog output
2 filter time
0.00 10.00 s 1.00 473 0.00 = No filtering
P1.3.15 Analog output
2 inversion
01 0 474 0= Not inverted
1= Inverted
P1.3.16 Analog output
2 minimum
01 0 475 0= 0 mA
1= 4 mA
P1.3.17 Analog output
2 scaling
10 1000 % 100 476 100 = No scaling
Code Parameter Min. Max. Unit Default Cust ID Note
P1.4.1 Ramp 1 shape 0.0 10.0 s 0.0 500 0.0 = Linear
>0.0 = S-curve ramp time
P1.4.2 Ramp 2 shape 0.0 10.0 s 0.0 501 0.0 = Linear
>0.0 = S-curve ramp time
P1.4.3 Acceleration
time 2
0.1 3000.0 s 10.0 502
P1.4.4 Deceleration
time 2
0.1 3000.0 s 10.0 503
P1.4.5

Brake chopper 0 4 0 504 0= Disabled
1= Used when running
2= External brake
chopper
3= Used when stopped/
running
4= Used when running
(no testing)
P1.4.6 Start function 0 1 0 505 0= Ramp
1= Flying start
P1.4.7 Stop function 0 3 1 506 0= Coasting
1= Ramp
2= Ramp+Run enable
coast
3= Coast+Run enable
ramp
P1.4.8 DC braking
current
0.4 x
I
H
2.0 x
I
H
AI
H
507
MN04003009E.fm Page 11 Thursday, February 17, 2005 11:59 AM

MN04003009E
12
December 2003
STEP 4 (Continued)
Drive Control Parameters — M1 ➔G1.4, continued
Prohibit Frequencies — M1 ➔G1.5
Motor Control Parameters — M1 ➔G1.6

Parameter value can only be changed when the SVX9000 is stopped.
Code Parameter Min. Max. Unit Default Cust ID Note
P1.4.9 DC braking
time
at stop
0.00 600.00 s 0.00 508 0.00 = DC brake is off at
stop
P1.4.10 Frequency to
start DC
braking during
ramp stop
0.10 10.00 Hz 1.50 515
P1.4.11 DC braking
time
at start
0.00 600.00 s 0.00 516 0.00 = DC brake is off at
start
P1.4.12 Flux brake 0 1 0 520 0= Off
1= On
P1.4.13 Flux braking
current
0.4 x
I
H
2.0 x
I
H
AI
H
519
Code Parameter Min. Max. Unit Default Cust ID Note
P1.5.1 Prohibit
frequency
range 1 low
limit
0.00 P1.5.2 Hz 0.00 509
P1.5.2 Prohibit
frequency
range 1 high
limit
P1.5.1 320.00 Hz 0.00 510
P1.5.3 Prohibit acc./
dec. ramp
0.1 10.0 1.0 518 Multiplier for ramp time
in prohibit frequency
range, e.g. 0.1 = 10% of
normal ramp time
Code Parameter Min. Max. Unit Default Cust ID Note
P1.6.1

Motor control
mode
01 0 600 0= Frequency control
1= Speed control
P1.6.2

V/Hz
optimization
01 0 109 0= Not used
1= Automatic torque
boost
P1.6.3

V/Hz ratio
selection
03 0 108 0= Linear
1= Squared
2= Programmable
3= Linear with flux
optimiz.
P1.6.4

Field
weakening
point
8.00 320.00 Hz 60.00 602
P1.6.5

Voltage at field
weakening
point
10.00 200.00 % 100.00 603 n% x V
nMotor
P1.6.6

V/Hz curve
midpoint
frequency
0.00 P1.6.4 Hz 60.00 604
P1.6.7

V/Hz curve
midpoint
voltage
0.00 P1.6.5 % 100.00 605 n% x V
nMotor
P1.6.8

Output voltage
at zero
frequency
0.00 40.00 % 0.00 606 n% x V
nMotor
P1.6.9 Switching
frequency
1.0 Varies kHz Varies 601 See SVX9000
Application Manual for
exact values
P1.6.10 Overvoltage
controller
02 1 607 0= Not used
1= Used (no ramping)
2= Used (ramping)
P1.6.11 Undervoltage
controller
01 1 608 0= Not used
1= Used
P1.6.12 Load Drooping 0.00 100.00 % 0.01 620 Drooping % of
nominal speed at
nominal torque
P1.6.13 Identification 0 2 0 631 0= Not used
1= OL V/Hz Ratio
2= OL V/Hz+Boost
MN04003009E.fm Page 12 Thursday, February 17, 2005 11:59 AM

MN04003009E
13
December 2003
STEP 4 (Continued)
Protections — M1 ➔G1.7
Auto Restart Parameters — M1 ➔G1.8
Code Parameter Min. Max. Unit Default Cust ID Note
P1.7.1 Response to
4 mA reference
fault
05 0 700 0= No response
1= Warning
2= Warning+Previous
Freq.
3= Wrng+Preset Freq
P1.7.2
4= Fault, stop per
P1.4.7
5= Fault, stop by
coasting
P1.7.2 4 mA reference
fault frequency
0.00 P1.1.2 Hz 0.00 728
P1.7.3 Response to
external fault
03 2 701 0= No response
1= Warning
2= Fault, stop per
P1.4.7
3= Fault, stop by
coasting
P1.7.4 Input phase
supervision
03 0 730 See P1.7.3
P1.7.5 Response to
undervoltage fault
13 2 727 See P1.7.3
P1.7.6 Output phase
supervision
03 2 702 See P1.7.3
P1.7.7 Earth fault
protection
03 2 703 See P1.7.3
P1.7.8 Thermal protection
of the motor
03 2 704 See P1.7.3
P1.7.9 Motor ambient
temperature factor
-100.0 100.0 % 0.0 705
P1.7.10 Motor cooling
factor at zero
speed
0.0 150.0 % 40.0 706 As a % of I
nMotor
P1.7.11 Motor thermal
time constant
1200 min 45 707
P1.7.12 Motor duty cycle 0 100 % 100 708
P1.7.13 Stall protection 0 3 0 709 See P1.7.3
P1.7.14 Stall current 0.1 I
nMotor
x 2
AI
L
710
P1.7.15 Stall time limit 1.00 120.00 s 15.00 711
P1.7.16 Stall frequency
limit
1.0 P1.1.2 Hz 25.0 712
P1.7.17 Underload
protection
03 0 713 See P1.7.13
P1.7.18 Underload protect.
f
nom
torque
10.0 150.0 % 50.0 714
P1.7.19 Underload
protect. f
0
torque
5.0 150.0 % 10.0 715
P1.7.20 Underload
protect. time limit
2.00 600.00 s 20.00 716
P1.7.21 Response to
thermistor fault
03 2 732 See P1.7.3
P1.7.22 Response to
fieldbus fault
03 2 733 See P1.7.3
P1.7.23 Response to slot
fault
03 2 734 See P1.7.3
Code Parameter Min. Max. Unit Default Cust ID Note
P1.8.1 Wait time 0.10 10.00 s 0.50 717
P1.8.2 Trial time 0.00 60.00 s 30.00 718
P1.8.3 Start function 0 2 0 719 0= Ramp
1= Flying start per
P1.4.6
2= System defined
P1.8.4 Number of tries after
undervoltage trip
010 0 720
P1.8.5 Number of tries after
overvoltage trip
010 0 721
P1.8.6 Number of tries after
overcurrent trip
03 0 722
P1.8.7 Number of tries after
reference trip
010 0 723
P1.8.8 Number of tries after
motor temperature
fault trip
010 0 726
P1.8.9 Number of tries after
external fault trip
010 0 725
P1.8.10 Number of tries after
underload fault trip
010 1 738
MN04003009E.fm Page 13 Thursday, February 17, 2005 11:59 AM

MN04003009E
14
December 2003
STEP 4 (Continued)
Keypad Control — M2
This menu provides the parameters for the setting of the keypad frequency
reference, the selection of motor direction when in keypad operation, and
when the STOP button is active.
Table 1-1: Keypad Control Parameters — M2
Other Menus — M3 to M6
Menus M3 to M6 provide information on the Active Faults, Fault History,
System Menu settings and the Expander Board setup. These menu items are
explained in detail in Chapter 5 of the SVX9000 User Manual.
STEP 5
Faults and Fault Codes
Code/Fault Directory
Code Parameter Min. Max. Unit Default Cust ID Note
R2.1 Keypad
reference
P1.1.1 P1.1.2 Hz
P2.2 Keypad
direction
01 0 123 0= Forward
1= Reverse
P2.3 Stop button 0 1 1 114 0= Stop enabled only in
keypad operation
1= Stop button always
enabled
Fault
Code Fault
Fault
Code Fault
Fault
Code Fault
1Overcurrent 16 Motor
overtemperature
40 Device unknown
2Overvoltage 17 Motor underload 41 IGBT temperature
3Ground (Earth)
Fault
22 EEPROM
checksum fault
42 Brake resistor
overtemperature
5Charging Switch 24 Counter fault 43 Encoder fault
6Emergency stop 25 Microprocessor
watchdog fault
44 Device change
(different type)
7Saturation trip 26 Startup prevented 45 Device added
(different type)
8System fault 29 Thermistor fault 50 Analog input I
in
< 4 mA (for the
signal range 4 to
20 mA)
9Undervoltage 31 IGBT temperature
(hardware)
51 External fault
10 Input line
supervision
32 Fan heat sink 52 Keypad
communication
fault
11 Output phase
supervision
34 CAN bus
communication
53 Communication
bus fault
12 Brake chopper
supervision
36 Control unit 54 Slot fault
13 SVX9000
undertemperature
37 Device change
(same type)
56 PT100 board
temperature fault
14 SVX9000
overtemperature
38 Device added
(same type)
——
15 Motor stalled 39 Device removed ——
MN04003009E.fm Page 14 Thursday, February 17, 2005 11:59 AM

© 2003 Eaton Corporation
All Rights Reserved
Publication No. MN0400309E/CPG
December 2003
Printed in USA
Eaton Electrical
1000 Cherrington Parkway
Moon Township, PA 15108-4312
USA
tel: [phone]
www.eatonelectrical.com
STEP 6
Monitoring Menu — M7
The Monitoring Menu items are meant for viewing parameter values during
operation. Monitored values are updated every 0.3 sec. Monitored items are
identified by item numbers V7.1 to V1.xx, where “xx” varies by application.
The table below provides an example of the monitored values for the
Standard application.
Monitored parameters are not editable from this menu (See Parameter
Menu [M1] to change parameter values).
Monitoring Menu Items — Standard Application Example
Digital Inputs — DIN1, DIN2, DIN3 Status
Digital Inputs — DIN4, DIN5, DIN6 Status
Digital and Relay Outputs — DO1, RO1, RO2 Status
Multimonitor (V7.17)
This parameter allows the viewing and selection (if allowed by System
menu item, P5.5.4) of three simultaneously monitored items from the
Monitored Menu Items shown in the table above. Use the right arrow key to
select the item to be modified and then the up or down arrow keys to select
the new item. Press the ENTER key to accept the change.
Code Signal Name Unit Description
V7.1 Output
Frequency
Hz Output frequency
V7.2 Frequency
reference
Hz Frequency reference setting
V7.3 Motor speed rpm Calculated motor speed
V7.4 Motor current A Measured motor current
V7.5 Motor torque % Calculated torque based on nominal motor torque
V7.6 Motor power % Calculated power based on nominal motor power
V7.7 Motor voltage V Calculated motor voltage
V7.8 DC bus voltage V Measured DC-bus voltage
V7.9 Unit temperature °C Heatsink temperature
V7.10 Calculated motor
temperature
°C Calculated motor temperature based on the
motor nameplate information and the calculated
motor load
V7.11 Analog Input 1 V Voltage input at Terminals AI1+ and GND
V7.12 Analog input 2 mA Current input at Terminals AI2+ and AI2-
V7.13 DIN1, DIN2, DIN3 — Digital input status (see figure below)
V7.14 DIN4, DIN5,DIN6 — Digital input status (see figure below)
V7.15 DO1, RO2, RO3 — Digital and relay output status (see figure below)
V7.16 Analog I
out
mA Current output at Terminals AO1+ and AO1-
V7.17 Multimonitor (See below)
V1.13
DIN1, DIN2, DIN3
OFF ON OFF
V1.14
DIN4, DIN5, DIN6
ON OFF OFF
V1.15
DO1, RO1, RO2
OFF OFF ON
MN04003009E.fm Page 15 Thursday, February 17, 2005 11:59 AM
