Eaton PXM 2250 User manual

Contents
Description Page
Mechanical Installation .....................1
Electrical Wiring...........................2
Network Planning .........................4
Locating the Gateway Card ..................5
Configuring the Meter’s Gateway Card for
Network Accessibility ......................6
Configuring a Fixed IP Address for the
Gateway Card using a local PC .............6
Verify the IP address .....................9
Network Access ..........................9

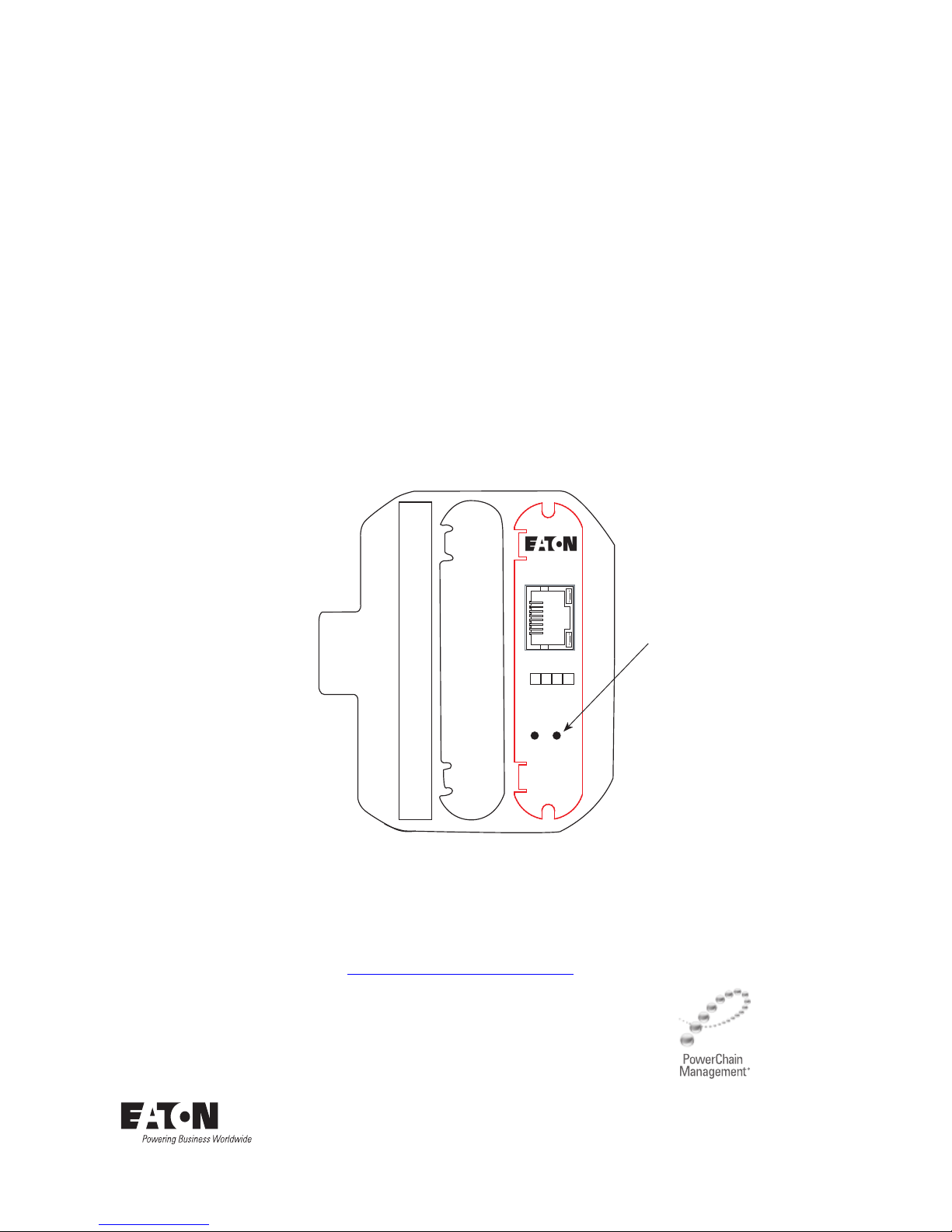

Restarting and Factory Defaults ..............9
Restart the Gateway Card .................9
Additional Information .....................10
Rev. 2 December 2011
PXM 2250
PXM 2260
PXM 2270
PXM 2280
PXM 2290
Quick Start Guide IM02601002E
Power Xpert Meter 2000 Series

Copyright © 2011 by Eaton Corporation. All rights reserved.
Specifications contained herein are subject to change without notice.
Power Xpert is a registered trademarks of Eaton Corporation.
EATON CORPORATION - CONFIDENTIAL AND PROPRIETARY NOTICE TO PERSONS RECEIVING THIS
DOCUMENT AND/OR TECHNICAL INFORMATION
THIS DOCUMENT, INCLUDING THE DRAWING AND INFORMATION CONTAINED THEREON, IS
CONFIDENTIAL AND IS THE EXCLUSIVE PROPERTY OF EATON CORPORATION, AND IS MERELY
ON LOAN AND SUBJECT TO RECALL BY EATON AT ANY TIME. BY TAKING POSSESSION OF THIS
DOCUMENT, THE RECIPIENT ACKNOWLEDGES AND AGREES THAT THIS DOCUMENT CANNOT
BE USED IN ANY MANNER ADVERSE TO THE INTERESTS OF EATON, AND THAT NO PORTION OF
THIS DOCUMENT MAY BE COPIED OR OTHERWISE REPRODUCED WITHOUT THE PRIOR WRITTEN
CONSENT OF EATON. IN THE CASE OF CONFLICTING CONTRACTUAL PROVISIONS, THIS NOTICE
SHALL GOVERN THE STATUS OF THIS DOCUMENT.
DISCLAIMER OF WARRANTIES AND LIMITATION OF LIABILITY
The information, recommendations, descriptions and safety notations in this document are based on
Eaton Electrical Inc. and/or Eaton Corporation’s (“Eaton”) experience and judgment and may not cover all
contingencies. If further information is required, an Eaton sales office should be consulted.
Sale of the product shown in this literature is subject to the terms and conditions outlined in appropriate
Eaton selling policies or other contractual agreement between Eaton and the purchaser.
THERE ARE NO UNDERSTANDINGS, AGREEMENTS, WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY,
OTHER THAN THOSE SPECIFICALLY SET OUT IN ANY EXISTING CONTRACT BETWEEN THE PARTIES.
ANY SUCH CONTRACT STATES THE ENTIRE OBLIGATION OF EATON. THE CONTENTS OF THIS
DOCUMENT SHALL NOT BECOME PART OF OR MODIFY ANY CONTRACT BETWEEN THE PARTIES.
In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence),
strict liability or otherwise for any special, indirect, incidental or consequential damage or loss whatso-
ever, including but not limited to damage or loss of use of equipment, plant or power system, cost of
capital, loss of power, additional expenses in the use of existing power facilities, or claims against the
purchaser or user by its customers resulting from the use of the information, recommendations and
descriptions contained herein.

PXM 2000 Quick Start Guide
Mechanical Installation
IM02601002E www.eaton.com 1

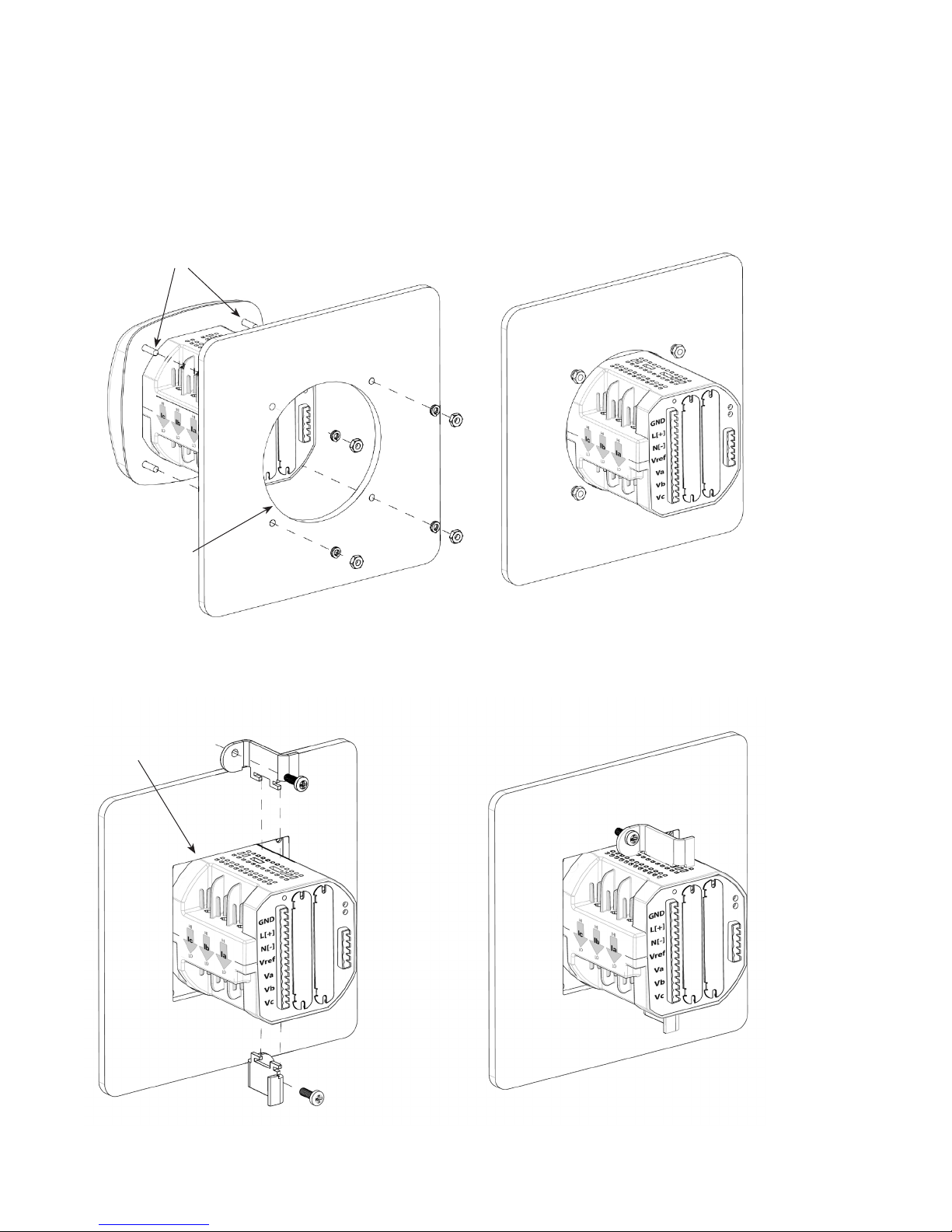

Mechanical Installation
4” Diameter round mounting
92 mm Square Form
ANSI Studs
4” Round Form Caution: Do not overtighten
nuts as this can damage the me-
ter. The maximum installation
torque is 0.4 Newton-Meter.
92 mm square form
Unscrew ANSI studs for
DIN Installation

PXM 2000 Quick Start Guide
Electrical Wiring
2www.eaton.com IM02601002E
Electrical Wiring
Note: Other wiring configurations are available. See the Power Expert Meter 2000 User
and Installation Guide for additional information

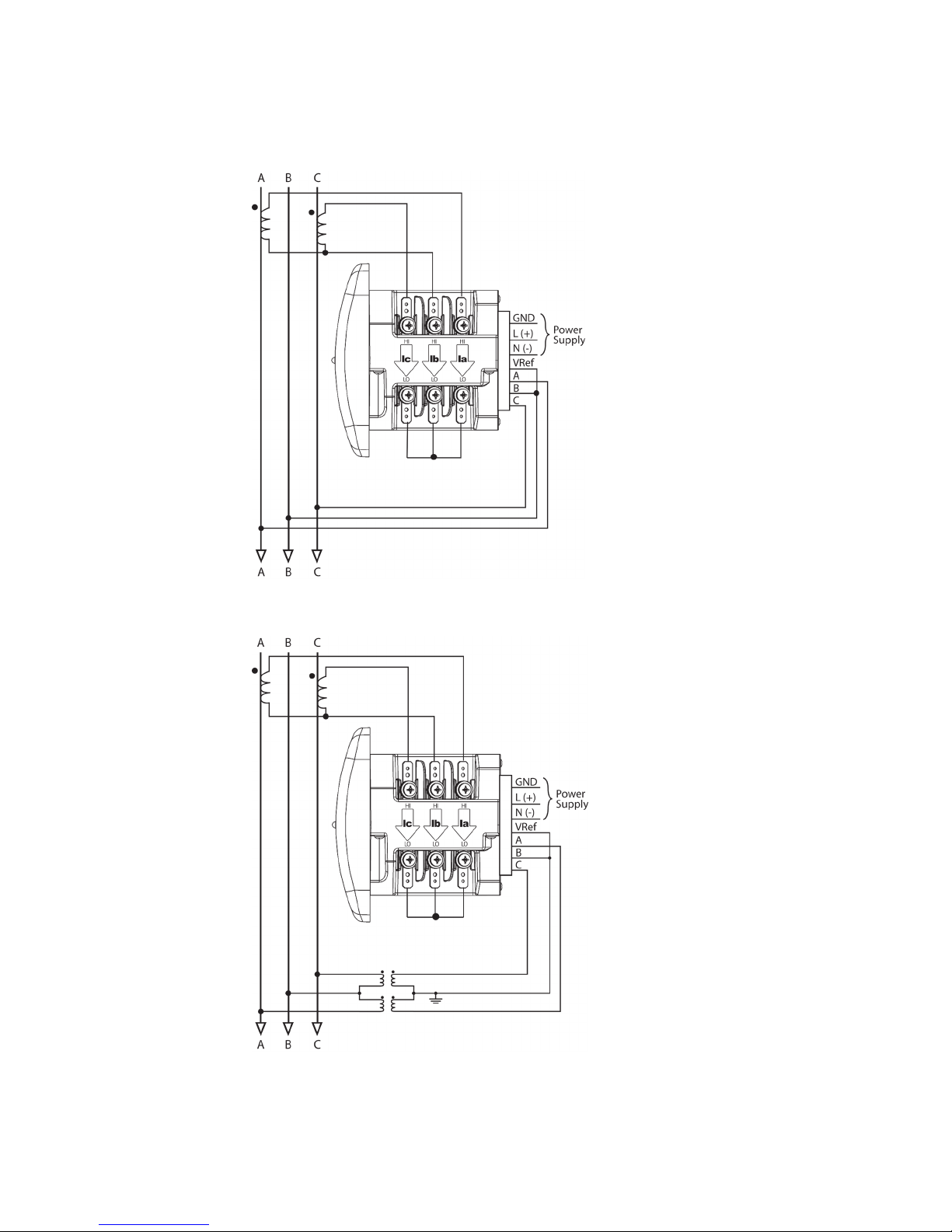

WYE Direct 3 Phase, 4-wire
WYE with PTs 3 Phase, 4-wire

PXM 2000 Quick Start Guide
Electrical Wiring
IM02601002E www.eaton.com 3
DELTA Direct 3 Phase, 3-wire
DELTA with PTs 3 Phase, 3-wire

PXM 2000 Quick Start Guide
Network Planning
4www.eaton.com IM02601002E
Network Planning
The hardware for the Power Xpert Meter 2000 family is similar to other EATON IQ 250
and 260 meters except that these meters include an integrated, multi-function Ethernet
network gateway card. The Power Xpert Meter 2000 Gateway Card provides many of
the features found in the rest of the Power Xpert line of meters, including:
• Local web server
• Modbus/TCP communitations
• SNMP communications
• Power Xpert Software (PXS) communications
• BACnet/IP communications
The Network PC requires a web browser (Internet Explorer versions 7 or 8 are sup-
ported) and an installed version 6 or later of the JAVA J2SE JRE (Java Runtime Environ-
ment). If Java is not already installed, you or the network administrator may download
it from www.java.com and install it per Sun’s instructions. See the Power Expert Meter
2000 User and Installation Guide for additional information.
An Ethernet connection is used for configuring the meter’s gateway card communica-
tion settings via a web browser. You may need to contact your network administrator for
some network and configuration information. In preparation, you will need to decide if
the meter will be manually assigned a fixed (static) IP address or will be automatically
assigned a fixed IP address by a DHCP server somewhere on the network. With either
method the assigned network address must not change once the meter has been de-
ployed. Changing the IP address will cause loss of communication until the associated
client PCs change the corresponding meter’s IP addresses.
Discuss with your network administrator whether you should manually configure the
meter with an assigned IP address or whether the DHCP server will assign one. For
the DHCP server to provide a fixed IP address, your network administrator will need to
know the MAC address assigned to the meter.
HCaution
Eaton strongly recommends using a fixed IP address if an Eaton PXS system will be ac-
cessing the meter. Otherwise, should the IP address change (after a power outage, for
example), PXS will no longer be able to access data from the meter.
The MAC address is found on a small label that consists of 14 letters and numbers. It
looks something like:
002080850047EF
Locate the MAC address on your meter and record it here.
MAC Address:______________________________________________________________
Is DHCP going to be used to assign the IP address to your meter? ___ Yes ___ No
If Yes:
Provide the MAC address to the network administrator and record the fixed IP address
the network administrator will assign to your meter in the DHCP server here:
IP Address:__________________________________________________________________

PXM 2000 Quick Start Guide
Locating the Gateway Card
IM02601002E www.eaton.com 5
The card will be configured remotely. Skip to the section entitled Verify the IP address
If No:
Record the following information provided by the network administrator here:
IP Address: _________________________________________________________________
Subnet Mask: _______________________________________________________________
Default Gateway: ____________________________________________________________
Primary DNS Server IP Address _______________________________________________
Secondary DNS Server IP Address _____________________________________________
Locating the Gateway Card
First, ensure power is applied to the meter.
The Power Expert Meter 2000 Gateway Card is the blue card installed in the right-most
option slot (slot 2) on the rear of the meter. The card is labeled: Power Xpert Gateway
PXM Series 2000.

PXM 2000 Quick Start Guide
Conguring the Meter’s Gateway Card for Network Accessibility
6www.eaton.com IM02601002E

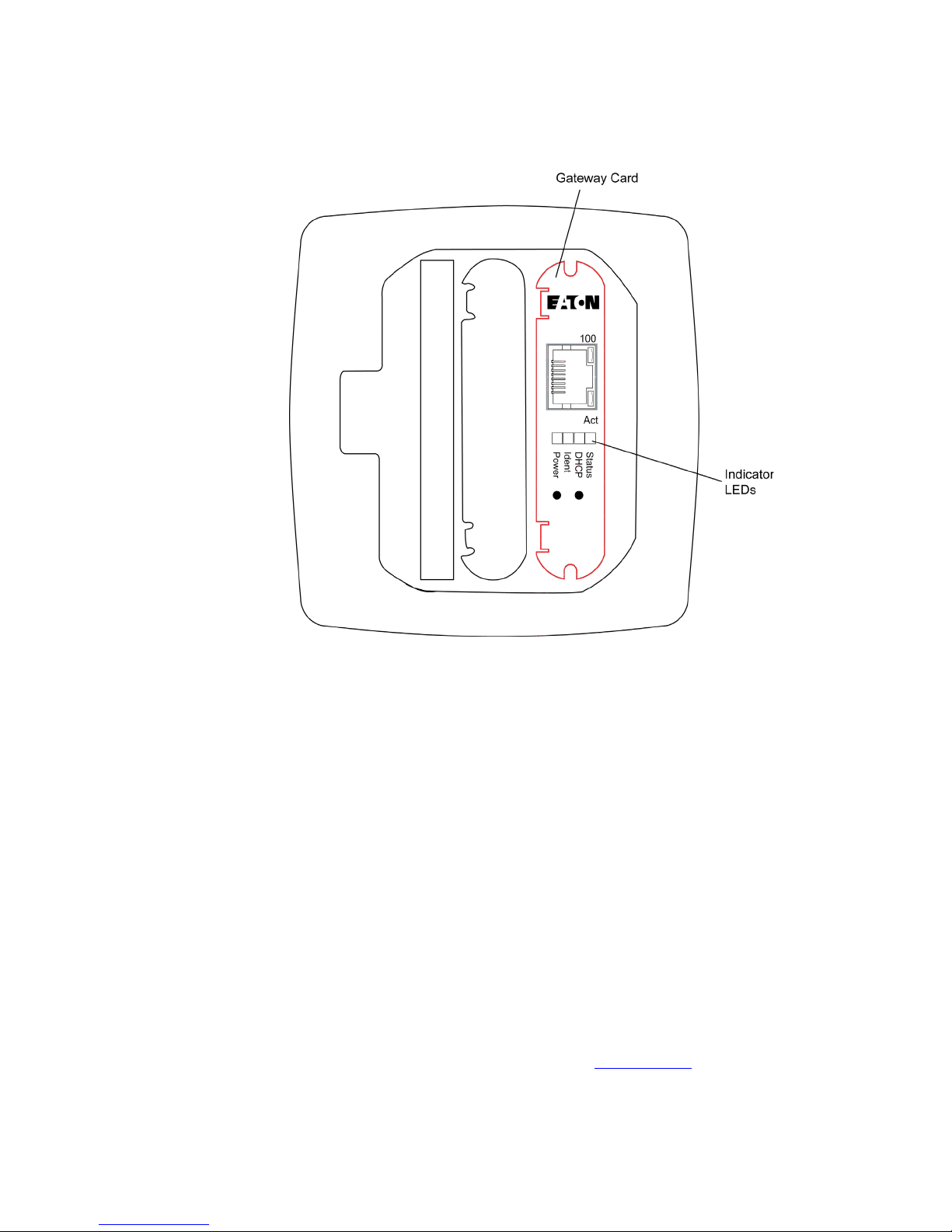

Location of Gateway Card
There are four indicator LEDs on the Gateway Card labeled: Status, DHCP, Ident, and
Power. When power is first applied all the lights should be off for a few seconds and
then the Power light will illuminate. This indicates the card has power and is running.
Configuring the Meter’s Gateway Card for Network Accessibility
Configuring a Fixed IP Address for the Gateway Card using a local PC
Your network administrator provided an IP address, a subnet mask, and a default gate-
way (which you entered in the previous section). This information must be entered into
the Gateway Card using a local PC, such as a laptop.
This method requires a PC with the following:
• an Ethernet port
• an Ethernet cable (either straight-through or cross-over)
• A web browser such as Internet Explorer 7 or 8
• an installed version 6 or later JAVA J2SE JRE (Java Runtime Environment). If not
already installed you may download it from www.java.com and install it. (If Java isn’t
installed, you’ll be prompted to install it.)
To congure the Gateway Card:
1. On the PC, launch the Java Control Panel screen (available through the Windows

PXM 2000 Quick Start Guide
Conguring the Meter’s Gateway Card for Network Accessibility
IM02601002E www.eaton.com 7
Control Panel).
2. On the General tab, click the Settings button under Temporary Internet Files.
3. Ensure the KeepTemporary Files on My Computer check box is cleared.
4. Connect the PC to the Gateway Card through an Ethernet cable (either a straight
though or cross-over CAT 5 cable).
There are two green lights (LEDs) located on the gateway card’s Ethernet port. If the
Ethernet cable is connected to an active Ethernet port on the PC both lights should
be illuminated (the light labeled Act may be flickering reflecting network activity).
5. The card’s default Ethernet IP address is 192.168.1.1. Set the PC’s address to an
address on the same subnet, such as 192.168.1.100. To do this, use the following
steps:
a. Click Window’s Start.
b. Choose either Settings > Control Panel (Windows 2000) or Control Panel
(Windows XP).
c. In the Control Panel, click Network Connections and right-click Local Area
Connection. Select Properties from the shortcut menu.
d. Click the Properties button.
e. In the Properties dialog box, select Internet Protocol (TCP/IP) and click the
Properties button.
f. In the Internet Protocol (TCP/IP) Properties dialog box, select Use the follow-
ing IP address and enter the following in the IP address field: 192.168.1.100
g. Click OK throughout the various dialog boxes.
6. Launch a web browser and navigate to the following IP address: 192.168.1.1
If an information screen appears stating the certificate cannot be verified and asking
if you want to run anyway, select run.
Loading Page
Java will load and then the meter’s Home page will appear.

PXM 2000 Quick Start Guide
Conguring the Meter’s Gateway Card for Network Accessibility
8www.eaton.com IM02601002E
Meter Home Page
7. Click the Setup button. The Setup page will appear. (You can also click the Setup
Meter link at the bottom of the page to go directly to the Quick Setup folder.)
8. Locate and click the open icon to the left of the Quick Setup folder. The folder opens
to show two subfolders: Meter and Network.
Opening the Quick Setup Folder
9. Click the Network folder.
10.Click the Edit button.
Edit Button (on the right of the page)
A Login dialog box appears.
11. The default Username is admin and the default Password is admin. Log in using
these credentials.

PXM 2000 Quick Start Guide
Network Access
IM02601002E www.eaton.com 9
Login dialog
12.If you successfully logged in as admin you may now configure the card for the set-
tings specified by your network administrator. Refer to the previously recorded net-
work settings. You can also enter such optional information as the meter’s location,
who to contact in case of problems, etc.
13.When you’ve completed configuration, click the OK button.
The new IP address will take effect shortly after clicking OK. The Gateway Card will
redirect you to the new IP address and reload the Java applet. You can continue to
configure the meter after it is connected to your LAN.
Refer to the PXM 2000 Meter User’s Guide (IM02601001E) for additional configura-
tion details.
14.Disconnect the Ethernet cable to the PC and connect the meter to the LAN.
Note: Remember to reconfigure the PC’s network settings for your LAN.
This concludes network configuration. You can now proceed to verify the IP address.
Verify the IP address
To check the IP address from the meter’s front panel:
1. If the meter has power, the display should be showing normal data, such as voltage,
current, etc.
2. Push the menu button on the face of the meter. The main menu screen appears.
3. Push down repeatedly until IP blinks.
4. Push enter and the meter’s IP address appears, which should appear something like
the following:
010.2
22.05
1.066
In this example the IP address is 010.222.051.066. This should match the ad-
dress the network administrator provided for this meter.
5. Push menu to return to the main menu.
Network Access
Once the network IP address is known, most meter functions and configuration can be
done via the network. Use a networked client PC running version 6 or later of the JAVA
J2SE JRE and a web browser such as Internet Explorer 7 or 8 to navigate to the meter’s
IP address. See the meter’s complete user’s manual for additional information.

PXM 2000 Quick Start Guide
Restarting and Factory Defaults
10 www.eaton.com IM02601002E
Restarting and Factory Defaults
The gateway card provides the ability to restart and to reset itself to the factory defaults.
There is a momentary push-button switch accessed through a small hole in the face
plate of the gateway card. Although it is not used in normal operations, this switch al-
lows you to restart the gateway card in the meter.
Restart the Gateway Card
The gateway card restart push-button switch is located behind the hole in the card face
plate closest to the LED labelled DHCP. This switch is used to restart just the gateway
card (not the meter) should it be necessary to recover from some abnormal condition.
Momentarily press the switch by pushing a small device into the hole to activate the
switch.
Note: It may take around five minutes before the meter pages begin to display values.
Gateway Card Reset Switch
100
Act
Status DHCP Ident Power
Additional Information
Detailed information on applications and options can be found in the PXM 2000 Meter
User’s Guide (IM02601001E) on the CD shipped with the meter. The guide can also be
found at http://www.eaton.com/powerxpert.
Reset switch
Eaton Corporation
Electrical Group
1000 Cherrington Parkway
Moon Township, PA 15108
United States
877-ETN-CARE (877-386-2273)
Eaton.com
© 2011 Eaton Corporation
All Rights Reserved
Printed in USA
Publication No. IM02601002E
October 2011
PowerChain Management is a registered
trademark of Eaton Corporation.
All other trademarks are property of their
respective owners.
