Eaton Powerware Series User manual

Powerware Series
Eaton BladeUPS
External Battery Interconnect
User's Guide
® ®

Eaton, Powerware, Advanced Battery Management, and BladeUPS are registered trademarks of Eaton Corporation
or its subsidiaries and affiliates. Phillips is a registered trademark of Phillips Screw Company. All other trademarks
are properties of their respective companies.
ECopyright 2009–2010 Eaton Corporation, Raleigh, NC, USA. All rights reserved. No part of this document may be
reproduced in any way without the express written approval of Eaton Corporation.

Requesting a Declaration of Conformity
Units that are labeled with a CE mark comply with the following harmonized standards and EU directives:
SHarmonized Standards: IEC 61000-3-12
SEU Directives: 73/23/EEC, Council Directive on equipment designed for use within certain voltage limits
93/68/EEC, Amending Directive 73/23/EEC
89/336/EEC, Council Directive relating to electromagnetic compatibility
92/31/EEC, Amending Directive 89/336/EEC relating to EMC
The EC Declaration of Conformity is available upon request for products with a CE mark. For copies of the EC
Declaration of Conformity, contact:
Eaton Power Quality Oy
Koskelontie 13
FIN-02920 Espoo
Finland
Phone: [phone]
Fax: [phone]

Special Symbols
The following are examples of symbols used on the UPS or accessories to alert you to important
information:
RISK OF ELECTRIC SHOCK - Observe the warning associated with the electric shock
symbol.
CAUTION: REFER TO OPERATOR'S MANUAL - Refer to your operator's manual for
additional information, such as important operating and maintenance
instructions.
This symbol indicates that you should not discard the UPS or the UPS batteries
in the trash. This product contains sealed, lead‐acid batteries and must be
disposed of properly. For more information, contact your local recycling/reuse or
hazardous waste center.
This symbol indicates that you should not discard waste electrical or electronic
equipment (WEEE) in the trash. For proper disposal, contact your local
recycling/reuse or hazardous waste center.

Eaton®BladeUPS®External Battery Interconnect User's Guide S164201794 Rev 3 www.eaton.com/powerquality 5
Table of Contents
1 Introduction 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Safety Warnings 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 Installation 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Customer-Supplied External Battery 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Required Tools 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Choosing a Mounting Option 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

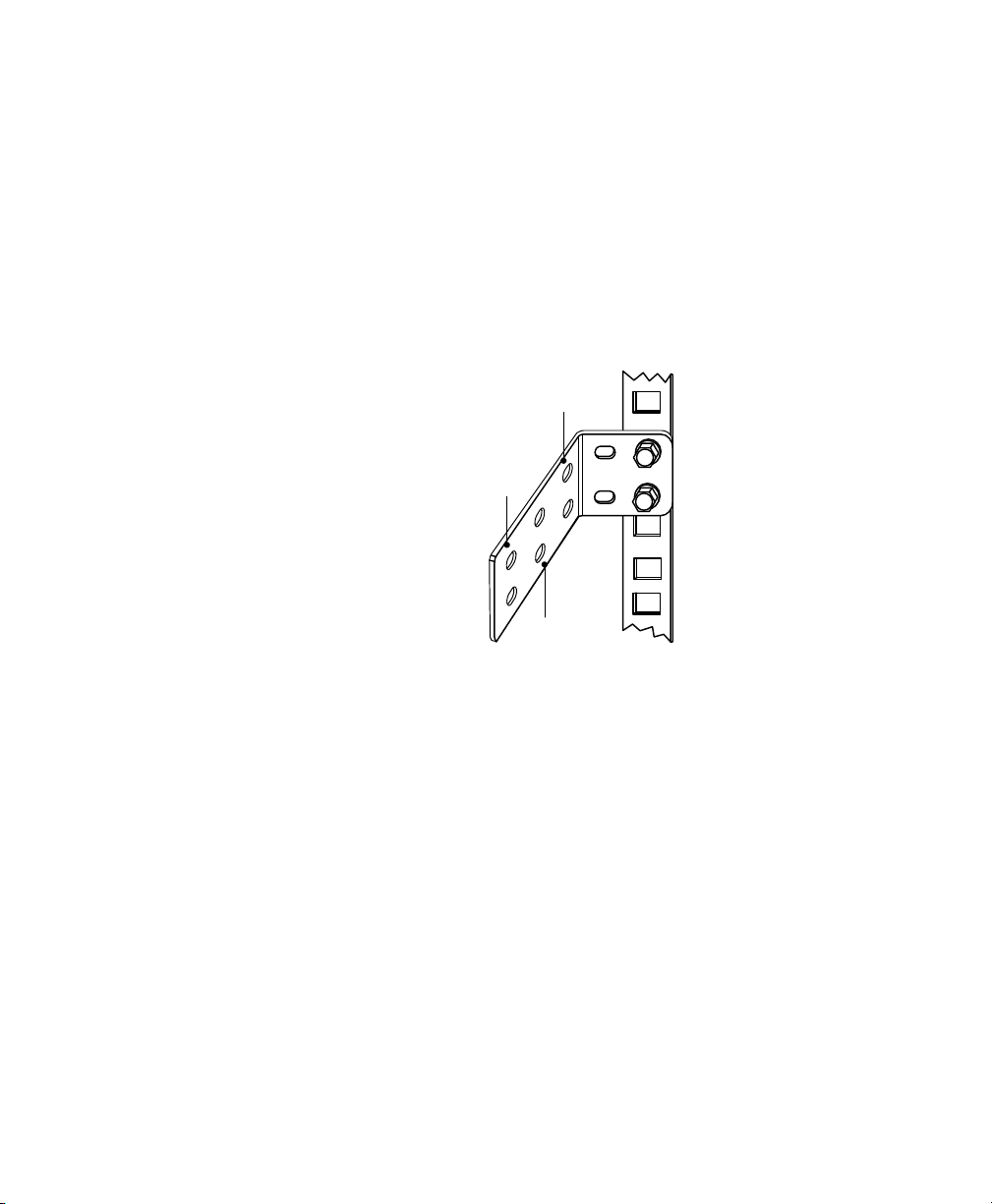

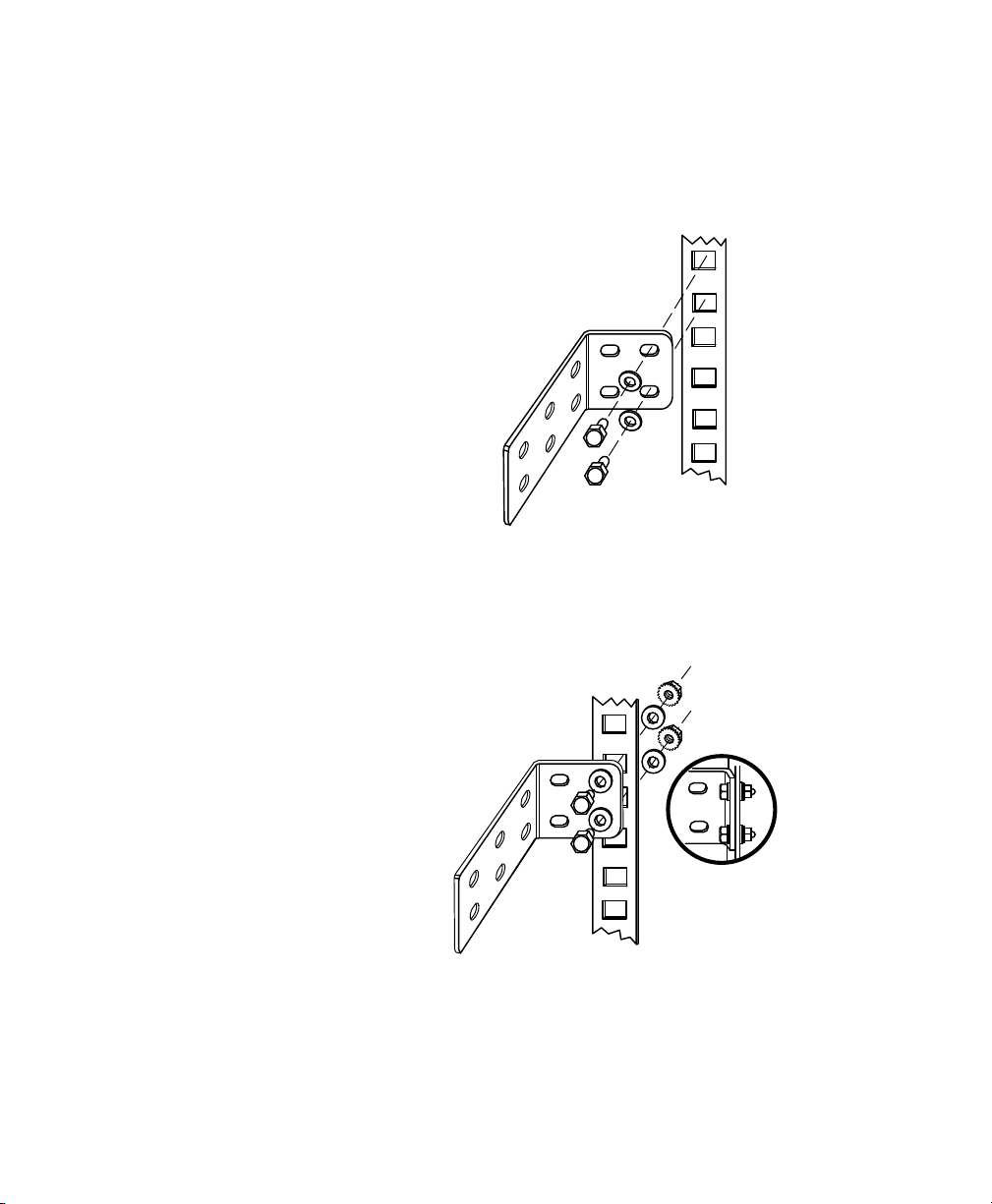

Attaching the Mounting Bracket to the Vertical Rail 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Attaching the External Battery Interconnect to the Mounting Bracket 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring the External Battery Interconnect 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the External Battery Interconnect to the BladeUPS 12i Module 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 Specifications 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Model Specifications 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Warranty 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Limited Warranty 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TABLE OF CONTENTS
Eaton®BladeUPS®External Battery Interconnect User's Guide S164201794 Rev 3 www.eaton.com/powerquality
6

Eaton®BladeUPS®External Battery Interconnect User's Guide S164201794 Rev 3 www.eaton.com/powerquality 7
Chapter 1 Introduction
The Eaton®BladeUPS®12i uninterruptible power system (UPS) is
compatible with a customer-supplied external battery only when used
with the External Battery Interconnect. This arrangement of
customer-supplied external battery and External Battery Interconnect is
not for use with the BladeUPS 12 module. The addition of
customer-supplied external batteries can extend battery runtime to one
hour.
The External Battery Interconnect is a DC connection box that provides a
landing for the wires from an external battery. The External Battery
Interconnect converts external battery input wires to a plug that is
compatible with the Eaton BladeUPS 12i module (see Figure 1).
Figure 1. External Battery Interconnect

INTRODUCTION
Eaton®BladeUPS®External Battery Interconnect User's Guide S164201794 Rev 3 www.eaton.com/powerquality
8
Note the following guidelines when configuring a BladeUPS 12i module
with a customer-supplied external battery and External Battery
Interconnect.
SConnect the External Battery Interconnect plug directly to the
BladeUPS 12i module. Because there is a single UPS battery
connector on the rear panel of the BladeUPS 12i module, you cannot
use a combination of customer-supplied external batteries and
Eaton-supplied Extended Battery Modules (EBMs) with the same
BladeUPS 12i module.
SNever connect the External Battery Interconnect plug to an EBM.
SThe same customer-supplied external batteries cannot be shared by
multiple BladeUPS 12i modules.
SFor consistent runtimes, each BladeUPS 12i module in parallel
systems must have the same amount of battery runtime.
SThe customer-supplied external batteries are charged through the
UPS internal charger.
STo configure the BladeUPS 12i module for customer-supplied external
batteries, configure the user setting for Watts per cell. For
information on user settings, refer to the user's guide for the
BladeUPS module.
SA Commissioning Test is not required when using customer-supplied
external batteries as long as the Advanced Battery Management®
(ABM) feature is not disabled.
SInternal BladeUPS batteries must be installed when using the
External Battery Interconnect.

Eaton®BladeUPS®External Battery Interconnect User's Guide S164201794 Rev 3 www.eaton.com/powerquality 9
Chapter 2 Safety Warnings
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This manual contains important instructions that you should follow during installation and
maintenance of the UPS and batteries. Please read all instructions before operating the
equipment and save this manual for future reference.
DANGER
The UPS contains LETHAL VOLTAGES. All repairs and service should be performed by
AUTHORIZED SERVICE PERSONNEL ONLY. There are NO USER SERVICEABLE
PARTS inside the UPS.
Sikkerhedsanvisninger
VIGTIGE SIKKERHEDSANVISNINGER
GEM DISSE ANVISNINGER
Denne manual indeholder vigtige instruktioner, som skal følges under installation og
vedligeholdelse af UPS'en og batterierne. Læs venligst alle instruktioner inden betjening af
udstyret og gem denne manual mhp. fremtidige opslag.
FARE
Denne UPS indeholder LIVSFARLIG HØJSPÆNDING. Alle reparationer og vedligeholdelse
bør kun udføres af en AUTORISERET SERVICETEKNIKER. Ingen af UPS'ens indvendige dele
kan repareres af brugeren.

SAFETY WARNINGS
Eaton®BladeUPS®External Battery Interconnect User's Guide S164201794 Rev 3 www.eaton.com/powerquality
10
Belangrijke Veiligheidsinstructies
BELANGRIJKE VEILIGHEIDSINSTRUCTIES
BEWAAR DEZE INSTRUCTIES
Deze handleiding bevat belangrijke instructies die u dient te volgen tijdens de installatie en
het onderhoud van de UPS en de accu's. Lees alle instructies voordat u de apparatuur in
bedrijf neemt en bewaar deze handleiding als naslagwerk.
GEVAAR
Deze UPS bevat LEVENSGEVAARLIJKE ELEKTRISCHE SPANNING. Alle reparaties en
onderhoud dienen UITSLUITEND DOOR ERKEND SERVICEPERSONEEL te worden uitgevoerd.
Er bevinden zich GEEN ONDERDELEN in de UPS die DOOR DE GEBRUIKER kunnen worden
GEREPAREERD.
Tarkeita Turvaohjeita
TÄRKEITÄ TURVAOHJEITA - SUOMI
SÄILYTÄ NÄMÄ OHJEET
Tämä käyttöohje sisältää tärkeitä ohjeita, joita on noudatettava UPS-virtalähteen ja akkujen
asennuksen ja huollon yhteydessä. Lue kaikki ohjeet ennen laitteiston käyttöä ja säilytä ohje
myöhempää tarvetta varten.
VAARA
Tämä UPS sisältää HENGENVAARALLISIA JÄNNITTEITÄ. Kaikki korjaukset ja huollot on
jätettävä VAIN VALTUUTETUN HUOLTOHENKILÖN TOIMEKSI. UPS ei sisällä MITÄÄN
KÄYTTÄJÄN HUOLLETTAVIA OSIA.

SAFETY WARNINGS
Eaton®BladeUPS®External Battery Interconnect User's Guide S164201794 Rev 3 www.eaton.com/powerquality 11
Consignes de sécurité
CONSIGNES DE SÉCURITÉ IMPORTANTES
CONSERVER CES INSTRUCTIONS
Ce manuel comporte des instructions importantes que vous êtes invité à suivre lors de toute
procédure d'installation et de maintenance des batteries et de l'onduleur. Veuillez consulter
entièrement ces instructions avant de faire fonctionner l'équipement et conserver ce manuel
afin de pouvoir vous y reporter ultérieurement.
DANGER!
Cet onduleur contient des TENSIONS MORTELLES. Toute opération d'entretien et de
réparation doit être EXCLUSIVEMENT CONFIÉE A UN PERSONNEL QUALIFIÉ AGRÉÉ.
AUCUNE PIÈCE RÉPARABLE PAR L'UTILISATEUR ne se trouve dans l'onduleur.
Sicherheitswarnungen
WICHTIGE SICHERHEITSANWEISUNGEN
AUFBEWAREN
Dieses Handbuch enthält wichtige Anweisungen, die Sie während der Installation und
Wartung des USV (Unterbrechungsfreies Stromversorgungssystem) und der Batterien
befolgen müssen. Bitte lesen Sie alle Anweisungen des Handbuches bevor sie mit dem
Gerät arbeiten. Bewaren Sie das Handbuch zum Nachlesen auf.
WARNUNG
Die USV führt lebensgefährliche Spannungen. Alle Reparatur- und Wartungsarbeiten sollten
nur von Kundendienstfachleuten durchgeführt werden. Die USV enthält keine vom Benutzer
zu wartenden Komponenten.

SAFETY WARNINGS
Eaton®BladeUPS®External Battery Interconnect User's Guide S164201794 Rev 3 www.eaton.com/powerquality
12
Avvisi di sicurezza
IMPORTANTI ISTRUZIONI DI SICUREZZA
CONSERVARE QUESTE ISTRUZIONI
Il presente manuale contiene importanti istruzioni da seguire durante l'installazione e la
manutenzione dell'UPS e delle batterie. Leggere integralmente le istruzioni prima di
utilizzare l'apparecchiatura e conservare il presente manuale per futuro riferimento.
PERICOLO
La TENSIONE contenuta in questo gruppo statico di continuità è LETALE. Tutte le operazioni
di riparazione e di manutenzione devono essere effettuate ESCLUSIVAMENTE DA
PERSONALE TECNICO AUTORIZZATO. All'interno del gruppo statico di continuità NON vi
sono PARTI RIPARABILI DALL'UTENTE.
Viktig Sikkerhetsinformasion
VIKTIGE SIKKERHETSINSTRUKSJONER
GJEM DISSE INSTRUKSJONENE
Denne håndboken inneholder viktige instruksjoner som du bør overholde ved montering og
vedlikehold av UPS-enheten og batteriene. Les alle instruksjoner før utstyret tas i bruk, og
gjem håndboken til fremtidig referanse.
FARLIG
Denne UPS'en inneholder LIVSFARLIGE SPENNINGER. All reparasjon og service må kun
utføres av AUTORISERT SERVICEPERSONALE. BRUKERE KAN IKKE UTFØRE SERVICE PÅ
NOEN AV DELENE i UPS'en.

SAFETY WARNINGS
Eaton®BladeUPS®External Battery Interconnect User's Guide S164201794 Rev 3 www.eaton.com/powerquality 13
Regulamentos de Segurança
INSTRUÇÕES DE SEGURANÇA IMPORTANTES
GUARDE ESTAS INSTRUÇÕES
Este manual contém instruções importantes que devem ser seguidas durante a instalação e
manutenção do no-break e das baterias. Leia todas as instruções antes de operar o
equipamento e guarde este manual para consultá-lo futuramente.
CUIDADO
A UPS contém VOLTAGEM MORTAL. Todos os reparos e assistência técnica devem ser
executados SOMENTE POR PESSOAL DA ASSISTÊNCIA TÉCNICA AUTORIZADO. Não há
nenhuma PEÇA QUE POSSA SER REPARADA PELO USUÁRIO dentro da UPS.
Ïðåäóïðåæäåíèÿ ïî ìåðàì áåçîïàñíîñòè
ÂÀÆÍÛÅ ÓÊÀÇÀÍÈß ÏÎ ÌÅÐÀÌ ÁÅÇÎÏÀÑÍÎÑÒÈ
ÑÎÕÐÀÍÈÒÅ ÝÒÈ ÓÊÀÇÀÍÈß
 äàííîì ðóêîâîäñòâå ñîäåðæàòñÿ âàæíûå èíñòðóêöèè ïî óñòàíîâêå è
îáñëóæèâàíèþ èñòî÷íèêà áåñïåðåáîéíîãî ïèòàíèÿ (ÈÁÏ) è áàòàðåé. Ïåðåä
ðàáîòîé ñ îáîðóäîâàíèåì ïðî÷òèòå âñå èíñòðóêöèè. Ñîõðàíèòå äàííîå
ðóêîâîäñòâî äëÿ äàëüíåéøåãî èñïîëüçîâàíèÿ.
ÎÏÀÑÍÎ
 äàííîì ÈÁÏ èìåþòñÿ ÑÌÅÐÒÅËÜÍÎ ÎÏÀÑÍÛÅ ÍÀÏÐßÆÅÍÈß. Âñå
ðàáîòû ïî ðåìîíòó è îáñëóæèâàíèþ äîëæíû âûïîëíÿòüñÿ ÒÎËÜÊÎ
ÓÏÎËÍÎÌÎ×ÅÍÍÛÌ ÎÁÑËÓÆÈÂÀÞÙÈÌ ÏÅÐÑÎÍÀËÎÌ. Âíóòðè
ÈÁÏ íåò óçëîâ, ÎÁÑËÓÆÈÂÀÅÌÛÕ ÏÎËÜÇÎÂÀÒÅËÅÌ.

SAFETY WARNINGS
Eaton®BladeUPS®External Battery Interconnect User's Guide S164201794 Rev 3 www.eaton.com/powerquality
14
Advertencias de Seguridad
INSTRUCCIONES DE SEGURIDAD IMPORTANTES
GUARDE ESTAS INSTRUCCIONES
Este manual contiene instrucciones importantes que debe seguir durante la instalación y el
mantenimiento del SIE y de las baterías. Por favor, lea todas las instrucciones antes de
poner en funcionamiento el equipo y guarde este manual para referencia en el futuro.
PELIGRO
Este SIE contiene VOLTAJES MORTALES. Todas las reparaciones y el servicio técnico deben
ser efectuados SOLAMENTE POR PERSONAL DE SERVICIO TÉCNICO AUTORIZADO. No hay
NINGUNA PARTE QUE EL USUARIO PUEDA REPARAR dentro del SIE.
Säkerhetsföreskrifter
VIKTIGA SÄKERHETSFÖRESKRIFTER
SPARA DESSA FÖRESKRIFTER
Den här anvisningen innehåller viktiga instruktioner som du ska följa under installation och
underhåll av UPS-enheten och batterierna. Läs alla instruktioner innan du använder
utrustningen och spara den här anvisningen för framtida referens.
FARA
Denna UPS-enhet innehåller LIVSFARLIG SPÄNNING. ENDAST AUKTORISERAD
SERVICEPERSONAL får utföra reparationer eller service. Det finns inga delar som
ANVÄNDAREN KAN UTFÖRA SERVICE PÅ inuti UPS-enheten.

Eaton®BladeUPS®External Battery Interconnect User's Guide S164201794 Rev 3 www.eaton.com/powerquality 15
Chapter 3 Installation
This section explains:
SCustomer-supplied external battery
SRequired tools
SChoosing a mounting option
SAttaching the mounting bracket
SAttaching the External Battery Interconnect
SWiring the External Battery Interconnect
SConnecting the External Battery Interconnect to the Eaton
BladeUPS 12i
Customer-Supplied External Battery
When configuring a BladeUPS 12i module with external batteries, use
either Eaton-supplied EBMs only or customer-supplied external batteries
only. You cannot use a combination of EBMs and customer-supplied
external batteries with the same BladeUPS 12i module. See Table 5 on
page 30 for specifications related to customer-supplied external
batteries.
NOTE If using customer-supplied external batteries, configure the BladeUPS user setting
for Watts per cell. For information on customer-supplied external battery setup, refer to the
user's guide for the BladeUPS module.
Required Tools
The following tools are required for installing the External Battery
Interconnect:
SPhillips®#2 screwdriver
SWrench or sockets to accommodate M4 and M5 hex nuts
STorque driver for slotted screws, to accommodate settings of
47.5 ±2.7 and 61.0 Nm (35 ±2 and 45 lb in)

INSTALLATION
Eaton®BladeUPS®External Battery Interconnect User's Guide S164201794 Rev 3 www.eaton.com/powerquality
16
Choosing a Mounting Option
The mounting bracket has five pairs of mounting holes (see Figure 2):
STwo pairs of mounting holes for attaching the assembly to the vertical
rail (determines the left-to-right offset when facing the back of the
rack)
SThree pairs of mounting holes for attaching the mounting bracket to
the External Battery Interconnect (determines front-to-back offset
when facing the back of the rack)
Attach to External
Battery Interconnect Attach to
Vertical Rail
Figure 2. Mounting Bracket
The combination of mounting holes allows for 12 mounting options.
However, the design of the rack may not allow the use of some options.
Your conduit routing needs determine which mounting options to use.
When mounting multiple External Battery Interconnects on the same
vertical rail, offset the boxes to provide adequate room for conduit
routing. Consider the following:
SThe number of External Battery Interconnects to attach to the vertical
rail
SThe vertical spacing of the External Battery Interconnects
SWhether the conduits are rigid or flexible
For an example of a rack with three External Battery Interconnect
devices installed, see Figure 13 on page 25.

INSTALLATION
Eaton®BladeUPS®External Battery Interconnect User's Guide S164201794 Rev 3 www.eaton.com/powerquality 17

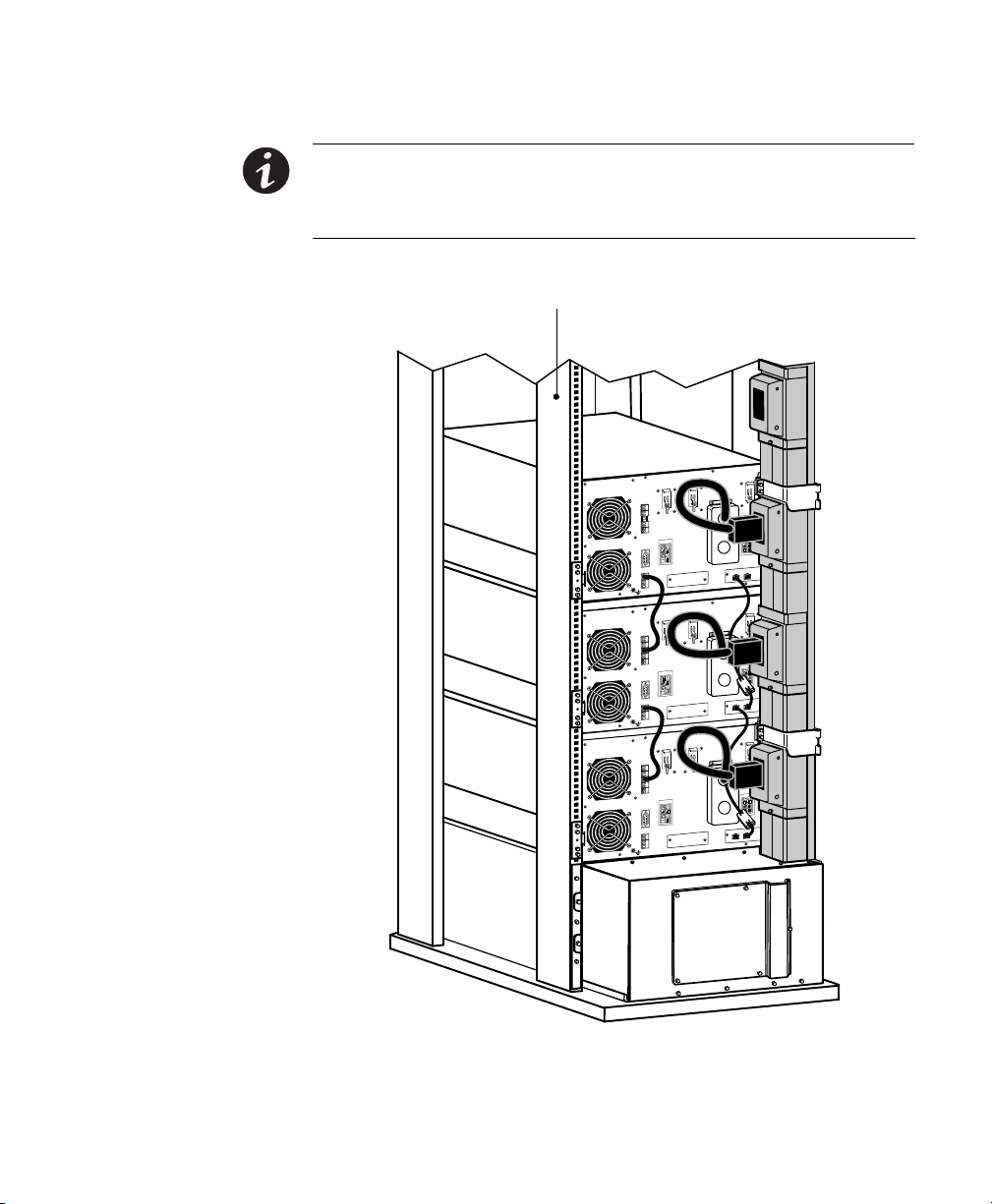

NOTE These procedures describe installation from the perspective of facing the rear of the
rack. However, the External Battery Interconnect is designed to be attached to the vertical
rail at the right-rear of the rack, as shown in Figure 3. Use this figure to locate the proper rail
for attaching the External Battery Interconnect.
Attach External Battery
Interconnect to this Rail
Rack Rear
Figure 3. Locating the External Battery Interconnect

INSTALLATION
Eaton®BladeUPS®External Battery Interconnect User's Guide S164201794 Rev 3 www.eaton.com/powerquality
18
Attaching the Mounting Bracket to the Vertical Rail
The left-to-right orientation is controlled by the short flange on the
mounting bracket. This flange attaches to the vertical rail. Although there
are only two pairs of mounting holes on the short flange, there are four
left-to-right options by flipping the mounting bracket with the flange
facing left or right.
To attach the mounting bracket to the vertical rail:
1. Determine the left-to-right position and select the appropriate
orientation and mounting holes on the short flange (see Figure 4).
Left Right
Far
Left Far
Right
Figure 4. Positioning, Left-to-Right
NOTE Eaton recommends left or far left mounting to minimize restriction of the UPS
exhaust air flow. When using right or far right mounting options, locate the External Battery
Interconnect toward the back of the rack, away from the UPS. Note that you can attach the
External Battery Interconnect on either side of the mounting bracket.
2. Align the mounting holes in the short flange with the desired holes
in the vertical rail.

INSTALLATION
Eaton®BladeUPS®External Battery Interconnect User's Guide S164201794 Rev 3 www.eaton.com/powerquality 19
3. Insert two M5 hex head bolts (supplied) through the flat washers
(supplied) and mounting holes in the short flange and the holes in
the vertical rail (see Figure 5).
Figure 5. Insert M5 Hex Head Bolts (Far-Left Position Shown)
4. Secure the mounting bracket to the vertical rail using two M5 flat
washers (supplied) and two M5 hex nuts with captured star
washers (supplied). See Figure 6.
Figure 6. Secure Mounting Bracket to Rail
5. Continue to the following section, “Attaching the External Battery
Interconnect to the Mounting Bracket.”

INSTALLATION
Eaton®BladeUPS®External Battery Interconnect User's Guide S164201794 Rev 3 www.eaton.com/powerquality
20
Attaching the External Battery Interconnect to the Mounting Bracket
The front-to-back orientation is controlled by the long flange on the
mounting bracket. This flange attaches to the External Battery
Interconnect.
To attach the External Battery Interconnect to the mounting bracket:
1. Determine the front-to-back position and select the appropriate
mounting holes on the long flange (see Figure 7).
Front
Middle
Back
Figure 7. Positioning, Front-to-Back
2. Remove the two M4 hex nuts with captured star washers that are
shipped already attached to the threaded studs on the back of the
External Battery Interconnect (see Figure 8).
