Eaton 5P 750 User manual

ENGLISH
Tower models
5P 750
5P 1000
5P 1500
5P 850G
5P 1550G
Copyright © 2012 EATON
All rights reserved.
Service and support:
Call your local service representative
620-00082-01-us (en)
1U Rack models
5P 550 R
5P 750 R
5P 1000 R
5P 1500 R
5P 850G R
5P 1550G R
Installation
and user manual

Page 2 620-00082-01-us (en)

Page 3
620-00082-01-us (en)
ENGLISH
Special Symbols
The following are examples of symbols used on the UPS or accessories to alert you to important
information:
RISK OF ELECTRIC SHOCK - Observe the warning associated with the risk of electric shock symbol.
Important instructions that must always be followed.
Do not discard the UPS or the UPS batteries in the trash.
This product contains sealed lead acid batteries and must be disposed as it's explain in this manual.
For more information, contact your local recycling/reuse or hazardous waste center.
This symbol indicates that you should not discard waste electrical or electronic equipment (WEEE)
in the trash. For proper disposal, contact your local recycling/reuse or hazardous waste center.
Information, advice, help.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS. This manual contains important instructions
that should be followed during installation and maintenance of the UPS and batteries.
The 5P models that are covered in this manual are intended for installation in an environment
within 0 to 40°C, free of conductive contaminant.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment.This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
Certication Standards
• UPS directives: UL 1778 4th edition (UL listed).
• Performance: IEC 62040-3: 2001.
• Radiated emission: FCC CFR 47 part 15 subpart B, Class A.
• Surges withstand ability: IEEE ANSI C62.41 Category A2 (UL Listed).

Page 4 620-00082-01-us (en)
Safety of Persons
• The system has its own power source (the battery). Consequently, the power outlets may be energized
even if the systems is disconnected from the AC power source.
• Dangerousvoltagelevelsarepresentwithinthesystem.Itshouldbeopenedexclusivelybyqualied
service personnel.
• The system must be properly grounded.
• The battery supplied with the system contains small amounts of toxic materials.
To avoid accidents, the directives listed below must be observed:
- servicing of batteries should be performed or supervised by personnel knowledgeable about betteries
and the required precautions.
- when replacing batteries, replace with the same type and number of batteries or battery packs.
-donotdisposeofbatteriesinare.Thebatteriesmayexplode.
- batteries constitute a danger (electrical shock, burns).The short-circuit current may be very high.
Precautions must be taken for all handling:
• Wear rubber gloves and boots.
• Do not lay tools or metal parts on top of batteries.
• Disconnect charging source prior to connecting or disconnecting battery terminals.
• Determine if battery is inadvertently grounded. If inadvertently grounded, remove source from ground.
Contact with any part of a grounded battery can result in electrical shock.The likelihood of such shock
can be reduced if such grounds are removed during installation and maintenance (applicable to equip-
ment and remote battery supplies not having a grounded supply circuit).
Product Safety
• The UPS connection instructions and operation described in the manual must be followed in
the indicated order.
• A protection circuit breaker must be installed upstream and be easily accessible.
The system can be disconnected from the AC power source by opening this circuit breaker.
• Check that the indications on the rating plate correspond to your AC powered system and to
the actual electrical consumption of all the equipment to be connected to the system.
• For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall
be easily accessible
• Never install the system near liquids or in an excessively damp environment.
• Never let a foreign body penetrate inside the system.
• Never block the ventilation grates of the system.
• Never expose the system to direct sunlight or source of heat.
• If the system must be stored prior to installation, storage must be in a dry place.
• The admissible storage temperature range is -15 ºC to +50 ºC.
• The system is not for use in a computer room AS DEFINED IN the standard for the Protection
of InformationTechnology Equipment, ANSI/NFPA 75 (US installations only).
Contact Eaton resellers to order a special battery kit, if needed to meet the ANSI/NFPA 75 requirement.
Special Precautions
• All handling operations will require at least two people (unpacking, installation in rack system).
• Before and after the installation, if the UPS remains de-energized for a long period, the UPS must be
energized for a period of 24 hours, at least once every 6 months (for a normal storage temperature
less than 25 °C).This charges the battery, thus avoiding possible irreversible damage.
• During the replacement of the Battery Module, it is imperative to use the same type and number of
element as the original Battery Module provided with the UPS to maintain an identical level of
performance and safety. In case of doubt, don’t hesitate to contact your EATON representative.

Page 5
620-00082-01-us (en)
ENGLISH
Contents
1. Introduction....................................................................................... 6
1.1 Environmental protection...............................................................................................6
2. Presentation ...................................................................................... 7
2.1 Standard installations.........................................................................................................7
2.2 Tower rear panels...............................................................................................................8
2.3 Rack rear panels ................................................................................................................9
2.4 Control panel ................................................................................................................... 10
2.5 LCD description ............................................................................................................... 11
2.6 Display functions ............................................................................................................. 12
2.7 User settings ................................................................................................................... 12
3. Installation ...................................................................................... 14
3.1 Unpacking and contents check........................................................................................ 14
3.2 Battery module connection (Tower)................................................................................. 15
3.3 Battery module connection (Rack)................................................................................... 15
3.4 Installation of tower models ............................................................................................ 16
3.5 Installation of rack model for 2 post (option) ................................................................... 16
3.6 Installation of rack models (550 R) .................................................................................. 17
3.7 Installation of rack models............................................................................................... 17
3.8 Installation of rack model for wall mounting.................................................................... 18
3.9 Communication ports ..................................................................................................... 19
4. Operation......................................................................................... 20
4.1 Start-up and Normal operation.........................................................................................20
4.2 Starting the UPS on Battery ............................................................................................20
4.3 UPS Shutdown ................................................................................................................20
4.4 Operation on Battery Power ............................................................................................20
4.5 Return of AC Input Power................................................................................................21
4.6 UPS remote control functions .........................................................................................21
5. Maintenance ................................................................................... 22
5.1 Troubleshooting................................................................................................................22
5.2 Battery-module replacement ...........................................................................................23
6. Appendices ...................................................................................... 25
6.1 Technical specications....................................................................................................25
6.2 Glossary...........................................................................................................................27

Page 6 620-00082-01-us (en)
1. Introduction
Thank you for selecting an EATON product to protect your electrical equipment.
The 5P range has been designed with the utmost care.
We recommend that you take the time to read this manual to take full advantage of the many features
of your UPS (Uninterruptible Power System).
Before installing your 5P, please read the booklet presenting the safety instructions.
Then follow the instructions in this manual.
To discover the entire range of EATON products and the options available for the 5P range,
we invite you to visit our web site at www.eaton.com/powerquality or contact your EATON representative.
1.1 Environmental protection
EATON has implemented an environmental-protection policy.
Products are developed according to an eco-design approach.
Substances
This product does not contain CFCs, HCFCs or asbestos.
Packing
To improve waste treatment and facilitate recycling, separate the various packing components.
• The cardboard we use comprises over 50% of recycled cardboard.
• Sacks and bags are made of polyethylene.
• Packingmaterialsarerecyclableandbeartheappropriateidenticationsymbol 01
PET
Materials Abbreviations Number in
the symbols
Polyethylene terephthalat PET 01
High-density polyethylene HDPE 02
Polyvinyl chloride PVC 03
Low-density polyethylene LDPE 04
Polypropylene PP 05
Polystyrene PS 06
Follow all local regulations for the disposal of packing materials.
End of life
EATON will process products at the end of their service life in compliance with local regulations.
EATON works with companies in charge of collecting and eliminating our products at the end of
their service life.
Product
The product is made up of recyclable materials.
Dismantling and destruction must take place in compliance with all local regulations concerning waste.
At the end of its service life, the product must be transported to a processing center for electrical and
electronic waste.
Battery
The product contains lead-acid batteries that must be processed according to applicable local regulations
concerning batteries.
The battery may be removed to comply with regulations and in view of correct disposal.
01
PET

Page 7
620-00082-01-us (en)
ENGLISH
2. Presentation
2.1 Standard installations

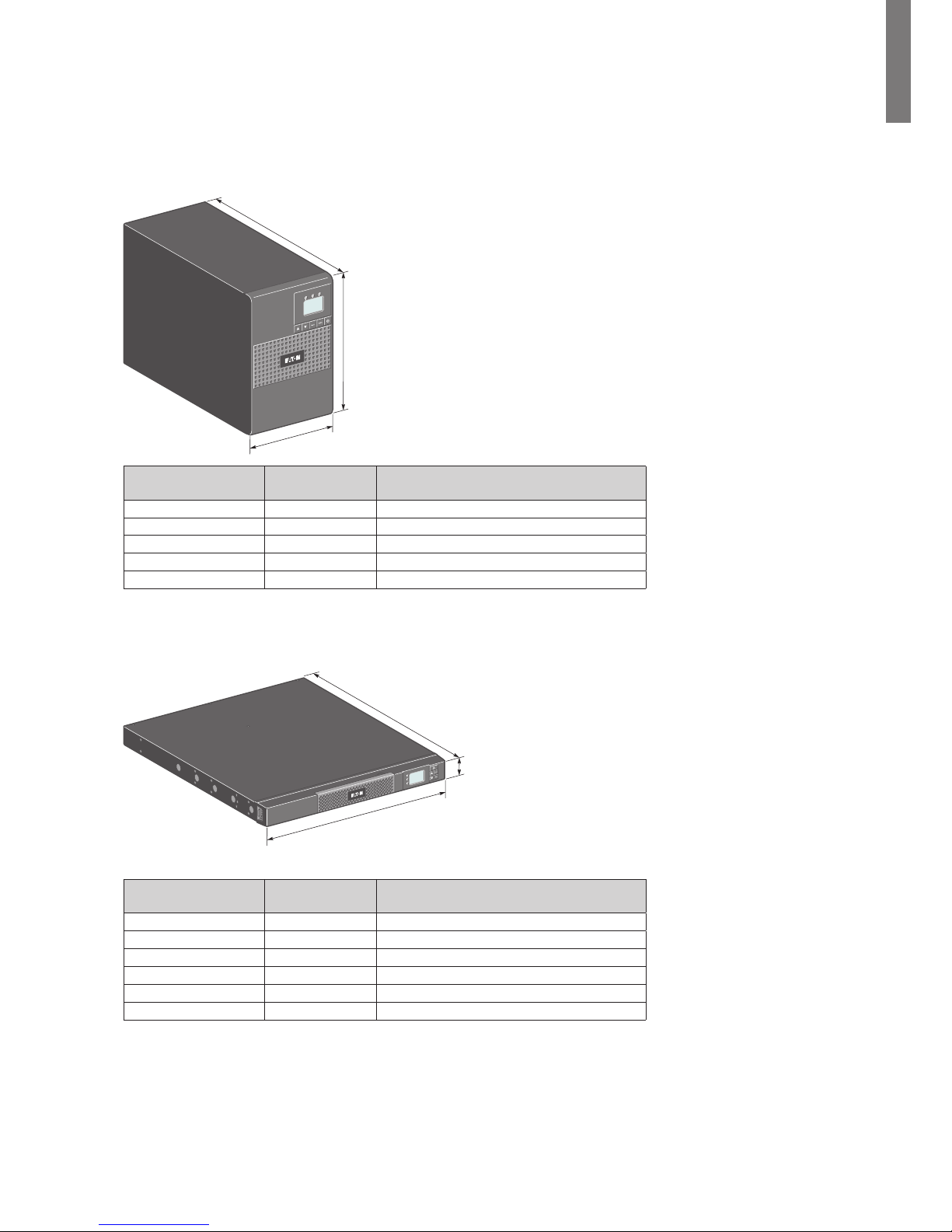

Tower models
D
H
W
Description Weights
(lb/kg)
Dimensions (inch/mm)
D x W x H
5P 750 22.7 / 10.3 13.6 x 5.9 x 9.1 / 345 x 150 x 233
5P 1000 24.4 / 11.05 13.6 x 5.9 x 9.1 / 345 x 150 x 233
5P 1500 35.3 / 16.01 17.5 x 5.9 x 9.1 / 445 x 150 x 233
5P 850G 21.9 / 9.9 13.6 x 5.9 x 9.1 / 345 x 150 x 233
5P 1550G 35.2 / 15.9 17.5 x 5.9 x 9.1 / 445 x 150 x 233
Rack models
H
W
D
Description Weights
(lb/kg)
Dimensions (inch/mm)
D x W x H
5P 550 R 17.80 / 8.08 14.3 x 17.2 x 1.7 / 363 x 438 x 43
5P 750 R 30.60 / 13.88 20.0 x 17.2 x 1.7 / 509 x 438 x 43
5P 1000 R 32.50 / 14.72 20.0 x 17.2 x 1.7 / 509 x 438 x 43
5P 1500 R 43.50 / 19.72 21.8 x 17.2 x 1.7 / 554 x 438 x 43
5P 850G R 30.4 / 13.8 20.0 x 17.2 x 1.7 / 509 x 438 x 43
5P 1550G R 42.7 / 19.4 21.8 x 17.2 x 1.7 / 554 x 438 x 43

Page 8 620-00082-01-us (en)
2. Presentation
2.2 Tower rear panels
5P 750 / 5P 1000
8
5
2
1
4
6a
3
6b
79
5P 1500
5
2
1
4
6a
3
6b
7
8
9
5P 850G
3
2
1
4
7
6a
6b
5
8
5P 1550G
2
1
4
5
6a
3
6b
8
7

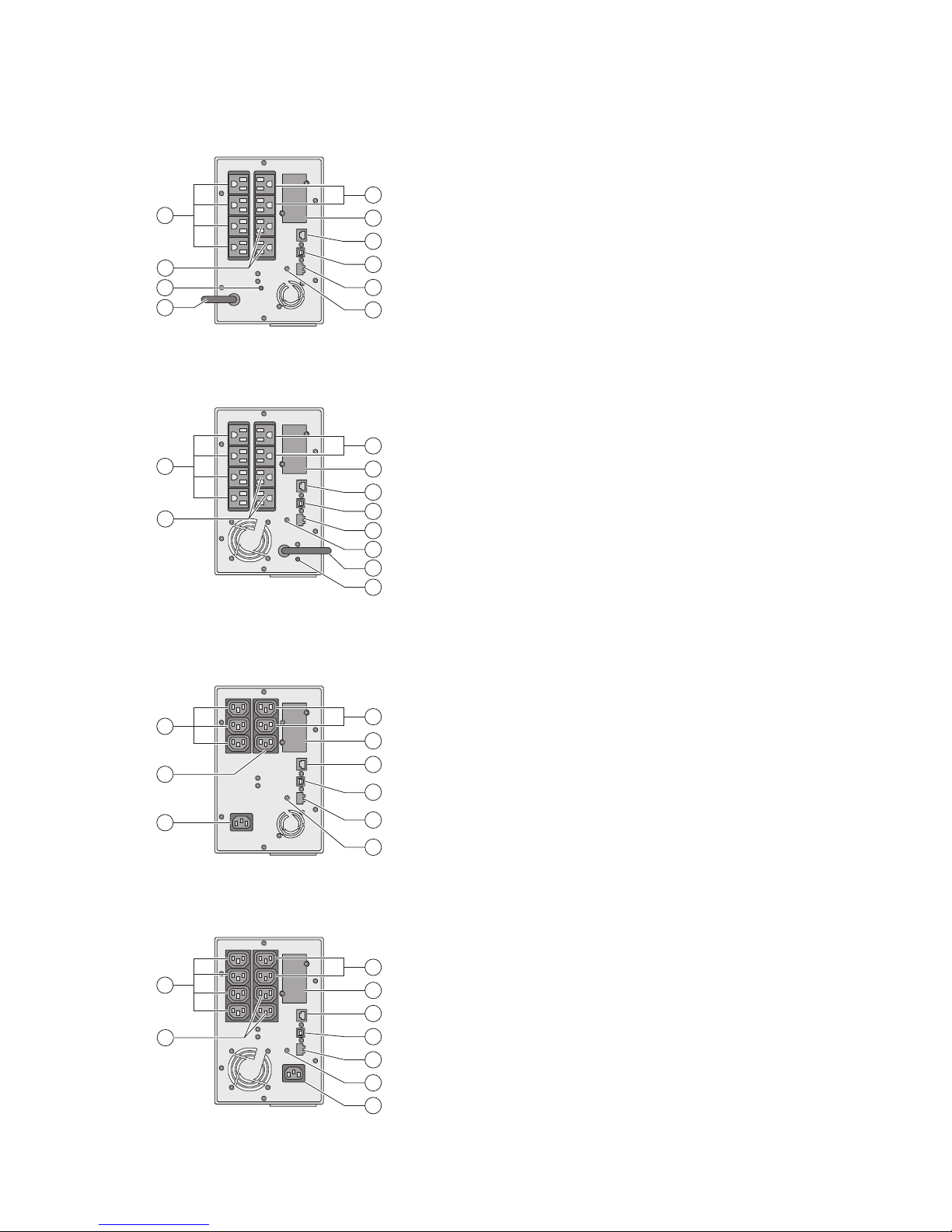

(1) USB communication port
(2) RS232 communication port
(3) Slot for optional communication card
(4) Connector for ROO (remote ON/OFF)
or RPO (Remote Power OFF) control
(5) Outlets for connection of critical
equipment (Primary group)
(6a) Group 1: programmable outlets for
connection of equipment
(6b) Group 2: programmable outlets for
connection of equipment
(7) Attached 6 ft. input power cord for
AC-power source (5-15P)
(8) LED indicating site wiring fault (SWF)
alarm
(9) Ground screw
(1) USB communication port
(2) RS232 communication port
(3) Slot for optional communication card
(4) Connector for ROO (remote ON/OFF)
or RPO (Remote Power OFF) control
(5) Outlets for connection of critical
equipment (Primary group)
(6a) Group 1: programmable outlets for
connection of equipment
(6b) Group 2: programmable outlets for
connection of equipment
(7) Socket for connection to AC-power
source
(8) Ground screw

Page 9
620-00082-01-us (en)
ENGLISH
2. Presentation
2.3 Rack rear panels
5P 550 R / 5P 750 R / 5P 1000 R
2 1 48 36b5 6a 79
5P 1500 R
2 1 48 73 9 6b5 6a
5P 850G R
2 1 4 87 36a 6b5
5P 1550G R
6a
2 1 473 6b
5
8
(1) USB communication port
(2) RS232 communication port
(3) Slot for optional communication card
(4) Connector for ROO (remote ON/OFF)
or RPO (Remote Power OFF) control
(5) Outlets for connection of critical
equipment (Primary group)
(6a) Group 1: programmable outlets for
connection of equipment
(6b) Group 2: programmable outlets for
connection of equipment
(7) Attached 6 ft. input power cord for
AC-power source (5-15P)
(8) LED indicating site wiring fault (SWF)
alarm
(9) Ground screw
(1) USB communication port
(2) RS232 communication port
(3) Slot for optional communication card
(4) Connector for ROO (remote ON/OFF)
or RPO (Remote Power OFF) control
(5) Outlets for connection equipment
(Primary group)
(6a) Group 1: programmable outlets for
connection of equipment
(6b) Group 2: programmable outlets for
connection of equipment
(7) Socket for connection to AC-power
source
(8) Ground screw

Page 10 620-00082-01-us (en)
2. Presentation
2.4 Control panel

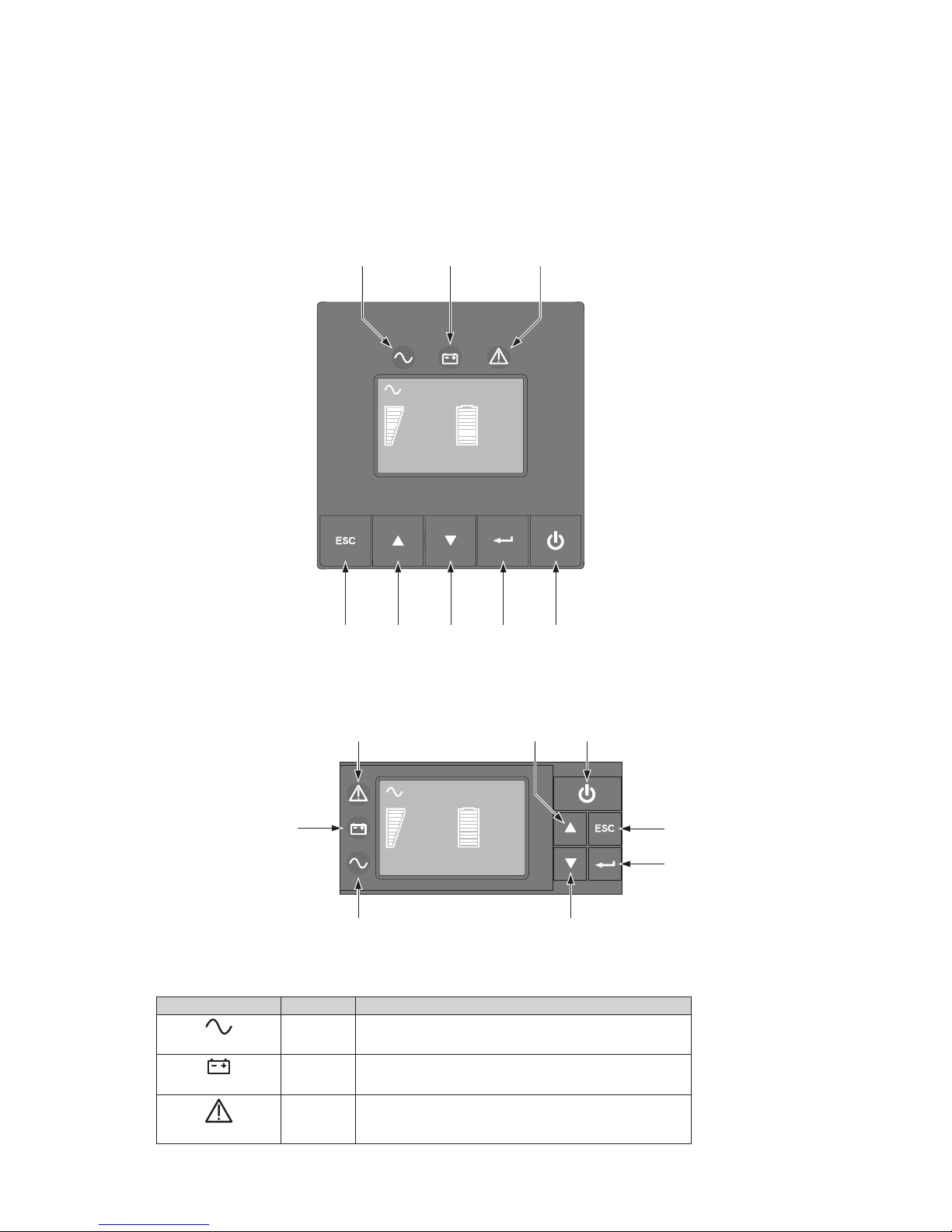

TheUPShasave-buttongraphicalLCD.ItprovidesusefulinformationabouttheUPSitself,loadstatus,
events, measurements and settings.
Tower models
Power On
Indicator
(green)
On battery
Indicator (yel-
low)
Alarm
Indicator (red)
Normal mode
100%
10min
100%
720W
800VA
Efficiency: ~98%
Escape Up Down Enter On/Off
button
Rack models
Normal mode
100%
10min
100%
720 W
800VA
Efficiency: ~98%
Alarm
Indicator (red)
On battery Indicator
(yellow)
Power On
Indicator (green)
On/Off
button
Up
Down
Enter
Escape
The following table shows the indicator status and description:
Indicator Status Description
Green On The UPS is operating normally.
Yellow On The UPS is on battery mode.
Red
On
The UPS has an active alarm or fault. See
troubleshooting on page 18 for additional
information.

Page 11
620-00082-01-us (en)
ENGLISH
2. Presentation
2.5 LCD description
Operation status
Load/equipment status
Normal mode
100%
10min
100%
720W
800VA
Efficiency: ~98%
Battery status
Efficiency and load group information

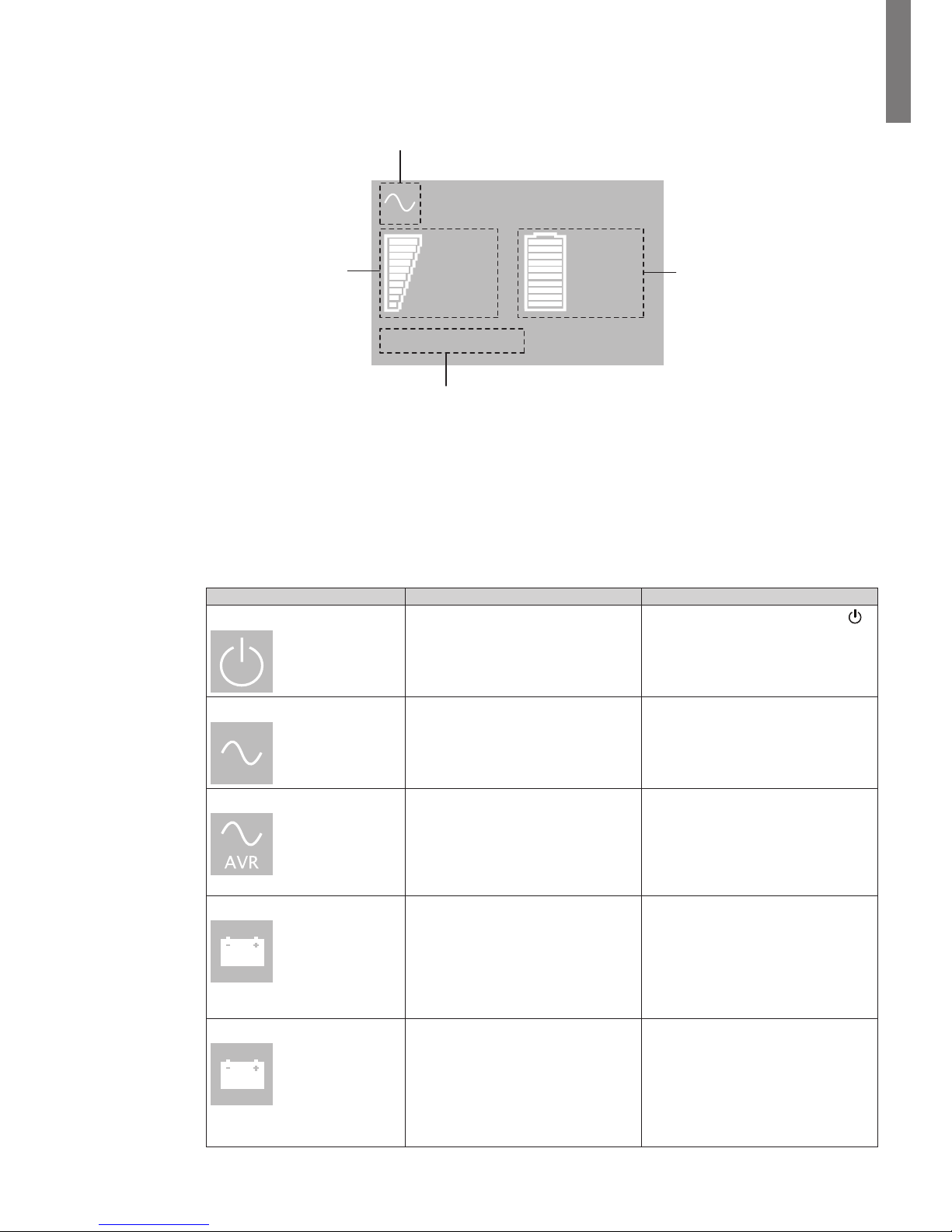

As default, or after 5 minutes of inactivity, the LCD displays the screen saver.
The backlight LCD automatically dims after 10 minutes of inactivity. Press any button to restore the screen.
The following table describes the status information provided by the UPS
Note: If other indicator appears, see troubleshooting on page 18 for additional information.
Operation status Possible cause Action
Standby mode The UPS is OFF, waiting for start-up
command from user
Equipment is not powered until
button is pressed.
Normal mode The UPS is operating normally. The UPS is powering and protecting
the equipment.
In AVR mode
No beep
The UPS is operating normally but
the utility voltage is outside normal
mode thresholds.
The UPS is powering the
equipment through a Automatic
Voltage Regulation device.
The equipment is still normally
protected.
On Battery
Battery LED is on
1 beep every 10 seconds
A utility failure has occurred and
the UPS is in Battery mode.
The UPS is powering the equipment
with the battery power.
Prepare your equipment for
shutdown.
End of backup time
1 beep every 3 seconds
The UPS is in battery mode and
the battery is running low.
This warning is approximate, and
the actual time to shutdown may
vary significantly.
Depending on the UPS Load, the
"Battery Low" warning may occur
before the battery reaches 20 %
capacity.

Page 12 620-00082-01-us (en)
2.6 Display functions
Press the Enter ( ) button to activate the menu options. Use the two middle buttons ( and ) to scroll
through the menu structure. Press the Enter ( ) button to select an option. Press the button to cancel
or return to the previous menu.
Menu map for Display Functions.
Main menu Submenu Display information or Menu function
Measurements Load W VA / Load A pf / Output V Hz / Input V Hz /
Battery V min / Efficiency / Power usage
Control Load Segments Group 1: ON / OFF
Group 2: ON / OFF
These commands overrule user settings for load segments.
Start battery test Starts a manual battery test
Reset fault state Clears active faults (UPS restart required)
Restore factory settings Returns all settings to original values
Reset power usage Clears power usage measurements
Settings Local settings Sets product general parameters
Input / output settings Sets Input and output parameters
ON / OFF settings Sets ON / OFF conditions
Battery settings Sets battery configuration
Fault log Displays event log or alarms
Identification UPS Type / Part Number / Serial Number / Firmware release /
Com card address
2.7 User settings
The following table displays the options that can be changed by the user.
Description Available settings Default settings
Local settings
Language [English] [Français] [Deutsch]
[Italiano] [Português] [Español]
[Русский]
Menus, status, notices and alarms,
UPS fault, Event Log data and
settings are in all supported
languages.
English
User selectable when UPS is
powered for the first time.
LCD settings Modify LCD screen brightness and
contrast to adapt to room light
conditions.
Audible alarm [Enabled] [Disabled on battery]
[Always disabled]
Enable or disable the buzzer if an
alarm occurs.
Enabled
In/Out settings
Output voltage [100 V] [120 V] [125 V]
On G model: [200 V] [208 V] [220 V]
[230 V] [240 V]
User selectable when UPS is
powered for the first time.
Input thresholds [Normal mode] [Extended mode]
Extended mode reduces lower input
voltage to 70 V before UPS transfers
to battery.
This can be used if the load can
withstand low voltage supply.
Normal mode
Sensitivity [High] [Low]
High: for sensitive equipment,
UPS will easily transfer to battery
when utility conditions are becoming
bad.
Low: for equipment that can
withstand bad utility conditions,
in that case, the UPS will not transfer
to battery.
High
Load segments -
Auto start delay
[No Delay] [1 s] [2 s]…[65354 s]
The connected load is powered after
the specified delay.
Group 1: 3 s
Group 2: 6 s
2. Presentation

Page 13
620-00082-01-us (en)
ENGLISH
2. Presentation
Description Available settings Default settings
In/Out settings
Load segments
- Auto shutdown
delay
[Disable] [0s] [1 s] [2 s]…[65354 s]
During a power outage,
authorizes UPS to turn off power to
equipment connected to Group 1
and/or Group 2 outlets.
This feature allows the shedding of
non-critical loads in order to conserve
battery power for critical loads
connected to the Primary group.
Group 1: Disable
Group 2: Disable
Overload
prealarm
[10 %] [15 %] [20 %] ... [100 %] [105 %]
Sets critical percentage of load where
alarm overload alarm occurs.
[105 %]
ON/OFF settings
Cold start [Disable] [Enable]
Enables the product to be started on
battery power.
First cold start isw always disabled.
Enable
Forced reboot [Disable] [Enable]
If mains recover during a shutdown
sequence:
- if enabled, shutdown sequence will
complete and wait 10 seconds prior
to restart
- if disabled, shutdown sequence will
not complete and restart will occur
immediately.
Enable
Auto restart [Disable] [Enable]
Enables the product to restart
automatically when mains recovers
after a complete battery discharge.
Enable
Energy saving [Disable] [Enable]
If enabled, UPS will shutdown after
5 min. of back-up time, if no load is
detected on the output.
Disable
Sleep mode [Disable] [Enable]
If disabled, LCD and communication
will turn OFF immediately after UPS
is OFF.
If enabled, LCD and communication
stays ON 1h30 min after UPS is OFF.
Disable
Remote command [Disable] [Enable]
If enabled, shutdown or restart
commands from software are
authorised.
Enable
RPO delay [0 s] [1s ] [2 s]...[180 s]
Delays remote power off command
[0 s]
Battery settings
Automatic battery
test
[No test] [Every day] [Every week]
[Every month]
Available only if battery charge mode
is set to constant charge.
Every week
(in constant charge)
otherwise following ABM
Low battery
warning
[1 %] [2 %] ... [100 %]
The alarm triggers when the set
percentage of battery capacity is
reached during a back-up time.
20 %
Restart battery
level
[1 %] [2 %] ... [100 %]
If set, automatic restart will occur
only when percentage of battery
charge is reached.
0 %
Battery charge
mode
[ABM cycling] [Constant charge] ABM cycling
Deep discharge
protection
[Yes] [No]
If set to Yes, the UPS automatically
prevents battery from deep discharge
by adapting end of back-up time
voltage threshold.
Yes

Page 14 620-00082-01-us (en)
3. Installation
3.1 Unpacking and contents check
(1) 5P UPS
(2) Quick start and safety instructions
(3) User manual and IPSS (Intelligent Power Software Suite) CD-ROM
(4) RS232 communication cable
(5) USB communication cable
(6) 1U Rack kit (ears only for 550 R model)
(7) Front panel parts
(8) 2 connection cables for the protected equipments (850G and 1550G models)
(9) Cable locking systems (1 x 4 outlets 850G R models; 1 x 6 outlets 1550G R models)
Packing materials must be disposed of in compliance with all local regulations concerning waste.
Recycling symbols are printed on the packing materials to facilitate sorting.
Tower models
1
2
3
4
5
8
Rack models
2
3
5
4
7
1
6
9
8

Page 15
620-00082-01-us (en)
ENGLISH
3. Installation
3.2 Battery module connection (Tower)
Caution: Before starting the UPS, please connect the internal battery.
Note: A small amount of arcing may occur when connecting the batteries.
This is normal and does not damage the UPS or present any safety concern.
B
A
C
A - Remove front panel.
B- Connect the battery module
(never pull on the wires).
C - Attach the front panel.
3.3 Battery module connection (Rack)
Caution: Before starting the UPS, please connect the internal battery.
Note: A small amount of arcing may occur when connecting the batteries.
This is normal and does not damage the UPS or present any safety concern.
A
B
C
A - Connect the battery module
(never pull on the wires).
B - Attach the left-hand side of the
front panel by sliding it then by
locking the push button.
C - Attach the center panel.

Page 16 620-00082-01-us (en)
3. Installation
3.4 Installation of tower models
3.5 Installation of rack model for 2 post (option)
4
5
5
3
3
2
2
1
1
Use optional 1U 2 post rail kit.
Follow steps 1 to 5 for 2 post mounting.

Page 17
620-00082-01-us (en)
ENGLISH
3.7 Installation of rack models
Follow steps 1 to 4 for module mounting on the rails.
11
2
2
3
3
4
4
The rails and necessary hardware are supplied by EATON.
3.6 Installation of rack models (550 R)
Follow steps 1 to 3 for rack mounting.
23
2
3
1
3. Installation

Page 18 620-00082-01-us (en)
3.8 Installation of rack model for wall mounting
2
2
2
1
1
1
3. Installation

Page 19
620-00082-01-us (en)
ENGLISH
3. Installation
3.9 Communication ports
Connection of RS232 or USB communication port
The RS232 and USB communication ports cannot operate simultaneously.
2
1
5
6
1. Connect the RS232 (5) or USB
(6) communication cable to
the serial or USB port on
the computer equipment.
2. Connect the other end of the
communication cable (5) or
(6) to the USB (1) or RS232 (2)
communication port on
the UPS.
The UPS can now communicate
with EATON power management
software.
Installation of the communication cards (optional, standard on the Network bundle models)
3
It is not necessary to shutdown
the UPS before installing
a communication card.
1. Remove the slot cover (3)
secured by screws.
2. Insert the communication
card in the slot.
3. Secure the card cover with
the 2 screws.
Characteristics of the optocouplers communication port (optional) • Pins 1, 3, 4, 5, 6, 10: not used
• Pin 2: common (user)
• Pin 7: low battery
• Pin 8: operation on battery
power
• Pin 9: UPS ON, equipment
supplied
n.o.: normally open contact
When a signal is activated, the contact is closed between the common (pin 2) and the pin
for the corresponding signal.
Contact characteristics (optocoupler)
• Voltage: 48 V DC max
• Current: 25 mA max
• Power: 1.2 W

Page 20 620-00082-01-us (en)
4. Operation
4.1 Start-up and Normal operation
To start the UPS:
1. Verify that the UPS power cord is plugged in.
2. The UPS front panel display illuminates and shows EATON logo.
3. Verify that the UPS status screen shows .
4. Press the button on the UPS front panel for at least 2 seconds.
The UPS front panel display changes status to "UPS starting...".
5. Check the UPS front panel display for active alarms or notices. Resolve any active alarms before
continuing. See "Troubleshooting" on page 22.
If the indicator is on, do not proceed until all alarms are clear. Check the UPS status from the front
panel to view the active alarms. Correct the alarms and restart if necessary.
6. Verify that the indicator illuminates solid, indicating that the UPS is operating normally and any loads
are powered and protected.
The UPS should be in Normal mode.
4.2 Starting the UPS on Battery
Before using this feature, the UPS must have been powered by utility power with output enabled
at least once.
Battery start can be disabled. See the "Cold start" setting in "ON/OFF Settings" on page 13.
To start the UPS on battery:
1. Press the button on the UPS front panel until the UPS front panel display illuminates and shows
a status of "UPS starting...".
The UPS cycles through Standby mode to Battery mode.The indicator illuminates solid.
The UPS supplies power to your equipment.
2. Check the UPS front panel display for active alarms or notices besides the "Battery mode" notice
and notices that indicate missing utility power. Resolve any active alarms before continuing.
See "Troubleshooting" on page 22.
Check the UPS status from the front panel to view the active alarms. Correct the alarms and restart
if necessary.
4.3 UPS Shutdown
To shut down the UPS:
Press the button on the front panel for three seconds.
The UPS starts to beep and shows a status of "UPS shutting OFF...".The UPS then transfers to Standby
mode, and the indicator turns off.
4.4 Operation on Battery Power
Transfer to battery power
• The connected devices continue to be supplied by the UPS when AC input power is no longer available.
The necessary energy is provided by the battery.
• The and indicator illuminates solid.
• The audio alarm beeps every ten seconds.
The connected devices are supplied by the battery.
