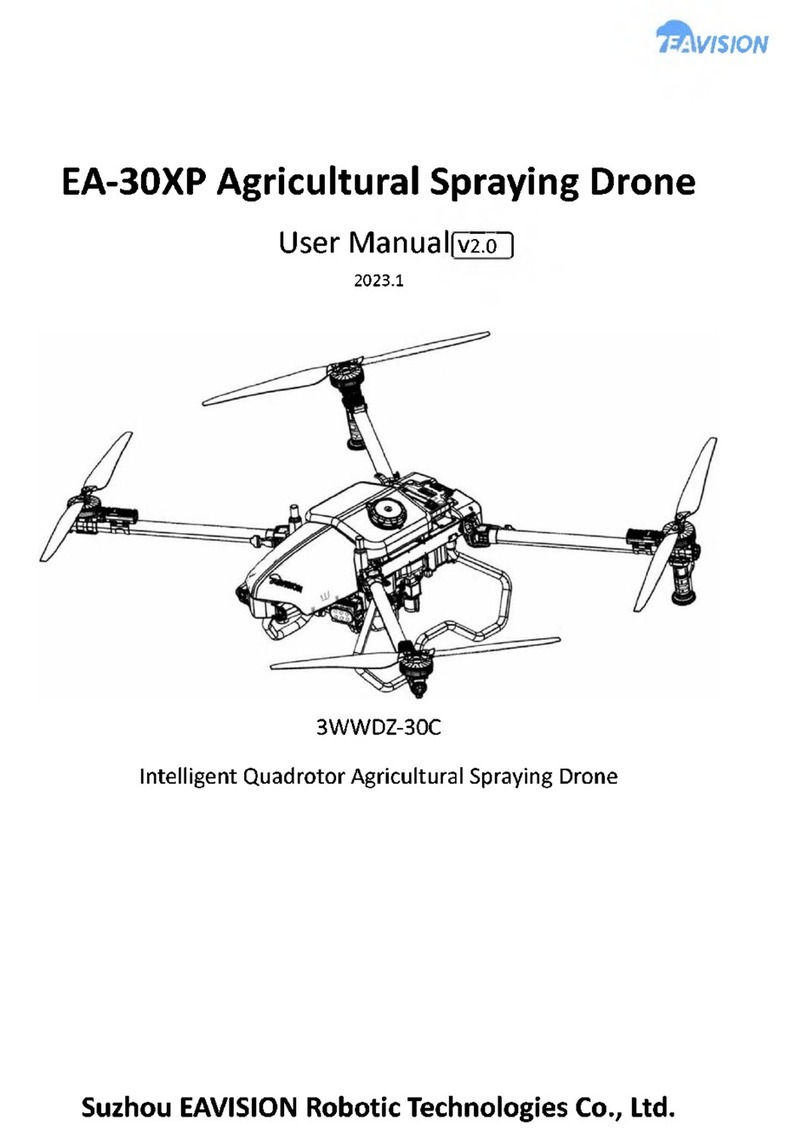

EA-30XP Agricultural Spraying Drone
User Manual v2.0
2023.1
3WWDZ-30C
Intelligent Quadrotor Agricultural Spraying Drone
Suzhou EAVISION Robotic Technologies Co., Ltd.

To Users
Thank you for choosing EA-30XP, the agricultural spraying drone developed and manufactured by EAVISION.
To operate the product correctly and avoid damage or serious injury, please read and follow all the
instructions in the user manual, and carry out maintenance in a timely and meticulous manner.
Navigate to a Topic
View a complete list of topics in the table of contents. Click on a topic to navigate to
that section.

Contents
Disclaimers.........................................................................................................................................................1
Safety Notice......................................................................................................................................................1
Rules for the use of pesticides...................................................................................................................1
Operation...................................................................................................................................................2
List of Items........................................................................................................................................................3
Product Overview ..............................................................................................................................................4
Product description....................................................................................................................................4
Feature highlights.......................................................................................................................................4
Drone..................................................................................................................................................................6
Drone components ....................................................................................................................................6
Preparing the drone...................................................................................................................................7
Remote Controller..............................................................................................................................................7
Remote controller overview ......................................................................................................................7
Remote controller components.................................................................................................................8
Remote controller operation .....................................................................................................................9
Remote controller LEDs............................................................................................................................12
Precautions for use ..................................................................................................................................12
Smart Battery ...................................................................................................................................................13
Smart battery overview ...........................................................................................................................13
Smart battery components......................................................................................................................13
Battery function .......................................................................................................................................13
Battery use ...............................................................................................................................................14
Battery storage & transport.....................................................................................................................17
Battery disposal........................................................................................................................................17
Precautions for use ..................................................................................................................................17
Smart Charger ..................................................................................................................................................18
Smart charger overview...........................................................................................................................18
Smart charger components......................................................................................................................19
Charge controller .....................................................................................................................................20
Charger use ..............................................................................................................................................21
Checklist before use.........................................................................................................................21
Use ...................................................................................................................................................21
Firmware upgrade....................................................................................................................................22
Storage and maintenance........................................................................................................................23
Precautions for use ..................................................................................................................................23
Surveying Tool..................................................................................................................................................24

Surveying tool overview...........................................................................................................................24
Surveying tool components .....................................................................................................................24
Surveying tool operation..........................................................................................................................24
RTK Base Station ..............................................................................................................................................26
Product overview.....................................................................................................................................26
LED description ........................................................................................................................................27
Assemble and use ....................................................................................................................................28
Storage and maintenance........................................................................................................................33
Precautions for use ..................................................................................................................................33
Start Operation ................................................................................................................................................34
Preparation ..............................................................................................................................................34
Preflight checklist.....................................................................................................................................35
Operation Environment ...........................................................................................................................37
Flight Limits..............................................................................................................................................38
Calibrate...................................................................................................................................................38
Calibrate the weight sensor .............................................................................................................38
Calibrate the compass......................................................................................................................39
Manual Mode...........................................................................................................................................40
Takeoff..............................................................................................................................................40
Landing.............................................................................................................................................40
Auto Mode ...............................................................................................................................................41
1. Plots survey..................................................................................................................................41
2. Functions of Survey.....................................................................................................................43
3. Functions of Operate ..................................................................................................................44
4. Flight Operations.........................................................................................................................46
5. Troubleshooting ..........................................................................................................................48
6. Shutdown Procedure ..................................................................................................................49
7. Transportation.............................................................................................................................50
8. Pesticide disposal........................................................................................................................50
Maintenance ....................................................................................................................................................50
Troubleshooting ...............................................................................................................................................51
List of dangers and hazards..............................................................................................................................54
Warranty Service..............................................................................................................................................54
Warranty Rules.........................................................................................................................................54
1. Repair...........................................................................................................................................54
2. Replacement ................................................................................................................................55
3. Return...........................................................................................................................................55
4. What is not covered.....................................................................................................................55

5. After-sales service charging principle and user payment method ..............................................56
6. Special cases.................................................................................................................................56
Table 1 Warranty List of EAVISION Drones...............................................................................................56
Table 2 List of Wearing Parts....................................................................................................................57
Nozzle Warranty Special Instructions ..............................................................................................................58
Warranty Certificate.........................................................................................................................................59
Specifications ...................................................................................................................................................60
Contact Us........................................................................................................................................................64

1
Disclaimers
By using this product, you hereby acknowledge that you have read this declaimer and the user manual
carefully and that you understand and agree to abide by the terms and conditions herein.
This product is not intended for use by persons under the age of 18. Adults should keep the drone out of
reach of children and DOT NOT operate this drone in the presence of children. UAV operation license issued
by EAVISION is required for users to operate the drone.
In no event will EAVISION be liable to you for any indirect, incidental, special, consequential or punitive
damages (including damages for loss of profits, goodwill, or any other intangible loss) arising out of or relating
to your access to or use of, or your inability to access or use, the product, product accessories, or any
materials, flight environment data, and whether or not EAVISION has been informed of the possibility of
damage.
This product is a multirotor flying platform intended for agricultural applications only. When you use our
mobile apps or our products or other software, you will provide EAVISION with data regarding the use and
operation of the product, and operations record, and agree that the latter can legally collect, store, and use
the data and record. EAVISION bears no responsibility for loss of data that results from your inability to use
the product.
The excellent performance of this product relies on the original parts of EAVISION. Do not use accessories
that are not from EAVISION.
Unmanned aerial vehicle (UAV) operators should abide by the regulations from self-regulatory organizations
such as the International Civil Aviation Organization, the Federal Aviation Administration, and their local
aviation authorities. Once you use this product, it is deemed that you have read the relevant regulations and
documents, and EAVISION is not responsible for any relevant legal responsibilities arising from the use of this
product in violation of laws and regulations.
This statement has important implications for the safe use of this product and your legal rights. Suzhou
EAVISION Robotic Technologies Co., Ltd. reserves the right to update this disclaimer. Thank you again for
choosing EAVISION.
Safety Notice
Rules for the use of pesticides
⚫Avoid the use of powder pesticides as much as possible as they may reduce the service life of the nozzle.
Be sure to clean the nozzle carefully each time after spraying powder in case of nozzle blockage and
damage.

2
⚫Pesticides are toxic and needed to be handled in strict accordance with their specifications.
⚫Residue on the equipment caused by splashes or spills when pouring and mixing the pesticide can irritate
your skin. Make sure to clean the equipment after mixing.
⚫Use clean water to mix the pesticide and filter the mixed liquid before pouring into the spray tank to avoid
blocking the strainer. Clear any blockage before using the equipment.
⚫Make sure to stay in an upwind area when spraying pesticide to avoid bodily harm.
⚫Wear protective clothing to prevent direct body contact with the pesticide. Rinse your hands and skin
after handling pesticides. Clean the drone and remote controller after applying the pesticide.
⚫Effective use of pesticides depends on pesticide density, spray rate, spray distance, drone speed, wind
speed, wind direction, temperature, and humidity. Consider all factors when using pesticides, but DO
NOT compromise the safety of people, animals, or the environment in doing so.
⚫DO NOT contaminate rivers and sources of drinking water.
Operation
⚫Make sure that your operations do not violate any applicable laws or regulations, and that you have
obtained all appropriate prior authorizations. Consult the relevant government agency or authority
before flight to ensure you comply with all relevant laws and regulations.
⚫Make sure that the battery is firmly inserted into the drone and the arms are unfolded and arm locks
are firmly tightened. Avoid flying over or near crowds or hazardous materials.
⚫Do not fly under the influence of alcohol or drugs or in poor physical or mental condition.
⚫Do not operate the drone alone outside the training area without sufficient training. Seek help from
experienced users before and during flight.
⚫Stay away from the rotating propellers. And avoid any obstruction, interference or assault from
humans, animals or objects during flight.
⚫Avoid flying near strong electromagnetic sources such as high voltage towers, large power equipment,
radio and television transmission towers, and mobile phone base stations. EVASION assumes no
liability for damage or injury incurred from operation in such areas.
⚫Make sure you comply with all relevant laws and regulations before flight. Factory settings for the
drone: 20m of max altitude, 10m/s of max speed, and 2000m of max distance.
⚫Please take attention that changes or modification not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
⚫This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
⚫This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.

3
List of Items
Check that all of the following items are included in the package. If there is any missing item, please contact
your dealer promptly.
EA-30XP Drone×1 Smart Batteries×2
(Including spray tank and propeller holders)
Remote Controller×1 Smart Charger×1 Differential Positioning Module×1
(Including power adapter and power cord) (In the tool box)
RTK Mobile Base Station Tripod
Tool box contains differential positioning module x 1, Type-C adapter x 1, Type-C data cable x 1, screwdriver
set x 1
Base station box contains RTK mobile base station x 1, tripod x 1 (standard edition)

4
Product Overview
Product description
The new generation of the EA-30XP comes with leading binocular vision system and ultra-low terrain follow
technology, allowing the drone to automatically avoid obstacles in fertile fields, hilly and mountainous
terrains. The mist nozzle produces droplets to penetrate various kinds of crops. For spreading operations,
users can purchase the optional spread package to transform the drone into spread configuration. The drone
has a protection rating of IP67 (IP66 for battery), which contributes to easier cleaning and higher efficiency
of operation.
Feature highlights
⚫Consisting of the self-developed flight controller - eaPro and uniCom3.0, EA-30XP highly integrates flight
control, environment perception and data transmission, allowing users to check key data from plot
surveying to operations through one touch.
⚫The new power system has increased the load capacity by 12%, and the optimized ESC layout has
improved its anti-interference ability to ensure stable and reliable flight.
⚫The integrated spray tank is with a capacity of up to 32L. When switching to spreader mode, the pump
and flow meter can be removed with the whole spray tank to reduce the invalid load.
⚫The updated spreading system is with a spread capacity of 40L, and can be changed quickly with the
spraying system. Equipped with the integrated intelligent weighing system and the blade stirrer, the drone
can accurately discharge and avoid getting stuck. The maximum opening valve has been increased by 33%,
improving the overall spreading efficiency by 30%.
⚫The integrated mist spraying system - CCMS-L20000 has effectively reduced cable wear, enhanced the seal
structure, and reduced nozzle jam. It can produce droplets to penetrate crops with size ranging from 10
to 300 microns, which reduces drift, increases the pesticide amount on the back of the leaves, improves
utilization efficiency of pesticides, and ensures the effectiveness of agricultural protection for all types of
crops.
⚫The updated FPV high-definition camera enables 120° vertical rotation and 130° ultra-wide viewing angle.
Its high-stable PTZ guarantees no sense of delay in the video screen. Combined with AR auxiliary function,
landscape and tree-shaped obstacles can be displayed at decimeter level, making the flight and surveying
more convenient, and manual operation more friendly.
⚫The new function of three links in one enables fast connection, and instant flight when you turn on the
devices. Data transmission link combined with dual-card link, guarantees no fear of signal blockage and
weak network.
⚫The mini magnetic surveying tool - EA-SUT 4.0 uses an integrated antenna to receive accurate position
information. Equipped with the magnetic base, the surveying tool can be absorbed to the remote
controller support, making the installation easy and convenient. It can also be connected to the remote
controller quickly and stably through serial interface.

5
⚫With built-in large-capacity battery, the local base station - EA-BAS 3.0 can operate continuously for 20
hours. It can work even longer with the external power supply through the charging socket on the back.
Its display panel is concise and clear, and has the cloud base station alignment function: the base station
can be placed arbitrarily before operation without affecting the operation accuracy.
⚫The drone can fly as low as 0.7m from the canopy, shortening the droplet settling distance, significantly
reducing evaporation and drift, enhancing the penetration of the liquid, and ensuring the effectiveness of
agricultural protection for all types of crops.
⚫The integrated night flight system - EAV-NTL 3.0 is waterproof and heat resistant. The irradiated area is as
much as 400 square meters, and the uniformity of light is increased by 10%, which significantly enhances
the ability of autonomous terrain following at night in hilly and mountainous areas.
⚫The A-B route function enables users to record points A and B in the plot and adjust the parameters
manually to plan the route.
⚫The intelligent resuming flight function optimizes the flight path automatically, effectively reducing full-
load and no-load flight time, and increasing operating efficiency by up to 30%.

6
Drone
Drone components
1. Motor 12. Frame Arm
2. Propeller 13. Electronic Speed Control
3. RTK Antenna 14. Backup Power Switch
4. Spray Tank 15. Binocular Lens
5. Smart Battery 16.Millimeter wave radar
6. Arm Storage Clamp 17. Ultrasonic Radar
7. Mist Nozzle 18. Lidar
8. Landing Gear 19. Night Navigation Light
9. Rear Navigation Light 20. FPV Camera
10. Cover 21. Antenna
11. Arm Locks

7
Preparing the drone
1. Unfold the M3 and M4 arms followed by M1 and
M2 and fasten the four arm locks. Avoid pinching
fingers.
2. Fold the M1 and M2 arms followed by the M3
and M4 and make sure that the arms are
inserted into the storage clamps on both sides of
the drone. Avoid pinching fingers.
3. Unfold the propeller blades.
Remote Controller
Remote controller overview
The EAVISION remote controller adopts the advanced high-definition image transmission technology, and
can automatically select the frequency band with the lowest interference. Equipped with an omnidirectional
antenna, the image transmission and control distance can reach 1.2 to 1.8 kilometers. Its powerful computing
performance reduces video transmission display delay to 180ms with Qualcomm eight-core CPU.
The remote controller uses a 5.5 inch 1920*1080 high-definition display with a maximum screen brightness
of 1000cd/㎡, nearly twice that of a common smartphone, and is still clearly visible in direct sunlight.

8
Remote controller components
1. Antenna (Relays drone control and image transmission signal)
2. Status LED
3. Power button
4. Battery level LED
5. Right joystick (controls UAV movement)
6. Spray switch (in manual operation mode, switch to start or stop spraying)
7. Touch screen (Tap to select. Android-based device to run Smart AG Pro App)
8. Left joystick (controls UAV movement)
9. 3-Stage switch (auto mode/manual mode)
1
9
8
7
6
5
4
3
2

9
Remote controller top interface Remote controller bottom interface
Remote controller operation
Turning on and off
1. When the remote controller is powered off, press the power button to check the battery level of the
internal battery. Recharge before use if the battery level is low.
2. When the remote controller is powered off, press the power button to lighten the battery level LED, then
press and hold to power on the remote controller. Wait till all LEDs to light up in sequence.
3. When the remote controller is powered on, press and hold the power button for about 2 seconds until
the shutdown button pops up. Tap it to turn off the remote controller.
⚫Screenshot: when the remote controller is powered on, press and hold the power button for about 2
seconds until the screenshot button pops up. Tap it to screenshot.
⚫Standby: when the remote controller is turned on, press the power button to switch to the energy-saving
mode.
⚫It takes about 90 seconds to power on the remote controller for the first time. And it takes about 30 to
35 seconds to change battery during operation (with backup battery).
Charging
Charge the battery with the AC power adapter when the remote controller is powered off.
1. Use Type-C fast charging cable to connect the remote controller and adaptor.
2. The Status LED turns solid red when charging.
3. The Status LED turns solid green when fully charged.
⚫The remote controller cannot be charged with the 5V adaptor, please use the original charger.
⚫Make sure the remote controller is powered off when charging, otherwise, it will be overheating.

10
Operating the drone
You can set the joystick under System Settings of Siyi Remote Controller.
This section explains how to control the orientation of the drone through the remote controller. Control can
be set to Mode 1 (American standard), Mode 2 (Japanese standard), or Mode 3 (Chinese standard). Below
refers to Mode 1 (American standard).
Linking the Remote Controller
The drone has been connected to the remote controller, and you can refer to the instructions below for
connection.
1. Enter the System menu in Siyi Remote Controller app, go to System Settings, and tap Start Linking.
2. The Status LED on the remote controller blinks red, indicating that the linking is in progress.
3. Press the linking button in the receiver for 2 seconds until the status LED blinks red.
Mode 1

11
4. Wait for 5 to 10 seconds for linking, and the status LEDs of the remote controller and receiver will turn
solid green.
Operation Control
⚫Flight mode switch: push the dial in the upper left corner of the remote controller to the top for auto
flight, and to the bottom for manual flight.
⚫Spray button: in manual operation mode, push the dial to the left to stop spraying and the opposite
direction to start spraying.
⚫FPV: turn on SIYI FPV on the remote controller or enter auto mode to display the FPV view. Toggle the 3-
stage switch to adjust the FPV angle.

12
Remote controller LEDs
The status LED indicates different meanings with three colors of light flashing and different flashing
frequencies.
Status LED
Description
Red light flashing quickly
Linking
Alternating red-green-yellow flashing slowly
Picture transmission starting up
Alternating red-green-red-green-red flashing
Unexpected shutdown of Android system
Red light flashing slowly
Firmware mismatch
Red light flashing three times
Image transmission initialization failed
Red light flashing four times
Joysticks need to be calibrated
Yellow light flashing slowly
The remote controller power supply voltage is abnormal
Yellow light flashing twice
Remote controller Bluetooth not connected
Solid red light
No transmission with the receiver
Alternating yellow-red flashing
Alternating yellow-red-red flashing
Alternating yellow-red-red-red flashing
Remote controller temperature first-level alarm
Remote controller temperature second-level alarm
Remote controller temperature third-level alarm
Alternating green-red flashing
Alternating green-red-red flashing
Alternating green-red-red-red flashing
Receiver temperature first-level alarm
Receiver temperature second-level alarm
Receiver temperature third-level alarm
Flashing green light
The faster the flashing frequency, the worse the signal
strength
Precautions for use
1. Do not use the remote controller to control the drone near crowds, obstacles, strong electromagnetic
source, or other areas that are likely to cause unnecessary economic losses or even personal injury.
2. When operating, do not cover the remote controller antenna or block signal transmission in other ways.
3. During operation, keep a visual line of sight between the mid-section of the remote controller antenna
and the drone, and the shade of green plants will seriously affect the remote controller signal distance.
4. The top of the remote controller antenna is the part with the weakest signal transmission. When operating,
avoid pointing it to your drone.
5. Do not cut off the power of the remote controller when the drone motor is still running.
6. Always check the battery level of the remote controller before operation.

13
Smart Battery
Smart battery overview
EA-30XP intelligent flight battery adopts a new high-energy density battery cell and an advanced battery
management system to provide sufficient power for the drone. Metal casing and silicone protective cover
effectively protect the battery. The battery capacity is 29000mAh and the nominal voltage is 51.8V
Smart battery components
1. Power Button 4. Silicone Protective Cover
2. LED Indicator 5. Clamp
From left to right are power LED1, LED2, LED3, LED4, fault light 6. Power Interface
3. Handle
Battery function
JM2-29000mAh Smart Flight Battery has the following functions:
1. Battery level display: press the battery power button to check the current battery level.
2. Intelligent transmission: the battery information, such as voltage, battery level can be obtained in real
time through the intelligent charging app to ensure that the drone can work properly.
3. Abnormal use record: the management system can record information such as high and low temperature
charging and discharging, charging overcurrent, discharging overcurrent, long-time high-power storage,
etc.
4. Charging warning prompt: if an error occurs during charging, restart the battery and charger. If the

14
problem is not solved, restart the battery according to the App display and try again.
5. Automatic balancing function: under certain conditions, the battery will automatically turn on the
balancing function to ensure the dynamic balance of the cells in the battery.
6. Automatic discharging function: the battery has a self-discharge function, and it will automatically
discharge 40% of the power when left in a fully charged state for more than ten days.
7. Automatic adjustment of current and segmental protection function: when charging with an official
charger, the charging current can be intelligently adjusted according to the current cell temperature. Also,
the battery protects itself based on its temperature.
8. Thermal balance management function: the battery has a thermal balance management function, which
controls the temperature difference between the cells within the error range and makes them equal.
Battery use
Turning on and off
1. In sleep mode or shutdown mode, press and hold the power button (T > 3 seconds) until all LEDs flash,
then press the power button to turn on the battery.
1) The battery will be kept off if there is no operation during LEDs flashing.
2) The battery will be kept off if either operation is performed.
2. In the power-on mode, press and hold the power button (T > 3 seconds) until all LEDs flash, then press the
power button to turn off the battery.
1) The battery will be kept on if there is no operation during LEDs flashing.
2) The battery will be kept on if either operation is performed.
When the battery is correctly inserted into the drone, press and hold the power button until all LEDs flash,
then press the power button to turn on the battery. After flight, press and hold the power button until all
LEDs flash, then press the power button to turn off the battery, and then disconnect the battery from the
drone.
⚫Make sure the battery is fully charged before each flight.
⚫If the drone enters the low battery alarm mode, land and stop flying as soon as possible, and replace the
battery.
⚫In a low temperature environment, it is recommended to preheat the battery to above 5°C before flight,
preferably to 20°C. Do not charge or discharge the battery when the temperature is below 0°C.

15
Checking battery level
1. In sleep mode or shutdown mode, press the power button (0.1 second < T < 1 second), the LED will
display the power for 5 seconds. The battery LEDs are shown in the table below.
LED1 (Green)
LED2 (Green)
LED3 (Green)
LED4 (Green)
LED5 (Red)
Current Battery
Level
On
On
On
On
Off
90%--100%
On
On
On
Flash quickly
Off
80%--90%
On
On
On
Off
Off
70%--80%
On
On
Flash quickly
Off
Off
60%--70%
On
On
Off
Off
Off
50%--60%
On
Flash quickly
Off
Off
Off
40%--50%
On
Off
Off
Off
Off
20%--40%
Flash quickly
Off
Off
Off
Off
0%--20%
The flashing frequency is 2Hz, on for 0.25 seconds and off for 0.25 seconds.
2. When charging battery, the battery level indication is shown in the table below.
LED1 (Green)
LED2 (Green)
LED3 (Green)
LED4 (Green)
LED5 (Red)
Current Battery
Level
On
On
On
On
Off
99%--100%
On
On
On
Flash slowly
Off
90%--98%
On
On
On
Flash quickly
Off
80%--90%
On
On
Flash slowly
Off
Off
70%--80%
On
On
Flash quickly
Off
Off
60%--70%
On
Flash slowly
Off
Off
Off
50%--60%
On
Flash quickly
Off
Off
Off
40%--50%
Flash slowly
Off
Off
Off
Off
20%--40%
Flash quickly
Off
Off
Off
Off
0%--20%
