EAW Commercial CXA 80 User manual

Part No. SW0509 Rev. A 04/07
DESCRIPTION
The new EAW Commercial CXA80 power amplier features a exible
input/output design that makes it ideal for stand-alone operation as
well as a convenient solution where additional system zones need
to be added. Specically intended for a wide variety of installation
applications, CXA80 is outtted with both a standard audio input
as well as a dedicated priority input, combining to make them very
cost-eective two-input by one-output units.
Two combination mic/line inputs are actively balanced, with
individual adjustable potentiometers for line level input, mic level
input, and mic level input with 24-volt DC phantom power. Input 1
and the priority input are divided into four discrete input sections:
a combination XLR/TRS connector, Phoenix connector, or barrier
strip. Meanwhile, a Parallel output provides handy“loop-through”
capability - the means to pass un-amplied line level signals
downstream to additional ampliers via barrier strip, Phoenix, 1/4-
inch or XLR outputs.
Priority announcements can be initiated with external contact
closures or adjustable signal threshold levels. External volume
control is also possible through a Phoenix connector as well as
a user-supplied potentiometer. Further, a two-position Phoenix
connector allows the internal fault relay to be connected to
redundant systems.
Front panel controls include low and high EQ controls which oer
12 dB of boost or cut at 100 Hz and 10 kHz, respectively. A master
volume control oers output volume control, while distinctive LEDs
indicate power (green), signal (amber), overload (red), and fault (red).
The CXA80 provides 80 watts of output power at 100 volts, 70.7 volts,
25 volts and 4 Ohms. An intelligent output stage is fully protected
against permanent damage caused by overloading, shorts and
thermal faults.
CXA80 operates on 100 volts to 240 volts AC (50/60 Hz) and is
supplied by a detachable IEC power cord. A combination banana
plug/binding post connection is also provided for connecting an
external 24-volt DC backup battery.

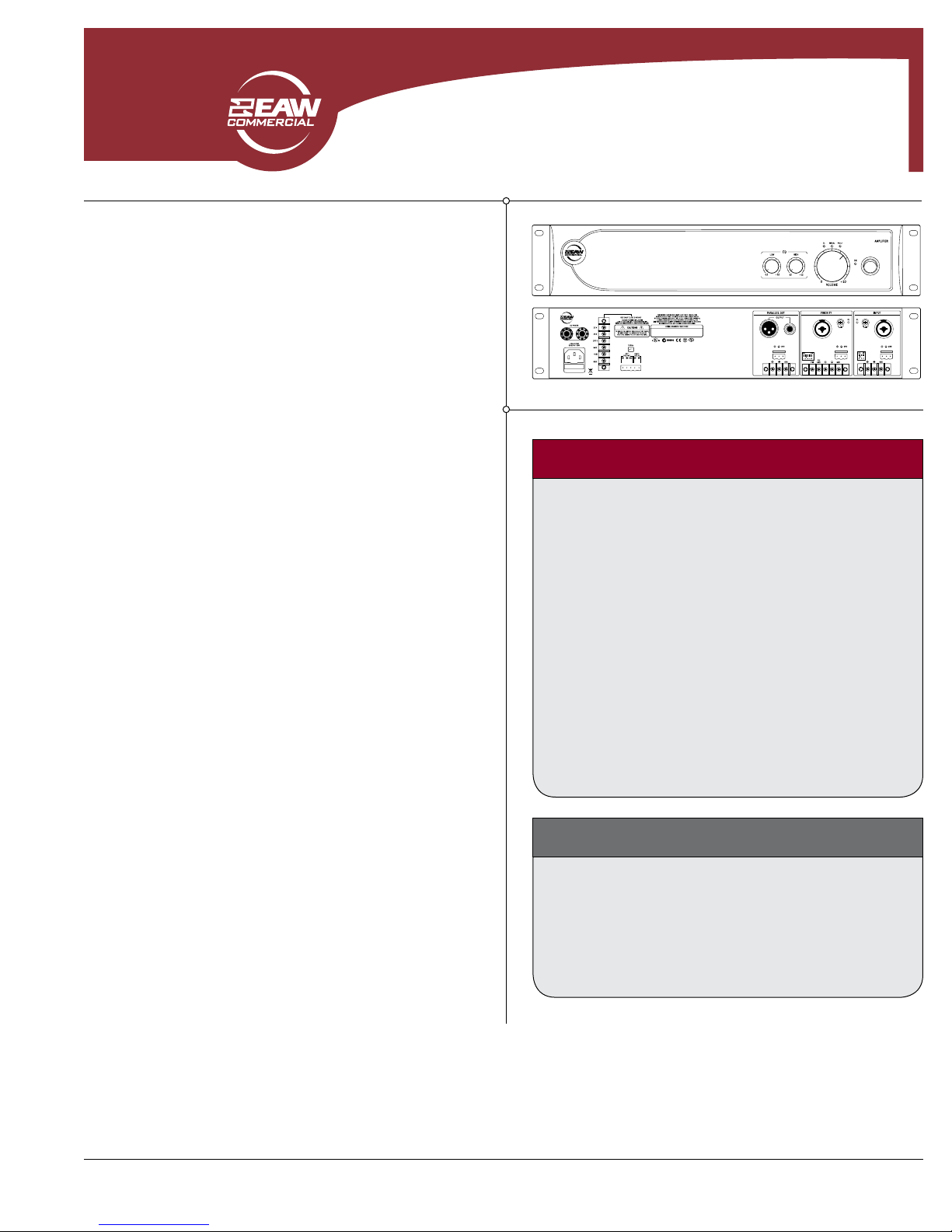

CXA80
2 INPUT X 1 OUTPUT 80 W POWER AMPLIFIER
CXA 80
CXA 80
• Two combination 1/4-inch/XLR/Phoenix,
or barrier strip Mic/Line inputs
• One parallel output on barrier strip, Phoenix,
1/4-inch or XLR
• Selectable 24-volt phantom power
• Dedicated priority input
• Internal fault-activated relay
• External volume control
• 4-Ohm, 25-volt, 70-volt and 100-volt outputs
• Automatic changeover to 24-volt DC backup power
• Universal power supply
Features
• Paging Systems • Houses of Worship
• Hotel and Ballrooms • Meeting Rooms
• Schools • Oces
• Foreground/Background Music Systems
Applications
Eastern Acoustic Works | One Main Street | Whitinsville, MA 01588 USA | TEL toll free within US/Canada 888.337.7404
TEL outside US 425.892.6503 | FAX [phone] | Page 1 of 2

Part No. SW0509 Rev. A 04/07
PERFORMANCE
Inputs Impedance
Mic Balanced, 2.7k Ohm
Line Balanced, 30k Ohm
Input Protection
RFI and Level Protected
Input Gain Trim Range
-3dB to 40dB (Mic Input)
-23dB to 20dB (Line input)
Max Input Level
+19dBV
Microphone Input E.I.N. (20Hz – 20kHz)
-124dBV
Common Mode Rejection Ratio (1kHz)
Mic Input 60dB Typical
Line Input 30dB Typical
Dynamic Range
105dB
Frequency Response
20Hz – 20kHz +/-1dB
Distortion
<0.1% 20Hz – 20kHz
Operating Range (+0dB/- 3dB)
40Hz – 15kHz
Output Power
80W @ 100V
80W @ 70.7V
80W @ 25V
80W @ 4 Ohm
PHYSICAL
Front Controls
Type Range
EQ Lo +/- 12dB @ 100Hz
High +/- 12dB @ 10 kHz
Volume Level 0 to 10
Power AC Mains On/Off
CXA80
2 INPUT X 1 OUTPUT 80 W POWER AMPLIFIER
Rear Controls
Type Range
Inputs 1–2 Trim Pot 3dB to 40dB (Mic Input)
-23dB to 20dB (Line Input)
Input 1 DIP Parallel Enable, High-Pass
Filter, 10 dB Pad
Input 2 DIP Line, Mic, 24V Phantom,
High-Pass Filter, 10 dB Pad
100Hz HPF In/Out
External Volume Control 3 Position Phoenix
Fault Relay 2 Position Phoenix
Mains Power
AC 100Hz – 240HzVAC 50/60 Hz 110W
DC 24V
Dimensions (inches)
H x W x D with feet 4.0 x 17.25 x 14.6
w/o feet 3.5 x 17.25 x 14.6
Dimensions (millimeters)
H x W x D with feet 102 x 483 x 381
w/o feet 88 x 483 x 381
Weight (approximate net lb/kg)
17.7 7.9
Shipping weight (lb/kg)
22.8 10.2
Operating temperature range
–10°C to 45°C, 14°F to 113°F
EMC STANDARDS:
U.S. -part 15 of the FCC Rules, EN55103-1, EN55103-2, EN55022 (Emissions),
EN55024 (Immunity)
Canada - ICES-003
SAFETY STANDARDS:
cTUVus, cULus (pending), KETI, C-Tick N484, PSE
ORDERING DATA:
P/N 0020861
Width: 17.25 in / 438 mm
Overall width: 19 in / 483 mm
Height w/ feet:
4 in
102 mm
Depth:
14.6 in / 381 mm
Height
3.5 in
88 mm
Overall depth: 16.5 in / 419 mm
