Echelon CONNECT SPORT User manual
INSTRUCTION MANUAL
CONNECT SPORT
2
3
Hello,
I am Lou Lentine, President of Echelon, and I would like to welcome you to the Echelon community. You’ve
made a great decision for yourself and your family. The Echelon Experience is an innovative combination
connects your family, friends, the Echelon community, and Echelon instructors together to help you with
there is always a new and exciting class for you to join.
through workout experiences that make an active lifestyle more accessible and sustainable.
Thank you again for choosing Echelon and I look forward to seeing you in the next live class!
Best personal regards,
Lou Lentine
4
3
1
10
7
11 12 13
8
5
9
6
9
14
15
15
17
16 18
21
19
22
20
24 25
4
4
2
23
INCLUDES
1. Handlebar height
adjustment lever
2. Handlebar post frame
3. Resistance knob/brake lever
4. Crank arms
5. Seat height adjustment lever
6.
7. Rear bracket
8.
9. Handlebars
10.
11. Rear foot
12. Handlebar post
13. Seat
14.
15. Pedals
16. Seat post
17. Seat slide adjustment knob
18. Power adapter
19. Handlebar bottom bracket
20.
21. Handlebar post screw
22.
23. Hex key with Phillips
screwdriver head
24.
25.
PARTS LIST
5
ACCOUNT CREATION
If this product was purchased on the website, you should have received
an activation email.
Go to and follow the on-screen instructions to choose a plan and setup
your account. This info will be needed to login to your account on the Echelon FitTM App.
1. Choose "sign up now"
2. Select Purchase location
3. Choose your plan
Monthly / 1 Year / 2 Year
Select purchase location and follow the
on-screen instructions.
4. Set up payment method
5. ENTER PERSONAL ACCOUNT INFO
If this product was purchased on the echelont.com
website, you should have received an activation email.
Click the link in the activation email and follow the
on-screen instructions. Enter your information to verify
payment information.
ACCOUNT ACTIVATION
6. View YOUR ACCOUNT
Where you can edit your billing info, add family
members, manage subscriptions, and (if on your
mobile device) download the app and sign in.
QUICK START GUIDE
6

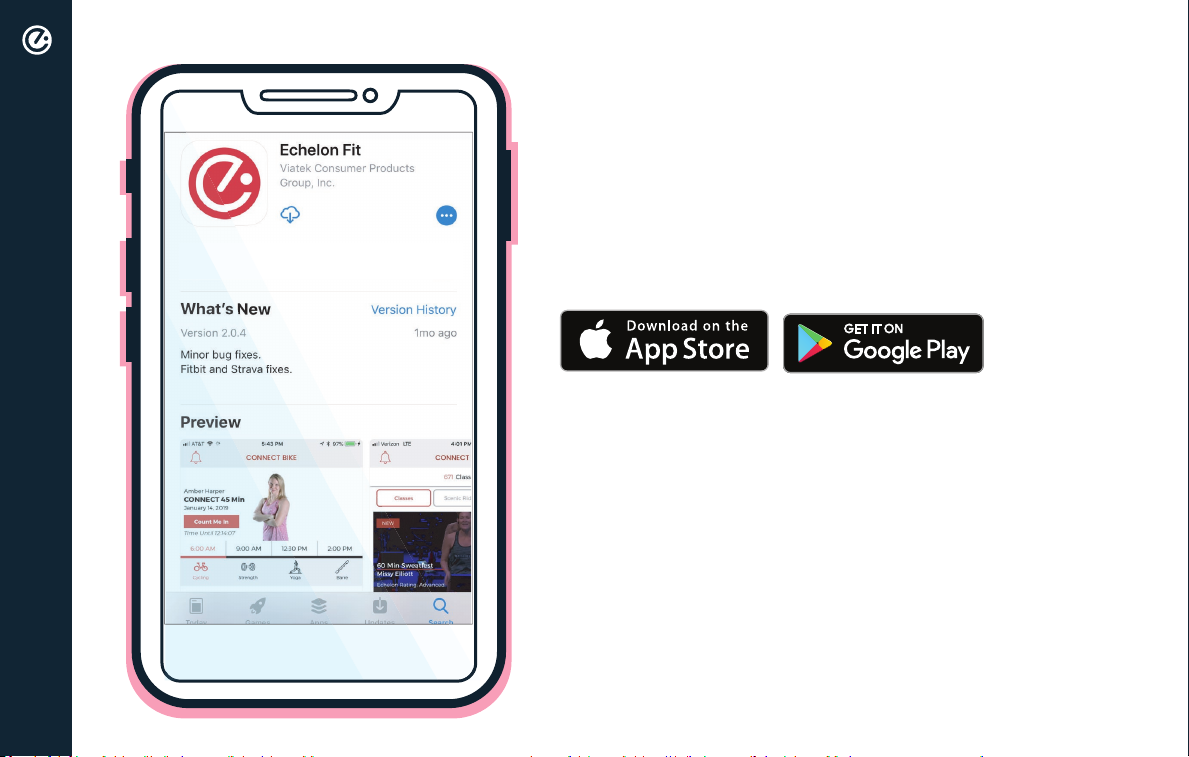

DOWNLOAD THE ECHELON FIT APP
Ensure latest version of the Echelon Fit™ App is
installed from the Google Play Store or the App Store.
OPERATIONAL INSTRUCTIONS
Connect to the Echelon FitTM App to access tutorials
and operation instructions.
QUICK START GUIDE
7
Lay the Connect Sport its side and
remove wheel chock bolts with hex
key and set to the side.
Place the front foot with wheels
facing forward under the
front bracket.
Place the rear foot under the
rear bracket.
Using your wrench or fingers, pull
wheel chock out and set aside.
Insert foot bolts into front foot and
tighten down with hex key.
Insert foot bolts into rear foot and
tighten down with hex key.
REMOVAL OF FRAME
8
Connect the coiled wire from the
bike to the wire at coming out of the
handlebar post.
Place seat onto seat post and secure
with included wrench.
Unscrew handlebar height
adjustment lever, but do not remove.
Pull lever out and fully insert
handlebar post into frame. Release
lever and post is secure.
Place water bottle holder over the
two screw holes near the Sport logo
and secure with two water bottle
holder screws.
Place the handlebars on the
handlebar post and the handlebar
screw in the handlebar post screw
with hex key.
Remove nut from left pedal by
turning clockwise.
ASSEMBLY
9
ASSEMBLY
back onto pedal bolt.
Hold pedal with double sided
wrench and use single sided wrench
to tighten nut counterclockwise.
Remove nut from right pedal by
turning counterclockwise.
Screw right pedal onto crank arm
clockwise.
Screw left pedal onto crank arm
counterclockwise.
Use double sided wrench to ensure
pedal is firmly seated against
crank arm.
The threads are reversed on LEFT pedal and nut.
10
ASSEMBLY
Plug power adapter into port located
on the rear foot bracket, then plug
into wall outlet.
Use double sided wrench to ensure
pedal is firmly seated against
crank arm.
Hold pedal with double sided
wrench and use single sided wrench
to tighten nut clockwise.
onto pedal bolt.
The assembly of your Echelon®
Connect Sport bike is now
complete!
11
Turn seat slide adjustment lever
counterclockwise to loosen. Move
seat along track to desired location.
Turn seat slide adjustment lever
clockwise to tighten and secure
in place.
Turn seat height adjustment lever counterclockwise
until you are able to pull the lever halfway out. Pull
and hold the seat height adjustment lever and raise
the seat to desired position. Ensure lever engages
one of the adjustment holes. Turn seat height
adjustment lever clockwise until secure.
SEAT ADJUSTMENT
12
HANDLEBAR / leveling ADJUSTMENT
Turn handlebar adjustment lever
counterclockwise until you are
able to pull the lever halfway
out. Pull and hold the handlebar
adjustment lever and raise or
lower the handlebars to desired
position. Ensure lever engages
one of the adjustment holes.
Turn handlebar adjustment lever
clockwise until secure.
To level the Connect Sport, adjust
the pads on the front and rear feet
until stable.
13

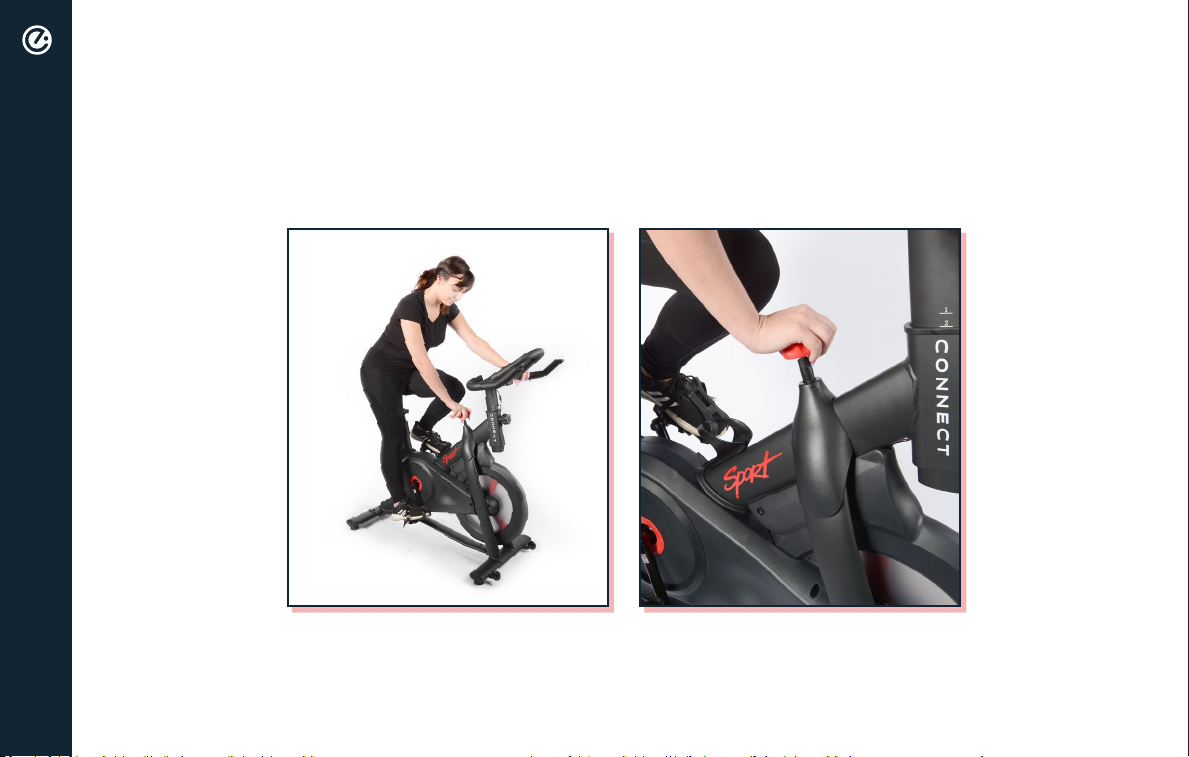

OPERATION
distribution while in an upright position.
14
OPERATION
To adjust the resistance while using the Echelon®Connect Sport, turn
3. To stop the bike press down on the resistance adjustment knob, as
15
SAFETY INFO AND WARNINGS
SPECS
QDID: 60912
DIMENSIONS: 42" L ××45" H
authority to operate this device.
CONNECTED.
16
TRANSMITTER.
UNDESIRED OPERATION.
SAFETY INFO AND WARNINGS
17
TRANSMETTEUR.
®
®
IMPORTANT SAFETY INSTRUCTIONS
following:
Read all instructions before using THE ECHELON® CONNECT.
SAFETY INFO AND WARNINGS
18
SAFETY INFO AND WARNINGS
DANGER -
To reduce the risk of electric shock:
1. Always unplug this appliance from the electrical outlet immediately after using and
before cleaning.
WARNING - To reduce the risk of burns, fire, electric shock, or injury
to persons:
1. An appliance should never be left unattended when plugged in. Unplug from outlet when not in
use, and before putting on or taking off parts.
or injury to persons.
3. This appliance is not intended for use by persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Keep children
under the age of 13 away from this machine.
4. Use this appliance only for its intended use as described in this manual. Do not use attachments
not recommended by the manufacturer.
5. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water. Return the appliance to a service center for
examination and repair.
6. Do not carry this appliance by supply cord or use cord as a handle.
7. Keep the cord away from heated surfaces.
19
8. Never operate the appliance with the air openings blocked. Keep the air openings free of lint,
hair, and the like.
9. Never drop or insert any object into any opening.
10. Do not use outdoors.
administered.
12. To disconnect, turn all controls to the off position, then remove plug from outlet.
Before using the Echelon® Connect Sport
· Have you been sick recently?
· Have you been out of breath for no reason recently?
· Have you had chest pain recently?
· Do you currently have any injuries preventing you from exercise?
· Are you pregnant?
· Do you have any conditions or reasons you should NOT exercise?
· Are you over 35 years old and physically inactive?
· Have you been told by a doctor that you should NOT exercise?
ECHELON®CONNECT.
Read the user manual fully and follow all instructions. This ensures your safety.
SAFETY INFO AND WARNINGS
20
WARNINGS
®Connect Sport on solid, level ground and in a well lit and ventilated area.
®Connect offers up/down and fore/
•
Echelon® Connect Sport if your body weight is in excess of 300 pounds.
®Connect Sport when sick or fatigued.
•
away. Ensure that shoelaces are tucked into your shoes.
•
• Echelon®Connect Sport.
dismounting. Do not stand or climb on the handlebars.
•
rubber handlebar grip.
•
other pains, STOP IMMEDIATELY! Consult your physician before using the Echelon® Connect Sport again.
SAFETY INFO AND WARNINGS
