Xterra MB500 User manual

MB500 INDOOR CYCLE
OWNER’S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW INDOOR CYCLE

Table Of Contents
1
2
3
5
10
16
17
ATTENTION
THIS INDOOR CYCLE IS INTENDED FOR RESIDENTIAL USE ONLY AND IS
WARRANTED FOR THE APPLICATION. ANY OTHER APPLICATION VOIDS THIS
WARRANTY IN ITS ENTIRETY.
Product Registration
Important Safety Instructions
Important Operation Instructions
MB500 Assembly Instructions
Operation of Your New Indoor Cycle
Troubleshooting
Manufacturer’s Limited Warranty

MB500 Indoor Cycle
1
Record Your Serial Number
Please record the Serial Number of this tness product
in the space provided below.
Serial Number
Register Your Purchase
The self-addressed product registration card must be completed in full and returned to
XTERRA Fitness. You can also go to www.xterratnessstore.com/warrantyreg.html
to register online.
Thank you for your purchase of this quality indoor cycle. Your new indoor cycle has been
manufactured by one of the leading tness manufacturers in the world and is backed by one
of the most comprehensive warranties available. XTERRA Fitness will do all we can to make
your ownership experience as pleasant as possible for many years to come.
If you have any questions about your new product or questions about the warranty contact
XTERRA Fitness at 1-800-258-8511. If you have a technical problem with your new indoor
cycle contact XTERRA Fitness technical service at 800-258-8511.
Please take a moment to record where you purchased your machine, as well as the date of
purchase for future reference. We appreciate your condence in XTERRA Fitness and we
will always remember that you are the reason that we are in business. Please complete and
mail your registration card today and enjoy your new indoor cycle.
Yours in Health,
XTERRA Fitness
Congratulations On Your New Indoor Cycle and Welcome to the XTERRA Fitness Family!
Product Registration
MB500_20140925
Purchase Location
Purchase Date

2
MB500 Indoor Cycle
WARNING - Read all instructions before using this appliance.
1. Use this equipment only for its intended use as described in this manual. Do not
attempt to ride this bike at high pedal speeds until you have ridden the bike for some
time and are comfortable riding at slower pedal speeds.
2. The bike is NOT equipped with a freewheel system which means that when the
ywheel is in motion, the pedals will be in motion. Do not attempt to stop the unit by
applying backward pressure to pedals while they are turning as knee injury may occur.
Do not attempt to remove your feet from pedals while they are moving.
3. Wait for ywheel to coast to a stop before dismounting the bike. If you want to stop the
ywheel, push down on the brake knob.
4. Serious injury or death may occur from over-training. Consult a medical doctor or
qualied tness instructor to determine an exercise program appropriate for your level
of tness.
5. Do not attempt to turn the pedal cranks by hand. Do not touch any driving mechanism
while it is in motion as possible injury could occur.
6. In a home setting, keep children away from the bike when it is not in use. Keep
children and pets away from the unit while it is in use.
7. Do not attempt to perform dip movements on handlebars.
8. Never drop or insert any object into any opening of the bike.
9. Only use the bike on a stable, level oor.
10.Follow instructions for safe use of the equipment including proper seat position,
handlebar position, and use of foot positioning system of pedals. Do not attempt to
pull up handlebar post and seat post over the ‘MAX.’ graduation.
11. For safe operation, allow for at least 1foot (30cm) of free space to either side of the
unit and 2 feet (60cm) of free space to the rear of the unit.
Regularly examine the bike for damage and wear. Inoperable components should be
replaced immediately or the equipment should not be used until it is repaired.
Failure to follow all guidelines may compromise the effectiveness of the exercise
experience, expose yourself (and possibly others) to injury, and reduce the longevity
of the equipment.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
Important Safety Instructions

MB500 Indoor Cycle
3
1. Obtain a complete physical examination from your medical doctor and enlist a health/
tness professional’s aid in developing an exercise program suitable for your current
health status.
2. When working out for the rst time, start out slowly for a minimum of ve minutes.
After your muscles are warmed up, gradually increase the pedaling speed and/or
resistance.
3. The speed and duration of your exercise program should always be subject to how
you feel. Never permit peer pressure to exceed your personal judgment while
exercising.
4. Overweight or severely de-conditioned individuals should be particularly cautious
when using the equipment for the rst time. Even though such individuals may not
have histories of serious physical problems, they may perceive the exercise to be far
less intense than it
really is, resulting in the possibility of overexertion or injury.
5. Proper installation and regular maintenance are required to ensure user’s safety.
Maintenance is the sole responsibility of the owner.
Important Operation Instructions
WARNING - AS THE OWNER OF THIS EXERCISE EQUIPMENT, YOU SHOULD
INSIST THAT ALL USERS FOLLOW THE SAME GUIDELINES: YOU SHOULD MAKE
THIS MANUAL AVAILABLE TO ALL USERS.

4
MB500 Indoor Cycle
MB500 Assembly Pack Checklist
Hardware Step 1
#107. 3/8” x 19 x 1.5T
Flat Washer (4 pcs)
#106. 3/8” x 2”
Carraige Bolt (4 pcs)
Hardware Step 2
Hardware Step 6
#124. M6 x 12mm
Screw (1 pc)
Hardware Step 3
#113. 5/16” x 35 x 3.0T
Flat Washer (1 pcs)
#111. 3/8” x 25 x 2T
Flat Washer (1 pcs)
#110. 3/8” x 1-3/4”
Carriage Bolt (1 pcs)
#114. 5/16” x 23 x 2.0T
Flat Washer (1 pcs)
#112. 8 x 25
Quick Release Lever
#109. Wrench #117. Combination M5 Allen Wrench
& Phillips Head Screw Driver
#108. 3/8”
Cap Nut (4 pcs)
Assembly Tools
5






Assembly Pack Checklist
#117. Combination M6 Allen Wrench
& Phillips Head Screw Driver(1pc)
#109.14/15m/m_Wrench(1pc)
#
108. 3/8"
Cap Nut(4 pcs)
#
107. 3/8" x19 x 1.5T
Flat Washer (4pcs)
#
106. 3/8" x 2"
Carriage Bolt (4pcs)
#
112. 8x25
Quick Release lever (1 pc)
#
111. 3/8" x 25 x 2T
Flat Washer (1pc)
#
110. 3/8" x 1-3/4"
Carriage Bolt (1pc)
#
113. 5
/
16" x 35 x 3.0T
Flat Washer (1pc)
#
114. 5/16" x 23 x 2.0T
Flat Washer (1pc)
#
124. M6 x12mm
Phillips Head Screw (1pc)

MB500 Indoor Cycle
5
1. Using a razor knife (Box Cutter) cut the outside, bottom, edge of box along the dotted Line. Lift
Box over the unit and unpack.
2. Carefully remove all parts from carton and inspect for any damage or missing parts. If damaged
parts are found, or parts are missing, contact us immediately.
3. Locate the hardware package. Remove the tools rst. Remove the hardware for each step as
needed to avoid confusion. The numbers in the instructions that are in parenthesis (#) are the item
number from the assembly drawing for reference.
Pre-Assembly
Hardware Step 1
1. Install the front and Rear Bar (2) (3) with four Carriage Bolts (106), four
Flat Washers (107) and four Cap Nuts (108). The front and rear stabiliz-
er are different. Be sure to assemble the stabilizer with the wheels onto
the front of the bike. by using 14/15mm Wrench (109).
Stabilizer Tubes
#106. 3/8” x 2
Carriage Bolt (4 pcs)
#107. 3/8” x 19 x 1.5T
Flat Waher (4 pcs)
#108. 3/8”
Cap Nut (4 pcs)
MB500 Assembly Instructions
1. Install the Cover Front (L)(95) with one Phillips Head Screw (124) by us-
ing Combination M5 Allen Wrench & Phillips Head Screw Driver (117).
Rear Stabilizer Cover
2
1
Hardware Step 2
#124. M6 x 12mm
Screw (1 pcs)

6
MB500 Indoor Cycle
Handlebar
3Hardware Step 3
#113. 5/16” x 35 x 3.0T
Flat Washer (1 pc)
#114. 5/16” x 23 x 2.0T
Flat Washer (1 pcs)
#112. 8 x 25
Quick Release Lever
1. Install the handlebars (6) and Handlebar Post (4) together with Quick
Release lever (112) and one Flat Washer (113) and one Flat Washer
(114) and one Button Head Socket Bolt (20) by using Combination M5
Allen Wrench & Phillips Head Screw Driver (117).
Pedals
4
1. Install the Left (104L) and Right (104R) pedals to the crank arms. Please
note that the Left pedal has a reverse threaded bolt and needs to be
tightened in a counterclockwise direction. The pedals are identied by
either an R or L stamped into the end of the bolt.

MB500 Indoor Cycle
7
Water Bottle Holder
5Hardware Step 5
Hardware Step 6
#110. 3/8” x 1-3/4”
Carriage Bolt (1 pc)
#111. 3/8” x 25 x 2T
Flat Washer (1 pc)
Hardware pre-installed
1. Secure Drink Bottle Holder (105) on the Main Frame (1) by using Com-
bination M5 Allen Wrench & Phillips Head Screw Driver (117) to tighten
two Phillips Head Screws (26).
Water Bottle Holder
6
1. Assemble sliding seat mount (7) on top of seat post (5). Slide carriage
bolt (110) from top downwards through sliding seat mount (7), seat post
(5) and at washer (111). Assemble seat fore/aft adjustment knob (103)
and secure tightly.

8
MB500 Indoor Cycle

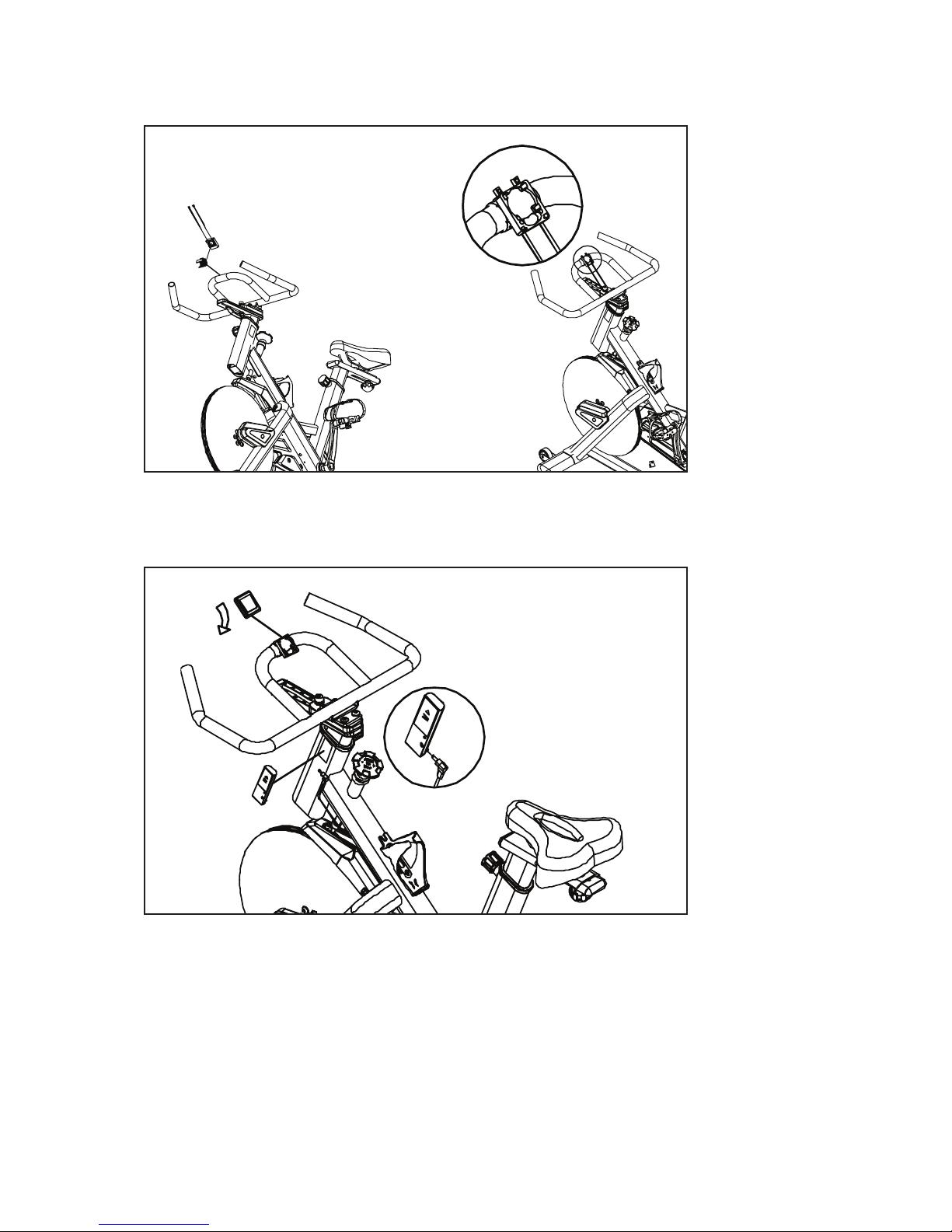

Console
7
1. Use the wire-ties to hold the console mount and rubber protective pad on
the front of handlebar (be aware of the console mount orientation). Pull
wire-tie tight and cut off the excess.
2. Set the console in into the console mount in a clockwise orientation.
Load the transmitter with batteries, connect the sensor cable which is al-
ready on the unit, and secure the transmitter to the frame with quick tape
as shown. (Replace console battery if no digits are shown on LCD)

MB500 Indoor Cycle
9
Feature List
Watch Feature
Time of the Day
Stopwatch
Water Resistant
Easy to Read Large Display
Cycling Feature
Trip Distance
Intelligent & Elegant Wheel MOTION Device
Accurate Current Speed
AVG. Speed with Indicator
Max. Speed
Miles or Kilometers
Multi-Display
ATM(Auto Timer)
Odometer
Wireless
Motion Activity Display
2 Users/wheel size setting
Console Setup
Special Features
User Settings
Exercise Time
Cumulative Calories of the Active Exercise
User Changeable Batteries (Sensor and Receiver)
Stylish Design

10
MB500 Indoor Cycle
MB500 Console
PLEASE NOTE:
1. The XTERRA Fitness Indoor Cycling Console system is designed as a sealed unit and not meant to be
opened other than for the sole purpose of installing batteries. Any opened units will void the warranty.
2. To clean the XTERRA Fitness Indoor Cycling Console use a clean damp cloth. Use of any caustic
cleaning solutions will void the warranty.
3. The XTERRA Fitness Indoor Cycling Console system is NOT waterproof, only water resistant. Any
excessive exposure to water will void the warranty.
The XTERRA Fitness Indoor Cycling Console carton consists of a computer console and a speed sensor
transmitter. The transmitter counts the number of times the magnet, which is mounted on the crank
assembly, passes the sensor. The speed sensor transmitter will then send a coded signal to the
console which contains the measured value (Speed and Cadence).

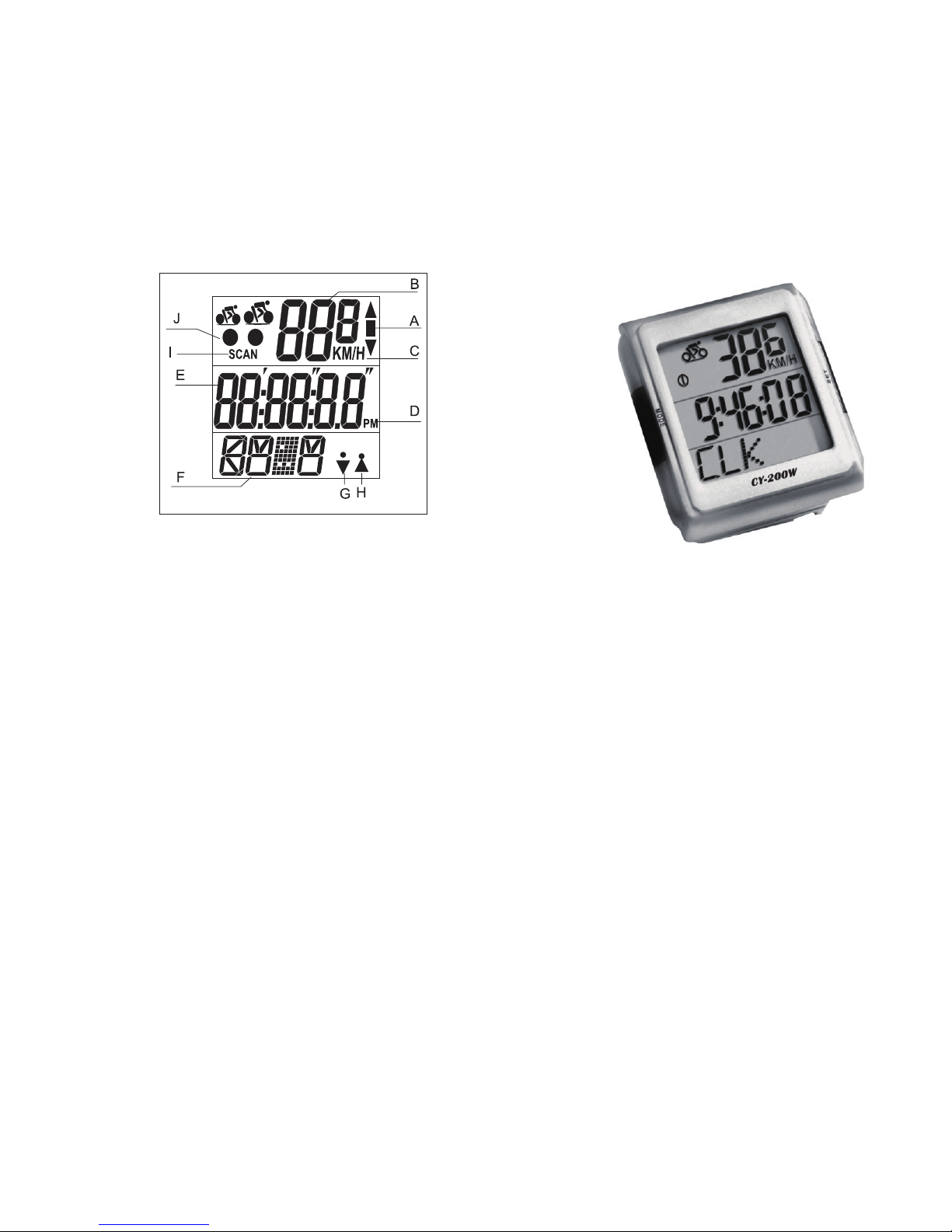

Getting Familiar with the Control Panel
Operation of Your Indoor Cycle
A. Average Speed Symbol
if Upper/Lower Current
Speed
B. Current Speed Display
C. Speed Scale Symbol
Km/h or Mile/h
D. PM Indicator
E. Sub Display
F. Mode Symbol
G. Gender - Male
H. Gender - Female
I. SCAN
J. 2 Users/wheel size
setting

MB500 Indoor Cycle
11

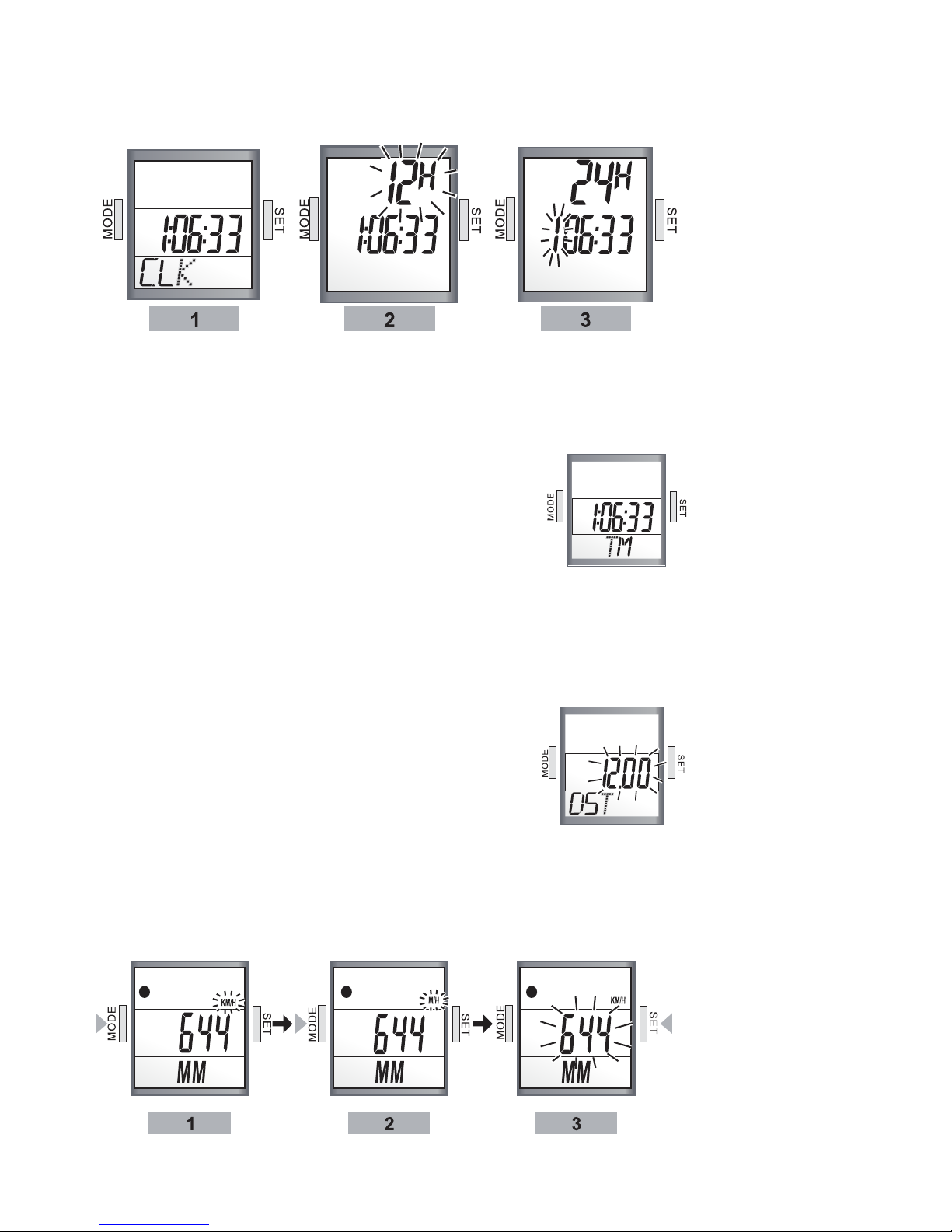

User Set
In order to get a more accurate exercise result, enter your personal data (gender, weight, units, etc) into
computer.
Go KCAL MODE by pressing “MODE” key, then press “SET” key for 3 seconds to go User Set. By pressing
“SET” key & “MODE” key alternatively to enter the correct personal data. Press “MODE” key
for 3 seconds when complete.
Measure Mode
Current Speed
When the user works, the computer will show
his/her current speed as shown in picture.
MXS Mode (Max Speed Mode)
It would display user’s Max Speed from the
beginning to the current point.
AVS MODE (Average Speed Mode)
It would display user’s Average Speed from the
beginning to the current point
.
Console Operation
Note: If the average speed is above/below current speed,
then the symbol arrow will show up.
Note: If your time or distance is over the maximum limit (time
9 hr:59 min:59 sec and distance: 999.99km), then the
console will not allow you to measure the correct average speed
and show “Err” on the display. Once the time and distance
value has been reset, the average speed will show normally.

12
MB500 Indoor Cycle
DST MODE(Distance Mode)
It would display user’s distance from the
beginning to the current point.
ODO MODE(Odometer Mode)
Display total odometer from the beginning to the current point.
Note: Odometer mode will return to Zero, when battery has
been taken out.
.
Functional Set
CLK MODE (CLOCK MODE)
Press “SET” key for 3 seconds to go setting.
Press “SET” key shortly to adjust 12/24 hours.
Then press “MODE” & “SET” key to adjust time (hour/min/sec).
When complete, press “MODE” key for 3 seconds.
TM MODE(Auto Timer Mode)
Note: Auto Timer would operate automatically
when there is motion.
Note: Importantly, when press the “SET” key
for 3 seconds, all exercise results in
display would return to Zero, except
ODO mode
Motion activities display
When start to ride, the motion symbol will show on the display.
If you work fast, the icon will act quickly.

MB500 Indoor Cycle
13
KCAL MODE(K Calories Mode)
Press “MODE” key to see the record of Calories
consumed from the beginning to the present point.
SCAN MODE(Scan Mode)
When in Kcal mode, press “MODE” key quickly, then the
icon of scan will appear. Computer will automatically scan
your current active result in different modes from
CLK, TM, MXS, AVS, DST, ODO, to KCAL.
It will automatically switch from one mode to another
one every 4 seconds.
Set the wheel size from 100mm to 6999mm
By pressing “SET” key for 3 seconds to setting mode, then press “SET” & “MODE” keys alternatively to se-
lect the switch of Km/h ot Mile/h and then to choose the right wheel size. Press “MODE” for 3 seconds when
complete setting.
In ODO Mode, you may also have 2 choices for the wheel size by pressing the (USER 1/2) on the back.
Set ODO value at 4330mm when installing new batteries.
-18-

14
MB500 Indoor Cycle
Adjustment Of Seat Position
Seat Height Adjustment
1. Standing next to the bike, adjust the seat until it is about hip height.
2. Rotate the crank arms until the pedals are in the vertical position: 12 and 6
o’clock.
3. Place your foot in the toe cage of the pedal closest to the oor and mount the
bike. Ensure that the ball of your foot is over the center of the pedal. Your leg
should be slightly bent at the knee, about 5 degrees.
4. If your leg is too straight or your foot cannot touch the pedal you will need to
lower the seat height. If your leg is bent too much, you will need to raise the
seat height.
5. Dismount the bike. Then loosen the quick release lever on the seat post and
adjust up or down as necessary.
6. When the seat is in the desired position, tighten the quick release to secure
the seat post.
7. Note the nal position mark on the seat post for future reference.
Seat Forward/Aft Adjustment
8. Sit on the bike with the crank arms in the 3 and 9 o’clock positions. A proper
forward/aft position (for road bike training) of the seat is achieved when the
small bump at the top of your shin is above the pedal axle.
9. Dismount the bike. Loosen the quick release under the seat and slide the seat
forward or backward as desired; tighten the quick release lever.
Handle Bar Adjustment
Handlebar Height Adjustment
1. The handlebar height is a matter of preference. Start with a handlebar height
that is the same as the seat’s height. Adjusting the handlebar higher will give
the rider a more upright position; lower will result in a more crouched position.
2. Raise or lower the handlebar by loosening the quick release on the handlebar
post and adjust by sliding the handlebar mount up or down as desired. Then
tighten the quick release to secure the handlebar post. Note the nal position
mark on the handlebar post for future reference.
Adjustment of Handlebar’s Forward/Aft Position
3. Loosen the quick release under the handlebar and slide the handlebar forward
or backward as desired. A suitable forward/aft position should allow the rider
to comfortably grasp the handlebar with a slight bend at the elbow.
4. Tighten the quick release to secure the handlebar assembly.
Adjusting The Bike For A Proper Fit
Take some time to learn how to properly adjust the bike to your body; it will make your
workouts more pleasant and a safer experience too. Riding the bike when it is incorrectly
adjusted can result in discomfort and increase your risk of injury.
First Time User Instructions

MB500 Indoor Cycle
15
Adjusting The Pedal Straps
Place your feet in between the aluminum surface of the pedal and the nylon foot strap that
wraps around it. If the opening is too narrow, depress the spring loaded clasp with one
hand and pull on the nylon strap with the other to increase the opening area. If it is too
loose or to tighten the strap, depress the spring loaded clasp, then pull on the open end of
the nylon strap until the strap is snug around each foot.
Pedal Function
Basic Operation
Now that you have established a proper riding position, take a few minutes to ride the bike
and determine that your position is comfortable. Start pedaling at a slow pace with your
toes and knees pointed directly forward. Hold the handlebar lightly and in a position that
allows your shoulders and upper body to relax. Pedal easily, at a low resistance until you
feel condent that you could ride in that position for the duration of your workout.
WARNING!
IF AT ANY TIME DURING YOUR WORKOUT, YOU FEEL CHEST PAIN, EXPERIENCE
SEVERE MUSCULAR DISCOMFORT, FEEL FAINT, OR ARE SHORT OF BREATH,
STOP EXERCISING AT ONCE. IF THE CONDITION PERSISTS, YOU SHOULD
CONSULT YOUR MEDICAL DOCTOR IMMEDIATELY.
1. Pedaling resistance is controlled by the tension knob. Resistance can be changed at
any time by turning tension knob: clock-wise for more resistance; counterclockwise for
less resistance.
2. To apply the brake, press down on the tension knob.
3. Before dismounting, apply the brake to stop ywheel, or increase resistance and let
ywheel come to a stop.
*for visual purposes only pedal may not match your machine

16
MB500 Indoor Cycle
No Display on Console
1. Hold down any key to bring the console to “Quick Start” mode.
2. Ensure that the batteries are installed properly in the console and transmitter. If they
are, install fresh batteries.
Cadence number jumps high or low
1. Separate bikes that may be set to the same console code and are cross-talking, or
re-synchronize the transmitter and console (see page 7).
2. Relocate the bike to a different part of the room, away from any RF interference areas.
CAUTION!!
EXTERNAL INTERFERENCE MAY BE CAUSED BY OTHER ELECTRONIC DEVICES, SUCH AS: NEAR-
BY TELEVISIONS, STEREO EQUIPMENT, SPEAKERS, ELECTRICAL WIRE CABLING, ETC. IF YOU
EXPERIENCE DISTURBANCES IN THE CONSOLE DISPLAY TRY MOVING YOUR BIKE(S) AWAY FROM
POTENTIAL RF INTERFERENCE AREAS.
Maintenance Guidelines
Maintenance Schedule
1. Use of lubricants or cleaning solutions other than those so specied will result in
diminished performance and a shorter life span for that part.
PART RECOMMENDED ACTION FREQUENCYCLEANER LUBRICANT
Pedals Ensure that pedals are tight in
crank arms; that all screws on
pedals are tight; and that the
pedal straps are not frayed
Before each
use
N/A N/A
Frame Wipe down by using a soft
damp clean cloth
DailyWater N/A
Flywheel Wipe down by spraying on a
rag and applying a light coat
to sides of the flywheel
Weekly WD-40
spray.
N/A
Brake
Pad
Inspect for excessive wear or
a dry leather brake pad
Weekly N/A 3-IN-ONE Oil or 10W
oil. Do not use
silicone-based
lubricants
N/A
Inspect for excessive wear
or squealing
Troubleshooting

MB500 Indoor Cycle
17
Manufacturer’s Limited Warranty
Effective August 1, 2014 - INDOOR CYCLE LIMITED WARRANTY
XTERRA Fitness Inc. warrants all its home use indoor cycle parts for a period of time listed below, from the date of retail sale, as determined
by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA Fitness’s
responsibilities include providing new or remanufactured parts, at XTERRA Fitness’s option, and technical support to our independent
dealers and servicing organizations. In the absence of a dealer or service organization, these warranties will be administered by XTERRA
Fitness directly to a consumer. The warranty period applies to the following components:
Home Use Limited WARRANTY
NORMAL RESPONSIBILITIES OF THE CONSUMER
This warranty applies only to products in ordinary household use. The consumer is responsible for the items listed below:
1. The warranty registration card must be completed and returned to the address listed on the card within 10 days of the original purchase
to validate the manufacturer’s limited warranty or register online at http://www.xterratnessstore.com/warrantyreg.html.
2. Proper use of the indoor cycle in accordance with the instructions provided in this manual, including maintenance.
3. Proper connection to a power supply of sufcient voltage, replacement of blown fuses, repair of loose connections or defects in house/
facility wiring.
4. Expenses for making the indoor cycle accessible for servicing, including any item that was not part of the indoor cycle at the time it was
shipped from the factory.
5. Damages to the indoor cycle nish during shipping, installation or following installation.
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY. Note: Some states do not allow the exclusion
or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
2. Service call reimbursement to the consumer. Service call reimbursement to the dealer that does not involve malfunction or defects in
workmanship or material, for units that are beyond the warranty period, for units that are beyond the service call reimbursement period,
for indoor cycles not requiring component replacement, or indoor cycles not in ordinary household use.
3. Damages caused by services performed by persons other than authorized XTERRA Fitness service companies, use of parts other than
original XTERRA Fitness parts, or external causes such as alterations, modications, abuse, misuse, accident, improper maintenance,
inadequate power supply, or acts of God.
4. Products with original serial numbers that have been removed or altered.
5. Products that have been; sold, transferred, bartered, or given to a third party.
6. Products that are used as store display models.
7. Products that do not have a warranty registration on le at XTERRA Fitness, Inc. XTERRA Fitness reserves the right to request proof of
purchase if no warranty record exists for the product.
8. Product use in any environment other than a residential setting.
9. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the date of factory shipping as
determined by the serial number establishes the warranty period should service be required. If service is performed, it is in your best interest
to obtain and keep all receipts. This written warranty gives you specic legal rights. You may also have other rights that vary from state to
state. Service under this warranty must be obtained by following these steps, in order:
1. Contact your selling authorized XTERRA Fitness dealer. OR
2. Contact your local authorized XTERRA Fitness service organization.
3. If there is a question as to where to obtain service, contact our service department at [phone].
4. XTERRA Fitness’s obligation under this warranty is limited to repairing or replacing, at XTERRA Fitness’s option, the product through
one of our authorized service centers. All repairs must be preauthorized by XTERRA Fitness. If the product is shipped to a service
center freight charges to and from the service center will be the customer’s responsibility. For replacement parts shipped while the
product is under warranty, the customer will be responsible for shipping and handling charges. For in-home service, the customer
will be responsible for a trip charge. There will be an additional trip charge if the customer is located over 100 miles from the nearest
service center.
5. The owner is responsible for adequate packaging upon return to XTERRA Fitness. XTERRA Fitness is not responsible for damages in
shipping. Make all freight damage claims with the appropriate freight carrier. DO NOT SHIP ANY UNIT TO OUR FACTORY WITHOUT
A RETURN AUTHORIZATION NUMBER. All units arriving without a return authorization number will be refused.
6. For any further information, or to contact our service department by mail, send your correspondence to:
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by
XTERRA Fitness, Inc. This warranty applies only in the 48 contiguous United States. NOTE: This does not apply to Alaska or Hawaii.
XTERRA Fitness, Inc.
P.O. Box 2037
Jonesboro, AR 72402-2037
Frame
Lifetime
Parts Labor
1 Year 1 Year

3000 Nestle Road Jonesboro, AR 72401 - Phone:[phone] - Fax:[phone]
www.xterrafitnessstore.com ©2014 All RIghts Reserved. MB500 Owner’s Manual
