ecoey FJ192 User manual

PRODUCT SPECIFICATIONS
User Manual
Model: FJ192
Smoke and Heat Alarm
• Power Supply: Built-in DC3V(CR123A) Lithium battery
(battery not replaceable)
• Operation Current: <6uA(Standby), <75mA(alarm)
• Alarm Volume: >85dB(A) at 3 meters
• Smoke Sensitivity: 0.094-0.154dB/m
• Heat Sensitivity: 54-70℃
• Silence Time: Approx. 10 minutes
• Product Life: 10 years after manufacture
• Local Smoke Alarm Sound Pattern:
BI 0.5s - pause 0.5s - BI 0.5s - pause 0.5s - BI 0.5s -pause
1.5s, with the red LED flashing, repeat thisalarm pattern.
• Local Heat Alarm Sound Pattern: BI 0.3s - pause 0.1s,
with the red LED flashing,repeat this alarm pattern.
• Comply with standard:
EN14604:2005/AC:2008 BS5446-2:2003.
OPERATION IMPORTANT SAFETY INFORMATION
• Testing
Test the unit weekly to ensure proper operation by pressing
the test button. about 3 seconds later, this will sound the alarm
if the Electronic circuitry, horn, and battery are working properly.
• LED indicators
This smoke alarm is equipped with red LED indicators.
• Standby Condition
The red LED will flash every 50 seconds to indicate that the
smoke alarm is operating properly.
• Alarm Condition
When the alarm senses products of combustion and goes into
alarm, the red LED will flash rapidly (one flash per second).
The rapid flashing LED and pulsating alarm will continue until
the air is cleared or the test button is released.
• Silence Condition
The red LED will flash every 16 seconds as long as the alarm
is in Hush mode.
• Low battery trouble indication
An intermittent “chirp” accompanied by a red LED flash every
50 seconds indicates a low battery.
NOTE: As the battery in this unit is not replaceable, a low
battery signal is an indication of end of life.
• Fault indication
This chirp will occur between the flash of the red LED indicator light.
1. The test button accurately tests smoke alarm functions. Donot
use any other test method.Test smoke alarm weekly toensure
proper operation.
2. Please check the alarm on reoccupation of the premisesafter a
vacation.
3. If you're sure it isn't a really alarm, open windows or fanthe air
around smoke alarm to test and silence it.
4. User to install this productproduct needs to comply with all local
and national electrical instatallllation and building codes.
5. This smoke alarm is designed gned to be used inside a single
family home only. In n multifamily buildings, each individual
living unit should should have its own smoke alarms. Do not
install in non-resididential buildings as this smoke alarm is not
a substitute for for a a complete alarm system.
6. Install a smoke alarm in evvery room and on every level of the
home. Smoke may not not reacreach the smoke alarm for many
reasons. For example, if a fifire starts in a remote part of the
home, on another level, in in aa chimney, wall, roof, or on the
other side of a closed door, s, smoke may not reach the smoke
alarm in time to alert householhousehold members. A smoke
alarm will not promptly detect a fifire except in the area or room
in which it is installed.
8. Smoke alarms can only sound their alarms when they detect
smoke or detect combustion particles in the air.
9. Smoke alarms have limitations. It is possible for the smoke alarm
to fail at any time. For this reason, you must test the smoke alarm
weekly and replace them every 10 years.
MADE IN CHINA

Other ecoey Security System manuals

ecoey FJ183 User manual

ecoey

ecoey FJ183 User manual

ecoey FJ128 User manual

ecoey

ecoey FJ128 User manual

Popular Security System manuals by other brands

Amcrest WLD895 user manual

Amcrest

Amcrest WLD895 user manual

ADEMCO 4140XMP Installation instruction

ADEMCO

ADEMCO 4140XMP Installation instruction

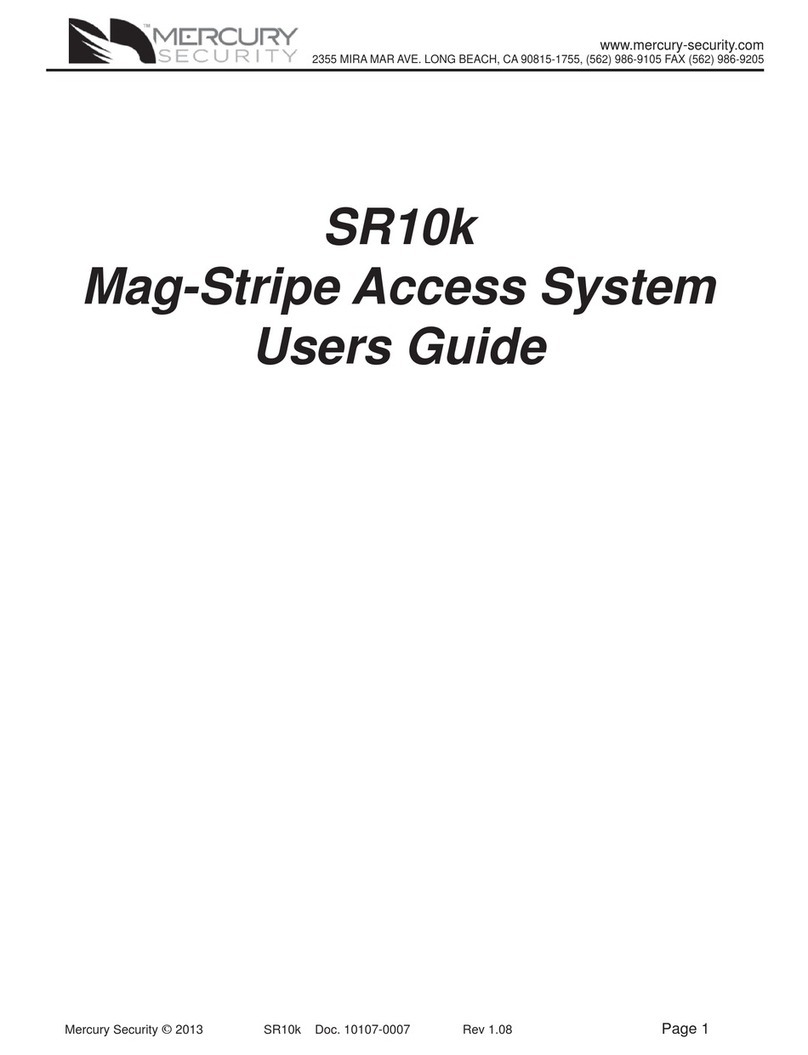

Mercury Security SR10k user guide

Mercury Security

Mercury Security SR10k user guide

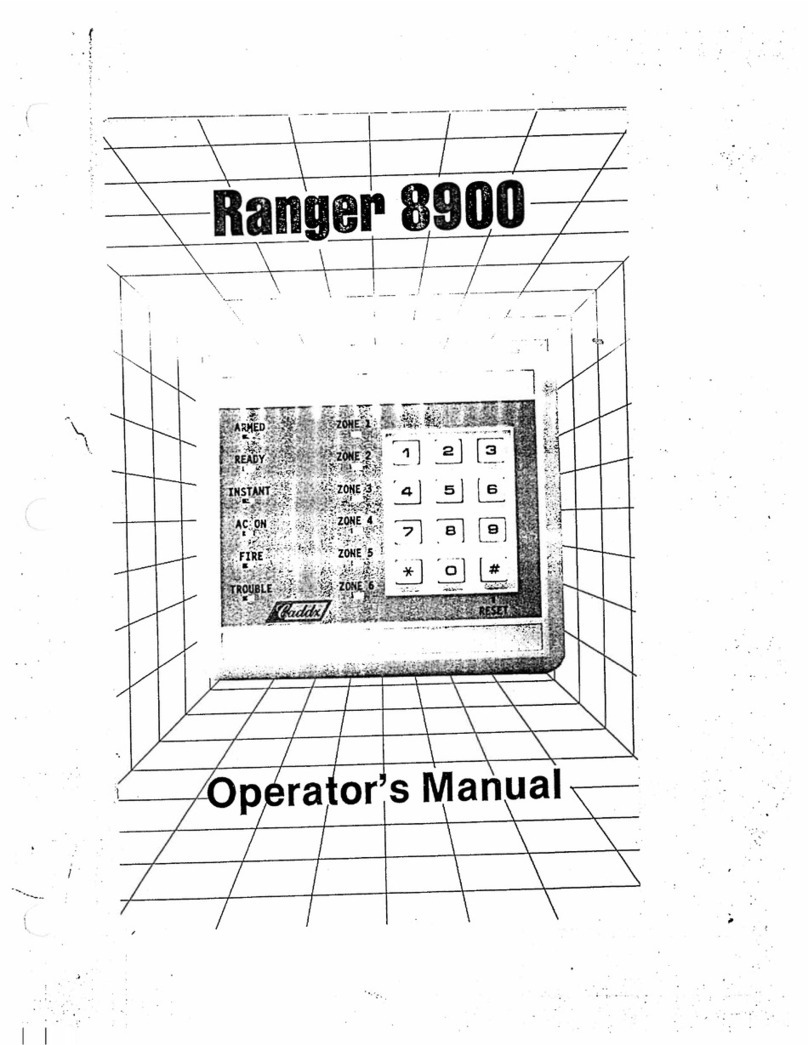

CADDX Ranger 8900 Operator's manual

CADDX

CADDX Ranger 8900 Operator's manual

Wheelock SAFEPATH SCSP-15SP Installation, testing, operation and maintenance manual

Wheelock

Wheelock SAFEPATH SCSP-15SP Installation, testing, operation and maintenance manual

PNI HOUSE AHD808 manual

PNI

PNI HOUSE AHD808 manual

Honeywell LYNX Touch 5100 Programming guide

Honeywell

Honeywell LYNX Touch 5100 Programming guide

Kidde SLED177iCA user guide

Kidde

Kidde SLED177iCA user guide

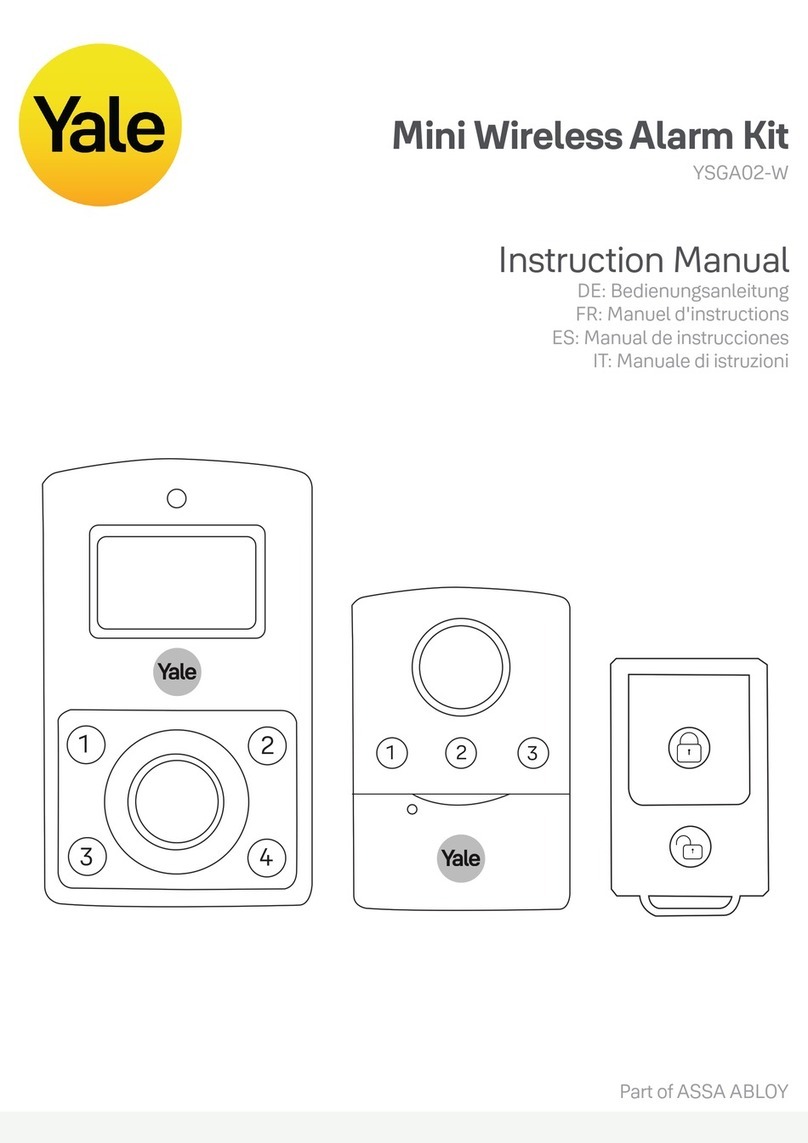

Yale YSGA02-W instruction manual

Yale

Yale YSGA02-W instruction manual

Security Labs SLM452 quick start guide

Security Labs

Security Labs SLM452 quick start guide

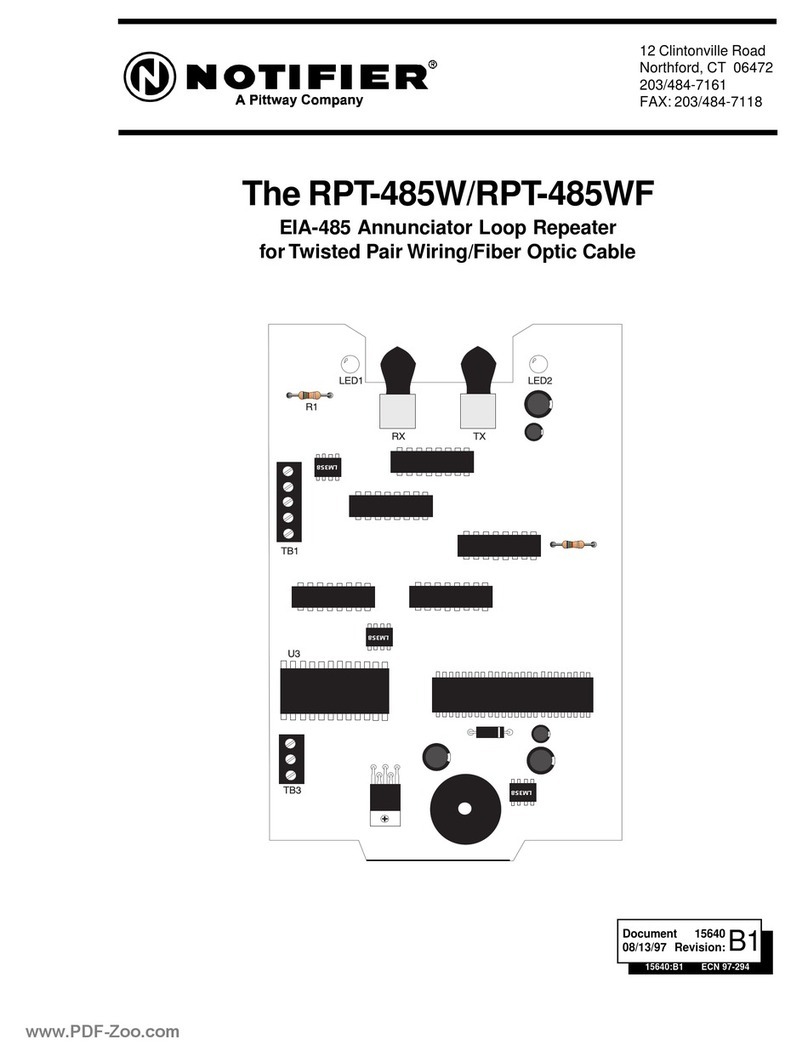

Pittway Notifier RPT-485W manual

Pittway

Pittway Notifier RPT-485W manual

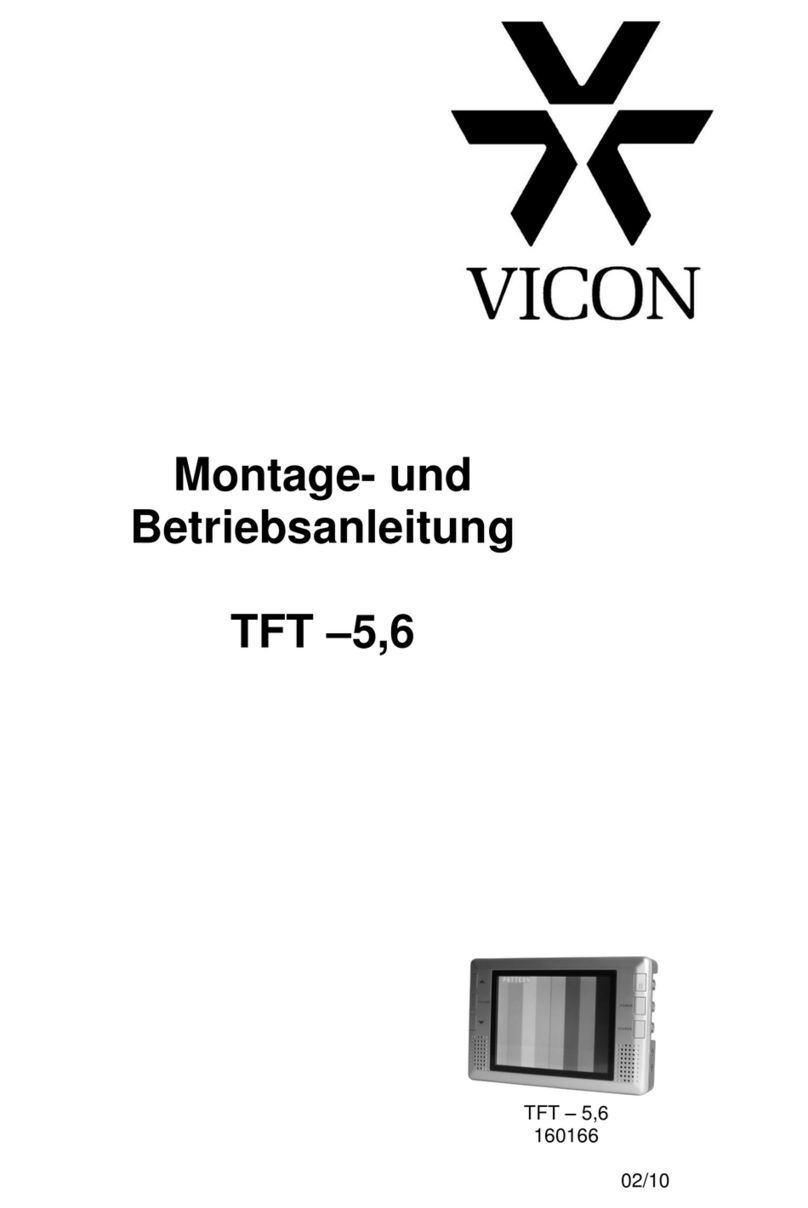

Vicon TFT-5,6 Installation and operation manual

Vicon

Vicon TFT-5,6 Installation and operation manual

Visonic PowerMax10 user guide

Visonic

Visonic PowerMax10 user guide

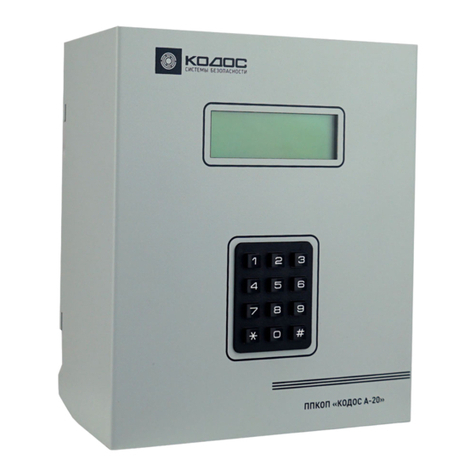

KODOS A-20 user guide

KODOS

KODOS A-20 user guide

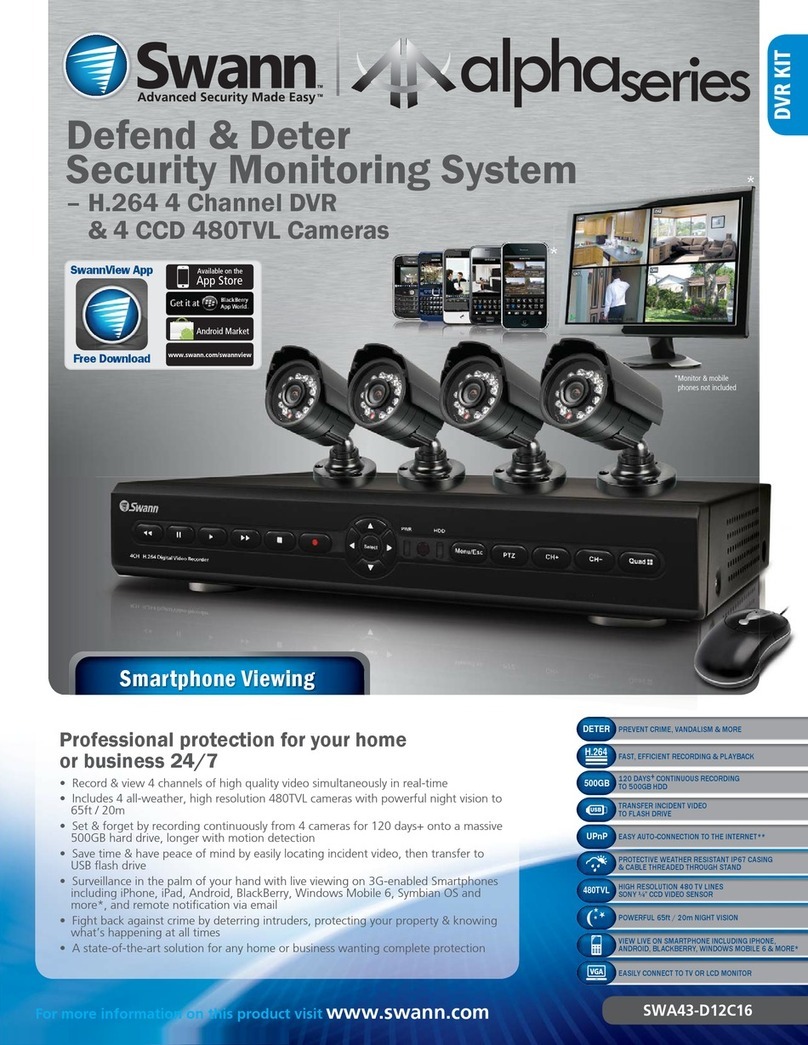

Swann DEFEND & DETER SWA43-D12C16 Specifications

Swann

Swann DEFEND & DETER SWA43-D12C16 Specifications

ELRO AS80SR11A installation instructions

ELRO

ELRO AS80SR11A installation instructions

Sony SRG-300SE Technical manual

Sony

Sony SRG-300SE Technical manual

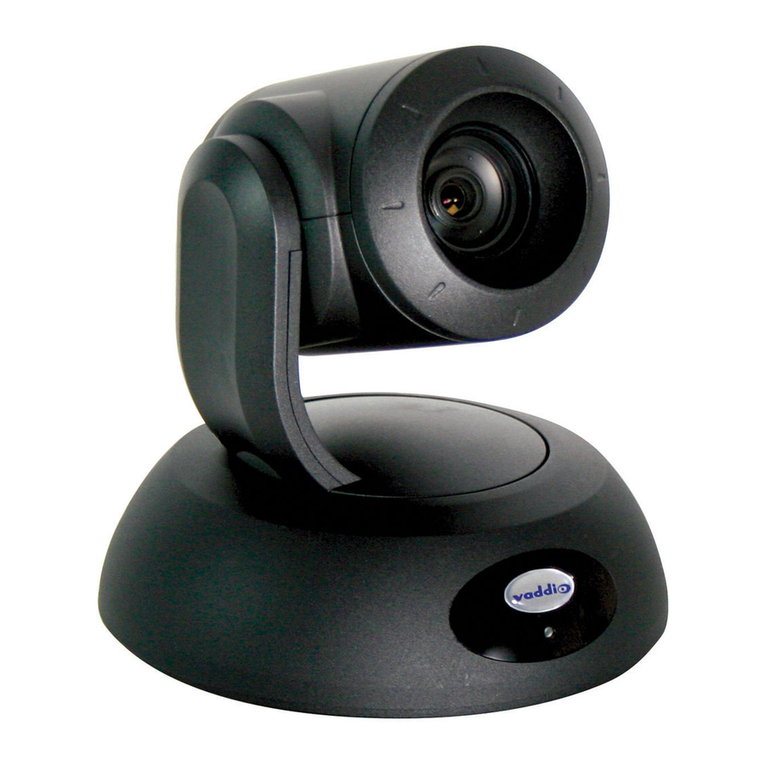

VADDIO 999-60210-000 Complete manual
