Ecoflam BLU 15000.1 PR User manual

420010258900
22.10.2009
BLU 15000.1 PR
BLU 18000.1 PR
Four Head / версия 4
PROGRESSIVE GAS BURNERS
О АО
EN
RU
Библиотека СОК 

2
420010258900 BLU 15000.1 - 18000.1 PR
EN
mbar
2000 3000 4000 5000 6000 7000 8000 9000 10000
10
12
14
16
1000
2000 3000
1000
18
20
22
11000
0
2
4
6
8
24
26
28
30
12000 kW
13000
32
34
36
38
40
kcal/h
x 1000
4000 5000 6000 7000 8000 9000 10000 11000 12000 13000 14000 15000 16000 17000
14000 15000 16000 17000 18000 19000
BLU 15000.1 PR
BLU 18000.1 PR
combustion chamber pressure
capacity
TECHNICAL DATA
MODELS BLU 15000 .1 BLU 18000.1
Thermal power max. kcal/h 12.931.000 14.655.000
kW 15.000 17.000
Thermal power min. kcal/h 3.181.000 3.448.270
kW 3.690 4.000
Gas pressure mbar 125÷700 175÷700
Feeding power 50 Hz V 230/400 230/400
Fan motor kW 45 55
Rpm Nº 2.800 2.800
Ignition transformer kV/mA 8/20 8/20
Fuel : Natural gas = 35,9 Mj / Nm3 = 8.600 kcal / Nm3

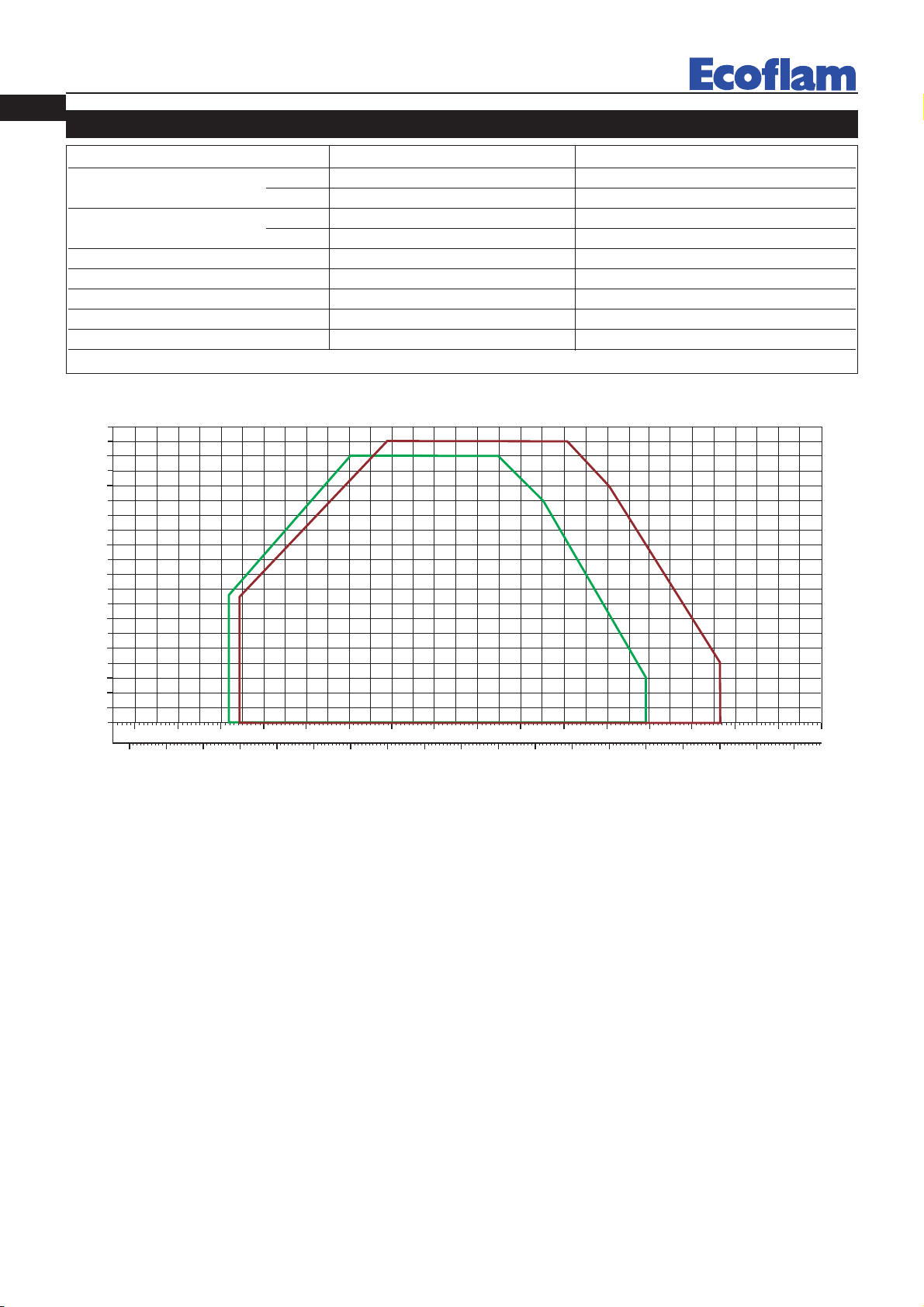

WORKING FIELDS

3
420010258900 BLU 15000.1 - 18000.1 PR EN
ED
G
250200
N
H
B C
A
O
OVERALL DIMENSIONS
MODELS ABCDD1EFGH ILMNO
Blu15000.1 1518 800 718 365 - 1890 320 1167 530 950 950 M16 320 Blu18000.1 1518 800 718 365 - 1890 320 1167 530 950 950 M16 320
D = Short head D1 = Long head

4
420010258900 BLU 15000.1 - 18000.1 PR
EN
1000
0001
800
31731731725 25
52 317 317 317 52
N
° 21 61M
800

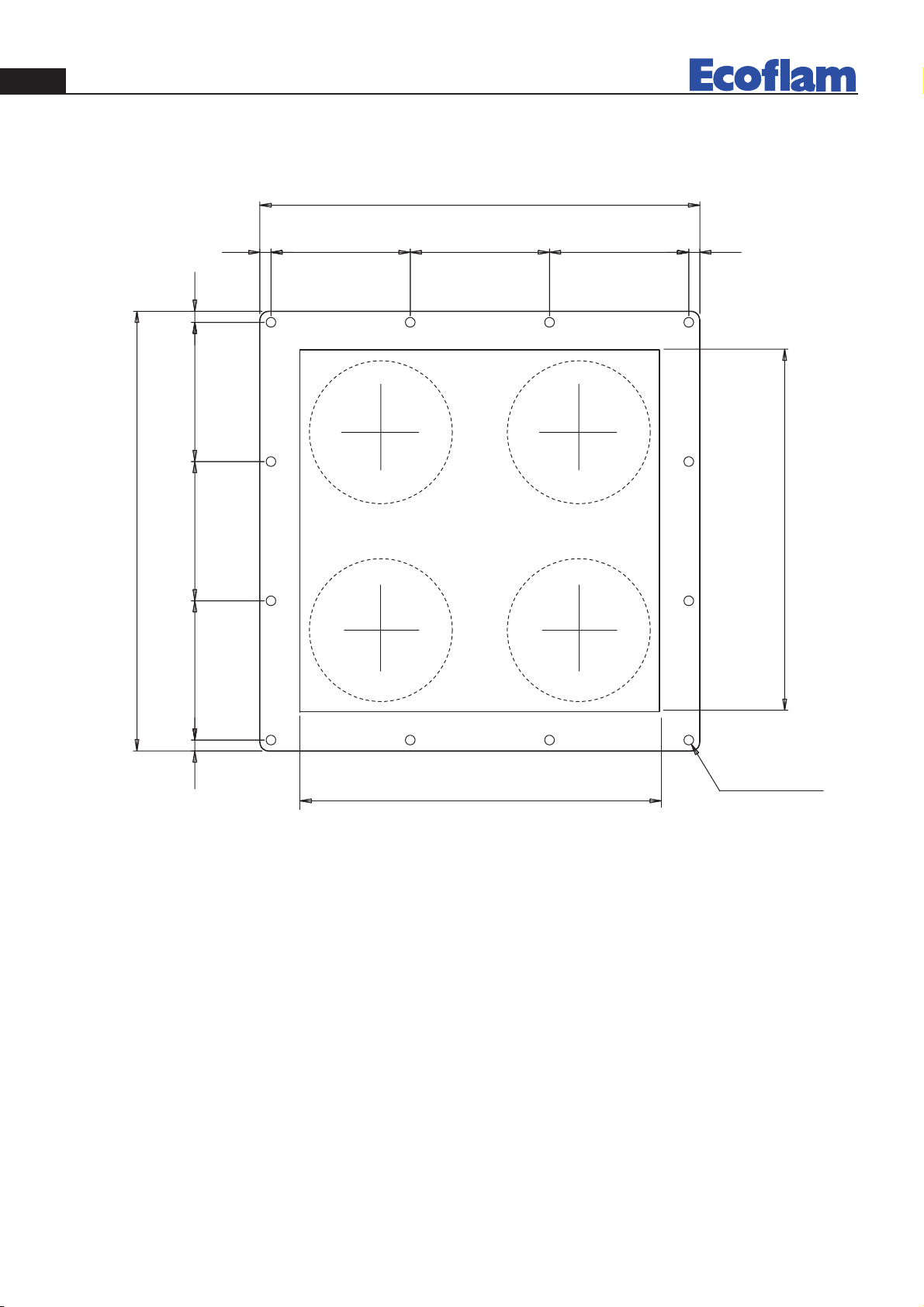

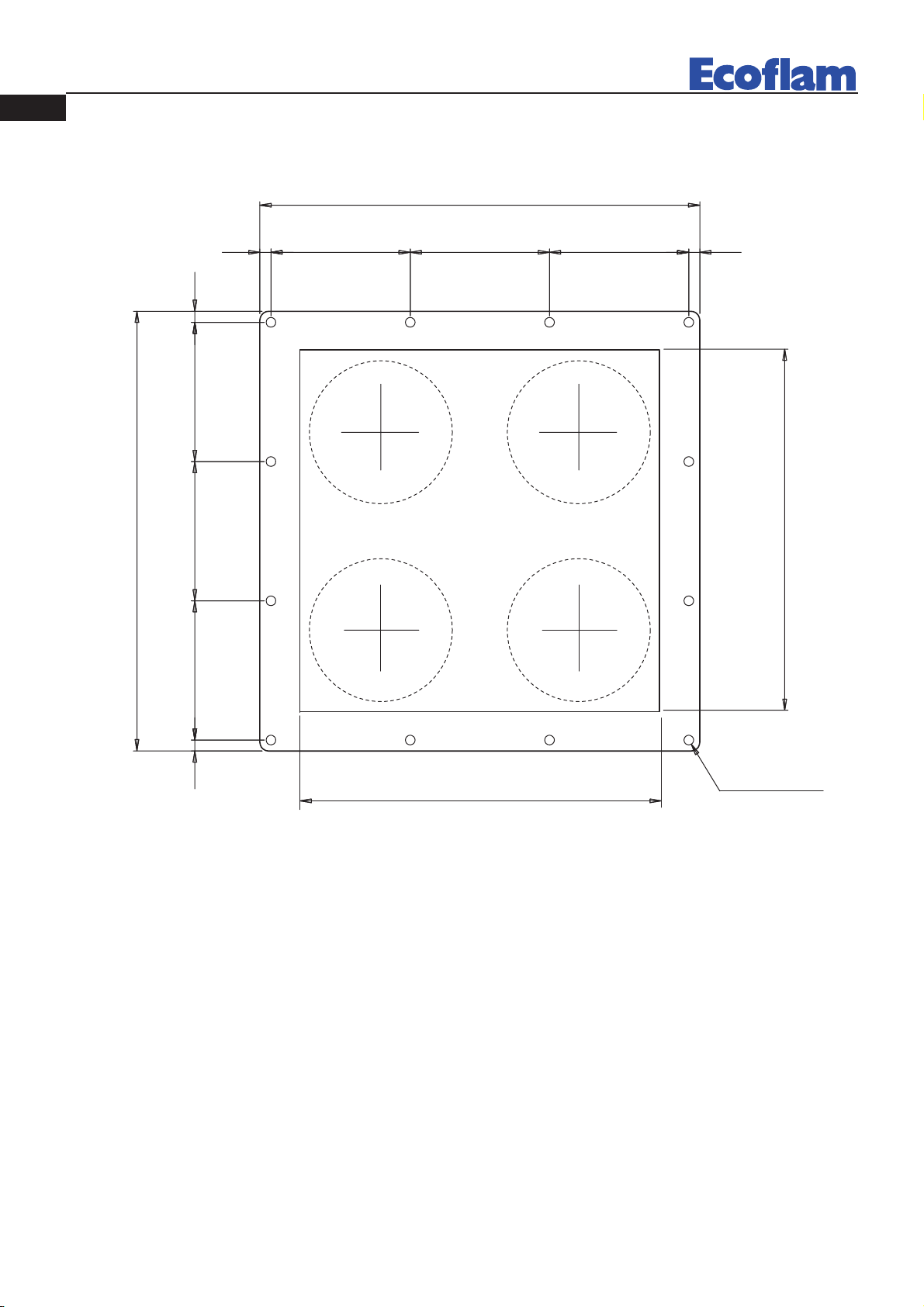

BOILER FLANGE

5
420010258900 BLU 15000.1 - 18000.1 PR EN
123645

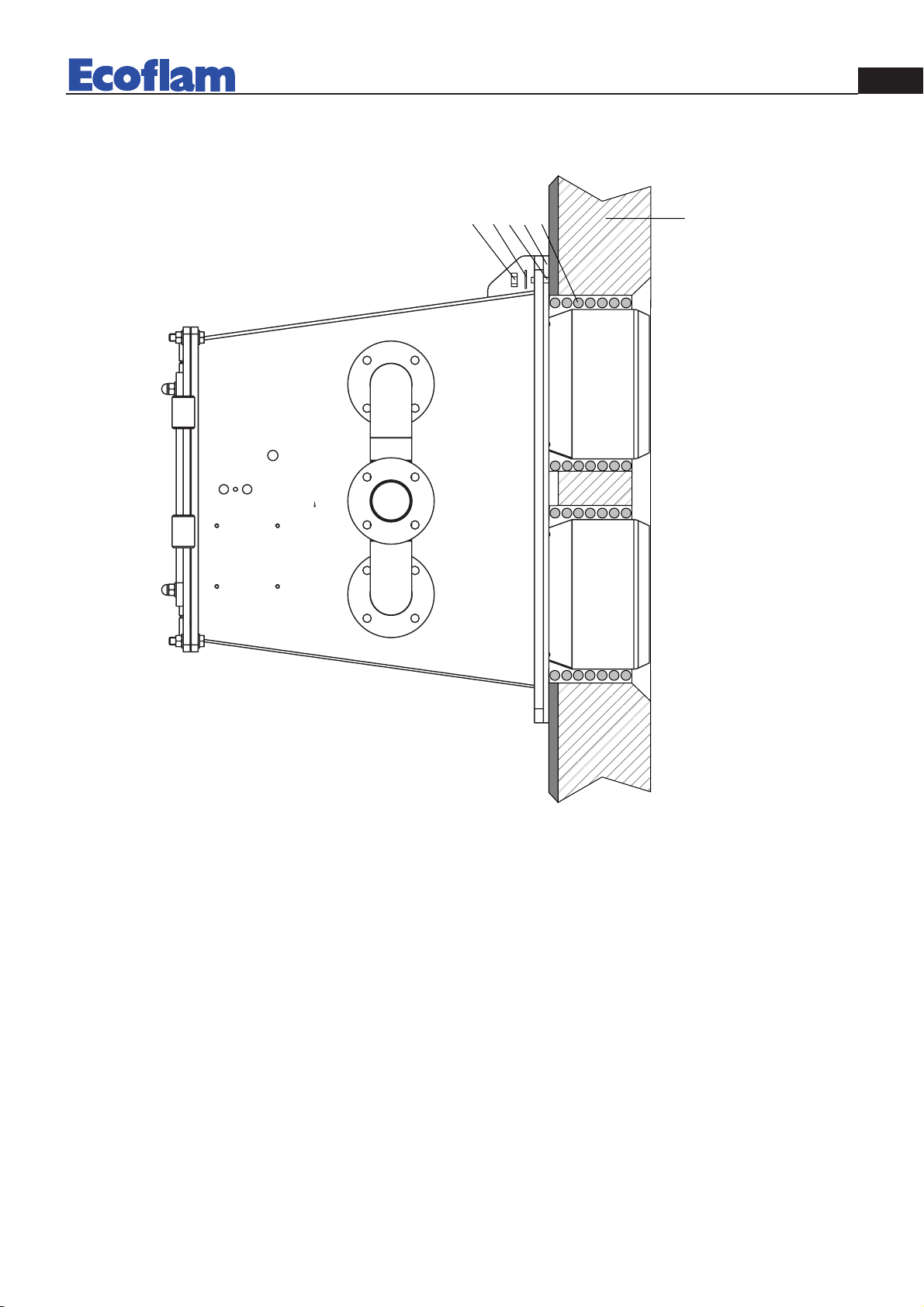

BURNER INSTALLATION
1- Nut
2 - Washer
3 - Gasket
4 - Bolt
5 - Boiler
6 - Gasket
азмеры (мм)

6
420010258900 BLU 15000.1 - 18000.1 PR
EN
SUNTEC
SUNTEC
SUNTEC
SUNTEC

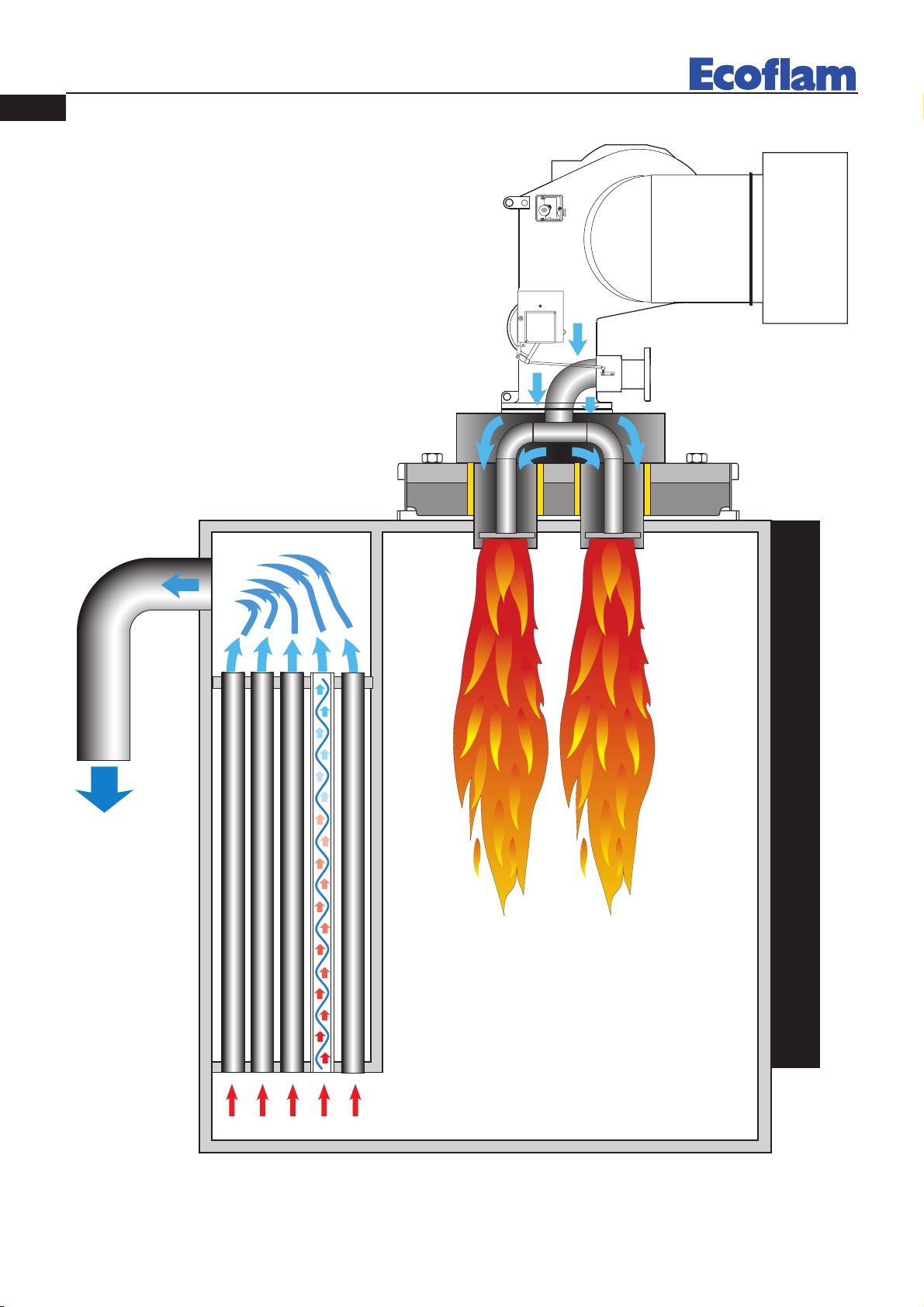

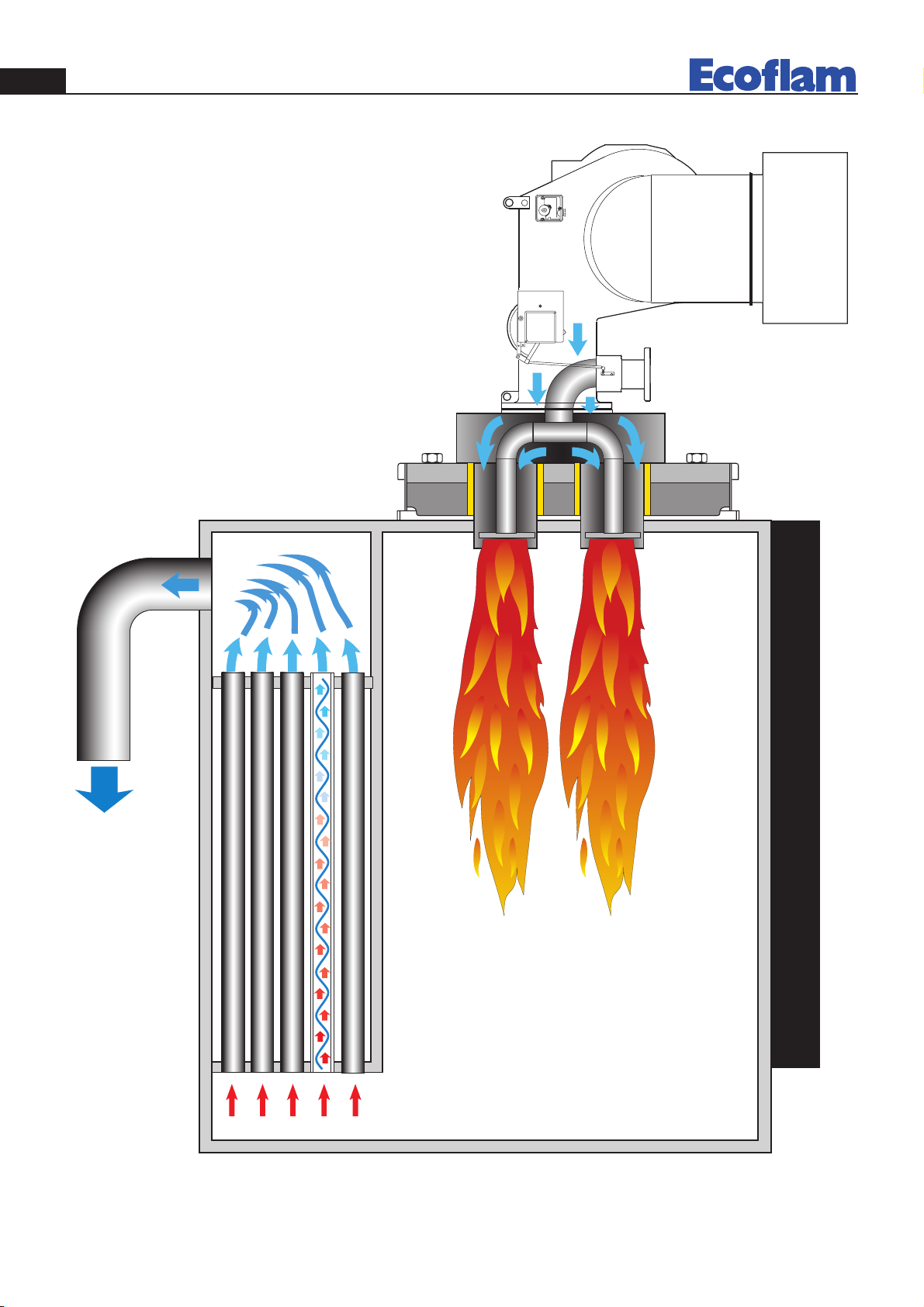

BOILER INSTALLATION

7
420010258900 BLU 15000.1 - 18000.1 PR EN
L (m)
2000 3000 4000 5000 6000 7000 8000 9000 10000
2
2,5
1000
2000 3000
1000
3
11000
0
1
1,5
3,5
4
12000 kW
13000
4,5
5
5,5
Nm3/h
100 200 300 400 500
kcal/h
x 1000
4000 5000 6000 7000 8000 9000 10000 11000 12000 13000 14000 15000
14000 15000 16000 17000
Ø (m)
2000 3000 4000 5000 6000 7000 8000 9000 10000
0,6
0,8
1000
2000 3000
1000
1
11000
0
0,2
0,4
1,2
1,4
12000 kW
13000
1,6
1,8
2
kcal/h
x 1000
4000 5000 6000 7000 8000 9000 10000 11000 12000 13000 14000 15000
14000 15000 16000 17000
FLAME LENGTH GAS BURNERS FOUR VERSION
FLAME DIAMETER GAS BURNERS FOUR VERSION (each combustion head)
600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700
Nm3/h
100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700
The sizes are indicative and dipend to the configuration, to the combustion chamber pressure and to the draught.
The values have been taken out from tests executed with flame tubes.

8
420010258900 BLU 15000.1 - 18000.1 PR
EN
CONNECTION TO THE GAS PIPELINE
Once connected the burner to the gas pipeline, it is necessary to control that this last is perfectly sealed. Also verify that
the chimney is not obstructed. Open the gas cock and carefully bleed the piping through the pressure gauge connector,
then check the pressure value trough a suitable gauge. Power on the system and adjust the thermostats to the desired
temperature. When thermostats close, the sealing control device runs a seal test of valves; at the end of the test the bur-
ner will be enabled to run the start-up sequence.
BURNER START-UP
Before starting the burner, make sure it is mounted correctly. Then check connections are correct according to the dia-
gram and piping is appropriate to the system. Before connecting the burner to the electricity supply, make sure voltage
corresponds to burner plate data. The connection diagram and start-up cycle are shown separately. For wiring from
control box to burner, see the enclosed connection diagram. Pay particular attention to neutral and phase connections :
never exchange them!. Vent air and impurities of gas pipe. Check gas pressure conforms to the limits stated on the bur-
ner plate when connecting a master gauge to the test port provided on the burner. Blower motor starts and pre-purging
begins. Since pre-purging has to be carried out with the max. air delivery, the burner control circuit turns the air dam-
per to the max. delivery position by the air servocontrol in approximately 30 seconds time. When the servocontrol is
fully open, a signal to the electronic control unit starts the 66 seconds pre-purge cycle. At the end of the prepurging
time, the air servocontrol gets to the Low Flame position so that burner ignition is ensured at min. output.
Simultaneously the ignition transformer receives voltage and after 3 seconds (pre-ignition) opens the pilot gas valve.
Fuel flows to the combustion head and ignites. Two seconds after pilot gas valves have opened, the ignition transformer
is excluded from the circuit. In case of no ignition the burner goes to lock-out within two seconds. After 6 sec. open the
working gas valve, governed by the gas firing butterfly valve.Now the burner is operating at the min. firing rate (about
30% of the max. firing rate). The air servocontrol runs at the Low Flame position and in case the temperature control
has to be set at the max. output it goes to a fully open position of air damper and butterfly valve. During the burner-off
periods the air damper closes up fully.
ELECTRICAL CONNECTIONS
All burners factory tested at 400 V 50 Hz three-phase for motors and 230 V 50 Hz monophase with neutral for auxi-
liary equipment. If mains supply is 230 V 50 Hz threephase withuot neutral, change position of connectors on burner
as in fig. Protect burner supply line with safety fuses and any other devices required by safety standards obtaining in the
country in question.
ADJUSTING THE COMBUSTION PROCESS
IMPORTANT: to obtain the right adjustment of the combustion and thermal capacity it is important to analyze the reducts of
combustion with the aid of suitable instruments. The combustion and thermal capacity adjustment is done simultaneously,
together with the analysis of the products of combustion, making sure that the measured values are suitable and that they comply
with current safety standards. On this matter, please refer to the table and figure below.
THESE OPERATIONS MUST BE DONE BY PROFESSIONALLY-QUALIFIED TECHNICIANS.

9
420010258900 BLU 15000.1 - 18000.1 PR

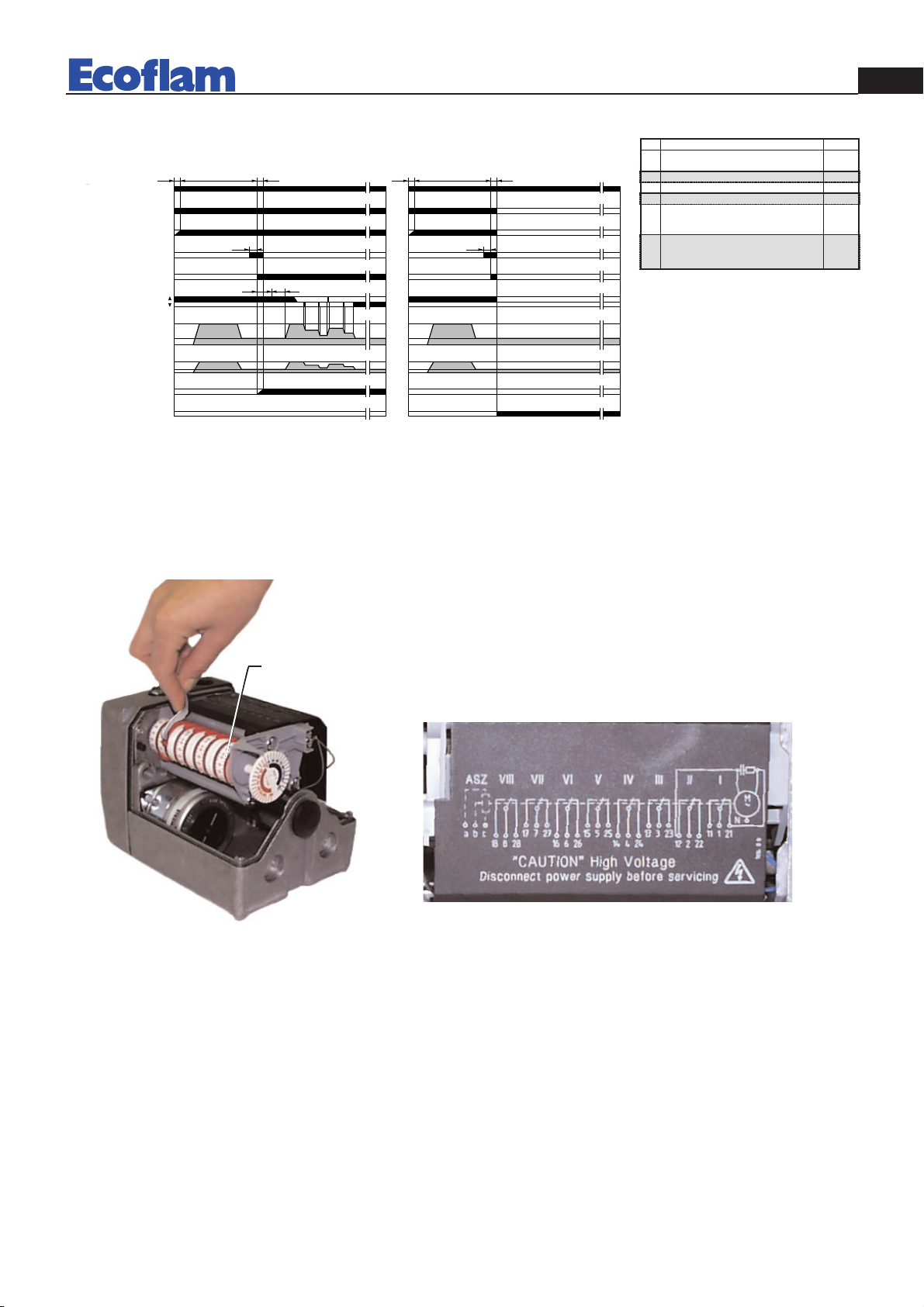

LANDIS & STAEFA SQM 50.481A2 AIR DAMPER MOTOR
Remove cover to gain access to the adjusting cams.The cams are to be adjusted through the suitable key provided for. Description:
I- High flame opening position adjusting cam (Air)
II - Limit switch for the air damper position at burner’s shut down
III - Min. flame opening position adjusting cam (Air).
IV - Low flame opening position adjusting cam (Air)
V- Not used cam
VI - Not used cam
VII - Not used cam
VIII - Not used cam
Cam VIII
is never used
The control box starts the burner
fan, to carry out the prepurging
of the combustion chamber, and
cheks the vent air pressure throu-
gh the air pressure switch. At the
end of prepurging, the ignition
transformer cuts-in and generates
a spark between the electrodes.
At the same time the two gas valves open (Vs safety valve and Vl Low flame working valve). The total safety, in case of missed
ignition or casual burner's flame-out, is granted by a ionisation probe which cuts-in and sets the burner shutdown within the
safety time. In case of gas lack or a major pressure drop, the minimum air pressure switch shuts down the burner.
LANDIS & STAEFA, Model LFL1.622-1.333 OPERATING CYCLE
Ref. Description
t1 Duration Waiting time for confirmation
t2 of air pressure
t3Preventilation time
t4 Safety time
t5 Pressurizing time
Time for enabling operation of the
main gas valve on minimum capacity
t6 Time for enabling operation of the
main gas valve on maximum capacity
Duration
8”
66”
2”
4”
10”
10”
Rivelazione
di fiamma
Spia di blocco
Valvola gas
Serranda aria
Farfalla gas
Trasformatore
di accensione
Pressostato aria
Motore ventilatore
Pressostato gas
0
min
100%
t1 t2
t4
t3
t6t5
Ciclo di funzionamento normale
Ciclo di funzionamento
in mancanza di fiamma all'accensione
t1 t2
t4
t3
Consenso
min./max. potenza
Gas manostat
Fan motor
Air Switch
Ignition transformer
Gas valve
Min/max capacity
enabling device
Air damper
Gas damper
Flame detector
Cut-out pilot lamp
Normal operating cycle
Operating cycle in the event of
ignition failureNormal operating cycle
COMBUSTION ADJUSTMENT
WARNING: In order to have a correct combustion and thermal output adjustments, these must be carried out together
with a combustion analysis, to be executed through suitable devices, taking care that the values are the correct ones and
are in accordance with the local safety regulations. The adjustments must be carried out by qualified and skilled techni-
cians authorised by Ecoflam Bruciatori S.p.A.
EN

10
420010258900 BLU 15000.1 - 18000.1 PR
EN
CALCULATING THE BURNER CAPACITY
To calculate the burner's capacity in kW, proceed as follows: Check the gas flow rate (in liters) on
the counter and the time of the reading in seconds.
Proceed with the calculation using the following : e x f = kW
sec
e = Litres gas
sec = Time in second
G20 = 34,02
G30 = 116
G31 = 88
f
COMMUTATORE
0
AUTO
0 = bloccaggio degli apparati per il
funzionamento in unaposizione intermadia
= funzionamento allamassimapotenza
= funzionamento allaminimapotenza
AUTO = funzionamento automatico
Part. 2
+
+
-
-
+
--
Part. 3

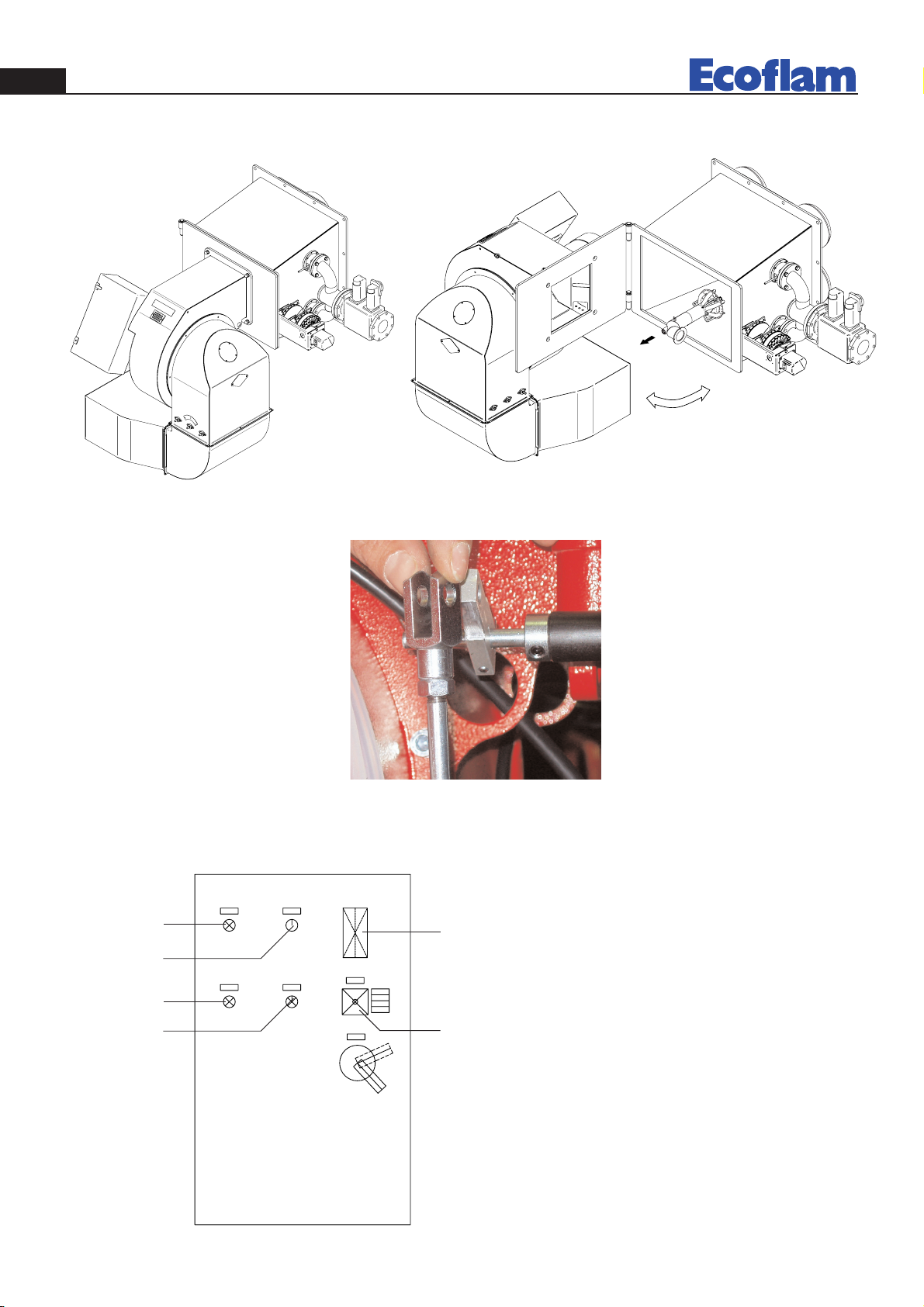

AIR ADJUSTMENT
operating elements locked in an inter-
mediate position
operation on maximum capacity
operation on minimum capacity
automatic operation
SELECTOR
ADJUSTING THE MINIMUM CAPACITY OF THE BURNER – AIR and GAS
Position the selector placed on the control panel on position 2 and proceed as follows:
Adjust the minimum gas flow rate using a suitable wrench, turn the butterfly valve until you reach the correct gas flow,
as established by analyzing the combustion process.
ADJUSTING THE MAXIMUM CAPACITY OF THE GAS
Position the selector, situated on the control panel, on position 1 and proceed as follows:
Adjusting the maximum gas flow rate (see figure on solenoid valve adjustments) or adjust the gas pressure in the gover-
nor.
ADJUSTING THE MAXIMUM AIR FLOW RATE
Adjusting the maximum air flow rate (see figure, detail 2). Loosen the nut holding the air damper transmission rod;
The correct air flow as established by analyzing the combustion process.
ADJUSTING THE INTERMEDIATE BURNER CAPACITY
Using the selector, start the servomotor (closing or opening) and position on 0 to stop the stroke; the adjustment is
made as outlined below. Repeat the operation for the other cam points.
Adjustment the intermediate gas flow rates (see figure, detail 3): - using a suitable Allen wrench, change the position of
the cam guide blade; if you screw it down, the flow rate is reduced; if you unscrew it, the flow rate increases.

11
420010258900 BLU 15000.1 - 18000.1 PR EN
ADJUSTMENT OF GAS MINIMUM PRESSURE SWITCH
Unscrew off and remove cover M. - Set regulator N to a value equal to 60% of gas nominal feed pressure
(i.e. for nat. gas nom. pressure = 20 mbar, set regulator to a value of 12 mbar; for L.P.G. nom.
pressure of G30/G31- 30/37 mbar, set regulator to a value of 18 mbar).Screw up cover M
ADJUSTMENT OF THE AIR PRESSURE SWITCH
Unscrew screws A and B and remove cover C.- Set the pressure switch to the minimum by
turning regulator D to position 1.
- Start the burner and keep in low flame running, while checking that combustion is cor-
rect. Through a small cardboard, progressively obstruct the air intake until to obtain a CO2 increase of
0,5÷0,8% or else, if a pressure gauge is available, connected to pressure port E, until reaching a
pressure drop of 1 mbar (10 mm of W.G.). - Slowly increase the adjustment value of the air
pressure switch until to have the burner lockout. Remove the obstruction from the air intake,
screw on the cover C and start the burner by pressing the control box rearm button.
Note: The pressure measured at pressure port E must be within the limits of the pressure
switch working range. If not, loose the locking nut of screw F and gradually turn the
same: clockwise to reduce the pressure; counterclockwise to increase. At the end tighten the
locking nut.
2,5
5
10
15
50
25
35
30
40
45
20
0,4
0,6
0,9
3,0
1,5
2,1
1,8
2,4
2,7
1,2
I
L
MN
A
B
CD
E
F
GH
SETTING THE FIRING HEAD
+-
+-
4 mm
7 mm
Elettrodo di accensione
Elettrodo di rivelazione
"
"
7 mm
IGNITION END IONIZATION ELECTRODES
Ionization Probe
Ignition Electrode
The ionization current is checked by inserting a
microammeter with an end of scale of 50 µA (d.c.)
in series with the ionization probe. A faulty posi-
tion of the electrode can lead to a reduction in the
ionization current and cause a safety cut-out of the
burner due to a flame detection failure. In this case,
check the position of the electrode, its electric con-
nection and the earthing of the burner. The ioniza-
tion current is normally > 20 µA.
24
min. 6 µA
LANDIS LFL1.622
Microamperometro
fondo scala 50 µA
IONIZATION CURRENT
Microammeter
50 µA end of scale

12
420010258900 BLU 15000.1 - 18000.1 PR
EN
FIRING HEAD DISASSEMBLY
WARNING !
DESCRIPTION OF THE CONTROL PANEL OF THE BURNER
SA s.r
I
0
SABK
SAMA
3=AUTO
2=LOW
1=UP
0=STOP
SALHLBT
HLF
1 - Termal lock-out lamp
2 - Working lamp
3 - Selector
:
0 Loking of devoicesfor operating at intermediate outputs
1 Operation at max. output
2 funzionamento allaminimapotenza
3 Operation at min. output
4 - Main switch I / O
5 - Lockout disable push button
6 - Modulating unit
5
4
1
2
3
6

13
420010258900 BLU 15000.1 - 18000.1 PR EN
MAINTENANCE
ANNUAL CHECK
The burner (combustion head, electrodes, etc.) must be checked regularly by an authorized technician,
once or twice a year, depending on how much it is used. Before proceeding withe the maintenance check-
up on the burner, it is advisable to check the general condition of the burner and take the following steps:
Disconnect the burner (remove the plug).
- Close the gas shut-off cock.
- Remove the cover from the burner, clean the fan and air intake.
- Clean the combustion head and check the position of the electrodes.
- Re-install the parts.
- Check the seal on the gas connectors.
- Check the state of the flue.
- Start the burner.
- Check the combustion parameters
BEFORE TAKING ANY ACTION, CHECK:
- that there is power in the circit and the burner is connected;
- that the gas pressure is right and the gas shut-off cock is open;
- that the control systems are properly connected. If all these conditions have been satisfied, start the bur-
ner by pressing the reset button. Check the burner cycle.
IF THE BURNER FAILS TO START:
check the switch, the thermostats, the motor and the gas pressure.
IF THE BURNER PROCEEDS WITH PREVENTILATION BUT CUTS OUT AT THE END OF THE CYCLE:
check the air pressure and the fan. Check the air pressure switch.
IF THE BURNER PROCEEDS WITH PREVENTILATION BUT DOES NOT LIGHT:
check the installation and position of the electrodes. Check the ignition cable.
Check the ignition transformer. Check the safety device.
IF THE BURNER LIGHTS BUT CUTS OUT AFTER THE SAFETY INTERVAL:
check that the phase and neutral wires are connected correctly.
Check the gas solenoid valve. Check the position and connection of the detector electrode.
Check the detector electrode. Check the safety device.
IF THE BURNER LIGHTS BUT CUTS OUT AFTER OPERATING FOR A FEW MINUTES:
check the pressure regulator and gas filter. Check the gas pressure with a pressure gauge. Check the detec-
tor value (at least 6 µA).

14
420010258900 BLU 15000.1 - 18000.1 PR
RU
mbar
2000 3000 4000 5000 6000 7000 8000 9000 10000
10
12
14
16
1000
2000 3000
1000
18
20
22
11000
0
2
4
6
8
24
26
28
30
12000 kW
13000
32
34
36
38
40
kcal/h
x 1000
4000 5000 6000 7000 8000 9000 10000 11000 12000 13000 14000 15000 16000 17000
14000 15000 16000 17000 18000 19000
BLU 15000.1 PR
BLU 18000.1 PR
противодавление в камере сгорания
ООЬ
 АА
MODELS BLU 15000.1 BLU 18000.1
акс. тепловая мощность ккал/час 12.931.000 14.655.000
Kатт 15.000 17.000
иним. тепловая мощность ккал/час 3.181.000 3.448.270
Kатт 3.690 4.000
авление мбар 125÷700 175÷700
Электропитание 3 фазы + нейтраль V 230/400 230/400
вигатель Kатт 45 55
вигатель вентилятора об/мин 2.800 2.800
рансформатор розжига к/мА 8/20 8/20
ид топлива: удельная теплота сгорания метана = 35,9 ж/м3 = 8.570 ккал/м3
АО ААО О

15
420010258900 BLU 15000.1 - 18000.1 PR
RU
ED
G
250200
N
H
B C
A
O
АА А
ОЬ A B C D D1 E F G H I L M N O
Blu15000.1 1518 800 718 365 - 1890 320 1167 530 950 950 M16 320 Blu18000.1 1518 800 718 365 - 1890 320 1167 530 950 950 M16 320
D = короткая огневая головкаD1 = длинная огневая головка
азмеры (мм)

16
420010258900 BLU 15000.1 - 18000.1 PR
RU
1000
0001
800
31731731725 25
52 317 317 317 52
N
° 21 61M
800
BOILER FLANGE
азмеры (мм)

17
420010258900 BLU 15000.1 - 18000.1 PR
RU
123645
ОА О
1 - АА
2 - АА
3 - ОАА
4 - ЬА
5 - О
6 - ООЯОАЯ ОА

18
420010258900 BLU 15000.1 - 18000.1 PR
RU
SUNTEC
SUNTEC
SUNTEC
SUNTEC
ОА  АО ОО

19
420010258900 BLU 15000.1 - 18000.1 PR
RU
L (m)
2000 3000 4000 5000 6000 7000 8000 9000 10000
2
2,5
1000
2000 3000
1000
3
11000
0
1
1,5
3,5
4
12000 kW
13000
4,5
5
5,5
Nm3/h
100 200 300 400 500
kcal/h
x 1000
4000 5000 6000 7000 8000 9000 10000 11000 12000 13000 14000 15000
14000 15000 16000 17000
Ø (m)
2000 3000 4000 5000 6000 7000 8000 9000 10000
0,6
0,8
1000
2000 3000
1000
1
11000
0
0,2
0,4
1,2
1,4
12000 kW
13000
1,6
1,8
2
kcal/h
x 1000
4000 5000 6000 7000 8000 9000 10000 11000 12000 13000 14000 15000
14000 15000 16000 17000
FLAME LENGTH GAS BURNERS FOUR VERSION
FLAME DIAMETER GAS BURNERS FOUR VERSION (each combustion head)
600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700
Nm3/h
100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700
The sizes are indicative and dipend to the configuration, to the combustion chamber pressure and to the draught.
The values have been taken out from tests executed with flame tubes.

20
420010258900 BLU 15000.1 - 18000.1 PR
RU
ОЮ  АОООУ
осле подключения горелки к газопроводу проверить его герметичность. роверить состояние дымохода (герметичность и
отсутствие в нем препятствий и т.п.). Открыть газовый вентиль и осторожно продуть газопровод в направлении гнезда отбора
давления; проверить давление с помощью манометра . одать напряжение и установить термостаты на требуемое значение
температуры. осле включения термостата в цепь специальное устройство проверяет герметичность клапанов. о завершении
контроля горелка получает разрешение на выполнение пускового цикла.
АУ  УОА О
режде чем зажечь горелку, следует убедиться, что ее монтаж был выполнен правильно. роверить соответствие
схемам электросоединений и состояние трубопроводов системы отопления. о подачи электроэнергии убедиться, что
напряжение соответствует параметрам, указанным на табличке технических характеристик. Электрическая схема и
пусковой цикл описаны отдельно. ля подключения к горелке панели управления смотрите прилагаемую схему.
Особое внимание следует уделить положению нуля и фазы: ни в коем случае не менять их местами! роверить
заземление системы отопления. ля трехфазных двигателей обязательно проверить направление вращения
(указано стрелкой). родуть газопровод для удаления из него посторонних веществ и стравить из него воздух.
Удостовериться, что давление газа находится в пределах, указанных на табличке. Это делается с помощью
поверочного манометра, который устанавливается в специальное гнездо отбора давления на горелке. атем
запускается двигатель, и начинается предварительная продувка горелки. римерно за 30 сек. сервопривод
полностью открывает воздушную заслонку. огда заслонка оказывается в полностью открытом положении, по
импульсу, поступающему на аппаратуру управления, начинается цикл предварительной продувки
продолжительностью около 66 сек. о завершении продувки сервопривод перемещает заслонку в положение первой
ступени, после чего становится возможен розжиг горелки на минимальной мощности. Одновременно с этим подается
напряжение на трансформатор розжига, и спустя 3 сек. (предварительный розжиг) напряжение подается на
пилотный клапан. пустя 2 сек. после открывания пилотного клапана. трансформатор исключается из электрической
цепи. сли розжиг не происходит, не более чем через 2 сек. происходит аварийная остановка горелки. россельный
клапан регулирует расход газа в огневой головке. орелка работает на минимальной мощности (около 30% от
максимальной). одуляционное устройство управляет сервоприводом: в зависимости от потребности системы
отопления сервопривод переходит в положение максимального раскрытия либо останавливается в среднем
положении. а счет изменения положения сервопривода гарантируется пропорциональность расхода газа и воздуха
таким образом, что при любой мощности (30% - 100%) обеспечивается оптимальное качество сгорания.
ри выключении горелки сервопривод возвращается в положение "закрыто".
А ОА:
осле тарирования специалистом уставки всех регулируемых устройств должны быть зафиксированы. осле каждой
регулировки выполнять анализ дымовых газов в дымоходе.riore a 75 ppm.
Э ОЯ
се двигатели горелок прошли заводские испытания при трехфазном напряжении 400  50 ц, а цепи управления - при
однофазном напряжении 230  50 ц + ноль. ри необходимости обеспечить электропитание горелки от сети 230 ольт 50 ц
без нуля, необходимо выполнить подключения, руководствуясь соответствующей электрической схемой. абочий диапазон
теплового реле должен находиться в пределах потребляемой мощности двигателя.
УОА ОА ОАЯ
А: для правильного регулирования процесса сгорания и теплопроизводительности необходимо с помощью
соответствующих приборов произвести анализ дымовых газов. егулирование сгорания и теплопроизводительности
выполняется одновременно с анализом продуктов сгорания, при этом необходимо убедиться в правильности выполненных
замеров.  любом случае показатели должны соответствовать действующим нормам безопасности. м. приведенные таблицу и
график. Э АО О ОЯЬЯ АОА ОАО, Ю
ООУЮ А ОА "ЭОА".
А:  ОАЬ УОА ( АЯ ОУА,  АЬОО
АЯ АА, АО ЭОАА  ААО АЯ) АУЮЯ АА,
Ю ООУЮ А ОА "ЭОА",  О АУА О О Ь
АООА.
