Ecoflam BLU 700.1 LN PAB TC User manual

Technical data
Dati tecnici
Données techniques
Datos técnicos
Технические характеристики
Technische Daten
Operating instructions
Istruzioni per l’uso
Notice d’emploi
Manual de uso
Руководство по эксплуатации
Betriebsanleitung
Electric diagrams
Schema elettrico
Schémas électrique
Esquemas eléctrico
Электрические схемы
Elektrische Diagramme
Spare parts list
Parti ricambi
Pièces de rechange
Piezas de recambio
Запчасти
Ersatzteilliste
GAS BURNERS
EN
IT
FR
ES
RU
BLU 700.1 LN PAB
BLU 1000.1 PAB
BLU 1000.1 LN PAB
BLU 1200.1 PAB
BLU 1200.1 LN PAB
www.ecoflamburners.com
DE
BLU 700.1 LN PAB TC 3143977
BLU 700.1 LN PAB TL 3143978
BLU 1000.1 PAB TC 3144040
BLU 1000.1 PAB TL 3144041
BLU 1000.1 LN PAB TC 3143988
BLU 1000.1 LN PAB TL 3143989
BLU 1200.1 PAB TC 3144043
BLU 1200.1 PAB TL 3144044
BLU 1200.1 LN PAB TC 3143994
BLU 1200.1 LN PAB TL 3143995
05-11-2018

www.ecoflamburners.com 420010605300
EN
IT
FR
ES
RU
DE
2
Overview  Index of contents / Panoramica  Indice dei contenuti / Vue d'ensemble  Table des matières
Descripción  Sumario / Обзор  Содержание / Überblick  Inhaltsverzeichnis
Technical data
Dati tecnici
Données techniques
Datos técnicos
Технические характеристики
Technische Daten
EN
IT
FR
ES
RU
DE
3
Working diagrams
Campi di lavoro
Domaine de fonctionnement
Ámbito de funcionamiento
Рабочий диапазон
Arbeitsfeld
EN
IT
FR
ES
RU
DE
4
Dimensions
Dimensioni
Dimensions
Dimensiones
Размеры
Größe
EN
IT
FR
ES
RU
DE
5
Operating instructions for authorised specialists EN 6 - 15
Istruzione per l’uso per il personale qualificato IT 16 - 25
Notice d’emploi pour l’installateur spécialiste FR 26 - 35
Instrucciones de montaje para el instalador especialista ES 36 - 45
Инструкция по эксплутации Предназначено для
квалифицированных специалистов по установке RU 46 - 55
Βetriebsanleitung Fur die autorisierte Fachkraft DE 56 - 65
Gas pressure loss diagrams
Diagramma perdita di pressione
Diagrammes perte de pression de gaz
Diagramas de pérdida de presión
Диарамма перепада давления газов
Druckverlust-Diagramm
EN
IT
FR
ES
RU
DE
66 - 75
Electric diagrams
Schemi elettrico
Schémas électrique
Esquemas eléctrico
Электрические схемы
Elektrische Diagramme
EN
IT
FR
ES
RU
DE
76 - 77
Spare parts list
Parti di ricambio
Pièces de rechange
Piezas de recambio
Запчасти
Ersatzteilliste
EN
IT
FR
ES
RU
DE
78 - 81

3
www.ecoflamburners.com
420010605300
EN
IT
FR
ES
RU
DE
Overview / Panoramica / Vue d'ensemble / Descripción / Обзор / Überblick
Technical data  Dati tecnici  Données techniques  Datos técnicos  Технические
характеристики  Technische Daten
BLU 700.1 LN
PAB
BLU 1000.1
PAB
BLU 1000.1
LN PAB
BLU 1200.1
PAB
BLU 1200.1
LN PAB
Burner output max/min kW
Potenza bruciatore max/min kW
Puissance du brûleur max/min kW
Potencia del quemador máx/mín kW
Мощность горелки макс./мин., кВт
Brennerleistung max/min kW 700 270 970 245 875 280 1200 260 1100 290
Operation mode Funzionamento Fonctionnement Funcionamiento Moдифиkaция Betrieb 2 stage Regulating ratio Rapporto di
regolazione Rapport de régulation Relación de regulación Коэффициент
регулирования Regelverhaltnis 1:2
Fuel Combustibile Fuel Combustible Топливо Kraftstoff
Natural Gas (L.C.V. 8.570 kcal/Nm3)
LPG (L.C.V. 22.260 kcal/Nm3)
Emission class NOx
Classe di emissione
NOx
Classe d’émission
NOx
Tipo de emisión
NOx
Класс выделения загрязняющих веществ
NOx
Emissionsklasse
NOx 32323
Control box Apparecchiatura di
controllo Coffret de sécurité Cajetín de seguridad Блок управления и
безопасности Feuerungsautomat SIEMENS LME 22
Gas train Rampa gas Rampe gaz Rampa de gas Газовая рампа Gasarmatur SEE GAS TRAIN MANUAL
Flame monitor Rilevatore di fiamma Surveillance de flamme Vigilancia de llama Контроль пламени Flammenwachter ionization
Electric motor Motore elettrico Moteur Motor Электродвигатель Elektromotor 1,1 kW 2,2 kW
Voltage Tensione Tension Tensión Напряжение Spannung 230-400 V / 50 Hz
Power consumption (operation)
Potenza elettrica assorbita (Esercizio)
Puissance électrique absorbée (en service)
Potencia eléctrica absorbida (en funcionamiento)
Потребляемая электрическая мощность: (при работе)
Elektrische Leistungs- aufnahme (Betrieb)
1,6 kW 2,7 kW
Protection level Classe di protezione Indice de protection Índice de protección Класс электрозащиты Schutzart IP40 IP40 IP40 Sound pressure level dB(A)
Livello pressione sonora dB(A)
Niveau presion acoustique dB(A)
Nivel de presion acústico dB(A) Уровень шума, dB(A) Schalldruckpegel dB(A) 80 (without silencer), 74 (with silencer)
Ambient temp. for storage
Temperatura ambiente di stoccaggio
Température ambiante de stockage
Temperatura ambiente de almacenamiento температура хранения Umgebungstemperatur -20°…+70° C
Temperature for use
Temperatura d’utilizzazione
Température d’utilisation
Temperatura ambiente de utilización Рабочая температура Betriebstemperatur -10°…+60° C
Gas category
Gas burners type I2H I2E II2H3P II2E3P
BLU 700.1 LN
DK EE FI LV NO SE DE LU
AT CH CZ ES FR GB
GR HU IE IT LT PT
RO SI SK
PL
BLU 1000.1 LN BLU 1200.1 LN
BLU 1500.1 LN
BLU 700.1 AT CH CZ DK EE ES FI FR GB GR HU IE IT LT LV
NO PT RO SE SI SK BE DE FR LU PL
BLU 1000.1

4www.ecoflamburners.com 420010605300
EN
IT
FR
ES
RU
DE
Overview  Working fields / Panoramica  Campi di lavoro / Vue d'ensemble  Domaine de fonctionnement / Descripción  Ámbito de funcionamiento / Обзор  Рабочий диапазон / Überblick  Arbeitsfeld
150100 200
200100 300 400 500 600 700 800 900 1000 1100
250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300
0 1 2 3 4 5 6 7 8 9
mbar
kW
kcal/h x 1000
Blu 700.1 LN
Blu 1000.1 LN
Blu 1200.1 LN
Working field The working field shows burner output as a function of combustion chamber pressure. It corresponds to the maximum values specified by EN 676 measured at the test fire tube.The efficiency rating of the boiler should be taken into account when selecting a burner. Calculation of burner output: QF = QN
ηK
QF = Burner output (kW) QN = Rated boiler
output (kW)
ηK= Boiler efficiency (%)
Campi di lavoro Il campo di lavoro indica la potenza del bruciatore in funzione della pressione della camera di combustione. Corrisponde ai valori massimi previsti dalla norma EN 676 misurati sul tubo della fiamma di controllo. In occasione della scelta del bruciatore si deve tenere conto del rendimento energetico della caldaia. Calcolo della potenza del bruciatore: QF = QN
ηK
QF= potenza bruciata (kW) QN= potenza nominale della
caldaia (kW)
ηK= rendimento energetico
della caldaia (%)
Domaine de fonctionnement Le domaine de fonctionnement correspond aux valeurs mesurées lors de l’homologation. Elle correspond aux valeurs max mesurées sur tunnel d’essai d’après l’EN 676. Pour le choix du brûleur, tenir compte du rendement de la chaudière. Calcul de la puissance calorifique: QF = QN
ηK
QF= Puissance calorifique (kW) QN= Puissance nominale
chaudière (kW)
ηK= Rendement chaudière (%)
Ámbito de funcionamiento El ámbito de funcionamiento corresponde a los valores registrados en el momento de la homologación. Corresponde a los valores máx medidos en el túnel de ensayo según la EN 676. Para la elección del quemador, se ha de tener en cuenta el rendimiento de la caldera. Cálculo de la potencia calorífica: QF = QN
ηK
QF = Potencia calorífica (kW) QN = Potencia nominal
de la caldera (kW)
ηK = Rendimiento de la
caldera (%)
Рабочий диапазон Рабочий диапазон показывает производительность горелки в зависимости от давления в топочной камере. Он соответствует максимальным значениям согласно EN 676, измеренным в контрольной топочной камере. При выборе горелки необходимо учитывать КПД котла. Расчет тепловой мощности: QF = QN
ηK
QF = Тепловая мощность, кВт QN= Номинальная мощность
котла, кВт
ηK= КПД котла, %
Arbeitsfelder Das Arbeitsfeld zeigt die Bren- nerleistung in Abhangigkeit vom Feuerraumdruck. Es entspricht den Maximalwerten nach EN 676 gemessen am Prufflammenrohr. Bei der Brennerauswahl ist der Kesselwirkungsgrad zu berucksichtigen.
Berechnung der Brennerleis- tung: QF = QN
ηK
QF = Brennerleistung (kW) QN = Kesselnennleistung (kW) ηK= Kesselwirkungsgrad
(%)
150100 200
200100 300 400 500 600 700 800 900 1000 1100
250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300
0 1 2 3 4 5 6 7 8 9
mbar
kW
kcal/h x 1000
Blu 1000.1 Blu 1200.1

M
L
I
G
F
D - D1E
H1
N
CB
A
O
5
www.ecoflamburners.com
420010605300
EN
IT
FR
ES
RU
DE

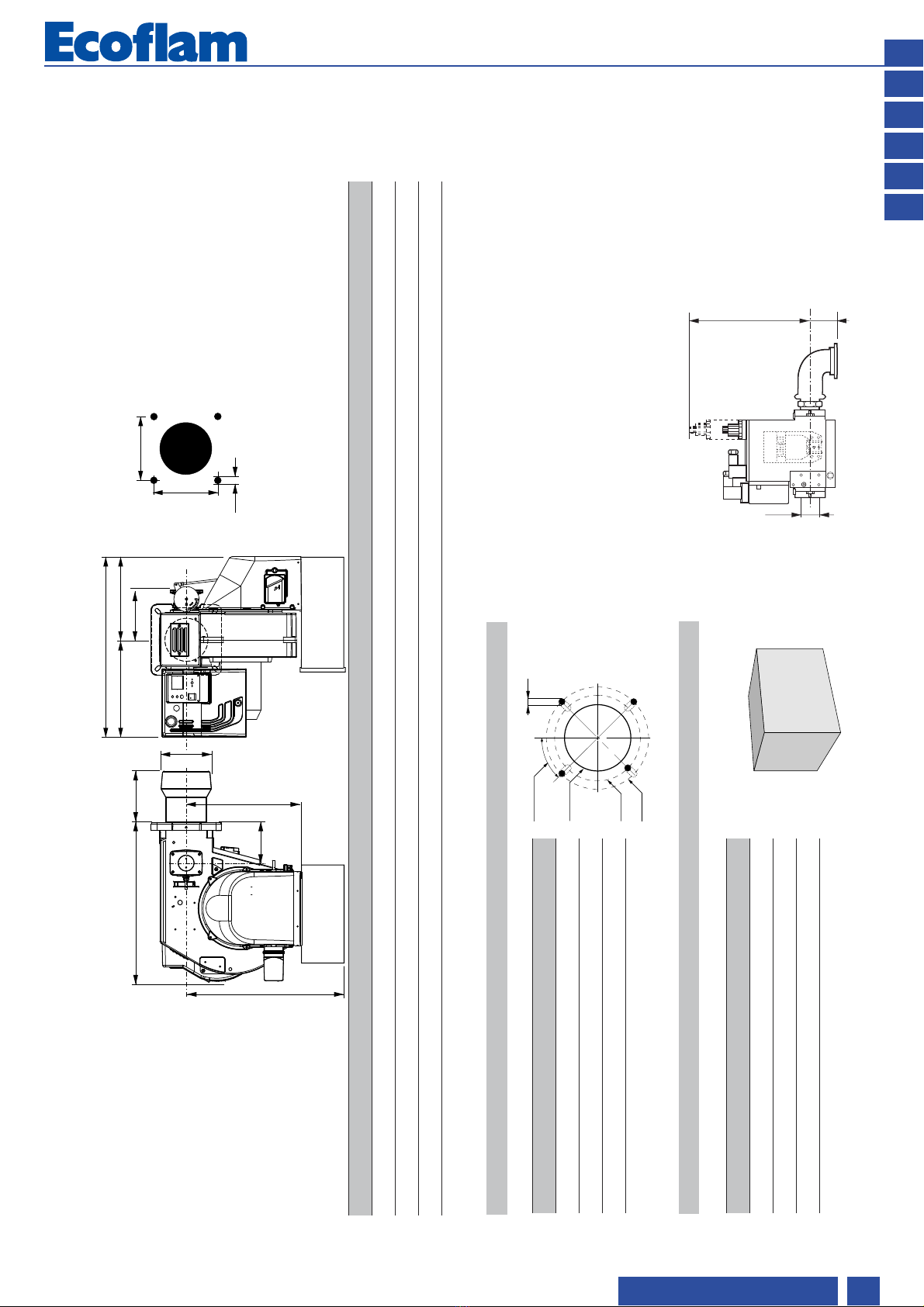

Overview  Dimensions / Panoramica  Dimensioni / Vue d'ensemble  Dimensions / Descripción  Dimensiones / Обзор  Размеры / Überblick  Größe
X
Y
Z
Packaging
GAS TRAIN DIMENSIONS: refer to GT manual
Ø r
RrSr
Model A B CD D1 E F GH1 I L M NO
BLU 700.1 PAB 608 328 280 174 394 543 170 401 601 185/200 185/200 M10 138 168 BLU 1000.1 PAB 608 328 280 174 394 543 190 401 601 185/200 185/200 M10 138 168 BLU 1200.1 PAB 608 328 280 309 459 543 200 401 601 185/200 185/200 M10 138 168
Model Ø a Ø b Ø c d°..
BLU 700.1 PAB 180 262 283 45° BLU 1000.1 PAB 200 262 283 45° BLU 1200.1 PAB 210 262 283 45°
Model XYZ kg
BLU 700.1 PAB 796 1055 575 50 BLU 1000.1 PAB 796 1055 575 50 BLU 1200.1 PAB 796 1055 575 60
d..°
Ø a Ø b
Ø c
M
D = short head D1 = long head H1 = when silencer is fitted Dimensions (mm)
Burner Flange

6www.ecoflamburners.com
EN
420010605300
Important notes
Ecoflam burners have been designed and
built in compliance with all current
regulations and directives.
All burners comply to the safety
and energy saving operation
regulations within the standard
of their respective performance
range.
The burner must not operate out
side the working range.
The quality is guaranteed by a quality and
management system certified in
accordance with ISO 9001:2008.
BLU burners are designed
for the low-pollutant combustion of natural
gas and Liquefied Petroleum Gas.
The burners comply with
standard EN676. Assembly and
commissioning must be carried
out only by authorised
specialists and all applicable
guidelines and directives must
be observed.

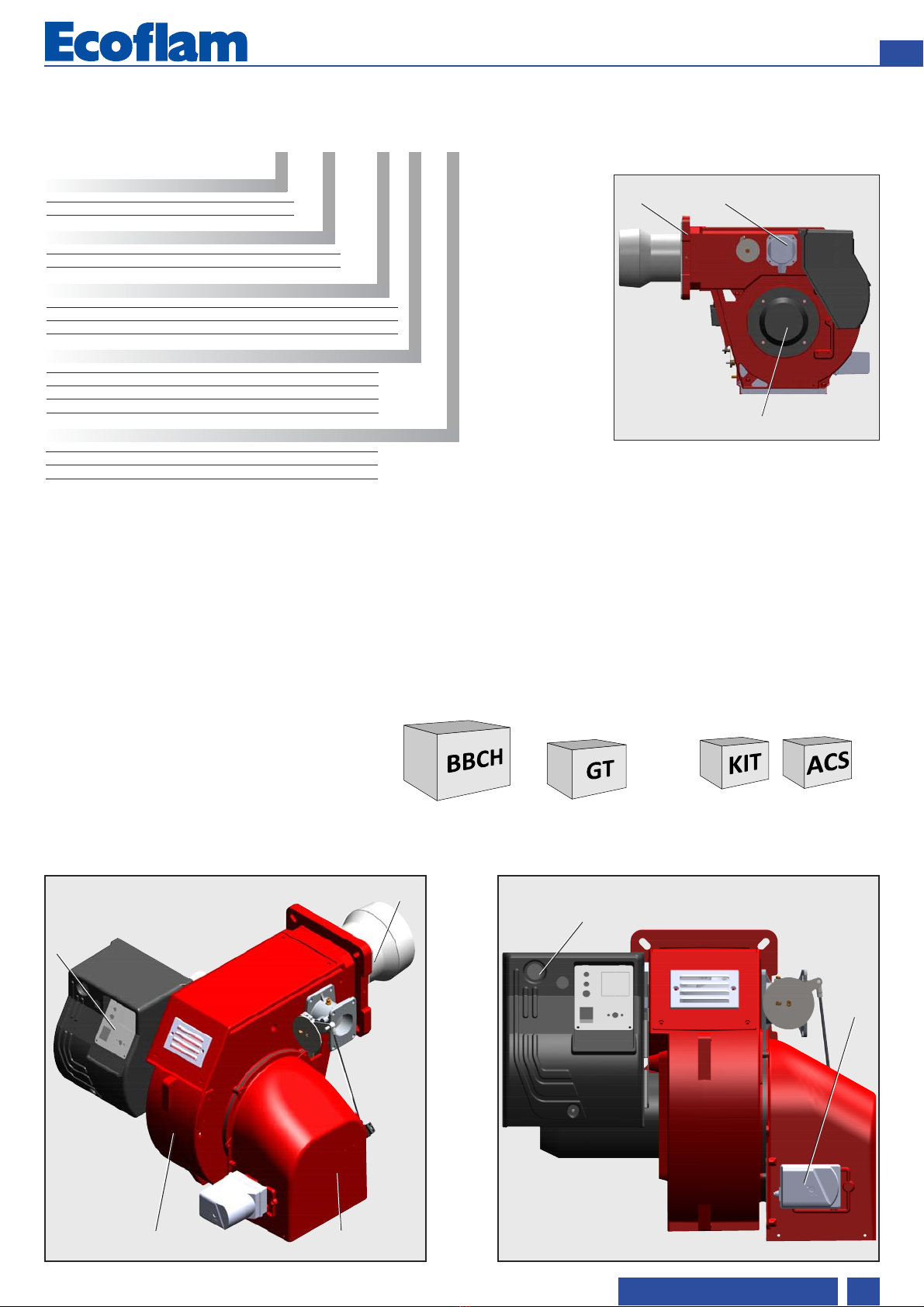

Burner description
BLU PAB are two-stage, fully automatic,
monoblock type burners.
Burner head is designed to get the lowest
emissions in terms of NOx and unburnt
particles in order to maximize the heat
generator efficiency. Emissions can be
different respect to the ones recorded in
the lab because they depends a lot on the
generator on which the burner is fit.
The installer must comply with compulsory
rules. Avoid for instance dangerous
atmosphere or not ventilated rooms.

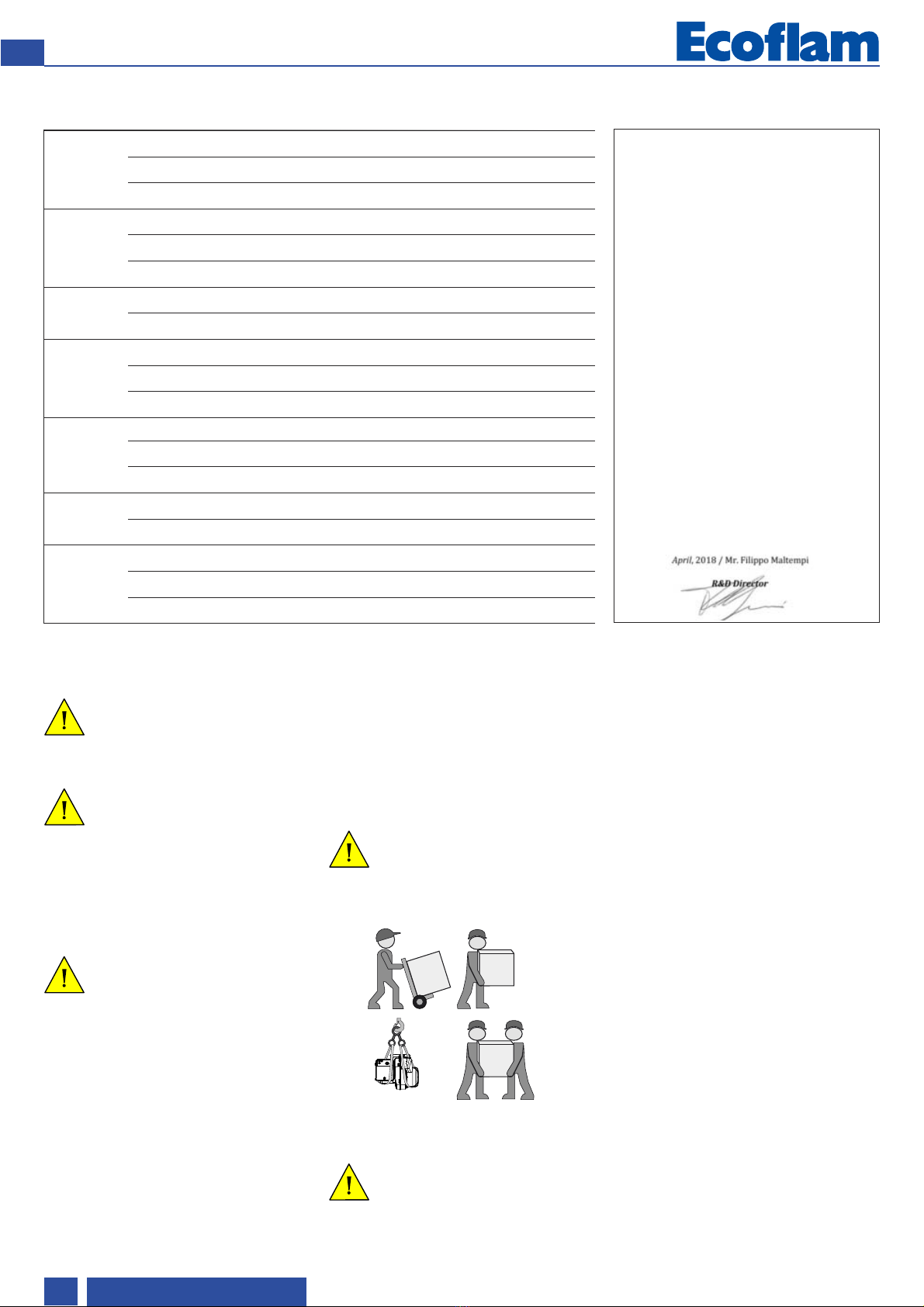

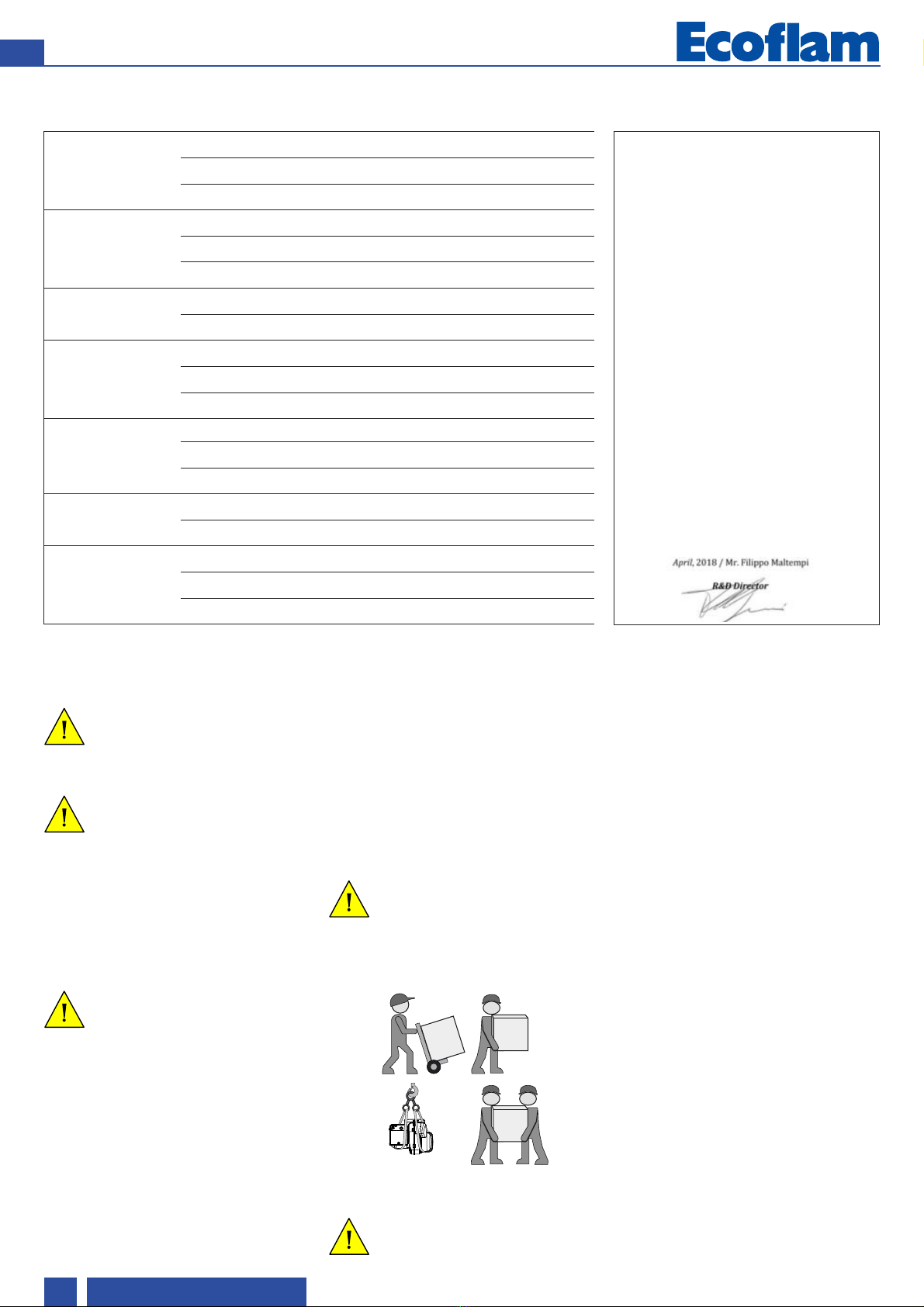

Packaging and handling
Move the burner still in its packaging using
a trolley or forklift, taking care not to drop it
and elevating it no more than 20cm from
ground level. After having removed the
packaging, check that the contents are in
good condition and correspond with what
was ordered. If in doubt, contact the
manufacturer.
The burner must be installed by a
qualified individual.
If the weight and dimensions do not allow
for manual lifting, ask another operator for
help or use a forklift, harness the burner
using belts if no eyebolts are available.
Use the accessories provided
(flange, gasket, pins and nuts) to
install the burner onto the boiler,
taking care not to damage the
isolating gasket.
We can accept no warranty liability
whatsoever for loss, damage or injury
caused by any of the following:
- Inappropriate use.
- Incorrect assembly or repair by the
customer or any third party, including the
fitting of non-original parts.
Provision of the system and the
operating instructions
The firing system manufacturer must
supply the operator of the system with
operating and maintenance instructions on
or before final delivery. These instructions
should be displayed in a prominent
location at the point of installation of the
heat generator, and should include the
address and telephone number of the
nearest customer service centre.
Notes for the operator
The system should be inspected by a
specialist at least once a year. It is
advisable to take out a maintenance
contract to guarantee regular servicing.
Contents  Index  General warnings  Conformity declaration
Overview Technical data 3
Working diagrams 4
Dimensions 5
Contents Index 6
General warnings - Conformity declaration 6
Burner description 7
Function General safety functions 8

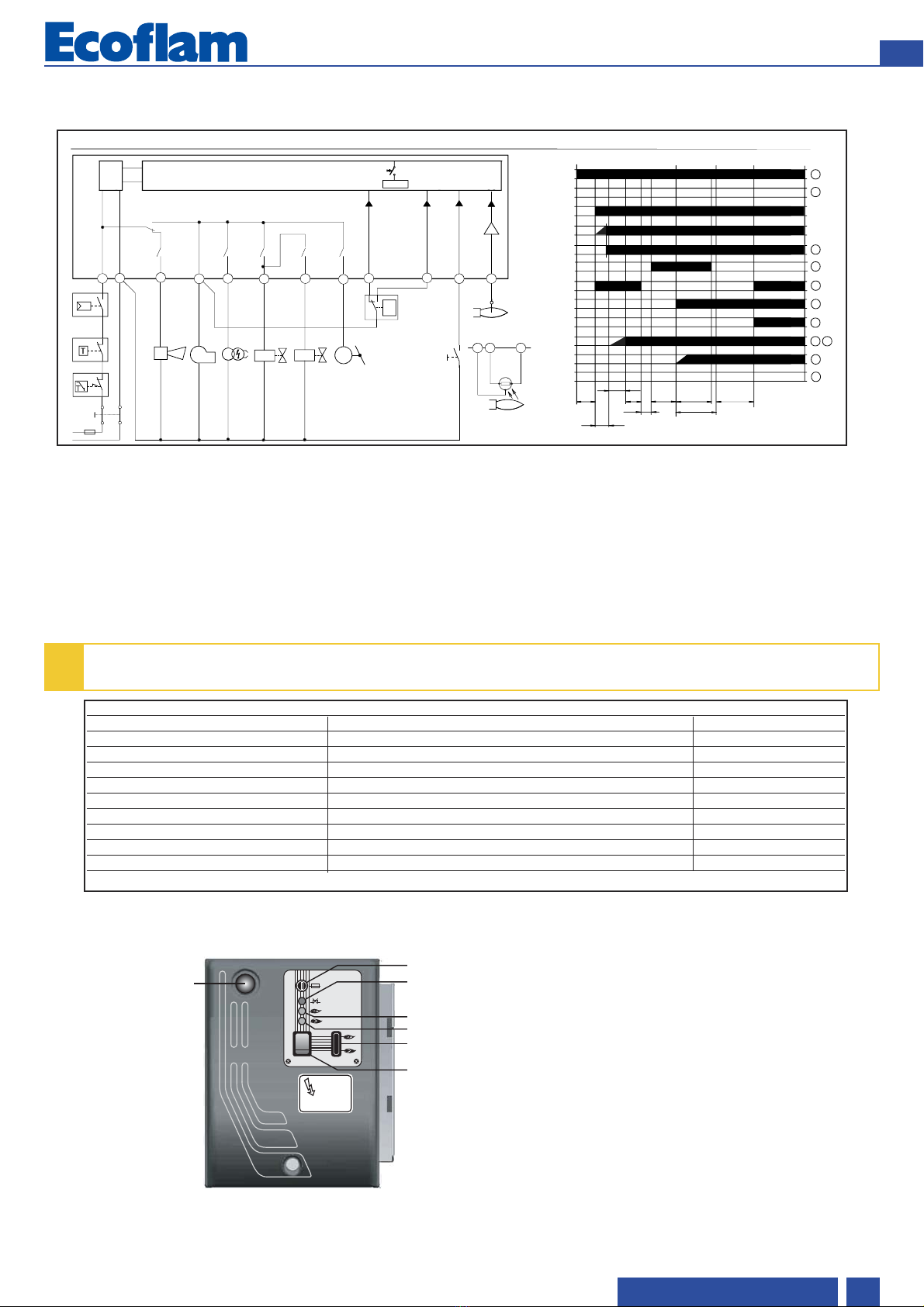

Control and safety unit SIEMENS 9
Installation Burner assembly 10
Electrical connection 11
Checks before commissioning 11
Start up Adjusting burner output 12
Air pressure switch adjustment - setting gas pressostat 13
Recording commissioning data 13
Service Maintenance 14
Troubleshooting 15
Overview Gas pressure loss diagrams 66-75
Electrical diagrams 76-77
Spare parts list 78-83
Declaration of conformity
for gas burners
We,
Ecoflam Bruciatori S.p.A.
declare under our sole responsibility
that the gas burners named
BLU
conform to the following standards:
EN 676 EN 501561
EN 550141 EN 550142
EN 603351 EN 603352102
EN 6100062 EN 6100063
These products bear the CE mark in
accordance with the stipulations of the
following directives:
2014/35/UE Low Voltage Directive
2014/30/UE EMC Directive
2006/42/EC Machine directive
2011/65/EU RoHS2 directive
(EU) 2016/426 Gas Appliance
Regulation.
WARNING
DANGER
WARNING
WARNING
WARNING

7
www.ecoflamburners.com
EN
420010605300
A1 Siemens Gas control and safety unit
F6 Air pressure switch
M1 Electric motor
T1 Ignition transformer
5 Housing
8 Blast tube
15 Burner flange
16 Reset key
103B Air regulation
113 Air intake
Scope of delivery
The burner is delivered in a modular system of
packagings i.e. separate set/box:
BBCH: Burner Body with Combustion Head
with flange.
- 1 bag including :- multilanguage technical manual.
- spanner.
- screws, nuts and washer.
GT: separate Gas Train
KIT & ACS are managed and delivered separately
Contents  Burner description
KIT & ACS delivered separately
BLU 1200.1 LN PAB TC
BLU
RANGE NAME BY FUEL TYPE
BLU 1200.1
MODEL SIZE
Standard Class 2 - GAS EN676 (≤120 mg/kWh)
LN Low NOx Class 3 - GAS EN676 (≤80 mg/kWh)
EMISSIONS
PAB 2 stages soft start
PR 2 stages progressive mechanical
PRE 2 stages modulating electronic
OPERATION TYPE
TC Short head
TL Long head
HEAD TYPE
16
15
8
5113
103B
M1
A1
F6

8www.ecoflamburners.com
EN
420010605300
Function  General safety functions
Description of functions
When the system is switched on for the
first time, after a power failure or safety
shutdown, after a lack of gas or after the
system has been out of operation for 24
hours, the pre-ventilation period of 30
seconds begins.
During prepurge period:
- blower pressure is monitored
- the combustion chamber is monitored for
flame signals.
At the end of the prepurge period:
- ignition is switched on.
- main and safety valve are opened.
- burner starts.
Monitoring
The flame is monitored by an ionization
probe. The probe is insulated and
fitted to the gas head and is routed
through the flame disc into the flame
zone. The probe must not have any
electrical contact with earthed parts.
The burner switches to lock-out if a short
circuit occurs between the probe and
the burner earth.
During burner operation, an ionised
zone is produced in the gas flame
through which a rectified current flows
from the probe to the burner head.
Safety functions
- If no flame is produced when the burner
is started (gas release), the burner will be
switched off at the end of the safety
period, and the gas valve will close.
- If the flame goes out during operation,
the gas supply is interrupted and the
control unit goes to block.
- If there is a lack of air during reventilation
or operation, the control unit goes to
block.
- If there is a lack of gas, the burner does
not begin operation or switches off.
In the event of controller shutdown
- Controller thermostat interrupts heat
request.
- Gas solenoid valves close.
- Flame goes out.
- Burner motor switches off.
- Burner is ready for operation.

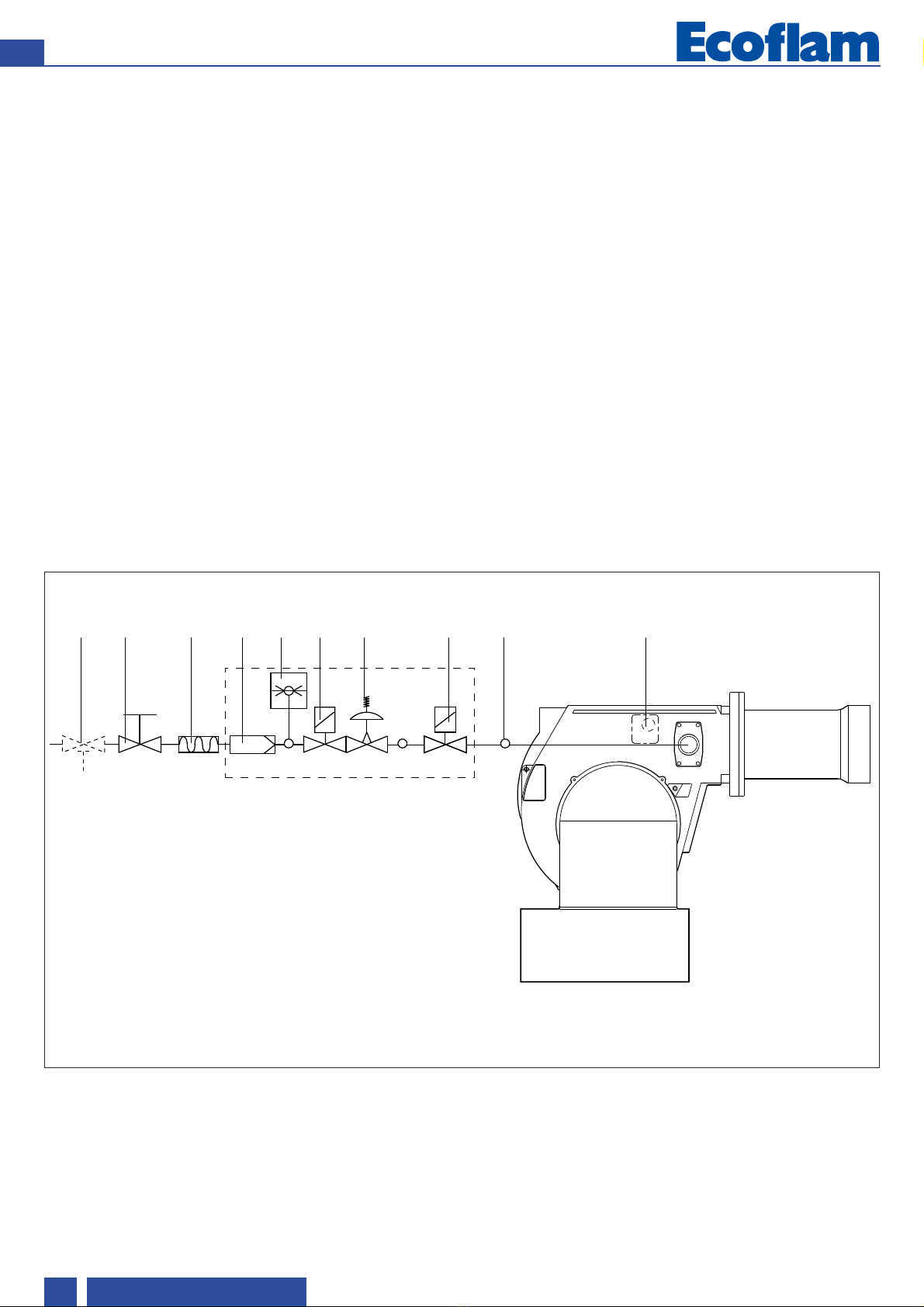

1 108 143 106 Y12 104F4 F6119 pBrY13
F4 Minimum gas pressure switch
F6 Air pressure switch
Y13 Solenoid valve
Y12 Solenoid valve
1 Thermally-triggered safety shut-off valve (installation resident).
104 Gas pressure regulator
106 Filter
108 Gas ball valve (installation resident)
119pBr Measuring point for gas outlet pressure.
143 Antivibration coupling (installation resident).

9
www.ecoflamburners.com
EN
420010605300
!Always disconnect the power supply before installing or removing the control unit. Do not attempt to open or carry out repairs on
the control unit.
Function  Siemens LME22 control and safety unit
Function  Control panel
1 - fuse
2 - termal lock-out lamp
3 - 1 st. stage working lamp
4 - 2 nd. stage working lamp
5 - high-low flame switch
6 - main switch I / O
7 - reset key
0
I
1
2
6
3
5
4
7
01
2
01
2
Color code table for multicolor signal lamp (LED)
Status Color code Color
Waiting time «tw», other waiting states ❍................................................................................... Off
Ignition phase, ignition controlled ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ Flashing yellow
Operation, flame o.k. ❑................................................................................... Green
Operation, flame not o.k. ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ Flashing green
Extraneous light on burner startup ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ Green-red
Undervoltage ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ Yellow-red
Fault, alarm ▲................................................................................... Red
Error code output (refer to «Error code
table») ▲ ❍ ▲ ❍ ▲ ❍ ▲ ❍ ▲ ❍ ▲ ❍ ▲ ❍ ▲ ❍ Flashing red
Interface diagnostics ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ Red flicker light
Legend: ....... Steady on ▲ Red ❑ Green ❍ Off ● Yellow
AGK25... PTC resistor
AL Error message (alarm)
V... Fuel valve
CPI Closed Position Indicator
DBR... Wire link
EK Lockout reset button (internal)
EK2 Remote lockout reset button
ION Ionization probe
FS Flame signal
FSV Flame signal amplifier
GP Pressure switch
H Main switch
HS Auxiliary contactor, relay
K1...4 Internal relays
KL Low-fire
LK Air damper
LKP Air damper position
LP Air pressure switch
LR Load controller
M Fan motor
R Control thermostat / pressurestat
SA Actuator
STB Safety limit thermostat
Si External pre-fuse
t Time
W Limit thermostat / pressure switch
Z Ignition transformer
ZV Pilot gas valve
A Start command (switching on by «R»)
B-B´ Interval for establishment of flame
C Operating position of burner reached
C-D Burner operation (generation of heat)
D Controlled shutdown by «R»
t1 Prepurge time
t3 Preignition time
t3n Postignition time
t4 Interval between ignition «Off» and release
of «V2»
t10 Specified time for air pressure signal
t11 Programmed opening time for
actuator «SA».
t12 Programmed closing time for actuator «SA».
TSA Ignition safety time
tw Waiting time
Connection diagram and control sequence LME22… / LME23…
NT μC control
RESET
EK
FSV
ION
1
23
M
4
BV1
5
BV2
7
Z
10
AL
T
12
R / W
GP
STB
9
7101 02 /0606
pa
6
LP
8
EK
11
K1
K2/1 K3 K4
K2/2
H
Si
SA
L
N
QRC
br bl sw
12
12
Nur LME23...
SB / R
W / GP
AL
LP
SA
BV1
(LR) BV2
Z
FS
tw t1 t3n
TSA
t4 7101d02/0606
t11
t12
EK2
12
10
3
7
4
5
6
1
8
ABB´ CD
9
t3
t10
LK
M
I
11

10 www.ecoflamburners.com
EN
420010605300

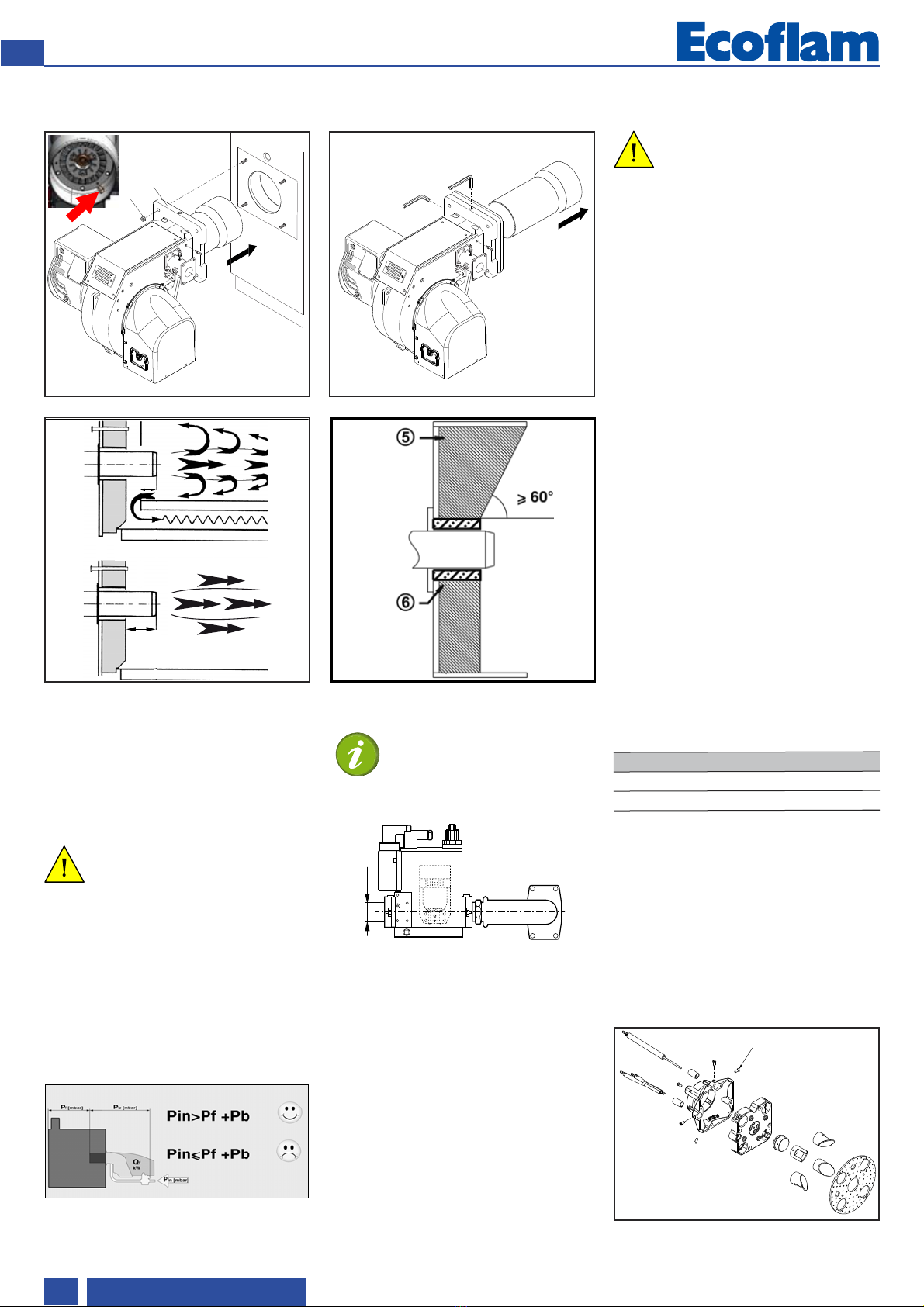

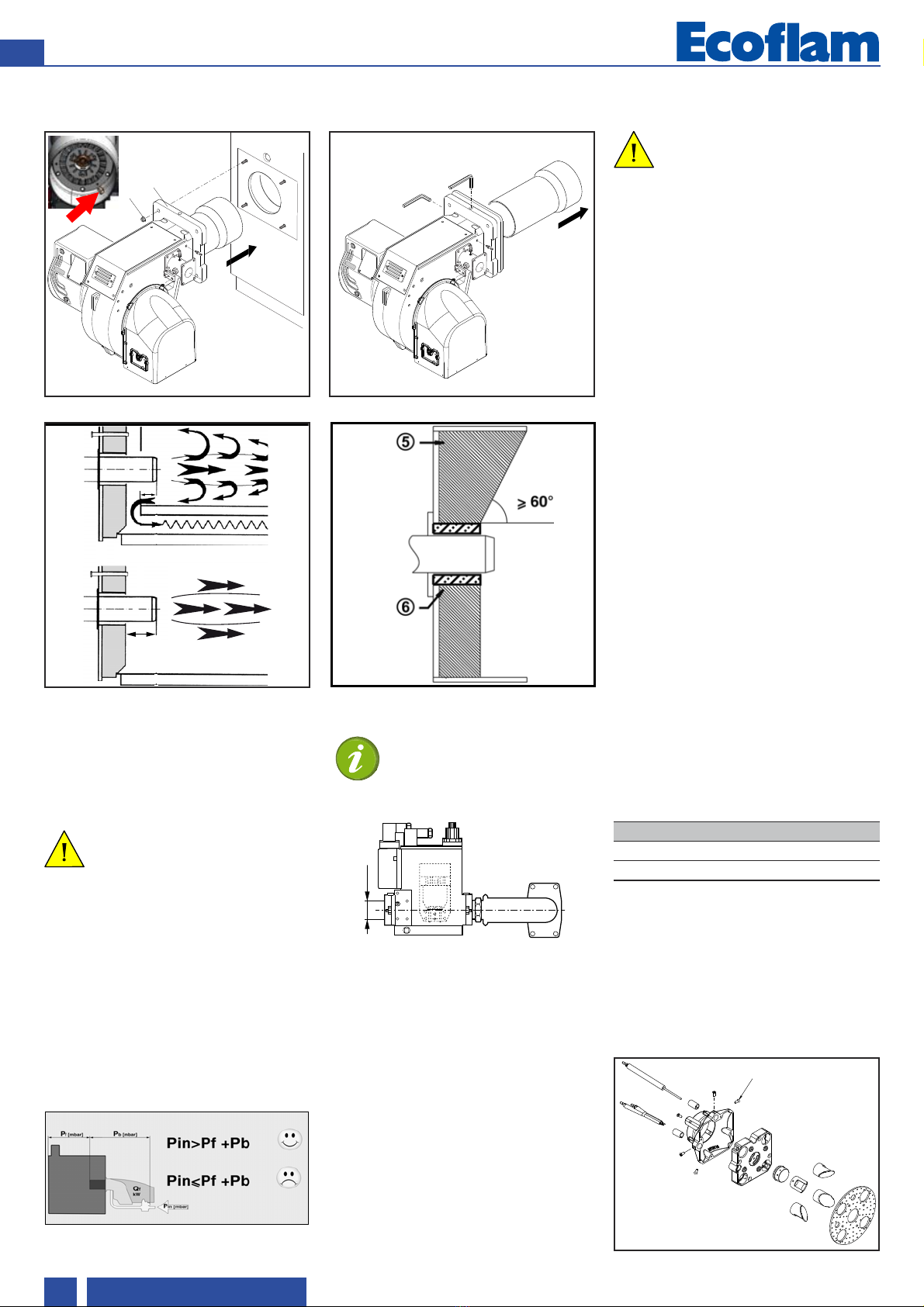

Installation  Burner assembly
Burner assembly
The burner is fixed to the boiler.
Installation:
• fix the flange 3to the boiler with
the screws 4
Removal:
• loosen the screws and remove the
burner.
General regulations applying to the
gas connection
• The gas train must only be connected
to the gas mains by a recognised
specialist.
• The cross-section of the gas line should
be of a size designed to guarantee that the
gas flow pressure does not drop below the
specified level.
• A manual shut-off valve (not supplied)
must be fitted upstream of the gas train.
Ør
Gas lines
When installing the gas lines and gas train,
the general EN676 directives and
guidelines must be observed.
Additional accessories and kits shall be
installed by the installer in accordance to
the local safety regulations and codes of
practise.
Upon the installer responsibility
it is mandatory to install
additional support(s) in order to
not overload the burner body
with the dead load of full gas train,
accessories, piping and so on. The
burner body can stand just the gas
valve and the piping between the gas
valve and the body.
LEGENDA
Pf: Back pressure of furnace
Pb: Pressure of burner (combustion head
+ complete gas train)
Pin: Minimum inlet pressure
4
3
A
A1
Burner blast tube insertion depth and
brickwork
Unless otherwise specified by the boiler
manufacturer, heat generators without a
cooled front wall require brickwork or
insulation 5 as shown in the illustration.
The brickwork must not protrude beyond
the leading edge of the blast tube, and
should have a minimum conical angle of
60°. Gap 6 must be filled with an elastic,
non-combustible insulation material. For
boilers with reverse firing, the minimum
burner tube insertion depth A as specified
in the boiler manufacturer’s instructions
must be observed.
On boilers the blast tube insertion depth
should be observed as per the boiler
manufacturer's instructions.
Reverse flame boiler :
A = 50-100 mm.
Three pass boilers :
A1 = 50-100 mm.
Exhaust system
To avoid unfavourable noise emissions,
right-angled connectors should not be
used on the flue gas side of the boiler.
In order to change the burner operation
from natural gas to LPG you have to fol-
low these instructions :
- Remove the blast tube.
- Replace 4 Diffusers with LPG version,
remove A screws.
- Remove the disc.
- Replace Tooth with LPG version.
- Install the disc correctly.
- Replace the blast tube with LPG version
(not for LN version).
LPG TRANSFORMATION
KITLPG
KITLPG-BLU700.1-1500.1 3144610
A
Installing the gas train
The gas train is supplied
separately, for fitting refer to the
instructions in the gas train
manual.
WARNING
WARNING! REMOVE THE BLOCK
INSIDE BLAST TUBE BEFORE
INSTALLING THE BURNER.
WARNING

11
www.ecoflamburners.com
EN
420010605300
Installation  Electrical connection  Checks before commissioning
Electrical connection
The electrical installation and connection
work must only be carried out by an
authorised electrical specialist.
All applicable rules and regulations must
be observed.
The electrical installation should include a
type A circuit breaker.
The applicable guidelines and
directives must be observed, as well as
the electrical circuit diagram supplied
with the burner!
• Make sure that the appliance is
connected to an efficient earthing system.
• Make sure that the earth wire is a couple
of cm longer than the other wires in the
power supply cable.
• Check to ensure that the power supply
voltage is as specified in the electric
diagram and in data plate.
• Burner fuse: 5 A.

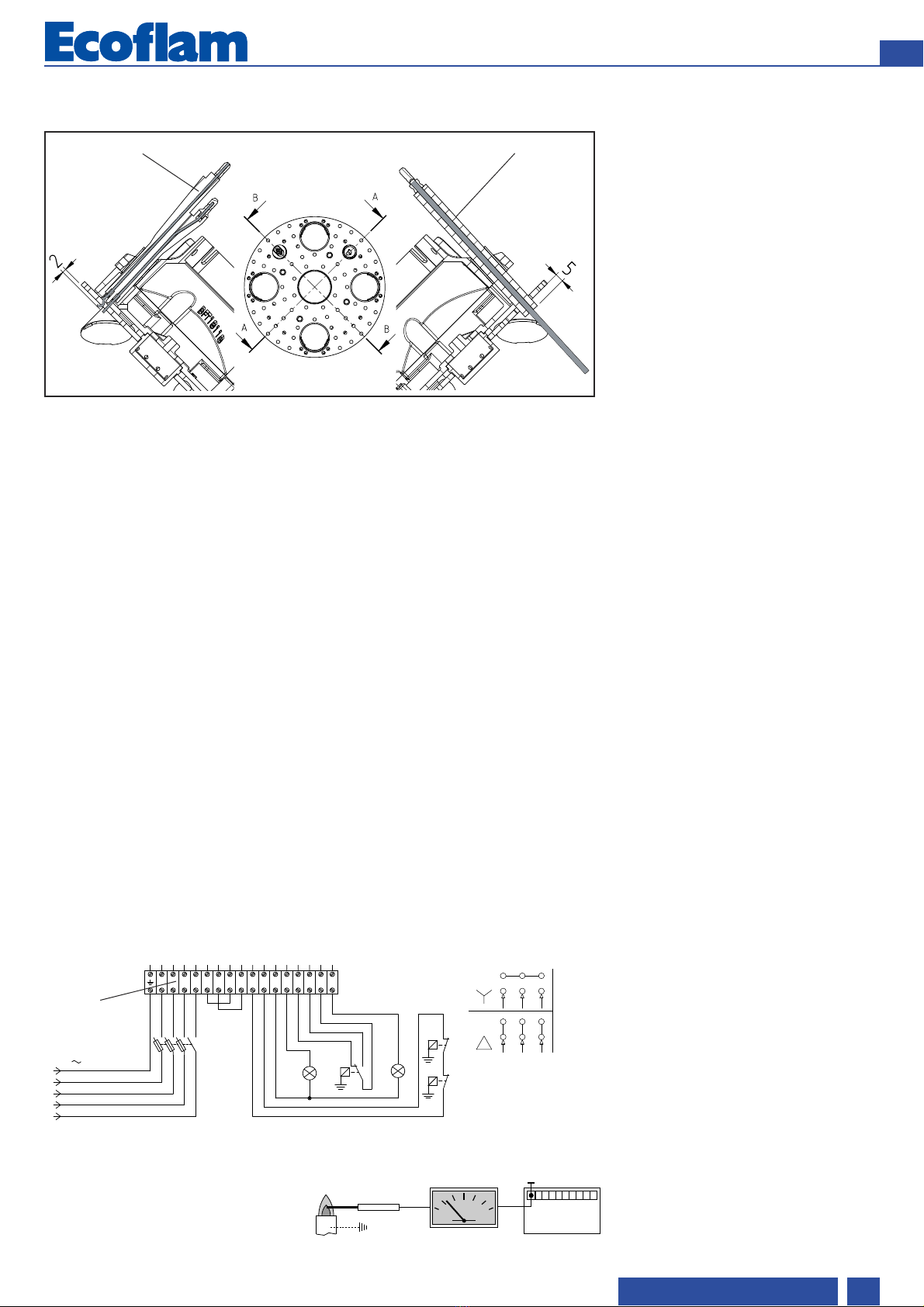

Electrical connection (plugin)
It must be possible to disconnect the
burner from the mains using an
omnipolar shutdown device complying
with the standards in force. The burner
and heat generator (boiler) are connected
to the terminal block of the cabinet (fig.1).
Connecting the gas train
Connect the gas train to the plugs on the
burner.
Checks before commissioning
The following must be checked before
initial commissioning:
• That the burner is assembled in
accordance with the instructions given
here.
• That the burner is pre-set in accordance
with the values in the adjustment table.
• Setting the combustion components.
• The heat generator must be ready for
operation, and the operating regulations
for the heat generator must be observed.
• All electrical connections must be correct.
• The heat generator and heating system
must be filled with water and the
circulating pumps must be in operation.
• The thermostats, pressure regulator, low
water detectors and any other safety or
limiting devices that might be fitted must
be connected and operational.
• The exhaust gas duct must be
unobstructed and the secondary air
system, if available, must be operational.
• An adequate supply of fresh air must be
guaranteed.
• The heat request must be available.
• Sufficient gas pressure must be
available.
• The fuel supply lines must be assembled
correctly, checked for leaks and bled.
• A standard-compliant measuring point
must be available, the exhaust gas duct up
to the measuring point must be free of
leaks to prevent anomalies in the
measurement results.
Position of electrodes
Setting the ionisation probe and
ignition electrode: see diagram
Always check the position of the
electrodes after service or substitution
or assembly of LPG kit as wrong position
might cause ignition problem.
Ionization current measurement
With the burner switched off, connect a
DC microammeter. When the burner is
running, and is properly adjusted, the
value read must be steady and never be
smaller than 3 µA.
The burners are produced with
connections suitable for power supply
380400 V threephase.
The burners with electric motors of an
output lower or equal to 3 kW can be
adapted to 220-230 V (please follow the
instructions on the backside); motors with
higher output can only work 380-400 V
three-phase. In case of request of burners
different from the above mentioned
standard, it is recommended to make
specific mention in the order.
Instructions: how to adapt electric
motors of an output lower or equal to 3
kW to 220230 V power supply
It is possible to change the voltage of the
burner by operating as follows:
1. change the connection inside the
electric box of the motor, from star to delta
(see picture 3);
2. change the setting of the thermal relay,
referring to the absorption values indicated
in the motor nameplate. If necessary,
replace the thermal relay with another one
of suitable scale.
This operation is not possible on motors
above 3 kW.
For more information, please contact the
Ecoflam staff.
TP
P
T
P
T
43 7SR5T1 6
STS
STC
STABHLB
1089 11
50 Hz 400V
R
PE
T
S
N
N
Q
212
HLF
1
230V
400V
3
Ignition electrode Ionization probe
Sez. B-B Sez. A-A
Siemens
LME11/LME21-22
min. 3μA 1

12 www.ecoflamburners.com
EN
420010605300
Start up  Adjusting burner output
!Risk of air blast!
Continuously check CO, CO2and soot emissions when adjusting the output of the burner. Optimise combustion values in the
event of CO formation. CO must not exceed 50 ppm.
NB: burner regulation must always be
carried out using the combustion analy
sis tool.
”PAB” VERSION GAS BURNERS GAS
TRAIN INSTALLATION AND SETTING
INSTRUCTIONS
Fix the gas train to burner body by means
of the 4 screws of the flange, pay attention
to set correctly the gasket ( O-ring ).
Connect electrically the gas train with the
6 pole plug.
Switch on the burner (it has already been
tested in the factory, so it is pre set on ave-
rage values) and verify the tightness of
gas train connections made during installa-
tion.
Act as follows to adapt the burner output to
the boiler.
HIGH FLAME
1. Bring the burner in high flame , air inlet
must be set at 75 ° (maximum opening po-
sition).
To adjust air capacity operate on the com-
bustion head position.
Just in peculiar case it is necessary to re-
duce the air flow in high flame closing air
intake damper.
2. The position of gas butterfly valve must
be lower then 90° ( typically 85°. It is im-
portant not get over 90° to obtain a per-
fect combustion during passage from high
to low flame). Eventually adjust this posi-
tion acting on the screw “1 “, after loose-
ning nut “ 2 “.
3. Regulate gas capacity in high flame
through the gas governor, or operate on
the adjustable gas valve.
LOW FLAME
4. Choose the first stage position on the
servocontrol ( normally between 10° - 30°)
on the basis of the reduced charge output
required and switch the burner to low
N.B. observe the minimum required
flue gas temperature specified by the
boiler manufacturer and the requirements
demanded of flue gas ducts for avoiding
condensation.
Adjustment of gas solenoid valve
Refer to the gas train manual for the gas
setting of the gas train selected.
2
1
flame.
5. Regulate gas capacity, to obtain optimal
combustion, changing the position of the
gas valve disc, act on screw “ 3 “, after loo-
sen nut “ 4 “.
Final operations
6. Bring the burner in high flame again, if
necessary adjust again gas flow (as shown
in point n.2).
7. If necessary repeat operations descri-
bed on point n. 5 and n. 6 until You obtain
the exact position of the gas flow both in
high and low flame.
8. Fix the nuts.
Firing head setting (C).
Execution :
• Loosen the locking screw of adjusting de-
vice V.
• Move the adjusting device until the desired
position is reached.
• Tighten the locking screw.
A
Servomotor SQN72.2A4A20
Remove cover to gain access to the adju-
sting cams.The cams are to be adjusted
through the suitable key provided for. De-
scription:
I - Limit switch (Red) for air damper
“High Flame” position adjustment
(Max. power).
II - Limit switch (Blu) for the air damper
position at burner’s shut down.
III- Limit switch (Orange) for air damper
“Low Flame” position adjustment
(Min. power).
IV- Limit switch (Black) not used.
(5): MANUAL RELEASE SWITCH
5
Max Ｍin
V
C
4
3
B

13
www.ecoflamburners.com
EN
420010605300
Start up  Air pressure switch adjustment  Setting gas pressostat
Operating check
Flame monitoring must be checked for
safety as part of initial commissioning and
also after servicing or if the system has
been out of operation for any significant
period of time.
- Start attempt with gas ball valve closed:
the automatic combustion control unit must
switch to gas shortage or malfunction after
the end of the safety period.
Air pressure switch calibration
The air pressure switch is provided for
monitoring the pressure of the
combustion air fan. Unscrew screws A and
B and remove cover C.
• Adjust the combustion with air pressure
switch (APS) set at minimum.
• Start to obstruct the air inlet with a paper
paying attention to O2 and CO values red
on the analyzer.
• Progressively increase air inlet
obstruction till the CO valve is slightly
more than 1000 ppm. Stop obstruction in
this position.
• Increase APS setting up to burner lock
out.
• Now the APS is set to avoid CO
production during the combustion.
• Remove air obstruction and fit again APS
cover C.
Min gas pressure switch
The gas pressure switch has the function
to check that the gas pressure before the
gas valve does have the minimum
pressure to make the burner running
correctly.
Unscrew off and remove cover M.
- Set knob N to a value equal to 60% of
gas nominal feed pressure (i.e. for natural
gas nom. pressure = 20 mbar, set knob to
a value of 12 mbar; for LPG nom. pressure
of G30/G31- 30/37 mbar, set knob to a
value of 18 mbar). Screw up cover M.
0,4
0,6
0,9
3,0
1,5
2,1
1,8
2,4
2,7
1,2
A
B
CD
2,5
5
10
15
50
25
35
30
40
45
20
I
L
MN
Recording commissioning data
Test n°1 n°2 n°3 n°4
Date
Model
Type gas
Gas calorific value
Gas inlet pressure mbar
Adjustment gas pressure
Volumetric gas flow rate Nm3/h
Burner output min kW
Burner output max kW
Flue gas temperature C°
Air temperature C°
CO2 %
CO ppm
NOx ppm
Performance %
Corrective action
Operator name
Company
WARNING

14 www.ecoflamburners.com
EN
420010605300
Service  Maintenance
Burner and boiler servicing must only
be carried out by qualified personell.
The system operator is advised to take
out a service contract to guarantee
regular servicing.
Attention
• Disconnect the electrical supply before
carrying out any maintenance or
cleaning work.
• The blast tube and firing head may be
hot.
Checking the exhaust gas temperature
• Check the flue gas temperature at
regular intervals.
• Clean the boiler if the flue gas
temperature is more than 30°C above
the value measured at the time of
commissioning.
• To simplify the check, use a flue gas
temperature indicator.
Maintenance on the burner
• Check gas supply components (tubes,
lines) and their connections for leaks
or signs of wear, replace if necessary.
• Check electrical connections and
connection cables for damage,
replace if necessary.
• Check gas filter, clean or replace as
necessary.
• Clean fan wheel and housing and
check for damage.
• Check and clean the mixing unit.
• Check ignition electrodes block,
readjust or replace as necessary.
• Start burner, check flue gas data,
correct burner settings if necessary.
• Check the setting for air pressure
switch and gas pressostat.
• Check the gas train settings.
• Carry out an operating check.

15
www.ecoflamburners.com
EN
420010605300
Fault diagnosis and repair
In the event of a malfunction, first check
that the prerequisites for correct
operation are fullfilled:
1. Is the system connected to the
power supply?
2. Is there any gas pressure?
3. Is the gas shut-off valve open?
4. Are all control and safety devices,
such as the boiler thermostat, low
water level detector, limit switch,
etc. adjusted correctly?
If the malfunction persists, use the
following table.
It is not permitted to repair any
components relevant to safety. These
components must be replaced by parts
with the same order number.
Only use original spare parts.
NB: after each operation:
• under normal operating conditions
(doors closed, hood fitted, etc.), check
combustion and check the individual
lines for leaks.
• Record the results in the relevant
documents.
Service  Troubleshooting
Maintenance
Annual check
The burner (combustion head, electrodes,
etc.) must be checked regularly by an au-
thorized technician, once or twice a year,
depending on how much it is used. Before
proceeding withe the maintenance check-
up on the burner, it is advisable to check
the general condition of the burner and
take the following steps:
Disconnect the burner (remove the plug).
- Close the gas shut-off cock.
- Remove the cover from the burner,
clean the fan and air intake.
- Clean the combustion head and check
the position of the electrodes.
- Re-install the parts.
- Check the seal on the gas connetors.
- Check the state of the flue.
- Start the burner.
- Check the combustion parameters
Before taking any action check:
- That there is power in the circit and
the burner is connected;
- That the gas pressure is right and
the gas shut-off cock is open;
- That the control systems are pro- perly
connected. If all these conditions have
been satisfied, start the burner by pres-
sing the reset button.
- Check the burner cycle.
If the burner fails to start:
check the switch, the thermostats, the
motor and the gas pressure.
If the burner proceeds with preventila
tion but cuts out at the end of the cycle:
- Check the air pressure and the fan.
- Check the air pressure switch.
If the burner proceeds with preventila
tion but does not light:
- Check the installation and position of the
electrodes.
- Check the ignition cable.
- Check the ignition transformer.
- Check the safety device.
If the burner lights but cuts out after the
safety interval:
- Check that the phase and neutral wires
are connected correctly.
- Check the gas solenoid valve.
- Check the position and connection of the
detector electrode.
- Check the detector electrode. Check the
safety device.
If the burner lights but cuts out after
operating for a few minutes:
- Check the pressure regulator and gas fil-
ter.
- Check the gas pressure with a pressure
gauge.
- Check the detector value (at least 3 µA).
Error code table
Red blink code of «AL» at Possible cause
signal lamp (LED)) term. 10
2 blinks on No establishment of flame at the end of «TSA»
- Faulty or soiled fuel valves - Faulty or soiled flame detector
- Poor adjustment of burner, no fuel - Faulty ignition equipment
3 blinks on «LP» faulty
- Loss of air pressure signal after «t10», - «LP» welded in normal position
4 blinks on Extraneous light when burner is started up
5 blinks on Time out «LP»
- «LP» welded in working position
6 blinks on Free
7 blinks on Too many losses of flame during operation
(limitation of the number of repetitions)- Faulty or soiled fuel valves.
- Faulty or soiled flame detector - Poor adjustment of burner.
8 blinks on Free
9 blinks on Free
10 blinks off Wiring error or internal error, output contacts, other faults.
14 blinks on CPI contact not closed

16 www.ecoflamburners.com
IT
420010605300
Avvertenze importanti
I bruciatori Ecoflam sono stati progettati e
costruiti nel rispetto delle normative e
direttive correnti.
Tutti i bruciatori rispondono
alle normative sulla sicurezza
e sul risparmio energetico nel
limite del campo di lavoro
dichiarato.
Il bruciatore non deve
funzionare fuori del campo di
lavoro.
La qualità del prodotto è garantita dal
sistema di certificazione in base alla
norma ISO 9001:2008.
I bruciatori BLU sono progettati per la
combustione di gas naturale e di gas
propano, con basse emissioni inquinanti.
I bruciatori sono conformi alla norma EN
676. Montaggio, messa in funzione e
manutenzione devono essere
eseguiti esclusivamente da
personale tecnico autorizzato,
nel rispetto delle direttive e delle
prescrizioni in vigore.
Descrizione del bruciatore
I bruciatori BLU PAB sono bruciatori
bistadio completamente automatici in
esecuzione monoblocco.
La geometria della testa di combustione
permette di ottenere bassi livelli di NOx e
di incombusti, massimizzando quindi il
rendimento del generatore.
Le emissioni possono essere diverse da
quelle riscontrate nel laboratorio di prova
in quanto dipendono molto dal generatore
sul quale il bruciatore è installato.
L’installatore deve rispettare le normative
vigenti. Per esempio sono da evitare locali
con atmosfere pericolose o non ventilate.
Imballo e movimentazione
Movimentare il bruciatore ancora imballato
con un carrello o un elevatore facendo
attenzione a non farlo cadere tenendosi a
non più di 20 cm da terra.
Dopo aver tolto l’imballo, controllare che il
contenuto sia integro e corrisponda al
prodotto ordinato. In caso di dubbi,
contattare il produttore.
L’installazione del bruciatore
deve essere effettuata
da personale abilitato.
Se le dimensioni e il peso non consentono
un sollevamento manuale, farsi aiutare da
un altro operatore, od utilizzare un
sollevatore imbracando il bruciatore con
delle fasce se non disponibili i golfari.
Usare gli accessori in dotazione
(flangia ,guarnizione, perni e dadi)
per installare il bruciatore alla caldaia
facendo attenzione a non danneggiare la
guarnizione isolante.
Si esclude qualsivoglia responsabilità
per eventuali danni derivanti dalle
seguenti cause:
- utilizzo non conforme.
- montaggio difettoso e/o riparazione a
cura dell'acquirente o terzi, ivi inclusa
l'applicazione di elementi di origine
estranea.
Consegna e istruzioni per l'uso
Il costruttore dell'impianto di combustione
è tenuto a consegnare al gestore
dell'impianto, al più tardi all'atto della
consegna dello stesso, le istruzioni per
l'uso e la manutenzione. Queste istruzioni
devono essere appese nel locale di
installazione del generatore termico in
modo ben visibile. Devono essere indicati
l'indirizzo ed il numero telefonico del punto
di assistenza più vicino.
Avvertenza per il gestore
L'impianto dev'essere controllato almeno
una volta l'anno da un tecnico specia-
lizzato. Al fine di garantire un'esecuzione
regolare, si suggerisce di stipulare un
contratto per la manutenzione
dell'impianto.
ATTENZIONE
ATTENZIONE
PERICOLO
ATTENZIONE
Contenuti generali  Indice  Avvertenze generali  Dichiarazione di conformità
Panoramica Dati tecnici 3
Campi di lavoro 4
Dimensioni d’ingombro 5
Contenuti generali Indice 16
Avvertenze generali - Dichiarazione di conformità 16
Descrizione del bruciatore 17
Funzione Funzioni generali di sicurezza 18
Apparecchio di comando e controllo SIEMENS 19
Installazione Montaggio del bruciatore 20
Connessione elettrica 21
Controlli da eseguire prima della messa in funzione 21
Messa in funzione Regolazione del bruciatore 22
Regolazione dei pressostati aria e gas 23
Registrazione dati di messa in funzione 23
Assistenza Manutenzione 24
Possibili inconvenienti 25
Panoramica Diagramma perdita di pressione 66-75
Schemi elettrici 76-77
Parti di ricambio 78-83
Dichiarazione di conformità
per bruciatori a gas
Noi ,
Ecoflam Bruciatori S.p.A.
dichiariamo sotto la nostra
responsabilità, che i bruciatori a gas
BLU
sono conformi alle norme elencate :
EN 676 EN 501561
EN 550141 EN 550142
EN 603351 EN 603352102
EN 6100062 EN 6100063
Questi prodotti vengono contrassegnati
con il marchio CE nel rispetto delle
direttive:
2014/35/UE Low Voltage Directive
2014/30/UE EMC Directive
2006/42/EC Machine directive
2011/65/EU RoHS2 directive
(EU) 2016/426 Gas Appliance
Regulation.
ATTENZIONE

17
www.ecoflamburners.com
IT
420010605300
A1 Apparecchio di comando e controllo
F6 Pressostato aria
M1 Motore ventilatore
T1 Trasformatore d'accensione
5 Corpo bruciatore
8 Boccaglio
15 Flangia bruciatore
16 Pulsante Reset
103B Regolazione dell’aria
113 Cassetto aria
Imballaggio
Il bruciatore è consegnato con un sistema modulare di
imballo (scatole separate):
BBCH: Bruciatore completo con testa di combustione e
flangia.
- 1 sacchetto : - manuale tecnico in multilingue.
- chiave esagonale.
- viti, dadi e rosette.
GT: Rampa Gas separata
KIT & ACS ordinabili e consegnati separatamente
Contenuti generali  Descrizione del bruciatore
KIT & ACS ordinabili e
consegnati separatamente
BLU 1200.1 LN PAB TC
BLU
NOME
BLU 1200.1
MODELLO
Standard Classe 2-GAS EN676 (≤120 mg/kWh)
LN Low NOx Classe 3 GAS EN676 (≤80 mg/kWh)
EMISSIONI
PAB 2 stadi
PR 2 stadi progressivo meccanico
PRE 2 stadi progressivo elettronico
TIPO DI FUNZIONAMENTO
TC Testa corta
TL Testa lunga
LUNGHEZZA TESTA
16
15
8
5113
103B
M1
A1
F6

18 www.ecoflamburners.com
IT
420010605300
Funzione  Funzioni generali di sicurezza
Descrizione del funzionamento
Alla prima messa sotto tensione, dopo
un'interruzione di corrente e una fase di
messa in sicurezza, dopo un'interruzione
di gas o dopo un arresto di 24 ore,
comincia un tempo di preventilazione di
30 sec.
Durante il tempo di preventilazione:
- la pressione dell'aria viene monitorata.
- controllo della presenza di eventuali
segnali di fiamma anomali.
Al termine del tempo di preventilazione
- l'accensione è inserita.
- l'elettrovalvola principale e di sicurezza è
aperta.
- il bruciatore si avvia.
Sorveglianza
La fiamma viene monitorata da una sonda
di ionizzazione. La sonda è montata in
modo isolato sulla testa del gas ed è
diretta attraverso il disco fiamma nella
zona della fiamma. La sonda non deve
avere alcun contatto elettrico con
componenti messi a terra. Se compare un
cortocircuito tra la sonda e la massa del
bruciatore, il bruciatore entra in stato di
anomalia. Durante il funzionamento, nella
fiamma del gas si crea una zona
ionizzata, attraverso la quale circola una
corrente raddrizzata dalla sonda verso il
boccaglio.
Funzioni di sicurezza
- Se all'avvio del bruciatore (rilascio del
gas) non si forma la fiamma, il bruciatore
viene arrestato al termine del tempo di
sicurezza, la valvola del gas si chiude.
- In caso di assenza della fiamma
durante il funzionamento, l'alimentazione
del gas si interrompe e l’apparecchio di
comando e controllo va in blocco.
- In caso di mancanza d'aria durante la
preventilazione o il funzionamento,
l’apparecchio di comando e controllo va in
blocco.
- In caso di mancanza di gas,
l’apparecchio di comando e controllo va in
blocco.
Arresto di regolazione
- Il termostato di regolazione interrompe la
richiesta di riscaldamento.
- Le valvole gas si chiudono.
- La fiamma si spegne.
- Il motore del ventilatore si ferma
- Il bruciatore è pronto per il
successivo funzionamento.
1 108 143 106 Y12 104F4 F6119pBrY13
F4 Pressostato gas minima
F6 Pressostato aria
Y13 Elettrovalvola gas
Y12 Elettrovalvola gas
1Valvola di sicurezza ad azionamento termico (deve essere
montata dall'installatore).
104 Regolatore di pressione gas
106 Filtro
108 Valvola di arresto del gas (deve essere montata
dall'installatore).
119pBr Punto di misurazione della pressione del gas all'uscita
della valvola.
143 Giunto antivibrante (deve essere montata dall'installatore).

19
www.ecoflamburners.com
IT
420010605300
Funzione  Apparecchio di comando e controllo Siemens LME22
!Prima del montaggio o dello smontaggio dell’ apparecchio di comando e controllo, il bruciatore dev'essere a tensione nulla.
L’ apparecchio di comando e controllo non dev'essere aperto nè riparato.
Funzione  Pannello di comando
Connection diagram and control sequence LME22… / LME23…
NT μC control
RESET
EK
FSV
ION
1
23
M
4
BV1
5
BV2
7
Z
10
AL
T
12
R / W
GP
STB
9
7101 02 /0606
pa
6
LP
8
EK
11
K1
K2/1 K3 K4
K2/2
H
Si
SA
L
N
QRC
br bl sw
12
12
Nur LME23...
SB / R
W / GP
AL
LP
SA
BV1
(LR) BV2
Z
FS
tw t1 t3n
TSA
t4 7101d02/0606
t11
t12
EK2
12
10
3
7
4
5
6
1
8
ABB´ CD
9
t3
t10
LK
M
I
11
AGK25... resistenza PTC
AL Segnalazione di blocco esterma
V... Valvola combustibile
CPI Indicatore di posizione chiusa
DBR... Collegamento
EK Pulsante di sblocco (interno)
EK2 Pulsante di sblocco remoto
ION Elettrodo di rilevazione
FS Segnale di fiamma
FSV Amplificatore del segnale di fiamma
GP Pressostato gas
H Interuttore principale
HS Contatto ausiliario rele’
K1...4 Contatti dei rele’ di controllo interni
KL Bassa fiamma
LK Serranda aria
LKP Posizione serranda aria
LP Pressostato aria
LR Termostato alta/bassa
M Motore del bruciatore
R Termostato di lavoro
SA Servocomando
STB Termostato di sicurezza
Si Fusibile esterno
W Termostato o pressostato limite
Z Trasformatore di accensione
ZV Valvola gas pilota
A Comando inizio ciclo
B-B´ Intervallo accensione fiamma
C Posizione funzionamento bruciatore
C-D Funzionamento bruciatore
D Spegnimento comandato da R
t1 tempo di preventilazione
t3 tempo di preaccensione
t3n tempo di postaccensione
t4 intervallo prima del consenso al 2° stadio
t10 Tempo disponibile per il segnale
pressostato aria.
t11 Tempo d'apertura programmato dal
servocomando «SA».
t12 Tempo di chiusura programmato dal
servocomando «SA».
TSA Tempo di sicurezza all’accensione.
tw Tempo di attesa
Tabella codici LED multicolore
Stato Codice colore Colore
Stato di attesa ❍................................................................................... spento
Fase di accensione ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ giallo lampeggiante
Funzionamento, fiamma ok . ❑................................................................................... verde
Funzionamento, fiamma non ok ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ verde lampeggiante
Segnale di fiamma estraneo ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ verde-rosso
Bassa tensione ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ giallo-rosso
Blocco ▲................................................................................... rosso
Codice di errore ▲ ❍ ▲ ❍ ▲ ❍ ▲ ❍ ▲ ❍ ▲ ❍ ▲ ❍ ▲ ❍ rosso lampeggiante
Trasmissione codice di errore ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ rosso lampeggiante veloce
Legenda : ....... Accesa continua ▲ rosso ❑ verde ❍ Spenta ● giallo
Diagramma connessioni e collegamenti interni LME22...
0
I
1
2
6
3
5
4
7
1 - fusibile
2 - lampada di blocco termico
3 - lampada di funzionamento 1ºstadio
4 - lampada di funzionamento 2ºstadio
5 - interruttore alta-bassa fiamma
6 - interruttore I / O
7 - pulsante di sblocco
01
2
01
2

20 www.ecoflamburners.com
IT
420010605300
Installazione  Montaggio del bruciatore
Profondità di montaggio del boccaglio
del bruciatore e rivestimento refrattario
Per i generatori senza parete anteriore
raffreddata e in assenza di indicazioni
contrarie da parte del costruttore della
caldaia, è necessario eseguire un
rivestimento in mattoni o l'isolamento
secondo la figura (5) a lato.
Il rivestimento in mattoni non deve
sporgere oltre il bordo anteriore del
boccaglio e deve terminare con una
conicità massima di 60°. Lo spazio d'aria
(6) dev'essere riempito con un materiale
isolante elastico, non infiammabile.
Per le caldaie deve essere rispettata la
profondità di penetrazione del boccaglio,
in conformità con le indicazioni fornite dal
costruttore della caldaia stessa.
Caldaie ad inversione di fiamma :
A = 50-100 mm.
Caldaie a tre giri di fumo :
A1 = 50-100 mm.
Condotto dei fumi
Al fine di evitare rumorosità indesiderate si
raccomanda di evitare l'utilizzo di raccordi
ad angolo retto al momento del
collegamento della caldaia al camino.
Montaggio del bruciatore
Il bruciatore viene fissato alla caldaia.
Montaggio :
• Fissare la flangia di attacco 3alla
caldaia con le viti 4.
Smontaggio :
• Allentare le viti e rimuovere il bruciatore.
Prescrizioni di ordine generale per
l'allacciamento del gas
• Il collegamento della rampa gas alla
rete del gas deve essere effettuato
esclusivamente da un tecnico esperto
autorizzato.
• La sezione della tubazione del gas deve
essere preparata in modo tale che la
pressione di alimentazione del gas non
possa scendere al di sotto del valore
prescritto.
• Una valvola manuale di arresto (non
fornita) deve essere montata a monte della
rampa gas.
Ør
Linea alimentazione gas
Nell’istallazione della linea di
alimentazione e della rampa gas bisogna
osservare le prescrizioni della EN676.
Ulteriori accessori dovranno essere
montati dall’istallatore per soddisfare
eventuali normative locali.
E’ responsabilità dell’installatore
installare gli elementi di
supporto addizionali necessari
per non sollecitare il bruciatore
con l’ulteriore peso di eventuali
accessori e tubazioni a monte della
rampa. Il corpo del bruciatore è
progettato per sostenere unicamente il
peso della propria rampa gas e del
raccordo tra rampa e corpo bruciatore.
LEGENDA
Pf: Contropressione al focolare
Pb: Pressione gas bruciatore (testa di
combustione + rampa gas)
Pin: Pressione minima di alimentazione
A
A1
A
Installazione della rampa gas
La rampa gas è fornita
separatamente, per il suo
montaggio fare riferimento alle
istruzioni del manuale della
rampa gas.
Per trasformare il bruciatore da Metano a
G.P.L. eseguire le seguenti operazioni :
- Rimuovere il boccaglio.
- Sostituire i 4 diffusori con quelli G.P.L.
agendo sulle viti A.
- Rimuovere il disco.
- Sostituire il Nasello con quello G.P.L..
- Rimontare correttamente il disco.
- Sostituire il boccaglio con quello G.P.L.
(non per la versione LN ).
TRASFORMAZIONE LPG
KITLPG
KITLPG-BLU700.1-1500.1 3144610
ATTENZIONE
ATTENZIONE! PRIMA DI
INSTALLARE IL BRUCIATORE,
RIMUOVERE IL BLOCCO
ALL’INTERNO DEL BOCCAGLIO.
ATTENZIONE
4
3
