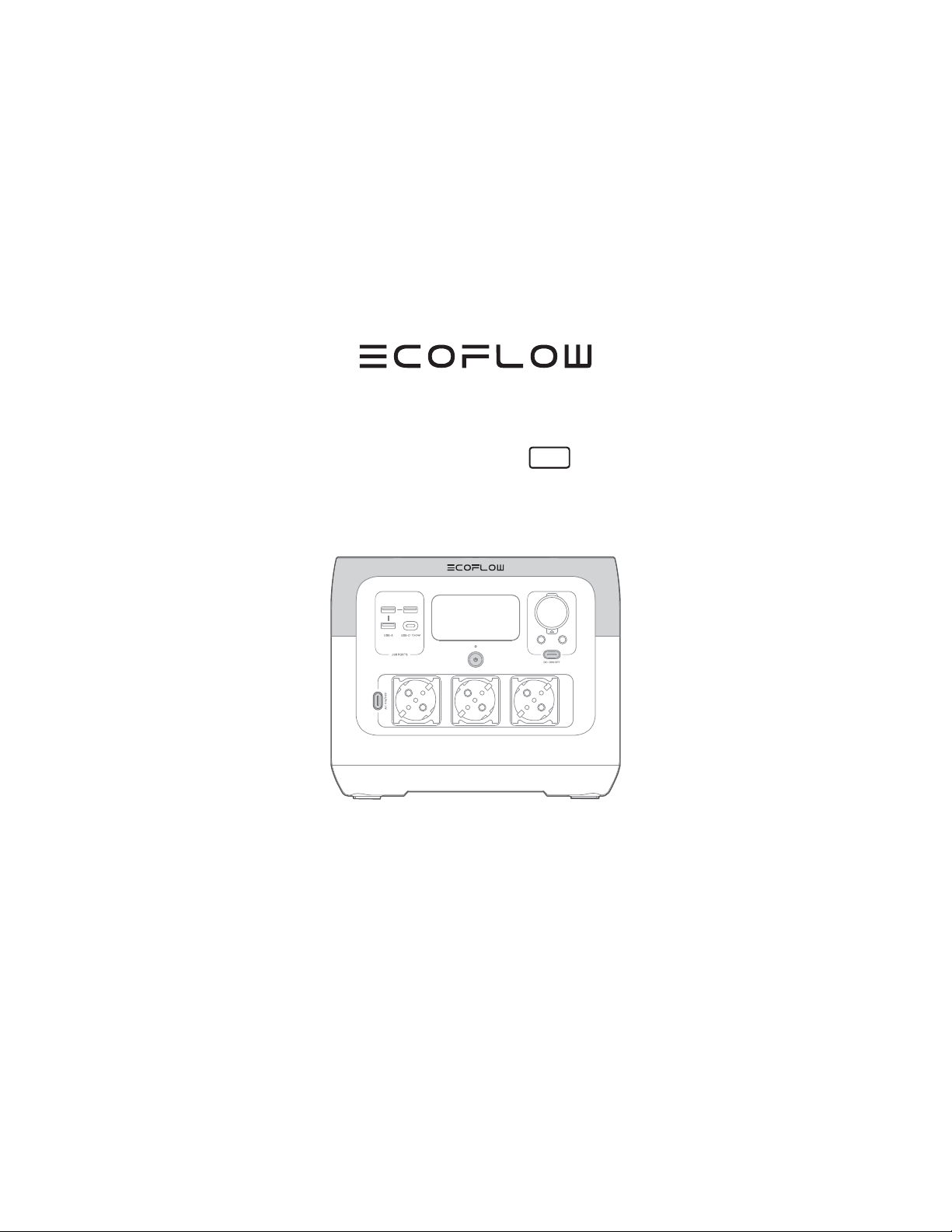

EcoFlow RIVER 2 Pro User manual

ECOFLOW RIVER 2 Pro
User Manual V1.0

Disclaimer
Read this user manual carefully before using the product to ensure that you completely
understand the product and can correctly use it. After reading this user manual, keep it properly
for future reference. Improper use of this product may cause serious injury to yourself or others,
or cause product damage and property loss. Once you use this product, it is deemed that
you understand, approve and accept all the terms and content in this document.
EcoFlow is not liable for any loss caused by the user's failure to use the product
in compliance with this user manual.
In compliance with laws and regulations, EcoFlow reserves the right to
This document is subject to changes (updates, revisions, or termination) without prior notice.

3
Overview
LCD Screen
AC Charging (Grid Charging)
Solar Charging
Car Charging
1
2
3
3
4
4
5
6
6
7
7
7
8
USB-C charging 8
9
9
9
10
11
11
X-Boost
EPS

1
Model EFR620
Weight Approximately 7.8kg(17.2lbs)
Dimension 270 x 260 x 226mm(10.6 x 10.2 x 8.9inches)
Capacity 768Wh (40Ah 19.2V )
Wi-Fi(2.4G)
Frequency range :
20M: 2412-2472MHz/40M: 2422-2462MHz
Maximum output power : 14.82dBm
Bluetooth Frequency range : 2402-2480MHz
Maximum output power : 4.27dBm
AC Input 220V-240V~50Hz/60Hz, 8A Max
Car Charging Input 12V/24V 8A, 100W Max
Solar Charging Input 11-50V 13A, 220W Max
USB-C Input 5/9/12/15/20V 5A, 100W Max
USB-C Output 5/9/12/15/20V 5A, 100W Max
USB-A Output 5V 2.4A 12W Max per port
DC Output 12.6V 10A/3A/3A, 126W Max
AC Output Pure sine wave, 800W total (1600W Peak)
230V~50Hz/60Hz*
Cell Material LFP battery
Cycle Life 80%+ capacity after 3000 cycles
Optimal Ambient Temperature for Operation 20°C~30°C(68°F to 86°F)
Ambient Temperature for Discharging -10°C~45°C(14°F to 113°F)
Ambient Temperature for Charging 0°C~45°C(32°F to 113°F)
Ambient Temperature for Storage -10°C~45°C (optimal: 20°C~30°C)
14°F to 113°F (optimal: 68°F to 86°F)
*Do not switch the AC output frequency at will, otherwise it may cause some electrical
appliances to be unusable.

2
1.
2. When using the product, please strictly follow the operating environment temperature
if the temperature is too low, the product performance may be severely reduced, or the product
may cease to work.
3.
4. Do not allow this product to come into contact with any liquid. Do not use this product in the
rain or high humidity.
5. It is recommended that you use moisture barrier bags in humid environments (for example,
places by the sea or waterways) to prevent the product from getting soaked.
6. If water is found inside the product, or the product is accidentally dropped into water, it must
not be used or turned on again. Please place it in a safe open area, and stay away from it
until it is completely dry. Please do not approach the product before it is dry. Please take anti-
electric shock measures before touching the product. The dried product should not be used or
discarded at will. Please properly dispose of it after contacting Customer Service.
7. Use a dry cloth to clean off dirt on the product ports.
8.
9. Do not stack any heavy objects on the product.
10. Store the product in a dry and ventilated place.
11. Keep this product out of reach of children and pets.
12. Do not place the battery under extremely low air pressure, otherwise events like explosion or
13. Do not disassemble or puncture this product in any way with sharp objects.
14. Do not block the fan forcibly during use.
15. Do not touch the product port with wires or other metal objects to avoid short circuit or other
risks.
16. When using or transporting this product, please avoid shocks, drops and violent vibrations.
In case of severe external shock, please stop using this product immediately and turn off the
power.
17.
EcoFlow channels if you need to replace any component or accessory.
18. This product is not recommended for powering medical emergency equipment related to
personal safety, including but not limited to medical grade ventilators (hospital version CPAP:
Continuous Positive Airway Pressure), artificial lungs (ECMO: Extracorporeal Membrane

3
Oxygenation). It can normally work with a home ventilator (home version CPAP), and does not
have to be continuously monitored by professionals. Please follow your doctor's instructions
and consult with the manufacturer for restrictions on the use of the equipment. If it is used
for general medical equipment, please be sure to monitor the power status to ensure that the
power does not run out.
19. When in use, power supply products will inevitably generate electromagnetic fields, which
are likely to affect the normal operation of medical implants or personal medical equipment
equipment are being used, please contact the manufacturer to inquire about any restrictions on
the use of such equipment. These measures are fundamental to ensure a safe distance between
etc.) and this product while in use.
20. When the power supply is connected in the normal mode to a refrigerator, the power supply
the refrigerator stores medicines, vaccines or other high-value items, it is highly recommended
that you set the AC output to "Never Turn Off" through the APP when connecting the power
supply product to ensure continuous power supply. Users should pay attention to the power
consumption of the power supply.
21.
22. To reduce risk of damage to the electric plug and cord, pull the plug rather than the cord when
disconnecting the power pack.
23. Do not operate the power pack with a damaged cord or plug, or a damaged output cable.
24. To reduce the risk of electric shock, unplug the power pack form the outlet before attempting
any instructed servicing.
25.
This will ensure that the safety of the product is maintained.
26.
27.
28.
or discharged for more than 6 months.
1. Whenever possible, please completely discharge the battery of this product before placing
the product in the designated battery recycling bin. This product contains batteries.
Batteries are hazardous chemicals and should not be disposed of in ordinary trash cans.
For details, please follow local laws and regulations on battery recycling and disposal.
2. If the battery cannot be completely discharged due to the failure of the product itself,
please do not dispose of the battery directly in the battery recycling bin, and contact a
professional battery recycling company for further processing.
3. The battery will not start after over-discharge, please dispose of it.

4
1. This product must be grounded. When charging it should malfunction or break down,
grounding provides a path of least resistance for electric current to reduce the risk
of electric shock. This product is equipped with a power cord that has an equipment
grounding conductor and a grounding plug. The plug must be plugged into an outlet that is
properly installed and grounded in accordance with all local codes ordinances.
2. Improper connection of the equipment grounding conductor is able to result in a risk of
product is properly grounded. Do not modify the plug provided with the product – if it will
Control, monitor and customize your EcoFlow River 2 Pro
from afar with the EcoFlow App.
AC Charging CableRIVER 2 Pro Car Charging Cable
DC5521 Connection Cable User Manual & Warranty Card

5
11. X-Stream AC charging input port 12. Solar/Car charging input port
13. Fan (do not block)
1. AC output switch
2. Main power switch
3. Power indicator
4. USB-A port
5. USB-C port
6. LCD
7. Car charger outlet
8. DC5521 output port (x2)
9. DC output switch
10. AC output socket

6
Refer to "Troubleshooting" for details.
1. Remaining battery
2. Remaining charge/discharge time
3. AC output
4. USB-A output
5. High temperature warning
6. Fan indicator
7. Bluetooth connection status
8. Wi-Fi status
9. Discharge/Recharge level limitation
10. Input power
11. Output power
12. Car output
13. USB-C output
14. Low Temperature warning
15. Overload Warning

7
Press the main power button once to turn on the product, then the LCD screen lights up and
(for about 3 seconds) to turn off the product, meanwhile, the LCD screen also goes off.
The USB-A and USB-C output ports are automatically turned on once the product is turned on.
Press the "DC output switch" or "AC output switch" once to turn on their corresponding DC/AC
When using the AC output socket, make sure that the sum power of all loaded devices
is less than the rated power.
1. After the product is turned on, press the main power button once to turn off the
LCD screen.
2. If the product is not used for 5 minutes, it will enter hibernation state with the LCD
screen gone off.
3. When RIVER 2 Pro is charging, it can't be turned off by pressing and holding the
Short press the
power switch
Short press the
power switch
Short press for power-on/
Long press for power-off

8
AC charging cable
X-Stream fast charging
940W Max
Fully charged in 1.17 hour
220W Max
Fully charged in
approximate 4.5 to 9 hours
1. For AC charging, we recommend that you use a power socket with a capacity of
more than 10A and ensure that the working current of the socket is constantly
greater than 10A.
2. For AC charging, please use the AC charging cable included in the package and plug
the cable directly into a wall outlet instead of an extension socket.
Solar charging cable
Solar panel
1. The solar charging cable (MC4-XT60 adapter cable) and the solar panel are supplied separately.
2. When using an EcoFlow solar panel to charge the product, connect them according to the
instructions in the user manual.
3. Before connecting the solar panel, ensure that the output voltage of the solar panel is less than
50 V to avoid product damage.

9
You can recharge the product through the car power outlet. The product supports 12V/24V car
chargers and a maximum charging current of 8A.
Please charge using the car charger after the car is started to avoid failure to start due to
connected to the cigarette lighter of the car charger input cable.
100W Max
Fully charged in
approximate 9 hours
100W Max
Fully charged in 9 hours
at the fastest
The USB-C charging cable (Type-C plug) and adapter are supplied separately.

10
As a basic UPS feature, the EPS does not support 0ms switching. Please do not connect
the product to any device that requires 0ms UPS (such as data servers and workstations).
you charge only one device (with maximum power <1600W) at a time and avoid using
multiple ones at the same time to avoid triggering overload protection. EcoFlow takes no
responsibilities for any device failure or data loss caused by failure to follow instructions.
1. The X-Boost feature is not suitable for appliances with voltage protection
(such as precise instruments).
2. It is suitable for heating and motor devices. Please conduct your own tests to check whether
your devices support X-Boost.
The product supports emergency power supply (EPS). When you connect the grid power to the
AC input port of the product through an AC cable, you can power electrical devices through the
AC output port (AC power will come from the grid instead of the power station in this situation).
In case of a sudden blackout, the product can automatically switch to the battery-powered
supply mode within 30ms.
EPS

11
Flashing Battery discharge
low temperature
Normal operation will resume
automatically when the
battery warms up.
Flashing Battery discharge
high temperature
Normal operation will resume
automatically after the
battery cools down.
Flashing Battery charging
low temperature
Normal operation will resume
automatically after the battery temperature
is restored to above 3°C.
Flashing Battery charging
high temperature
Normal operation will resume
automatically after the
battery cools down.
Flashing AC output
low temperature
Normal operation will resume
automatically when the
product warms up.
Flashing AC output
high temperature
Ensure that the air inlet and outlet of
the product are unobstructed. Normal
operation will resume automatically after
the temperature decreases.
Flashing USB-C or car charging output
overload
Remove overpower devices and
restart the product to resume
normal operation.
Flashing AC output overload
Remove overpower devices
and restart the product to
resume normal operation.
The sum power of loaded electrical
appliances must not exceed the rated
power (for the power limit of electrical
appliances in the X-Boost mode,
please refer to the X-Boost
feature introduction).
Flashing Charging overload Remove the charging cable and
normal operation will resume
automatically after restart.
Flashing Fan blocked Check whether the fan is blocked
by foreign objects.
Flashing
Failure of
communication
between main
control board and AC
Normal operation will resume
automatically after restart.

12
1. For safety, please do not store the product in an environment temperature higher than
45°C or lower than -10°C for a long time.
2.
it to 0%, then recharge it to 60%). The product will not be covered by the warranty if it is
not charged or discharged for more than 6 months.
3. If the product has been idle for too long and the battery is severely low, it will enter a deep
sleep protection mode. In such case, please charge the product before using it again.
High-quality LFP battery.
The rated power of the product is 800W and the peak power is 1600W. With the X-Boost
feature, the product's AC output sockets can power devices rated at 1600W or below.
sum power of all loaded devices is less than the rated power.
The charging time is shown on the product's LCD screen, which can be used to estimate
the charging time of most appliances with stable power usage.
During charging, the remaining charging time is shown on the LCD screen. Meanwhile,
the circle indicator around the remaining battery percentage rotates and the input power
is shown.
No.
We recommend that you do not switch the frequency in general cases. If you need to switch
the AC frequency due to special circumstances, please turn on the AC power, and then press
and hold the AC output switch for 10 seconds or use the app to switch frequency.

ECOFLOW RIVER 2 Pro
Benutzerhandbuch V1.0

Benutzer sollten dieses Benutzerhandbuch sorgfältig lesen und vor Verwendung dieses
Produkts sicherstellen, dass sie den Inhalt vollständig verstanden haben. Bewahren Sie dieses
Benutzerhandbuch zur späteren Verwendung auf. Jede falsche Verwendung kann zu schweren
Verletzungen des Benutzers oder anderer Personen, zu Schäden am Produkt oder zum Verlust
von Eigentum führen. Durch die Verwendung dieses Produkts wird davon ausgegangen, dass
der Benutzer alle Bedingungen und Inhalte des Benutzerhandbuchs verstanden, anerkannt
und akzeptiert hat. Er ist für jede falsche Verwendung und alle daraus resultierenden
Folgen verantwortlich. EcoFlow übernimmt hiermit keine Haftung für Verluste, die durch die
Verwendung des Produkts entgegen dem Benutzerhandbuch entstehen.
Unter Einhaltung von Gesetzen und Vorschriften hat unser Unternehmen die Deutungshoheit
über dieses Dokument und alle diesem Produkt zugehörigen Dokumente. Alle
Aktualisierungen, Überarbeitungen oder Löschungen des Inhalts erfolgen bei Bedarf ohne
die neuesten Informationen zum Produkt zu erhalten.

16
Übersicht
LCD-Bildschirm
Solarladung
Laden im Auto
1
2
3
3
4
4
5
6
6
7
7
7
8
8
9
9
9
10
11
11
X-Boost
EPS

1
Gewicht Ungefähr 7,8 kg
Abmessungen 270 x 260 x 226mm
Kapazität 768 Wh (40 Ah 19,2 V )
WLAN (2.4G)
Frequenzbereich :
20M: 2412-2472MHz/40M:2422-2462MHz
Maximale Ausgangsleistung : 14 82dBm
Bluetooth Frequenzbereich : 2402-2480MHz
Maximale Ausgangsleistung : 4,27dBm
Modell EFR620
AC-Eingangsspannung
220–240 V~50 Hz/60 Hz, max. 10 A Eingangsstrom
Aufladen über Kfz-Bordnetz 12 V/24 V 8 A, max. 100 W
Aufladen mit Solar 11–50 V 13 A, max. 220 W
USB-C-Eingang 5/9/12/15/20 V 5 A, max. 100 W
USB-C-Ausgang 5/9/12/15/20 V 5 A, max. 100 W
USB-A-Ausgang 5 V 2,4 A max. 12 W pro Anschluss
DC-Ausgang 12,6 V 10A/3A/3A A, max. 126W
AC-Ausgang Reine Sinuswelle, 800 W insgesamt
(Überspannung 1600 W),220 V~50 Hz/60Hz*
Zellmaterial Lithium-Eisenphosphat-Batterie
Lebensdauer Nach 3000 Zyklen liegt die verbleibende
Kapazität noch bei mehr als 80 %.
Optimale Umgebungstemperatur für den
Betrieb 20 bis 30
Umgebungstemperatur zum Entladen -10 bis 45
Umgebungstemperatur zum Laden 0 bis 45
Umgebungstemperatur zum Lagern -10 bis 45 (optimal: 20 bis 30 )
*Schalten Sie die AC-Ausgangsfrequenz nicht nach Belieben um, da einige elektrische Geräte
ansonsten unbrauchbar werden könnten.
