ST SPC584B-DISP User manual

Introduction
The SPC584B-DISP discovery plus board is a development board to evaluate and develop applications with the microcontroller
SPC584B70E5 in eTQFP144 package.
This document describes the hardware architecture of the board and how it is possible to enable specific functions through the
configuration of the jumpers.
SPC584B-DISP discovery board
UM2462
User manual
UM2462 - Rev 3 - March 2022
For further information contact your local STMicroelectronics sales office.
www.st.com

1Overview
The several interfaces including Ethernet controller, CAN-FD, LIN and UART, ADC, and JTAG port make
the SPC584B-DISP an excellent tool to evaluate the microcontroller as well as to develop and then debug
applications.
An integrated programmer debugger (supported PLS) allows debugging and programming the microcontroller.
The same section allows enabling a USB virtual COM port.
Dedicated connectors allow plugging shields Arduino UNO R3-compatible. This feature makes it simple to
expand the board functionality adding a shield or board available on the market. All GPIOs and main signals
are accessible by a 4x37 0.1” pin array.

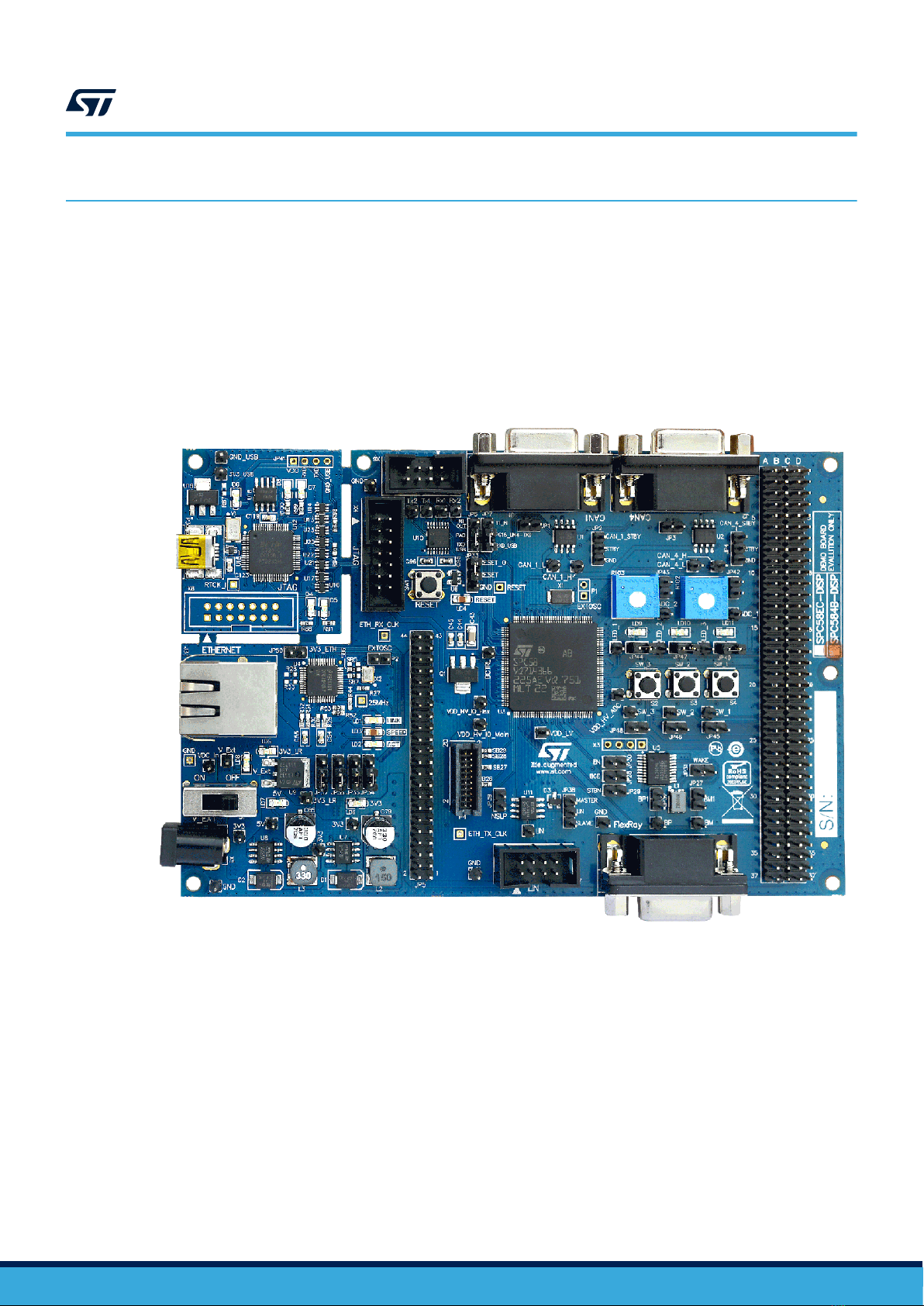

Figure 1. SPC584B-DISP discovery board-top side
UM2462
Overview
UM2462 - Rev 3 page 2/25

2License agreement
The packaging of this evaluation board was sealed with a seal stating, by breaking this seal, you agree to the
terms and conditions of the evaluation board license agreement, the terms and conditions of which are available
at https://www.st.com/resource/en/evaluation_board_terms_of_use/evaluationproductlicenseagreement.pdf.
Upon breaking the seal, you and STMicroelectronics entered into the evaluation board license agreement, a copy
of which is also enclosed with the evaluation board for convenience.
Attention: This evaluation board only offers limited features for evaluating ST products. It has not been tested for use
with other products and is not suitable for any safety or other commercial or consumer application. This
evaluation board is otherwise provided “AS IS” and STMicroelectronics disclaims all warranties, express or
implied, including the implied warranties of merchantability and fitness for a particular purpose.
UM2462
License agreement
UM2462 - Rev 3 page 3/25

3Handling precautions
Please take care to handle the package content in order to prevent electrostatic discharge.
Before the EVB is used or power is applied, please fully read the following sections on how to correctly configure
the board. Failure to correctly configure the board may cause irreparable component, MCU or EVB damage.
UM2462
Handling precautions
UM2462 - Rev 3 page 4/25

4Hardware overview
4.1 Power supply section
The input voltage level is 12 VDC, the output voltage is set to 5 V and 3.3 V.

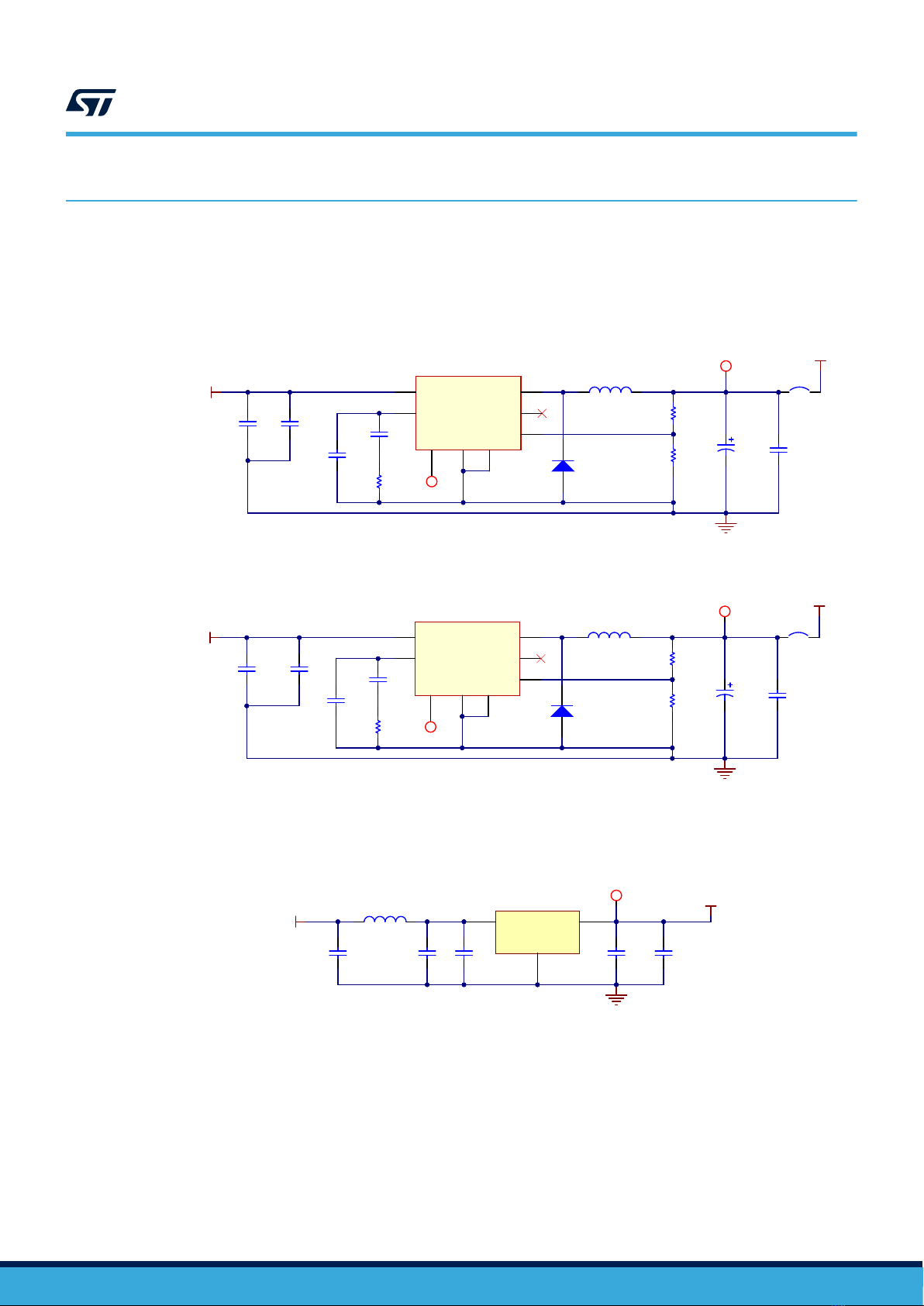

The Figure 2 and Figure 3 show the buck converters used to generate 5 V and 3.3 V respectively.
Figure 2. 12 V - 5 V buck converter
C82
10uF/50V
C83
100nF/50V C84
22nF/50V
C87
220pF/50V
R75
4,7kΩ
GND
TP21
3V3
R73
10kΩ
R74
3,3kΩ
C86
100nF/50V
V_Ext
5VTP20
5V
VCC
8
COMP
4
VRef
6
GND
7
INH
3
OUT 1
SYNC 2
FB 5
U8 A5973AD
SB25
Closed
L3
33uH/1,5A
D2
STPS340U
C85
330uF/10V
Figure 3. 3.3 V buck converter
VCC
8
COMP
4
VRef
6
GND
7
INH
3
OUT 1
SYNC 2
FB 5
U7 A5973AD
C76
10uF/50V
C77
100nF/50V C78
22nF/50V
C81
220pF/50V
R72
4,7kΩ
TP19
3V3
D1
STPS340U
R70
5,6kΩ
R71
3,3kΩ
C80
100nF/50V
V_Ext
3V3TP18
3V3
SB24
Closed
GND
L2
15uH/2A
C79
330uF/10V
The Figure 4 shows a 3.3 V linear regulator; it is suitable to supply the ADC section.
Figure 4. 3.3 V linear converter
GND
1
Vout 4 Vin
3
U9
LD1117A3V3
5V
L4
60ohm-500mA
C88
100nF/50V
C90
4,7uF/16V
C89
100nF/50V
C91
100nF/50V
C92
4,7uF/16V
GND
3V3_LR
TP22
3V3_LR
UM2462
Hardware overview
UM2462 - Rev 3 page 5/25

4.2 Microcontroller power management
The JP34 allows selecting the voltage level to supply VDD_HV_IO_main (5 V or 3.3 V); as well as JP35 sets the
VDD_HV_IO_Flex level. The JP36 sets the VDD_HV_ADC supply level; JP37 sets the 3.3 V source (from linear
or switching regulator). These jumpers allow the evaluation of the current absorption.
The LEDs D5, D6, D7 and D8 provide feedback about the status of the power supply section.

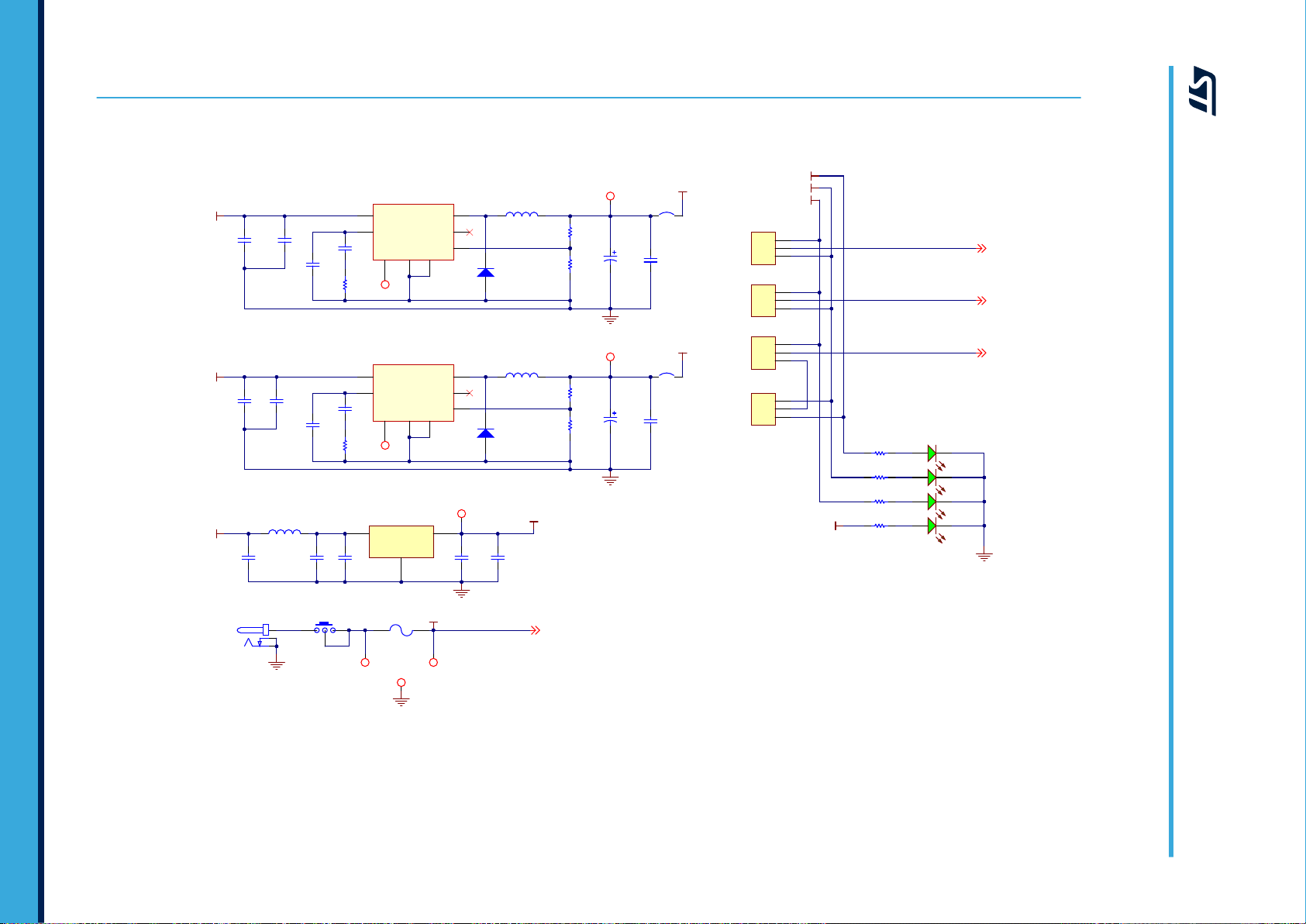

Figure 5. Power supply selector and LEDs
R79
2,2kΩ
V_Ext
1
2
3
JP34
Header 3x1
5V
3V3
VDD_HV_IO_Main
1
2
3
JP35
Header 3x1
LD5
3V3_LR
R76
470Ω
GND
3V3_LR
1
2
3
JP37
Header 3x1
1
2
3
JP36
Header 3x1
VDD_HV_ADC
3V3_Sel
LD6
3V3
R77
470Ω LD7
5V
R78
1kΩ LD8
V_Ext
VDD_HV_IO_Flex
VDD_HV_IO_Main
VDD_HV_IO_Flex
VDD_HV_ADC
4.3 Integrated programmer/debugger
The integrated programmer/debugger allows the user to program the microcontroller, build, and debug the
software applications. The debugger works with the UDE PLS software.
The debugger serial number is a label applied on the PCB bottom side.
The integrated debugger SW is accessible via ST's free integrated development environment, SPC5Studio
(www.st.com/spc5studio). To download the debugger software and activate the license refer to the PLS website.
The core of the debugger is a single chip USB to dual serial/parallel ports. A portion of the device manages the
JTAG signals while the second part implements a UART communication channel; the level shifters are necessary
to balance the signals levels (3.3 V↔5 V).
The supply comes from the PC through the USB cable and a dedicated 3.3 V linear regulator supplies this
section.
The microcontroller can be programmed and debugged also by using external tools connected to a JTAG port
(2x7 pin). The solder jumper from SB8 to SB14 allows disconnecting the JTAG signal from the integrated
debugger.
Note: An external debugger must be used with the USB cable disconnected and under this working condition; the
integrated debugger is not supplied. If the external programmer does not work properly, the jumpers SB8÷SB14
must be removed (open). It is suggested to perform some tests before removing the jumpers SB8÷SB14.
The SPC584B-DISP comes with the integrated programmer enabled (all solder jumpers from SB8 to SB14 are
present).
UM2462
Microcontroller power management
UM2462 - Rev 3 page 6/25

4.4 Crystal oscillator and reset
The Figure 6 shows the external oscillator circuit; the frequency is 40 MHz.
By setting SB2, SB3 (open) and SB3 (closed) it is possible to drive the EXTAL pin with an external clock.

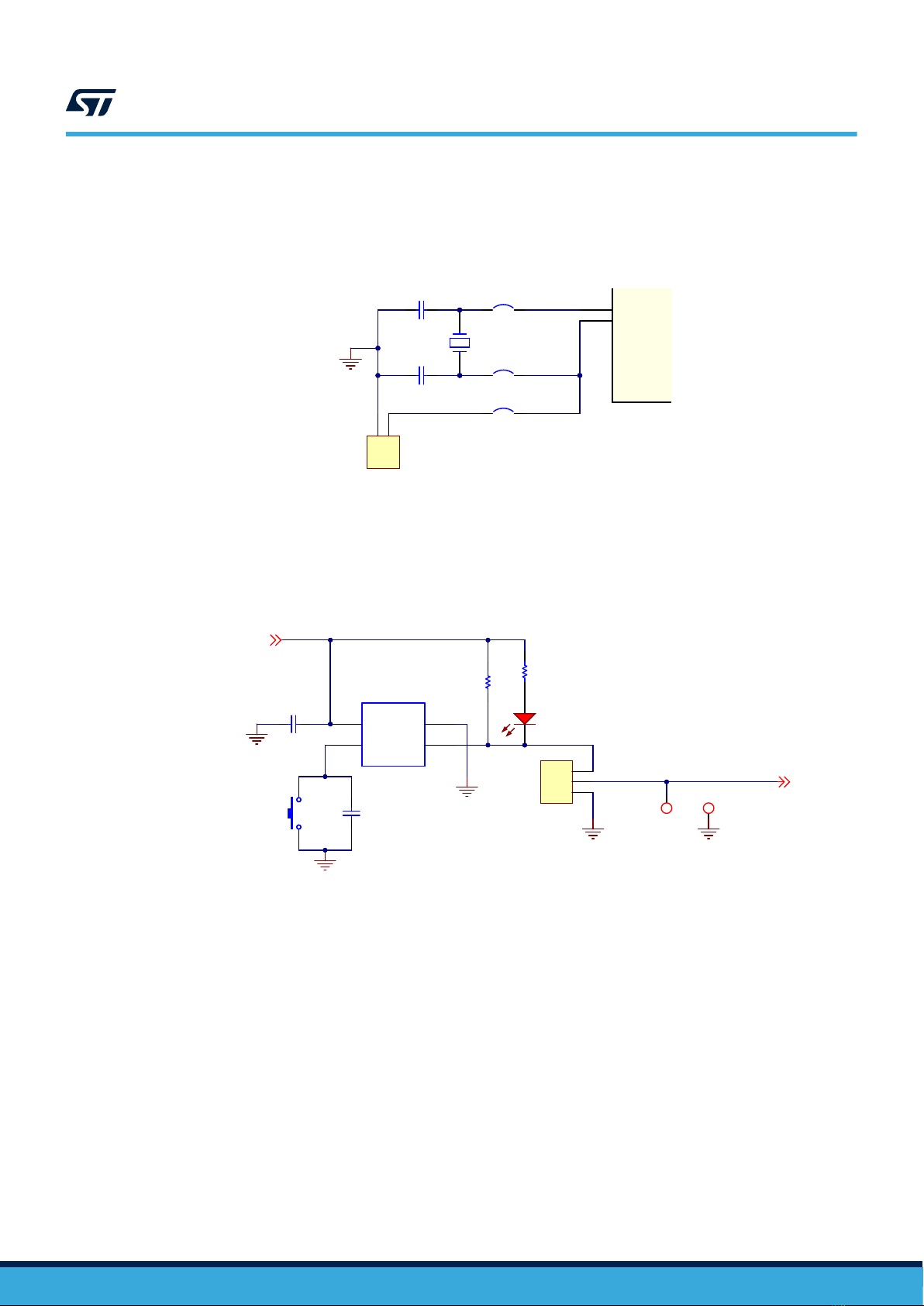

Figure 6. Crystal oscillator
XTAL
82
EXTAL
81
GND
SB2
Closed
X1
40MHz
C52
8pF/16V
SB3
Closed
1
2
Not Assembled
P1
Header 2
ExtOsc
GND
X_TAL
EX_TAL
C53
8pF/16V
SB4
Closed
The reset circuit is the device STM6315.
The STM6315 (see Figure 7) asserts a reset signal whenever the VCC pin drops below 2.63 V and keep it
asserted until the level of VCC has risen above the threshold for a 210 ms.
Figure 7. Reset circuit
Vss 1
nRST 2 nMR
3
Vcc
4
U6
STM6315RDW13F
GND
GND
GND
R68
1kΩ
LD4
Red
RESET_0
C74
100nF/50V
C75
100nF/50V
R69
2,2kΩ
RESET
SW1
RESET
RESET
VDD_HV_IO_Main VDD_HV_IO_Main
RESET
Not Assembled
TP16
Reset
Not Assembled
TP17
GND
GND
1
2
3
JP33
Header 3x1
GND
Deafult: 1-2
The device generates a reset signal when the SW1 button is pressed.
The reset output is an open drain pin and it must be pulled-up to VDD_CPU voltage level (R69). The LD4
provides feedback when the reset pulse is generated.
UM2462
Crystal oscillator and reset
UM2462 - Rev 3 page 7/25

4.5 RS232 and LIN
Two serial communication channels are available; U10 is a dual RS232 driver and receiver (see Figure 8).

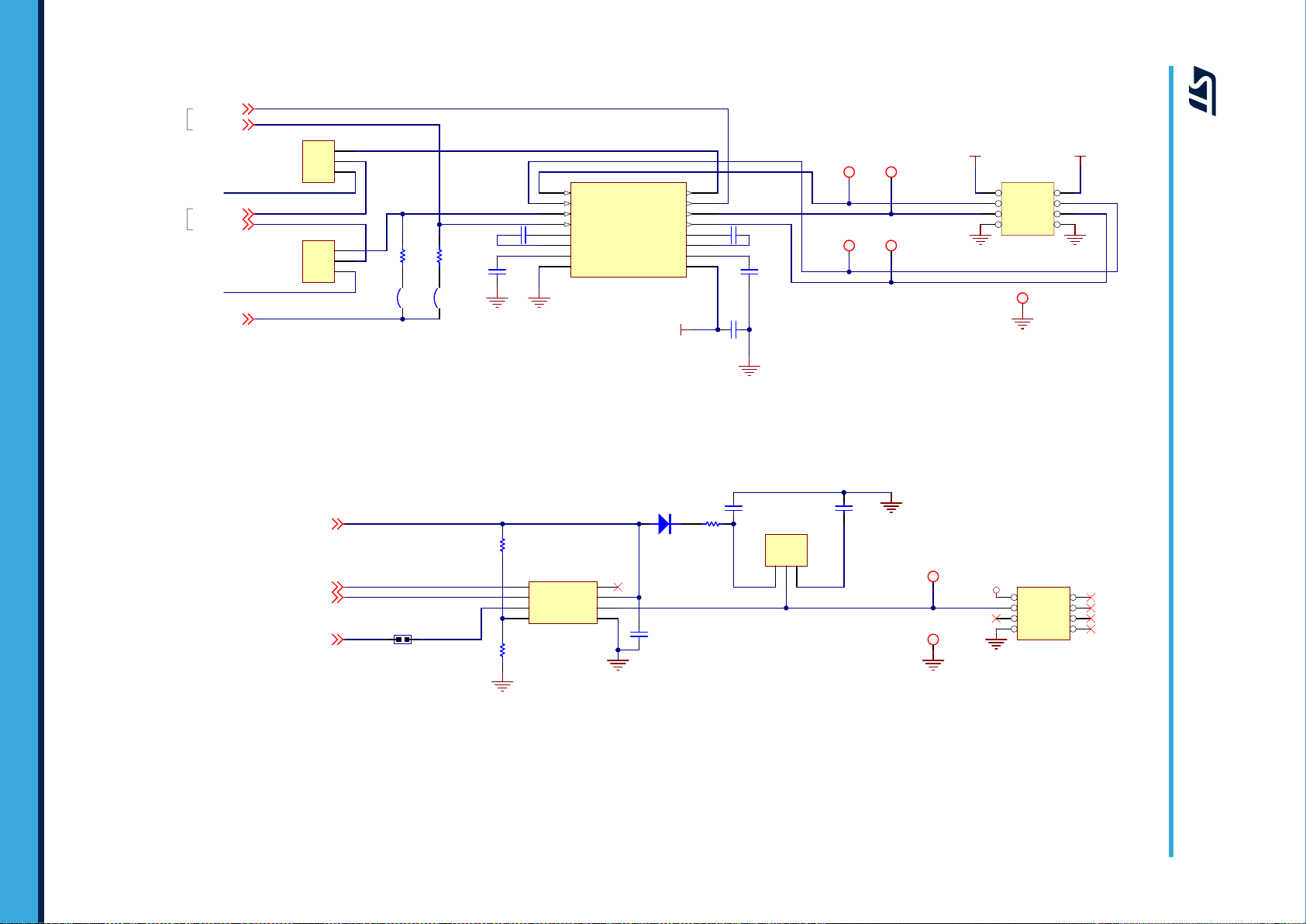

Figure 8. RS232 section
R1 IN
13
R2 IN
8
T1 IN
11
T2 IN
10
GND
15 V+ 2
V-
6
VCC 16
R1 OUT 12
R2 OUT 9
T1 OUT 14
T2 OUT 7
C1+
1
C1 -
3C2+ 4
C2 - 5
U10
ST3232EBTR
C95
470nF/16V
GND
C96
470nF/16V
C93
100nF/50V
C94
470nF/16V
VDD_HV_IO_Main
GND
GND
Rx_A
Rx_B
Tx_B
Tx_A
C97
100nF/50V
R81
10kΩ
R80
10kΩ
SB15
Open
SB16
Open
Tx2
Rx2
VDD_HV_IO_Main
GND
Rx1
Tx1
SCI_4_TX
SCI_4_RX
SCI_0_TX
SCI_0_RX
VDD_HV_IO_Main
VDD_HV_IO_Main
TP26
Rx1
TP30
GND
GND
TP27
Tx1
SCI_ChB
SCI_ChA
12
34
56
78
X6
HEADER 4X2
VDD_HV_IO_Main
TP28
Rx2
TP29
Tx2
GND
1
2
3JP7
SCI_RX_Sel
1
2
3
JP6
SCI_RX_Sel
R1_OUT
T1_IN
RXD_USB
TXD_USB
Default: 1-2
Default: 1-2
The Figure 9 shows the LIN circuit; JP38 allows setting master/slave mode.
Figure 9. LIN section
12
34
56
78
X7
HEADER 4X2
V_EXT
TXD
4
RXD
1
NWAKE
3NSLP
2
INH 8
BAT 7
LIN 6
GND 5
U11
TJA1020/1021
GND GND
C98
1nF/16V C99
220pF/16V
R82
10kΩ
TP31 LIN
C100
100nF/50V
GND
TP32GND
NLSP
LIN6_TX
LIN6_RX
GND
V_Ext V_Ext
JP39
Open
LIN
1 2 3
JP38
LIN Master/Slave
D3
BAS40
LIN_TX
LIN_RX
R122
0R
GND
Not Assembled
R123
1k
4.6 CAN and ISO CAN-FD
Two CAN channels are available, both are based on a fast transceiver; the implemented solution is compatible
with the CAN-FD operation standard.
The jumper JP2 allows the selection in normal o standby mode:
• No jumper: normal operation(1)
• Jumper 2-3: device in standby mode (manual or fixed selection)
• Jumper 1-2: microcontroller drives the standby (dynamic configuration)
• Jumper JP1 enables the load termination
1. In the transceiver, an internal pull-up resistor is already present and R1 could be removed.
4.7 Ethernet
JP5 allows connecting the Ethernet transceiver to the microcontroller to implement RII or MII communication
protocol.
JP5 allows the implementation of another feature: its pins allow plugging an addition board to evaluate the
communication performance by using a different Ethernet physical layer.
The R29 ÷ R32 are the load termination resistors.
Note: The level of the transceiver in/out pins is 3.3 V then the microcontroller supply level must be set consequently.
UM2462
RS232 and LIN
UM2462 - Rev 3 page 8/25

4.8 User interface (pushbuttons, LEDs and trimmers)
In the board three LEDs and three push-buttons are present and they are suitable for user purposes (see
Figure 10).

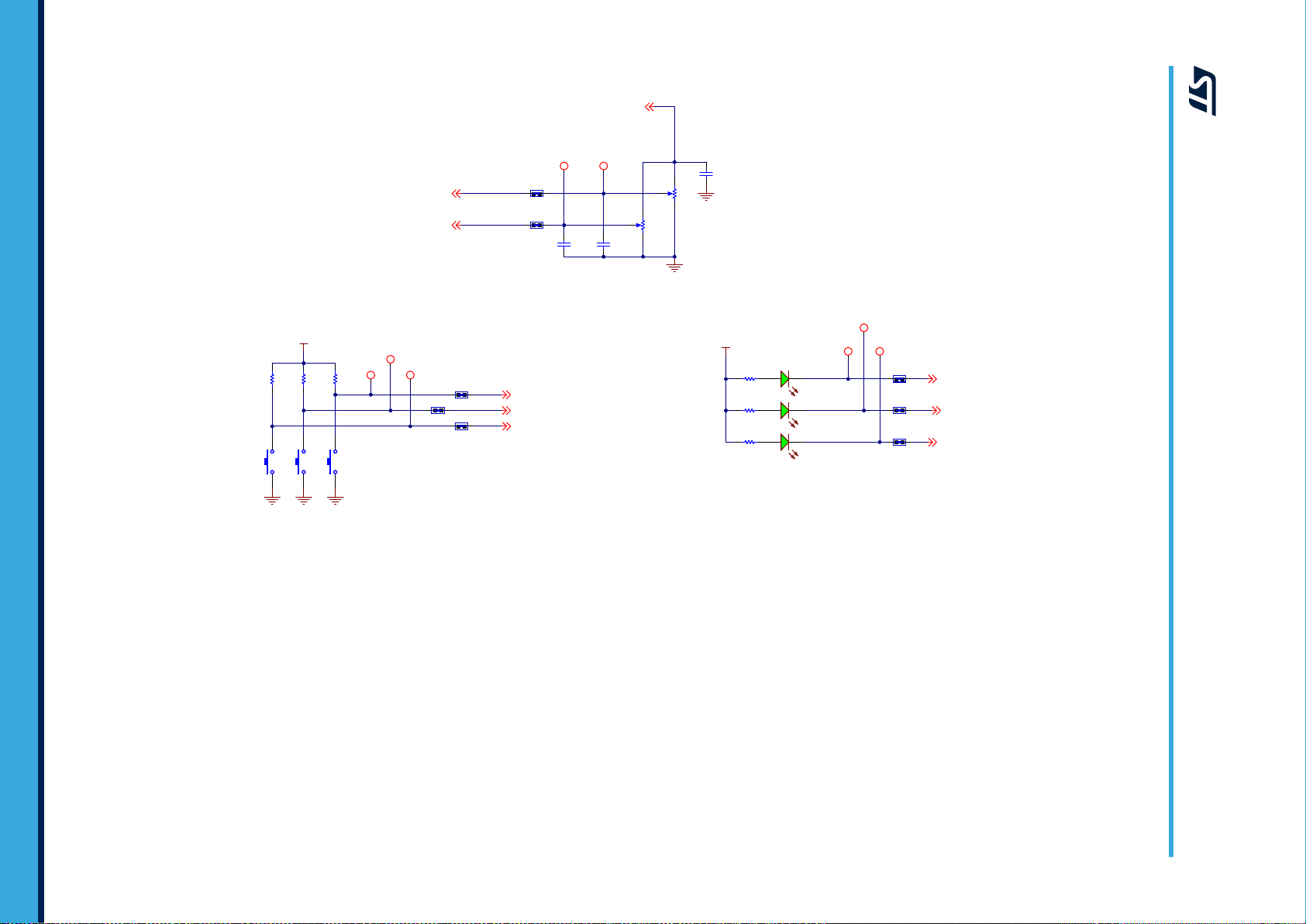

Figure 10. User pushbutton and LEDs
S2
SW_3
S3
SW_2
S4
SW_1
R105
10kΩ
GNDGND GND
SW_User_1
SW_User_2
SW_User_3
VDD_HV_IO_Main
USER - Push Buttons
R106
10kΩ
R107
10kΩ
TP42
SW_1
TP41
SW_2
TP43
SW_3
JP45
Closed
JP46
Closed JP48
Closed
R104
1kΩ
R108
1kΩ
R109
1kΩ
VDD_HV_IO_Main
LD9
User_LED_1
LED_User_2
LED_User_1
LED_User_3
USER - LEDs
TP39
LED_1
TP38
LED_2
TP40
LED_3
JP44
Closed
JP47
Closed
JP49
Closed
LD10
User_LED_2
LD11
User_LED_3
Two trimmers allow the evaluation of the ADC performance (see Figure 11).
Figure 11. Trimmers
R103
10kΩ
C127
100nF/50V
GND
C128
100nF/50V
C129
100nF/50V
GND
ADC_User_1
ADC_User_2
VDD_HV_ADC VDD_HV_ADC
R102
10kΩ
USER - ADC Evaluation
TP36
ADC_2
TP37
ADC_1
JP42
Closed
JP43
Closed
ADC_User_1
ADC_User_2
4.9 Extended connectors (I/O headers)
Most of the GPIOs and signals are accessible by the connector X9, a 4x37 male pin array allowing connection of
additional boards and with the user HW application. The Table 1 and Table 2 summarize the function and signal of
each pin.
Table 1. X9 (part I) - Extended connectors (I/O headers)
X9 pinA Function/Port pinA X9 pinB Function/Port pinB
A1 GND B1 5 V
A2 PD10_eMIOS0-UC23 B2 PA13_DSPI2_SCK
A3 PD9_GPIO57 B3 PH2_GPIO114
A4 PB2_eMIOS0-UC8 B4 PH4_GPIO116
A5 B5
A6 B6
A7 PA4_DSPI1-CS0 B7 PD6_DSPI1-SCK
A8 B8
A9 PC3_eMIOS0-UC7 B9 PA15_DSIP0-CS1
UM2462
User interface (pushbuttons, LEDs and trimmers)
UM2462 - Rev 3 page 9/25

X9 pinA Function/Port pinA X9 pinB Function/Port pinB
A10 PE10_LIN_0_RXD B10 PD11_eMIOS0-UC21
A11 PE9_eMIOS0-UC9 B11 PK14_GPIO174
A12 RESET B12
A13 B13
A14 PE1_eMIOS0-UC12 B14
A15 PA12_DSPI2-CS0 B15 PH0_GPIO112
A16 PB9_DSPI2-SIN B16 PB10_DSPI2-SOUT
A17 PF7_CAN4sys1-TX B17 PF6_CAN4sys1-RX
A18 PG1_GPIO97 B18 PI9_GPIO137
A19 PD1_I2C-SDA B19 PD2_I2C-SCL
A20 PA11_CAN1sys0_RX B20 PA10_CAN1sys0_TX
A21 PI8_GPIO136 B21 PA0_LIN4_RXD
A22 PF11_SW_User_1 B22 PF0_GPIO80
A23 PF12_SW_User_2 B23
A24 PF13_SW_User_3 B24 PG14_GPIO110
A25 PF1_eMIOS1-UC1 B25 PC14_eMIOS-UC27
A26 B26 PI3_ADC-AN39
A27 PI5_ADC-AN41 B27 PI6_ADC-AN49
A28 PG3_ADC-AN26 B28 PD13_ADC-AN16
A29 PG4_ADC-AN27 B29 PG5_ ADC-AN42
A30 B30
A31 PE0_ADC_AN11 B31 PG12_ADC-AN58
A32 PE3_ADC-AN17 B32 PG10_ADC-AN55
A33 B33
A34 PI2_eMIOS0-UC5 B34 PD5_DSPI0-SOUT
A35 PM14_GPIO206 B35 PE8_DSIP0-CS0
A36 PG15_LIN4-TXD B36 5 V
A37 V_EXT_P B37 V_EXT_P
Table 2. X9 (part II) - Extended connectors (I/O headers)
X9 pinC Function/Port pinC X9 pinD Function/Port pinD
C1 GND D1 PE11_LIN_0_TXD
C2 PF3_eMIOS0-UC2 D2 PD15_LIN_6_RXD
C3 PF15_eMIOS1-UC28 D3 PB0_eMIOS1-UC28
C4 PE14_eMIOS1-UC21 D4 PG13_eMIOS1-UC31
C5 D5 PB1_GPIO17
C6 PC12_DSPI1-SOUT D6 PD7_DSPI1-SIN
C7 D7
C8 PB8_eMIOS0-UC27 D8
C9 PA14_GPIO14 D9 PB3_ADC_User_1
UM2462
Extended connectors (I/O headers)
UM2462 - Rev 3 page 10/25

X9 pinC Function/Port pinC X9 pinD Function/Port pinD
C10 D10 PB4_ADC_User_2
C11 PK0_GPIO160 D11 PD14_LIN_6_TXD
C12 D12
C13 D13
C14 PI1_eMIOS0-UC4 D14 PF8_LED_User_1
C15 PE13_eMIOS0-UC23 D15 PF9_LED_User_2
C16 D16 PF10_LED_User_3
C17 PA2_CAN2sys0_TX D17 PA1_CAN2sys0_RX
C18 PE6_CAN0sys0_RX D18 PE5_CAN0sys0_TX
C19 PE7_LIN_1_TXD D19
C20 D20 PF2_EIRQ6
C21 D21 PB11_FCCU-F0
C22 D22 PC2_FCCU-F1
C23 PF14_GPIO94 D23 PA3_DSPI2_SOUT
C24 PA3_eMIOS0-UC28 D24
C25 PC7_eMIOS0-UC3 D25 PD12_eMIOS0-UC14
C26 PK1_GPIO161 D26 PH1_GPIO113
C27 PI7_ADC-AN50 D27 PG2_ADC-AN25
C28 PG11_ADC-AN57 D28 PI4_ADC-AN40
C29 PG6_ADC-AN44 D29 PG9_ADC-AN53
C30 PB6_ADC-AN48 D30 PB7_ADC-AN47
C31 PD8_ADC-AN92 D31
C32 D32 PL8_ADC-AN5
C33 D33
C34 PE15_DSIP0-SIN D34 PE2__ADC-AN13
C35 D35 PD4_DSPI0-SCK
C36 GND D36 PM2_GPIO194
C37 3V3 D37 V_Ext
UM2462
Extended connectors (I/O headers)
UM2462 - Rev 3 page 11/25

5PCB layout
Figure 12. SPC584B-DISP - PCB top side
UM2462 - Rev 3 page 12/25
UM2462
PCB layout

6Schematics
Figure 13. Power supply
C82
10uF/50V
C83
100nF/50V C84
22nF/50V
C87
220pF/50V
R75
4,7kΩ
GND
TP21
3V3
R73
10kΩ
R74
3,3kΩ
C86
100nF/50V
V_Ext
R79
2,2kΩ
5V
V_Ext
VCC
8
COMP
4
VRef
6
GND
7
INH
3
OUT 1
SYNC 2
FB 5
U7 A5973AD
C76
10uF/50V
C77
100nF/50V C78
22nF/50V
C81
220pF/50V
R72
4,7kΩ
TP19
3V3
D1
STPS340U
R70
5,6kΩ
R71
3,3kΩ
C80
100nF/50V
V_Ext
3V3
1
2
3
JP34
Header 3x1
5V
3V3
VDD_HV_IO_Main
1
2
3
JP35
Header 3x1
GND
1
Vout 4 Vin
3
U9
LD1117A3V3
5V
L4
60ohm-500mA
C88
100nF/50V
C90
4,7uF/16V
C89
100nF/50V
C91
100nF/50V
C92
4,7uF/16V
GND
LD5
3V3_LR
R76
470Ω
GND
3V3_LR
3V3_LR
1
2
3
JP37
Header 3x1
1
2
3
JP36
Header 3x1
VDD_HV_ADC
3V3_Sel
LD6
3V3
R77
470Ω LD7
5V
R78
1kΩ LD8
V_Ext
VDD_HV_IO_Flex
VDD_HV_IO_Main
VDD_HV_IO_Flex
VDD_HV_ADC
1
1
33 2
2
S1
SWITCH
F1
Fuse 1.5A
3
2
1
X5
DC-10A
GND
V_Ext
GND
V_Ext
V_Ext
TP18
3V3
TP20
5V
TP22
3V3_LR
TP24
V_Ext
TP25
GND
TP23
VDC_In
VCC
8
COMP
4
VRef
6
GND
7
INH
3
OUT 1
SYNC 2
FB 5
U8 A5973AD
SB24
Closed
SB25
Closed
GND
L2
15uH/2A
L3
33uH/1,5A
D2
STPS340U
C79
330uF/10V
C85
330uF/10V
UM2462 - Rev 3 page 13/25
UM2462
Schematics

Figure 14. USB and debugger
V_USB 1
USBD- 2
USBD+ 3
ID 4
GND 5
CH-GND 6
CH-GND 6
CH-GND 7
CH-GND 7
P3
USB_MINI_B
GND_USB
GND_USB
L7
60ohm-500mA
V_USB
USB_N
USB_P
VIN VCIO
Not Assembled
R87
0Ω
VCIO
R88
470Ω
R91
470Ω
R93
470Ω
GND_USB
LED_1
LED_2
VCIO
Not Assembled
R95
0Ω
LED_1 USERIO_0
Not Assembled
R96
0Ω
LED_2 USERIO_1
A
3GND
2VCCA
1VCCB 6
DIR 5
B4
U23
SN74LVC1T45DCKR
R97
4,7kΩ
R98
4,7kΩ
GND_USB GND_USB
SRST#_DIR
SRST#_O USB_SRST#
A
3GND
2VCCA
1VCCB 6
DIR 5
B4
U20
SN74LVC1T45DCKR
3V3_USB
USB_TRST#TRST#_O
A
3GND
2VCCA
1VCCB 6
DIR 5
B4
U22
SN74LVC1T45DCKR
TMS_DIR
USB_TMSTMS_IO
A
3GND
2VCCA
1VCCB 6
DIR 5
B4
U21
SN74LVC1T45DCKR
USB_TDO
GND_USB
A
3GND
2VCCA
1VCCB 6
DIR 5
B4
U17
SN74LVC1T45DCKR
USB_TDITDI_O
A
3GND
2VCCA
1VCCB 6
DIR 5
B4
U16
SN74LVC1T45DCKR
3V3_USB
TCK_O
VCIO
USB_TCK
GND
1
OSCI
2
OSCO
3
VPHY
4
GND
5
REF
6
DM
7
DP
8
VPLL
9
AGND
10
GND
11
VCORE
12
TEST
13
RESET#
14
GND
15
ADBUS0 16
ADBUS1 17
ADBUS2 18
ADBUS3 19
VCCIO
20
ADBUS4 21
ADBUS5 22
ADBUS6 23
ADBUS7 24
ACBUS0 26
ACBUS1 27
ACBUS2 28
ACBUS3 29
ACBUS4 30
GND
25
VCCIO
31
ACBUS5 32
ACBUS6 33
ACBUS7 34
BDBUS0 38
GND
35
SUSPEND#
36
VCORE
37
BDBUS1 39
BDBUS2 40
BDBUS3 41
VCCIO
42
BDBUS4 43
BDBUS5 44
BDBUS6 45
BDBUS7 46
GND
47
BCBUS0 48
BCBUS1 52
BCBUS2 53
BCBUS3 54
VREGOUT
49 VREGIN
50
GND
51
BCBUS4 55
VCCIO
56
BCBUS5 57
BCBUS6 58
BCBUS7 59
PWREN#
60
EEDATA
61
EECLK
62
EECS
63
VCORE
64
U12
FT2232H
3V3_USB
GND_USB
V_CORE
3V3_USB
3V3_USB
3V3_USB
V_CORE
GND_USB
R83
12kΩ
R84
10Ω
R85
10Ω EECS
EECLK
EEDATA
R86
1kΩ
3V3_USB
TCK_O
TDI_O
TDO_I
TMS_IO
TMS_IO
RTCK_I
LED_1
TRST#_O
SRST#_O
SRST#_DIR
TMS_DIR
LED_2
CS
1
SCL
2DI
3DO 4
GND
5
WE
6PRE
7VCC 8
U18
M93S46-WMN6TP
3V3_USB
R92
2,2kΩ
EEDATA
GND_USB
R89 4,7kΩ
EECS
GND_USB
R90
4,7kΩ
3V3_USB
EEPRE
EEWRE
EEDATA
EECLK
C111
100nF/50V
C112
100nF/50V
C113
100nF/50V
C119
100nF/50V
C115
100nF/50V
C116
100nF/50V
C117
100nF/50V
C118
100nF/50V
C121
100nF/50V
C122
100nF/50V
C107
100nF/50V
C109
100nF/50V
VPHY
VPLL
USB_OSCI
USB_OSCO
USB_VCC
USB_TX
USB_TX
USB_RX
USB_RX
1.8V
C114
3,3uF/16V
Not Assembled
TP33
GND_USB
C108
4,7uF/16V
C110
4,7uF/16V
From FTDI 2232H RS232 mode:
Pin 38 TXD, transmitter output
Pin 39 RXD, receiver input
A
3GND
2VCCA
1VCCB 6
DIR 5
B4
U13
SN74LVC1T45DCKR
A
3GND
2VCCA
1VCCB 6
DIR 5
B4
U14
SN74LVC1T45DCKR
GND_USB
3V3_USB VCIO
Direction B->A
Direction A->B
TXD_USB
RXD_USB
N/A
GND_USB
GND_USB
C101
18pF/16V C102
18pF/16V
GND
1
Vout 2 Vin
3
U19 LD1117S33TR
C105
100nF/50V
C106
10uF/16V
VPLL VPHY
GND_USB GND_USB
V_CORE
Place close to
VREGOUT pin 49
3V3_USB
GND_USB
GND_USB
FT2232H->Micro
Micro->FT2232H
GND_USB
3V3_USB
3V3_USB VCIO
3V3_USB
3V3_USB
LED_232_RX
LED_232_TX
R99
470Ω
R100
470Ω
3V3_USB
3V3_USB
LED_232_RX
LED_232_TX
C120
100nF/50V
GND_USB
VCIO
C125
100nF/50V
C126
100nF/50V
C124
100nF/50V
GND_USB
3V3_USB
RXD_USB
TXD_USB
1
2
3
4
Not Assembled
JP41
4 HEADER
VCIO
GND_USB
I/O1
1
GND
2
I/O2
3I/O2 4
Vbus 5
I/O1 6
U15
USBLC6-2P6
USB_VCCGND_USB
C123
100nF/50V
USB_VCC
BDBUS4
BDBUS5
BDBUS6
BDBUS7
USB - Serial Communication Channel
EEPROM
USB_D_P
USB_D_N
VDD_HV_IO_Main VCIO
D4
LED - Green
D5
LED - Green
D6
LED - Green
D7
LED - GREEN
D8
LED - GREEN
TDI GND
TDO GND
TCK GND
EVTI NC
RESET TMS
VDDE7 GND
RDY JCOMP
Not Assembled
X8
JTAG 14-PIN (male)
GND_USB
GND_USB
USERIO_0 USERIO_1
USB_TDI
USB_TDO
USB_TCK
USB_SRST#
VIN
USB_TRST#
USB_TMS
L6
60ohm-500mA
L5
60ohm-500mA
1.8V
TP34
L9
60ohm-500mA
TDO_I
R94
4,7kΩ
TP35
3V3_USB
L8
60ohm-500mA
C103
100nF/50V
GND_USB
C104
100nF/50V
GND_USB
GND_USB
GND_USB
GND_USB GND
R101
0Ω
USB_VCC
USB_VCC
1
3
GND
2
GND 4
Y1
7B-12.000MAAJ-T
UM2462 - Rev 3 page 14/25
UM2462
Schematics

Figure 15. JTAG and reset
RESET
TDI
TDO
TCK
JTAG Port
TDI GND
TDO GND
TCK GND
EVTI NC
RESET TMS
VDDE7 GND
RDY JCOMP
X4
JTAG 14-PIN (male) GND
C72
27pF/16V
Not Assembled
C73
47pF/16V
GND GND
C71
100nF/50V
TMS
JCOMP
R67
10kΩ
Not Assembled R66
10kΩ
GND
VDD_HV_IO_Main
VDD_HV_IO_Main
GND
Vss 1
nRST 2 nMR
3
Vcc
4
U6
STM6315RDW13F
GND
GND
GND
R68
1kΩ
LD4
Red
RESET_0
C74
100nF/50V
C75
100nF/50V
R69
2,2kΩ
RESET
SW1
RESET
RESET
VDD_HV_IO_Main VDD_HV_IO_Main
RESET
Not Assembled
TP16
Reset
Not Assembled
TP17
GND
GND
1
2
3
JP33
Header 3x1
GND
Deafult: 1-2
USB_TMS
SB14 Closed
USB_TDI
USB_TDO
USB_TCK
USB_SRST#
VIN
SB12 Closed
SB10 Closed
SB9 Closed
SB8 Closed
SB11 Closed
USB_TDI
USB_TDO
USB_TCK
USB_SRST#
VIN
USB_TMS
USB_TRST# SB13 Closed
USB_TRST#
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
P4
SAMTEC TFC-110-31-F-D
I2C_SDA
GND
SPI_CLK
SPI_CS
I2C SPI_PIRQ
I2C SPI_RST
VCC
C134
100nF/50V
GND
SPI_MISO
SPI_MOSI
I2C_SDA
DSPI2_CS0
DSPI2_CLK
DSPI2_SOUT
DSPI2_SIN
VDD_HV_IO_Main
ST33_DSPI_CLK
ST33_DSPI_CS0
ST33_DSPI_MOSI
ST33_DSPI_MISO
ST33 Con nect or
PG14_GPIO110
PD9_GPIO57
SB26 Closed
SB27 Closed
SB28 Closed
SB29 Closed
ST33_DSPI_PIRQ
ST33_DSPI_RST
UM2462 - Rev 3 page 15/25
UM2462
Schematics

Figure 16. RS232 and LIN
R1 IN
13
R2 IN
8
T1 IN
11
T2 IN
10
GND
15 V+ 2
V-
6
VCC 16
R1 OUT 12
R2 OUT 9
T1 OUT 14
T2 OUT 7
C1+
1
C1 -
3C2+ 4
C2 - 5
U10
ST3232EBTR
C95
470nF/16V
GND
C96
470nF/16V
C93
100nF/50V
C94
470nF/16V
VDD_HV_IO_Main
GND
GND
Rx_A
Rx_B
Tx_B
Tx_A
C97
100nF/50V
R81
10kΩ
R80
10kΩ
SB15
Open
SB16
Open
Tx2
Rx2
VDD_HV_IO_Main
12
34
56
78
X7
HEADER 4X2
V_EXT
TXD
4
RXD
1
NWAKE
3NSLP
2
INH 8
BAT 7
LIN 6
GND 5
U11
TJA1020/1021
GND GND
C98
1nF/16V C99
220pF/16V
R82
10kΩ
TP31 LIN
C100
100nF/50V
GND
TP32GND
GND
NLSP
Rx1
Tx1
SCI_4_TX
SCI_4_RX
LIN6_TX
LIN6_RX
SCI_0_TX
SCI_0_RX
GND
VDD_HV_IO_Main
VDD_HV_IO_Main
TP26
Rx1
TP30
GND
GND
TP27
Tx1
V_Ext V_Ext
SCI_ChB
SCI_ChA
JP39
Open
12
34
56
78
X6
HEADER 4X2
VDD_HV_IO_Main
TP28
Rx2
TP29
Tx2
GND
LIN
1 2 3
JP38
LIN Master/Slave
D3
BAS40
LIN_TX
LIN_RX
R122
0R
GND
Not Assembled
R123
1k
1
2
3JP7
SCI_RX_Sel
1
2
3
JP6
SCI_RX_Sel
R1_OUT
T1_IN
RXD_USB
TXD_USB
Default: 1-2
Default: 1-2
UM2462 - Rev 3 page 16/25
UM2462
Schematics

Figure 17. CAN and ISO CAN-FD
CAN_1_L
CAN_1_H
TXD
1
VSS
2
VDD
3
RXD
4
VIO
5
CANL 6
CANH 7
STBY 8
U1
MCP2562FD
R3
22Ω
GND
R4
10kΩ
VDD_HV_IO_Main
GND
C4
100nF/50V
C3
100nF/50V
VDD_HV_IO_Main
5V
CAN_1_STBY
C1
47pF/16V
C2
47pF/16V
GND
R5
60,4Ω
Not Assembled
C5
4,7nF/16V
R6
60,4Ω
Not Assembled
C6
4,7nF/16V
GND GND
GND
GND
R1
0Ω
V_Ext
1
2
3
JP2
Header 3x1
Deafult: 1-2
TP2
CAN_1_L
TP1
CAN_1_H
R7
100Ω
JP1
Closed
CAN_4_L
CAN_4_H
TXD
1
VSS
2
VDD
3
RXD
4
VIO
5
CANL 6
CANH 7
STBY 8
U2
MCP2562FD
R10
22Ω
GND
R11
10kΩ
VDD_HV_IO_Main
C10
100nF/50V
C9
100nF/50V
VDD_HV_IO_Main
5V
C7
47pF/16V
C8
47pF/16V
GND
R12
60,4Ω
Not Assembled
C11
4,7nF/16V
R13
60,4Ω
Not Assembled
C12
4,7nF/16V
GND GND
GND
GND
R8
0Ω
TP4
CAN_4_L
TP3
CAN_4_H
R9
22Ω
R14
100Ω
JP3
Closed
GND
CAN_4_STBY
1
2
3
JP4
Header 3x1
Deafult: 1-2
CAN4sys1_TX
CAN4sys1_RX
V_Ext
CAN1sys0_TX
CAN1sys0_RX
GND
GND
R2
22Ω
CAN1_TX
CAN1_RX
CAN4_TX
CAN4_RX
CAN_1_STBY
CAN_4_STBY
1
2
3
4
5
6
7
8
9
10
11
J1
D-SUB 9 WAY FEMALE
1
2
3
4
5
6
7
8
9
10
11
J2
D-SUB 9 WAY FEMALE
UM2462 - Rev 3 page 17/25
UM2462
Schematics

Figure 18. Ethernet
MDC
31 MDIO
30
TX_CLK
1
TX_EN
2
TXD_0
3
TXD_1
4
TXD_2
5
TXD_3/SNI_MODE
6
RX_CLK
38
RX_DV/MII_MODE
39 RX_ER/MDIX_EN
41
RXD_0/PHYAD1
43
RXD_1/PHYAD2
44
RXD_2/PHYAD3
45
RXD_3/PHYAD4
46
CRS/CRS_DV/LED_CFG
40
COL/PHYAD0
42
X1 34
X2 33
25MHz_OUT 25
LED_LINK/AN0 28
LED_SPEED/AN1 27
LED_ACT/COL/AN_EN 26
RESET_N
29 PWR_DOWN/INT
7
TD- 16
TD+ 17
RD- 13
RD+ 14
RBIAS 24
PFBOUT 23
PFBIN1 18
PFBIN2 37
RESERVED 8
RESERVED 9
RESERVED 10
RESERVED 11
RESERVED 12
RESERVED 20
RESERVED 21
IOVDD33
32
IOVDD33
48
IOGND 35
IOGND 47
DGND 36
AVDD33
22 AGND 15
AGND 19
U4
DP83848CVV
Not Assembled
TP11
25MHz
GND
R53
2,2kΩ
R52
2,2kΩ
X2
X1
R37 22Ω
R38 22Ω
R39 22Ω
R40 22Ω
TXD_0
TXD_1
TXD_2
TXD_3
ETH_TXD_0
ETH_TXD_1
ETH_TXD_2
ETH_TXD_3
R49 22Ω
R50 22Ω
R51 22Ω
R54 22Ω
RX_0__PAD1
ETH_RXD_0
ETH_RXD_1
ETH_RXD_2
ETH_RXD_3
R45 22Ω
COL_PAD0
ETH_COL
R34 0Ω PWR_DWN_INT
RII
RII
MII
MII
MII
MII
R41 22Ω
TX_EN
ETH_TX_EN
RX_1__PAD2
RX_2__PAD3
RX_3__PAD4
MII
MII
MII
MII
RII
RII
R36 22Ω TX_CLK
ETH_TX_CLK MII
R42 0Ω
R43 0Ω
MDIO
ETH_MDIO MDC
ETH_MDC
R27
1,5kΩ
3V3_ETH
R55 22Ω
RX_CLK
ETH_RX_CLK MII
R35 0Ω
RESET
R47 22Ω
R48 22Ω
RX_ER
ETH_RX_ER
ETH_RX_DV RX_DV
R46 22Ω
ETH_CRS CRS
R26
330Ω
R29
49,9Ω
R30
49,9Ω
C54 100nF/50V
GND
C55 100nF/50V
GND
GND
R25
330Ω
LD3
Red
LD1
Yellow
R20
220Ω
R21
220Ω
R24 2,2kΩ
R23 2,2kΩ
C56
100nF/50V
C57
100nF/50V
C58
10uF/16V
C59
100nF/50V
GND
R44
4,87kΩ
GND
LD2
Green
R19
220Ω
R22 2,2kΩ
Not Assembled
R33 4,7kΩ
GND
R31
49,9Ω
R32
49,9Ω
ETH_PWR
Not Assembled
TP10
ETH_TX_CLK
Not Assembled
TP12
ETH_RX_CLK
ETH_ RX Data ETH_ TX Data
TD_P
TD_N
RD_P
RD_N
100ohm
100ohm
C60 10uF/16V
C61 100nF/50V
C62 100nF/50V
GNDGNDGND
3V3
GND GND
GND GND
2x22 male pin array or Molex 70246-4402
R110 2.2 kΩ
SB17
Closed
SB18
Open
C130
100nF/50V
C131
100nF/50V
SB19
Closed
SB20
Closed
SB22
Open
SB23
Open SB21
Open
LED_ACT
LED_LINK
LED_SPEED
LED_ACT
LED_LINK
LED_SPEED
R111 2.2 kΩ
R112 2.2 kΩ
R113 2.2 kΩ
R114 2.2 kΩ
R115 2.2 kΩ
R116 2.2 kΩ
R117 2.2 kΩ
R118 2.2 kΩ
R119 2.2 kΩ
Not Assembled
R120 2.2kΩ
R121 2.2kΩ
JP50
Closed
3V3 3V3_ETH
3V3_ETH 3V3_ETH
C132
10uF/16V
C133
100nF/50V
GND GND
3V3_ETH
GND
3V3_ETH
3V3_ETH
3V3_ETH
3V3_ETH
ETH_ SerialMgmt
Interface
3V3
SB5
Open
GND
SB6
Closed
C64
8pF/16V
C63
8pF/16V
SB7
Closed
X2
X1
1
2
P2
Header 2
ExtOsc
GND
1
3
GND 2
GND
4
X2
NX3225SA-25.000M-STD-CSR-3
GND
GND
TD-
TD+
CT
CT
RD+
RD-
CHS GND
CHS GND
K_LED G
K_LED Y A_LED Y
A_LED G
GND
3V3_ETH
Not Assembled
R28
4,7kΩ
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
910
11 12
1314
Green
Yellow
J3
EDAC A63-113-331P431
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
JP5
HEADER 22X2
UM2462 - Rev 3 page 18/25
UM2462
Schematics

Figure 19. User interface
R104
1kΩ
R108
1kΩ
R109
1kΩ
VDD_HV_IO_Main
R103
10kΩ
C127
100nF/50V
GND
C128
100nF/50V
C129
100nF/50V
GND
S2
SW_3
S3
SW_2
S4
SW_1
R105
10kΩ
GNDGND GND
LD9
User_LED_1
ADC_User_1
ADC_User_2
SW_User_1
SW_User_2
SW_User_3
LED_User_2
LED_User_1
LED_User_3
VDD_HV_ADC VDD_HV_ADC
VDD_HV_IO_Main
R102
10kΩ
USER - LEDs
USER - Push Buttons
USER - ADC Evaluation
R106
10kΩ
R107
10kΩ
TP36
ADC_2
TP37
ADC_1
TP39
LED_1
TP38
LED_2
TP40
LED_3
TP42
SW_1
TP41
SW_2
TP43
SW_3
JP42
Closed
JP43
Closed
JP45
Closed
JP46
Closed JP48
Closed
JP44
Closed
JP47
Closed
JP49
Closed
LD10
User_LED_2
LD11
User_LED_3
ADC_User_1
ADC_User_2
UM2462 - Rev 3 page 19/25
UM2462
Schematics

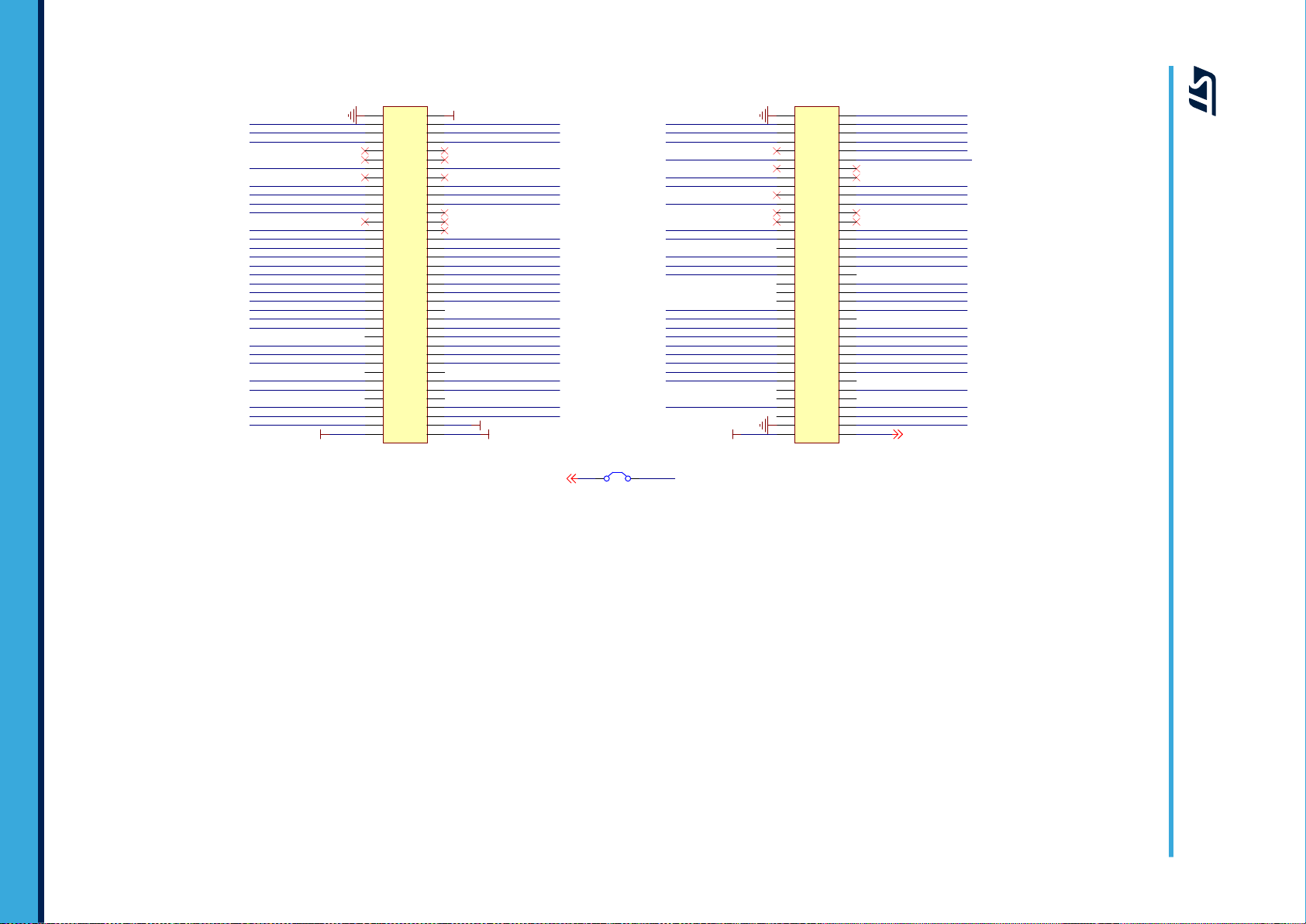

Figure 20. Extended connectors
logo\ST-logo_201
GND GND
JP40
Close
PF13_SW_User_3
PE5_CAN0sys0_TX
PF3_eMIOS0-UC2
PD6_DSPI1-SCK
PG14_GPIO110
PC14_eMIOS0-UC27
PD7_DSPI1-SIN
PB9_DSPI2-SIN PB10_DSPI2-SOUT
PA13_DSPI2_CLK
PA12_DSPI2-CS0
PF1_GPIO81
PF0_GPIO80
PD10_eMIOS0-UC23
PD5_DSPI0-SOUT
PD9_GPIO57
PI1_eMIOS0-UC4
PI2_eMIOS0-UC5
PL8_ADC-AN5
PI4_ADC-AN40
PI3_ADC-AN39
PI5_ADC-AN41 PI6_ADC-AN49 PI7_ADC-AN50
PD13_ADC-AN16
PD8_ADC-AN92
PG6_ADC-AN44 PG9_ADC-AN53
PG10_ADC-AN55
PG5_ ADC-AN42PG4_ADC-AN27
PG3_ADC-AN26 PG11_ADC-AN57
PG12_ADC-AN58PE0_ADC-AN11
PE3_ADC-AN17
PE2__ADC-AN13
RESET
PH0_GPIO112
PF7_CAN4sys1-TX PF6_CAN4sys1-RX
PD4_DSPI0-SCK
PE9_eMIOS0-UC9
PE15_DSIP0-SIN
PE8_DSIP0-CS0
PA15_DSIP0-CS1PC3_eMIOS0-UC7
PC2_FCCU-F1
PB1_GPIO17
PB2_eMIOS0-UC8
PE1_eMIOS0-UC12
PA3_DSPI2_SOUT
PH4_CAN_4_STBY
PD1_I2C-SDA PD2_I2C-SCL
PB7_ADC-AN47PB6_ADC-AN48
PD11_eMIOS0-UC21
PF9_LED_User_2
PF10_LED_User_3
PF8_LED_User_1
PF11_SW_User_1
PF12_SW_User_2
PB8_eMIOS0-UC27
PK14_GPIO174 PK0_GPIO160
PE13_eMIOS0-UC23
PF14_GPIO94
PF15_eMIOS1-UC28
PF2_EIRQ6
PE14_eMIOS1-UC21
PD12_eMIOS0-UC14
PG1_FR_RXD_A
PI8_FR_TXEN_A
PI9_FR_TXD_A
PB0_eMIOS1-UC28
PE6_CAN0sys0_RX
PE10_LIN_0_RXD
PH2_CAN_1_STBY
PM2_GPIO194
PA1_CAN2sys0_RXPA2_CAN2sys0_TX
PA3_DSPI2_SOUT
PC7_ETH_RX_CLK
PA10_CAN1sys0_TXPA11_CAN1sys0_RX
PC12_DSPI1-SOUT
PG13_eMIOS1-UC31
B1 B1
B2 B2
B3 B3
B4 B4
B5 B5
B6 B6
B7 B7
B8 B8
B9 B9
B10 B10
B11 B11
B12 B12
B13 B13
B14 B14
B15 B15
B16 B16
B17 B17
B18 B18
B19 B19
B20 B20
B21 B21
B22 B22
B23 B23
B24 B24
B25 B25
B26 B26
B27 B27
B28 B28
B29 B29
B30 B30
B31 B31
B32 B32
B33 B33
B34 B34
B35 B35
B36 B36
B37 B37
A1
A1
A2
A2
A3
A3
A4
A4
A5
A5
A6
A6
A7
A7
A8
A8
A9
A9
A10
A10
A11
A11
A12
A12
A13
A13
A14
A14
A15
A15
A16
A16
A17
A17
A18
A18
A19
A19
A20
A20
A21
A21
A22
A22
A23
A23
A24
A24
A25
A25
A26
A26
A27
A27
A28
A28
A29
A29
A30
A30
A31
A31
A32
A32
A33
A33
A34
A34
A35
A35
A36
A36
A37
A37
C1
C1
C2
C2
C3
C3
C4
C4
C5
C5
C6
C6
C7
C7
C8
C8
C9
C9
C10
C10
C11
C11
C12
C12
C13
C13
C14
C14
C15
C15
C16
C16
C17
C17
C18
C18
C19
C19
C20
C20
C21
C21
C22
C22
C23
C23
C24
C24
C25
C25
C26
C26
C27
C27
C28
C28
C29
C29
C30
C30
C31
C31
C32
C32
C33
C33
C34
C34
C35
C35
C36
C36
C37
C37
D1 D1
D2 D2
D3 D3
D4 D4
D5 D5
D6 D6
D7 D7
D8 D8
D9 D9
D10 D10
D11 D11
D12 D12
D13 D13
D14 D14
D15 D15
D16 D16
D17 D17
D18 D18
D19 D19
D20 D20
D21 D21
D22 D22
D23 D23
D24 D24
D25 D25
D26 D26
D27 D27
D28 D28
D29 D29
D30 D30
D31 D31
D32 D32
D33 D33
D34 D34
D35 D35
D36 D36
D37 D37
HEADER 4X37
X9
GPIO_4x36
PE11_LIN_0_TXD
PE7_eMIOS0-UC5
PD14_LIN_6_TXD
PD15_LIN_6_RXD
PG15_LIN1-TXD
PM14_GPIO206 LED 9
LED 5
PH1_GPIO113
LED 7
PK1_GPIO161
LED 11LED 12
LED 8
LED 6
KEY 5
KEY 6
KEY 1
KEY 4 KEY 3 KEY 2
CAN2-RX
CAN1_TXCAN1_RX
CAN2_TX
I2C-SDA
LIN6_TX
LIN6_RX
I2C-SCL
SPI0_SCK
SPI0_SOUT
LIN0_RX
LIN0_TX
SPI0_CS0
SPI0_SIN
CAN0-TXCAN0-RX
LIN1_TX
LIN1_RX LED 10
SPI1_SCK
SPI1_SOUT
PA4_DSPI1-CS0 SPI1_CS0
SPI1_SIN
PG2_ADC-AN25
5V GND
5V
PA14_GPIO14 PB3_ADC_User_1
PB4_ADC_User_2
3V3 V_ExtV_EXT_P V_EXT_P
V_EXT_P
V_Ext
PA0_LIN4-RXD PB11_FCCU-F0
UM2462 - Rev 3 page 20/25
UM2462
Schematics
