ECS P23G Series User manual

i
Motherboard User’s Guide
This publication, including photographs, illustrations and software, is under the
protection of international copyright laws, with all rights reserved. Neither this
user’s guide, nor any of the material contained herein, may be reproduced
without the express written consent of the manufacturer.
The information in this document is subject to change without notice. The
manufacturer makes no representations or warranties with respect to the
contents hereof and specifically disclaims any implied warranties of merchant-
ability or fitness for any particular purpose. Further, the manufacturer reserves
the right to revise this publication and to make changes from time to time in the
content hereof without obligation of the manufacturer to notify any person of
such revision or changes.
Trademarks
IBM, VGA, and PS/2 are registered trademarks of International Business
Machines.
Intel, Pentium/II/III, Pentium 4, Celeron and MMX are registered trademarks of
Intel Corporation.
Microsoft, MS-DOS and Windows 98SE/ME/2000/XP are registered trademarks
of Microsoft Corporation.
AMI is a trademark of American Megatrends Inc.
It has been acknowledged that other brands or product names in this manual are
trademarks or the properties of their respective owners.
Static Electricity Precautions
1. Don’t take this motherboard and components out of their original static-
proof package until you are ready to install them.
2. While installing, please wear a grounded wrist strap if possible. If you
don’t have a wrist strap, discharge static electricity by touching the bare
metal of the system chassis.
3. Carefully hold this motherboard by its edges. Do not touch those
components unless it is absolutely necessary. Put this motherboard on
the top of static-protection package with component side facing up
while installing.
Pre-Installation Inspection
1. Inspect this motherboard whether there are any damages to components
and connectors on the board.
2. If you suspect this motherboard has been damaged, do not connect
power to the system. Contact your motherboard vendor about those
damages.
Copyright © 2007
All Rights Reserved
P23G Series, V3.0a
April 2007

ii
Motherboard User’s Guide
Table of Contents
Trademark ............................................................................................................ i
Static Electricity Precautions ......................................................................................... i
Pre-Installation Inspection ............................................................................................. i
Chapter 1: Introduction ..................................................................................... 1
Key Features .................................................................................................................... 1
Package Contents ........................................................................................................... 4
Chapter 2: Motherboard Installation .............................................................. 5
Motherboard Components ............................................................................................ 6
I/O Ports .......................................................................................................................... 7
Installing the Processor ................................................................................................. 7
Installing Memory Modules .......................................................................................... 9
Jumper Settings ............................................................................................................ 11
Install the Motherboard ............................................................................................... 1 2
Connecting Optional Devices ..................................................................................... 1 3
Install Other Devices .................................................................................................... 1 5
Expansion Slots ............................................................................................................ 1 7
Chapter 3: BIOS Setup Utility ....................................................................... 19
Introduction .................................................................................................................. 1 9
Running the Setup Utility ................................................... …………………………...19
Standard CMOS Setup Page ....................................................................................... 2 0
Advanced Setup Page .................................................................................................. 2 1
Features Setup Page .................................................................................................... 2 3
Power Management Setup .......................................................................................... 2 4
PCI/Plug and Play Setup Page .................................................................................. 2 5
BIOS Security Features Setup Page ........................................................................... 2 6
CPU PnP Setup Page .................................................................................................. 2 7
Hardware Monitor Page .............................................................................................. 2 8
Load Optimal Defaults ................................................................................................ 2 8
Save Changes and Exit ................................................................................................ 2 9
Discard Changes and Exit ........................................................................................... 2 9
Chapter 4: Software & Applications .............................................................. 31
Introduction .................................................................................................................. 3 1
Installing Support Software ........................................................................................ 3 1
Bundled Software Installation .................................................................................... 3 3

iii
Motherboard User’s Guide
Notice:
Owing to Microsoft’s certifying schedule is various to every supplier, we might
have some drivers not certified yet by Microsoft. Therefore, it might happen
under Windows XP that a dialogue box (shown as below) pop out warning you
this software has not passed Windows Logo testing to verify its compatibility
with Windows XP. Please rest assured that our RD department has already
tested and verified these drivers. Just click the “Continue Anyway” button and
go ahead the installation.
Chapter 5:VIA VT8237 SATA RAID Setup Guide ........................................ 35
VIA RAID Configuration ............................................................................................. 3 5
Installing RAID Software & Drives ............................................................................ 4 3
Using VIA RAID Tool ................................................................................................... 4 5

1
Chapter 1: Introduction
Chapter 1 Introduction
This motherboard has a LGA775 socket for latest Intel®Core™ 2 Duo/Celeron D
processors with Hyper-Threading Technology and Front-Side Bus (FSB) speeds
up to 1066/800/533 MHz. Hyper-Threading Technology, designed to take advan-
tage of the multitasking features in Windows XP, gives you the power to do more
things at once.
It integrates the VIA P4M800Pro Northbridge and VT8237R+ Southbridge that
supports the Serial ATA interface for high-performance and mainstream desktop
PCs; the built-in USB 2.0 providing higher bandwidth, implementing Universal
Serial Bus Specification Revision 2.0 and is compliant with UHCI 1.1 and EHCI
1.0. It supports AC’ 97 Audio Codec and provides Ultra DMA 133/100/66 func-
tion. It has one 8XAGP, one CNR and three 32-bit PCI slots. There is a full set of
I/O ports including two PS/2 ports for mouse and keyboard, one serial port, one
parallel port, one LAN port, one VGA port, three audio jacks for Line-in, Line-out
and Microphone, four back-panel USB2.0 ports and onboard USB headers provid-
ing extra ports by connecting the Extended USB Module to the motherboard.
It is a Micro ATX motherboard and has power connectors for an ATX power
supply.
Key Features
The key features of this motherboard include:
LGA775 Socket
•Supports latest Intel®Core™ 2 Duo/Celeron D Series processors with
Hyper-Threading Technology
•Supports up to 1066/800/533 3MHz Front-Side Bus
Hyper-Threading technology enables the operating system into thinking it’s
hooked up to two processors, allowing two threads to be run in parallel, both
on separate ‘logical’ processors within the same physical processor.
Chipset
There are VIA P4M800Pro Northbridge and VT8237R+ in the chipsets in accor-
dance with an innovative and scalable architecture with proven reliability and per-
formance.
•High Performance Northbridge with 1066/800/533 MHz FSB for Intel
Celeron D processors
•V-link 533 MB/s high bandwidth North/South Bridge interconnect
•Integrated UniChrome Pro 3D/2D Graphics & Video Controller,
Microsoft DirectX 9.0 compatible, OpenGL supported
•Supports for AGP 8X/4X, AGP v3.0 compliant with 1.5V

2
Motherboard User’s Guide
•Advanced 64-bit DDR2 533 and DDR400 SDRAM controller
Note: P4M800Pro chipset can only support mixed 1024/512/256/128/
64Mb x8/16 DDR2 SDRAMs or mixed 1024/512/256/128/64Mb x8/16
DDRSDRAMs.
•Supports 8-bit, 66 MHz, Ultra V-Link interface with 533 MB/sec total
bandwidth
•Compliant with PCI 2.2 specification at 33 MHz, supporting up to 6
PCI masters
•Integrated Serial ATA Host Controllers, supporting data transfer rates up
to 1..5Gb/s
•Integrated Dual channel UltraDMA 133/100/66 Master Mode EIDE
Controller
•USB 2.0 Controller, supporting up to 8 USB 2.0 ports
•Network Controller, supporting enterprise class 100/10 Mb Fast
Ethernet MAC
•Integrated keyboard Controller with PS2 mouse support
Memory Support
•Two 184-pin DIMM sockets for DDR SDRAM memory modules
•Two 240-pin DIMM sockets for DDR2 SDRAM memory modules
•Support DDR 400/333 or DDR2 533/400
•Maximum installed memory is 2GB
Note: Users please note that DDR & DDR2 can’t both be applied at the
same time on this motherboard. Users can use either DDR or DDR2
memory modules only!
Expansion Slots
•Three 32-bit PCI slots
•One 8X AGP slot
•One CNR slot
Onboard IDE channels
•Supports PIO (Programmable Input/Output) and DMA (Direct Memory
Access) modes
•Supports IDE Ultra DMA bus mastering with transfer rates of 133/100/
66 MB/sec
SerialATA
•Two Serial ATA Connectors
•Transfer rate exceeding best ATA (~150 MB/s) with scalability to higher
rates
•Low pin count for both host and devices
AC’97 Audio Codec

3
Chapter 1: Introduction
•Compliant with AC’97 2.3 specifications
•Meets performance requirements for audio on PC99/2001 systems
•Meets Microsoft WHQL/WLP 2.0 audio requirements
•HRTF 3D Positional Audio and 10 Bands of Software EQualizer
Onboard I/O Ports
•Two PS/2 ports for mouse and keyboard
•One serial port
•One parallel port
•One VGA port
•One LAN port
•Four back-panel USB2.0 ports
•Audio jacks for microphone, line-in and line-out
Fast Ethernet LAN
•Single Chip 100Base-TX / 10Base-T Physical Layer Solution
•Dual Speed – 100/10 Mbps
•Half and Full Duplex
•MII Interface to Ethernet Controller
•MII Interface to Configuration & Status
•Auto Negotiation: 10 / 100, Full / Half Duplex
•Meet All Applicable IEEE 802.3, 10Base-T and 100Base-Tx Standards
•On Chip Wave Shaping – No External Filters Required.
USB 2.0
•Compliant with Universal Serial Bus Specification Revision 2.0
•Compliant with Intel’s Enhanced Host Controller Interface Specification
Revision 1.0
•Compliant with Universal Host Controller Interface Specification
Revision 1.1
•PCI multi-function device consists of two UHCI Host Controller cores
for full-/low-speed signaling and one EHCI Host Controller core for
high-speedsignaling
•Root hub consists 4 downstream facing ports with integrated physical
layer transceivers shared by UHCI and EHCI Host Controller, up to
eight functional ports
•Support PCI-Bus Power Management Interface Specification release 1.1
•Legacy support for all downstream facing ports
BIOS Firmware
This motherboard uses AMI BIOS that enables users to configure many system
features including the following:
•Powermanagement
•Wake-up alarms
•CPU parameters and memory timing

4
Motherboard User’s Guide
•CPU and memory timing
The firmware can also be used to set parameters for different processor clock
speeds.
Dimensions
•Micro ATX form factor of 244 x 244 mm
Note: Hardware specifications and software items are subject to change
without notification.
Package Contents
Your motherboard package ships with the following items:
The motherboard
The User’s Guide
One diskette drive ribbon cable (optional)
One IDE drive ribbon cable
The Software support CD
Optional Accessories
You can purchase the following optional accessories for this motherboard.
The Extended USB module
The CNR v.90 56K Fax/Modem card
The SerialATAcable
The SerialATApower cable
Note: You can purchase your own optional accessories from the third party,
but please contact your local vendor on any issues of the specification
and compatibility.

5
Chapter 2: Motherboard Installation
Chapter 2 Motherboard Installation
To install this motherboard in a system, please follow these instructions in this
chapter:
Identify the motherboard components
Install a CPU
Install one or more system memory modules
Make sure all jumpers and switches are set correctly
Install this motherboard in a system chassis (case)
Connect any extension brackets or cables to headers/connectors on the
motherboard
Install peripheral devices and make the appropriate connections to
headers/connectors on the motherboard
Note:
1. Before installing this motherboard, make sure jumper CLR_CMOS1
is under Normal setting. See this chapter for information about
locating CLR_CMOS1 and the setting options.
2. Never connect power to the system during installation; otherwise, it
may damage the motherboard.

6
Motherboard User’s Guide
Motherboard Components
ITEM LABEL COM PONENTS
2 CPU_FAN1 CPUFan connector(4-pin)
3 DDRII1~2 240-pin DDR2 SDRAMsockets
4 DDR1~2 184-pin DDR SDRAM sockets
5 IDE1 Primary IDEconnectors
6 IDE2 Secondary IDE connectors
7 SATA1~2 SerialATA connectors
8 PANEL1 Front Panel Sw itch/LEDheader
9 CLR_CMOS1 Clear CMOS jumper
10 SPK1 Speaker header
11 SYS_FAN1 SystemFan connector
12 USB_PWR2 USB Pow er Select jumper
13 F_USB1~2 Front Panel USB headers
14 FDD1 Floppy Disk Drive connector
15 CNR1 CNR slot
16 PCI1~3 32-bit PCIslots
17 IR1 Infrared header
18 CD_IN1 Analog Audio Input header
19 AGP1 AGP slot
20 F_AUDIO1 Front Panel Audio header
21 PWR1 Standard 20-Pin ATX Power connector
22 USB_PWR1 USB Pow er Select jumper
23 PWR2 Standard 4-Pin ATX Power connector
LGA775 Socket for Intel®Core™ 2 Duo/
Celeron Dprocessors
CPU Socket1

7
Chapter 2: Motherboard Installation
I/O Ports

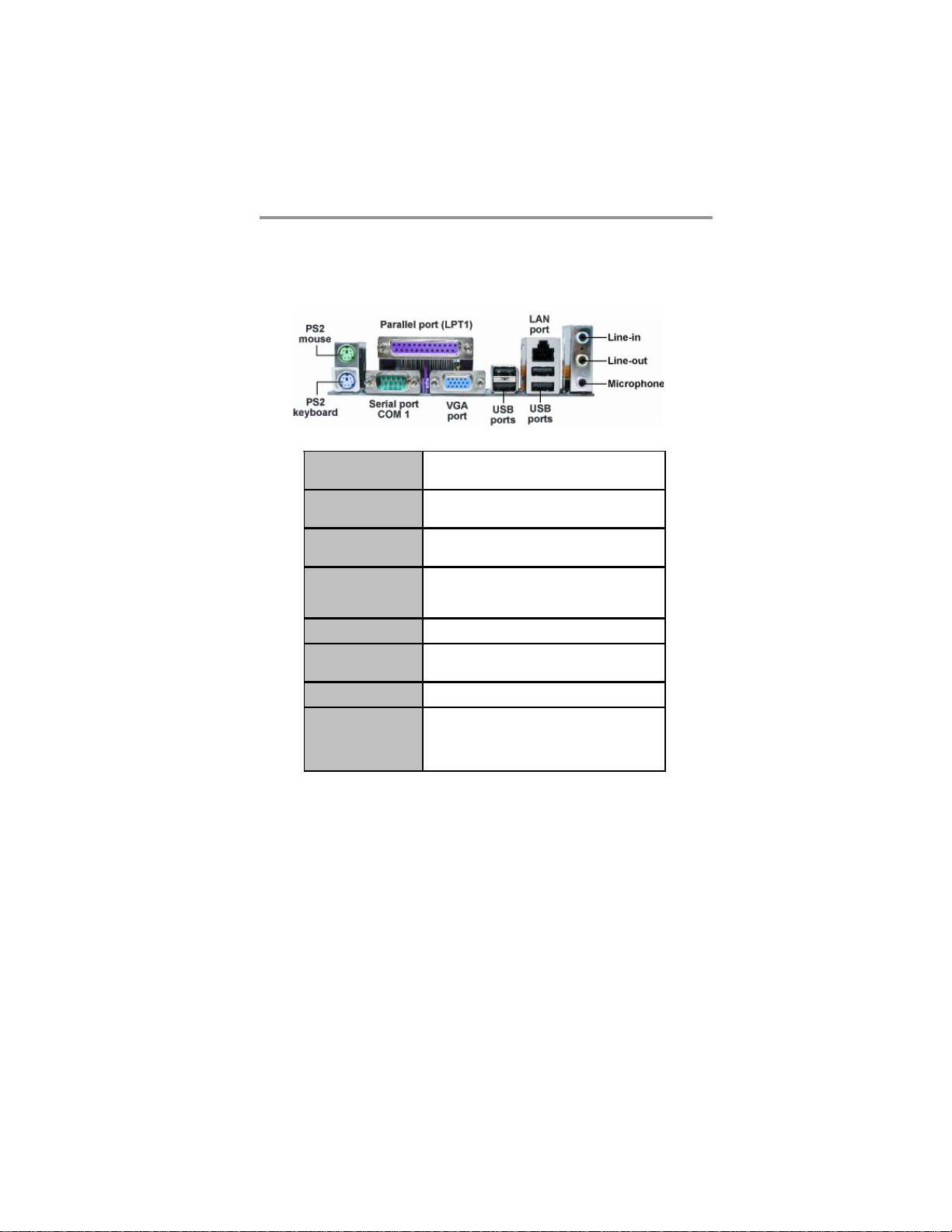

The illustration below shows a side view of the built-in I/O ports on the
motherboard.
PS/2 Mouse Use the upper PS/2 port to connect a PS/2 pointing
device.
PS/2 Keyboard Use the lower PS/2 port to connect a PS/2
keyboard.
Parallel Port (LPT1) Use the Parallel port to connect printers or other
parallel communications devices.
COM1 Use the COMport to connect serial devices such
as mice or fax/modems. COM1 is identified by the
systemas COM1.
VGA UsetheVGA porttoconnectVGA devices.
LANPort Connect an RJ-45 jack to the LAN port to connect
your computer to the Network.
USB Ports Use the USB ports to connect USB devices.
Audio Ports Use these three audio jacks to connect audio
devices. The first jack is for stereo Line-In signal,
the second jack for stereo Line-Out signal, and the
third jack for Microphone.
Installing the Processor
This motherboard has a LGA775 socket for the latest Intel®Core™ 2 Duo/
Celeron D processors. When choosing a processor, consider the performance
requirements of the system. Performance is based on the processor design, the
clock speed and system bus frequency of the processor, and the quantity of
internal cache memory and external cache memory.

8
Motherboard User’s Guide
CPU Installation Procedure
Follow these instructions to install the CPU:
B. Unload the cap
•Use thumb & forefinger to hold the
lifting tab of the cap.
•Lift the cap up and remove the cap
completely from the socket.
C. Open the load plate
•Use thumb & forefinger to hold the
hook of the lever, pushing down and
pulling aside unlock it.
•Lift up the lever.
•Use thumb to open the load plate.
Be careful not to touch the contacts.
D. Install the CPU on the socket
•Orientate CPU package to the socket.
Make sure you match triangle marker
to pin 1 location.
E. Close the load plate
•Slightly push down the load plate onto
the tongue side, and hook the lever.
•CPU is locked completely.
F. Apply thermal grease on top of the CPU.
A. Read and follow the instructions shown on
the sticker on the CPU cap.

9
Chapter 2: Motherboard Installation
Installing Memory Modules
This motherboard accommodates two 184-pin DIMM DDR1-2 sockets (Dual
Inline Memory Module) for unbuffered DDR 400/333 memory modules (Double
Data Rate SDRAM) and two 240-pin DIMM DDRII1-2 sockets (Dual Inline
Memory Module) for unbuffered DDR2 533/400 memory modules (Double Data
Rate SDRAM). DDR SDRAM is a type of SDRAM that supports data transfers
on both edges of each clock cycle (the rising and falling edges), effectively doubling
the memory chip’s data throughput. You must install at least one module in any of
the four slots. Each module can be installed with 256 MB to 1 GB of memory; total
memory capacity is 2 GB.
Note 1: To achieve better airflow rates and heat dissipation, we suggest
that you use a high quality fan with 3800 rpm at least. CPU fan and
heatsink installation procedures may vary with the type of CPU fan/
heatsink supplied. The form and size of fan/heatsink may also vary.
Note 2: The fan connector supports the CPU cooling fan of 1.1A~2.2A
(26.4W max.) at +12V.
Note 3: DO NOT remove the CPU cap from the socket before installing a
CPU.
Note 4:Return Material Authorization (RMA) requests will be accepted only
if the motherboard comes with the cap on the LGA 775 socket.
H. Make sure the CPU fan is plugged to the
CPU fan connector. Please refer to the
CPU cooling fan user’s manual for more
detail installation procedure.
G. Fasten the cooling fan supporting base
onto the CPU socket on the
motherboard.

10
Motherboard User’s Guide

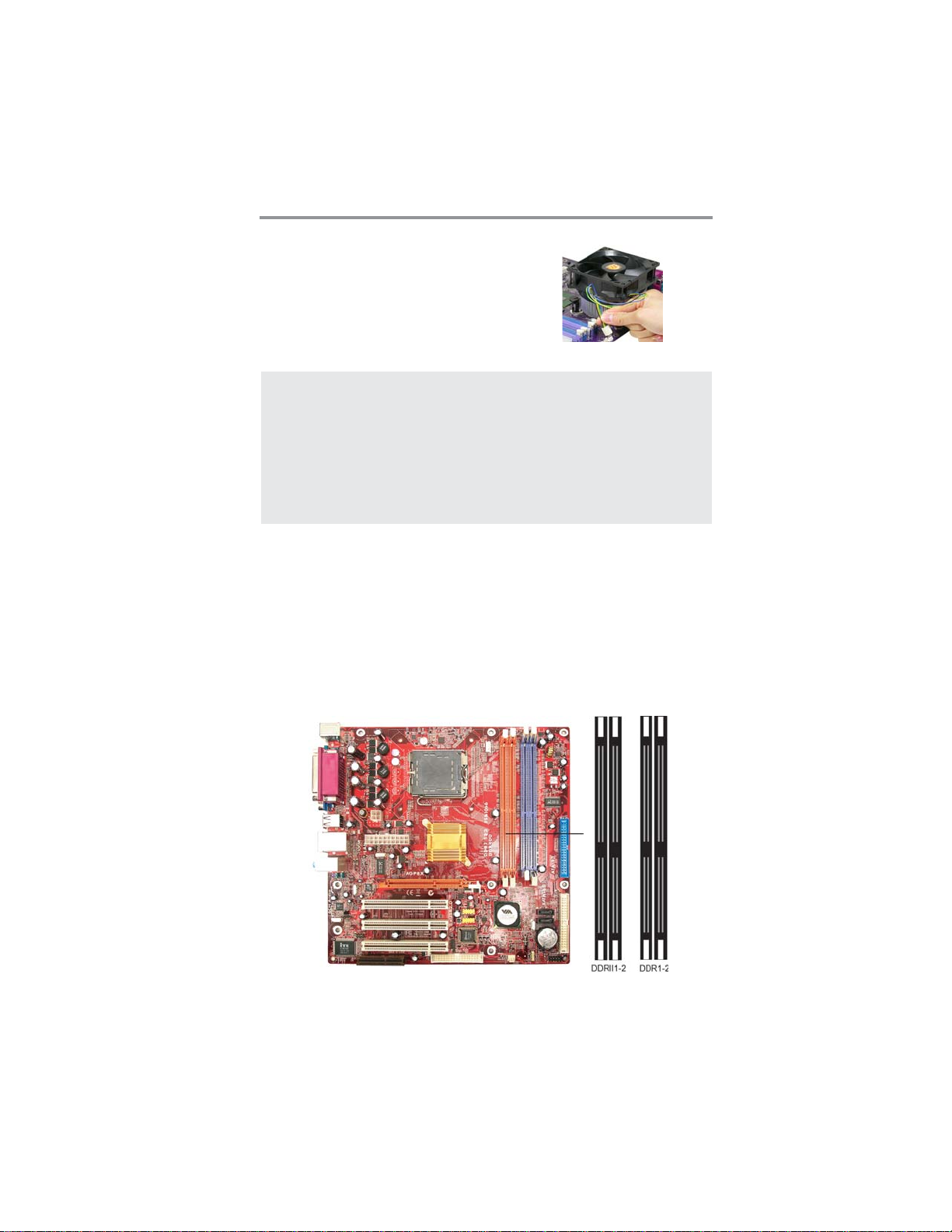

Note1: Please be noted you can NOT use DIMM DDRII1~2 (DDR2 533/400)
and DIMM DDR1~2 (DDR 400/333) simultaneously. Only use either
DDR2(533/400) or DDR(400/333) memory modules!
Note2: Do not remove any memory module from its antistatic packaging until
you are ready to install it on the motherboard. Handle the modules
only by their edges. Do not touch the components or metal parts.
Always wear a grounding strap when you handle the modules.
Memory Module Installation Procedure
These modules can be installed with up to 2 GB system memory. Refer to the
following to install the memory module.
1. Push down the latches on both sides of the DIMM socket.
2. Align the memory module with the socket. There is a notch on the
DIMM socket that you can install the DIMM module in the correct
direction. Match the cutout on the DIMM module with the notch on
the DIMM socket.
3. Install the DIMM module into the socket and press it firmly down
until it is seated correctly. The socket latches are levered upwards and
latch on to the edges of the DIMM.
4. Install any remaining DIMM modules.

11
Chapter 2: Motherboard Installation
Jumper Settings
Connecting two pins with a jumper cap is SHORT; removing a jumper cap from
these pins, OPEN.
Note: To avoid the system unstability after clearing CMOS, we recommend
users to enter the main BIOS setting page to “Load Optimal De-faults”
and then “Save Changes and Exit”.

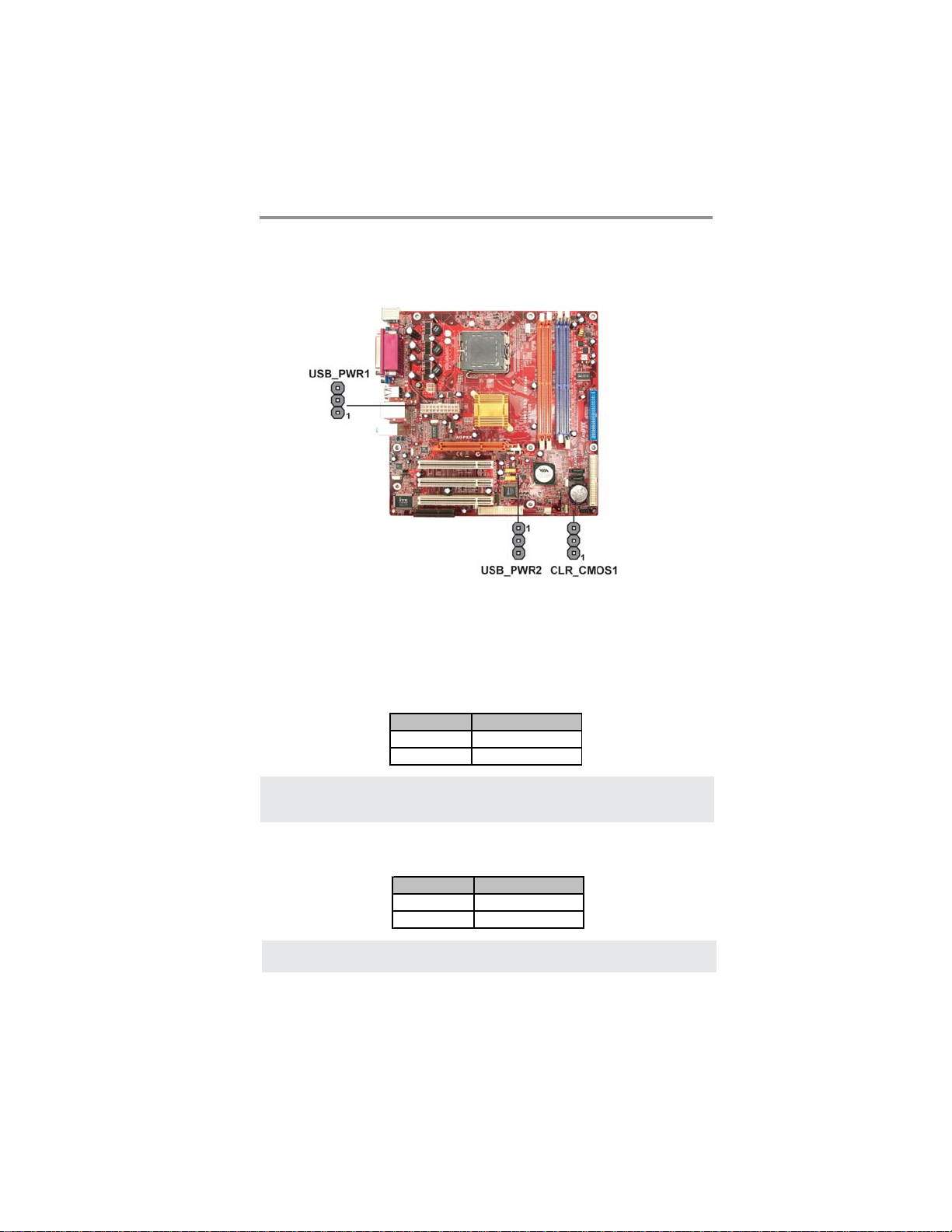

CLR_CMOS1: Clear CMOS Jumper
Use this jumper to clear the contents of the CMOS memory.You may need to clear
the CMOS memory if the settings in the Setup Utility are incorrect and prevent
your motherboard from operating. To clear the CMOS memory, disconnect all the
power cables from the motherboard and then move the jumper cap into the CLEAR
setting for a few seconds.
Function Jumper Setting
Normal Short Pins 1-2
Clear CMOS Short Pins 2-3
Note: Make sure the power supply provides enough SB5V voltage before
selecting the SB5V function.
USB_PWR1~2: USB Power Select Jumper
Use these jumpers to select the voltage for USB port.
Function Jumper Setting
VCC5V Short Pins 1-2
SB5V Short Pins 2-3

12
Motherboard User’s Guide
Install the Motherboard
Install the motherboard in a system chassis (case). The board is a Micro ATX
size motherboard. You can install this motherboard in an ATX case. Make sure
your case has an I/O cover plate matching the ports on this motherboard.
Install the motherboard in a case. Follow the case manufacturer’s instructions to
use the hardware and internal mounting points on the chassis.

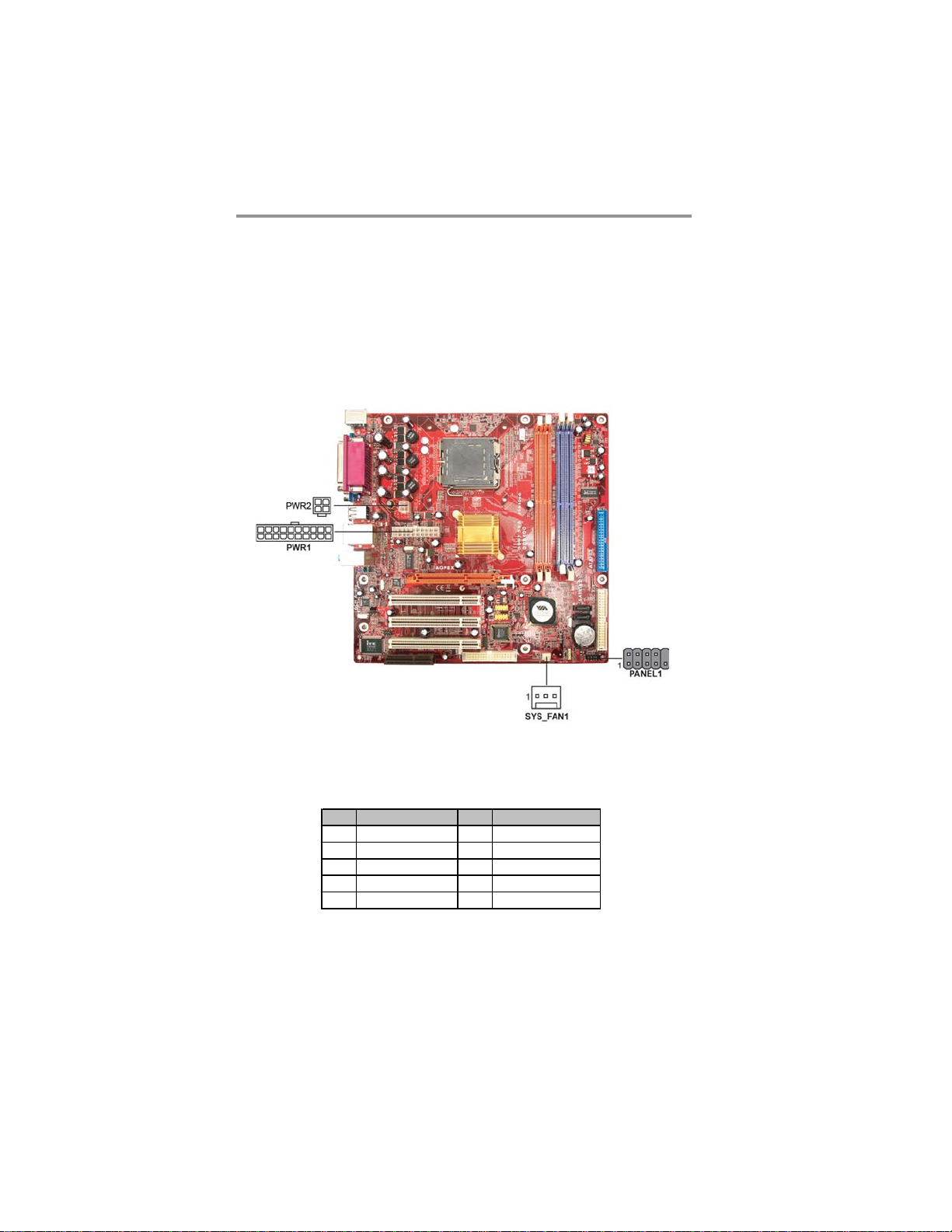

Connect the power connector from the power supply to the PWR1 connector on
the motherboard. The PWR2 is a +12V connector for CPU Vcore power.
Pin Signal Pin Signal
1 HD_LED_P(+) 2 FP PWR/SLP(+)
3 HD_LED_N(-) 4 FP PWR/SLP(-)
5 RESET_SW_N(-) 6 POWER_SW_P(+)
7 RESET_SW_P(+) 8 POWER_SW_N(-)
9 RSVD_DNU 10 KEY
If there is a cooling fan installed in the system chassis, connect the cable from the
cooling fan to the SYS_FAN1 fan power connector on the motherboard.
Connect the case switches and indicator LEDs to the PANEL1 header.

13
Chapter 2: Motherboard Installation
Connecting Optional Devices
Refer to the following for information on connecting the motherboard’s optional
devices:
Pin Signal Pin Signal
1SPKR2 NC
3GND4+5V
SPK1: Speaker Header
Connect the cable from the PC speaker to the SPK1 header on the motherboard.

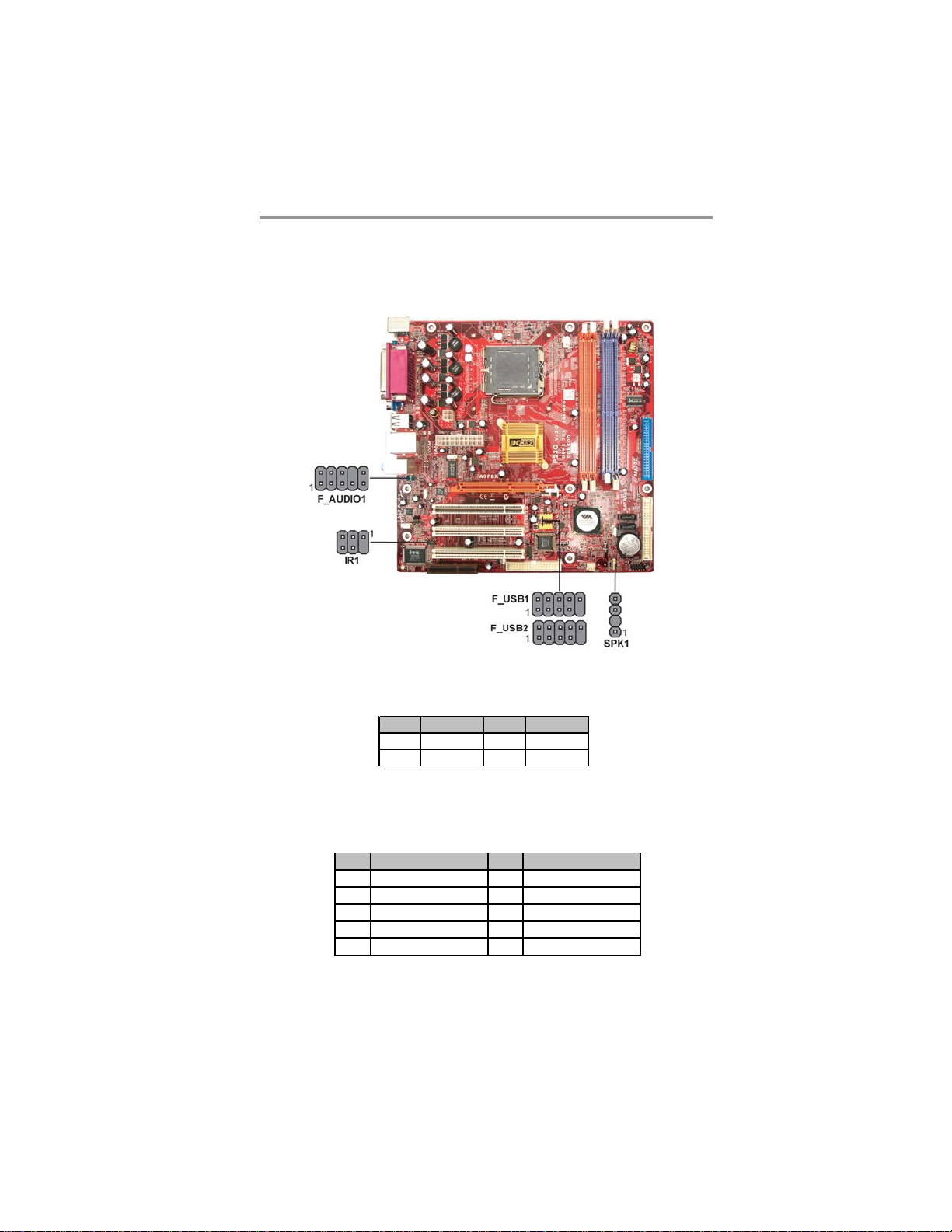

F_AUDIO1: Front Panel Audio Header
This header allows the user to install auxiliary front-oriented microphone and line-
out ports for easier access.
Pin Signal Pin Signal
1 AUD_MIC 2 AUD_GND
3 AUD_MIC_BIAS 4 AUD_VCC
5 AUD_FPOUT_R 6 AUD_RET_R
7HP_ON 8KEY
9 AUD_FPOUT_L 10 AUD_RET_L

14
Motherboard User’s Guide
Pin Signal Pin Signal
1 VERG_FP_USBPWR0 2 VERG_FP_USBPWR0
3 USB_FP_P0(-) 4 USB_FP_P1(-)
5 USB_FP_P0(+) 6 USB_FP_P1(+)
7 GROUND 8 GROUND
9 KEY 10 USB_FP_OC0
F_USB1/F_USB2: Front panel USB Headers
The motherboard has USB ports installed on the rear edge I/O port array.Addition-
ally, some computer cases have USB ports at the front of the case. If you have this
kind of case, use auxiliary USB headers F_USB1/F_USB2 to connect the front-
mounted ports to the motherboard.
1. Locate the F_USB1/F_USB2 header on the motherboard.
2. Plug the bracket cable onto the F_USB1/F_USB2 header.
3. Remove a slot cover from one of the expansion slots on the system
chassis. Install an extension bracket in the opening. Secure the
extension bracket to the chassis with a screw.
IR1: Infrared Header
The infrared port allows the wireless exchange of information between your com-
puter and similarly equipped devices such as printers, laptops, Personal Digital
Assistants (PDAs), and other computers.
1. Locate the infrared port-IR1 header on the motherboard.
2. If you are adding an infrared port, connect the ribbon cable from the
port to the IR1 header and then secure the port to an appropriate
place in your system chassis.
Pin Signal Pin Signal
1NC2KEY
3+5V4GND
5 IRTX 6 IRRX

15
Chapter 2: Motherboard Installation
Floppy Disk Drive
Install your drives and connect power from the system power supply. Use the
cable to connect the drives to the floppy disk drive connector FDD1.
IDE Devices
IDE devices include hard disk drives, high-density diskette drives, and CD-ROM
or DVD-ROM drives, among others.
The motherboard ships with an IDE cable that can support one or two IDE devices.
If you connect two devices to a single cable, you must configure one of the drives
as Master and one of the drives as Slave. The documentation of the IDE device will
tell you how to configure the device as a Master or Slave device. The Master device
connects to the end of the cable.
Install the device(s) and connect power from the system power supply. Use the
cable provided to connect the device(s) to the Primary IDE channel connector IDE1
on the motherboard.
If you want to install more IDE devices, you can purchase a second IDE cable and
connect one or two devices to the Secondary IDE channel connector IDE2 on the
motherboard. If you have two devices on the cable, one must be Master and one
must be Slave.
Install Other Devices
Install and connect any other devices in the system following the steps below.

16
Motherboard User’s Guide
Pin Signal
1 CD IN L
2GND
3GND
4 CD IN R
SerialATA Devices
The Serial ATA (Advanced Technology Attachment) is the standard interface for
the IDE hard drives, which is designed to overcome the design limitations while
enabling the storage interface to scale with the growing media rate demands of PC
platforms. It provides you a faster transfer rate of 1.5 Gb/s. If you have installed a
SerialATAhard drive, you can connect the SerialATAcables to the SerialATAhard
drive or the connector on the motherboard.
On the motherboard, locate the Serial ATA connectors SATA1-2, which support
newSerialATAdevicesfor the highest data transfer rates, simplerdisk drivecabling
and easier PC assembly.
It eliminates limitations of the current ParallelATAinterface, but maintains register
compatibility and software compatibility with Parallel ATA.
Analog Audio Input Header
If you have installed a CD-ROM drive or DVD-ROM drive, you can connect the
drive audio cable to the onboard sound system.
When you first start up your system, the BIOS should automatically detect
yourCD-ROM/DVD drive. If it doesn’t, enter the Setup Utility and configure the

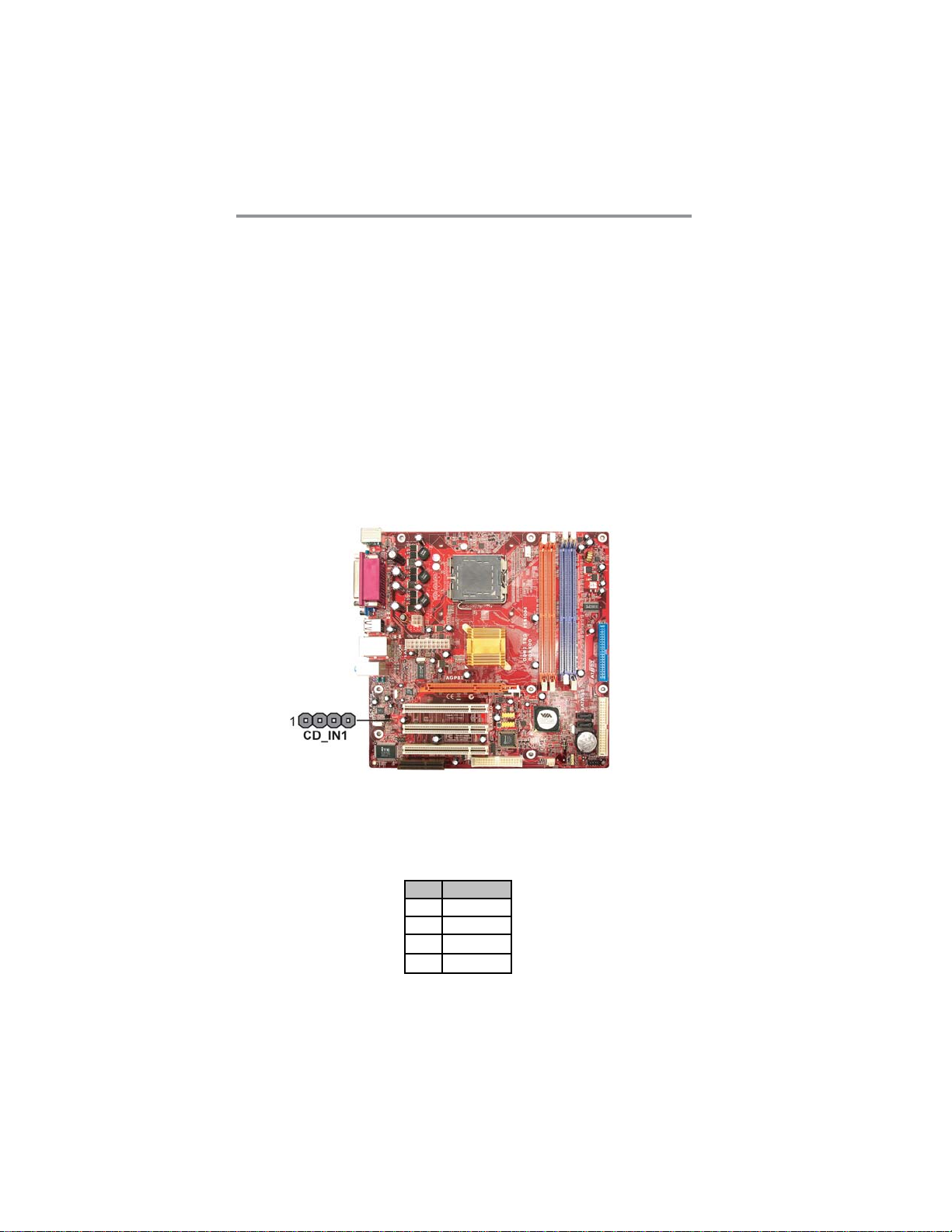

CD-ROM/DVD drive that you have installed. On the motherboard, locate the 4-
pinheader CD_IN1.

17
Chapter 2: Motherboard Installation
Expansion Slots
This motherboard has one AGP, CNR and three 32-bit PCI slots.
Follow the steps below to install an AGP/CNR/PCI expansion card.
1 Locate the AGP, CNR or PCI slots on the motherboard.
2 Remove the blanking plate of the slot from the system chassis.
3 Install the edge connector of the expansion card into the slot. Ensure
the edge connector is correctly seated in the slot.
4 Secure the metal bracket of the card to the system chassis with a
screw.
