15” Built-In Kegerator
Owner’s Manual
For more information on other great EdgeStar products on the web, go to https://www.edgestar.com
To use the EdgeStar self-diagnostic tool, go to https://support.edgestar.com
BR1500SS / BR1500SSOD
BR1500BL
Refrigerators for the KC1500 Series of Kegerators

i.
Note: Flammable Refrigerant Used! When handling, moving and using the refrigerator: make
sure to avoid either damaging the refrigerant tubing, or increasing the risk of a leak.
Important Safety Information
Improper handling can cause serious damage to the EdgeStar kegerator and/or injury to the
user. This kegerator is designed for domestic use only. Do not use the unit for industrial or
commercial use. Any other use may invalidate the warranty. Please review the ratings label
located on the rear panel of the unit for electrical and other technical data related to this unit.
The unit must be used in a properly grounded wall outlet.
Please read and follow the safety information listed below to reduce the risk of fire,
electric shock, or injury.
Electrical Safety
 Do not exceed the power outlet ratings.
 It is recommended that the kegerator be connected on its own circuit.
 The unit must be installed in accordance with state and local electrical codes.
 A standard electrical supply (115 V, 60 Hz), that is properly grounded in accordance with the
National Electrical Code and local codes and ordinances is required.
 Use outlets that cannot be turned off by a switch or pull chain.
 Always turn the unit off and unplug it from the outlet when cleaning.
 Unplug the unit if it is not going to be used for an extended period of time.
 Do not operate the unit with a power plug missing the ground plug, a damaged cord, or a loose
socket.
 Be sure the kegerator is properly grounded.
 Never plug or unplug the unit with wet hands.
 Do not bypass, cut, or remove the grounding plug.
 Do not use extension cords or power strips with this unit. You may need to contact your electrician if
it is necessary to use a longer cord or if you do not have a grounded outlet. Do not modify the
power cord’s length or share the outlet with other appliances.
 Do not start or stop the unit by switching the circuit’s power on and off.
 If the power cord is damaged, it must be replaced by the manufacturer or a qualified technician.
 Never repair the unit while it is plugged in.
 Immediately unplug the unit if it makes strange sounds, emits smells, or smoke comes out of it, and
contact customer service.
 Do not remove any part of the casing unless instructed to do so by an authorized technician.
 You should never attempt to repair the unit yourself.
 Contact customer service for service options if the unit needs service.

ii
Note: This owner’s manual is provided for reference use only. Specifications may change
without prior notice. Refer to the product label on the back of your kegerator for the latest
technical information.
General Safety
 To prevent back and other types of injuries, use at least two people to move and install the
kegerator.
 This unit is not intended for use by persons, including children, with reduced physical, sensory, or
mental capabilities, unless they have been given supervision or instruction concerning the use of
the appliance by the person(s) responsible for their safety.
 Install the unit in a well-ventilated area where the ambient temperature is above 50°F and below
95°F.
 The temperature range for this kegerator is optimized for beverage storage. Perishable food items
may require a different storage environment.
 Do not place hot or warm items into the kegerator before they cool down to room temperature.
 This unit is designed to be installed indoors (except for the BR1500SSOD), and protected from rain,
sleet, snow and/or moisture (all units).
 This unit is not intended to be used by children.
 Children should be supervised to ensure that they do not play with this product.
 Never allow children to crawl inside the kegerator. If disposing of the unit, remove the door.
 Do not use this unit near flammable gas or combustibles, such as gasoline, benzene, thinner, etc.
 Do not place the unit near heat sources such as ovens, grills, or direct sunlight.
 Only use in an upright position on a flat, level surface and provide proper ventilation.
 Do not pinch or kink the power supply line between the unit and cabinet.
 Do not leave any cleaning solutions in the unit.
 Do not use solvent-based cleaning agents or abrasive solutions to clean the unit as they may
damage the interior and exterior.
 Do not place any other appliances on top of the unit.
 Do not turn the unit upside down, on its side, or at an angle off level.
 If your model is equipped with a lock, take care to keep the keys away from children.
 Do not move the unit without emptying the contents and securing the door in a closed position.

iii
Table of Contents
IMPORTANT SAFETY INFORMATION………………………………………………………….......................................I
TABLE OF CONTENTS………………………………………………………………………………………………………..III
First Time Operating Instructions……………………………………………………………………………………………...1
INTRODUCTION……………………………………………………………………………………………………………….. 1
PARTS IDENTIFICATION…………………………………………………………………………………………………….. 2
FRONT VIEW……………………………………………………………………………………………………………………… 2
BACK VIEW……………………………………………………………………………………………………………………….. 2
ACCESSORIES………………………………………………………………………………………………………………… 3
STANDARD ACCESSORIES………………………………………………………………………………………………………. 3
INSTALLING THE KEGERATOR…………………………………………………………………………………………….. 4
UNPACKING THE KEGERATOR…………………………………………………………………………………………………… 4
ELECTRICAL REQUIREMENTS……………………………………………………………………………………………………. 4
Recommended Grounding Method……………………………………………………………………………………………5
LEVELING THE KEGERATOR……………………………………………………………………………………………………… 5
INSTALLING THE STAINLESS STEEL DOOR HANDLE…………………………………………………………………………….. 5
INSTALLING THE CASTERS……………………………………………………………………………………………………….. 6
REVERSING THE DOOR SWING…………………………………………………………………………………………………...6
To reverse the door from right swing to left swing………………………………………………………………………….. 6
FREE STANDING INSTALLATION………………………………………………………………………………………………….. 8
Guard Rail………………………………………………………………………………………………………………………..8
Drip Tray………………………………………………………………………………………………………………………….9
BUILT-IN INSTALLATION…………………………………………………………………………………………………………...9
Countertop Opening for Dispense Kit…………………………………………………………………………………………9
Installation Requirements……………………………………………………………………………………………………… 10
Enclose Space Between Cabinet and Countertop………………………………………………………………………….. 11
KEG LOADING……………………………………………………………………………………………………………….. 12
OPERATION……………………………………………………………………………………………………………………. 13
INSTALLATION CHECK LIST BEFORE OPERATION……………………………………………………………………………….. 13
USING THE TEMPERATURE CONTROL PANELS………………………………………………………………………………….. 13
NORMAL SOUNDS…………………………………………………………………………………………………………………14
DEFROSTING………………………………………………………………………………………………………………………14
PREPARING THE KEGERATOR FOR STORAGE…………………………………………………………………………………… 14
CLEANING AND MAINTENANCE……………………………………………………………………………………………15
EXTERIOR CLEANING…………………………………………………………………………………………………………….. 15
INTERIOR CLEANING………………………………………………………………………………………………………………15
TROUBLESHOOTING………………………………………………………………………………………………………… 15
SPECIFICATIONS………………………………………………………………………………………………………………17
EDGESTAR LIMITED WARRANTY…………………………………………………………………………………………. 18

1
First Time Operating Instructions
Before use, make sure all packaging labels and materials are completely removed from the
unit. Be sure to keep track of all included parts and pieces before discarding packaging
materials. It is advised that you keep the original box and packaging materials in case you
are ever to move or ship the appliance in the future.
Let the unit stand for at least 24 hours before you use it; this allows the cooling components
time to settle from transit. The instruction manual should be read before use.
Introduction
Thank you for purchasing this EdgeStar kegerator. We hope that this purchase will be the
beginning of a lasting and rewarding relationship between you and EdgeStar. We will provide the
customer support and exemplary products necessary to nurture that relationship.
This manual contains important information regarding the proper installation, use and
maintenance of your kegerator. Following this manual will ensure that your product will work at its
peak performance and efficiency.
Please save the original product packaging in case you need to safely transport your kegerator.
For Your Records:
Please write down the model number and serial number below for future reference.
Both numbers are located on the ratings label on the back of your unit and are needed
to obtain warranty service. You may also want to staple your receipt to this manual as it
is the proof of your purchase, and is also needed for service under your warranty.
Model Number:
Serial Number:
Date of Purchase:
For a more efficient experience, please do the following before contacting customer service:
 If you received a damaged product, immediately contact the retailer or dealer that sold you
the product.
 Read and follow this instruction manual carefully to help you install, use, and maintain your
kegerator.
 Read the troubleshooting section of this manual as it will help you diagnose and solve
common issues.
 Visit us on the web at https:/www.edgestar.com to register your product, download product
guides, additional troubleshooting resources and up-to-date information. You can also find an
interactive self-diagnostic tool at https://support.edgestar.com
 If you need warranty service, our friendly customer service representatives are available via
email at [email protected] or by telephone at 1 [phone].

2
Tip: Gather the model and serial number form the product label and write them down before
installing the kegerator.

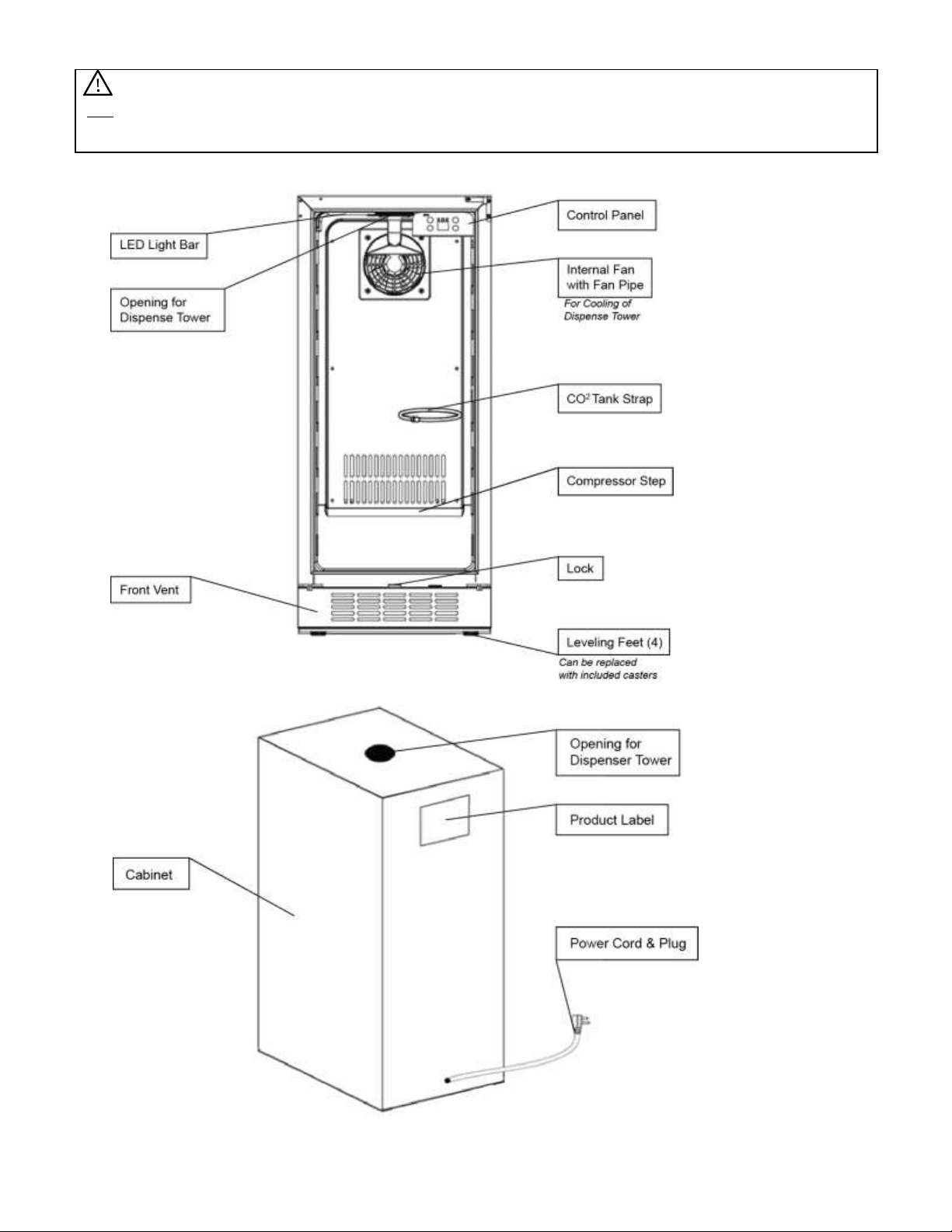

Parts Identification
Front View
Back View
Note: The carbon filter
should be replaced
every 3-6 months
depending on the
unit’s exposure level
to odor. If the unit is
placed in the kitchen
regular replacement
every 3 months is
ideal.

3
Accessories
Your kegerator will come with a set of standard accessories. These include a drip tray, guard
rail, guard rail installation pegs, door handle, casters, and dispense tower screws. The other
equipment / accessories you receive for the dispense kit and CO2 tank will be based upon the
type of kegerator you purchased.
Standard Accessories
Note: The variation of kegerator you purchased will determine the type of accessories you will
receive for the dispense kit.
(1) Drip Tray
(1) Guard Rail
(1) Guard Rail
(4) Guard Rail
Installation Pegs
(1) Door Handle
(Not included
with BR1500BL)
(4) Casters
(Includes 16
screws for
installation)
(4) Dispense
Tower Screws
(For attaching
dispense tower
to cabinet)

4
ELECTRIC SHOCK HAZARD!
 Plug into a grounded 3-prong outlet.
 Never remove the grounding prong from the plug.
 Never use an adapter to bypass the grounding prong.
 DO NOT use an extension cord.
 Failure to follow these instructions can result in fire, electrical shock, or death.
Warning: Use two or more people to move and install the kegerator. Failure to do so can result
in back or other injury.
Important: Do not remove any safety, warning, or product information labels from your
kegerator.
Installing the Kegerator
The kegerator should be installed in accordance with local electrical code requirements. The
kegerator should also be placed in a location that is strong enough to support its total weight,
keeping in mind that it will weigh substantially more when fully loaded than when empty.
Before you plug the kegerator into a power supply, be sure to let it stand upright for at least 24
hours to allow the compressor’s oils to settle.
Unpacking the Kegerator
Carefully remove the packaging materials. Remove any shipping tape and glue from your
kegerator before using. Do not use sharp instruments, rubbing alcohol, flammable fluids, or
abrasive cleaners to remove tape or glue. These products can damage the surface of your
kegerator.
Electrical Requirements
Before you move your kegerator into its final location, it is important to make sure you have the
proper electrical connection:
A standard electrical supply (115 V, 60Hz), properly grounded in accordance with the National
Electrical Code and local codes and ordinances, is required.
It is recommended that a separate circuit, serving only your kegerator, be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
The fuse (or circuit breaker) size should be at least 10 Amps.

5
Important: Once you are ready to install it in a cabinet or directly on the floor, you must adjust
the feet to level the kegerator.
Recommended Grounding Method
For your personal safety, this appliance must be grounded. It is equipped with a power
supply cord having a 3-prong grounding plug. To minimize possible shock hazard, the cord
must be plugged into a mating 3-pronged wall socket, and grounded in accordance with the
National Electrical Code and local codes and ordinances. If a mating wall socket is not
available, it is the personal responsibility of the customer to have a properly grounded, 3-
prong wall receptacle installed by a qualified electrician.
Leveling the Kegerator
It is important for the kegerator to be leveled in order to work properly. It can be raised or
lowered by rotating the plastic sheaths around each of the feet on the bottom of the unit. If you
find that the surface is not level, rotate the feet until the kegerator becomes level .You may need
to make several adjustments to level it. We recommend using a carpenter’s level to check the
machine.
1. Place a carpenter’s level on top of the product to see if the
kegerator is level from front to back and side to side.
2. Adjust the height of the feet as follows:
Turn the leveling feet clockwise to lower that side of the
refrigerator.
Turn the leveling feet counterclockwise to raise that side of the
refrigerator.
Installing the Stainless Steel Door Handle
BR1500SS, BR1500SSOD models only
To install a door handle:
1. Remove the four screws from the side of the door. This
should be the side opposite of the door hinge.
2. Place and align the openings of the handle hinges over the
screw holes in the side of the door.
3. Insert and tighten the screws to hold the handle in place.

6
Important: Before you begin, unplug the refrigerator.
Installing the Casters
This unit comes with four casters. These are an optional accessary to assemble if you would
like to make the unit more mobile. To install the casters:
1. Remove the four leveling legs from the bottom of the unit.
2. Separate the front casters and back casters. The front casters
have a lever for a brake lock.
3. Place the top plate of the caster over the area of the removed
leveling leg and align the opening to the screw hole openings.
4. Insert the screws to attach the caster to the cabinet.
5. Make sure the screws are tight so the caster is installed firmly.
Reversing the Door Swing
Follow the instructions below to reverse the door swing.
Please locate the upper left hinge (d) and lower left hinge axis plate (e) that were packaged
separately with your unit. You will need an adjustable wrench to remove the door.
To reverse the door from right swing to left swing:
1. Open the door to a 90º degree angle. Remove the two (2) bolts (a) that secure the
bottom hinge axis plate (b) to the door. Once removed, the door can be lowered from
the top hinge attachment and set aside. Please save the bottom hinge axis plate (b) for
future use.
Caution: Do not over-tighten the screws as this may cause damage to the handle or to the
stainless steel door.
