Edgetech STARMUX IV User manual

EdgeTech
4 Little Brook Road
West Wareham, MA 02576
Tel: [phone]
Fax: [phone]
www.EdgeTech.com
STARMUX IV
USER HARDWARE MANUAL
0023786_REV_A November 2020

ii
Starmux IV 0023786_REV_A
The information, figures, and specifications in this manual are proprietary. They are issued in strict
confidence on condition that they not be copied, reprinted, or disclosed to a third party, either wholly or
in part, without the prior written consent of EdgeTech. Any reproduction of EdgeTech supplied software
or file sharing is strictly prohibited.
EdgeTech © 2020. All rights reserved.

iii
ATTENTION – READ THIS FIRST!
All personnel involved with the installation, operation, or maintenance of the equipment described in this
manual should read and understand the warnings and cautions provided below.
CAUTION! This equipment contains devices that are extremely sensitive
to static electricity. Therefore, extreme care should be taken when
handling them. Standard handling precautions involve the use of anti-
static protection materials and grounding straps for personnel.
WARNING! High Voltage may be present in all parts of the system.
Therefore, use caution when the electronics are removed from their
containers for servicing. The voltages are high enough to cause serious
injury or death.
CAUTION! Operation with improper line voltage may cause severe
damage to the equipment. Always ensure that the proper line voltage is
used.

iv
Starmux IV 0023786_REV_A
HARDWARE VARIATIONS AND COMPATIBILITY
The Starmux IV contains both standard and proprietary hardware. At times, EdgeTech may change the
standard components due to their availability or performance improvements. Although the component
manufacturers and their models and styles may change from unit to unit, replacement parts will generally
be interchangeable.
EdgeTech will make every effort to see that replacement components are interchangeable and use the
same software drivers (if applicable). At times, however, direct replacements may not exist. When this
happens, EdgeTech will provide the necessary drivers with the replacement part, if applicable.
EdgeTech may also change certain hardware per customer requirements. Therefore, portions of this
manual, such as parts lists and test features, are subject to change. These sections should be used for
reference only. When changes are made that affect system operation, they will be explicitly noted. Some
options and features may not be active in the customer's unit at the delivery time. Upgrades will be made
available when these features are implemented.
Contact EDGETECH CUSTOMER SERVICE with any questions relating to compatibility.

v
ABOUT THIS DOCUMENT
We, the employees at EdgeTech, would like to thank you for purchasing Starmux IV. At EdgeTech, our
policy is to provide high-quality, cost-effective products and support services that meet or exceed your
requirements. We also strive to deliver them on-time and look for ways to improve them. We take pride
in the products we manufacture and want you to be entirely satisfied with your equipment.
Purpose of this Manual
The purpose of this manual is to provide the user with information on the setup and use of EdgeTech's
Starmux IV. Although this manual encompasses the latest operational features of the Starmux IV, some
features may be periodically upgraded. Therefore, the information in this manual is subject to change and
should be used for reference only.
Liability
EdgeTech has made every effort to document the Starmux IV in this manual accurately and completely.
However, EdgeTech assumes no liability for errors or for any damages that result from the use of this
manual or the equipment it documents. EdgeTech reserves the right to upgrade features of this
equipment and to make changes to this manual without notice at any time.
Warnings, Cautions, and Notes
Where applicable, warnings, cautions, and notes are provided in this manual as follows:
WARNING! Identifies a potential hazard that could cause injury or death.
CAUTION! Identifies a potential hazard that could damage equipment or data.
NOTE: Recommendations or general information that is particular to the
material being presented.
Revision History
Revision Notes Date Approval
A Release To Customers 11/05/2020 PO

vi
Starmux IV 0023786_REV_A
WARRANTY STATEMENT
All equipment manufactured by EdgeTech is warranted against defective components and workmanship
for a period of one year after shipment. Warranty repair will be done by EdgeTech free of charge.
Shipping costs are to be borne by the customer. Malfunction due to improper use is not covered in the
warranty, and EdgeTech disclaims any liability for consequential damage resulting from defects in the
equipment's performance. No product is warranted as being fit for a particular purpose, and there is no
warranty of merchantability. This warranty applies only if:
i. The items are used solely under the operating conditions and in the manner recommended in
Seller's instruction manual, specifications, or other literature.
ii. The items have not been misused or abused in any manner, nor have repairs been attempted
thereon without the approval of EdgeTech Customer Service.
iii. Written notice of the failure within the warranty period is forwarded to Seller, and the directions
received for properly identifying items returned under warranty are followed.
iv. The return notice authorizes Seller to examine and disassemble returned products to the extent
Seller deems necessary to ascertain the cause for failure.
The warranties expressed herein are exclusive. There are no other warranties, either expressed or implied,
beyond those set forth herein. The seller does not assume any other obligation or liability in connection
with the sale or use of said products. Any product or service repaired under this warranty shall only be
warranted for the remaining portion of the original warranty period.
Equipment not manufactured by EdgeTech is supported only to the extent of the original manufacturer's
warranties.

vii
SOFTWARE SERVICE OVERVIEW
EdgeTech provides software services free of charge. This software agreement does not address customer-
specified modifications or enhancements. These services may be ordered separately. Furthermore,
EdgeTech software upgrades are meant for the sole use of EdgeTech customers. Any reproduction of
EdgeTech-supplied software or file sharing is strictly prohibited.
Software Updates and Enhancements
EdgeTech customers can download new software releases with all modifications and enhancements from
the EDGETECH WEBSITE. Major software issues, should they occur, will be reported directly to the customer.
New software releases consist of the following:
•Software enhancements that are not on the price list
•Software fixes and changes
•Product integration
•Documentation updates to online help
•Tests for compatibility with other modules
Software patches consist of software that has undergone the following:
•Minor software enhancements
•Software fixes and changes
•Software Telephone, Facsimile, and E-mail Support
EdgeTech customers are entitled to contact EDGETECH CUSTOMER SERVICE by telephone, facsimile, or e-mail
to report a difficulty, discuss a problem, or receive advice on the best way to perform a task. When
contacted, EdgeTech Customer Service will do the following:
•Respond within 24 hours
•Immediately attend to serious problems affecting operations
•Attempt to find an immediate workaround

viii
Starmux IV 0023786_REV_A
RETURNED MATERIAL AUTHORIZATION
Before returning any equipment to EdgeTech, a Returned Material Authorization (RMA) number must be
obtained. The RMA will help us identify your equipment when it arrives at our receiving dock and track
the equipment while it is at our facility. The material should be shipped to the address provided in the
EDGETECH CUSTOMER SERVICE section. Please refer to the RMA number on all documents and
correspondences as well.
All returned materials must be shipped prepaid. Freight collect shipments will not be accepted. EdgeTech
will pay freight charges on materials going back to the customer after being evaluated and/or repaired.
CAUTION! If your product is a portable topside, never attempt to ship it
in the 6U case alone. Although rugged, these cases are not intended to
be used as shipping containers, and the delicate internal components
could be damaged if used in this manner.
The following steps apply only to the material being returned from outside the continental United States.
Follow them carefully to prevent delays and additional costs.
1. All shipments must be accompanied by three copies of your proforma invoice, showing the
material's value and the reason for its return. If the reason is for repair, it must be clearly stated
to move through customs quickly and without duties being charged. Whenever possible, please
send copies of the original export shipping documents with the consignment.
2. If the equipment's value is over $1000, the following Shipper's oath must be sent with the invoice.
This oath can be typed on the invoice or a separate letterhead:
"I, ______________________________, declare that the articles herein specified are the
growth, produce, or manufacture of the United States; that they were exported from the
United States from the port of _____________________, on or about _______________;
that they are returned without having been advanced in value or improved in condition
by any process of manufacture or any other means; and that no drawback, or allowance
has been paid or admitted hereof."
Signed ______________________________

ix
3. If there is more than one item per consignment, a packing list must accompany the shipment. It
is acceptable to combine the proforma invoice and packing list as long as each carton's contents
are clearly numbered and identified on the invoice.
4. Small items can be shipped prepaid directly to EdgeTech by FedEx, DHL, UPS, Airborne, etc.
5. If the equipment is the property of EdgeTech (formerly EG&G Marine Instruments Division),
please insure for full value.
6. Fax one invoice, packing list, and a copy of the airway bill to EdgeTech upon shipment.

x
Starmux IV 0023786_REV_A
CUSTOMER SERVICE
Customer service personnel at EdgeTech are always eager to hear from users about our products. Your
feedback is welcome and is a valuable source of information which we use to continually improve these
products. We encourage you to contact EdgeTech Customer Service to offer any suggestions or to request
technical support:
NOTE: Please have your system Serial Number available when contacting
Customer Service.
E-mail: [e-mail]
Mail: 4 Little Brook Road
West Wareham, MA 02576
Telephone: [phone]
Facsimile: [phone]
24-Hour Emergency
Technical Support Line: [phone]
For more information, please go to www.EdgeTech.com.

xi
COMPANY BACKGROUND
EdgeTech (formerly EG&G Marine Instruments) traces its history in underwater data acquisition and
processing back to 1966. EdgeTech has designed, developed, and manufactured products, instruments,
and systems—for the acquisition of underwater data, including marine, estuarine, and coastal
applications—for over 45 years.
The company has responded to the scientific, Naval, and offshore communities' needs by providing
equipment—such as sub-bottom profilers, side-scan sonar, acoustic releases, USBL positioning systems,
and bathymetric systems—that have become standards in the industry.
EdgeTech has also consistently anticipated and responded to future needs through an active research and
development program. Current efforts are focused on the application of cutting-edge CHIRP and acoustic
technology.

xii
Starmux IV 0023786_REV_A
TABLE OF CONTENTS
ATTENTION – READ THIS FIRST! .........................................................................................................iii
HARDWARE VARIATIONS AND COMPATIBILITY..................................................................................iv
ABOUT THIS DOCUMENT....................................................................................................................v
Purpose of this Manual............................................................................................................................. v
Liability...................................................................................................................................................... v
Warnings, Cautions, and Notes................................................................................................................. v
Revision History ........................................................................................................................................ v
WARRANTY STATEMENT ...................................................................................................................vi
SOFTWARE SERVICE OVERVIEW........................................................................................................vii
Software Updates and Enhancements.................................................................................................... vii
RETURNED MATERIAL AUTHORIZATION ..........................................................................................viii
CUSTOMER SERVICE...........................................................................................................................x
COMPANY BACKGROUND .................................................................................................................xi
TABLE OF CONTENTS ........................................................................................................................xii
LIST OF FIGURES.............................................................................................................................. xiv
LIST OF TABLES ................................................................................................................................xv
1.0: OVERVIEW ...............................................................................................................................1-1
1.1 Applications ..................................................................................................................................1-1
2.0: SPECIFICATIONS .......................................................................................................................2-2
2.1 Mechanical Drawings....................................................................................................................2-3
3.0: SETUP AND ACTIVATION...........................................................................................................3-4
3.1 Unpacking and Inspecting.............................................................................................................3-4
3.2 Installing the Starmux IV...............................................................................................................3-4
3.3 Starmux IV Control, Indicator, and Connection Configurations ...................................................3-4
3.3.1 Starmux IV Controls, Indicators, and Connections.................................................................3-5
3.3.2 Starmux IV and EdgeTech 2U Computer Controls, Indicators, and Connections...................3-7
3.3.3 Starmux IV Connection and Feature Functionality by System .............................................3-10
3.4 Connecting the System Components..........................................................................................3-10
3.4.1 Connecting the Starmux IV to a Computer ..........................................................................3-10

xiii
3.4.2 Connecting and Attaching the Tow Cable to the Towfish....................................................3-13
3.4.3 Connecting the Tow Cable to the Starmux IV ......................................................................3-13
3.4.4 Connecting a FSK Trigger......................................................................................................3-13
3.4.5 Connecting a 1PPS Trigger....................................................................................................3-14
3.5 Activating the Unit ......................................................................................................................3-14
4.0: MAINTENANCE.......................................................................................................................4-16
5.0: TROUBLESHOOTING ...............................................................................................................5-17

xiv
Starmux IV 0023786_REV_A
LIST OF FIGURES
Figure 2-1: Starmux IV ICD (Click Image for Embedded .pdf) ....................................................................2-3
Figure 2-2: Starmux IV in 6U Case ICD .......................................................................................................2-3
Figure 3-1: Starmux IV Front and Back Panel Controls, Indicators and Connections ................................3-5
Figure 3-2: Labeled Front Panels of Starmux IV with EdgeTech Computer...............................................3-7
Figure 3-3: Labeled Rear Picture of Starmux IV and EdgeTech Computer ................................................3-8
Figure 3-4: Starmux IV and Optional EdgeTech Computer Ethernet Port Connections ..........................3-11
Figure 3-5: Windows Manual IP Properties Window...............................................................................3-12
Figure 3-6: Starmux IV Rear Panel Tow Cable Connector........................................................................3-13
Figure 3-7: Starmux IV Rear Panel FSK SYNC Connector..........................................................................3-14
Figure 3-8: Starmux IV Rear Panel 1PPS Connector.................................................................................3-14

xv
LIST OF TABLES
Table 2-1: Starmux IV Configuration Specifications...................................................................................2-2
Table 3-1: Starmux IV Front and Back Panel Controls, Indicators and Connection Descriptions..............3-6
Table 3-2: Starmux IV Controls, Indicators, and Connections Descriptions ..............................................3-9
Table 3-3: Starmux IV Port, Connector and Feature Functionality By System ........................................3-10
Table 3-4: Reserved IP Numbers By System and Component (Do Not Assign These).............................3-12
Table 5-1: Starmux IV Troubleshooting Guide.........................................................................................5-18

1-1
1.0: OVERVIEW
The Starmux IV provides power to 2300, 4200, 4205, 2050-DSS, 2000-DSS, or 2000-TVD Towfish while
acting as a digital link between the towfish and a topside computer with EdgeTech's Discover application
installed on it. The Starmux IV features a modern digital current display, four status indicator lights, and
connectors for supporting survey devices and triggers. It can be bought independently, combined with an
EdgeTech Computer in a rugged 6U case, or as a component of an EdgeTech towfish system. The Starmux
IV has replaced the Starmux III digital link.
CAUTION! Never attempt to attach the Starmux IV to the 4125i Series Towfish
or any other model that it is not designed for. The voltages involved could
damage and destroy all equipment. Please contact EDGETECH CUSTOMER SERVICE
if you are unsure if your towfish is compatible with the Starmux IV.
This manual provides: Starmux IV physical and electrical specifications, mechanical drawings, control,
indicator light, and connection descriptions, setup, activation and maintenance instructions, and provides
troubleshooting tips. It should be used in combination with EdgeTech Discover Software and EdgeTech
Hardware Manuals to support your towfish system. Download links for the latest manual for this product
and others can be found in the SUPPORT RESOURCE CENTER WEBPAGE and under the Downloads Tab of each
product webpage on the EDGETECH WEBSITE.
1.1 Applications
The Starmux IV unit can be used in conjunction with the systems above for the following applications:
•Fisheries research
•Mine countermeasures
•Hydrographic surveys
•Cable and pipeline surveys
•Channel conditioning/clearance surveys
•Geo-hazard surveys
•Geological/geophysical surveys
•Route surveys
•Archaeological surveys
•Search and recovery

2-2
Starmux IV 0023786_REV_A
2.0: SPECIFICATIONS

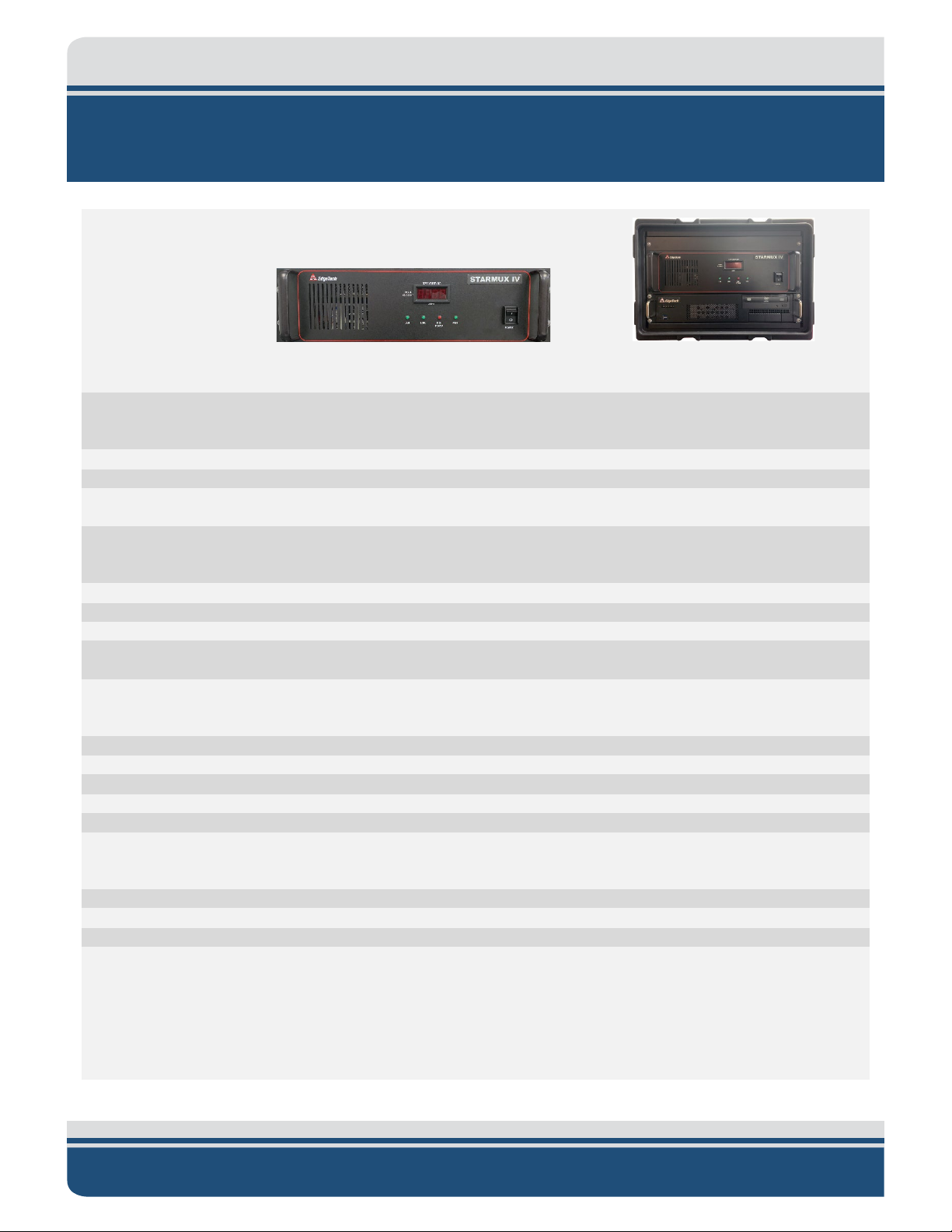

Starmux IV Digital Link Rack Mount (Starmux IV DL and 2U
Computer in 6U Case)
Size
13.2 cm (5.2 in.) high
48.2 cm (19 in.) wide
50.5.2 cm (20 in.) deep
76.2 cm (30 in.) high
76.2 cm (30 in.) wide
64.9 cm (23.37 in.) deep
Weight
10.4 kg (23 lb.)
70.31 kg (155 lb.)
Case construction
Aluminum 19-inch rack mount
PVC
Shipping Container
Type
Carton
Sealed high impact polyurethane case
Shipping Container Size
66 cm (26 in) high
66 cm (26) in wide
30.5 cm (12 in) deep
76.2 cm (30 in.) high
76.2 cm (30 in.) wide
76.2 cm (30 in.) deep
Shipping Weight
14.5 Kg (32 lb.)
70.3 kg (155 lb.)
Operating Temp.
0–45°C (32–113°F)
0–45°C (32–113°F)
Storage Temp.
-10–60°C (14–140°F)
-10–60°C (14–140°F)
Operating relative
humidity
5–90% (non-condensing)
5–90% (non-condensing)
Non-operating storage
relative humidity
5-90%
5-90%
Input voltage
100-264 VAC, 50/60 Hz, auto-switching
100-264 VAC, 50/60 Hz, auto-switching
Input power
~ 1200W
~ 1200 W
Power to Towfish
375 VDC
375 VDC
Processor
—
Intel Core, I7, 3.6 GHz Quad-Core
Memory
—
4 GB, 1333 MHz
Data storage
—
DVD/RW drive
1-TB hard drive (data)
500-GB hard drive (OS)
Display
—
23.6-inch LCD monitor
Keyboard
High impact industrial keyboard
Pointing device
—
High impact industrial trackball
I/O ports
(4) Ethernet
(6) RS-232
(1)PPS Trigger
(1)FSK Trigger
(2)Trigger
(5) Ethernet
(8) RS-232
(6) USB 2
(2) USB 3
(1)PPS Trigger
(1)FSK Trigger
(2) Trigger
Table 2-1: Starmux IV Configuration Specifications

2-3
2.1 Mechanical Drawings
Figure 2-1: Starmux IV ICD (Click Image for Embedded .pdf)
Figure 2-2: Starmux IV in 6U Case ICD

3-4
Starmux IV 0023786_REV_A
3.0: SETUP AND ACTIVATION
The setup of a particular system depends upon the configuration. However, the following general
guidelines may be used for most systems. Further instructions can be found in the product's hardware
and Discover software manuals.
3.1 Unpacking and Inspecting
Carefully unpack the Starmux IV and check the packing list to ensure that all items are present. If any items
are missing, report it to EDGETECH CUSTOMER SERVICE. Likewise, if any items have been damaged during
shipping, do not install them. Instead, contact EdgeTech for further instructions.
Save the original packaging that the system came with, as these containers can and should be used when
the system is not used for extended periods of time.
3.2 Installing the Starmux IV
The Starmux IV in any configuration should be located and set up in a dry, sheltered environment that is
protected from weather and water spray. All configurations require an environment where the
temperature is consistently between 0–45°C (32–113°F) and humidity no greater than 90%. Avoid areas
of direct sunlight, especially in tropical environments, as heat buildup could damage the equipment, and
glare could hinder the user's ability to see the LCD and status indicators.
The Starmux IV in any configuration should be physically located in an area that provides unimpeded
access and is within the physical and electrical limits of the network, device, and tow cabling and power
source it is attached to. Please avoid severe bends, particularly with the tow cable. The Starmux IV should
also be located in a place that allows users to communicate directly with the deck crew handling the
towfish.
If mounting a Starmux IV on a 19-inch rack, ensure that there is ample room behind the rack for connecting
the cables. Support the rack's components using appropriate mounting brackets and secure the front
panels using standard 19-inch rack front panel mounting hardware. A drawing with dimensions and
weights can be found in the MECHANICAL DRAWINGS section of this manual.
3.3 Starmux IV Control, Indicator, and Connection Configurations
Starmux IV configuration front and back panel pictures with marked control, indicator, and connections
are provided below, along with tables describing them.

3-5
3.3.1 Starmux IV Controls, Indicators, and Connections

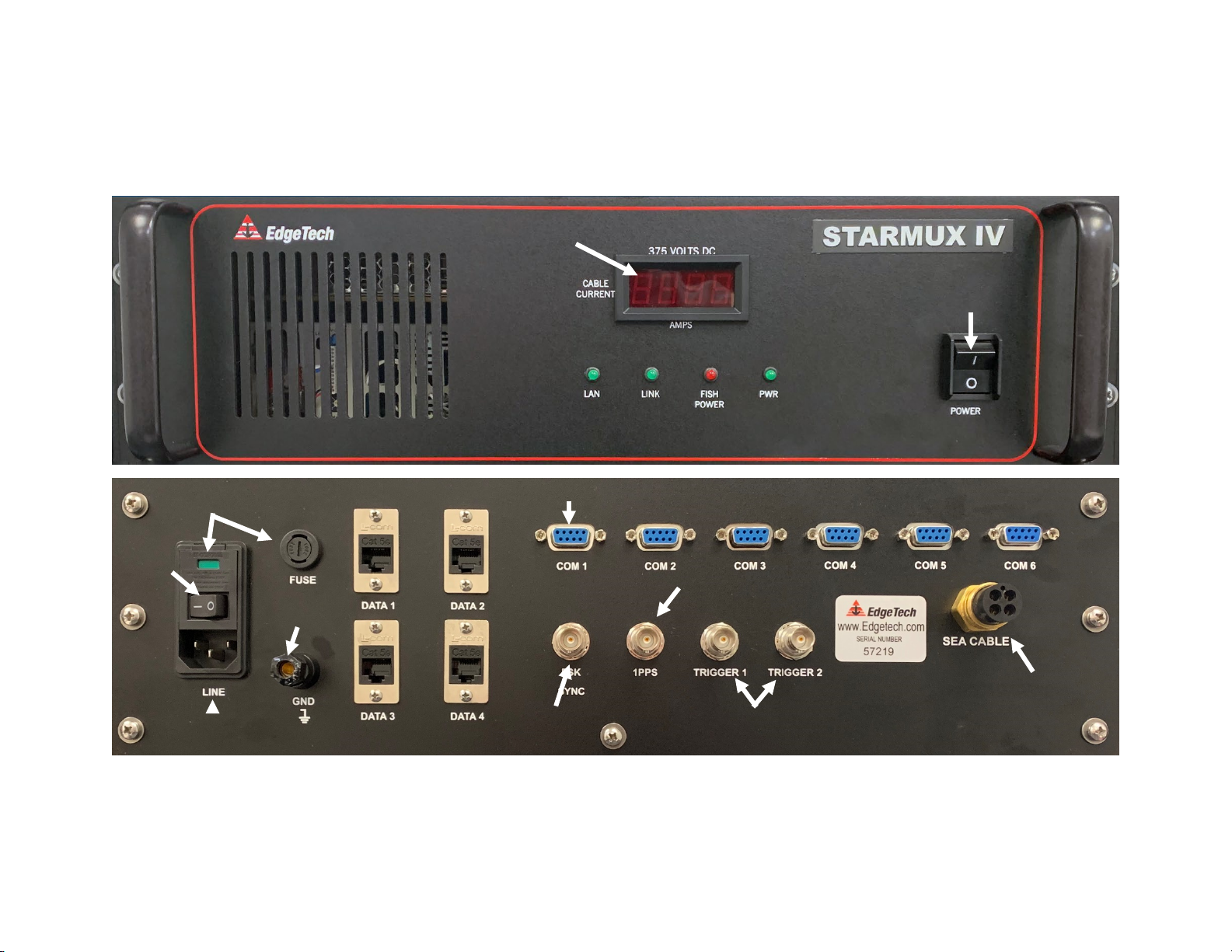

Figure 3-1: Starmux IV Front and Back Panel Controls, Indicators and Connections
Digital Display
Indicator Lights
Starmux Power Switch
Telemetry/Subsea Serial Ports
Sea Cable Connector
Optional Trigger Connectors
Network Ethernet Ports
Grounding
Lug
Power
Switch
FSK Sync
Connector
NAV Input for Network Broadcast
Fuses
1PPS Connection
Digital Display
Line VAC
Connector
