Edwards & Co Ed & Co multi-fix PA0101 User manual

INSTRUCTION
MANUAL
AVERY Car Seat Capsule Base
MODEL PA0101
Suitable from 0 to 13 kg.
Certified to European ECE R44/04 in Group 0+ as approved by
Land Transport NZ.
Keep for future reference.
To reduce the risk of serious injury or death, read this owner’s
manual prior to installing and using this car seat.

Hey there!
Thanks for choosing Edwards & Co - it truly means a lot to us that you
have chosen one of our car seats to keep your family safe.
A lot of time and money is spent ensuring that your car seat is the
safest it can be. But to get the maximum protection from your
car seat it is very important that you read this instruction manual
carefully. In particular, pay attention to the warnings included as well
as the correct installation methods provided. Subtle differences can
make a huge difference when it comes to safety.
We believe in long lasting relationships with our customers, and we’d
love you to keep in touch. You can sign up to our newsletter via our
website newsletter or follow us on Facebook. And remember that if
you need anything we’re a simple phone call or email away.
Thanks again for being part of our community!
Regards
Mark Edwards Warwick Edwards
WEB - edwardsandcobaby.com
FB - facebook.com/edwardsandcobaby
INTRODUCTION

GENERAL WARNINGS
To reduce the risk of SERIOUS INJURY or DEATH, read this owner’s
manual and your vehicle owner’s manual before installing and
using this base. By properly using this base and following these
instructions, you will greatly reduce the risk of serious injury or death
to your child from a collision.
• This product is designed to be used with ISOFIX OR Belt Fix. NEVER use
the product with both ISOFIX and Belt Fix anchors together.
• This product is an approved ISOFIX CHILD RESTRAINT SYSTEM. It is
approved to regulation No.44/04.
• This product fits vehicles with positions approved with ISOFIX anchors,
depending on the category of the child seat and of the fixture. ALWAYS
refer to your vehicle’s handbook before using this product. The mass
group and the ISOFIX size class for which this product is intended is:
Group 0+, E – ISO/R1.
• When this product is used with your vehicle’s 3-point seat belt, it is
only suitable for use in vehicles approved to ECE Regulation No.16 or
equivalent standards.
• This car seat base can only be used with Edwards & Co car seat capsule
models FA0050, FA0053 and FA0062. NEVER use this product with
another capsule shell.
• NEVER LEAVE YOUR CHILD UNATTENDED IN THE CAR SEAT.
• NEVER USE THIS CAR SEAT BASE IN A PASSENGER SEAT FITTED
WITH AIRBAGS. ONLY FIT to a forward-facing passenger seat.
• NEVER use the product without fastening it into your vehicle.
• NEVER alter or modify the product in any way as this may affect its
performance in the event of a collision.
• The product is suitable from birth up to 13kg (approximately 12-15 months
old).
• DISCARD this product if it is involved in a serious collision EVEN if no
damage is visible.
• NEVER place heavy items on top of the base as this may distort the
plastic.
• Do not store in areas that may get particularly hot in summer, like roof
space, car boots or beside shed walls.
• Do not to use this base if it is older than 7 years from the manufacture
date (the manufacture date is stamped on it’s underside).
3

FEATURES OF THIS CAR SEAT BASE
4
ISOFIX Installation Guides
Stabiliser Guard
Seat Belt Lock-off
ISOFIX Fixing
Lock
Stand
Stand Release
Button
Car Seat Release Button

ISOFIX Fixing
Lock
ASSEMBLY
This section explains how to assemble the car seat base when opened
from the box.
Tools required - small “Phillips” screwdriver
Put the tubes on the stabiliser guards into the
socket.
Press the tube down firmly until they reach
the bottom of the socket.
Using a Phillips screwdriver, fasten the
included screws into the stabiliser tubing.
Pull the stabiliser guard to check it’s secured.
When using the ISOFIX installation system,
extend the fixing lock by lifting the latch
and turning the lock in the direction of the
arrow.
EXTENDING THE ISOFIX ARMS
The fixing locks can be stowed when not in
use.
IMPORTANT - always stow the ISOFIX
fixing lock as pictured in Figure (3) if
installing your base using the 3-point seat
belt method.
5
1
2
3

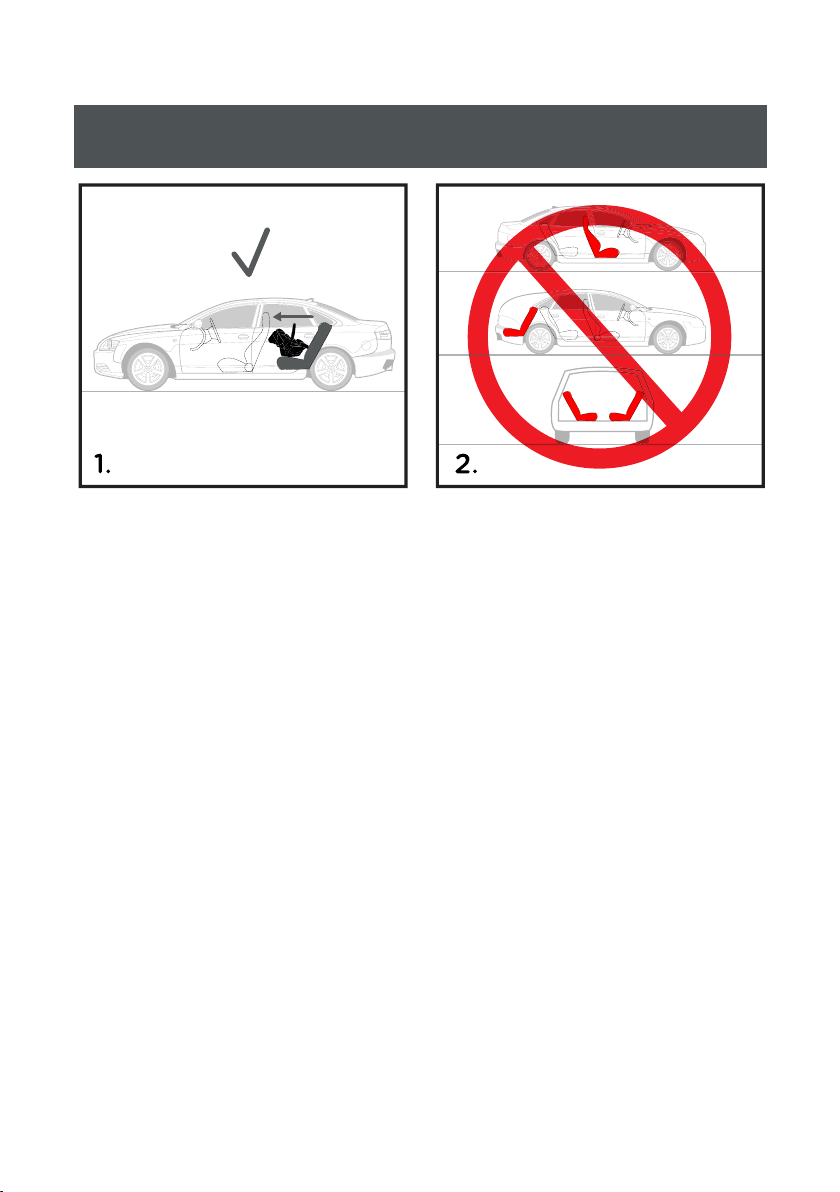

WHERE TO INSTALL THE BASE
WARNING - This car seat base is only suitable for approved vehicles
fitted with ISOFIX or 3 point seat static or retractable seat belt.
WARNING - Only install the car seat base in a forward-facing
passenger seat as indicated in Diagram (1) above. A forward-facing
seat is one that faces in the direction of the car’s movement. Do not
install into a rear-facing or side-facing passenger seat as pictured in
Diagram (2) above.
WARNING - Do not install the car seat in a passenger seat fitted with
airbags.
6

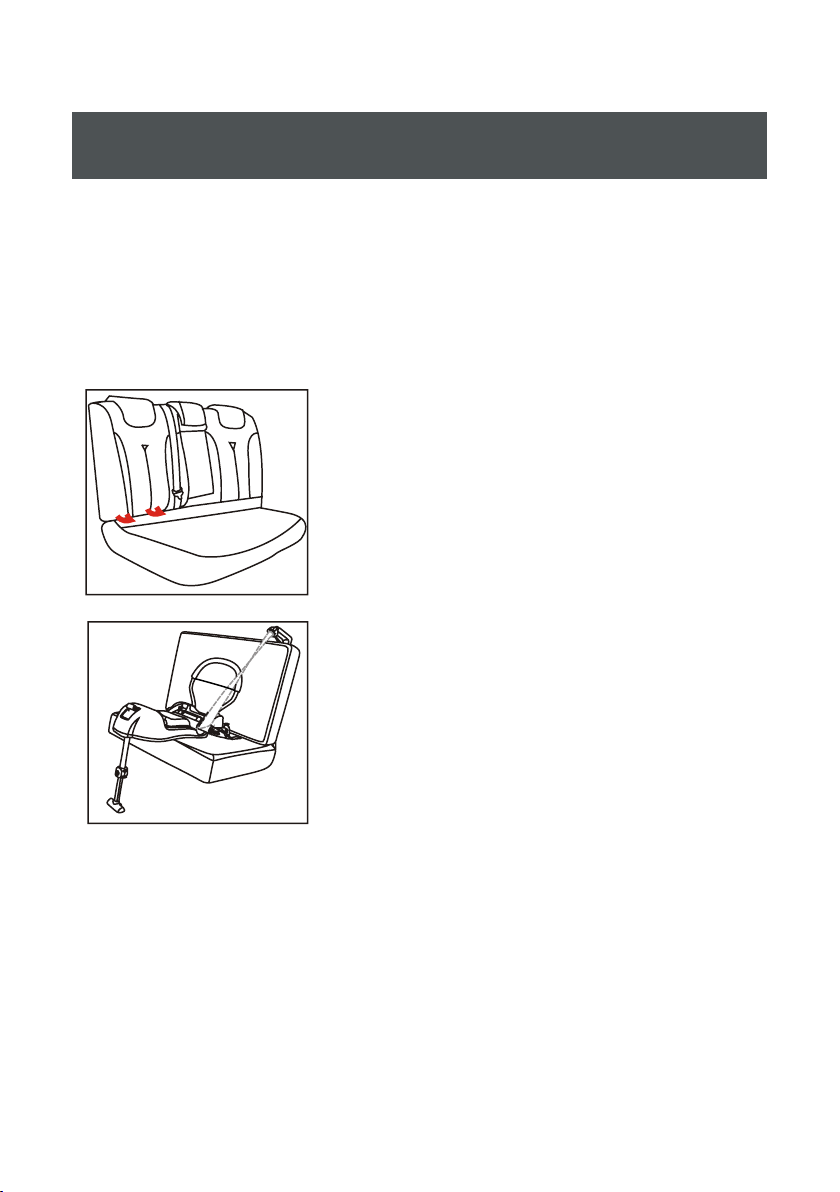

IMPORTANT INFORMATION
This car seat base may be installed to your car using the ISOFIX
system (if fitted) OR the 3-point seat belt system.
Refer to page 6 for the locations suitable for installation.
ISOFIX
The ISOFIX system consists of two anchors
at the bottom corner of your vehicle’s rear
passenger seats.
WARNING - Always refer to your vehicle’s
handbook before using the ISOFIX system.
3 point seat belt
Use your vehicle’s 3-point seat belt where
ISOFIX is not available or you cannot
achieve a safe installation as described in
this manual.
7

ISOFIX - VEHICLE INSTALLATION
Insert the ISOFIX installation guides in
between the seat fabric as shown in
Figure (1).
These guides make installing the base
easier by uncovering the location of
your vehicle’s ISOFIX anchors. They
aren’t always helpful depending on your
vehicle. Don’t use them if not required.
Insert the ISOFIX fixing lock through the installation guides (if you are
using them) and connect them to the ISOFIX anchor in your vehicle
as shown in Figure (3) and (4).
You should hear a distinct CLICK! when the lock connects to the
ISOFIX anchor.
Figure (5) pictures the correct setting displayed on the fixing lock
upon a correct installation. A green indicator will be shown once
installed as indicated.
WARNING - always check the indicator matches Figure (5) before
use. Double check the connection by pulling the base against the
anchor. There should be a tight connection.
8
Open the base stand by pressing the
stand release button and moving the
locking clip from position 2 to 1 as
shown in Figure (2).
NO
YES
345
21
1
2

ISOFIX - VEHICLE INSTALLATION
Press the stand release button and extend
the stand feet to lightly touch the floor of
your vehicle.
WARNING - Always check that the base sits level or slightly sloped
towards the bottom of your vehicle’s passenger seat. You can use
the level indicator found on the car seat capsule for guidance (see the
instructions provided for your capsule).
An incorrectly installed car seat may cause death or injury. If you
are unsure, please contact Edwards & Co or talk to your local Child
Restraint Technician, found via the New Zealand Transport Agency
website - www.nzta.govt.nz
9
ISOFIX - REMOVAL FROM VEHICLE
Remove the ISOFIX fixing lock by pressing the release button as
shown in Figure (1).
Retract the stand by pressing the stand release button and pushing it
back into its housing as shown in Figure (2).
Retract the ISOFIX fixing lock into its housing as shown in Figure (3).
Retract the stand into its housing as shown in Figure (4).
1 2
12 3 4

SEAT BELTS - VEHICLE INSTALLATION
Open the base’s stand by pressing the stand release button and
moving the locking clip from position 2 to 1 as shown in Figure (2) on
page 8.
1. Thread the lap belt and
shoulder belt of your vehicle’s
3-point seat belt through
the seat belt guide stickers
found on the base (as shown
in Figure (1) and connect the
buckle as shown in Figure (2).
2. Put your weight down onto
the base and pull the seat belts
as tight as you physically can,
then attach the belt-lock as
shown in Figure (2). The belt-
lock should always be on the
same side of the base as the
car buckle. Note - if you find
the seat belt buckle is too long,
you can twist it up to three
times to shorten it.
3. If you car is fitted with an
Automatic Locking Retractor
(ALR), pull the shoulder belt
all the way out, then slowly
release it until you hear a
clicking/racheting sound.
Release it until the belt is tight.
10
WARNING - Make sure the lap belt and shoulder belt are tightly
wrapped around the seat before use. We suggest a few attempts to
get it as tight as possible.
WARNING - For vehicles with leather seats we recommend the use of
a rubber mat to reduce movement of the base.
WARNING - The belt should be flat against the frame of the base. If
the belt is crimped or twisted, reinstall the base.
1
2

Press the stand release button and extend the
stand feet to lightly touch the floor of your
vehicle.
SEAT BELTS - VEHICLE INSTALLATION
The completed installation should
resemble the figure on the left.
WARNING - When installing the base with seat belts, it is only suitable
for 3-point static or retractable versions.
WARNING - Always check that the base sits level or slightly sloped
towards the bottom of your vehicle’s passenger seat. You can use
the level indicator found on the car seat capsule for guidance (see the
instructions provided for your capsule).
An incorrectly installed car seat can cause death or injury. If you’re
unsure about the installation, please contact us or talk to your local
Child Restraint Technician via the New Zealand Transport Agency
website - www.nzta.govt.nz
11

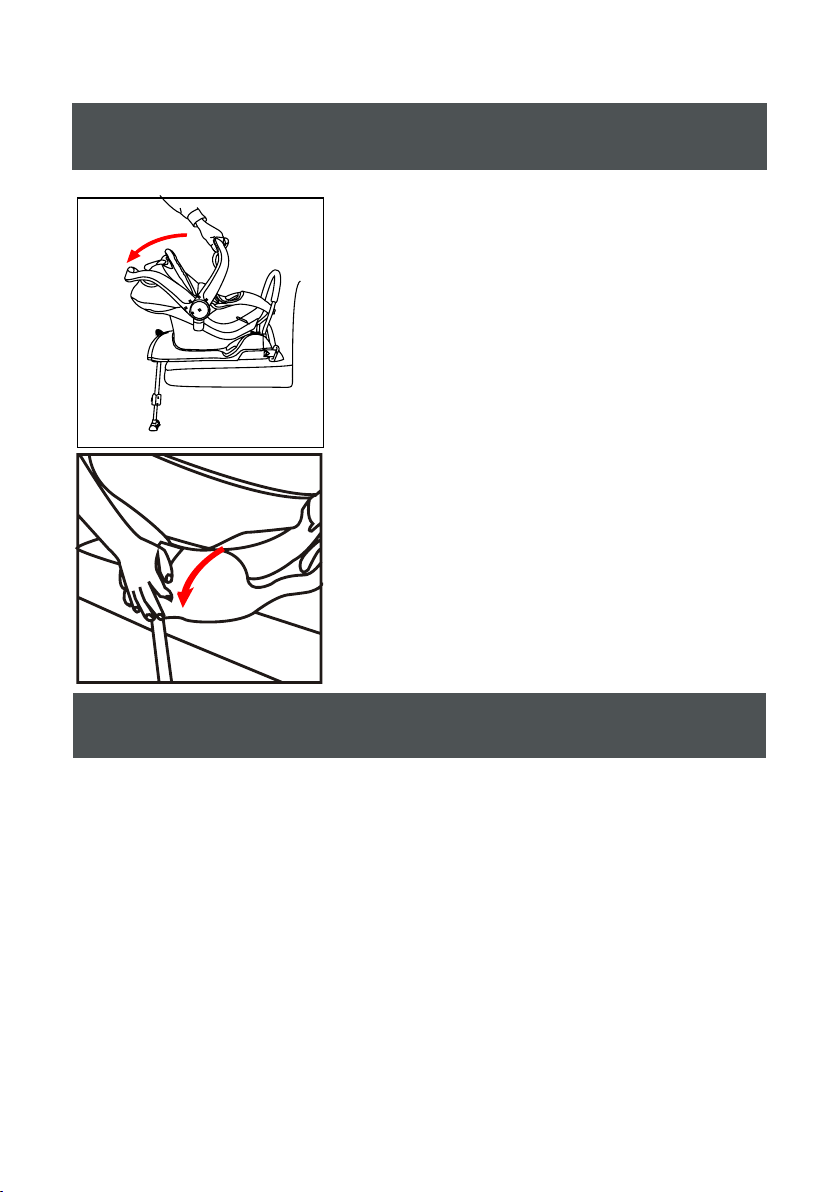

CONNECTING THE CAR SEAT
Installing:
Place the car seat capsule onto the base
until you hear a distinct CLICK! Press
your weight on all four corners of the car
seat capsule to ensure a good connection
on all teeth. Check the connection by
attempting to lift the capsule upwards.
IMPORTANT - The handle must be
positioned in B when driving.
Removing:
With the handle in position A, press the
red lever downwards and lift the car seat
capsule up at the same time.
12
A
B
CARE
Cleaning the base:
• Wipe with a damp rag.
• NEVER use household detergents as they can weaken the plastic.
• NEVER get the product wet.
Important information:
• NEVER lubricate or oil any part of the base.
• NEVER use solvents, harsh detergents or washing up liquids.
• Dry thoroughly before storage.
• Store in a well-ventilated area, away from direct sunlight.
• Store in a safe place when it is not being used. Avoid placing
heavy objects on top of it.
• NEVER allow the seat to come into contact with corrosive sub-
stances such as battery acid or petroleum products.

WARRANTY
All Edwards & Co products are guaranteed for two years from the
date of purchase against defects in material and workmanship.
If we determine that the product has a manufacturing fault, we will
repair or replace it free of charge to you. The decision to repair
or replace is solely at the discretion of Edwards & Co. Proof of
purchase must be provided.
The warranty is “return to base” and not a free in-home service. This
means the customer is responsible for any inwards freight charge to
return the product to an Edwards & Co representative for warranty
or service.
Our warranty excludes claims resulting from misuse, abnormal use,
overloading, general wear and tear, child outgrowing the product,
not following instructions, transportation damage (including airline
or freight damage), poorly maintained product, dropped goods,
negligence, second-hand product, modified product, colour fading,
mould, damage to inner foam in use or fabric cuts and tears.
The warranty excludes repairs to car seats that have been involved
in a car accident.
Any replacement will not give the right for the warranty period to
be extended.
Edwards & Co does not cover warranty if the product has been
purchased second hand or from an unauthorised reseller.
For the complete terms and conditions of our warranty, please visit
our website - www.edwardsandcobaby.com/warranty
13
