EFI DocuColor 40 User manual

Fiery X40 Color Server
COLOR GUIDE
RELEASE COPY 8/7/00
This file contains material copyrighted by EFI. Xerox
may not use, copy, or distribute this material except
for internal purposes only. Under no circumstances
can Xerox copy or distribute this material to anyone
outside of Xerox without EFI’s written consent.

Copyright © 2000 Electronics For Imaging. All rights reserved.
Thispublicationisprotectedbycopyright,andallrightsarereserved.No partofitmaybereproducedortransmittedinanyformorbyanymeansforanypurpose
without express prior written consent from Electronics For Imaging, except as expressly permitted herein. Information in this document is subject to change
without notice and does not represent a commitment on the part of Electronics For Imaging.
The software described in this publication is furnished under license and may only be used or copied in accordance with the terms of such license.
Patents: 5,867,179; 5,835,788; 5,666,436; 5,553,200; 5,543,940; 5,537,516; 5,517,334; 5,506,946; 5,424,754; 5,343,311; 5,212,546; 4,941,038; 4,837,722;
4,500,919; D406,117
Trademarks
EFI, the EFI logo, Fiery, the Fiery logo, Fiery Driven, the Fiery Driven logo, EFICOLOR, ColorWise, and Rip-While-Print are trademarks registered in the U.S.
Patent andTrademark Office. Fiery Z4, Fiery X4, Command WorkStation, AutoCal, Starr Compression, Memory Multiplier, NetWise, VisualCal, and Velocity
are trademarks of Electronics For Imaging, Inc.
All Xerox product names mentioned in this publication are trademarks of the XEROX CORPORATION.
Adobe, the Adobe logo, Adobe Illustrator, PostScript, Adobe Photoshop, Adobe Separator, and Adobe PageMaker are trademarks of Adobe Systems Incorporated,
registered in certain jurisdictions. EPS (Encapsulated PostScript) is a trademark of Altsys Corporation. Apple, the Apple logo, AppleShare, AppleTalk, EtherTalk,
LaserWriter, and Macintosh are registered trademarks, and MultiFinder is a trademark of Apple Computer, Inc. Microsoft, MS, MS-DOS, and Windows are
registered trademarks of Microsoft in the US and other countries. QuarkXPress is a registered trademark of Quark, Inc.Times, Helvetica, and Palatino are
trademarks of Linotype AG and/or its subsidiaries. ITC Avant Garde, ITC Bookman, ITC Zapf Chancery, and ITC Zapf Dingbats are registered trademarks of
InternationalTypeface Corporation. Ethernet is a registered trademark of Xerox Corporation. NetWare and Novell are registered trademarks and Internetwork
Packet Exchange (IPX) is a trademark of Novell, Inc. UNIX is a registered trademark of UNIX System Laboratories, a wholly owned subsidiary of Novell, Inc.
PANTONE is a registered trademark of Pantone, Inc. Matchprint is a trademark of Imation Corp.
All other terms and product names may be trademarks or registered trademarks of their respective owners, and are hereby acknowledged.
Legal Notices
APPLE COMPUTER, INC. (“APPLE”) MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, REGARDING THE APPLE SOFTWARE.
APPLE DOES NOTWARRANT, GUARANTEE, OR MAKE ANY REPRESENTATIONS REGARDING THE USE ORTHE RESULTS OF THE USE
OFTHE APPLE SOFTWARE INTERMS OF ITS CORRECTNESS, ACCURACY, RELIABILITY, CURRENTNESS, OR OTHERWISE.THE ENTIRE
RISK AS TO THE RESULTS AND PERFORMANCE OF THE APPLE SOFTWARE IS ASSUMED BYYOU. THE EXCLUSION OF IMPLIED
WARRANTIES IS NOT PERMITTED BY SOME STATES. THE ABOVE EXCLUSION MAY NOT APPLY TO YOU.
IN NO EVENT WILL APPLE, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE TOYOU FOR ANY CONSEQUENTIAL,
INCIDENTAL OR INDIRECT DAMAGES (INCLUDING DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF
BUSINESS INFORMATION, AND THE LIKE) ARISING OUT OFTHE USE OR INABILITY TO USE THE APPLE SOFTWARE EVEN IF APPLE
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
Apple’s liability to you for actual damages from any cause whatsoever, and regardless of the form of the action (whether in contract, tort [including negligence],
product liability or otherwise), will be limited to $50.
Restricted Rights Legends
For defense agencies: Restricted Rights Legend. Use, reproduction, or disclosure is subject to restrictions set forth in subparagraph (c)(1)(ii) of the Rights in
Technical Data and Computer Software clause at 252.227.7013.
For civilian agencies: Restricted Rights Legend. Use, reproduction, or disclosure is subject to restrictions set forth in subparagraph (a) through (d) of the
commercial Computer Software Restricted Rights clause at 52.227-19 and the limitations set forth in Electronics For Imaging’s standard commercial agreement
for this software. Unpublished rights reserved under the copyright laws of the United States.
Printed in the United States of America on recycled paper.
Part Number: 45016781

CE Mark
The CE marking applied to this product symbolises Rank Xerox’s declaration of conformity with the following applicable directives of the European Union as of
the dates indicated.
January 1, 1996—Council Directive 70/80/CCO amended by Council Directive 93/68/EEO. Approximation of the laws of the member states related to low
voltage equipment.
January 1, 1996—Council Directive 59/336/EEC. Approximation of the laws of the member states related to electromagnetic compatibility.
A full declaration defining the relevant directives and referenced standards can be obtained from your Rank Xerox representative.
WARNING: In order to allow this equipment to operate in proximity to industrial, scientific, and Medical (ISM) equipment, the external radiation from
ISM equipment may have to be limited or special migration measures taken.
FCC Information
WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void
the user’s authority to operate this equipment.
Class A Compliance
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.These limits are designed
to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.This equipment generates, and uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause interference in which case the user will be required to correct the interference
at his own expense.
Industry Canada Class A Notice
This Class A digital apparatus complies with Canadian ICES-003.
Avis de Conformation Classe A de l’Industrie Canada
Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada.
Certificate by Manufacturer/Importer
This is to certify that the FC07 is shielded against radio interference in accordance with the provisions ofVFG 243/1991. The German Postal Services have been
advised that this device is being put on the market and that they have been given the right to inspect the series for compliance with the regulations.
Bescheinigung des Herstellers/Importeurs
Heirmitwirdbescheinigt, dassderFC07 im Uebereinstimmungmit den BestimmungenderVFG243/1991Funk-Entstortist.Der DeutschenBundespostwurde
das Inverkehrbringen dieses Geraetes angezeigt und die Berechtigung zur Ueberpruefung der Serie auf Einhaltung der Bestimmungen eingeraumt.
RFI Compliance Notice
This equipment has been tested concerning compliance with the relevant RFI protection requirements both individually and on system level (to simulate normal
operation conditions). However, it is possible that these RFI Requirements are not met under certain unfavorable conditions in other installations. It is the user
who is responsible for compliance of his particular installation.
DiesesGeraetwurdeeinzelnsowohlalsauchin einer Anlage,dieeinen normalen Anwendungsfallnachbildet,auf dieEinhaltungder Funk-entstoerbestimmungen
geprueft. Es ist jedoch moeglich, dass die Funk-enstoerbestimmungen unter unguenstigen Umstaenden bei anderen Geraetekombinationen nicht eingehalten
werden. Fuer die Einhaltung der Funk-entstoerbestimmungen seigner gesamten Anlage, in der dieses Geraet betrieben wird, ist der Betreiber verantwortlich.
Compliance with applicable regulations depends on the use of shielded cables. It is the user who is responsible for procuring the appropriate cables.
Einhaltung mit betreffenden Bestimmungen kommt darauf an, dass geschirmte Ausfuhrungen gebraucht werden. Fuer die beschaffung richtiger Ausfuhrungen
ist der Betreiber verantwortlich.

Software License Agreement
Before using the Software, please carefully read the following terms and conditions. BY USINGTHIS SOFTWARE, YOU SIGNIFYTHAT YOU HAVE
ACCEPTEDTHETERMS OFTHIS AGREEMENT. If you cannot or do not accept these terms, you may return the entire package within ten (10) days to the
Distributor or Dealer from which you obtained them for a full refund.
Electronics For Imaging grants to you a non-exclusive, non-transferable license to use the software and accompanying documentation (“Software”) included with
the Fiery X40 you have purchased, including without limitation the PostScript software provided by Adobe Systems Incorporated.
You may:
a. use the Software solely for your own customary business purposes and solely with Fiery X40;
b. use the digitally-encoded machine-readable outline and bitmap programs (“Font Programs”) provided with Fiery X40 in a special encrypted format (“Coded
Font Programs”) to reproduce and display designs, styles, weights, and versions of letters, numerals, characters and symbols (“Typefaces”) solely for your own
customary business purposes on the display window of the Fiery X40 or monitor used with Fiery X40;
c. use the trademarks used by Electronics For Imaging to identify the Coded Font Programs andTypefaces reproduced therefrom (“Trademarks”); and
d. assign your rights under this Agreement to a transferee of all of your right, title and interest in and to Fiery X40 provided the transferee agrees to be bound by
all of the terms and conditions of this Agreement.
You may not:
a. make use of the Software, directly or indirectly, to print bitmap images with print resolutions of 600 dots per inch or greater, or to generate fonts or typefaces
for use other than with Fiery X40;
b. make or have made, or permit to be made, any copies of the Software, Coded Font Programs, accompanying documentation or portions thereof, except as
necessary for use with the Fiery X40 unit purchased by you; provided, however, that under no circumstances may you make or have made, or permit to be made,
any copies of that certain portion of the Software which has been included on the Fiery X40 hard disk drive. You may not copy the documentation;
c. attempt to alter, disassemble, decrypt or reverse engineer the Software, Coded Font Programs or accompanying documentation.
d. rent or lease the Software.
Proprietary Rights
You acknowledge that the Software, Coded Font Programs,Typefaces,Trademarks and accompanying documentation are proprietary to Electronics For Imaging
and its suppliers and that title and other intellectual property rights therein remain with Electronics For Imaging and its suppliers. Except as stated above, this
Agreement does not grant you any right to patents, copyrights, trade secrets, trademarks (whether registered or unregistered), or any other rights, franchises or
licenses in respect of the Software, Coded Font Programs,Typefaces,Trademarks or accompanying documentation. You may not adapt or use any trademark or
trade name which is likely to be similar to or confusing with that of Electronics For Imaging or any of its suppliers or take any other action which impairs or
reducesthe trademarkrights of ElectronicsForImaging or its suppliers.The trademarks may onlybe usedto identifyprinted outputproduced by the CodedFont
Programs. At the reasonable request of Electronics For Imaging, you must supply samples of any Typeface identified with a trademark.
Confidentiality
Youagree to hold theSoftwareand Coded FontProgramsin confidence,disclosing theSoftware and Coded FontProgramsonlyto authorized users having a need
to use the Software and Coded Font Programs as permitted by this Agreement and to take all reasonable precautions to prevent disclosure to other parties.
Remedies
Unauthorized use, copying or disclosure of the Software, Coded Font Programs,Typefaces, Trademarks or accompanying documentation will result in automatic
termination of this license and will make available to Electronics For Imaging other legal remedies.
Limited Warranty And Disclaimer
Electronics For Imaging warrants that, for a period of ninety (90) days from the date of delivery to you, the Software under normal use will perform without
significant errors that make it unusable. Electronics For Imaging’s entire liability and your exclusive remedy under this warranty (which is subject to you returning
Fiery X40 to Electronics For Imaging or an authorized dealer) will be, at Electronics For Imaging’s option, to use reasonable commercial efforts to attempt to
correct or work around errors, to replace the Software with functionally equivalent software, or to refund the purchase price and terminate this Agreement. Some
states do not allow limitations on duration of implied warranty, so the above limitation may not apply to you.
Except for the above express limited warranty, Electronics For Imaging makes and you receive no warranties or conditions on the Products, express, implied, or
statutory, and Electronics For Imaging specifically disclaims any implied warranty or condition of merchantability or fitness for a particular purpose.
For warranty service, please contact your authorized service/support center.

EXCEPT FORTHE ABOVE EXPRESS LIMITED WARRANTY, ELECTRONICS FOR IMAGING MAKES AND YOU RECEIVE NO WARRANTIES
OR CONDITIONS ONTHE SOFTWARE OR CODED FONT PROGRAMS, EXPRESS, IMPLIED, STATUTORY, OR IN ANY OTHER PROVISION
OFTHIS AGREEMENT OR COMMUNICATION WITH YOU, AND ELECTRONICS FOR IMAGING SPECIFICALLY DISCLAIMS ANY IMPLIED
WARRANTYORCONDITIONOFMERCHANTABILITYORFITNESS FORAPARTICULAR PURPOSE.ElectronicsForImagingdoesnotwarrantthat
the operation of the software will be uninterrupted or error free or that the Software will meet your specific requirements.
Limitation Of Liability
INNO EVENTWILL ELECTRONICS FORIMAGING OR ITS SUPPLIERS BELIABLE FORANY DAMAGES,INCLUDINGLOSSOF DATA, LOST
PROFITS,COST OF COVEROROTHERSPECIAL,INCIDENTAL, CONSEQUENTIALORINDIRECT DAMAGESARISINGFROMTHEUSEOF
THE SOFTWARE, CODED FONT PROGRAMS OR ACCOMPANYING DOCUMENTATION, HOWEVER CAUSED AND ON ANYTHEORY OF
LIABILITY. THIS LIMITATION WILL APPLY EVEN IF ELECTRONICS FOR IMAGING OR ANY AUTHORIZED DEALER HAS BEEN ADVISED
OFTHEPOSSIBILITYOFSUCH DAMAGE.YOUACKNOWLEDGETHATTHE PRICE OFTHE UNIT REFLECTSTHISALLOCATION OF RISK.
BECAUSE SOME STATES/JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES,THE ABOVE LIMITATION MAY NOT APPLYTO YOU.
Export Controls
You agree that you will not export or re-export the Software or Coded Font Programs in any form without the appropriate United States and foreign government
licenses. Your failure to comply with this provision is a material breach of this Agreement.
Government Use
Use, duplication or disclosure of the Software by the United States Government is subject to restrictions as set forth in subdivision (c) (1) (ii) of the Rights in
Technical Data and Computer Software clause at DFARS 252.227-7013 or in subparagraphs (c) (1) and (2) of the Commercial Computer Software—Restricted
Right Clause at 48 CFR 52.227-19, as applicable.
Third Party Beneficiary
You are hereby notified that Adobe Systems Incorporated, a California corporation located at 345 Park Avenue, San Jose, CA 95110-2704 (“Adobe”) is a third-
party beneficiary to this Agreement to the extent that this Agreement contains provisions which relate to your use of the Fonts, the Coded Font Programs, the
Typefaces and theTrademarks licensed hereby.SuchprovisionsaremadeexpresslyforthebenefitofAdobeand are enforceablebyAdobein addition to Electronics
For Imaging.
General
This Agreement will be governed by the laws of the State of California.
This Agreement is the entire agreement held between us and supersedes any other communications or advertising with respect to the Software, Coded Font
Programs and accompanying documentation.
If any provision of this Agreement is held invalid, the remainder of this Agreement shall continue in full force and effect.
If you have any questions concerning this Agreement, please write to Electronics For Imaging, Attn: Licensing Dept. or see Electronics For Imaging’s web site at
www.efi.com.
Electronics For Imaging
303 Velocity Way
Foster City, CA 94404

Contents
Introduction
About the documentation xiii
Key features of ColorWise xv
Chapter 1: Fiery X40 Color Management
Managing color on the Fiery X40 1-1
Rendering styles 1-5
RGB Source Profile 1-6
RGB Separation 1-7
CMYK Simulation Profile 1-8
CMYK Simulation Method 1-9
Output Profile 1-9
Pure BlackText/Graphics 1-10
Black Overprint 1-11
Spot Color Matching 1-12
Printer Drivers and Print Options 1-13
What a printer driver does 1-13
PostScript printer driver for Windows 95/98, Windows NT 4.0, and Windows 2000 1-14
Adobe PostScript printer driver for Mac OS 1-19
Chapter 2: Simple and Advanced Workflows
Workflow concepts 2-1
Short-run printing versus color proofing 2-1
RGB, CMYK, and PANTONE colors 2-2
Desktop versus Fiery X40 color management 2-3
Simple workflows 2-4
Select your colors wisely 2-4
Select a short workflow 2-5

viii Contents
Advanced workflows 2-9
Short-run printing examples 2-9
Color proofing examples 2-15
Chapter 3: Color Calibration
Introduction 3-1
Understanding calibration 3-2
How calibration works 3-2
Scheduling calibration 3-4
Checking calibration status 3-5
Using a densitometer 3-5
Setting up the densitometer 3-5
Calibrating the densitometer 3-8
Calibrating with ColorWise Pro Tools 3-9
Expert Mode 3-15
Chapter 4: ColorWise Pro Tools
Profile Manager 4-1
Setting the default profiles 4-3
Downloading profiles 4-5
Editing profiles 4-7
Managing profiles 4-7
Defining profiles 4-8
Color Editor 4-12
Editing Profiles 4-12
Undoing simulation edits 4-19
Checking edited profiles 4-21
Color Setup 4-23
Setting default ColorWise options 4-23

ix Contents
Chapter 5: Working with Color in Applications
Working with color 5-1
Color reference pages 5-2
Office applications 5-3
Choosing colors in office applications 5-4
PostScript applications 5-5
Choosing colors in PostScript applications 5-5
Default output profile 5-8
CMYK simulation 5-8
Chapter 6: Office Applications
Working with office applications 6-1
Defining colors 6-1
Working with imported files 6-1
Selecting options when printing 6-2
Output profiles 6-2
Chapter 7: Adobe Photoshop
Photoshop 5.x 7-1
Photoshop 5.x color settings 7-1
ColorSync defaults 7-6
Defining colors 7-7
Saving files for importing into other documents 7-7
Selecting options when printing 7-9
Printing tips for advanced users 7-11
Photoshop 4.x 7-13
Defining colors 7-13
Saving files for importing into other documents 7-13
Selecting options when printing 7-15

x Contents
Chapter 8: Page Layout Applications
Working with page layout applications 8-1
Defining colors 8-1
Importing images 8-2
CMYK simulation 8-3
Adobe PageMaker 6.5 for Mac OS and Windows 8-4
Importing images 8-4
Selecting options when printing 8-5
Optional Color Management from PageMaker 8-6
QuarkXPress 4.02 for Mac OS and Windows 8-7
Importing images 8-7
Selecting options when printing 8-8
Optional Color Management from QuarkXPress 8-9
QuarkXPress 3.32 for Mac OS and Windows 8-9
Importing images 8-9
Selecting options when printing 8-10
Chapter 9: Illustration Applications
Working with illustration applications 9-1
Defining colors 9-1
Importing images 9-2
CMYK simulation 9-2
Adobe Illustrator 8.x for Windows and Mac OS 9-3
Defining colors 9-3
Importing images 9-3
Optional Color Management in Illustrator 9-4
Selecting options when printing 9-4
Saving files for importing into other documents 9-5

xi Contents
Macromedia FreeHand 8.x for Windows and Mac OS 9-6
Defining colors 9-6
Importing images 9-6
Selecting options when printing from FreeHand 9-7
Saving files for importing into other documents 9-8
Optional Color Management in FreeHand 9-9
CorelDRAW for Windows and Mac OS 9-9
Defining colors 9-9
Importing images 9-9
Selecting options when printing 9-10
Saving files for importing into other documents 9-11
Optional Color Management in CorelDRAW 9-11
Appendix A: Desktop Color Primer
The properties of color A-1
The physics of color A-1
CIE color model A-2
Hue, saturation, and brightness A-3
Additive and subtractive color systems A-3
Printing techniques A-5
Halftone and continuous tone devices A-6
Using color effectively A-6
A few rules of thumb A-7
Color wheel A-7
Color and text A-8
Raster images and vector images A-9
Optimizing files for processing and printing A-10
Resolution of raster images A-10
Scaling A-12

xii Contents
Appendix B: Color Management
Controlling printed color B-1
Maintaining copier consistency B-2
Print device gamut B-2
Basics of color management B-3
Color conversion B-4
Appendix C: Importing densitometer measurements
Simple ASCII Import File Format (SAIFF) C-1
Example of 1D StatusT density for EFI 34 patch page C-2
Example of 1D StatusT density for EFI 21 patch page C-2
Example of 1D StatusT density for an arbitrary page C-3
Glossary
Bibliography
Index

xiii About the documentation
Welcome to the Color Guide .This manual introduces you to the concepts and issues
associated with printing to the Fiery X40 Color Server
™
. It outlines key workflow
scenarios, provides information on calibration and color profiles, and contains
applicationnotes that explain howto print tothe Fiery X40Color Serverfrompopular
Windows and Mac OS applications.
This manual is one book in a set of documentation that also includes manuals for users
and system administrators. All the other manuals should be available at your site—
refer to them for a complete description of your Fiery X40 Color Server.
N
OTE
:
The term “Fiery X40” is used in this manual to refer to the Fiery X40 Color
Server.The Fiery X40 supports the DocuColor 40 color copier.The term “copier” is
used in this manual to refer to this supported device.
About the documentation
The Color Guide is organized to supply you with key information about managing the
color output of your Fiery X40. Chapter 1 discusses the Fiery X40’s print options and
how to get the best color results, and Chapter 2 describes several effective workflows.
ColorWise Pro Tools are discussed in the next two chapters. Chapter 3 covers
Calibrator and other methods used to calibrate the copier, and Chapter 4 takes you
through the features of Profile Manager, used to manage color profiles on the
Fiery X40, and Color Editor, which lets you customize simulation and output profiles.
Succeeding chapters offer tips for printing from business and graphics applications.
Finally, the appendixes offer information about color theory and color management.
Words in bold, for example, output profile , are terms that appear in the glossary. The
bibliography at the end of this manual provides sources for further investigation of
color printing issues.
Color terms and concepts such as “RGB data,” “color space,” “spot color,” “gamut,”
and “source profile” are used throughout this manual. If you are new to desktop color
or if any terms are unfamiliar, be sure to read Appendixes A and B or check the
glossary.
Introduction

xiv Introduction
This manual is part of a set of Fiery X40 documentation that also includes the
following manuals for users and system administrators:
• The Configuration Guide explains basic configuration and administration of the
Fiery X40 for the supported platforms and network environments. It also includes
guidelines for setting up UNIX, Windows NT, and NetWare servers to provide
PostScript printing services to clients.
• Getting Started describes how to install software to enable users to print to the
Fiery X40. Specifically, it describes installation of PostScript printer drivers, printer
description files, and other user software provided on the User Software CD. It also
explains how to connect each user to the network.
• The Printing Guide describes the printing features of the Fiery X40 for users who
send jobs via remote workstations on the network.
• The Job Management Guide explains the functions of the Fiery X40 client utilities,
including the Command WorkStation, and how they can be used to manage jobs.
This book is intended for an operator or administrator, or a user with the necessary
access privileges, who needs to monitor and manage job flow and troubleshoot
problems that may arise.
• Release Notes provide last-minute product information and workarounds for some of
the problems you may encounter.

xv Key features of ColorWise
Key features of ColorWise
ColorWise is the color management system (CMS) built into the Fiery X40 and
designed to provide both casual and expert users the best color output for a variety of
purposes.The ColorWise default settings were specifically selected to provide great
out-of-box color from many applications and Windows and Mac OS platforms.This
means that casual users can get good quality output without knowing about or
changing any color settings on the Fiery X40.
To get consistent color you should be sure that the Fiery X40 is calibrated on a regular
basis. ColorWise Pro Tools include a simple-to-use calibrator, which allows you to
calibrate using optional densitometers (see Chapter 3).
There are a number of features that can be used to modify printing results. Depending
on your particular needs, you can:
• Set the behavior of CMYK printing to emulate DIC, Euroscale, and SWOP offset
press standards
• Match PANTONE colors for the best match when printed using four-color press
conditions or when printed using presses with extra, custom plates
• Select a color rendering dictionary (CRD), also called a rendering style, for RGB
printing. CRDs allow for rich, saturated printing of presentation graphics; smooth,
accurate printing of photographs; and relative or absolute colorimetric rendering for
specialized needs
• Define the source of incoming RGB color data for better screen matching, and you
can provide for better color conversion of RGB data with no source information
• Define whether RGB data is converted into the full gamut of the copier or whether
it is first converted into the gamut of another device, such as a press standard.This
feature is very helpful for making one device behave like another. It is also useful for
evaluating the appearance of the RGB file under different printing conditions
without having to reprocess the RGB data each time

xvi Introduction
ColorWise offers an open color architecture, letting users customize the Fiery X40 to
meet new printing needs as they arise. ColorWise supports ICC profiles, which are
industry standard color profiles that define the color behavior of a device. By down-
loading ICC profiles to the Fiery X40, it can simulate a custom press (or another
copier) as well as accurately print colors from a particular monitor or a particular scan-
ner. In addition, you can create customized ICC profiles for the copier.
ColorWise also lets you use any StatusT densitometer by importing data in a standard
file format (see Appendix C). In this case, it is important to note that the quality of the
instrument used will determine the quality of the calibration.

1
1-1 Managing color on the Fiery X40
The first part of this chapter describes the options available from the ColorWise color
management system and explains how you can customize the color settings for your
particular needs. It provides descriptions of the preset default settings of ColorWise
and covers additional options for users who need to customize ColorWise.
Beginning on page 1-13 is a detailed explanation of what a PostScript Level 2 or
PostScript 3 printer driver does, as well as information on the capabilities of various
printer drivers and instructions for setting color options with the PostScript drivers for
Windows NT 4.0, Windows 2000, Windows 95/98, and Mac OS.
Managing color on the Fiery X40
There are three ways to modify the Fiery X40’s printing behavior:
• You can select ColorWise options for an individual print job using menus that
appear from the printer driver.
• You can select most ColorWise options as server defaults from the Color Setup
application in ColorWise Pro Tools (see page 4-23). Defaults can also be set from
Fiery X40 Setup or from the Control Panel, as described in the Configuration Guide .
These defaults will apply to all subsequent print jobs unless you override them.
• You can select some ColorWise options, particularly default ICC profile settings
and calibration options, from ColorWise ProTools. These options include default
Simulation Profile (see page 1-8), Simulation Method (see page 1-9), Appear in
Driver as (see page 4-8), default Source Profile (see page 1-6), RGB Separation (see
page 1-7), and associated calibration set (see page 3-3).
Applications can generate color data for the Fiery X40 in many different color spaces .
The most common type of color data produced from office applications is RGB, while
prepress applications generally produce CMYK data. Desktop applications can also
generate spot colors such as PANTONE colors.To complicate matters, a single page
may contain a mix of RGB, CMYK, and spot colors. The Fiery X40 lets users control
the printing of these mixed-color documents with features that apply specifically to
RGB, CMYK, or spot color data.
Fiery X40 color managementgenerates CMYKdata tobe sent to thecopier; additional
processing may then be performed before printing begins.
Chapter 1:
Fiery X40 Color
Management

1
1-2 Fiery X40 Color Management

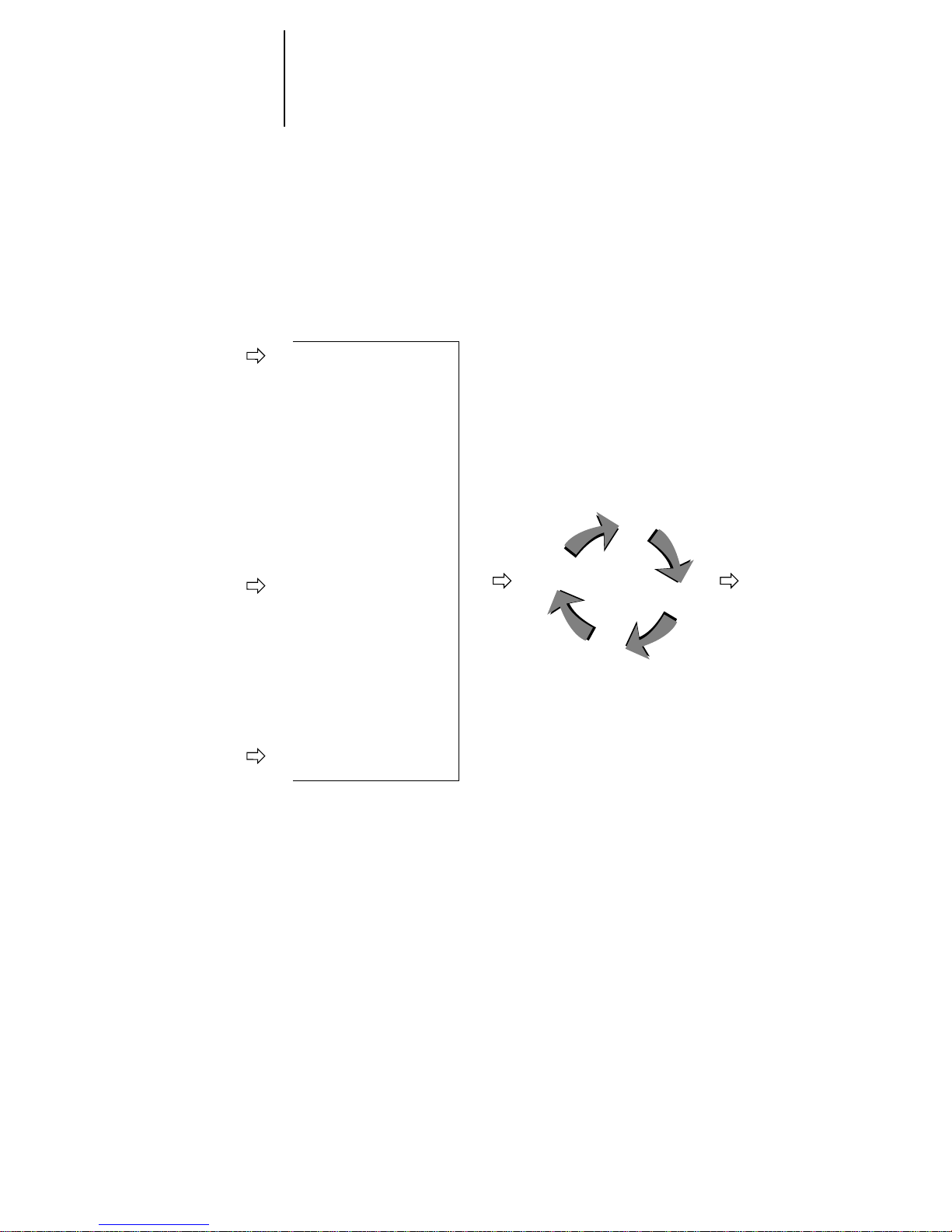

The diagram below illustrates the print options in the Fiery X40 color management
process that affect color data conversions. You access these print options when you
send a print job to the Fiery X40. Most of these options and settings are described in
subsequent sections of this chapter.
RGB Source Profile is the only color option that applies strictly to RGB color data.
The other options that affect RGB color also affect the more rarely used Lab, XYZ, and
other calibrated color spaces.
N
OTE
:
For users who are familiar with PostScript 3.0 color, RGB Source Profile affects
all CIEBasedABC color spaces (if the source space is RGB). Also, if you send CMYK
data to the Fiery X40 in CIEBasedDEFG format, for example, by choosing PostScript
Color Management in Adobe Photoshop, the Fiery X40’s Rendering Style selection—
which normally affects only RGB data—will also affect this CMYK data.
Rendering Style (CRD)
Brightness
RGB Source Profile
Brightness
CMYK Simulation Profile
Gamma
Phosphors
White Point
Pure Black Text/Graphics
CMYK Simulation Method
RGB Separation
Black Overprint
Combine Separations
Output profile
Pure Black Text/Graphics
Black Overprint
Color data
sent to
copier
Fiery X40
color
processor
RGB data
CMYK data
Output profile
Spot color data Spot Color Matching

1
1-3 Managing color on the Fiery X40
Settings for the following options can be specified via print options when you send a
job to the Fiery X40. Some can also be set as defaults by the administrator during
Fiery X40 Setup. Settings specified via print options override the defaults.
Fiery X40 color print option: What it does:
Brightness
85% Lightest to 115% Darkest Performs a color adjustment on all color channels to make the printed output
lighter or darker.
Rendering Style
Photographic/Presentation/Relative
Colorimetric/Absolute Colorimetric
(Default set at Setup)
Applies a Fiery X40 color rendering style (CRD) to RGB data (see page 1-5),
or to any incoming data with a PostScript source color space definition,
including CMYK.
RGB Source Profile
EFIRGB/sRGB (PC)/Apple Standard/Other/
Source 1–10/None
(Default set at Setup or with
ColorWise Pro Tools)
Applies an RGB source space definition to RGB data (see page 1-6). If you
choose the Other setting, you can specify particular settings for gamma,
phosphors, and white point. See the corresponding options in this table.This
option, along with Gamma, Phosphors, and White Point, are the only
ColorWise options that affect only DeviceRGB or calibrated RGB color spaces.
(Other) Gamma
1.0/1.2/1.4/1.6/1.8/2.0/2.2/2.4/2.6/2.8/3.0 Applies the specified gamma value to the RGB source space definition (see page 1-6).To use this print option, you must choose Other as the RGB Source
setting.
(Other) Phosphors
Hitachi EBU/Hitachi-Ikegami/NTSC/
Radius Pivot/SMPTE/Trinitron
Applies the specified phosphor (monitor type) information to the RGB source
space definition (see page 1-6).To use this print option, you must choose
Other as the RGB Source setting.
(Other) White Point
5000 K (D50)/5500 K/6500 K (D65)/
7500 K/9300 K
Applies the specified white point value to the RGB source color space
definition (see page 1-6).To use this print option, you must choose Other as
the RGB Source setting.
RGB Separation
Output/Simulation Determines which CMYK color space your original RGB data will be
separated into—CMYK for the copier (Output) or CMYK for a specified
simulation (Simulation) (see page 1-7). It is important to note that when RGB
Separation is set to Simulation, RGB colors are affected by CMYK Simulation
Profile and CMYK Simulation Method.
CMYK Simulation Profile
SWOP-Coated/DIC/Euroscale/Simulation
1–10/Match Copy/None
(Default set at Setup or in
ColorWise Pro Tools)
Adjusts CMYK color data to simulate an offset press standard or a custom
color gamut defined at your site.The Match Copy setting bypasses Fiery X40
calibration to match a copy made from the copier glass. Choosing None
bypasses simulation (see page 1-8).
NOTE:Someof the Simulationsettingshave slightly differentnames depending
on the model of copier.

11-4 Fiery X40 Color Management
Detailed explanations of how these and other settings affect your print jobs are
provided in subsequent sections of this chapter.
CMYK Simulation Method
Quick/Full
(Default set at Setup or in
ColorWise Pro Tools)
Quick simulation applies one-dimensional transfer curves that adjust output
density only. Full simulation applies colorimetric transformations that adjust
hue as well as output density (see page 1-9).
Output Profile
default output profile/Output 1–10
(Default set at Setup or in
ColorWise Pro Tools)
The Output Profile is applied to all data in the print job (see page 1-9). User-
defined output profiles can be downloaded to the Fiery X40 with
ColorWise Pro Tools (see Chapter 4).
Pure Black Text/Graphics
On/Off
(Default set at Setup)
The On setting optimizes the quality of black text and line art output (see
page 1-10).
Black Overprint
On/Off (Default set at Setup) The On setting overprints black text placed on colored backgrounds; it
automatically activates the Pure BlackText/Graphics option (see page 1-11).
Spot Color Matching
On/Off
(Default set at Setup or with
ColorWise Pro Tools)
The On setting enables Fiery X40 matching of PANTONE colors; Off
instructs the Fiery X40 to match color output to a Pantone-specified CMYK
combination (see page 1-12).
Fiery X40 color print option: What it does:
