Efka AB620A5035 User manual

FRANKL & KIRCHNER EFKA OF AMERICA INC. EFKA SINGAPORE PTE. LTD.
GMBH & CO KG
CONTROL AB620A5035
Operating manual
With parameter list
-Putting into Service
-Settings
-Functional Description
-Connection Diagrams
-Timing Diagrams
No. 402446 English

- AB620A5035
- 2 -
Important Notes
The particulars used in various figures and tables, such as type, program number, speed, etc.,
serve as examples. They may differ from those in your display.
For current versions of the Instructions for Use and Lists of Parameters, necessary for operating EFKA drives
in accordance with regulations, please refer to the EFKA web site www.efka.net, page “Downloads”.
On our web site, you will also find the following supplementary instructions for this control:
General instructions for use and programming
Use with USB Memory Stick
Adapter cords

- AB620A5035
- 3 -
CONTENTS Page
1Range of Applications 6
1.1 Use in Accordance with Regulations 6
2Scope of Supply 7
2.1Special Accessories 7
2.1.1 Adapter Cords for Special Machines 8
3Putting into Service 8
4Setting and Putting into Service with the Aid of the Fast Installation Routine (SIR) 9
5Quick access 13
5.1 Parameter back up 13
5.1.1 Parameter backup 13
5.1.2 Restoring parameters from the backup 13
5.1.3 Save the parameter backup on a USB stick 14
5.1.4 Restoring the parameter backup from the USB stick 15
5.2 Setting the reference position 16
6Setting the Basic Functions 17
6.1 Direction of motor rotation 17
6.2 Use of a HSM001 Hall Sensor Module or IPG... Pulse Encoder 17
6.3 Transmission Ratio 18
6.4 Selection of Functional Sequences (Thread Trimming Operations) 18
6.5 Functions of the Keys Inputs in1...in7 18
6.6 Positioning speed 18
6.7 Maximum Speed Compatible with the Sewing Machine 19
6.8 Maximum speed 19
6.9 Positions 19
6.9.1 Setting the reference position (Parameter 170) 20
6.9.2 Setting the Positions 21
6.10 Display of the Signal and Stop Positions 21
6.11 Positioning shift 22
6.12 Braking Characteristics 22
6.13 Braking Power at Standstill 22
6.14 Starting Characteristics 23
6.15 Actual Speed Display 23
6.16 Operating hours counter 23
6.16.1 Set and Reset Operating Hours Counter 25
6.16.2 Total Operating Hours Display 25
7Functions with or without Control Panel 25
7.1 First Stitch after Power On 25
7.2 Softstart 25
7.2.1 Softstart speed 25
7.2.2 Softstart stitches 26
7.3 Sewing foot lifting 26
7.4 Start Backtack/Start Stitch Condensing 27
7.4.1 Speed n3 at the Start of the Seam 27
7.4.2 Stitch Counting for Start Backtack/Start Stitch Condensing 28
7.4.3 Stitch Correction and Speed Release 28
7.4.4 Double start backtack 28

- AB620A5035
- 4 -
7.4.5 Single Start Backtack / Start Stitch Condensing 28
7.5 End Backtack / End Stitch Condensing 28
7.5.1 Speed n4 at the Seam End 29
7.5.2 Stitch Counting for End Backtack/End Stitch Condensing 29
7.5.3 Stitch Correction and Last Stitch Backward 29
7.5.4 Double End Backtack/End Stitch Condensing 29
7.5.5 Single End Backtack / End Stitch Condensing 30
7.5.6 Backtack Synchronization 30
7.6 Start Ornamental Backtack/Stitch Condensing 30
7.7 End Ornamental Backtack/Stitch Condensing 30
7.8 Intermediate Backtack 31
7.9 Stitch Regulator Suppression/Recall 32
7.10 Holding Power of the Stitch Regulator Solenoid 32
7.11 Reverse motor rotation 32
7.12 Unlocking the Chain (Mode 5/6/7) 33
7.13 Machine run blockage 34
7.14 High lift for walking foot / flip-flop 1 34
7.14.1 High lift walking speed 34
7.14.2 High Lift Walking Speed Run-Out Time 35
7.14.3 High Lift Walking Stitches 35
7.14.4 HighLift forWalkingFoot Operational ModeNotStored (Parameters 240...246=13) 35
7.14.5 High Lift for Walking Foot Operational Mode Stored /Flip-Flop 1 (Parameters 240...246 =
14) 35
7.15 Speed Limitation Depending on High Lift 35
7.15.1 Programming the measurement value of the poti 36
7.16 Speed Limitation n9 36
7.17 Thread trimming operation 36
7.17.1 Thread Trimmer/Thread Wiper (Lockstitch Modes) 37
7.17.2 Trimming speed 37
7.17.3 Chainstitch thread cutter (var. modes) 37
7.17.4 Chainstitch Machine Trimming Signal Times 37
7.18 Functions for bag sewing machines 38
7.19 Overlock Machine Functions (Mode 7) 38
7.19.1 Chain Suction Signal 38
7.19.2 Start and End Counts 40
7.20 Tape Cutter/Fast Scissors (Modes 6/7) 40
7.20.1 Tape Cutter/Fast Scissors in Mode 6 40
7.20.2 Tape Cutter/Fast Scissors in Mode 7 40
7.21 Manual Tape Cutter/Fast Scissors 41
7.22 FlipFlop functions (AFF) 42
7.23 Seam with Stitch Counting 43
7.23.1 Number of Stitches for a Seam with Stitch Counting 43
7.23.2 Stitch Counting Speed 43
7.23.3 Seam with Stitch Counting When Light Barrier Is On 43
7.24 Free Seam and Seam with Light Barrier 44
7.25 Light barrier 44
7.25.1 Speed after Light Barrier Sensing 44
7.25.2 General Light Barrier Functions 44
7.25.3 Reflection Light Barrier LSM002 45
7.25.4 Automatic Start Controlled by Light Barrier 45
7.25.5 Light barrier filter for knitted fabrics 45
7.25.6 Functional Variations of the Light Barrier Input 46
7.26 Switching Functions of Inputs in1...i13 47
7.27 Software Debouncing of All Inputs 48
7.28 F1/F2 Function Key Assignment on the V810/V820 Control Panels 48
7.29 Special pedal function Single stitch / Full stitch 49
7.30 Signal “Machine Running“ 49
7.31 Signal Output Position 1 49
7.32 Signal Output Position 2 49

- AB620A5035
- 5 -
7.33 Signal Output 512 Impulses per Rotation 49
7.34 Actuator 50
7.34.1 Analog actuator 50
8Signal Test 50
8.1 Signal Test Using the Incorporated Control Panel or the V810/V820 51
8.1.1 Inputs to the control 51
8.1.2 Outputs of control 51
9Table of Machine Functions and Adapter Cords 52
10 Operating Elements and Socket Connectors 54
10.1 Positions of the Front Side 54
10.2 Positions of the rear side 54
10.3 Connection Diagrams 55
11 Timing Diagrams 60
11.1 Operator Level 80
11.2 Technical level (Code no. 1907) 83
11.3 Supplier level (Code No. 3112) 88
12 Error Displays 96

- AB620A5035
- 6 -
1 Range of Applications
The drive is suitable for lockstitch, chainstitch and overlock machines of various manufacturers.
It can be operated with or without control panel.
The easy-to use V810 or V820 control panels extend the range of functions.
With the help of adapter cords (adapter cords see Special Accessories), the drive can be used in replacement of
the controls listed in the table below, as long as backtacking, stitch condensing, and chain suction are not used.
Machine
manufacturer
Replacing
Machine
Model
Thread
trimming
mode
Adapter cord
Aisin
AB62AV
Lockstitch
AD3XX, AD158, 3310,
EK1
0
1112815
Brother
AB62AV
Lockstitch
737-113, 737-913
0
1113420
Brother
AC62AV
Chainstitch
FD3 B257
5
1112822
Dürkopp Adler
DA62AV
Lockstitch
210, 270
0
1112845
Global
Chainstitch
CB2803-56
5
1112866
Juki
AB62AV
Lockstitch
5550-6
14
1112816
Juki
AB62AV
Lockstitch
5550-7, 8500-7, 8700-7
14
1113132
Kansai
AC62AV
Chainstitch
RX 9803
5
1113130
Pegasus
AC62AV
Chainstitch
W500/UT, W600/UT/MS,
with/without stitch
condensing
5
1112821
Pegasus
AB60C
Backlatch
8
1113234
Pfaff
PF62AV
Lockstitch
563, 953, 1050, 1180
0
1113746
Rimoldi
Chainstitch
F27
5
1113096
Singer
SN62AV
Lockstitch
212 UTT
2
1112824
Union Special
AC62AV
Chainstitch
34700 with stitch lock
5
1112844
Yamato
AC62AV
Chainstitch
VC series
5
1113345
Yamato
Chainstitch
VG series
5
1113345
Yamato
AB60C
Backlatch
ABT3
9
1112826
Yamato
Backlatch
ABT13, ABT17
9
1113205
Medium-duty sewing machine,
general
Lockstitch
e.g. Dürkopp Adler, Juki,
Pfaff, Sunstar, Golden
Wheel
3
Suitable
adapter, upon
request
1.1 Use in Accordance with Regulations
The drive is not an independent functional machine. It has been designed for integration into other machines by
trained specialists.
It must not be put into service until the machinery into which it is to be incorporated has been declared in
conformity with the provisions of the EC Directive (Appendix II, paragraph B of the Directive 89/392/EEC and
supplement 91/368/EEC).
The drive has been developed and manufactured in accordance with the relevant EC standards:
IEC/EN 60204-31 Electrical equipment of industrial machines:
Particular requirements for industrial sewing machines, sewing units and sewing systems.
Operate the drive only in dry areas.
ATTENTION
When selecting the installation site and the layout of the connecting cable, the Safety
Instructions must be followed with no exceptions.
Particular attention should be paid to maintaining the proper distance from moving parts!

- AB620A5035
- 7 -
2 Scope of Supply
Standard Scope of Supply
1
Direct current motor
DC1200 optional DC1250
1
Electronic control/Power supply unit
AB620A5035N214
1
Set of accessories (standard)
B156
Consisting of:
Plastic bag for B156 + documentation
and
1
Set of accessories
Z55
Consisting of:
37-contact SubminD plug,
potential equalization cord
Option 1
1
Actuator
EB401
and
1
Set of accessories
Z66
Consisting of:
37-contact SubminD plug, tension rod,
potential equalization cord
Additional options
Below table assembly set
Z71 AB6..-DC12.. Below table assembly
Pulse encoder IPG001
Z72 AB6..-DC12.. IPG
NOTE
If there is no metallical contact between drive (motor) and machine head, the potential equalization cord
supplied with the unit is to be wired from the machine head to the terminal provided on the control box!
2.1 Special Accessories
The special accessories available ex works allow the augmentation and enhancement of functions, operating,
connecting, and mounting options.
Since the range of available components is continually expanded, we kindly ask you to contact us in case of
need.
Designation
Material No.
Control panel Variocontrol V810
5970153
Control panel Variocontrol V820
5970154
Control panel Variocontrol V860
5990164
Reflection light barrier module LSM002
6100031
Hall sensor module HSM001
6100032
Pulse encoder IPG001
6100033
Adapter cord for the connection of light barrier module and/or Hall sensor module
HSM001 and/or pulse encoder IPG001
1113229
Extension cable approx. 1000 mm long for commutation transmitter DC12.. + DC15..
1113151
Extension cable approx. 1000 mm long for Netz DC12.. line + DC15..
1113931
Potential equalization cord 700 mm long, LIY 2.5 mm2, gray, with spades on both
sides
1100313
Foot control type FB302B with three pedals for standing operation, with
approx. 1400 mm connecting cable and plug
4170025
Fitting piece for position transmitter
0300019
Knee switch type KN19 (pushbutton) with cord of approx. 450 mm length and
western plug (RJ11)
5870021
Knee switch type KN20 (pushbutton + selector switch ) with cord of approx.
1640 mm length and Western plug (RJ11)
5870022
Adapter set for DC12. + DC15.. on PEGASUS model W600
1113125
Adapter set for DC12. + DC15.. on PEGASUS Ex/Ext
1113126
Adapter set for DC12. + DC15.. on PEGASUS model W1500N, W1600
1113647
Undertable mounting kit for DC1200/DC1250
1113956
Undertable mounting kit for DC1500/DC1550
1113427

- AB620A5035
- 8 -
9-contact SubminD male connector
0504135
9-contact SubminD female connector
0504136
Half-shell housing for 9-contact SubminD
0101471
37-contact SubminD male connector, complete
1112900
Single pins for 37-contact SubminD with strand of 50 mm length
1112899
Adapter set direct drives DC1210 & DC1230
Mounting kit for DC1210 on JUKI M067, M069
1114085
Mounting kit for DC1210 on JUKI M068
1114093
Mounting kit for DC1210 on PEGASUS EX
1114082
Mounting kit for DC1210 on PEGASUS M900
1114088
Mounting kit for DC1210 on YAMATO AZ, CZ
1114084
Mounting kit for DC1230 on PEGASUS chainstitch
1114119
Mounting kit for DC1230 on YAMATO VC, VE, VF, VG
1114102
2.1.1 Adapter Cords for Special Machines
For interconnection diagrams of the adapter cords, please refer to our web site at www.efka.net/downloads.
Machine / Type / Model
Material No.
AISIN high-speed seamer AD3XX, AD158, 3310 and overlock machine EK1
1112815
BROTHER models 737-113, 737-913
1113420
BROTHER Lockstitch machines, with 100 Ω selective resistance,
cl. 7xxx, B84xx, 877B, B87xx, 878B (mode 31)
1113420
BROTHER chainstitch machines, with 150 Ω selective resistance,
cl. FD3-B257, 25xx, 26xx, 27xx (mode 32)
1112822
BROTHER models B721, B722, B724, B737, B748, B772, B774, B778, B842, B845,
B872, B875
Connection of the position sensor incorporated in the hand wheel
1113433
DÜRKOPP ADLER models 210 and 270
1112845
GLOBAL model CB2803-56
1112866
JUKI high-speed seamer with index -6
1112816
JUKI high-speed seamer with index -7
1113132
JUKI lockstitch machines
Connection of the position sensor incorporated in the hand wheel
1113157
JUKI DNU1541, LU2210, LU1510
1114023
JUKI LU2810-6
1114024
JUKI PLC 2760
1114025
KAISER models 1245 & 335
1114003
KANSAI machines model RX 9803
1113130
PEGASUS models W500/UT, W600/UT/MS with or without stitch condensing
1112821
PEGASUS backlatch machine
1113234
PFAFF models 563, 953, 1050, 1180
1113746
PFAFF models 1245 & 335
1114003
SINGER models 211, 212U, 212UTT and 591
1112824
TYPICAL models 1245 & 335
1114003
UNION SPECIAL lockstitch machine model 63900AMZ (in replacement of US80A)
1112823
UNION SPECIAL model 34700 with stitch lock
1112844
UNION SPECIAL models 34000 and 36200 (in replacement of US80A)
1112865
UNION SPECIAL models CS100 and FS100
1112905
YAMATO VC/VG series chainstitch machines + stitch lock
1113345
YAMATO backlatch machine ABT3
1112826
YAMATO backlatch machine ABT13, ABT17
1113205
MAUSER models 1245 & 335
1114003
MITSUBISHI lockstitch machines
Connection of the position sensor incorporated in the hand wheel
1113411
3 Putting into Service
Designation
Material No.

- AB620A5035
- 9 -
Before putting the control into service, the following must be ensured, checked and/or adjusted:
Selection of motor type using parameter 467
The correct installation of the drive, position transmitter and accompanying devices, if necessary
The correct selection of the trimming operation using parameter 290
If necessary, the correct adjustment of the direction of motor rotation using parameter 161
The correct selection of the functions of keys (inputs) using parameters 240...246
The setting of the transmission ratio between motor shaft and machine shaft using parameter 272
The setting of the type of position sensor using parameter 270
If necessary, the adjustment of the positions using parameter 171
if necessary, the setting of the positions using parameter 171 (possible with all settings of parameter 270)
The correct positioning speed using parameter 110
The correct maximum speed compatible with the sewing machine using parameter 111
The setting of the remaining relevant parameters
Begin sewing in order to save the set values

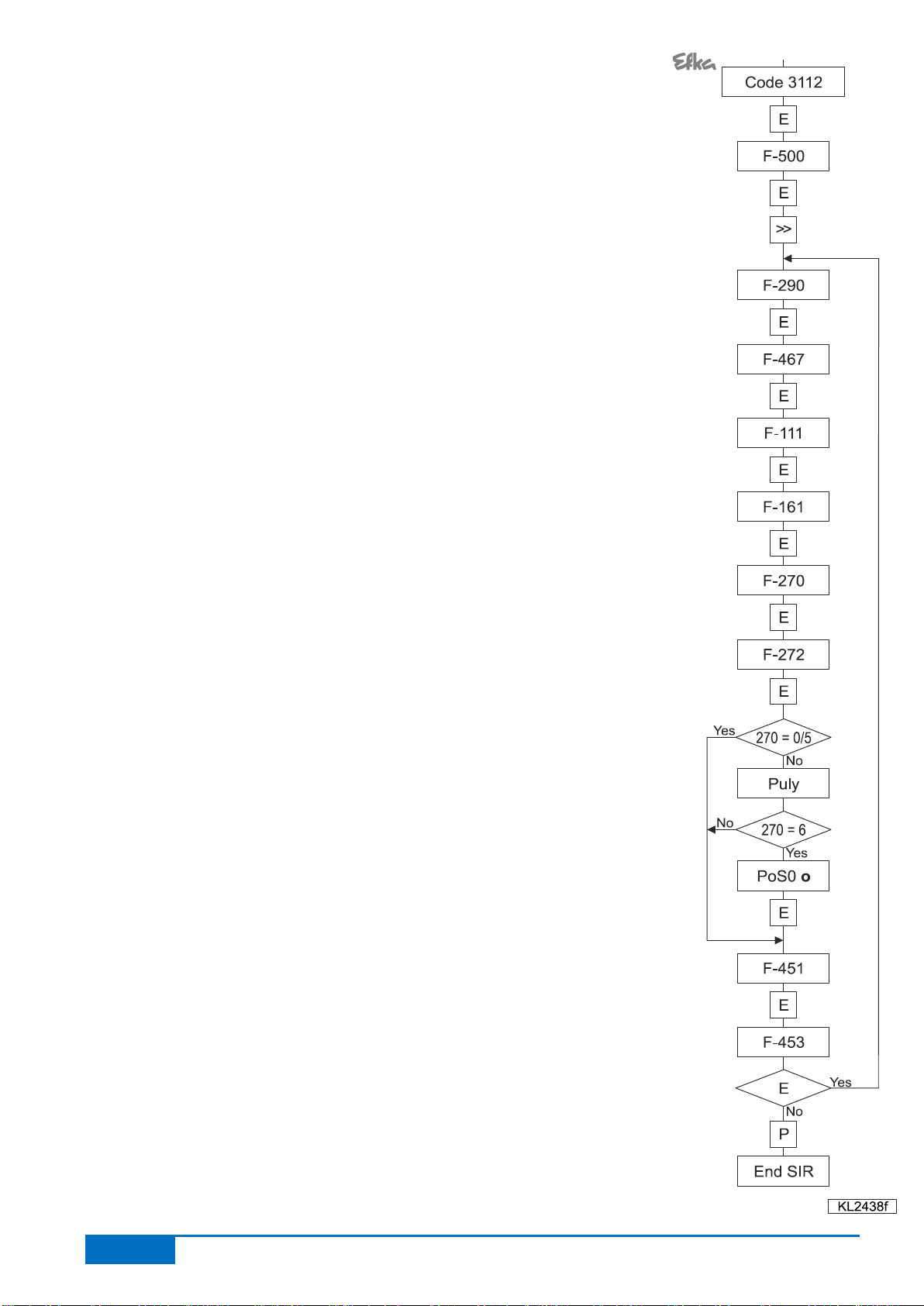

4 Setting and Putting into Service with the Aid of the Fast Installation
Routine (SIR)
Function with or without control panel
Parameters
Call-up of the Fast Installation Routine SIR
(Sir)
500
The Fast Installation Routine (SIR) passes through all parameters necessary for programming the functional
sequence and the positions.
With SIR you can do the most important settings for initial operation with menu prompting.
For safety reasons, the menu must be executed point by point. This ensures correct setting of all important
parameters.

- AB620A5035
- 10 -
Input of the code number for the fitting level. 
Parameter 500 is displayed. 
Parameter 290 for functional sequence of the cutting procedures. 
Parameter 467 for selection of motor. 
Parameter 111 for the maximum speed. 
Parameter 161 for direction of motor rotation. 
Parameter 270 for type of position sensor. 
Parameter 272 for transmission ratio. 
Important! The transmission ratio should be determined and
indicated as precisely as possible.
If parameter 270 =0 or 5, continue with input of 451.
Check the transmission ratio.

Move pedal forwards. Let the drive run until ready (rdy) is displayed.
Press pedal to position 0. The check is complete.

if parameter 270 = 6, set the reference position. 
Turn hand wheel until symbol odisplay goes off. 
Set reference position (e.g. height of the stitch plate, lower dead point).
Parameter 451 for position 1. 
Parameter 453 for position 2. 
To repeat the cycle from parameter 290, push button E. 
Or end with button P(2x). 
The values can be varied by pressing key +/-.
The input of the code number is described in the general operating manual!

- AB620A5035
- 11 -
Setting on the operating part of the controls (onboard) or on V810:
1
Input code number 3112!
2
Press the Ekey

Parameter 5.0.0. displayed
3
Press the Ekey

Sir displayed. The V810 displays the symbol [o].
Onboard: The 2 lower segments of the right 7 segment display flash.
4
Press the >> key

Parameter 2.9.0. appears
(Functional cycle cutting
processes)
5
Press the Ekey

Parameter value e.g. 05 appears.
6
Press the +/-key

The parameter value can be changed.
7
Press the Ekey

Parameter 4.6.7. appears
Selection of motor;
1 =DC1500, 2 =DC1550,
3 =DC1200, 4 =DC1250)
8
Press the Ekey

Parameter value e.g. 3appears.
9
Press the +/-key

The parameter value can be changed.
10
Press the Ekey

Parameter 1.1.1. appears
(Maximum speed)
11
Press the Ekey

Value of the set speed appears.
12
Press the +/-key

The parameter value can be changed.
13
Press the Ekey

Parameter 1.6.1. appears
(Direction of motor rotation)
14
Press the Ekey

Parameter value e.g. 1appears.
15
Press the +/-key

The parameter value can be changed.
16
Press the Ekey

Parameter 2.7.0. appears
(Type of position sensor)
17
Press the Ekey

Parameter value e.g. 0appears.
18
Press the +/-key

The parameter value can be changed.
19
Press the Ekey

Parameter 2.7.2. appears
(Transmission Ratio)
20
Press the Ekey

Parameter value e.g. 1000 appears.
21
Press the +/-key

The parameter value can be changed.
22
If parameter 270 =0 or 5, or the check of the
transmission ratio is already done, continue with
Point 30.
23
Press the Ekey

PULY is displayed.
(Check the transmission ratio)
24
Move pedal forwards
Let the drive run until ready (rdy) is displayed.
For a maximum speed that is too high, an error
message A12 is generated. Push button Eas
often as needed until parameter 111 (Point 12) is
reached again to set the permitted maximum
speed.
25
Press pedal to position 0
(neutral)
The check is complete.
26
When parameter 270 ≠ 6, continue with Point
31.
27
P0 o (V810 PoS0 o) is displayed (oin red).
(Setting the reference position)
28
Rotate the hand wheel in the running direction until oextinguishes *.
Set reference position (e.g. height of the stitch plate, lower dead point).
29
Press the Ekey

Parameter 4.5.1. appears
(Position 1 leading edge,
position 1 trailing edge is
automatically set 60° higher)
30
Press the Ekey

Angle from position 1 is displayed.
31
Turn the hand wheel

Set position 1 (at least 1 rotation *).
32
Or press the +/-key

The parameter value can be changed.
33
Press the Ekey

Parameter 4.5.3. appears
(Position 2 leading edge,
position 2 trailing edge is
automatically set 60° higher)
34
Press the Ekey

Angle from position 2 is displayed.
35
Turn the hand wheel

Set position 2 (at least 1 rotation *).
36
Or press the +/-key

The parameter value can be changed.
37
Upon pressing the Ekey once more the program returns to parameter 2.9.0.!
38
Press the Pkey twice

The system exits the SIR routine.
*) All operations carried out by turning the hand wheel must always be carried out in the direction of rotation set up on the
machine. Under no circumstances should you turn against the machine direction.

- AB620A5035
- 12 -
Setting on the V820 control panel:
1
Input code number 3112!
2
Press the Ekey

Parameter 500 displayed.
3
Press the Ekey

Sir [o] displayed.
4
Press the >> key

Parameter 290 FAm 05 appears.
(Functional cycle cutting
processes)
5
Press the +/-key

The parameter value can be changed.
6
Press the Ekey

Parameter 467 MOT 3 appears.
Selection of motor;
1 =DC1500, 2 =DC1550,
3 =DC1200, 4 =DC1250)
7
Press the +/-key

The parameter value can be changed.
8
Press the Ekey

Parameter 111 n2 appears.
(Maximum speed)
9
Press the +/-key

The parameter value can be changed.
10
Press the Ekey

Parameter 161 drE 0 appears.
(Direction of motor rotation)
11
Press the +/-key

The parameter value can be changed.
12
Press the Ekey

Parameter 270 PGm 0 appears.
(Type of position sensor)
13
Press the +/- key

The parameter value can be changed.
14
Press the Ekey

Parameter 272 trr 01000 appears.
(Transmission Ratio)
15
Press the +/-key

The parameter value can be changed.
16
If parameter 270 =0 or 5, or the check of the
transmission ratio is already done, continue with
Point 25.
17
Press the Ekey

PULY Ab620A is displayed.
Check the transmission ratio
18
Move pedal forwards
Let the drive run until ready (rdy) is displayed.
For a maximum speed that is too high, an error
message A12 is generated. Push button Eas
often as needed until parameter 111 (Point 12) is
reached again to set the permitted maximum
speed.
19
Press pedal to position 0
(neutral)
The check is complete.
20
When parameter 270 ≠ 6, continue with Point
25.
21
PoS 0 o is displayed (ois red).
(Setting the reference position)
22
Rotate the hand wheel in the running direction until oextinguishes *.
Set reference position (e.g. height of the stitch plate, lower dead point).
23
Press the Ekey

Parameter 451 P1E appears
(Position 1 leading edge,
position 1 trailing edge is
automatically set 60° higher)
24
Turn the hand wheel

Set position 1 (at least 1 rotation *).
25
Or press the +/-key

The parameter value can be changed.
26
Press the Ekey

Parameter 453 P2E appears.
(Position 2 leading edge,
position 2 trailing edge is
automatically set 60° higher)
27
Turn the hand wheel

Set position 2 (at least 1 rotation *).
28
Or press the +/-key

The parameter value can be changed.
29
Upon pressing the Ekey once more the program returns to parameter 290!
30
Press the Pkey twice

The system exits the SIR routine.
*) All operations carried out by turning the hand wheel must always be carried out in the direction of rotation set up on the
machine. Under no circumstances should you turn against the machine direction.

- AB620A5035
- 13 -
5 Quick access
These are button combinations that are linked in the direct access with settings & function of the control. Quick
access can, however, can only be used with machines that are already set up.
5.1 Parameter back up
When the machine has been completely set up, the settings should be backed up.

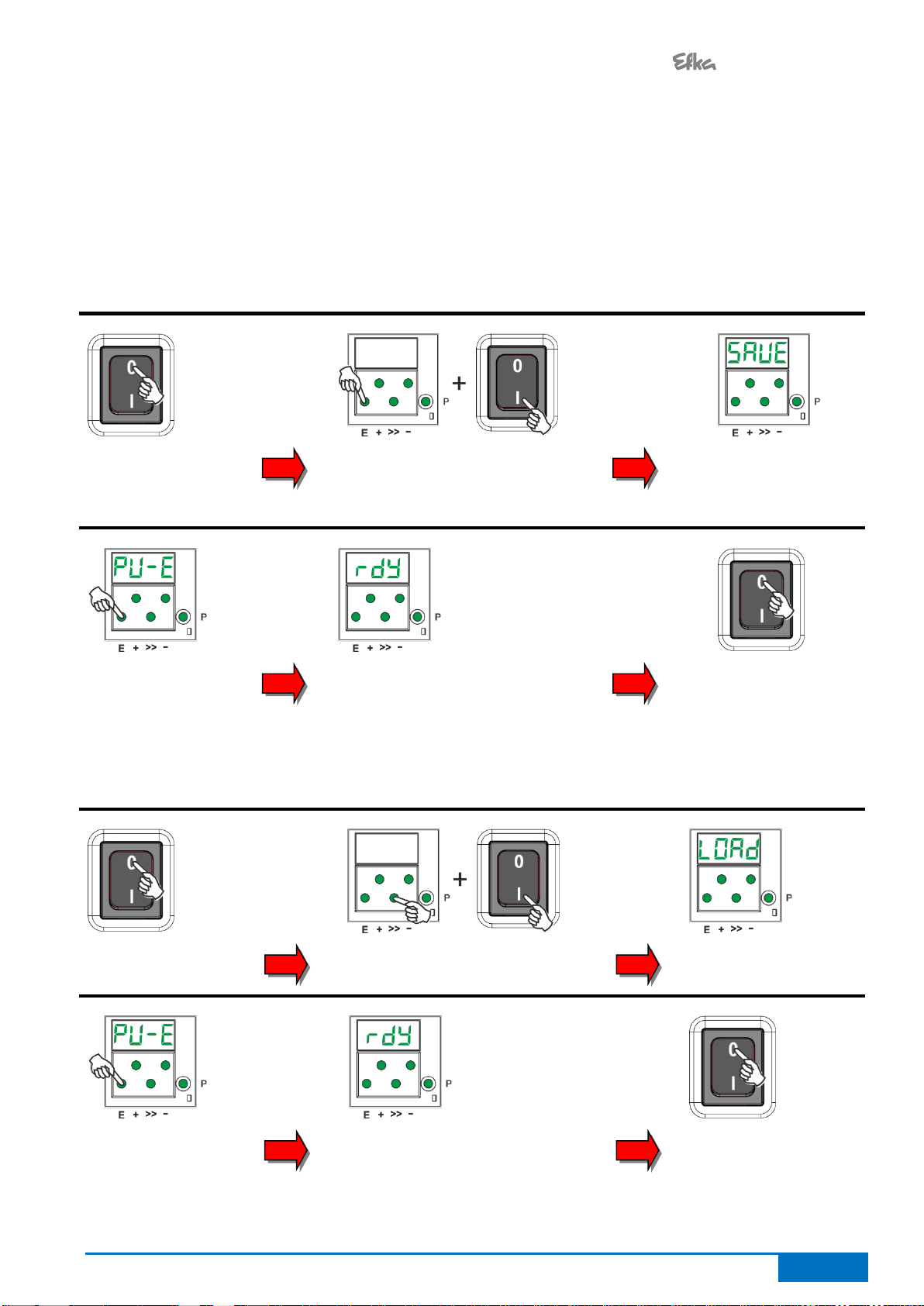

5.1.1 Parameter backup
Turning off the
controls
Hold the E button down & turn on
the controls
(Hold down the E button 5 sec after
turning on)
"SAVE" is shown
on the display
Press the E button
once, to execute the
backup process
When the process is completed,
"rdy" is displayed for 1 second
Turning off the
controls
5.1.2 Restoring parameters from the backup
Turning off the
controls
>>-Hold the button down (5 sec) &
turn on controls
"LOAD" is shown on
the display
Press the E button
once, to execute the
backup process
When the process is completed,
"rdy" is displayed for 1 second
Turning off the
controls

- AB620A5035
- 14 -
5.1.3 Save the parameter backup on a USB stick
(The parameters can be views with a text editor or Microsoft Word. The parameters in this file must not be
changed!)
Insert an empty USB
Stick
Wait until "USB" shows on the
display and press the P key

Use the +/- buttons to get to
parameter F-532. (".5.3.2" is
shown on the display)
Use the +/- buttons to
get to parameter F-
532. (".5.3.2" is shown
on the display)
Press the E button
once
Press the >> button
Press the E button
When the process is
completed, "rdy" is
displayed for 1 second
Turn off

- AB620A5035
- 15 -

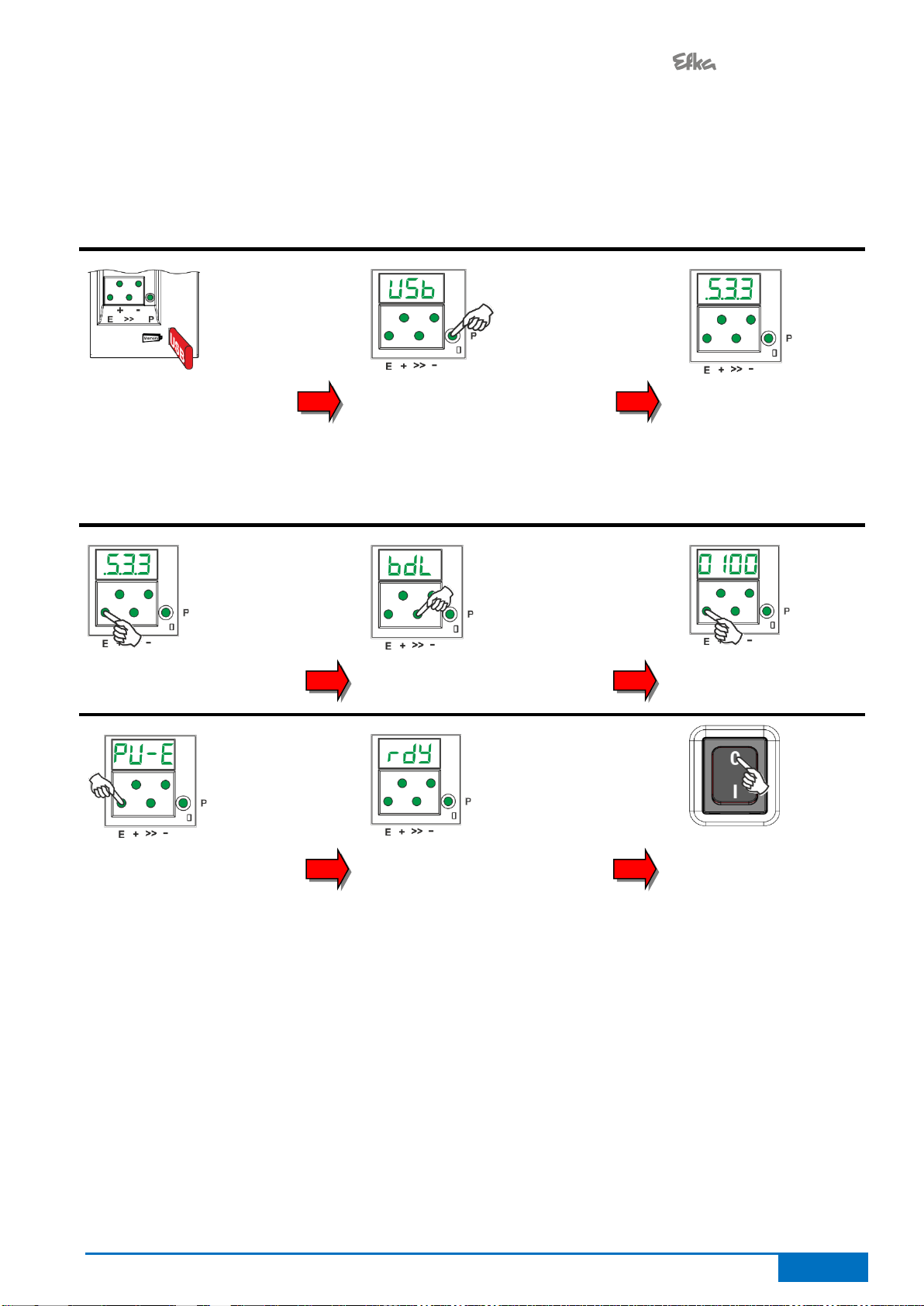

5.1.4 Restoring the parameter backup from the USB stick
This process does not change the actual parameter settings. To load the backup to the current parameter
setting, execute Chapter 5.1.2 "Restoring parameters from backup".(After this process)
Insert the USB stick with
the file "0100DATA.PAB"
Wait until "USB" shows on
the display and press the P
key
Use the +/- buttons to get to
parameter F-533. (".5.3.3"
is shown on the display)
Use the +/- buttons
to get to parameter
F-533. (".5.3.3" is
shown on the
display)
Press the E button once
Press the >> button
Press the E button
Press the E button once,
to execute the backup
process
When the process is
completed, "rdy" is
displayed for 1 second
Turn off

- AB620A5035
- 16 -

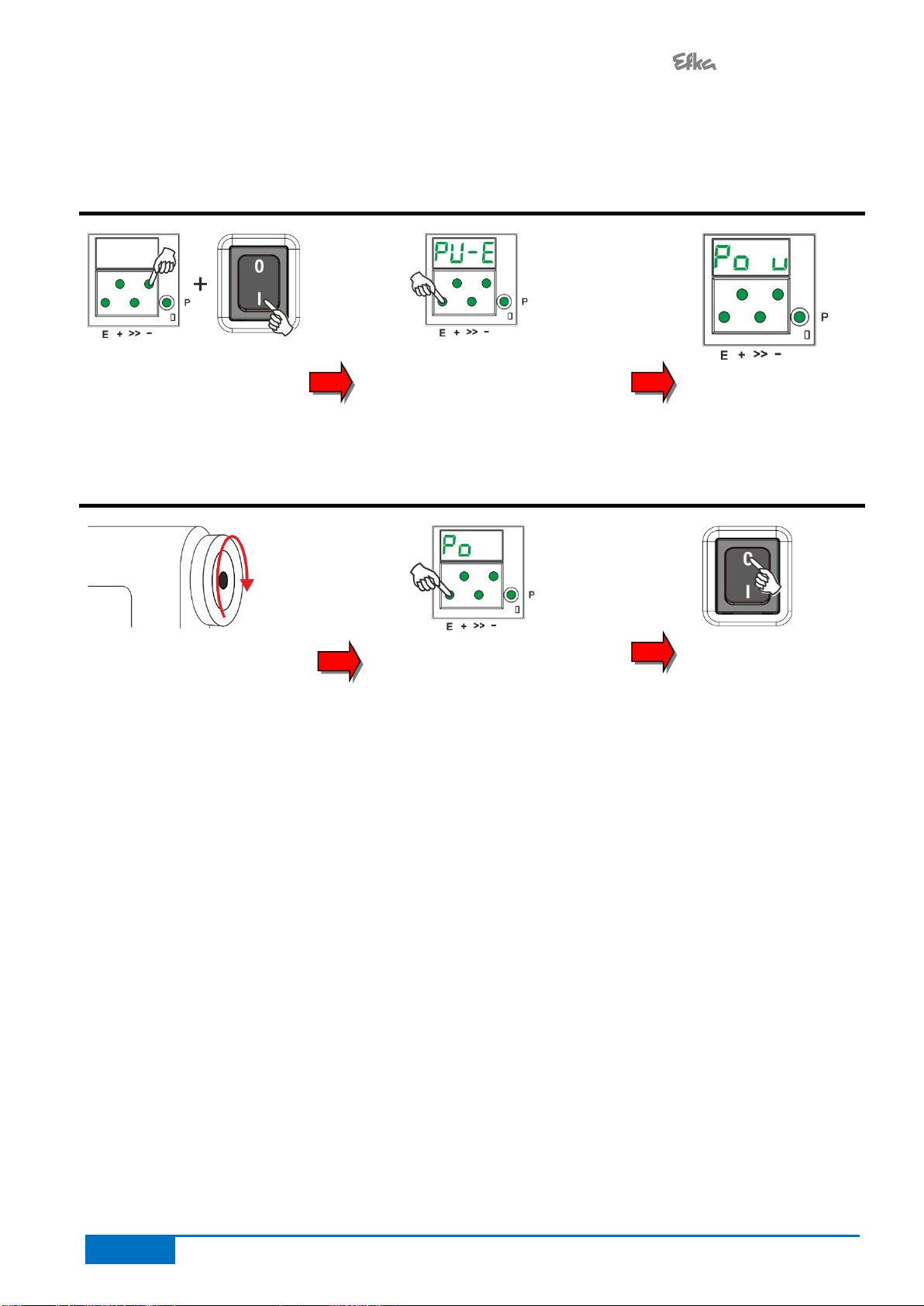

5.2 Setting the reference position
(For detailed instructions refer to Chapter 6.9.1 Setting the Reference Position (Parameter 170)
Hold down the button and
switch on the controls
(Until Pos0 show for 1
second)
Press the E button
"P0" and a rotating
"u" are displayed
Turn the handwheel until
the rotating "u" disappears
Bring the handwheel to
the zero position (needle
up / OT)
Press the E button
Turn off
Note: If the rotating "u" does not disappear after 10 rotations, change the direction of rotations.

- AB620A5035
- 17 -
6 Setting the Basic Functions
6.1 Direction of motor rotation
Function with or without control panel
Parameters
Direction of motor rotation
(drE)
161
161 =0
Clockwise motor rotation (look at the motor shaft)
161 =1
Counterclockwise motor rotation
ATTENTION
If the motor is mounted differently, e. g. at a different angle or with gear, make sure that the
value set using parameter 161 corresponds to the direction of rotation.
6.2 Use of a HSM001 Hall Sensor Module or IPG... Pulse Encoder
Representation and installation of a HSM001 Hall sensor module or IPG... pulse encoder !
Representation and installation of a HSM001 Hall sensor module or PG... pulse encoder together with a
LSM002 light barrier module by means of adapter cord no. 1113229 !
Operation with HSM001 Hall sensor module
Operation with IPG... pulse encoder

- Get machine to the needle-up position.
- Position bore for magnet such that the magnet is located
approx. 15° after the sensor in the sense of rotation.
- Get machine to the needle-up position.
- Turn disk in the pulse encoder such that the leading edge
will be located approx. 15° after the sensor on the board
in the sense of rotation.


- AB620A5035
- 18 -
6.3 Transmission Ratio
NOTE
The transmission ratio must always be input if no transmission ratio of 1:1 exists, because only motors with
integrated incremental transmitters will be used. The transmission ratio should be determined and set as
precisely as possible!
The transmission ratio between motor shaft and shaft of the sewing machine head must be input, so that the set
speeds of parameters 110...117 correspond to the sewing speeds.
Function with or without control panel
Parameters
Transmission ratio between motor shaft and machine shaft
(trr)
272
The transmission ratio can be selected within a range of 150...40000 using parameter 272.
Example: With a motor pulley diameter of 40 mm and a sewing machine head pulley diameter of
80 mm the value 500 can be calculated using the formula below.
If the value 2000 has been selected in parameter 272, it follows that the motor pulley is
double the size of the sewing machine head pulley.
Motor pulley diameter
Value of parameter 272 =
-------------------------------------------------------------------- x 1000
Machine pulley diameter
6.4 Selection of Functional Sequences (Thread Trimming Operations)
This drive is suitable for different lockstitch, chainstitch and overlock machines. The mode for the functional
sequence required on the respective machine can be selected using parameter 290.
ATTENTION
Before switching the functional sequences, you must disconnect input and output plug-and-
socket connections between control and machine. Please ensure that the functional sequence
(mode) suitable for the respective machine is selected.
Settings with parameter 290 are possible only after the power is turned On.
You will find a summary of the modes that can be set and the corresponding machines and adapter cords, to
include available output signals in the List of Parameters chapter: Table of adapter cords.
Further information see chapter "Timing Diagrams" for the various modes.
6.5 Functions of the Keys Inputs in1...in7
The function that is started when a button or switch connected to one of the inputs in1 to in7 is actuated can be
selected using parameters 240...246.
The possible functions are listed in the section "Parameter list".
6.6 Positioning speed
Function with or without control panel
Parameters
Positioning speed
(n1)
110
The positioning speed can be set using parameter 110 on the control within a range of 70...390 RPM.

- AB620A5035
- 19 -
6.7 Maximum Speed Compatible with the Sewing Machine
The maximum speed of the machine is determined by the selected pulley and by the following settings:
Set the maximum speed using parameter 111 (n2).
Set the maximum speed limitation to the specific level according to the application as described in chapter
"Direct Input of Maximum Speed Limitation (DED)".
6.8 Maximum speed
Function with or without control panel
Parameters
Maximum speed
(n2)
111
NOTE
See instruction manual of the sewing machine manufacturer for the maximum speed of the sewing machine.
NOTE
Select the pulley such that the motor runs at approx. 4000 RPM with max. number of stitches.
6.9 Positions
Function with or without control panel
Parameters
Mode for the position sensor
Setting the needle positions
Transmission ratio between motor shaft and machine shaft
(PGm)
(Sr2)
(trr)
270
171
272
A sensor can be used as a position sensor, e.g. Efka Hall sensor module (HSM1) or pulse generator (IPG) with
either NC or NO functionality.
It is connected to socket B18/7.
Parameter 270 is used to select the mode to be selected depending on the type and mounting of the sensor
used (see section Parameter List under parameter 270 for a description and flow chart).
After configuration of parameter 270 to "1, 2, 3 o 4", parameter 171 must be used to set the angle for positions 1
and/or 2, incoming and outgoing.
Alternatively, the positions can be configured using the fast-installation routine.
The transmission ratio must already have been input using parameter 272.

- AB620A5035
- 20 -
6.9.1 Setting the reference position (Parameter 170)
The angular positions necessary on the machine e.g. “needle down position“ or “thread lever up position“ are
stored in the control. A reference position is needed in order to establish a relationship between position
transmitter information and actual mechanical position.
The reference position must be set:
For initial operation
After replacing the motor
Setting the reference position on the control
Input code number and select parameter 170!
Press the E key

Display
Sr1_
Press the >> key

Display
P o u (character “o” rotating) *1
Turn hand wheel until rotating
character ogoes off on the display.

Display
P o
By turning the hand wheel, set the
needle to the bottom dead center or
the needle point to the height of the
needle plate in the direction of rotation
of the motor shaft, while needle is
moving downward.

Configuration of the zero point of the machine
Press the Pkey once

Actual parameter number 170 is displayed *2
or
Press the Pkey twice

Exit programming at the technician level.
Setting the reference position on the V810 control panel
Input code number and select parameter 170!
Press the E key

Display
[o]
Press the >> key

Display
P o u (character o rotating) *1
Turn hand wheel until rotating
character ogoes off on the display.

Display
PoS 0
Set the needle to the bottom dead
center by turning the hand wheel.

Configuration of the zero point of the machine
Press the Pkey once

Actual parameter number 170 is displayed *2
or
Press the Pkey twice

Exit programming at the technician level.
Setting the reference position on the V820 control panel
Input code number and select parameter 170!
Press the E key

Display
F-170 Sr1 [o]
Press the >> F2 *3

Display
P o u (character o rotating) *1
Turn hand wheel until rotating character
ogoes off on the display.

Display
PoS 0
Set the needle to the bottom dead
center by turning the hand wheel.

Configuration of the zero point of the machine
Press the Pkey once

Actual parameter number 170 is displayed *2
or
Press the Pkey twice

Exit programming at the technician level.
*1) If P 0 or Pos 0 is displayed, the reference position is already set. To repeat the setting the power must be switched off
and the code number reentered.
*2) The next parameter to be set can be selected.
*3) The button >>(F2) is the farthest button to the right on the control part.
If error message A3 (reference position not set) appears, repeat the above setting sequence.
